Product type	Oil radiator
Model	RAW 2000
Brand	Orbegozo
Available power levels	800 W (P1), 1200 W (P2), 2000 W (P3)
Power supply	220-240 V ~ 50/60 Hz
Number of elements	Not specified
Material	Steel and thermal oil
Thermostat	Adjustable via mobile app and remote control (included)
Timer	Up to 24 hours
Connectivity	Wi-Fi (compatible with Orbegozo APP)
Control	Touch panel, remote control, mobile app
Anti-freeze function	Not specified
Overheat protection	Yes (mentioned via warning "DO NOT COVER")
Safety distance	At least 90 cm from combustible objects, 1 m from air outlet
Recommended use	On a horizontal and stable surface
Assembly	Wheel mounting required before use
Cleaning	Unplug and wipe with a damp cloth; do not use abrasive products
Storage	In original packaging, in a cool and dry place
Repairability	Oil repairs reserved for manufacturer or authorized service
Warranty	Legal warranty according to current legislation; proof of purchase required

Frequently Asked Questions - RAW 2000 Orbegozo

How to assemble the wheels on the RAW 2000 radiator?

Place the radiator upside down on a mat. Slide the U-bolt between the last and second-to-last fin, then attach the curved bracket with wing nuts. Screw the wheels onto the bracket. Repeat between the first and second fin for the other bracket.

What power levels are available on the RAW 2000?

The RAW 2000 offers 3 levels: P1 = 800 W, P2 = 1200 W, P3 = 2000 W. Select them with the MODE button.

How to connect the radiator to the Orbegozo APP?

Install the app, create an account, enable Wi-Fi on your phone, then on the radiator hold the TIMER button until the Wi-Fi symbol flashes. In the APP, select 'Add device' and follow the instructions.

How to set the shutdown timer up to 24 hours?

Use the TIMER button on the radiator, the remote control, or the app to select the desired duration (from 1 to 24 hours). The radiator will automatically turn off at the end of the time.

What safety distances should be observed around the radiator?

Maintain a distance of at least 90 cm from any combustible object (furniture, curtains, bedding) and at least 1 m from the air outlet. Do not place the radiator directly under a power socket.

Can the radiator be used in a bathroom?

Do not use in the immediate vicinity of a bathtub, shower, or swimming pool. The appliance must be installed so that controls cannot be touched by a person in the water.

How to clean the RAW 2000 oil radiator?

Always unplug the appliance. Clean the exterior with a damp cloth, then dry with a soft cloth. Do not use wax, polish, or abrasive products.

What to do in case of oil leakage from the radiator?

Do not open the radiator. Contact the manufacturer or authorized service. The amount of oil is exact, and repairs requiring opening must be done by a professional.

How to store the radiator at the end of the season?

Clean it, disassemble the wheels if desired, then put it back in its original box. Store it in a cool, dry place away from dust.

What is the procedure for claiming the warranty?

Keep the proof of purchase. To find the nearest authorized technical service, go to https://orbegozo.com/asistencia-tecnica/. If in doubt, contact support via https://orbegozo.com/contacto/.

USER MANUAL RAW 2000 Orbegozo

White portable air conditioner unit with black wheels and a red handle (no visible text or symbols)

RAW Series

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Side view of a white cylindrical device with vertical metal racks and wheels (no visible text or symbols)

PUESTA EN FUNCIONAMIENTO DEL RADIADOR

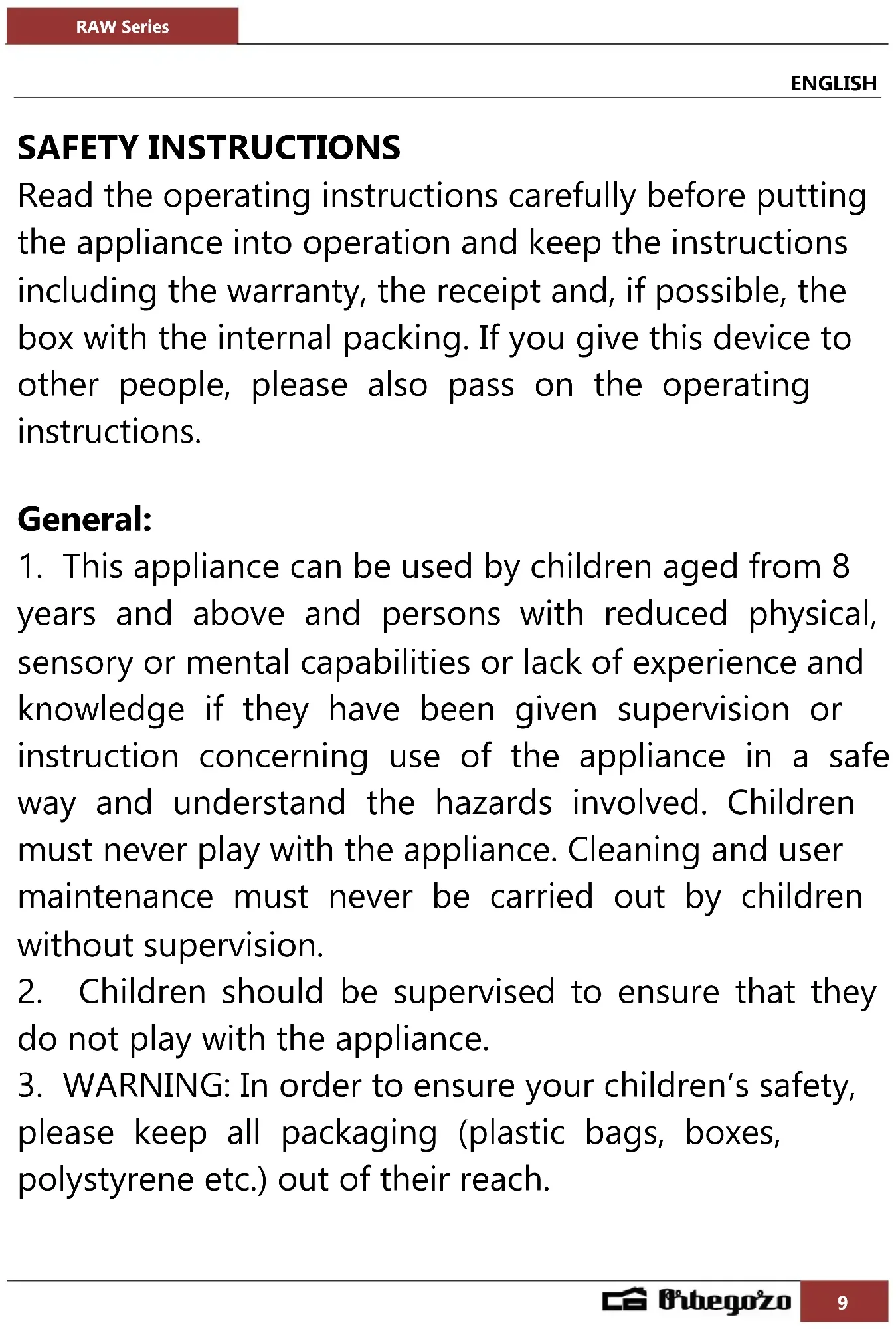

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

4. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.

5. Never pull on the cord when unplugging.

6. Do not use the unit with a damaged cord or plug, or if it is not working properly.

7. Do not handle the appliance with wet hands.

8. Never immerse the appliance in water or any other liquid.

9. Make sure the appliance has been unplugged before cleaning.

10. This appliance must be installed following the national regulations for electrical installations.

11. This appliance is for household use only.

12. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

13. WARNING: In case of misuse, there is a risk of possible injury.

Specific:

1. The meaning of figure ☑ in marking is "DO NOT COVER". WARNING: In order to avoid overheating, do not cover the heater.

2. Children of less than 3 years should be kept away unless continuously supervised.

3. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

4. CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

5. The device should not be placed immediately below a socket base.

6. Do not place a heater in use near curtains, furniture, wood panelling or combustible material which can deteriorate with heat.

7. Do not use this heater in the immediate vicinity of a bath, shower or pool.

8. This radiator is filled with an exact amount of special oil. Repairs that require opening the container of oil should only be undertaken by the manufacturer or its authorized service, which should be notified if your radiator is leaking oil.

9. Regulations concerning the disposal of the oil when scraping the appliance have to be followed.

10. Always disconnect the heater from the main supply when not in use and when cleaning.
11. Keep the heater a distance of at least 90cm from any combustible material such us furniture, curtains, bedding, cloths or papers.
12. Do not attempt to open any part of the oil fins.
13. Keep the heater clean. Do not allow objects to enter the ventilation, as this may cause electric shock, fire or damage the heater.
14. Do not use this heater if it has been dropped.
15. Do not use if there are visible signs of damage to the heater.
16. Use this heating appliance on a horizontal and stable surface, or if possible fix it to a wall.
17. WARNING: Do not use this heater in rooms that are occupied by persons who cannot leave the room by themselves, unless permanent surveillance is provided.
18. WARNING: To reduce the risk of fire, keep textiles, curtains, or other flammable material at least 1m away from the air outlet.

The pictures in this manual are only for your reference. The product you purchased may vary thereof.

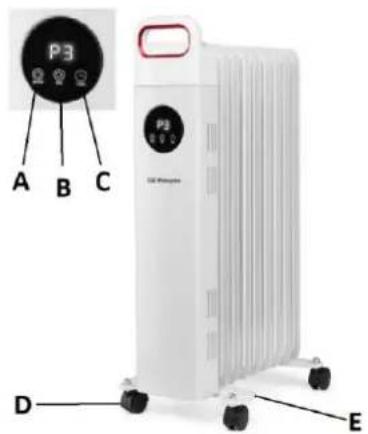

PARTS DESCRIPTION

A. ON / OFF
B. Power selector
C. Timer
D. Wheels
E. Supports

ASSEMBLY OF THE RAW SERIES

The oil radiator is packed with the wheels not assembled. Please make sure that they are right assembled before turning the device on. Remove the heater and all the accessories from the carton.

1- Turn the radiator upside down carefully and place it over a carpet or any other soft surface in order not to damage the unit.
2- Pass the "U bolt" in between the last and next-to-last fin and make it fit the holes of the curved support. Screw the U bolt to the curved support with the help of the wing nuts. Then, screw the wheels to the support. See picture below.
3- Repeat step 2 in between the first and the second fin, using the curved support.
4- Turn the heater the right way up. The unit should be as shown in the picture in "parts description" section.

NOTA: Depending on the model, it can incorporate one of the curved supports or even both. In case of having a curved support, this would be installed in the front part of the radiator.

Exterior view of a white portable heater with multiple wheels and a side panel (no text or symbols visible)

STARTING THE RADIATOR

Place the radiator on the floor at least 1 m away from the wall or other objects such as furniture, curtains or plants (make sure the power supply socket you are going to use meets the requirements specified on the radiator data plate).

Connect the radiator to the main socket.

SWITCHING ON AND POWER SELECTION

1. Select the power of the radiators by pressing the MODE button:

	P1	P2	P3
RAW 2000	800W	1200W	2000W
RAW 2500	1000W	1500W	2500W

1. You can view the room temperature only through the mobile application.

2. The display will show the temperature selected either from the application or from the remote.

3. You can select a shutdown timer of up to 24 hours, both in the radiator and in the APP and remote control.

WIFI CONECTION – Orbegozo APP

1. Install the "Orbegozo APP" application. Create a user account.

2. Activate the WIFI function on your mobile and connect to the wireless network.

3. On the radiator, keep the TIMER key pressed until the Wi-Fi symbol appears blinking.

4. Enter the app and select "Add device".

5. Select the device from the list or let the app detect the radiator itself.

6. The application will be linked to the device and you can control it from your mobile.

USE OF THE APP

From the APP you can:

- Change the temperature

- View room temperature (under selected temperature)

- Change the power (P1, P2 and P3)

- Select the sleep timer

- Turn off the display light

- In the Intelligence section you can freely program the behavior of the radiator at the time you want.

STORING YOUR OIL RADIATOR

- Save the box for off season storage.

- Clean the heater following the cleaning instructions above.

- Remove the wheel base assemblies.

- Place the radiator, and wheel assemblies in the original box, and store in a cool and dry place.

- If you choose to store your heater fully assembled, be sure to cover it to protect it from dust.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
