Product type	Electric radiant heater
Brand	Orbegozo
Model	BP 5000 A
Power supply	220-240 V ~ 50/60 Hz
Maximum power	1000 W (combination 400 W + 800 W)
Nominal power	800 W
Minimum power	400 W
Standby consumption	0 W
Control type	Manual, two power levels
Heating elements	Quartz
Safety	Automatic safety switch, overheat protection, protective grille
Installation	On a stable horizontal surface, away from curtains and combustible materials (distance ≥ 1 m)
Usage	Household use only, in well-insulated rooms
Cleaning	Soft damp cloth, mild detergent; do not touch the heating elements
Warranty	Legal warranty according to applicable legislation (see conditions on the Orbegozo website)
After-sales service	https://orbegozo.com/asistencia-tecnica/
Disposal	Do not dispose of with household waste, follow the WEEE directive 2012/19/EU

Frequently Asked Questions - BP 5000 A Orbegozo

How to adjust the heating power on the BP 5000 A?

The device has two buttons: one for 400 W, the other for 800 W. To obtain 1000 W, press both simultaneously. Set the switch to 0 to turn off.

Can I use the heater in a bathroom?

No, do not use it in the immediate vicinity of a bath, shower or swimming pool. The device is not designed for humid rooms.

What to do if the device does not heat?

Check that the plug is properly connected and that the safety switch at the bottom is in the 'ON' position. If the problem persists, contact the authorized technical service.

How to clean the BP 5000 A heater?

Unplug the device and wait for it to cool down. Use a soft damp cloth with a mild detergent. Do not use abrasive products and do not touch the quartz heating elements.

Is it normal for the front grille to become very hot?

Yes, the front grille heats up during operation. Do not touch it and keep children and pets away. The device cools down gradually after being turned off.

Can I leave the device on overnight unattended?

No, never leave the device unattended and do not use it in a room where persons cannot leave on their own, unless constant supervision is provided.

The device makes a slight noise, is this normal?

A slight noise may be normal during material expansion. If the noise is loud or unusual, unplug the device and contact the technical service.

Where can I find after-sales service for my Orbegozo BP 5000 A?

Visit https://orbegozo.com/asistencia-tecnica/ to find the nearest service or contact via https://orbegozo.com/contacto/.

How to properly dispose of the device at end of life?

Do not throw it away with household waste. In accordance with the WEEE directive 2012/19/EU, deposit it at a selective collection point for recycling.

Can I use an extension cord with the heater?

Yes, but use a three-conductor extension cord with grounding and make sure it supports the power of the device (max 1000 W).

USER MANUAL BP 5000 A Orbegozo

White portable flat-screen heater with heat sink and control buttons (no visible text or symbols)

BP 5000 A

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

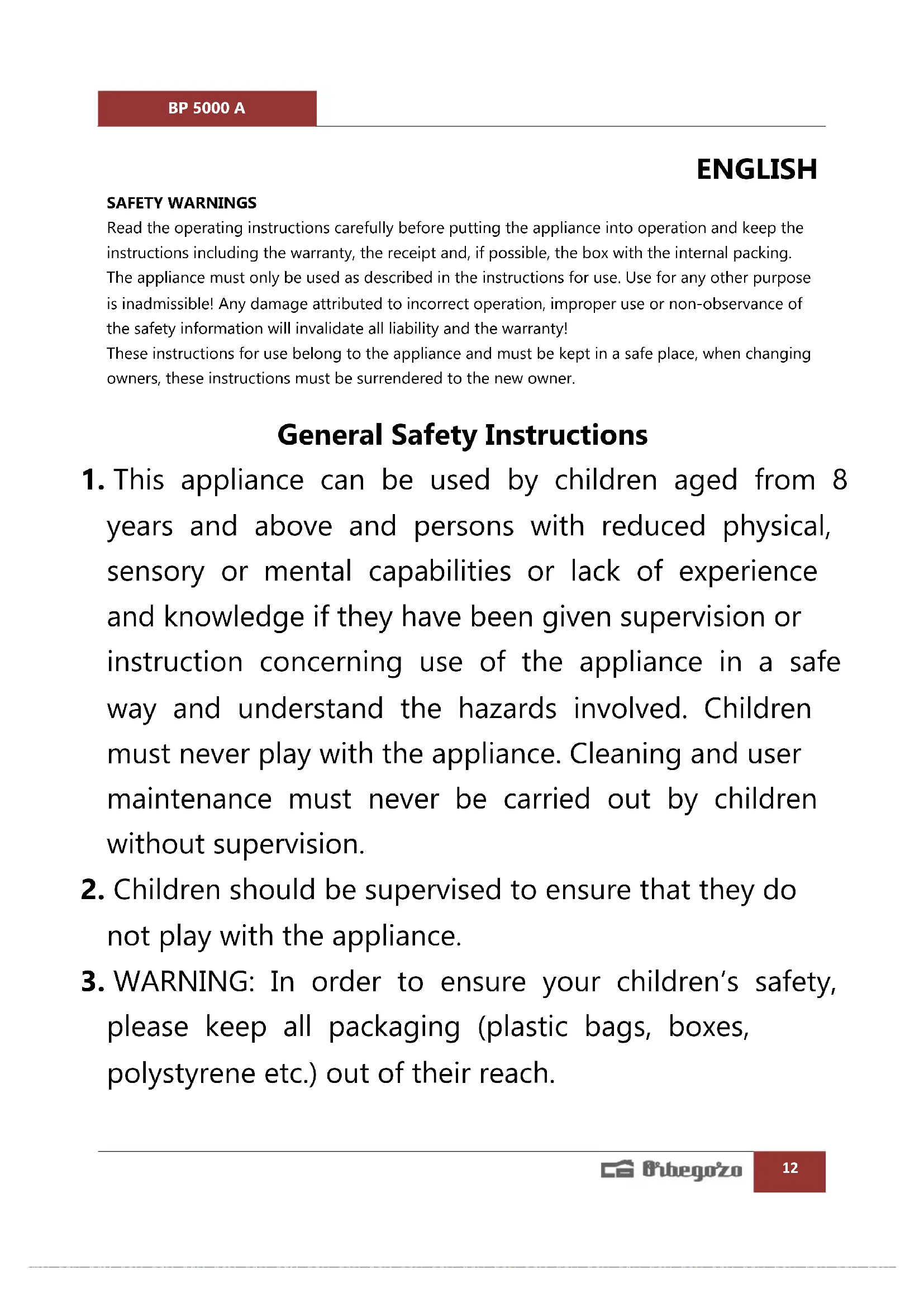

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

The appliance must only be used as described in the instructions for use. Use for any other purpose is inadmissible! Any damage attributed to incorrect operation, improper use or non-observance of the safety information will invalidate all liability and the warranty!

These instructions for use belong to the appliance and must be kept in a safe place, when changing owners, these instructions must be surrendered to the new owner.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.

3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

4. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid a hazard.

5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.
12. In case that you need a copy of the instruction manual, you can find it in our website: www.orbegozo.com
13. WARNING: In case of misuse, there is a risk of possible injury.

Special Safety Instructions

WARNING: DO NOT COVER. In order to avoid overheating, do not cover the heater.

- Children of less than 3 years should be kept away unless continuously supervised. - Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• The device should not be placed immediately below a socket base.

• Do not place a heater in use near curtains, furniture, wood paneling or combustible material which can deteriorate with heat.

• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

• Do not use this heater in the immediate vicinity of a bath, shower or pool.
• WARNING: This heater is not equipped with a room temperature control. Do not use this heater in small rooms that are occupied by people who cannot leave the room by themselves, unless you provide surveillance.
• Check if the voltage indicated on the bottom of the appliance corresponds to the local mains voltage before you connect the appliance.
• The appliance must be connected to an earthed mains outlet. If you wish to use an extension cord, a 3-wire type is suitable.
• Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard!

• Important! Do not insert any object into the appliance openings! Risk of injury (electric shock) and damage to the appliance!

• Attention! The front grille becomes very hot when the appliance is in use. Place the appliance so that is cannot be touched by accident! Risk of burns! The appliance will cool down gradually after being switched off.

• Keep the mains cord at a safe distance from the air inlet and outlet grills. Do not wind the cord around the appliance and do not bend it.
  • Always unplugged the heater after use.
• The socket-outlet must be accessible at all times to enable the mains plug to be disconnected as quickly as possible.
• Do not attempt to move the heater while in use.
• Allow to pursue the device not unsupervised and do not leave the house if you use the device.
• Protection of this heater is designed to prevent direct access to the heating elements and should be positioned in place when in use. This protection does not guarantee full protection for children or disabled persons.
• Do not use the heater on extremely deep-pile carpets!

• Do not use the heater in an upright position.

• There is tip over switch on the base. When the heater tips over, the electricity will be turned off automatically.

• WARNING: do not use the product after a short circuit.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.
• Use this heating appliance on a horizontal and stable surface, or if possible fix it to a wall.
• WARNING: Do not use this heater in rooms that are occupied by persons who cannot leave the room by themselves, unless permanent surveillance is provided.
• WARNING: To reduce the risk of fire, keep textiles, curtains, or other flammable material at least 1m away from the air outlet.

OPERATION

• Before plugging into the socket, be sure both switches are in the OFF position.
• Plug the device and select 400W by pressing the lower or upper switch respectively. For full power 800W, please press both lower and upper switches. When finished using it, place the switch in position OFF and disconnect from the network.
• If the heater is not in use and you want to store it, wait until the heater is cool. Then, store it.

CLEANING AND MAINTENANCE

• This appliance does not require any particular maintenance. Before undertaking any maintenance operation, disconnect the appliance from the power supply.
• For cleaning it is recommended to use a soft moist rag and neutral detergent. Do not use an abrasive cloth or devices which could affect the outward appearance of the appliance. Check that the parts exposed to the heat rays and the ventilation are free of dust and dirt.
  – During cleaning, be careful not to touch the quartz heating elements.
• Store in a cool dry place when not in use.

This product is only suitable for well insulated spaces or occasional use

Model identifier(s): BP 5000
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	0,8	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	0,4	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	0,8	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	eISB	0	kW	Two or more manual stages, no room temperature control	Yes
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	SONIFER S.A. Avenida de Santiago 86, 30007, Murcia. Spain.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the

environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. (Check the legal conditions on our website).
