CV 1300 - Heating Orbegozo - Free user manual and instructions

Product type	Electric oil radiator
Model	CV 1300
Brand	Orbegozo
Nominal thermal power	1.8 - 2.0 kW
Minimum thermal power	0.7 kW
Maximum continuous power	2.0 kW
Power settings	750 W / 1250 W / 2000 W (via 2 switches)
Power supply	220-240 V ~ 50/60 Hz
Thermostat	Yes, mechanical adjustment with automatic shut-off
Indicator light	The switches light up when the elements are active
Safety	Overheat protection, do not cover, safety distance 1 m from flammable materials
Mounting	Feet provided for screwing, floor use only
Cable length	Approximately 1.5 m
Material	Painted steel
Cleaning	Damp cloth, then dry; do not use abrasive products
Storage	In a dry place, away from dust
Weight	Approximately 10 kg
Dimensions (L x W x H)	Approximately 40 x 15 x 60 cm
Use	Indoor, well-insulated rooms or occasional use
Warranty	Legal warranty in accordance with current legislation
Standards	Low Voltage Directive 2014/35/EU and EMC 2014/30/EU
After-sales service	https://orbegozo.com/asistencia-tecnica/

Frequently Asked Questions - CV 1300 Orbegozo

How to assemble the feet of the Orbegozo CV 1300 radiator?

Carefully turn the appliance over. Attach the two feet using the four screws provided, making sure to place them in the lateral hollow parts at the bottom of the radiator. Use the small screws to fix the upper supports.

What power settings are available?

The radiator has two switches to select 750 W, 1250 W or 2000 W (both on). The switches light up when the heating elements are active.

How to adjust the thermostat?

Turn the thermostat knob clockwise to maximum to heat. When the desired temperature is reached, turn gently counterclockwise until you hear a 'click': the radiator turns off and maintains the temperature automatically.

The radiator emits an odor or smoke during first use, is this normal?

Yes, a slight odor and smoke may appear during first use or after a long period of inactivity. This disappears after a few minutes of operation.

How to clean the radiator?

Unplug the appliance and let it cool. Clean the exterior with a damp cloth, then dry with a dry cloth. Do not use cleaning or abrasive products and avoid water entering the interior.

What are the important safety precautions?

Never cover the appliance (symbol 'DO NOT COVER'). Keep a distance of at least 1 m from curtains, furniture and other flammable materials. Do not place the appliance under a power outlet. Supervise children and vulnerable persons.

Can I use the radiator in a bathroom?

Do not use this appliance in the immediate vicinity of a bathtub, shower or swimming pool. It is designed for indoor domestic use in well-insulated rooms.

What to do if the power cord is damaged?

Contact an authorized technical service to replace the cord to avoid any danger. Never use the appliance with a damaged cord or plug.

How to store the radiator in summer?

Unplug it, let it cool, clean it and store it in a dry place away from dust. If possible, keep the original packaging.

Where to find after-sales service?

Orbegozo after-sales service is accessible via https://orbegozo.com/asistencia-tecnica/ or by email from the contact page. Keep the purchase receipt for warranty.

USER MANUAL CV 1300 Orbegozo

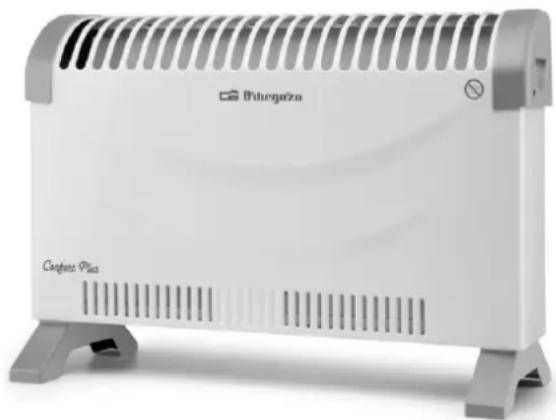

Exterior view of a white electric heater with ventilation grilles and a gray base (no text or symbols visible)

CV 2300 B

Exterior view of a white portable electric heater with ventilation grilles and control legs (no visible text or symbols)

CV 1300

SONIFER, S.A.

Read these instructions fully before using the heater. Retain these instructions for future reference.

This product is only suitable for well insulated spaces or occasional use.

Technical line drawing of a mechanical clamp or bracket with a screwdriver inserted (no text or symbols)

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

General

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

5. Never pull on the cord when unplugging.

6. Do not use the unit with a damaged cord or plug, or if it is not working properly.

7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.
12. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com
13. WARNING: In case of misuse, there is a risk of possible injury.

Specific

WARNING: The meaning of this figure is "Do not cover". In order to avoid overheating, do not cover the heater.

- Children under 3 years of age should be kept out of reach of the appliance unless they are continuously supervised.

- Children from 3 years and under 8 years of age should only turn the appliance on/off provided that it has been placed or installed in its intended normal operating position and that they are supervised or have received instructions regarding the use of the appliance in a safe manner. and understand the risks that the device has. Children from 3 years and under 8 years of age must not plug in, regulate and clean the appliance or carry out maintenance operations.

• CAUTION: Some parts of this appliance can get very hot and cause burns. Particular attention should be paid when children and vulnerable people are present.
• The appliance must not be placed immediately below a power socket.
• Do not place the appliance close to walls, furniture, scrims, curtains, bedding and other flammable materials as there is a risk of fire.
• Do not use this heater in the immediate vicinity of a bathtub, shower or swimming pool.
• Always unplug the radiator from the mains when not in use or when cleaning.
• Keep the appliance clean. Do not insert objects into the ventilation slots, as this may cause electric shock, fire or damage to the heater.

• Do not use this heater if it has been dropped.

• Do not use if there are visible signs of damage to the heating appliance.

• Use this heater on a horizontal and stable surface, or fix it to the wall as applicable.
• WARNING: Do not use this heater in small rooms that are occupied by persons who cannot leave the room themselves, unless permanent supervision is provided.
• WARNING: To reduce the risk of fire, keep textiles, curtains, or other flammable material at a minimum distance of 1 m from the air outlet.

ASSEMBLY OF THE HEATER

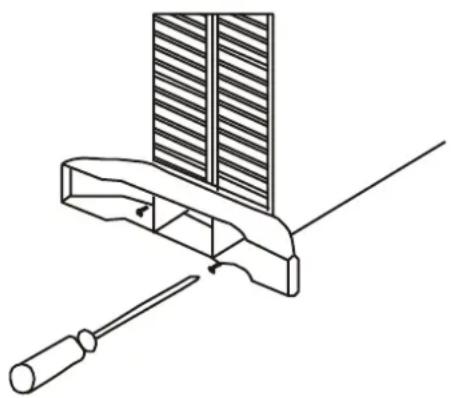

Fitting the feet:

• Carefully turn the unit upside down.
• Use 4 screws for feet to fix the 2 feet onto the heater.
• Take care to ensure that they are located correctly in the bottom ends of the heater side mouldings.

Technical line drawing of a mechanical clamp or bracket with a screwdriver inserted (no text or symbols)

- Use 2 plastic wall plugs and 2 screws (long one) to fix the below left and right brackets onto the Wall.

NOTE: It is normal when the heaters are turned on for the first time or when they are turned on after having not been used for a long period of time the heaters may emit some smell and fumes. This will disappear when the heater has been on a short while.

- Choose a suitable location for the heater, taking into account the safety instructions above.

- Insert the plug of the heater into a suitable socket.

- Turn THERMOSTAT KNOB fully in a clockwise direction to the maximum setting.

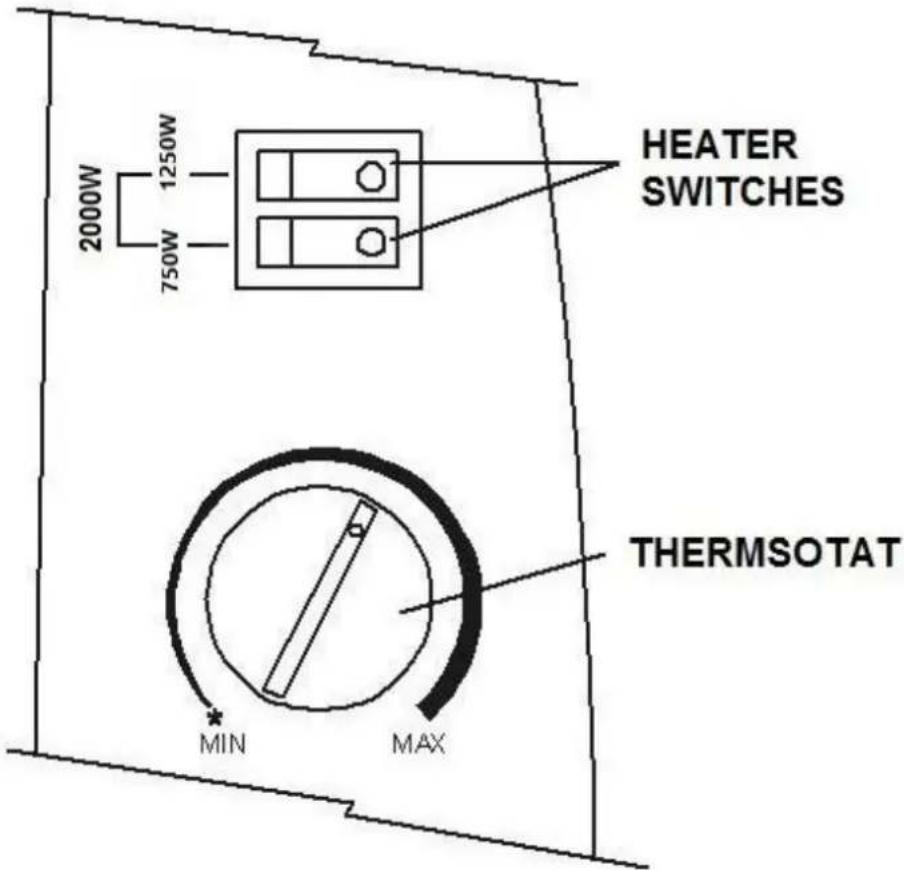

- Turn on the heating elements by means of HEATER SWITCHES on the side panel. When the heating elements are on the switches will illuminate. For maximum heat output both switches should be on.

- When the desired room temperature has been reached, the thermostat knob should be turned slowly anti-clockwise until the thermostat is heard to click off and the lights on the element switches are seen to go out. After this the heater will keep the air temperature in the room at the set temperature by switching on and off automatically.

CLEANING THE HEATER

■ Always un-plug the heater from the wall socket and allow it to cool down before cleaning.
■ Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth.
- Do not use any detergents or abrasives and do not allow any water to enter the heater.

STORING THE HEATER

- When the heater is not used for long periods of time it should be protected from dust and stored in a clean dry place.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation,

that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

CV 2300 B, CV 1300

Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.8-2.0	kW		manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	P_min	0.75	kW		manual heat charge control with room and/or outdoor temperature feedback。	[no]
Maximum continuous heat output	P_max c	2,0	kW		electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption					fan assisted heat output	[no]
At nominal heat output	el_max	0	kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0	kW		single stage heat output and no room temperature control	[no]
In standby mode	el_SB	0	kW		Two or more manual stages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[yes]
					with electronic room temperature control	[no]
					electronic room temperature control plus day timer	[no]
					electronic room temperature control plus week timer	[no]
					Other control options (multiple selections possible)
					room temperature control, with presence detection	[no]
					room temperature control, with open window detection	[no]
					with distance control option	[no]
					with adaptive start control	[no]
					with working time limitation	[no]
					with black bulb sensor	[no]
Contact details info				SONIFER SA. Avenida de Santiago 86, 30007, Murcia. Spain.
