USER MANUAL Beercave Klarstein

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENT Safety Instructions 18 Installation Notes 21 Control Panel and Operation 22 Troubleshooting 23 Product Data Sheet 24 Product Data Sheet 26 Disposal Considerations 28 Manufacturer & Importer (UK) 28 TECHNICAL DATA Item number 10041341_10041342 Power supply 220-240 V ~ 50/60 Hz18

• Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in order to avoid a hazard.

• It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

• To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.

• It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

• When positioning the appliance, ensure that there is at least a 5 cm clearance at the sides and a 10 cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.

• Do not place hot food or drink into the refrigerator before it cools down to room temperature.

• Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

• Keep appliance away from any heat source or direct sunlight.

• To x stably, the appliance must be placed on a at and solid surface. It should not be laid on any soft material.

• Do not place any other appliance on top of the refrigerator, and do not wet it.

• Do not store something like ether, methanol, gasoline, which is easy to evaporate burn or explode.

• Do not use outdoors or in wet conditions.

• Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

• Keep the cord away from heated surfaces.

• This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

• Connect your refrigerator to an independent electrical socket and use a safe ground wire.

• Defrost the freezer at least once a month because too much frost may aect refrigeration.

• Turn on electricity only 5 minutes later after electricity goes o. Otherwise, the compressor may be damaged.19

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is ammable, it does not damage the ozone layer and does not increase the greenhouse eect. The use of this coolant has,however,led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor,you might be able to hear the coolant owing around the system. This is unavoidable,and does not have any adverse eect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes. Special Notes

• Children between the ages of 3 and 8 are allowed to ll refrigerators with food and remove food.

• When positioning the unit, make sure that the power cord is not pinched or damaged.

• Make sure that there are no multiple sockets or power supplies on the back of the unit. To avoid contamination of food, please follow the instructions below:

• A prolonged opening of the door can lead to a signicant rise in temperature in the compartments of the appliance.

• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.

• Store raw meat and sh in suitable containers in the refrigerator so that meat and sh do not come into contact with or drip on other foods. WARNING When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible res. There are ammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of re during use, maintenance and disposal. Notes on correct use

• This device is intended exclusively for the storage of drinks.

• This appliance is not intended for use as a built-in appliance unless explicitly mentioned in the instructions.

• This appliance is not suitable for freezing food.

• The shelves have been installed in advance to allow the most ecient use of energy.20

• The shelves have been pre-set to allow the most ecient use of energy.

• Use only the shelves provided by the manufacturer.

• Never block the holes in the shelves and do not use any other types of shelves that have not been approved by the manufacturer, which may cause poor cooling or increase energy consumption.

• We recommend that you use the shelves as shown so that the energy is used as eciently as possible. Notes on ambient temperature Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit‘s nameplate. SN Low This cooling unit is designed for use at ambient temperatures of 10-32 °C. N Moderate This cooling unit is intended for use at ambient temperatures of 16-32 °C. ST Subtropical This cooling unit is intended for use at ambient temperatures of 16-38 °C. T Tropical This cooling unit is intended for use at ambient temperatures of 16-43 °C.21

INSTALLATION NOTES It is important that you leave your device upright for at least 4 hours before switching it on to allow the cooling system to adjust.

• When you move the unit, do not tilt it more than 45 degrees. Do not apply force to parts such as the condenser, door or handle. They can distort and interfere with the operation of the cooler. Make sure ALL packaging is removed before installation.

• Make sure there is enough space around the product to allow air to circulate freely.

• Do not place the product near heat sources, in direct sunlight or in humid rooms.

• Make sure that the supply voltage of the power outlet corresponds to the voltage indicated on the type plate.

• Insert the plug rmly into the socket.

• The socket outlet must be earthed. Do not plug the plug into unearthed sockets and do not use an extension cable.

• The product is equipped with adjustable feet. Once the product is in place, adjust them so that the refrigerator is level and does not slip. Note: Do not place the product in places where the ambient temperature can fall below 5 °C, e.g. in the garage or shed. Space requirements

• Position the unit so that there is sucient space to open the door.

• Make sure that the air can circulate freely at the back of the housing, which is necessary for cooling the compressor and condenser. Leave at least 100 mm clearance at the back of the unit and 50 mm clearance at the sides.22

• Press and hold the key to turn the unit on and o.

• Press and hold and [+] simultaneously to lock and unlock the control panel.

• Press the light button to turn the interior light on and o.

• The display shows the temperature.

• Pressing the [+] key increases the set temperature by 1 °C (1 °F) with each press.

• Pressing the [-] key decreases the set temperature by 1 °C (1 °F) for each press.

• Press and hold and [-] simultaneously to change the temperature from to Fahrenheit to Celsius (or vice versa).23

TROUBLESHOOTING Problem Possible Cause and Suggested Solution Wine cellar does not operate. Not plugged in. The appliance is turned o. The circuit breaker tripped or the fuse is broken. Wine cellar is not cold enough. Check the temperature control setting. External environment may require a higher setting. The door is opened too often. The door is not closed completely. The door gasket does not seal properly. The light does not work. Not plugged in. The circuit breaker tripped or a blown fuse. The bulb is out of order. The light button is “OFF”. Turns on and o frequently. The room temperature is hotter than normal. A large amount of contents has been added to the Wine cellar. The door is opened too often. The door is not closed completely. The temperature control is not set correctly. The door gasket does not seal properly. Vibrations. Check to assure that the Wine cellar is level. The Wine cellar seems to make too much noise. The rattling noise may come from the ow of the refrigerant, which is normal. As each cycle ends, you may hear gurgling sounds caused by the ow of refrigerant in your Wine cellar. Contraction and expansion of the inside walls may cause popping and crackling noises. The Wine cellar is not level. The door will not close properly. The Wine cellar is not level. The door was reversed and not properly installed. The gasket is faulty (magnet or rubber is spoiled). The shelves are out of position.PRODUCT DATA SHEET Information according to Regulation (EU) No. 2019/2016 Supplier's name or trademark: Klarstein Supplier's address: Wallstraße 16, 10179 Berlin, DE Model identier: 10041341 Type of refrigerating appliance: Low-noise appliance: No Design type: freestanding Wine storage appliance: No Other refrigerating appliance: Yes General product parameters: Parameter Value Parameter Value Overall dimensions (mm) Height 685 Total volume (dm³ or L) 70Width 430 Depth 475 EEI 125 Energy eciency class F Airborne acoustical noise emissions (dB(A) re 1 pW)

Annual energy consumption (kWh/a) 100 Climate class: temperate Minimum ambient temperature (°C), for which the refrigerating appliance is suitable

Maximum ambient temperature (ºC), for which the refrigerating appliance is suitable

For 4-star compartments Fast freeze facility No Light source parameters: Type of light source - Energy eciency class - Minimum duration of the guarantee oered by the manufacturer: 24 months Additional information: Weblink to the manufacturer‘s website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.ukPRODUCT DATA SHEET Information according to Regulation (EU) No. 2019/2016 Supplier's name or trademark: Klarstein Supplier's address: Wallstraße 16, 10179 Berlin, DE Model identier: 10041342 Type of refrigerating appliance: Low-noise appliance: No Design type: freestanding Wine storage appliance: No Other refrigerating appliance: Yes General product parameters: Parameter Value Parameter Value Overall dimensions (mm) Height 850 Total volume (dm³ or L) 115Width 540 Depth 548 EEI 125 Energy eciency class F Airborne acoustical noise emissions (dB(A) re 1 pW)

Annual energy consumption (kWh/a) 104 Climate class: temperate Minimum ambient temperature (°C), for which the refrigerating appliance is suitable

Maximum ambient temperature (ºC), for which the refrigerating appliance is suitable

For 4-star compartments Fast freeze facility No Light source parameters: Type of light source - Energy eciency class - Minimum duration of the guarantee oered by the manufacturer: 24 months Additional information: Weblink to the manufacturer‘s website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk28

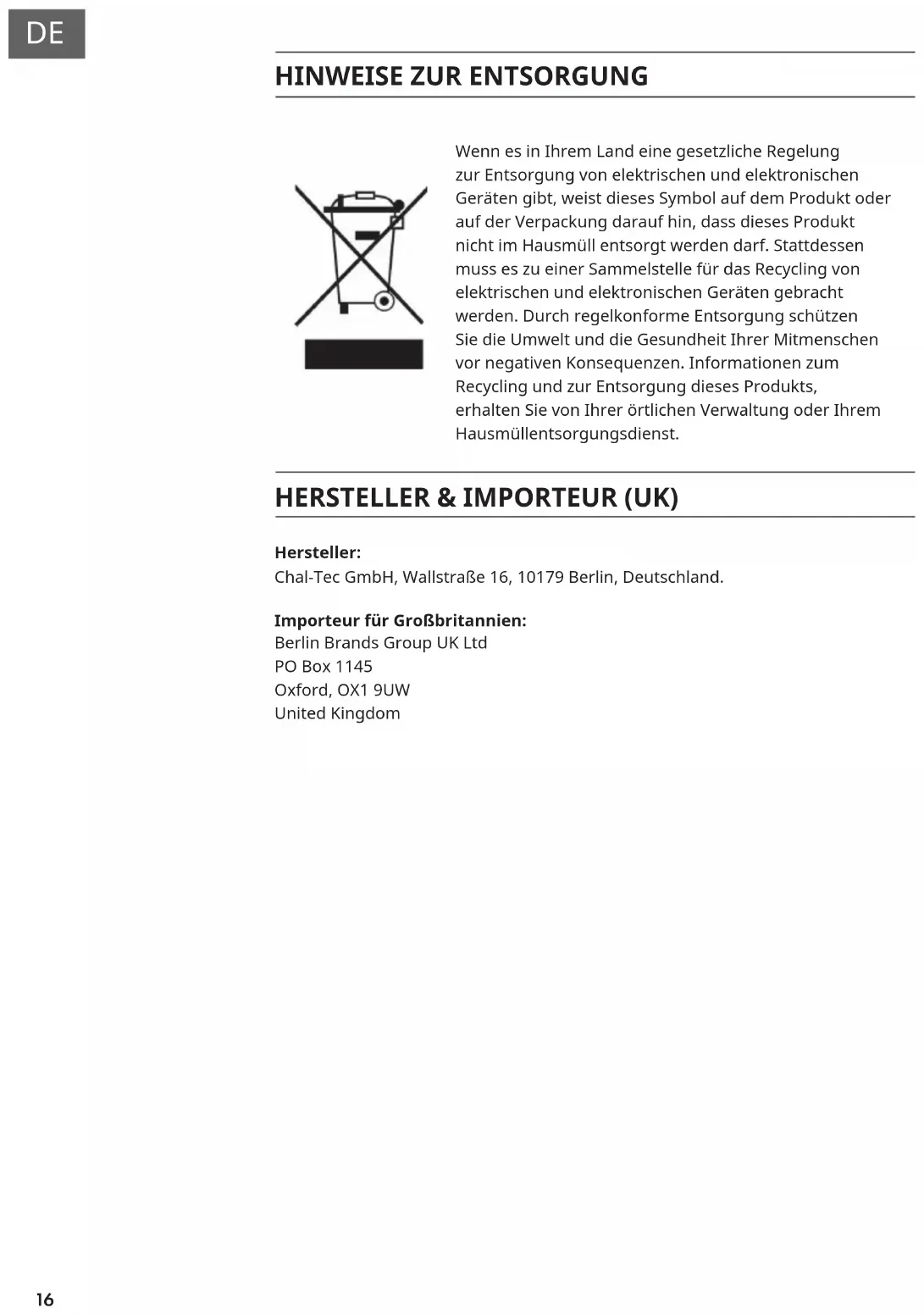

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom29
