USER MANUAL MKS9 Klarstein

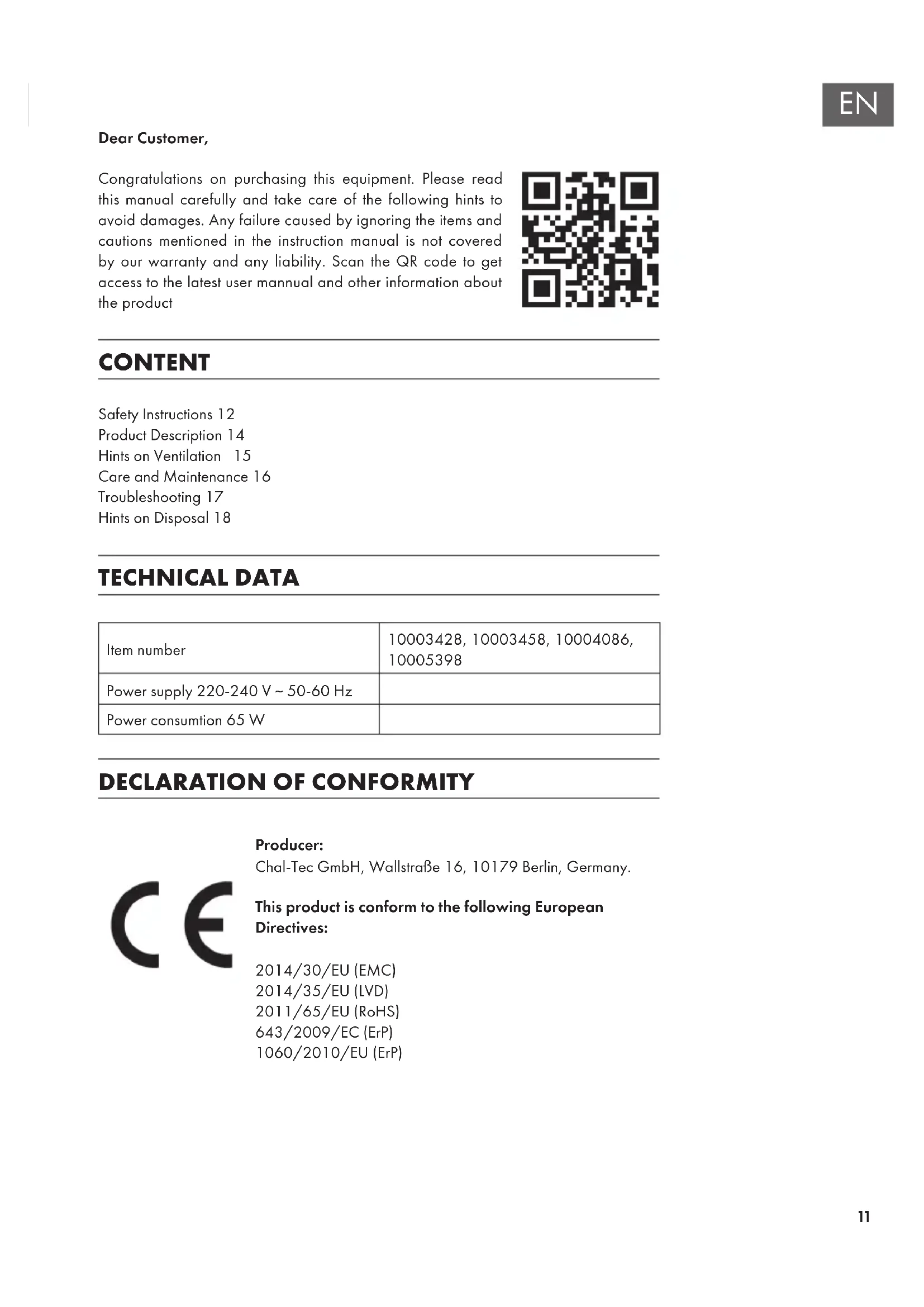

Dear Customer, Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user mannual and other information about the product CONTENT Safety Instructions12 Product Description14 Hints on Ventilation 15 Care and Maintenance16 Troubleshooting17 Hints on Disposal18 TECHNICAL DATA Item number 10003428, 10003458, 10004086,

DECLARATION OF CONFORMITY

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany. This product is conform to the following European Directives: 2014/30/EU (EMC) 2014/35/EU (LVD) 2011/65/EU (RoHS) 643/2009/EC (ErP) 1060/2010/EU (ErP)12

• Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in order to avoid a hazard.

• It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

• To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.

• It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

• When positioning the appliance, ensure that there is at least a 5 cm clearance at the sides and a 10 cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.

• Do not place hot food or drink into the refrigerator before it cools down to room temperature.

• Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

• Keep appliance away from any heat source or direct sunlight.

• To x stably, the appliance must be placed on a at and solid surface. It should not be laid on any soft material.

• Do not place any other appliance on top of the refrigerator, and do not wet it.

• Do not store something like ether, methanol, gasoline, which is easy to evaporate burn or explode.

• Do not use outdoors or in wet conditions.

• Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

• Keep the cord away from heated surfaces.

• This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

• Connect your refrigerator to an independent electrical socket and use a safe ground wire.

• Defrost the freezer at least once a month because too much frost may affect refrigeration.

• Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.13

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is ammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has,however,led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor,you might be able to hear the coolant owing around the system. This is unavoidable,and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes. Special Notes

• Children between the ages of 3 and 8 are allowed to load and unload refrigerators.

• When positioning the unit, make sure that the power cord is not pinched or damaged.

• Make sure that there are no multiple sockets or power supplies on the back of the unit. To avoid contamination of food, please follow the instructions below:

• A prolonged opening of the door can lead to a signi cant rise in temperature in the compartments of the appliance.

• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.

• Store raw meat and sh in suitable containers in the refrigerator so that meat and sh do not come into contact with or drip on other foods. WARNING When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible res. There are ammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of re during use, maintenance and disposal.14

• There should be left at least 200 cm³ for ventilation.

• The distance between wall and minibar side should be at least 20 mm.

• The bottom should be left at least 50 mm for air owing.

• Air passing through must not be preheated.

• Entire cooling system should be considered in the ventilation.

• The following four pictures show four installation ways:16

• Frost may accumulate on the inside of the unit and defrost automatically during the compressor cycle.

• The water is led through the drain opening into the collecting tray above the compressor where it evaporates.

• Make sure that the drain hole is cleaned regularly so that the water can escape from the storage compartment. Cleaning the Unit

• Remove all shelves and the vegetable compartment. First remove the lower door compartment so that you can remove the vegetable compartment.

• Wipe the inside of the appliance with a damp cloth and a little detergent. Then wipe with clear, warm water.

• Wash the shelves and the vegetable compartment in water with detergent and dry them before putting them back into the appliance. Clean the outside of the appliance with a damp cloth.

• The condenser grille on the back of the unit and the adjacent components can be vacuumed with a soft brush attachment. Cleaning Tips Condensation may form on the outside of the unit. This may be due to a change in the room temperature. Wipe off the condensation water. If the problem persists, contact a qualied technician. Maintenance

• When you move the unit, hold it by the sides or oor. Do not hold it by the edges of the top.

• The unit should be serviced by an authorized technician and only original spare parts should be used. Do not attempt to repair the unit yourself. Repairs by inexperienced persons may result in injury or serious malfunction.

• If the unit is not to be used for an extended period of time, disconnect it from the power supply. Remove all food and clean the appliance. Leave the door open to prevent unpleasant odours.17

TROUBLESHOOTING Problem Possible cause Solution Appliance does not work. Mains plug is not plugged in or is loose Insert mains plug. Fuse has blown or is defective Check fuse, replace if necessary. The food is too warm. Temperature is not properly adjusted. Please look in the initial Temperature Setting section. Door was open for an extended period. Open the door only as long as necessary. A large quantity of warm food was placed in the appliance within the last 24 hours. Turn the temperature regulation to a colder setting temporarily. The appliance is near a heat source. Please look in the installation location section. Appliance cools too much. Temperature is set too cold. Turn the temperature regulation knob to a warmer setting temporarily. Unusual noises. Appliance is not level. Re-adjust the feet. The appliance is touching the wall or other objects. Move the appliance slightly. A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall. If necessary, carefully bend the component out of the way.18

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailled information about recycling of this product, please contact your local council or your household waste disposal service.19
