USER MANUAL Brooklyn 23 Klarstein

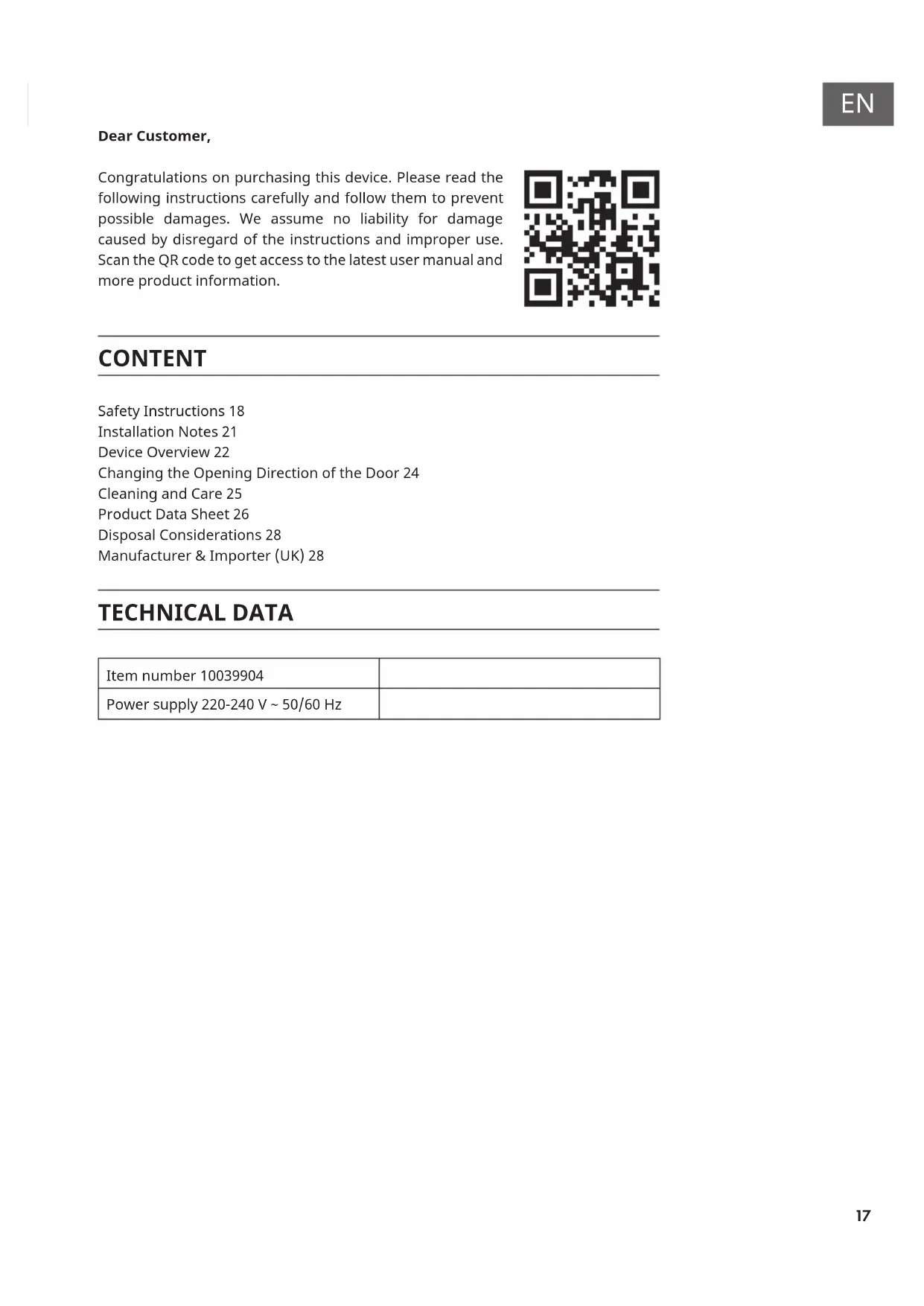

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENT Safety Instructions 18 Installation Notes 21 Device Overview 22 Changing the Opening Direction of the Door 24 Cleaning and Care 25 Product Data Sheet 26 Disposal Considerations 28 Manufacturer & Importer (UK) 28 TECHNICAL DATA Item number 10039904 Power supply 220-240 V ~ 50/60 Hz18

• Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in order to avoid a hazard.

• It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

• To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.

• It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

• When positioning the appliance, ensure that there is at least a 5 cm clearance at the sides and a 10 cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.

• Do not place hot food or drink into the refrigerator before it cools down to room temperature.

• Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

• Keep appliance away from any heat source or direct sunlight.

• To x stably, the appliance must be placed on a at and solid surface. It should not be laid on any soft material.

• Do not place any other appliance on top of the refrigerator, and do not wet it.

• Do not store something like ether, methanol, gasoline, which is easy to evaporate burn or explode.

• Do not use outdoors or in wet conditions.

• Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

• Keep the cord away from heated surfaces.

• This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

• Connect your refrigerator to an independent electrical socket and use a safe ground wire.

• Defrost the freezer at least once a month because too much frost may affect refrigeration.

• Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.19

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is ammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has,however,led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor,you might be able to hear the coolant owing around the system. This is unavoidable,and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes. Special Notes

• Children between the ages of 3 and 8 are allowed to ll refrigerators with food and remove food.

• When positioning the unit, make sure that the power cord is not pinched or damaged.

• Make sure that there are no multiple sockets or power supplies on the back of the unit. To avoid contamination of food, please follow the instructions below:

• A prolonged opening of the door can lead to a signi cant rise in temperature in the compartments of the appliance.

• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.

• Store raw meat and sh in suitable containers in the refrigerator so that meat and sh do not come into contact with or drip on other foods. WARNING When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible res. There are ammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of re during use, maintenance and disposal. Notes on correct use

• This device is intended exclusively for the storage of drinks.

• This appliance is not intended for use as a built-in appliance unless explicitly mentioned in the instructions.

• This appliance is not suitable for freezing food.

• The shelves have been installed in advance to allow the most e cient use of energy.20

Special notes on the shelves

• The shelves were placed in advance in such a way that they allow the most ecient use of energy.

• Only use the shelves provided by the manufacturer.

• Never block the holes in the shelves or use other types of shelves not approved by the manufacturer, which may cause poor cooling or increase energy consumption.

• We recommend that you use the shelves as shown to ensure the most ecient use of energy. Notes on ambient temperature Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit‘s nameplate. SN Low This cooling unit is designed for use at ambient temperatures of 10-32 °C. N Moderate This cooling unit is intended for use at ambient temperatures of 16-32 °C. ST Subtropical This cooling unit is intended for use at ambient temperatures of 16-38 °C. T Tropical This cooling unit is intended for use at ambient temperatures of 16-43 °C. The ambient temperature inuences the internal temperature and humidity of the beverage cooler. For optimal operation of the beverage cooler, we recommend an ambient temperature of 23°C to 25°C.21

INSTALLATION NOTES It is important that you leave your device upright for at least 4 hours before switching it on to allow the cooling system to adjust.

• When you move the unit, do not tilt it more than 45 degrees. Do not apply force to parts such as the condenser, door or handle. They can distort and interfere with the operation of the cooler. Make sure ALL packaging is removed before installation.

• Make sure there is enough space around the product to allow air to circulate freely.

• Do not place the product near heat sources, in direct sunlight or in humid rooms.

• Make sure that the supply voltage of the power outlet corresponds to the voltage indicated on the type plate.

• Insert the plug rmly into the socket.

• The socket outlet must be earthed. Do not plug the plug into unearthed sockets and do not use an extension cable.

• The product is equipped with adjustable feet. Once the product is in place, adjust them so that the refrigerator is level and does not slip. Note: Do not place the product in places where the ambient temperature can fall below 5 °C, e.g. in the garage or shed.22

DEVICE OVERVIEW 1 Interior lighting 2 Cooling 3 Flat shelf 4 Water tray 5 Door hinge 6 Handle with recess 7 Foot

• The beverage cooler has only one controller, which can be used to set the temperature between 11-18 °C. The temperature controller is located on the back of the beverage cooler.

• To adjust the internal temperature, set the knob according to the ambient temperature or intended use.

• When you turn on the unit for the rst time, set the temperature knob to MAX.

• The range of the temperature controller is from MIN to MAX position.

• After 24 hours, set the temperature control knob to the setting that best suits your needs. The MED setting should be suitable for use as a home or oce cooling unit. Interior lighting The beverage cooleris equipped with LED lighting located on the top of the interior.24

DOOR 1 Remove the upper hinge cover (2). 2 Remove the screws (1) securing the upper hinge (3) to the unit, then remove the upper hinge. 3 Lift the door and place it on a padded surface to prevent scratching. 4 Remove the screws (7) holding the bottom hinge (6), then remove the bottom hinge. 5 Remove the foot (5) and move it to the opposite side. 6 Remove the cover plate (4) on the opposite side. 7 Install the bottom hinge on the opposite side with the screws. 8 Place the door in place, making sure that the door rests against the bottom hinge. 9 Hold the door in the closed position and attach the upper hinge to the unit with the screws (1). Make sure that the door is correctly aligned horizontally and vertically so that the seals are closed on all sides before nally tightening the screws. 10 Install the upper hinge cover on the upper hinge.25

• First switch off the unit and disconnect the power plug from the socket. Remove the entire contents.

• Wash the interior with a damp cloth dipped in lukewarm water with a little detergent.

• Make sure that the rubber seal on the door is clean so that the unit remains powerful.

• The exterior of the wine refrigerator should be cleaned with a mild detergent.

• Dry the inside and outside with a soft cloth.

• Dust and anything else that blocks the exhaust air openings will reduce the cooling capacity of the unit. If necessary, suck off the exhaust air opening. Shutdown in absentia

• Turn off the unit rst. Then disconnect the power plug.

• Remove the entire contents.

• Keep the lid open slightly to prevent condensation, mould or odours. Installation at another Location

• Turn off the unit rst. Disconnect the power plug.

• Remove the entire contents.

• Secure all loose objects with adhesive tape.

• Tape the doors shut. Energy Saving Tips The wine refrigerator should be placed in the coolest place in the room, away from appliances that emit heat. heating pipes and direct sunlight. Make sure the door is properly closed when the wine refrigerator is on.PRODUCT DATA SHEET Information according to Regulation (EU) No. 2019/2016 Supplier's name or trademark: Klarstein Supplier's address: Wallstraße 16, 10179 Berlin, DE Model identier: 10039904 Type of refrigerating appliance: Low-noise appliance: No Design type: freestanding Wine storage appliance: No Other refrigerating appliance: Yes General product parameters: Parameter Value Parameter Value Overall dimensions (mm) Height 455 Total volume (dm³ or L) 23Width 260 Depth 495 EEI 250 Energy eciency class G Airborne acoustical noise emissions (dB(A) re 1 pW)

Annual energy consumption (kWh/a) 190 Climate class: temperate Minimum ambient temperature (°C), for which the refrigerating appliance is suitable

Maximum ambient temperature (ºC), for which the refrigerating appliance is suitable

For 4-star compartments Fast freeze facility No Light source parameters: Type of light source - Energy eciency class - Minimum duration of the guarantee offered by the manufacturer: 24 months Additional information: Weblink to the manufacturer‘s website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www. klarstein.co.uk28

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom29
