XPLODE 1500 BLS-1500S - Blender WILFA - Free user manual and instructions

Product Type	Blender
Brand	Wilfa
Model	XPLODE 1500 BLS-1500S
Power	1500 W
Container Material	Glass
Blade Material	Stainless Steel
Container Capacity	~1.5 L
Variable Speed	Yes, continuous adjustment from MIN to MAX
Pulse Function	Yes, with automatic cleaning
Safety Lock	Yes, integrated
Max Continuous Use Time	3 minutes, then cool down to room temperature
Max Container Temperature	60 °C
Power Supply	Mains (220-240 V)
Included Accessories	Measuring cup, lid, glass container, blade assembly
Cleaning	Removable parts hand washable with warm water and dish soap
Warranty	5 years
Country of Origin	Not specified

Frequently Asked Questions - XPLODE 1500 BLS-1500S WILFA

How to use the Pulse function?

The Pulse/Auto clean button allows the blender to run at full speed as long as it is pressed. Release it to return to the preset speed. Ideal for crushing ice or cleaning.

What is the capacity of the glass container?

The capacity is not specified in the manual, but the container is glass with level markings. It is estimated at about 1.5 liters.

Can I blend hot liquids?

Caution: the glass container only withstands temperatures up to 60 °C. Pouring hot liquid may cause ejection due to steam. It is not recommended to blend hot liquids.

How to clean the blender?

Unplug the appliance, disassemble all removable parts and wash them by hand with warm water and dish soap. Wipe the motor unit with a dry cloth. Be careful of sharp blades.

What to do if the blender does not start?

Check that the container is properly placed on the motor unit to disengage the integrated safety lock. If the ON indicator does not light up, make sure the mains socket is working.

What is the motor power?

The XPLODE 1500 BLS-1500S model has a 1500 watt motor.

Can I put ice cubes in the blender?

Yes, but do not add more than eight ice cubes of maximum 20x20x20 mm each at the same time. Use the Pulse function to crush them.

How to replace the blades?

The blades are sharp. To replace them, contact Wilfa customer service or an authorized technician. Do not attempt to replace them yourself without instructions.

Does the warranty cover the glass?

The 5-year warranty does not cover damage to the glass or normal wear and tear. Keep your purchase receipt for any claims.

Where to find spare parts?

Go to wilfa.com, customer service/support section. You will find information about spare parts, advice, and contact details.

USER MANUAL XPLODE 1500 BLS-1500S WILFA

Exterior view of a modern kitchen blender with clear glass and metal casing (no visible text or symbols)

XPLODE 1500

BLENDER BLS-1500S

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

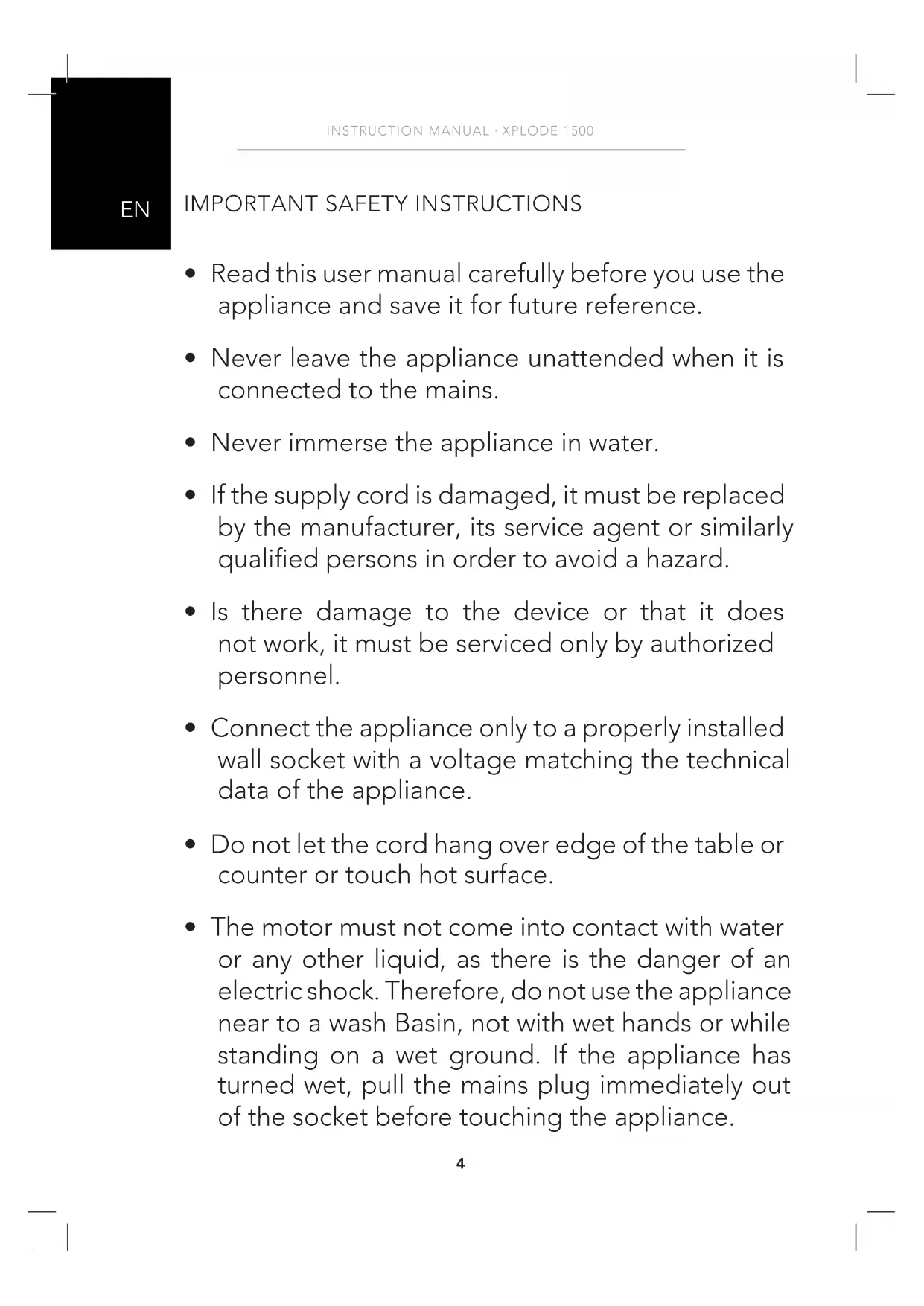

IMPORTANT SAFETY INSTRUCTIONS

• Read this user manual carefully before you use the appliance and save it for future reference.
• Never leave the appliance unattended when it is connected to the mains.
• Never immerse the appliance in water.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Is there damage to the device or that it does not work, it must be serviced only by authorized personnel.
• Connect the appliance only to a properly installed wall socket with a voltage matching the technical data of the appliance.
• Do not let the cord hang over edge of the table or counter or touch hot surface.

• The motor must not come into contact with water or any other liquid, as there is the danger of an electric shock. Therefore, do not use the appliance near to a wash Basin, not with wet hands or while standing on a wet ground. If the appliance has turned wet, pull the mains plug immediately out of the socket before touching the appliance.

• Do not use the appliance outdoors.

• This product is intended for household use and not for commercial use.
• Use the appliance only for the purpose it was designed for.
• Do not use appliance, if it or parts of it show visible damage or if the appliance was dropped.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

EN

CAUTION

We are very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

• There is a potential injury from misuse. The care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Be careful is hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

EN

SPECIAL SAFETY INSTRUCTIONS FOR THIS UNIT

• Operate the blender with lid closed.
• Blades are very sharp. Handle with care.
• Only remove the jar while motor is off.
• Avoid overwork of motor.
• Handle carefully with glass jar.
• Never place your hands into the glass jar while the motor is on.
• Avoid contact with moving parts.

EN

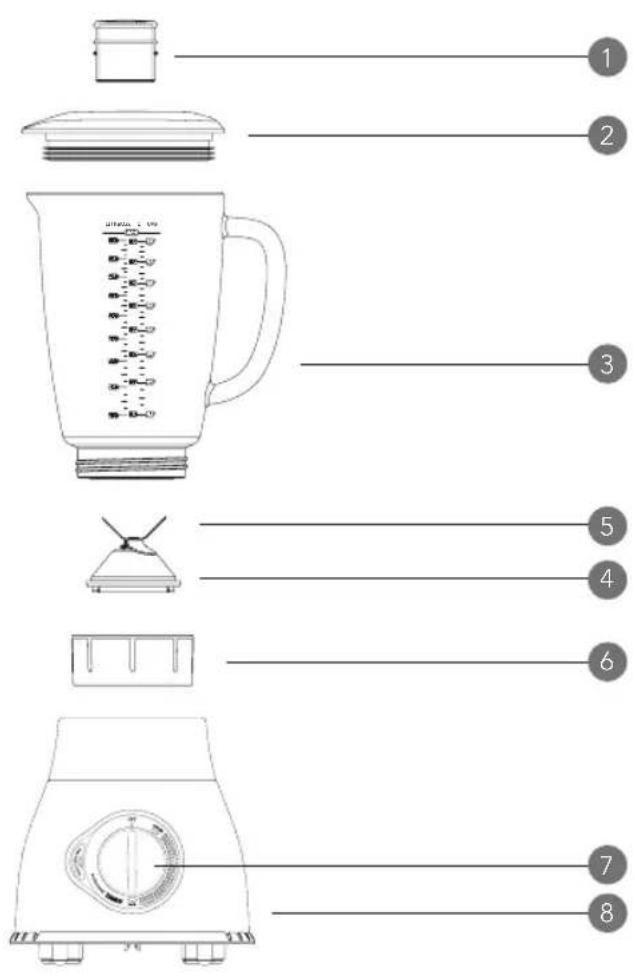

PRODUCT OVERVIEW

Diagram of a blender with labeled parts including blender, oven, and standbox

1. Measuring cup
   2.Lid

2. Glass jar with level indication
   4.Sealedring

3. Blade assembly unit

4. Blade assembly unit interface
5. Control panel
   8.Motorunit

BEFORE USE

BUILT-IN SAFETY LOCK

This function ensures that user can only switch the appliance on when the accessories have been placed on the unit in correct position. When the accessories have been fixed properly, the unit can only be switched on. (i.e. Built-in safety lock function is disabled at this moment)

BEFORE FIRST USE

Clean the unit and parts thoroughly before you use the appliance for the first time.

OPERATION

To switch on the appliance, turn the knob to "ON" position. The "ON" light will be illuminated. To control the rotary speed, turn the knob at between "MIN" & "MAX" position.

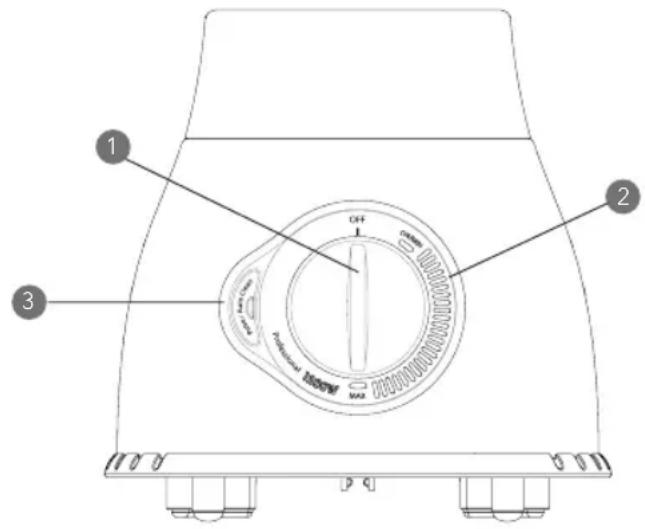

CONTROL PANEL

1 2 3

1. ON/OFF switch
2. Speed control (MIN -> MAX)
3. Pulse/Auto clean button

PULSE/AUTO CLEAN BUTTON

This function is only working when blender is already running. When blender is running, button is pushed to get blender quickly up to full speed. When button is released, blender gets down to pre-set speed again. This function is suitable for ice crushing or cleaning.

Warning: Do not add more than 8pcs ice cubes (less than 20 x 20 x 20mm size of the ice) in glass jar at a time.

EN

HOW TO USE THE GLASS JAR

1. Place the ingredients in the glass jar.
2. Place the lid on the jar and close it tightly.

Line drawing of a blender with a lid and handle, showing a red downward arrow indicating compression or reduction (no text or symbols)

1. Insert the measuring cup into the lid opening.
2. Select the speed by turning the control knob or press the Quick-select button.

Note: Do not let the appliance to operate more than 2 minutes continuously. Let the appliance to cool down to room temperature before continue operating the appliance.

Note that the glas jar can only withstand temperatures up to 60^ C.

AFTER USING THE BLENDER

1. Disconnect the power from main supply.
2. Remove the lid (together with measuring cup) from the jar.
3. Remove the jar (together with blade assembly unit interface) from the motor part.

Note: Always clean the removable parts immediately after use.

Note: It is recommended to cut the meat or other food into smaller pieces before putting them in the jar. Do not operate with large quantities of food at one time.

CLEANING & MAINTENANCE

Always clean the removable parts immediately after use.

Note: Be careful when cleaning the parts. Avoid touching the sharp blades!

1. Disconnect the power from main supply.
2. Disassemble all removable parts before cleaning.
3. Clean all removable parts in lukewarm water with dishwashing liquid.
4. Use dry cloth to clean the main body.

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Damage on glass
- Parts which are normally worn down

PRODUCT SPECIFICATIONS

220-240V\~ 50/60Hz, 1500W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

16 VIKTIGE SIKKERHETSINSTRUKSJONER

18 FORSIKTIG

19 FORHOLDSREGLER FOR BLENDEREN

20 PRODUKTOVERSIKT

21 F∅R BRUK

21 BRUK

22 ETTER BRUK AV BLENDEREN

23 RENGJ∅RING OG VEDLIKEHOLD

24 GARANTI

25 PRODUKTSPESIFIKASJONER

25 SUPPORT OG RESERVEDELER

25 GJENVINNING

VIKTIGE SIKKERHETSINSTRUKSJONER

NO

Diagram of a blender with numbered parts for labeling each component

1. Målebeger

2. Lokk

3. Glassbeholdermed

nivåindikator

INNEBYGD SIKKERHETSLÅS

Technical diagram of a mechanical component with labeled parts and center point

1.PÅ-/AV-bryter

1. Hastighetskontroll (MIN -> MAX)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Diagram of a blender with numbered parts for labeling each component

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Diagram of a blender with numbered parts for labeling each step

Line drawing of a pitcher with a lid and handle, showing a red downward arrow indicating compression or cooling (no text or symbols)

Diagram of a blender with numbered parts for labeling each component

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Diagram of a blender with numbered parts for labeling each step

Line drawing of a pitcher with a lid and handle, showing a red arrow indicating downward motion (no text or symbols)

Diagram of a blender with numbered parts for labeling each component

Line drawing of a pitcher with a lid and handle, showing a red arrow indicating downward motion (no text or symbols)

Diagram of a blender with numbered parts for labeling each component

PL

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Diagram of a blender with numbered parts for identification and assembly reference.

FR

1 2 3 OFF Pension Water Heater M33

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

CARACTÉRISTIQUES DU PRODUIT

220-240 V\~ 50/60 Hz, 1 500 W

ASSISTANCE ET PIÈCES DÉTACHÉES

Diagram of a blender with numbered parts for identification and assembly reference.

IT

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Diagram of a blender with numbered parts for identification and assembly reference.

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

FSC www.fsc.org 100% From well- managed forests FSC® C000000

BLS-1500_20_01
