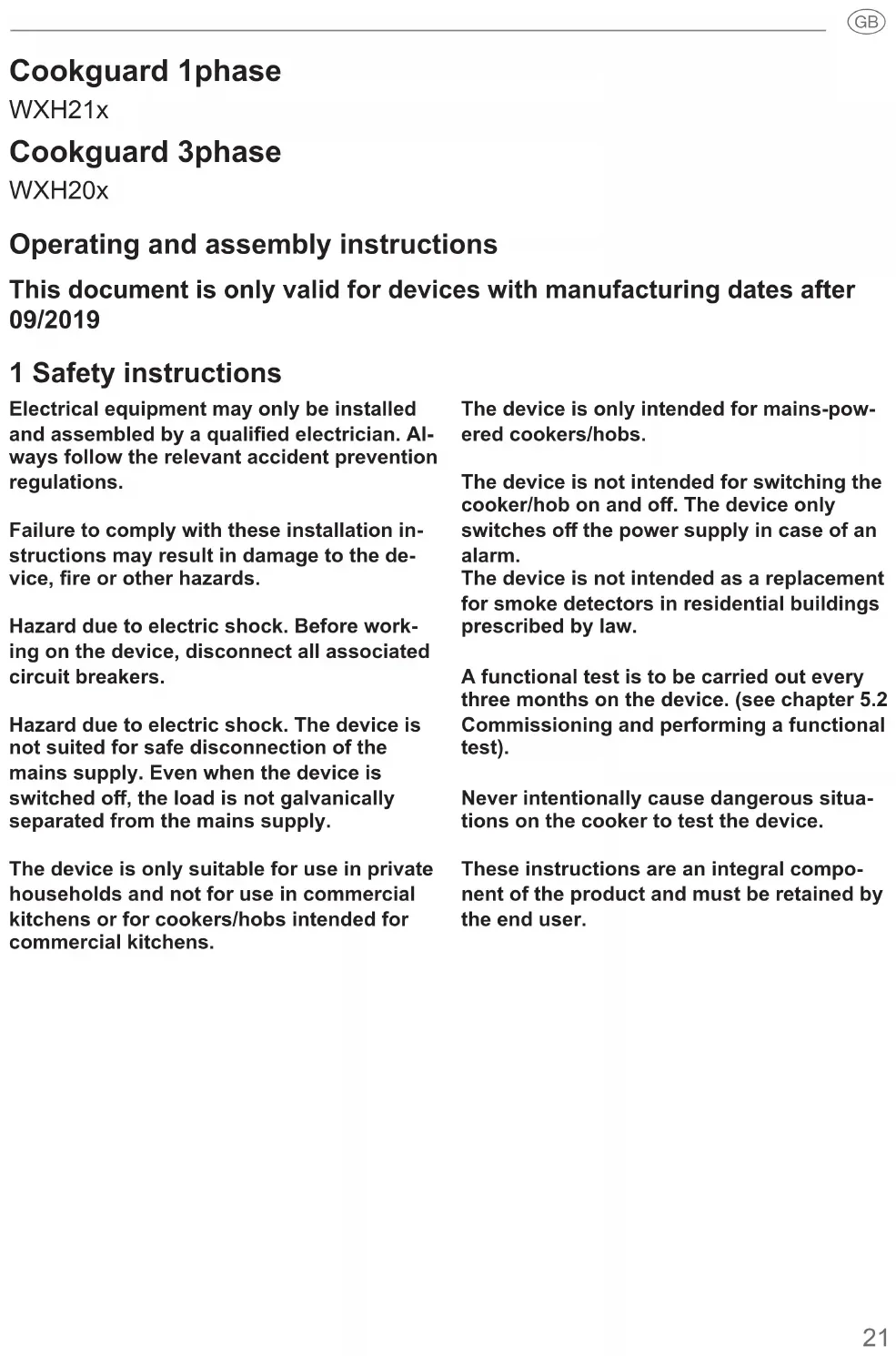

Cookguard 1phase WXH21x Cookguard 3phase WXH20x Operating and assembly instructions This document is only valid for devices with manufacturing dates after 09/2019 1 Safety instructions Electrical equipment may only be installed and assembled by a qualied electrician. Al- ways follow the relevant accident prevention regulations. Failure to comply with these installation in- structions may result in damage to the de- vice, re or other hazards. Hazard due to electric shock. Before work- ing on the device, disconnect all associated circuit breakers. Hazard due to electric shock. The device is not suited for safe disconnection of the mains supply. Even when the device is switched o󰀨, the load is not galvanically separated from the mains supply. The device is only suitable for use in private households and not for use in commercial kitchens or for cookers/hobs intended for commercial kitchens. The device is only intended for mains-pow- ered cookers/hobs. The device is not intended for switching the cooker/hob on and o󰀨. The device only switches o󰀨 the power supply in case of an alarm. The device is not intended as a replacement for smoke detectors in residential buildings prescribed by law. A functional test is to be carried out every three months on the device. (see chapter 5.2 Commissioning and performing a functional test). Never intentionally cause dangerous situa- tions on the cooker to test the device. These instructions are an integral compo- nent of the product and must be retained by the end user.z

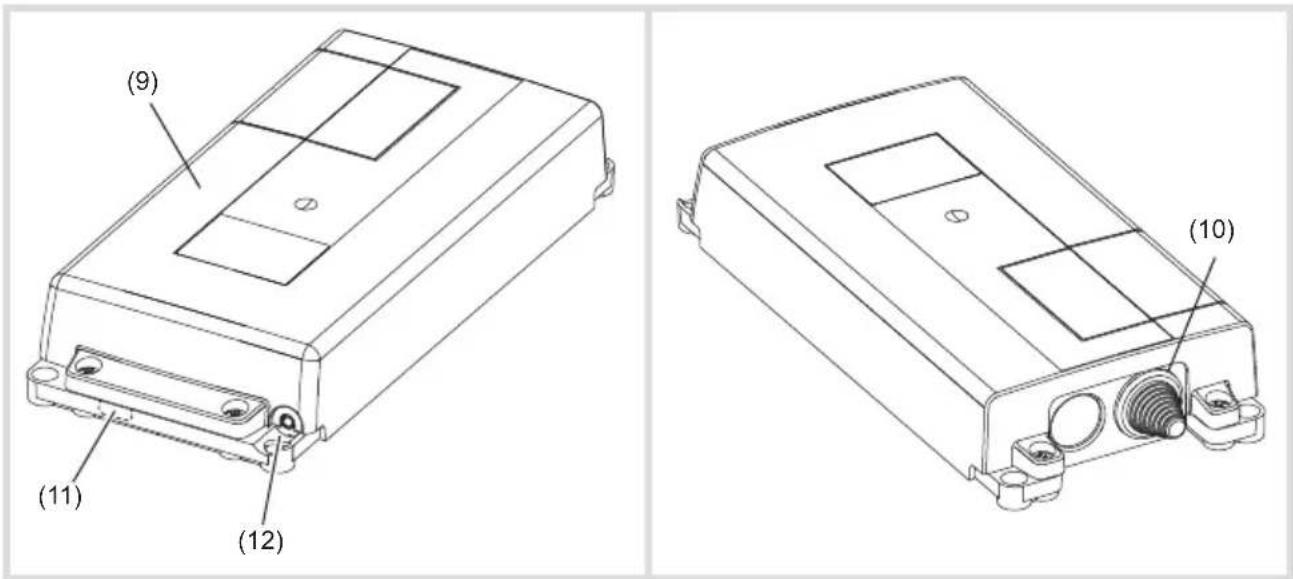

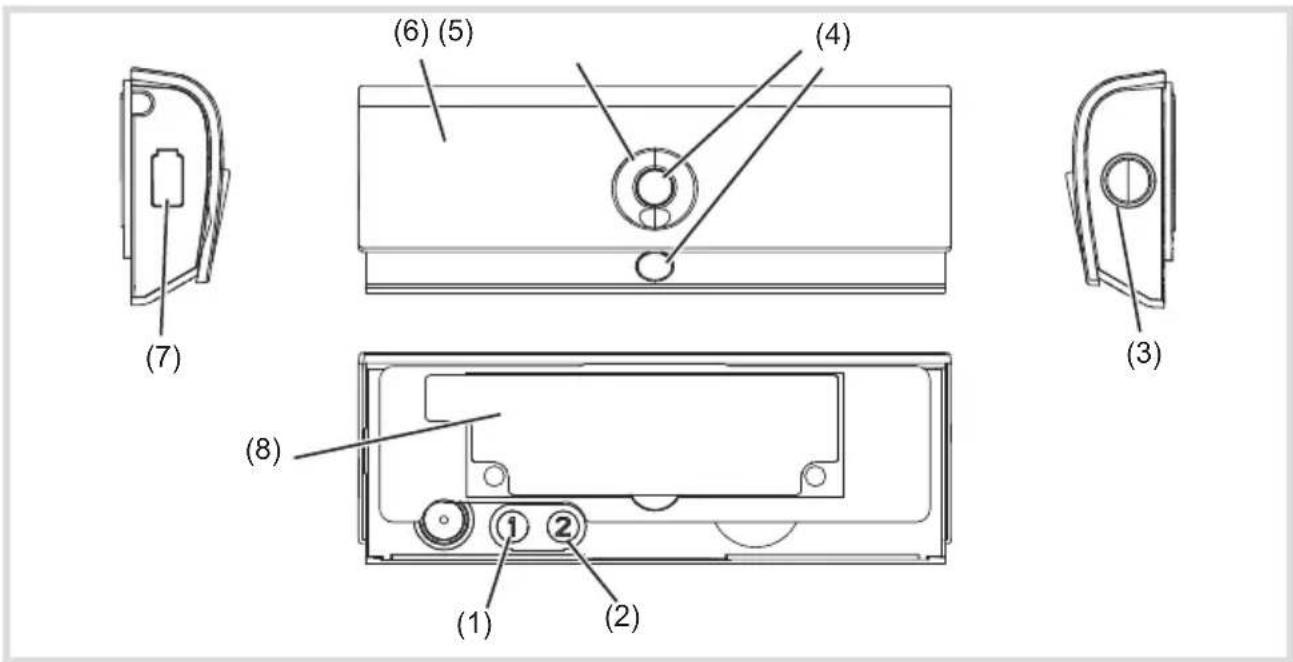

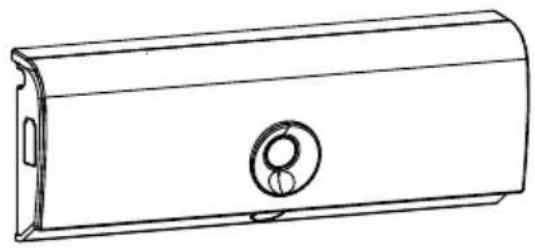

2 Design and layout of the device (6) (5) (4) (3) (2) (8) (7) (1) Figure 1: View of sensor unit (9) (10) (11) (12) Figure 2: View of power control unit (1) Operation button 1 (2) Operation button 2 (3) Operation button 3 (4) Sensors (5) Status LED (6) Front cover (7) Battery status LED (8) Mounting bracket with adhesive tape (9) Power control unit (10) Entry for connection cable cooker/hob (11) Cut-out and cable entry for potential-free contacts (AUX) (12) Connection socket for water leakage sensorz

Scope of delivery - Power control unit - Sensor unit with mounting bracket - white front cover for the sensor unit (pre-as- sembled) - transparent front cover for the sensor unit - Fitting material - Cleaning pad - 10 Colour strips for inserting in the transpa- rent front cover - 2 Batteries for the sensor unit (AA/LR6) - 2 connection terminals for N- and PE-con- ductor connection (3phase) - 1 connection terminal PE-conductor connec- tion (1phase) - Operating and assembly instructions 3 Function Function notes The cookguard is designed to draw attention to hazards as early as possible and to respond accordingly. According to the standard EN 50615 the device is able to distinguish between the normal use of a cooker/hob and a hazard. Nevertheless, during normal use of the cooker/ hob attention hast to be paid to hazards as the device cannot detect all possible situations. The sensor unit monitors the temperature in- crease and use of the cooker/hob. If a potential hazard is determined, a pre-alarm is triggered if necessary. If this is not acknowledged by the user, the power control unit switches o󰀨 the power supply to the cooker/hob after 15 sec- onds. If the critical situation on the cooker has been remedied, the pre-alarm can be cancelled or the power supply to the cooker can be reacti- vated by pressing the operation button (3) or by tapping at any position on the sensor unit of the pre-alarm, if activated. Correct use - Ensuring the operational safety of electric cookers/hobs - Monitoring the cooking activities and swit- ching o󰀨 the cooker after identifying the ha- zard - The device is only suitable for indoor areas - Installation of the sensor unit on the wall or under the extractor hood - Installation of the power control unit on the wall or on the oor - The device is only intended for use in private households and is not to be used in conjunc- tion with cookers and hobs as used in com- mercial kitchens. - The device is to be used solely for monitoring electric cookers/hobs up to a maximum width of 90 cm. Product characteristics - Sensor unit with status display via LED (5) - Display for low battery level via LED (7) - Adjustable automatic child lock (deactivated by default). - Connection for external water leakage sen- sor (optional, see Accessories) - Connection for external signal generator via potential-free contact (optional, see Acces- sories)z

4 Operation Operating concept and display elements In the event of an alarm, the device switches o󰀨 the electric cooker, hob and informs the user about the alarm situation via LEDs and acoustic signals. For this purpose, the device has one battery status LED (7), one status LED (5), three operating buttons (1 ... 3) and two sensors (4). Colour of status LED (5) Acoustic signal Function green* - Cooker ready for use ashing red yes Hazardous situation (pre-alarm) slowly ashing red yes Power supply to cooker interrupted (alarm) slowly ashing blue yes Water leakage alarm (optional) white No Setting mode 1 ashing purple-blue No Setting mode 2 ashing yellow-green yes Setting mode 3 ashing white yes Setting mode 4 (normal AUX mode) ashing red Setting mode 4 (reversed AUX mode)

• The Status LED (5) lights up in green shortly after pressing the operation button (3). Table 1: Meaning of status LED Colour of battery status LED (7) Acoustic signal Function ashing red yes Battery charge too low, battery life still approx. 2 weeks. ashing red - Power supply to the cooker/hob is interrupted, LED ashes until the battery is completely empty. Table 2: Meaning of the battery status LED To avoid false alarms, we recommend: - wiping the sensor unit with a damp cloth and mild cleaning agent periodically - leaving the sensor unit in its position and avoiding unintended movement

4.1 Setting alarm limit

The default setting is to be used for the initial setup. The alarm limit can be adjusted to the respective environment in the kitchen to ensure optimum functioning of the device. The alarm limit can be adjusted if false alarms occur frequently (see Manual Settings). To do this, set the alarm limit two levels higher or lower (maximum) as recommendedz

4.2 Automatic child lock

The automatic child lock is deactivated by default. Switching on child lock Keep the operation button (1) pressed for 5 seconds. Two high acoustic signals (●●) sound and the status LED ashes green twice. Child lock is switched on. The automatic child protection is activated about 10 ... 60 minutes after nishing cooking, in order to prevent the cooker/hob from being switched on accidentally. Switching o󰀨 child lock Keep the operation button (1) pressed for 5 seconds. A low acoustic signal (●) sounds and the status LED ashes red. Child protection is switched o󰀨. Switching on cooker with activated child lock Press operation button (3). Switch on cooker/hob. If the operation button (3) is not pressed rst, the automatic child lock switches o󰀨 the power supply of the cooker after 5 seconds.

4.3 Dangerous situations

If a potential hazard is determined, a pre-alarm is triggered if necessary. If this is not acknowl- edged by the user, the power control unit switches o󰀨 the power supply to the cooker/hob after 15 seconds. If the critical situation on the cooker has been remedied, the pre-alarm can be cancelled or the power supply to the cooker can be reactivated by pressing the operation button (3) or by tapping on the sensor unit (see 4.4) of the pre-alarm. Pre-alarm has tripped Closely examine the situation on the cooker. Press the operation button (3) if the situation on the cooker is OK. Pre-alarm has been acknowledged. The cooker is not switched-o󰀨. Switching o󰀨 the cooker If the pre-alarm is not acknowledged within 15 seconds, the power supply of the cooker is interrupted. If there is no danger or if the danger has been remedied, the power supply can be restored by pressing the operation button (3). Avoid dangerous situations in the further course of cooking. In the case of too frequent false alarms, manual commissioning must be carried out.

4.4 Alarm conrmation by tapping the sensor unit (optional)

The operation button (3) is pressed as standard to cancel the pre-alarm or to reconnect the power supply to the cooker. Alternatively, this can also be achieved simply by tapping the sensor unit. Activating/deactivating the tap function: Hold the operation buttons 1 and 3 for ap- prox. 5 seconds simultaneously until a signal tone sounds. The Status LED (5) of the sensor unit ash- es yellow 3x and then red 3x. The tap function is activated. OR: The Status LED (5) of the sensor unit ash- es yellow 3x and then blue 3x The tap function is deactivated.z

The cookguard functions can optionally be extended with up to four water leakage sensors. If the sensors come into contact with water, a water leakage alarm is triggered (Table 1). The status LED ashes blue slowly accompanied by an acoustic signal. Procedure with water leakage sensor: Press the operation button (3) to acknowl- edge the water leakage alarm. The acoustic signal and ashing status LED (5) went out. Switch o󰀨 power supply. Remove the cause of the water leakage. Clean and dry water leakage sensor(s) with a clean cloth. Switch on power supply again and perform functional test. If the water leakage sensor remains wet, it retriggers an alarm after 8 hours.

4.6 Potential-free contacts (optional)

The device has two potential-free contacts AUX1 and AUX2 (gure 6) e.g. that a KNX radio binary input can be connected to. In this way, for example, an alarm signal can be sent to the KNX bus. The alarm signal remains activated until the alarm (see Hazardous situation, water leakage) is acknowledged by pressing the button (3) on the sensor unit. The wiring of the potential-free contacts and their meaning is shown in table 3. In the normal mode of the AUX outputs, the contact between In and Out is closed when ON and opened when OFF. The AUX output signal can also be reversed. The reversed signal can, for example, be used to detect a cable breakage or if the power supply has been interrupted completely (see

Chapter 5.1 "Connect potential-free contacts")

In the inverted case, the contact between the In and Out terminals in the OFF state is closed and opened in the ON state. If a KNX radio binary input is used, the usage of reversing AUX signals may lead to a reduction of the battery service life of the radio binary input. The AUX outputs can be connected in four ways (Table 4). Option 1 is to be used for forwarding the alarm message. AUX1 AUX 2 System status OFF OFF No alarm message! Cooker switched o󰀨 or no hazardous situation OFF On Cooking activity is detected. This status is activated immediately after switching on the cooker. Depending on the intensity of the cooking, the signal is switched o󰀨 1 ... 30 min after nishing the cooking process. This delay time can be used to: - switch on e.g. an extractor hood or kitchen exhaust using the signal that is present. - perform an evaluation, how often cooking occurs, with the signal change from OFF → ON.z

AUX1 AUX 2 System status On OFF Alarm! A hazardous situation is detected and the cookguard switches o󰀨 the power supply in case of danger, timeout or overheating. The alarm state is also activated when the water leakage sensor has tripped; even though the power supply of the cooker/hob is not interrupted in this case. The alarm signal can only be deactivated by pressing the button (3) on the sensor unit. Water leakage sensor has tripped. The power supply to cooker is not inter- rupted. Leakage alarm is only switched o󰀨 after pressing operation button (3). On On Service! Fault on sensor, voltage interruption or empty battery detected and power supply to cooker is interrupted. The exact fault signal is displayed by pressing operation button (3) (see chapter 6.2 Troubleshooting). Table 3: Output signals if external signal generator connected AUX1 / AUX 2 System status AUX1 AUX2 In1 In2 Out 1+ 5 V Input OutputOut 2 Option 1: If a 1 signal is present on the AUX1 output, an alarm message is displayed. AUX1 AUX2 In1 In2 Out 1+ 5 V Input OutputOut 2 Option 2: If a 1 signal is present on the AUX2 output, a normal cooking situation is displayed. AUX1 AUX2 In1 In2 Out 1 + 5 V InputOutput Out 2

Option 3: If a 1 signal is present on the AUX2 output and on the AUX2 output, a service technician must be called. *AUX1 and AUX2 are switched in series. The second potential carrying wire must be insulated according to the installation regulations. AUX1 AUX2 In1 In2 Out 1 + 5 V Input OutputOut 2+ 5 V InputOutput& ≥1 Option 4: Both AUX outputs can be interconnected using an external logic and are used for evaluation of all options. Table 4: Connection possibilities for AUX outputsz

5 Information for electricians

5.1 Installation and electrical connection

Should you have further questions on the use and commissioning, please contact the Technical Application Adviser or your Techni- cal Service Centre. DANGER! Touching live parts can result in an electric shock. An electric shock can be lethal. Disconnect the connecting cables before working on the device and cover all live parts in the area!

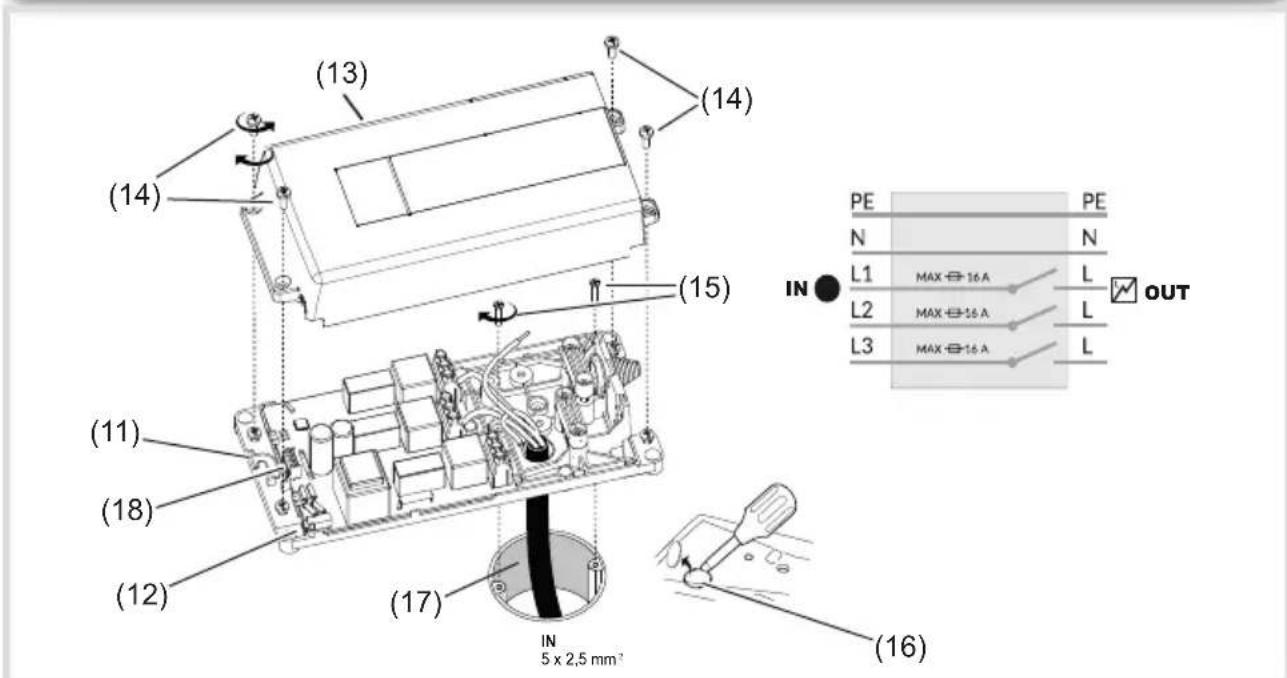

(12) (18) (11) (13) (17) (14) (15) (16) (14) Figure 3: Mounting power control unit (11) Cut-out and cable entry for potential-free contacts (AUX) (12) Connection socket for water leakage sen- sor (13) Casing cover for power control unit (14) Fastening screws for casing cover (15) Device screws for ush-mounted/hol- low-wall box (not included in scope of delivery) (16) Cut-out for ush-mounted installation (17) Cooker supply cable (not included in scope of delivery) (18) Connecting terminal for external signal generator (potential-free contacts, AUX)z

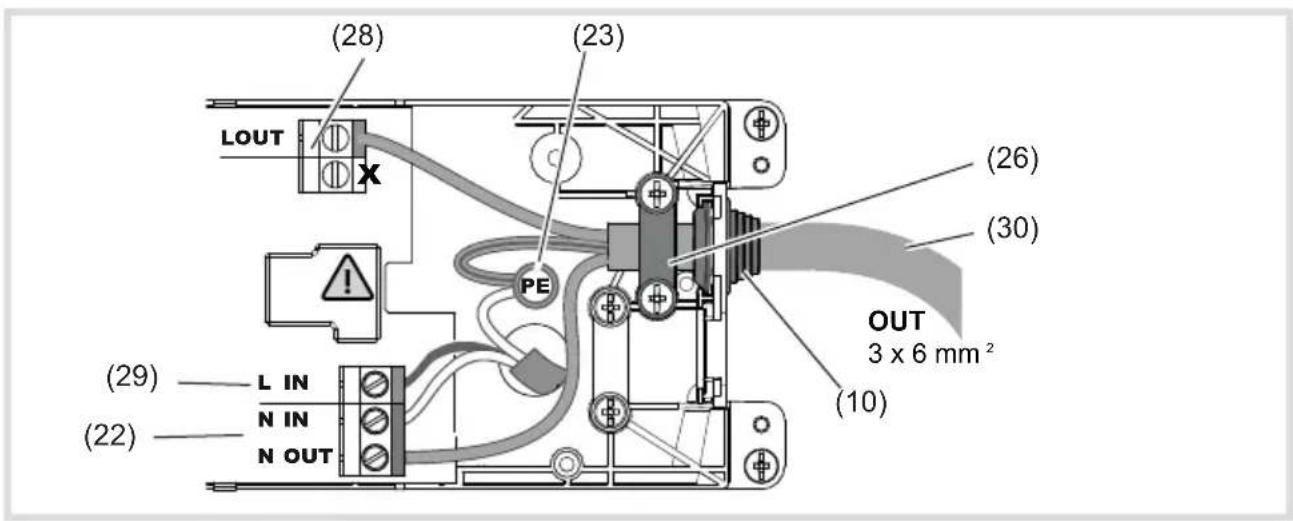

OUT 3 x 6 mm (28) (29) (22) (23) (26) (10) (30) Figure 5: Connection assignment 1-phase (19) Connecting terminal L3 (20) Connecting terminal L2 (21) Connecting terminal L1 (22) Distribution terminal N (23) Distribution terminal PE (24) Entry for cooker supply cable (25) Additional opening for surface mounting (26) Strain relief (27) Connection cable 3-phase for cooker/hob (not included in scope of delivery) (28) Connecting terminal L OUT (1phase) (29) Connecting terminal L IN (1phase) (30) Connection cable 1-phase for cooker/hob (not included in scope of delivery)z

Connect power control unit Switch o󰀨 circuit breaker for cooker/hob. Unscrew fastening screws (14) of the casing cover (13) and remove the cover. Fix cut-out for the ush-mounted installation (16) or surface-mounted installation (25). Unscrew device screws (14) of the ush-mounted/hollow-wall box. Insert cooker supply cable (17) into the power control unit (24). Position the power control unit over the ush-mounted/hollow-wall box and fasten with the device screws (15). In the case of a surface mounting, the cooker supply cable is inserted through the second cut-out (25) and the device e.g. is mounted on the wall behind the cooker. Connect cookguard 3phase When connecting a single hob the connect- ing terminals L1 and L2 are to be assigned. When connecting a single hob, the free, third wire must be insulated according to the installation regulations. The N-conductors are connected to the distribution terminal supplied (only 3-phase variant). Connect cooker supply cable 3-phase (17) to the connection terminals IN (19 ... 23) of the power control unit. When doing so, rst connect the earth conductor. Insert the connection cable (27) through the cable entry (10). Fix strain relief (26). Connect the connection cable 3-phase (27) to the connection terminals OUT (19 ... 23) of the power control unit. When doing so, rst connect the earth conductor. OR: Connect cookguard 1phase Connect cooker supply cable 1-phase (17) to the connection terminals IN (22/23/29) of the power control unit. When doing so, rst connect the earth conductor. Insert the connection cable (30) through the cable entry (10). Fix strain relief (26). Connect the connection cable 1-phase (30) to the connection terminals OUT (22/23/28) of the power control unit. When doing so, rst connect the earth conductor. Optional: Insert water leakage sensor into the connection socket (12) of the power control unit (9) (see Mounting Water Leakage Sensor). Fasten casing cover (13) using the fastening screws (14) on the lower casing. Optional: Connect external signal generator to potential-free contact (18) (Figure 6). Switch on circuit breaker again for cooker/ hob. In 1 Out 2 Out 1 In 2 AUX1 AUX2 Figure 6: Connecting terminal (AUX) for exter- nal signal generator (11) Figure 7: Connect potential-free outputz

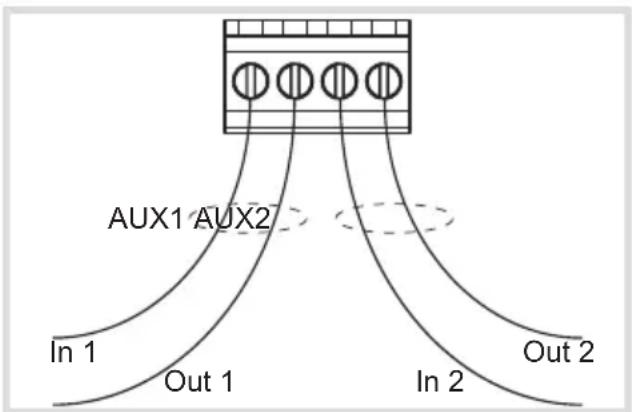

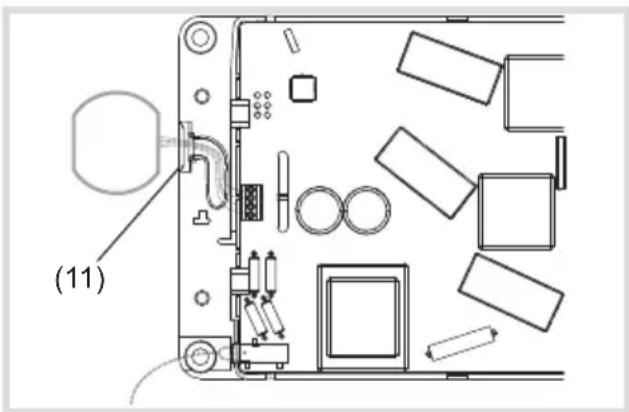

Connect potential-free contacts The device is equipped with two potential-free outputs AUX1 and AUX2 (18). This allows forwarding of the state of the cookguard to binary inputs of the building automation system or other safety systems (for further information, see Section 4.5). The AUX outputs are optoinsulated and poten- tial-free. Due to the optocoupler, attention must be paid to the polarity of the scanning voltage of the binary input of the building automation sys- tem. The Out terminals must be connected to the earth or earth potential of the binary input. The scanning voltage between In and Out may be a maximum of 24 VDC and must be at least 3 V. The current between In and Out is to be limited to a maximum of 10 mA. Only DC voltage is permitted between the In and Out terminals. The device to be connected should already be precongured. Remove the break-out opening (11) on the housing base (Fig. 7). Connect potential-free output Pay attention to polarity! Clamp the cable in the cable routing slot. Sensor Unit - Selecting installation location The sensor unit can optionally be mounted on the wall above the cooker/hob or directly under the extractor hood (Figure 8). The sensor unit monitors the temperature and use of the cook- er/hob and switches o󰀨 the power supply in the event of an alarm. Remove mounting bracket (8) carefully from the sensor unit. Insert batteries into the sensor unit. Connection to the power control unit is established automatically. If radio connection is successful, the sensor unit emits two acoustic signals for conrmation. Fasten mounting bracket (8) again to the sensor unit. Remove any grease and dirt from the mount- ing surface using the cleaning pad supplied. Attach sensor unit using supplied adhesive stripes (gure 8) (optional: use supplied fastening material). Make sure that the sensor is aligned correct- ly. In case of cooker widths between 70 ... 90 cm, the alarm limit should be set one level lower as recommended in table 5. The sensor unit must be mounted in the mid- dle above the cooker/hob. max. 15 cm max. 15 cm

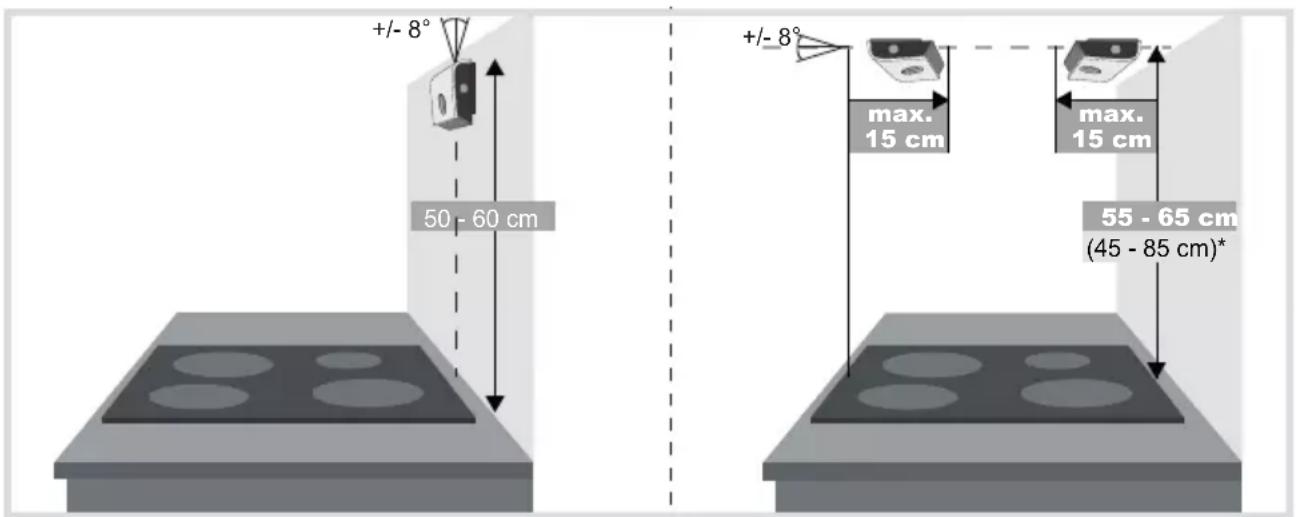

• In the case of installation beyond the standard height of 55 ... 65 cm, the alarm limit must be adjusted accordingly (see Setting alarm limit). Figure 8: Wall mounting (left); Installation under the extractor hood (right)z

(32) (31) (33) (9) (32) (11) Figure 9: Mounting water leakage sensor (31) Water leakage sensor plug (32) Water leakage sensor (33) Connection socket for additional water leakage sensors Mounting water leakage sensor The leakage sensors are positioned under the sink, in the area of the dishwasher and in addi- tional places where water leakage is likely. Insert plug of the leakage sensor (31) into the jack on the power control unit (11). Place the water leakage sensor (32) under the dishwasher (Figure 9). Optional: Insert additional water leakage sen- sor into the plug (33) of the front sensor (31). Testing water leakage sensor Place a moist cloth on the water leakage sensor. Cookguard triggers test alarm After successful test dry and clean water leakage sensor.

5.2 Commissioning and performing a functional test

A functional test should be carried out by an electrician after installation. The default settings of the cookguard are to be used for the initial setup. If the mounting height of the sensor unit or the dimensions of the cooker/hob vary from the standard values (Figure 8), then the commissioning must be per- formed manually (see Manual commissioning). Performing a functional test Switch on cooker/hob with highest power. With an induction cooker a suitable pot must be used for commissioning. Keep the operation button (3) pressed for 5 s. The power supply to cooker/hob is interrupt- ed. Cooker/hob is switched o󰀨. Check if cooker/hotplate is switched o󰀨. Switch o󰀨 cooker/hob manually via the corre- sponding hotplate switch. With the cooker/hob switched o󰀨, press the operation button (3) once. The power supply to the cooker/hob is switched on again. Cookguard is ready for operation. Status LED (5) ashes once in green.z

5.3 Manual commissioning/Device setting

Setting mode Setting Colour of status LED (5) Mode 1 Setting alarm limit lights up white Mode 2 Establishing radio connection ashes purple-blue Mode 3 Calibrating cooker type ashes yellow-green Mode 4 Set and test AUX connection ashes white (normal AUX mode) ashes red (reversed AUX mode) Tabele 5. Setting modes Manual commissioning is necessary if the cooker was replaced, the cooker dimensions and mounting height of the sensor unit vary from the standard values (Figure 8) or if false alarms occur too frequently. Manual commissioning is performed via four setting modes on the sensor unit: The setting modes can be changed successive- ly or individually. Keep the operation button (2) pressed for 5 s. Setting mode (1) is active. Status LED (5) lights up white. Press operation button (3) repeatedly until next setting mode is reached. The Status LED (5) signals the set mode in the appropriate colour. WARNING! Risk of accident! If the setting of the alarm limit is too high, the detection of hazards is delayed. Do not set alarm limit higher than 8 during the installation!

Colour of status LED (5) Number of acoustic signals Alarm limit Installation height: Wall mounting Installation height: Installation under the extractor hood red ●●● ●●● 12 ●●● ●● 11 ●●● ● 10

• recommended alarm limits Table 6: Alarm limitsz

Setting mode 1: Setting alarm limit The alarm limit is preset to 6 in default state. This means that the sensor unit is mounted at a height of 50 ... 60 cm (wall mounting) or 55 ... 65 cm (mounting under the extractor hood). If the mounting heights vary from the standard, the alarm limit (Table 5) must be adjusted. The recommended alarm limit (4 - 7) depends on the position of the cooker, installation height, installation mode and reaction behaviour of the sensor unit. The values are between 1 and 12 (1 = fastest reaction, 12 = slowest reaction). The setting mode 1 is activated. The status LED lights up white. Select suitable, recommended alarm limits from Table 6. Press operation button (2). The next higher level is set and the setting mode 1 is left. OR: Press operation button (1). The next lower alarm limit is set and the setting mode 1 is left. The new alarm limit is displayed according to the data in Table 6 and signalled via the colour of the Status LED and the number of tones. To set another alarm limit the setting mode 1 has to be called up. Setting mode 2: Establishing radio connection Setting mode 2 is called up. The status LED (5) ashes twice purple-blue. Switch o󰀨 circuit breaker of the cooker/hob for 10 s. Switch on fuse again. The power control unit searches for the sensor unit automatically. If connection is successful, the sensor unit acknowledges with three acoustic signals (●●●). The cookguard ends the automatic setting mode. oder Figure 10: Calibrating cooker type manuallyz

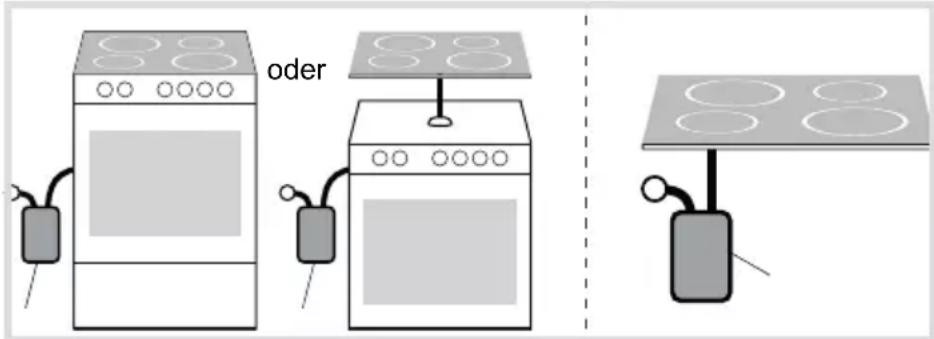

Setting mode 3: Calibrating cooker type Setting mode 3 is called up. The status LED (5) ashes yellow-green. Two selection options are available for calibrat- ing the cooker type. Option 1: Cooker and oven are jointly connect- ed to the power control unit (Figure 10, left). Switch on oven. Press operation button (1). The sensor unit conrms the identication of the cooker type with acoustic and optical signals. Switch o󰀨 oven. Manual calibration in option 1 is completed. Option 2: Hob is connected individually to the power control unit (Figure 10, right). Switch on the most powerful hotplate to the highest level. Press operation button (2). The sensor unit conrms the identication of the cooker type with acoustic and optical signals. Switch o󰀨 hotplate. Manual calibration in option 2 is completed. The cookguard ends the automatic setting mode. With an induction cooker a suitable pot must be used for commissioning. Setting mode 4: Setting and testing potential-free contacts Additional information about the two poten- tial-free outputs AUX1 and AUX2 can be found in chapter 4.5. Setting mode 4 is called up. The status-LED (5) ashes white (normal setting) or red (inverted setting). Press operation button 1 (1) for ve sec- onds. Changing between the two operation modes of the AUX outputs: Normal AUX mode: The status LED (5) ashes white. Inverted AUX mode: The status LED (5) ashes red. Testing AUX outputs: Short press on operation button (1). AUX1 changes bewtween ON and OFF Short press on operation button (2). AUX2 changes bewtween ON and OFF To terminate the setting mode 4. Press operation button (3). The setting mode is completed.

5.4 Changing colour strips of the sensor unit

The sensor unit can be adapted to match the colour of the wall using the colour strips supplied. Remove sensor unit carefully from the mounting bracket (8). Remove front cover (6) by lifting at the back of the sensor unit. Attach the desired colour strips to the sensor unit. When attaching the colour strips to the sensor unit, make sure that no sensor is covered. Fasten transparent front cover to the sensor unit. Press sensor unit onto the mounting bracket (8).z

• Sensor unit Battery type AA/LR6 Alkaline Recommended battery type Duracell Ultra Power (MX1500) Battery service life 3 p. 5
• years Sound pressure at a distance of 1 m 70 p. 75
• dB (A) Radio frequency 2.4 GHz Range 10 m, depending on building structure Dimensions (W x H x D) 125 x 17 x 45 mm Degree of contamination 2 Power control unit Rated voltage, 3phase 400 V Rated current, 3phase 3 x 16 A Conductor cross-section, 3phase 5 x 2.5 mm² Rated voltage, 1phase 230 V Rated current, 1phase 1 x 25 A Conductor cross-section, 1phase 3 x 6 mm² Energy consumption 4 W Degree of contamination 2 Rated surge voltage 4 kV Operating temperature +5 p. 100
• +35°C Ball pressure test 100 °C Creep resistance (PTI) 175 p. 400
• Number of switching operations approx. 6000 Degree of protection IP20 Dimensions (L x W x H) 239 x 113 x 42 mm Standard IEC/EN 60730-1: Type 1.B DIN EN 50615 Potential-free contacts Rated voltage DC 3 V Rated current max. 10 mA p. 24

Power supply to the cooker is switched o󰀨. Cause 1: Battery level of the sensor unit is too low. Battery display (7) ashes. Replace batteries. Cause 2: Mounting position of the sensor unit is wrong and the status LED (5) ashes yellow

Check mounting position of the sensor unit and adjust if necessary (Figure 7). Cause 3: Radio connection is interrupted and status LED (5) ashes blue (●). Establish radio connection manually in setting mode 2 (see Manual commissioning). Cause 4: Power control unit is overheated and status LED (5) ashes blue (●●●). Let the device cool down for a while. If it occurs again, contact an electrician. Cause 5: Problem with the sensor unit and status LED (5) ashes yellow (●●). Check batteries or have sensor unit checked. Cause 6: Problem with the sensors and status LED (5) ashes yellow (●). Clean sensor unit and sensors carefully.z

Power supply to the cooker is switched o󰀨 and switched on again immediately. Cause: Power control unit is connected incor- rectly. Check that the connection of the cooker sup- ply cable and cooker connection cable have the right terminal assignment (IN/OUT). Water leakage alarm triggers. Cause: The leakage sensor is not su󰀩ciently dried or is dirty. Dry or clean water leakage sensor. Sensor unit does not react when button is pressed. Cause 1: Battery charge too low. Replace batteries. Cause 2: Batteries are not inserted correctly. Check that the batteries are in the correct position according to the marking on the bot- tom of the battery compartment and correct the position if necessary. The fault signals that possibly occurred and their problem description are listed in table 7. Fault status query Fault status query by pressing the operation button (3). The status LED (5) ashes green if there is currently no fault. The status LED ashes blue or yellow if a fault occurs. The fault signals and problem descriptions are listed in table 7 below. Status LED (5) ashes blue Problem description ● Problem with the radio connection ●● Problem with the power control unit ●●● Power control unit is overheated Status LED (5) ashes yellow Problem description ● Problem with the sensors ●● Problem with the sensor unit ●●● Wrong mounting position of the sensor unit Table 7: Fault signal Note: Should it not be possible to eliminate a problem immediately, the cooker can be used temporarily for 1.5 hours at any time, by removing the batteries from the sensor unit and switching the fuses for the cooker o󰀨 for 10 seconds and then switching them on again. In this emergency mode, the protection func- tion is not available!

Water leakage sensor WXH202 KNX radio binary input 2gang ush-mounted TRM702A KNX radio binary input TRB302B 2gang ush-mounted 230 V „ “a
