Product Type	Smartphone
Brand	Motorola
Model	Moto G14 (XT2341-3, XT2341-4)
SIM Card Formats	Nano SIM (single or dual depending on model)
Expandable Storage	Yes, via microSD card (sold separately)
Main Camera	Yes, with flash
Macro Camera	Yes
Front Camera	Yes
Proximity Sensor	Yes
Fingerprint Reader	Integrated into Power button
Headphone Jack	Yes (3.5 mm)
Charging Connector	USB Type-C
Battery	Built-in, charges via USB-C (recommended Motorola charger)
Charging Temperature	-20 °C to 45 °C
Operating Temperature	-20 °C to 45 °C (storage -20 to 60 °C)
Water Resistance	Not waterproof
Hearing Protection	High volume warning to prevent damage
Battery Safety	Non-removable battery, removal only by authorized center
Supported Networks	GSM, UMTS, LTE (detailed bands in manual)
Wireless Connectivity	Wi-Fi 2.4/5 GHz, Bluetooth, NFC, GNSS
FM Radio	Yes
Recommended Power Supply	Compatible Motorola charger

Frequently Asked Questions - Moto G14 MOTOROLA

How to insert the SIM card and microSD card?

Insert the SIM tool into the hole near the tray to eject it. Place the Nano SIM (and optionally a microSD card) with gold contacts facing down, then close the tray.

How to turn my Moto G14 on or off?

To turn on, press and hold the Power button. To turn off, press and hold the Power and Volume up buttons simultaneously.

What to do if my phone becomes unresponsive?

Press and hold the Power button until the screen turns off and the phone restarts.

How to adjust volume to avoid hearing damage?

When headphone volume reaches maximum level, a warning appears. Press OK to close, or wait one to five seconds then press the volume up button to override.

Can I use my phone in the rain?

No, the Moto G14 is not waterproof. Avoid any exposure to water or moisture.

Where to find legal and safety information?

Swipe up on the home screen, tap Settings, then enter Legal information. You can also visit www.motorola.com/device-legal.

How to check the SAR of my phone?

Dial *#07# on the keypad, or go to Settings then enter Regulatory labels. Also visit www.motorola.com/sar.

Which charger to use to charge my Moto G14?

Use a compatible Motorola charger (may be sold separately). Using other chargers may impair performance and be dangerous.

Can I remove the battery myself?

No, the battery is built-in and non-removable. Its removal must be done only by an authorized Motorola service center.

How to get help with my phone?

Swipe up on the home screen, tap Settings > Help for instructions. You can also visit www.motorola.com/mymotog.

USER MANUAL Moto G14 MOTOROLA

[e-mail]

moto g14

English 3

العربية 7

Français....11

српски....15

Русский 19

Українська 24

Қазақша 28

Македонски....32

Before using your phone, please read the legal, safety and regulatory information provided with your product.

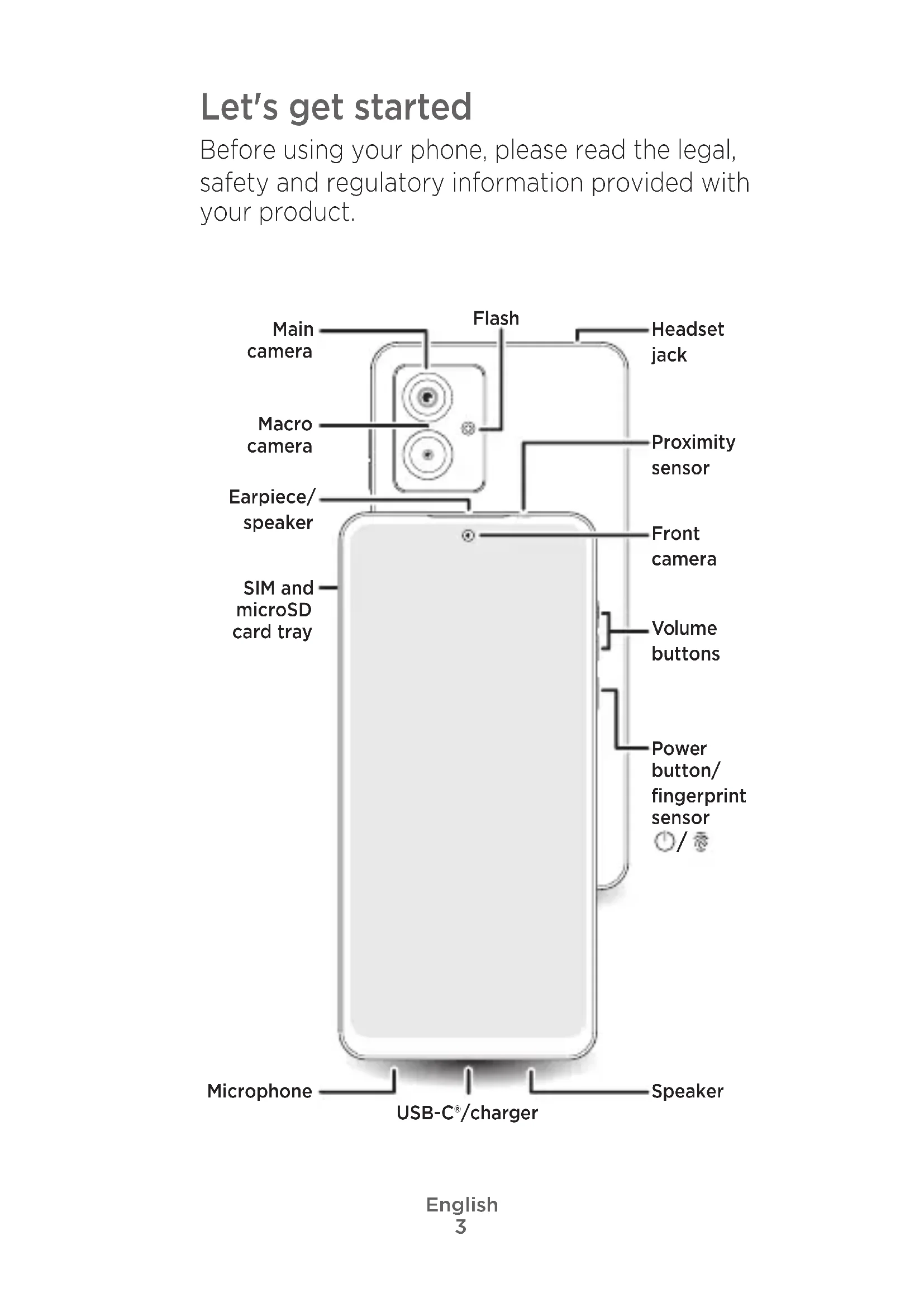

Put in the cards and power on

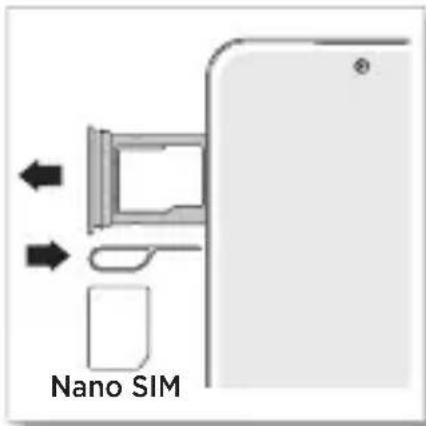

1 Insert the SIM tool into the hole next to the tray to pop out the tray.

Make sure that you use the correct size of SIM card and don't cut the SIM card.

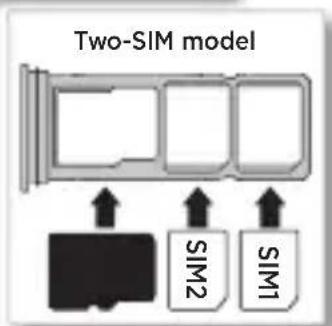

2 Insert the SIM card(s) with the gold contacts down, then gently push the tray into the slot.

Add a microSD card

micro (optional, sold separately) for additional storage.

Side view of a smartphone with a power button icon pointing to the right side (no text or symbols on the device itself)

3 Press and hold the power button to turn on your phone, then follow the prompts to get started.

Note: To turn off your phone, press and hold the power and volume up buttons at the same time.

Help and more

Get answers, updates and info:

• Help is here: from the Home screen, swipe up and tap Settings > Help to learn how to use your phone and get support.
• Get more: get software, user guides and more at www.motorola.com/mymotog.
  • Get apps: tap Play Store to browse and download apps.

Legal information. This guide provides important legal, safety and regulatory information that you should read before using your product. For the complete legal information, from the Home screen swipe up and tap Settings > 🔒, then type Legal information, or visit www.motorola.com/device-legal.

Water repellent. Your phone is not waterproof. For more about your phone's water-repellent design and care, swipe up and tap

Settings > Help.

Battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service centre or similar skilled personnel.

If your phone becomes unresponsive, press and hold the power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger (may be sold separately). Use of other chargers is not recommended and may impair the charging performance. Don't charge your phone in temperatures below -20°C or above 45°C. Chargers that do not comply with applicable national standards may be unsafe, with risk of death or injury, and may cause slow charging or product damage. To view applicable standards and to learn more, see the "Legal information" section of this guide or visit www.motorola.com/device-legal.

Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning will be shown. Tap OK to dismiss it, or wait one to five seconds, then press the volume up button to dismiss the alert and enable the volume to continue to be adjusted.

Disposal and recycling. For help recycling products and packaging responsibly, visit www.motorola.com/recycling.

Extreme heat or cold. Don't use your phone in temperatures below -20°C or above 45°C. Don't store/transport your phone in temperatures below -20°C or above 60°C.

Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/charges may apply. Product specifications and other information contained in this guide are believed to be accurate at the time of printing. Motorola reserves the right to correct or change any information without notice.

Arbitration. Your purchase is governed by a binding arbitration clause. For more information and how to opt out, see the legal guide that came with your phone.

SAR information (on e-label). To view specific absorption rate (SAR) values for this phone, from the Home screen swipe up and tap Settings > 🔒, then type Regulatory labels, from your phone's dial pad type *#07#, or visit www.motorola.com/sar.

Supported frequencies and power (Model XT2341-3, XT2341-4).

This phone is capable of operation on the following frequencies, subject to location and network availability.

Operating mode	Frequency range MHz/Band	Maximum nominal transmit power dBm
Bluetooth 24	00 - 2483.5 20 dBm EIRP
Wi-Fi 2400	2483.5 20 dBm EIRP
Wi-Fi 5150	5250 23dBm EIRP
Wi-Fi 5250	5350 20 dBm EIRP
Wi-Fi 5470	5725 20 dBm EIRP
Wi-Fi 5725	5850 14 dBm EIRP
GNSS 1559	1610 N/A
FM 87.5 - 108	N/A
NFC 13.56 -12	.02 dBuA/m @ 10m
GSM XT2341	3: 2/3/5/8XT2341-4: 3/5/8	33/30
UMTS	XT2341-3: 1/2/5/8XT2341-4: 1/5/8/19	24
LTE	XT2341-3:1/2/3/5/7/8/20/28/38/40/41XT2341-4:1/3/5/7/8/18/19/20/26/28/38/40/41	23

Copyright and trademarks. MOTOROLA, the stylised M logo, MOTO and the MOTO family of marks are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, Android, Google Play and other related marks and logos are trademarks of Google LLC. microSD Logo is a trademark of SD-3C, LLC. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum. All other product or service names are the property of their respective owners.

© 2023 Motorola Mobility LLC. All rights reserved.

Product ID: moto g14 (Model XT2341-3, XT2341-4)

Manual Number: 7011AA004147-B
