Product type	Remote trigger / ventilation regulator
Receiver power supply	230 V ~, 50/60 Hz, approx. 1 W
Switching power	1800 W / 8 A (cos φ = 1)
Radio range	Up to 50 m
Frequency	433.92 MHz
Protection class	IP20 (dry rooms only)
Window transmitter battery	1 x 3 V Lithium CR2477 (service life approx. 2 years)
Stove transmitter batteries	3 x 1.5 V alkaline AAA (service life approx. 2 years)
Maximum sensor temperature	400 °C
Maximum stove heat output	4.5 kW
Silicone cable resistant up to	150 °C
Main functions	Window opening monitoring, stove temperature detection, automatic switching of hood/ventilator
Transmitter learning	Via receiver test button and transmitter activation
Max. number of transmitters	2 window transmitters + 2 stove transmitters
Safety	Minimum distance sensor-stove: 50 cm; do not install behind metal cladding
Maintenance and cleaning	Clean with a dry cloth; check and replace batteries if necessary
Warranty	2 years limited
Repairability	Do not attempt to repair yourself; contact a specialist
Supplied accessories	Receiver, window transmitter with magnet, stove transmitter with thermal sensor, shims, double-sided adhesive tape, screws

Frequently Asked Questions - AS-5030 Protector

How to install the window transmitter?

Mount the window transmitter (6) and the magnet (8) on the window frame and sash so that the distance between them is less than 7 mm. Use the supplied shims to adjust the gap. Insert the CR2477 battery in the transmitter, respecting polarity. Secure the housings using double-sided adhesive tape or screws.

How to pair the transmitters with the receiver?

Plug the hood into the receiver and mount the polarity key (S). Connect the receiver to the mains. Press the test button (2) for 2 seconds until the mains LED flashes. Insert the battery into the window transmitter, then bring the magnet close to the housing: the window LED on the receiver lights up. Repeat for the stove transmitter by pressing its status button.

What to do if the hood does not turn on when I open the window?

Check that the transmitter batteries are charged and correctly installed. Ensure the distance between the window transmitter and the magnet is less than 7 mm. Verify that the receiver is powered (mains LED on). If the window LED is solid red, the window is closed; if it is solid red and green, reception is lost.

What is the minimum window opening required?

The minimum opening depends on the hood extraction capacity (m³/h) and the window area (m²). Use the calculation table provided in the manual. For example, for a 300 m³/h hood and a 0.8 m² window, the minimum opening is approximately 6 cm in tilt position.

How to install the stove transmitter?

Drill a 4 mm hole in the exhaust flue (stove cold). Attach the fixing bracket with the provided screws. Insert the thermal sensor (10) until it stops and tighten the lateral screw. Mount the transmitter at least 50 cm from the flue, using screws or double-sided adhesive tape. Connect the sensor cable to the transmitter.

What do the LEDs on the receiver mean?

The mains LED (3) solid yellow indicates normal operation. The window LED (4) solid green = window open, solid red = window closed, solid red+green = loss of reception. The stove LED (5) solid green = stove cold, solid red = stove hot, solid red+green = loss of reception from the stove transmitter.

How to replace the battery in the window transmitter?

Open the battery compartment cover by pressing and sliding in the direction of the arrow. Remove the old battery and insert a new CR2477 lithium battery, respecting polarity. Close the cover. The transmitter LED flashes briefly to confirm.

Can I add multiple transmitters?

Yes, you can register up to 2 window transmitters and 2 stove transmitters. Proceed as for the first pairing by pressing the receiver test button for 2 seconds, then activate each new transmitter.

Why does the hood stop while the window is open?

This can happen if the stove temperature exceeds 38 °C and the window closes. The system shuts off the hood to prevent backdraft. Also check that the transmitters are correctly paired and the radio range is not obstructed.

How to delete a registered transmitter?

To delete an individual transmitter: press the receiver test button for 2 seconds until the mains LED flashes, then activate the transmitter to be deleted. To delete all transmitters: press the test button for 2 seconds, then press again for 2 seconds without any further action.

USER MANUAL AS-5030 Protector

FURNACE TRANSMITTER PROTECTOR 14 11 13 12 10 H 10 16 17 15 IMPORTANT To prevent damage to the thermo sensor (10), a minimum distance of 50 cm from the furnace must be maintained during installation. Furnace Sensor > 50cm Furnace

Assembly and operating instructions for an exhaust air controller Model AS-5030.3

(radio version)

Thank you for purchasing the PROTECTOR AS-5030.3 Exhaust Air Controller.

i INTRODUCTION

The operating instructions are a constituent part of this device. They contain important notes on safety, use and disposal. Familiarise yourself with all operating and safety notes before using the equipment. Only use the article as described and for the listed areas of use. Pass all documents to the third party if you transfer the equipment to a new owner.

GENERAL

This device can be used as an exhaust air control device, as an aid to monitor fresh air supply when commissioning an exhaust air device (fume extractor hood, fan etc...). This cannot replace self-monitoring to ensure fresh air supply, but it can be supportive. This device only activates the exhaust air system in the event of pressure equalisation when a window or door is opened. The additional fresh air streaming in can thus be drawn in from the outside.

ATTENTION: When using this device for exhaust air control, the shutter must be open to ensure adequate inflow of fresh air!

KEY

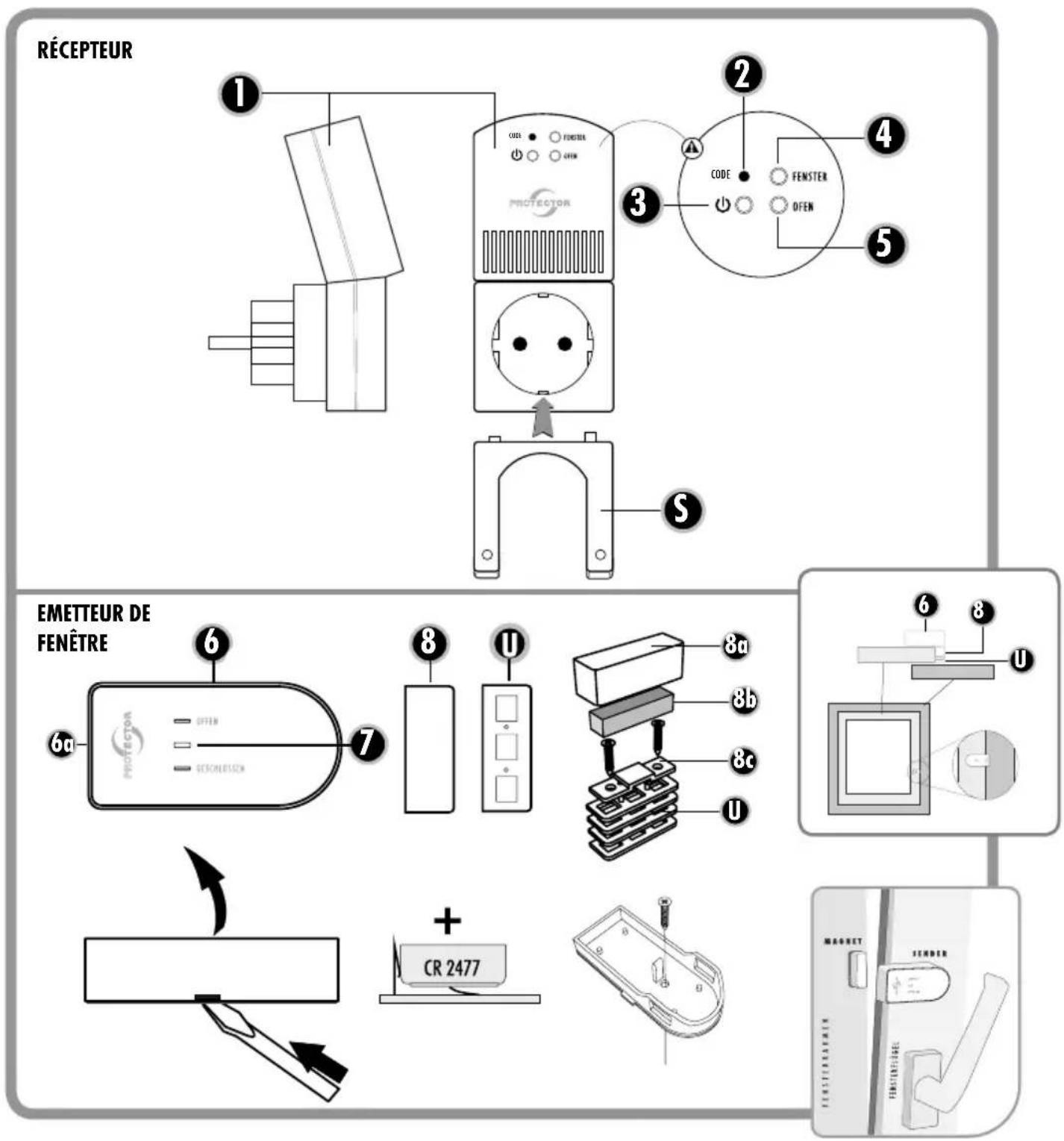

1 AS 5030.3 Receiver

2 Test button Test/Coding
3 LED Network
4 LED Window (RED = closed / GREEN = open)
5 LED Furnace

(RED = Furnace hot / GREEN = Furnace cold)

S Replugging safety device

6 Window transmitter

7 LED Status
8 Magnet for window transmitter
U Washers

9 Furnace transmitter

10 Thermo-sensor
11 Status button Furnace transmitter
12 LED Furnace hot
13 LED Furnace cold
14 Battery compartment lid
15. Exhaust pipe
16. Feedthrough hole (4 mm)
17. Fastening holes (2 mm)
H Holder

USE OF ADDITIONAL TRANSMITTERS

The device can be expanded with one window and one furnace transmitter each, whereby the extractor hood is no longer bound to an individual window or furnace. Each individual window transmitter can enable the exhaust unit and each individual furnace transmitter can disable the exhaust unit.

ASSEMBLY OF THE RECEIVER

Plug the receiver of the AS-5030.3 into a socket. Insert the device to be connected into the socket of the receiver and screw the replugging safety device (S) on. As soon as the LED „NETWORK“ (3) on the receiver lights up this is ready for operation.

Note: The receiver should not be mounted behind a metal panel, as the range can be restricted by this.

ATTENTION: Always check whether the power consumption of the connected device is less than or equal to the switching capacity.

Calculation table to determine the minimum opening of your window (Table 1)

ASSEMBLY OF THE WINDOW TRANSMITTER

Preparation

Mount the window transmitter (6) and magnet (8) on the upper window frame and the window casement so that the distance on all sides of the two housing parts is less than 7 mm. To adjust, use the enclosed washer parts for this (U).

1. Insert the battery with correct polarity into the window transmitter (6) lower section. Note: Make sure that the battery of the transmitter is placed on the metal tie bar and do not slide it below this.

2. Determine the intended location for the window transmitter and magnet and clean adhesive areas. Mount the housing lower section of the window transmitter (6) at the intended location with the enclosed double-sided adhesive pad. Alternatively, a prepared hole is located in the housing lower section, through which the window transmitter can be screwed to the window frame. For this, remove the board from the housing lower section

		Window area in m^2
	m^2	0,2	0,3	0,4	0,5	0,6	0,7	0,8	0,9	1	1,1	1,2	1,3	1,4	1,5
	cm^2	2000	3000	4000	5000	6000	7000	8000	9000	10000	11000	12000	13000	14000	15000
		Maximum permitted exhaust air performance in m^3/h
Extent of window opening	5 cm	199	252	297	337	373	406	437	466	493	519	544	568	591	613
	6 cm	246	311	365	413	456	495	532	567	600	631	661	690	717	744
	7 cm	294	369	432	488	538	585	628	668	707	743	778	811	843	874
	8 cm	342	427	500	563	621	674	723	770	813	855	895	933	970	1005
	9 cm	389	486	567	639	704	763	819	871	920	967	1012	1055	1096	1136
	10 cm	437	544	635	714	786	852	914	972	1027	1079	1128	1176	1222	1266
	11 cm	485	603	702	790	869	942	1009	1073	1133	1191	1245	1298	1348	1397
	12 cm	532	661	770	865	951	1031	1105	1174	1240	1302	1362	1419	1475	1528

and screw the housing tight with the enclosed washer. Replace the board after this.

1. Press the housing upper section of the window transmitter onto the housing lower section.
2. Mount the housing lower section with the magnet (8) at the intended location with the enclosed adhesive pad.

ATTENTION: The distance between the transmitter and magnet must not exceed 7 mm and please ensure a firm and correct fit of the individual components.

1. Insert magnet and close with the magnet housing upper section (8).

MINIMUM WINDOW OPENING

Before installation you should determine the minimum opening of the monitored window which is based on:

a) The power of the exhaust air device in m^3/h
b) The size of the window to be opened in m^2
c) The size of the window opening in cm (see table 1)

Most kitchens have rectangular tilt and pivot windows.

If your window is round for example, please ask the installation and heating engineers or electrician to calculate the minimum opening.

The minimum opening of rectangular windows is shown as an example in the table for the tilt and pivot position.

1. Determine the extraction power of your exhaust air extraction device unit in m^3/h . You can find the exhaust air extraction power on the identification plate or in the operating instructions of your exhaust air device (e.g. extractor hood).

2. Measure the inner width and height of the window and calculate the window size in m^2 .

$$ \begin{array}{l} \text {(width x height = m^ {2} ; e.g. 0.8 m x 1.0 m = 0.8 m^ {2}) =} \ \text {window size} \end{array} $$

1. Using the table, work out the opening size (minimum opening for your window) from the extraction power and window size.

2. While the window is in the titled position, measure the upper inner gap size of the window in cm. The gap size of your window must not be below the opening size calculated! The bigger the gap or window opening, the better.

3. If the gap size of the window is less than the permissible value for the opening size according to the table, the window may only be able to achieve the required opening size in the pivot position. There must also be a minimum gap when the window is in the pivoted position. The window contact shall be positioned in such a way as to ensure the minimum gap size. We recommend you ensure the minimum gap size using a spacer.

ASSEMBLY OF THE FURNACE SENSOR

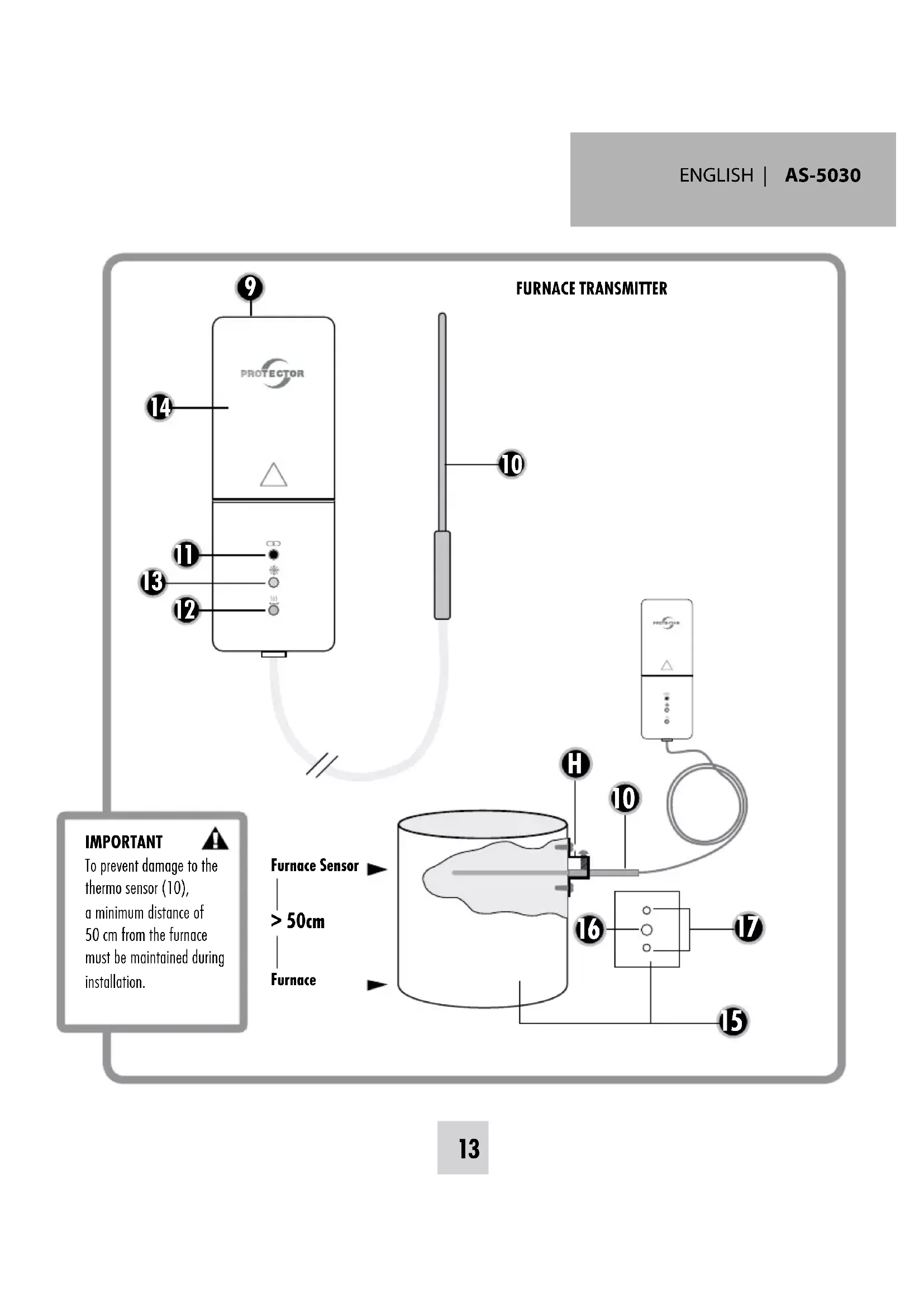

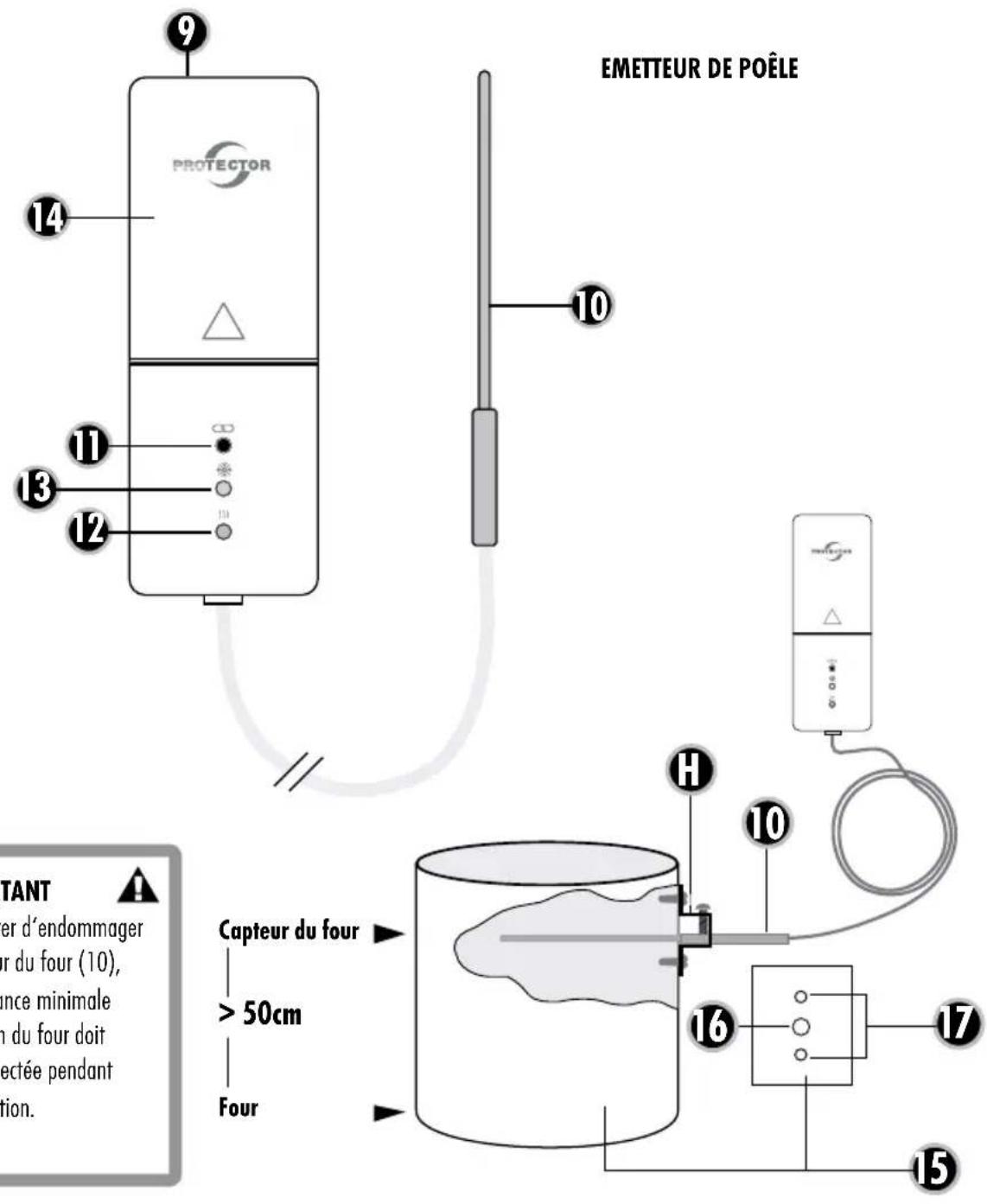

Assembly instructions for furnace transmitter (9) including thermo-sensor (10)

Note: In order to prevent burns to your skin, the furnace must have fully cooled down!

The thermo-sensor (10) is routed through a hole into the exhaust pipe of the furnace and screwed to the exhaust pipe with the enclosed mounting bracket. The transmitter

should not be covered by a panel, as the radio signals can be impaired by this, thus making the range shorter.

1) Drill a 4 mm hole for the thermo-sensor (10) at a suitable location in the exhaust pipe of your furnace. Make sure that the hole is positioned so that the thermo-sensor (10) cannot be seen after assembly, if possible.
2) Slide the mounting bracket over the thermo-sensor (10), but do not yet tighten the screw for fastening the thermo-sensor (10).
3) Insert the thermo-sensor (10) into the hole drilled for this in the exhaust pipe and slide it in as far as the limit stop.
4) Move the mounting bracket on the thermo-sensor (10) until it is located on the exhaust pipe and mark the two fastening holes of the mounting bracket using a suitable pen. Then pull the thermo-sensor (10) and mounting bracket out of the exhaust pipe again.
5) Drill holes with 2 mm diameter at the fastening holes previously marked on the exhaust pipe.

Note: Only drill through the external pipe if the exhaust pipe is double walled, and do so carefully!

6) Fasten the mounting bracket on the exhaust pipe by screwing it with the two tapping screws provided and the two holes just drilled.
7) Now guide the thermo-sensor (10) through the mounting bracket as far as the limit stop and fasten it on the mounting bracket with the side screw. Do not screw too tight so as not to damage the thermo-sensor (10).
8) Remove the battery compartment lid (14) by pressing lightly and pushing in the direction of the arrow at the same time.
9) Find a suitable location for assembly of the furnace transmitter (9). The furnace transmitter should have a minimum distance of 50 cm to the exhaust pipe so that the transmission module cannot be destroyed by heat.

Furthermore, the transmission module should not be mounted behind a panel, as the range can be impaired by this.

10) The battery compartment contains 2 screw holes. Screw the furnace transmitter (9) tight at the assembly location with the screws provided. Alternatively, you can also mount the furnace transmitter at the intended location with the double-sided adhesive tape provided. Determine the intended location and clean the adhesive areas! Ensure a firm and correct fit of the individual components.
11) Finally route the line of the thermo-sensor (10) as far as the furnace transmitter (9).

CODING THE EXHAUST AIR CONTROL

The window transmitter (6) and the furnace transmitter (9) are not coded at the factory and must be taught in to the receiver during the initial commissioning.

Please follow the order indicated precisely!

1. Insert the battery (CR 2477) in the window TRANSMITTER (6). The LED on the transmitter lights up briefly.
2. Plug the connector of the device to be connected (e.g. extractor hood) into the RECEIVER, and mount the replugging safety device (S).

NOTE: The system cannot function without the replugging safety device (S).
3. Then plug the RECEIVER into the network connector. The LED „NETWORK“ (3) lights up yellow if the function of the RECEIVER is in order after the self-test.

1. At the RECEIVER keep the button (2) pressed down for 2 seconds until the yellow LED „NETWORK“ (3) begins to flash.
2. Activate the window TRANSMITTER by holding the magnet once on the housing (6a) and removing it again. The LED integrated in the transmitter lights up. At the RECEIVER the LED „Window“ (4) lights up and the teach-in process is completed.
3. Press the RECEIVER button (2) again for 2 seconds, the yellow LED „NETWORK“ (3) begins to flash.
4. Place the batteries (3x AAA) in the furnace TRANSMITTER (9). The LEDs on the transmitter (12 and 13) light up briefly.
5. Activate the FURANCE TRANSMITTER (9) by pressing the Status button (11) once. The LEDs integrated in the transmitter light up. The LED „Furnace“ (5) lights up on the RECEIVER and the teach-in process is completed.

You can set the current furnace status (hot or cold) by pressing the Status button (11) on the furnace transmitter (9). However, this is also automatically transmitted during the next status change.

1. The TRANSMITTERS on the RECEIVER are now taught in and the AS-5030.3 is ready for use.

TEACHING IN MULTIPLE TRANSMITTERS

1. Place a battery/the batteries in the TRANSMITTER to be taught in.
2. Press the button (2) on the receiver for 2 seconds. The LED „NETWORK“ (3) begins to flash.
3. Activate the TRANSMITTER to be deleted by holding the magnet once on the housing (6a) and removing it again or pressing the Status button. The LED „NETWORK“ (3) stops flashing on the RECEIVER and the teach-in process is completed.

4. Repeat steps 1), 2) and 3) for each individual transmitter.

5. If 2 window transmitters and 2 furnace transmitters are taught in, no further transmitters can be added.

DELETING individual or all TRANSMITTERS

Deleting individual TRANSMITTERS

1. Press the button (2) on the receiver for 2 seconds. The LED „NETWORK“ (3) begins to flash.
2. Activate the TRANSMITTER to be deleted by holding the magnet once on the housing (6a) and removing it again or pressing the Status button. The LED „NETWORK“ (3) stops flashing on the RECEIVER and the deletion is completed.

Deleting all TRANSMITTERS

1. Press the button (2) on the receiver for 2 seconds. The LED „NETWORK“ (3) begins to flash.
2. Press the button (2) for 2 seconds again. The LED „NETWORK“ (3) stops flashing on the RECEIVER and the deletion is completed for all TRANSMITTERS.

FUNCTIONAL TEST

The temperature at the thermo-sensor (10) of the furnace transmitter (9) is crucial for the function testing of the exhaust air control.

Thermo-sensor (10) of the furnace transmitter is < 38°C

1. Switch ON exhaust unit and window is closed

   Exhaust unit must start up.

2. Open window > Exhaust unit must remain on.
3. Close window > Exhaust unit must remain on.

Thermo-sensor (10) of the furnace transmitter

is > 38°C

1. Switch ON exhaust and window is closed

   Exhaust unit must not start up.

2. Open window > Exhaust unit must start up.
3. Close window > Exhaust unit must switch off.

MEANING OF THE LED DISPLAYS

RECEIVER/CONTROL CENTRE

LED Network (3)

Yellow continuously lit > Basic position
Yellow flashing at the start > No transmitter taught in
Yellow flashing Teach-in mode > Transmitters can be taught in

LED Window (4)

Dark > No transmitter taught in
Green continuously lit > Window is open
Red continuously lit > Window is closed
RED and GREEN continuously lit > Window transmitter no longer has radio reception
(Battery discharged, defective or no radio reception)

LED Furnace (5)

Dark > No transmitter taught in
Green continuously lit > Furnace is cold
Red continuously lit > Furnace is hot
RED and GREEN continuously lit > Furnace transmitter no longer has radio reception
(Battery discharged,
defective or no radio reception)

WINDOW TRANSMITTER

Dark > Rest state / Sleep mode
Green flashing > Window is being opened
Red flashing > Window is being closed
RED and GREEN flashing 0.5 s > Window transmitter battery is discharged

FURNACE TRANSMITTER

Dark > Rest state / Sleep mode
Green flashing > FURNACE becoming cold
Red flashing > FURNACE becoming hot
RED and GREEN flashing 0.5 s > FURNACE transmitter battery discharged

MALFUNCTIONS

Malfunctions can occur in individual cases due to overlaps with other, similar radio devices. It is normally sufficient if you check and, if necessary, adjust the positioning of the components. If one of the transmitters is no longer reachable (battery discharged, mechanically defective or no radio reception), the control centre no longer interconnects as long as the fault is present.

TECHNICAL DATA

Mains voltage: 230 V \~, 50/60 Hz, approx. 1 W

Mains switching capacity: 1800 W / 8A, at cos phi = 1

Radio range up to: 50 m

Frequency: 433.92 Mhz

Transmitting power: < 5mW

Protection class: IP 20, only for dry rooms

Battery (window transmitter): 1 x 3V lithium type CR 2477 (lifetime approx. 2 years)

Battery (furnace transmitter): 3 x 1.5V alkaline AAA (lifetime approx. 2 years)

• Maximum temperature at sensor 400°C
• Maximum heating capacity of the furnace 4,5 KW
- Silicone cable of the sensor heat resistant up to 150^

Never carry out repairs yourself!

2 YEAR LIMITED GUARANTEE

For two years after the date of purchase, the defect-free condition of the product model and its materials is guaranteed. This guarantee is only valid when the device is used as intended and is subject to regular maintenance checks. The scope of this guarantee is limited to the repair or reinstallation of any part of the device, and is only valid if no unauthorised modifications or attempted repairs have been undertaken. Customer statutory rights are not affected by this guarantee.

Please note!

No claim can be made under guarantee in the following circumstances:

- Operational malfunction

• Empty batteries or faulty accumulator
- Erroneous coding/channel selection
- Fault through other radio installation (i.e. mobile operation)
• Unauthorised modifications / actions
- Mechanical damage
- Moisture damage
• No proof of guarantee (purchase receipt)

Claims under warranty will be invalidated in the event of damage caused by non-compliance with the operating instructions. We do not accept any responsibility for consequential damage! No liability will be accepted for material damage or personal injury caused by inappropriate operation or failure to observe the safety instructions. In such cases, the guarantee will be rendered void.

Liability limitation

The manufacturer is not liable for loss or damage of any kind including incidental or consequential damage which is the direct or indirect result of a fault to this product.

SAFETY NOTES

The warranty will be null and void in case of damages arising from violations of these operating instructions. We are not liable for consequential damages!

We accept no liability for material damages or injuries arising from inappropriate use or violation of the safety instructions. In such cases all warranty claims are null and void!

Do not use this product in hospitals or other medical facilities. Although this device transmits only relatively weak radio signals, the signals may in such locations result in

malfunctioning of systems critical to life. The same may apply to other areas.

For reasons of safety and licensing (CE), unauthorised conversion and /or modification of the product is prohibited.

The design of the product complies with protection class 1. Only a standard mains socket (230V\~/50Hz) of the public mains supply may be used to power the device. Devices powered by mains voltage must be kept away from children. Please therefore be particularly careful in the presence of children.

Do not take the product apart! There is a danger of lethal electric shock!

Do not leave packaging material lying about since plastic foils and pockets and polystyrene parts etc. could be lethal toys for children.

The device is suitable only for dry interior rooms (not bathrooms and other moist places). Do not allow the device to get moist or wet. There is a danger of lethal electric shock!

In industrial institutions, the accident prevention regulations of the Association of Commercial Professional Associations for electrical installations and equipment must be observed. Please consult a specialist should you have doubts regarding the method of operation, the safety, or the connections of the device.

Handle the product with care - it is sensitive to bumps, knocks or falls even from low heights.

GB

These operating instruction are published by Protector GmbH, An den Kolonaten 37, 26160 Bad Zwischenahn/Germany

The operating instructions reflect the current technical specifications at time of print. We reserve the right to change the technical or physical specifications.

RÉCEPTEUR 1 2 3 4 5 CODE FENSTER OPEN PROTECTOR S EMETTEUR DE FENÊTRE 6a 7 8 9 10 8a 8b 8c U 6 8 U PROTECTOR CR 2477 +

Simple diagram of a vertical rod with a numbered label '10' pointing to its length (no text or symbols beyond the number)

BELANGRIJK

Diagram of a fluid or gas measurement system with labeled components including tank, sensor, and control unit

FUNCTIONELE WERKING TESTEN

Groen brandt permanent > raam is geopend

interseroh
