OASE HeatUp Basis 20 W - Aquarium heating

HeatUp Basis 20 W - Aquarium heating OASE - Free user manual and instructions

Find the device manual for free HeatUp Basis 20 W OASE in PDF.

English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
📄

Document temporarily unavailable

The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.

Pick your language and provide your email: we'll send you a specifically translated version.
Product type Aquarium floor heating
Brand Oase
Model HeatUp Basis 20 W
Power 20 W
Power supply 230 V / 50 Hz via included transformer
Main functions Aquarium floor heating, temperature maintenance, installation under substrate (sand, gravel, stones)
Startup Plug into mains, the device starts immediately
Shutdown Disconnect from mains voltage
Type of fixing Suction cups (included) to fix the cable to the aquarium floor
Permitted water temperature +4 °C to +35 °C
Intended use Indoor, private aquatics
Maintenance and cleaning Clean with a damp cloth; do not immerse the transformer; cut power before cleaning

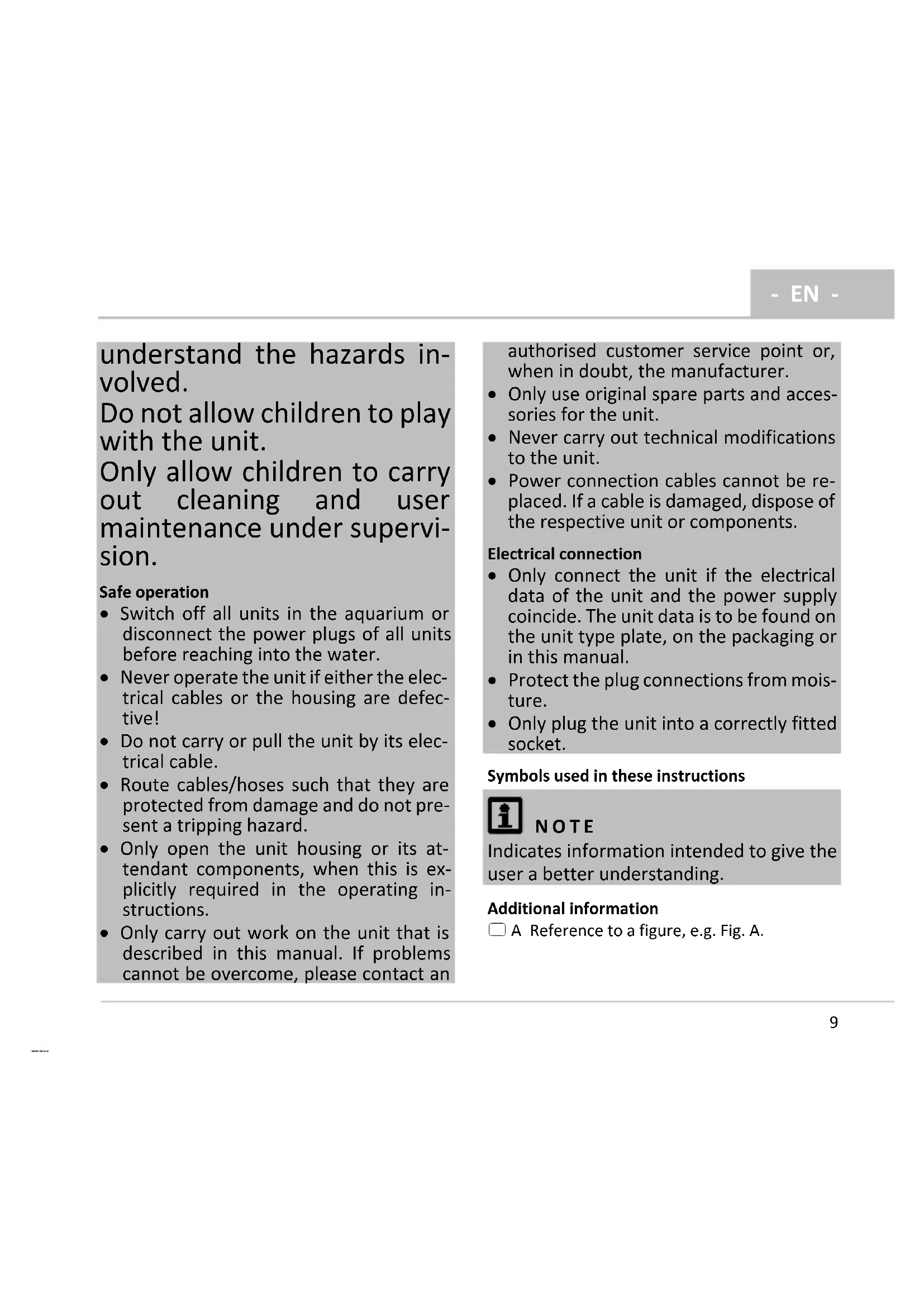

Safety Do not use if cable is damaged; disconnect before any intervention; do not open the body; do not modify the device
Spare parts and repairability Suction cups (wear part); cable not replaceable; repair only by authorized service center
Warranty 36 months (according to manufacturer conditions)
Recycling Do not dispose of with household waste; use the take-back system; cut the cable before disposal

Frequently Asked Questions - HeatUp Basis 20 W OASE

How to install the HeatUp Basis 20 W heating cable?
Attach the suction cups to the cable, place it in loops on the cleaned aquarium floor without crossing or bending the cable. Cover with sand, gravel or stones. Bring out the cable and plug it into the included transformer. The cable between the plug and the colored notch remains cold. Form a drip loop with the mains cable.
Can I cut or extend the heating cable?
No, the connection cable is not replaceable. Never cut or modify the cable. If the cable is damaged, the device must be disposed of.
What is the maximum allowed water temperature?
The device can be used with water between +4 °C and +35 °C. Do not exceed this range.
What to do if the cable does not heat up?
First check the mains voltage. If present and the cable remains cold, the device is defective and must be replaced.
How to clean the device?
Unplug the device before any cleaning. Clean the cable with a damp cloth. The transformer must not be immersed.
Can the transformer be immersed?
No, the transformer must remain outside the aquarium and be protected from moisture. Only the heating cable goes into the water.
What is the warranty period?
The Oase manufacturer warranty is 36 months from the date of first purchase from an authorized dealer. It covers manufacturing defects but not wear parts (suction cups) nor damages caused by improper use.
Are suction cups included?
Yes, suction cups are supplied with the device to fix the cable to the aquarium bottom. They are considered wear parts and are not covered by the warranty.
Can I use the device with a timer?
The device is turned on and off simply by plugging or unplugging the mains plug. Using an external timer is possible, but ensure it supports the 20 W power.
How to turn off the device?
Simply unplug the transformer from the mains socket. The device does not have a switch.
