BTMA200BK - Bluetooth Adapter NEDIS - Free user manual and instructions

Product type	Multi Bluetooth® Adapter
Brand	Nedis
Model	BTMA200BK
Bluetooth version	4.2
Bluetooth frequency range	2402 - 2480 MHz
Maximum transmission power	4 dBm
Main functions	Hands-free calling, music streaming, USB charging for devices
Built-in microphone	Yes
Playback time (volume at 50%)	Up to 7 hours
Talk time	Up to 5.5 hours
Charging time	Up to 2 hours
Battery type	Lithium-Polymer (300 mAh)
USB charge output	2 x 5.0 V / 2.4 A
Connections	AUX 3.5 mm input, micro USB port (charging), auxiliary power plug
Power source	Rechargeable Li-Po battery, charging via car auxiliary socket or micro USB
Intended use	Indoor and car, hands-free kit and music streaming
Safety	Do not expose to water, do not use if damaged, avoid prolonged high volume
Maintenance and cleaning	Clean with a soft, dry cloth. Do not immerse.
Package contents	Bluetooth adapter, AUX plug, micro USB cable

Frequently Asked Questions - BTMA200BK NEDIS

How do I pair the Bluetooth adapter with my phone?

Turn on the adapter by holding the multifunction button for 3 seconds. Enable Bluetooth on your phone, select BTMA200BK from the list. If prompted, enter code 0000.

How long does the battery last?

Playback time is up to 7 hours at 50% volume, and up to 5.5 hours for talk time. Charging takes about 2 hours.

Can I use the adapter while it is charging?

No, you cannot use the product while it is charging via the micro USB port. However, you can use it when it is plugged into the car's auxiliary socket.

How do I make a hands-free call?

To answer, press the multifunction button once. To end the call, press again. To redial the last number, press twice quickly. To reject a call, press and hold for 3 seconds.

Can I charge my phone with this adapter?

Yes, the adapter has two USB charging ports with output 2.4 A. Connect your device with a suitable cable.

What should I do if the adapter does not connect automatically?

Make sure the adapter is on and your device's Bluetooth is enabled. If another device was paired, turn off its Bluetooth or switch it off. The adapter will automatically reconnect to the last source within range.

How do I reset the adapter?

There is no specific reset. You can turn the device off and on again. To clear the pairing list, press and hold the multifunction button for 10 seconds until the LED flashes quickly.

Does the adapter work with a car without an auxiliary socket?

Yes, you can plug the Bluetooth receiver directly into the AUX port of your car stereo or an indoor speaker using the provided AUX plug.

What are the important safety precautions?

Do not expose to water, do not use if damaged, avoid prolonged listening at high volume. Do not attempt to replace the internal battery. Consult the full manual online.

How do I clean the Bluetooth adapter?

Use a soft, dry cloth to clean the surfaces. Do not immerse the product in water. Avoid harsh chemicals.

USER MANUAL BTMA200BK NEDIS

Bluetooth® Multi Adapter

for streaming audio, charging and hands-free calling

BTMA200BK

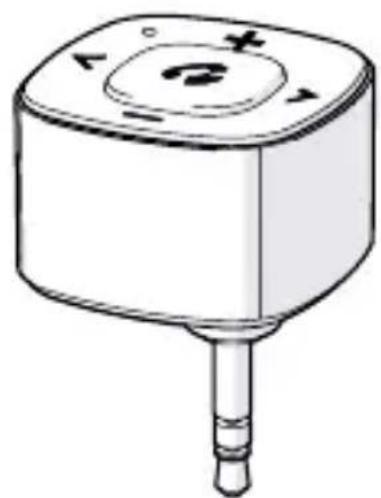

Technical line drawing of a mechanical component with a cylindrical shaft and circular top (no text or symbols)

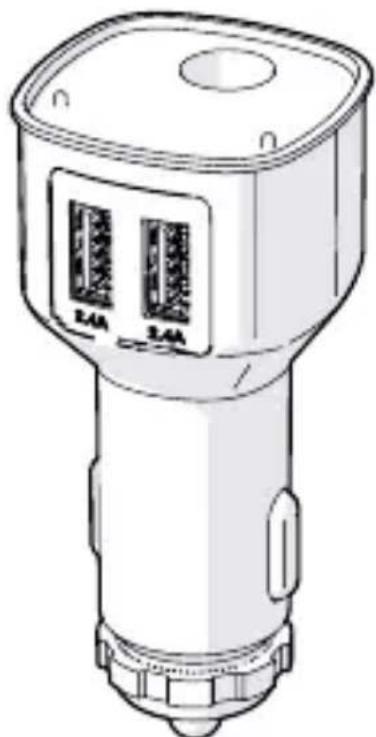

Technical line drawing of a handheld device with two 2.4A indicator lights (no text or symbols on body)

EN Quick start guide 4
DE Kurzanleitung 8
FR Guide de démarrage rapide 14
NL Snelstartgids 19
IT Guida rapida all'avvio 24
ES Guía de inicio rápido 29
PT Guia de iniciação rápida 35
SV Snabbstartsguide 40
FI Pika-aloitusopas 45
NO Hurtigguide 49
DA Vejledning til hurtig start 54
HU Gyors beüzemelési útmutató 59
PL Przewodnik Szybki start 64
EL Οδηγός γρήγορης εκκίνησης 69
SK Rýchly návod 75
CS Rychlý návod 80
RO Ghid rapid de inițiere

A

B

Bluetooth® Multi Adapter BTMA200BK

For more information see the extended manual online: ned.is/btma200bk

Intended use

The Nedis BTMA200BK is intended to be used as a hands-free kit with Bluetooth.

The product has a built-in microphone for making hands-free calls and the integrated USB charging ports can be used to charge any device.

The product is intended for indoor and car use only.

The product is not intended for professional use.

The product is exclusively intended for playing music from a Bluetooth device and for answering and making hands-free phone calls.

This product can be used in a car using the auxiliary power plug or indoors using the AUX plug.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Bluetooth® Multi Adapter
Article number BTMA200BK
Bluetooth® version 4.2
Bluetooth® frequency range 2402 - 2480 MHz
Maximum transmit power 4 dBm
Hands-free calling Yes
Built-in microphone Yes
Maximum battery play time (at 50% volume)	Up to 7 hours
Maximum battery talk time Up to 5.5 hours
Maximum charging time Up to 2 hours
Battery type Lithium-Polymer
Battery capacity 300 mAh
USB charging output 2 x 5.0 V / 2.4 A
Connections AUX input

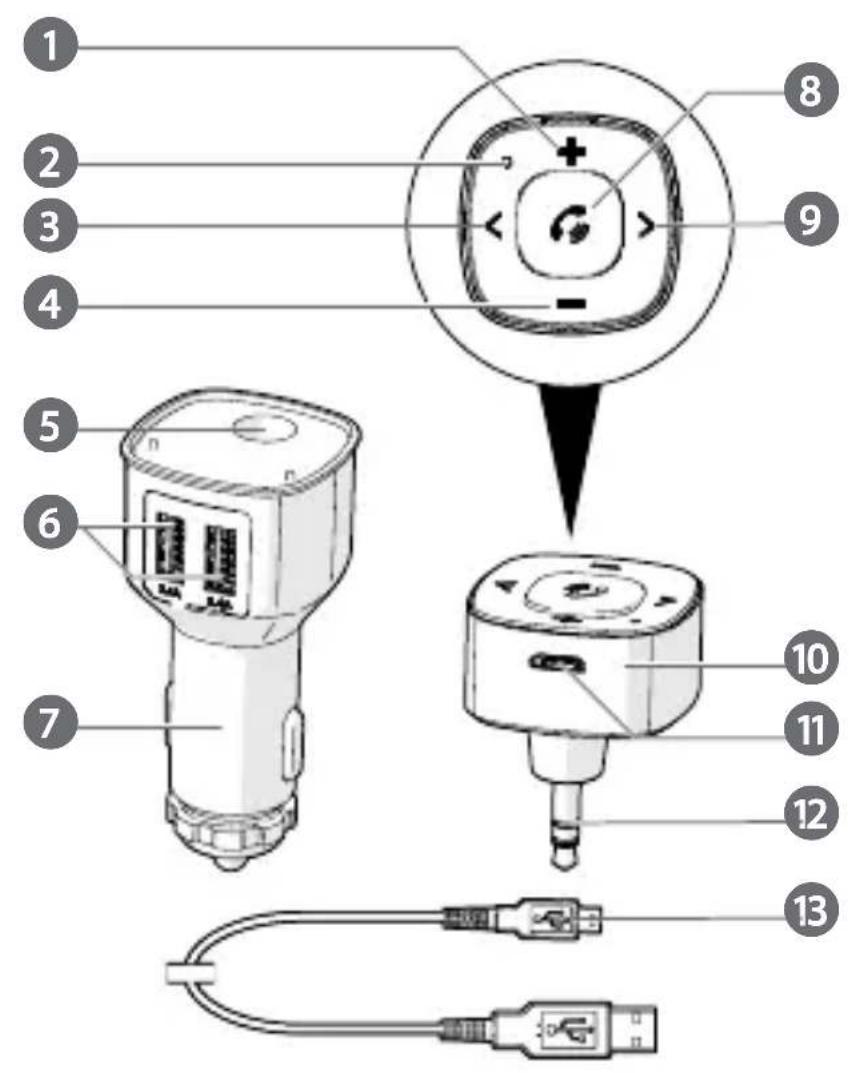

Main parts (image A)

1 Volume up button
2 Microphone
3 Previous button
4 Volume down button
5 AUX port
6 USB charging port (2.4 A)
7 Auxiliary power plug

8 Multifunctional button with LED
9 Next button
10 Bluetooth receiver
11 Micro USB port
12 AUX plug
13 Micro USB cable

Safety instructions

To prevent possible hearing damage, do not listen at high volume levels for long periods.

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Do not expose the product to water or moisture.
• This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.
• Only use the provided USB charging cable.
• Charge the battery for at least 2 hours before using the product for the first time.

• Do not overcharge the battery.

• After extended periods of storage, it may be necessary to charge and discharged the cells or batteries several times to obtain maximum performance.

• Do not leave the battery on prolonged charge when not in use.
• Disconnect the product from the power source and other equipment if problems occur.
• Do not expose the product to direct sunlight, naked flames or heat.
• Do not place the product near heat sources, this can damage the product.
• Do not expose the product to very hot or very cold temperatures or drastic changes in temperature or humidity.
• Do not immerse the product in water for cleaning.
• Some wireless products may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.
• Be careful when using the product while driving. Always focus your attention on the road.

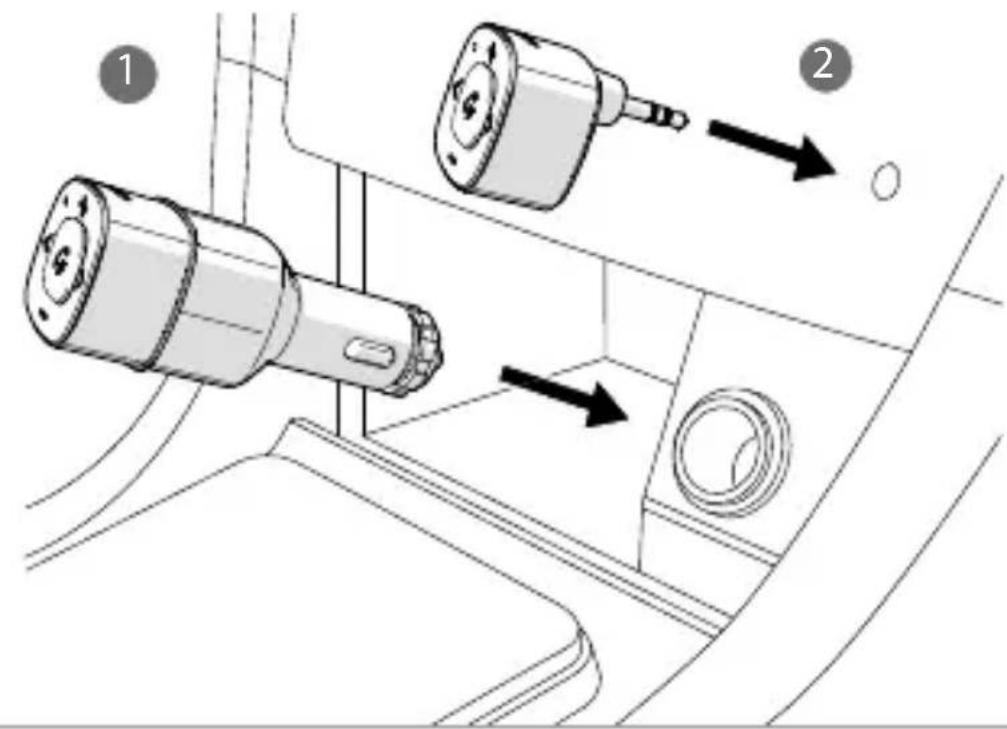

Installing the product (image B)

1. Plug the Bluetooth receiver A ⑩ into the AUX port A ⑤ of the auxiliary power plug A ⑦.
2. Plug A ⑦ into the auxiliary power port of your car.

Alternatively, plug A⑩ directly into the AUX port of your car or an indoor device which enables the device to have a Bluetooth connection.

Switching on the top of the Bluetooth receiver A ^10

Press and hold the multifunctional button with LED A⑧ for 3 seconds to switch A⑩ on or off.

product automatically switches off when there is no Bluetooth connection for more than 10 minutes.

Pair with Bluetooth

After switching on the product, A⑧ blinks and emits a prompt: "Power on".

1. Enable Bluetooth on the device you want to pair.

2. Select "BTMA200BK" from the list of available Bluetooth devices on your device.

3. If asked, enter the pairing code '0000'.

The product has already been paired with another device, make sure that device is switched off or Bluetooth is disabled.

When the product has lost connection to the Bluetooth source, it will automatically reconnect when back in range and switched on.

Playing music

Play music directly from the mobile device that is connected to the product via Bluetooth.

Controlling the music

1. Press A ⑧ to play or pause music.

2. Press the next button A ⑨ to skip to the next song.

3. Press the previous button A ③ to go back to the previous song.

4. Press and hold the volume up button A ① to increase the volume.

5. Press and hold the volume down button A ④ to decrease the volume.

6. During a call, press and hold A ⑧ for 3 seconds to switch to private mode. If you receive a call while playing music, the product automatically switches to the phone call.

Making phone calls

1. To answer an incoming call, press A⑧.

2. During a call, press and hold A ⑧ for 3 seconds to switch to private mode.

3. To end a call, press A ⑧.

4. To quickly redial the last called number, double press A⑧.

5. To reject an incoming call, press and hold A ⑧ for 3 seconds.

Charging the product

When the battery is low, A⑩ gives a prompt sound and the status of the battery is shown on the connected device.

There are two ways to charge the product: with the auxiliary power plug (option A) or using the micro USB port (option B).

Option A:

1. Plug the AUX plug A ⑫ into A ⑤ to charge A ⑩.

2. Plug A ⑦ into the auxiliary power port of the car.

Option B:

1. Plug the micro USB cable A ⑬ into the micro USB port A ⑪.
2. Plug the other end of the micro USB cable into a USB port made for charging.
   You cannot use the product while charging it via the micro USB port.

Charging your devices

- Connect your device to the USB charging port (2.4 A) A ⑥ using A⑬. See the manual of your device to check if your device supports 2.4 A charging.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product BTMA200BK from our brand Nedis ^* , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/BTMA200BK#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands
