Product Type	Digital Photo Frame
Brand	Proline
Model	PL-DPF720
Display Resolution	800 x 480 pixels
Screen Format	16:9
Supported Media Types	SD, MMC, SDHC, USB flash drive
Photo Format	JPEG
Power Supply	5V 1A power adapter (AC input 100-240V, 50/60Hz)
Available Languages	English, French, Dutch, Portuguese, Spanish
Operating Temperature	5°C to 35°C
Connectivity	USB port (for PC connection and USB flash drive), memory card reader
Internal Memory	Yes (capacity not specified)
Main Functions	Slideshow, calendar, zoom (x1-x4), rotation (0-270°), brightness adjustment, programmable auto on/off, 12h/24h clock
Slideshow Speed	5s, 10s, 15s, 1min, 15min, 30min
Slideshow Repeat	All, stop, once, random
Adjustable Brightness	1 to 15 levels
Safety	Do not expose to water, free ventilation (10 cm around), do not place flame sources, indoor use only
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products or solvents.
Spare Parts and Repairability	Contact after-sales service (Darty, Fnac, Vanden Borre hotlines)
General Information	Warranty and support: call 0 978 970 970 (France) or [phone] (Belgium).

Frequently Asked Questions - PL-DPF720 PROLINE

How to turn on the photo frame?

Connect the connector of the supplied power adapter to the DC5V IN jack of the frame, then plug the adapter into a power outlet. The screen briefly displays the welcome image. To turn it off, press the ⏻ button and unplug the adapter.

How to set the date and time?

Press MENU, select the setting option with ◀/▶, then press ▶II. In the menu, select Date and set year, month, day with △/▼, confirm with ▶II. Do the same for time. Press MENU to return to the home screen.

How to display photos from a memory card?

Firmly insert a memory card (SD/MMC/SDHC) or a USB flash drive into the corresponding slot. Playback starts automatically in slideshow mode. To pause, press ▶II, to resume press again.

What to do if the screen freezes and does not respond?

Turn off the device by unplugging the adapter, wait a few minutes, then plug it back in. If the problem persists, contact after-sales service.

How to connect the photo frame to a PC?

Use a USB cable to connect the frame to the PC. The frame screen displays "USB device connecting". You can then copy-paste photos between the PC and the frame.

How to adjust the slideshow speed?

In playback mode, press ▶■ then press Ⓜ for 3 seconds. Select Interval with ◀/▶, press ▶■, choose a speed (5s, 10s, etc.) with △/▼ and confirm with ▶II.

How to activate auto power on?

In the settings menu, select Auto Power On. Set the desired time with △/▼, confirm with ▶II, then choose the status: Once, Every time or Off. Press ▶II to confirm.

What memory card formats are supported?

The photo frame supports SD, MMC, SDHC cards as well as USB flash drives. Insert them firmly into the corresponding slot or port.

How to clean the photo frame?

Use a soft, dry cloth to clean the screen and the casing. Never use liquid products, abrasives or solvents. Avoid touching the screen with sharp objects.

Where to find after-sales service?

In France, call 0 978 970 970 (local call rate) 7 days a week, 24 hours a day. In Belgium, contact Vanden Borre at [phone] Monday to Saturday from 8am to 6pm. You can also contact the Fnac hotline at 0 969 324 334.

USER MANUAL PL-DPF720 PROLINE

Scenic mountain lake landscape with snow-capped peaks and a small boat on the water, framed in a dark border (no text or symbols visible)

MANUEL D'UTILISATION HANDLEIDING

INHOUDSOPGAVE

AVERTISSEMENTS......p.02
CONTENU DE L'EMBALLAGE....p.04
DESCRIPTION DES PIÈCES....p.04
ALLUMER/ÉTEINDRE LE CADRE PHOTO....p.05
RÉGLAGE DE LA DATE ET DE L'HEURE....p.05
CONNEXION À UN PC ET FONCTION DE COPIE......p.06
AFFICHAGE DES PHOTOS....p.06
AFFICHAGE CALENDRIER....p.07
MODIFICATION DES RÉGLAGES DU MENU....p.08
SPÉCIFICATIONS....p.09
SOURCE D'ALIMENTATION EXTERNE....p.09
GUIDE DE DÉPANNAGE......p.10
MISE AU REBUT....p.11

AVERTISSEMENTS

④ ⑤ ⑥ ⑦ D:01M/DC/SOHC USB PC DC/RIN ① ② ③

1. Bouton marche/arrêt ⏻
2. Touches ◀/△/▷/▽/▶||
3. Touche Menu MENU
4. Fente de carte ▲ SD/MMC/SDHC
5. Port USB
6. Port PC
7. Prise DC5V IN

ALLUMER/ÉTEINDRE LE CADRE PHOTO

B201WCSHDSK USB

Scenic view of a calm blue lake with distant mountains and trees under a clear sky (no text or symbols visible)

Hotline Darty France

B20/MMC/SDHC USB

Scenic view of a calm blue lake with distant mountains and trees under a clear sky (no text or symbols visible)

2018 - 07 - 01 12 : 17 www.paste.org a publisher picture (pct)# a publisher picture (pct)# a publisher picture (pct)# a publisher picture (pct)# a publisher picture (pct)# a publisher picture (pct)

- This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non domestic use or in a commercial environment.

- Ventilation

Allow at least a 10 cm gap all around the product.

- The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

- No naked flame sources, such as lighted candles, should be placed on the apparatus.

- Attention should be drawn to the environmental aspects of battery disposal. Don't throw used batteries in dustbin. Please contact your retailer in order to protect the environment.

• This apparatus is not suitable for use in a tropical climate.

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

- To protect the environment, use local recycling facilities for battery disposal.

- Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

- Where the MAINS plug or an appliance couple is used as the disconnect device, the disconnect device shall remain readily operable.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

This equipment is double insulated and an earth connection required.

This mark is applied to show the equipment conforms to mean low voltage and electromagnetic compatibility directives.

PACKAGE CONTENT

• Digital photo frame (1)
  • Power adapter (1)
  • Instruction manual (1)
• Bracket (1)

IDENTIFYING THE PARTS

④ ⑤ ⑥ ⑦ D:\SN\CMOSOIC USB PC DOWN ① ② ③

1. ⏻ Power button
2. ◀ / △ / ▷ / ▽ / ▶ Buttons
3. MENU Menu button
4. ▲ SD/MMC/SDHC Card slot
5. USB Port
6. PC Port
7. DC5V IN Socket

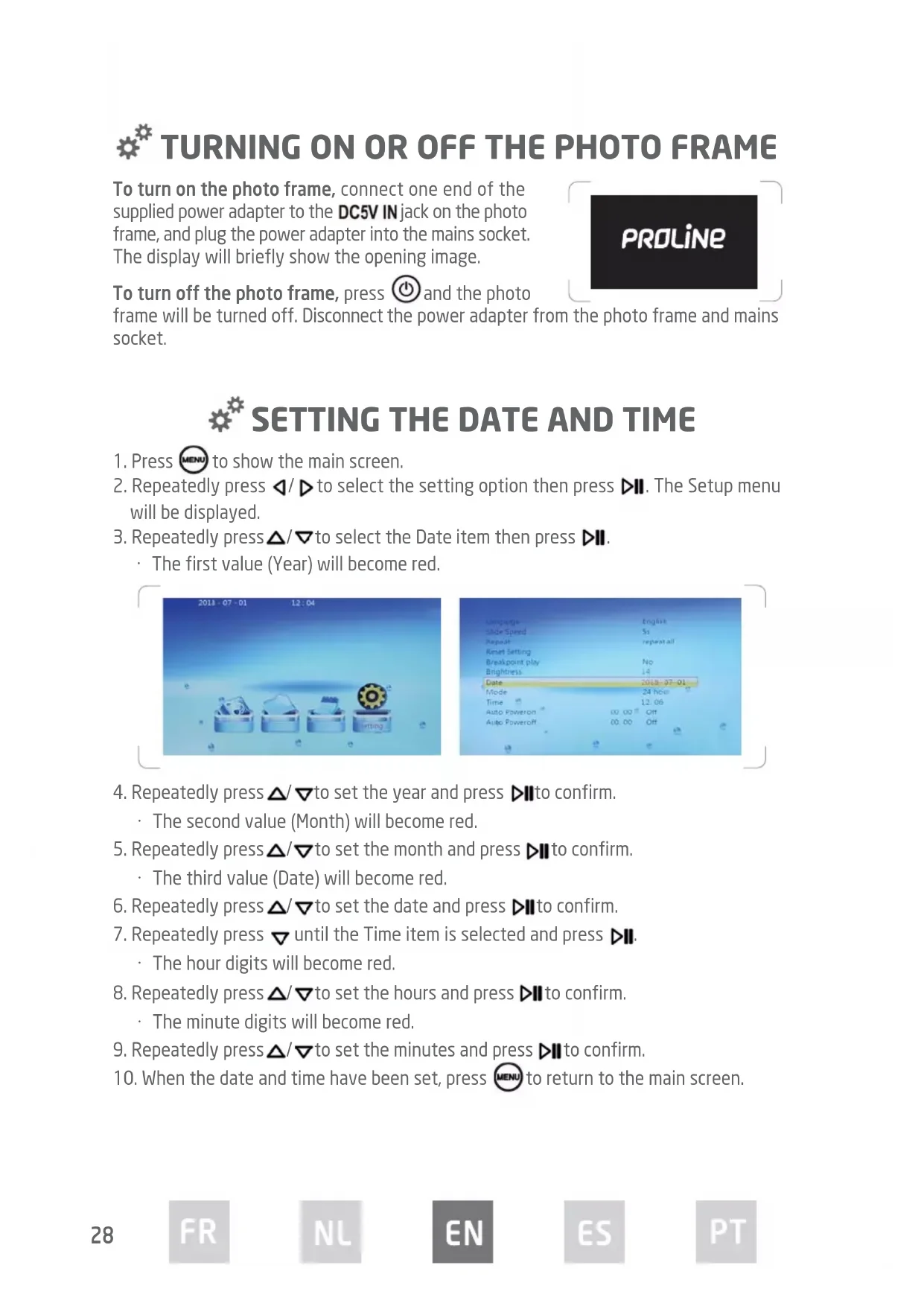

TURNING ON OR OFF THE PHOTO FRAME

To turn on the photo frame, connect one end of the supplied power adapter to the DC5V IN jack on the photo frame, and plug the power adapter into the mains socket. The display will briefly show the opening image.

PROLINE

To turn off the photo frame, press ⏻ and the photo frame will be turned off. Disconnect the power adapter from the photo frame and mains socket.

SETTING THE DATE AND TIME

1. Press MENU to show the main screen.
2. Repeatedly press ◀/▶ to select the setting option then press ▶II. The Setup menu will be displayed.
3. Repeatedly press △/▼ to select the Date item then press ▷||.

- The first value (Year) will become red.

2018 - 07 - 01 12 : 04 Setting...

Language Slide Speed Passport Reset Setting Breakpoint play Brightness Date 2018-07-01 Mode 24 hours Time 12:06 Auto Poweron Off Auto Poweroff Off Off

1. Repeatedly press △/▼ to set the year and press ▶|| to confirm.
2. The second value (Month) will become red.
3. Repeatedly press △/▽ to set the month and press ▷|| to confirm.
4. The third value (Date) will become red.
5. Repeatedly press △/▼ to set the date and press ▶|| to confirm.
6. Repeatedly press ▼ until the Time item is selected and press ▶II.

• The hour digits will become red.

1. Repeatedly press △/▽ to set the hours and press ▶∥ to confirm.
   • The minute digits will become red.
2. Repeatedly press △/▼ to set the minutes and press ▶|| to confirm.
3. When the date and time have been set, press MENU to return to the main screen.

CONNECTING TO PC AND USING COPY FUNCTION

The photo frame has built-in memory.

1. Connect the photo frame to PC using a USB cable.
2. When connected correctly, the screen will show 'USB device is connecting'.
3. You can copy and pasta photos between PC and photo frame.

DISPLAYING PHOTOS

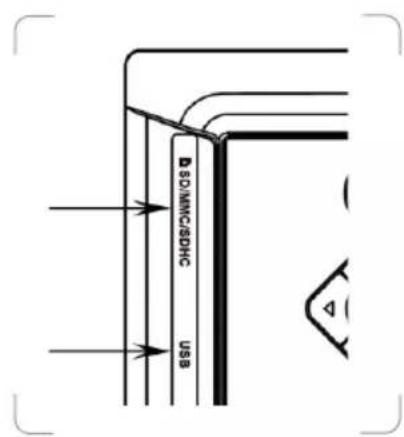

1. Insert a memory card or USB memory firmly into the corresponding slot or port of the photo frame.

- Playback will automatically begin and images on the memory card or USB memory will be displayed one after another as a slideshow.

1. To pause, press ▶II. The photo information will be displayed.
2. To resume the slideshow, press ▶ again.

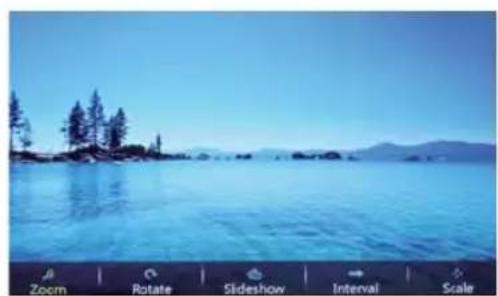

3. When playing photos, press and then press ▶ and hold Ⓜ for about 3 seconds to see a menu list for you to adjust the photo.

4. Use ◀/▶ to select Zoom and then press ▶■to set the magnification of the picture: x1, x2, x3, x4.

5. Use ◀/▶ to select Rotate and then press to the angle of rotation: 0, 90, 180, 270.
6. Use ◀/▷ to select Slideshow and then press ▶to show a list. Use △/ ▽ to select the switching mode of slideshow and then press ▶to confirm.
7. Use ◀/ ▶ to select Interval and then press

▶to show a list. Use △/▽ to select a switching speed and then press ▶to confirm.

- Use ◀/▶ to select Scale and then press ▶to show a list. Use △/▼ to select a Scale type and then press ▶II to confirm.

To exit from the current setting, press MENU.

BSD/MMC/SDHC USB

Scenic view of a calm blue lake with distant mountains and trees under a clear sky (no text or symbols visible)

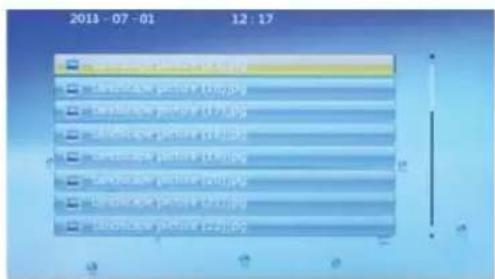

1. Press MENU to show a thumbnail of images.

2018-07-01 12:17 www.psdz.com.cn www.psdz.com.cn www.psdz.com.cn www.psdz.com.cn www.psdz.com.cn www.psdz.com.cn www.psdz.com.cn

1. To exit, press MENU to return to the main screen.

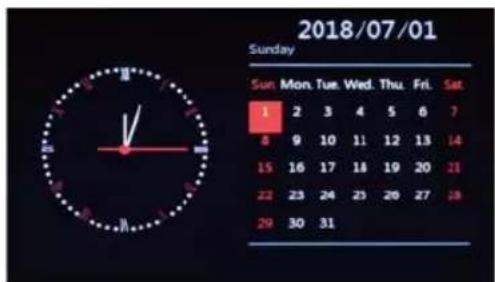

DISPLAYING CALENDAR

1. Repeatedly press ◀/▶ to select the calendar option then press ▶II.

2018/07/01 Sunday Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

1. Repeatedly press ◀/▶ to view the monthly calendar.
2. To exit, press Ⓜ to return to the main screen.

CHANGING THE MENU SETTINGS

1. Repeatedly press ◀/▶ to select the setting option then press ▶II. The Setup menu will be displayed.
2. Repeatedly press △/▽ to select an item then press ▶||.
3. Repeatedly press ◀/▶ to select a setting and then press ▶■ to confirm.
4. To exit, press MENU to return to the main screen.

Language Set the language
Slide Speed 5s /1	0s /15s /1min /15min /30min
Repeat Repeat all / off / one / play random
Reset Setting	Cue: Restore factory setting? Yes or No
Breakpoint Play	Yes or NO
Brightness	1 to 15
Date YYYY-MM-DD
Mode 24 hour or 12 hour
Time Hour / Minute
Auto Power On	You can set the time for the photo frame to turn on or off automatically.1. When selecting this item, press ▶ and the hour digits become red.2. Repeatedly press △/ ▽ to set the hours and press ▶ to confirm.· The minute digits will become red.3. Repeatedly press △/ ▽ to set the minutes and press ▶ to confirm.4. Repeatedly press △/ ▽ to set the status - Once, Every time or Off.Press ▶ to confirm.
Auto Power Off

SPECIFICATIONS

Model	PL-DPF720
Power adapter	Input: AC100-240V~, 50/60Hz, 0.2A Max.Output: 5.0V == 1.0A
Panel resolution	800 x 480 pixels
Screen format 16 : 9
Media SD / MMC / SDHC + USB	+
Photo format JPEG
Operating temperature	5°C ~ 35°C

= Direct current Alternating Current

EXTERNAL POWER SUPPLY

Information published	Value and precision Unit
Manufacturer's name or trade mark, commercial registration number and address	Shenzhen Keyu Power Supply Technology Co., Ltd. 2~3F, No. 13, Lane 3, Yuquan East Road, the 2nd Industrial Guangming District, 518000 Shenzhen, P.R.China
Model identifier	KA0601A-0501000EUS
Input voltage 100-240 V
Input AC frequency 50/60 Hz
Output voltage DC 5,0 V
Output current 1,0 A
Output power 5,0 W
Average active efficiency 74,0 %
Efficiency at low load (10%) -	%
No-load power consumption 0,09 W

For indoor use only Positive polarity

TROUBLESHOOTING

Problem Possible Cause / Solution
No power	The power adapter is not properly connected to the unit and the mains socket.
Screen freezes and does not respond to control.	The unit may have malfunctioned. Switch it off and wait for a few minutes before turning it on again.
Unable to insert memory card or USB device	Memory card or USB device is not inserted incorrectly.
The unit fails to read memory card or USB device.	Check whether the memory card or USB device is inserted properly. Do not force the memory card in.

DISPOSAL

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

① ② ③ ④ ⑤ ⑥ ⑦ MENU DISPOS/OS/CH USB PC N/C M D

Four metallic containers with icons and text, set against a blue gradient background (no readable document text or symbols)

Language Mode Speed Repeat Reset Setting Breakpoint play Brightness Date 2018-07-01 Mode Time Auto Poweron Auto Poweroff English 5s repeat all No 14 24 hours 12:06 Off Off

Scenic view of a calm blue lake with distant mountains and trees under a clear sky (no text or symbols visible)

2018 - 07 - 01 12 : 17 • A small picture image • A picture picture (buying) • A photo picture (buying) • A photo picture (buying) • A photo picture (buying) • A photo picture (buying) • A photo picture (buying)

--- Corriente directa \~ Corriente alterna

Scenic view of a calm lake with distant mountains and trees under a clear blue sky (no text or symbols visible)

2011-07-01 12:17 Illustrator picture (1.jpg) Illustrator picture (10.jpg) Illustrator picture (5.jpg) Illustrator picture (4.jpg) Illustrator picture (3.jpg) Illustrator picture (2.jpg)
