Product type	Toaster
Brand	Bosch
Model	TAT3A111
Power supply	220-240 V ~ 50/60 Hz, 800 W
Dimensions (H x W x D)	190 x 310 x 160 mm
Number of slots	2
Browning control	Rotary selector from level 1 (light) to 7 (dark)
Functions	Toasting, reheating (reheat), defrosting (defrost), stop (stop)
Bun warmer rack	Integrated, retractable
Crumb tray	Removable, cleanable
Cable winding	Yes, with fastener
Housing material	Stainless steel (specific care instructions)
Safety	Automatic shut-off if bread jams; overheating protection; do not use without crumb tray
Maintenance and cleaning	Unplug and cool; clean with a damp cloth; do not immerse or put in dishwasher; brush the crumb tray
Country of manufacture	Not specified in the manual (estimated: Germany or Europe)
Warranty	According to country conditions; contact customer service

Frequently Asked Questions - TAT3A111 BOSCH

How to use the toaster for the first time?

Remove stickers and films. Unwind the cord, plug in the appliance. Run it empty on the highest setting at least 3 times in front of an open window, then let it cool.

What types of food can be toasted with this toaster?

This toaster is designed to toast, reheat, or defrost sliced bread, bread, or buns. Do not use fatty, oily, or sugary foods, nor those that may drip.

How to toast bread?

Set the browning level (1 to 7) with the selector. Place the bread in the slot. Lower the lever until it clicks. The stop button lights up. The bread is ejected automatically at the end of the cycle. To interrupt, press stop.

How to reheat buns with the integrated rack?

Lower the lever to the bottom to extend the rack. Place the buns on the rack. Set the browning to maximum level 3. Lower the lever until it engages. The reheating finishes when the stop button turns off. Raise the lever to retract the rack. Do not use aluminum foil on the rack.

How to defrost frozen bread?

Set the desired browning level. Place the bread in the slot. Lower the lever, then press the defrost button (the LED lights up). The bread is ejected after defrosting.

What to do if bread gets stuck in the toaster?

The toaster stops automatically. Unplug the appliance and let it cool. Remove the bread carefully.

How to clean the toaster?

Unplug and let it cool. Open the crumb tray, remove crumbs and wipe it. Use a stiff brush to clean under the bun rack. Clean the exterior with a damp cloth. Never immerse the appliance in water and do not put it in the dishwasher.

Can oven or grill cleaners be used?

No. Do not use oven or grill cleaners, nor a steam cleaner. For stainless steel surfaces, use a common stainless steel care product.

What are the important safety precautions?

Never immerse the appliance in water. Use only on a grounded outlet. Do not cover the slots. Do not allow children under 8 to use the appliance. Keep away from flammable materials. Never use without the crumb tray.

How to store the power cord?

The toaster has a cable winding with fastener. Wind the cord around the base and fasten it for convenient storage.

USER MANUAL TAT3A111 BOSCH

[en] Instruction manual

[fr] Mode d'emploi

Grille-pain compact 11

Tostapane compatto 15

defrost reheat stop 1-7 2 8 4 3 defrost reheat stop 9 10

A 1. 1-7 2. 3. 4. 5.


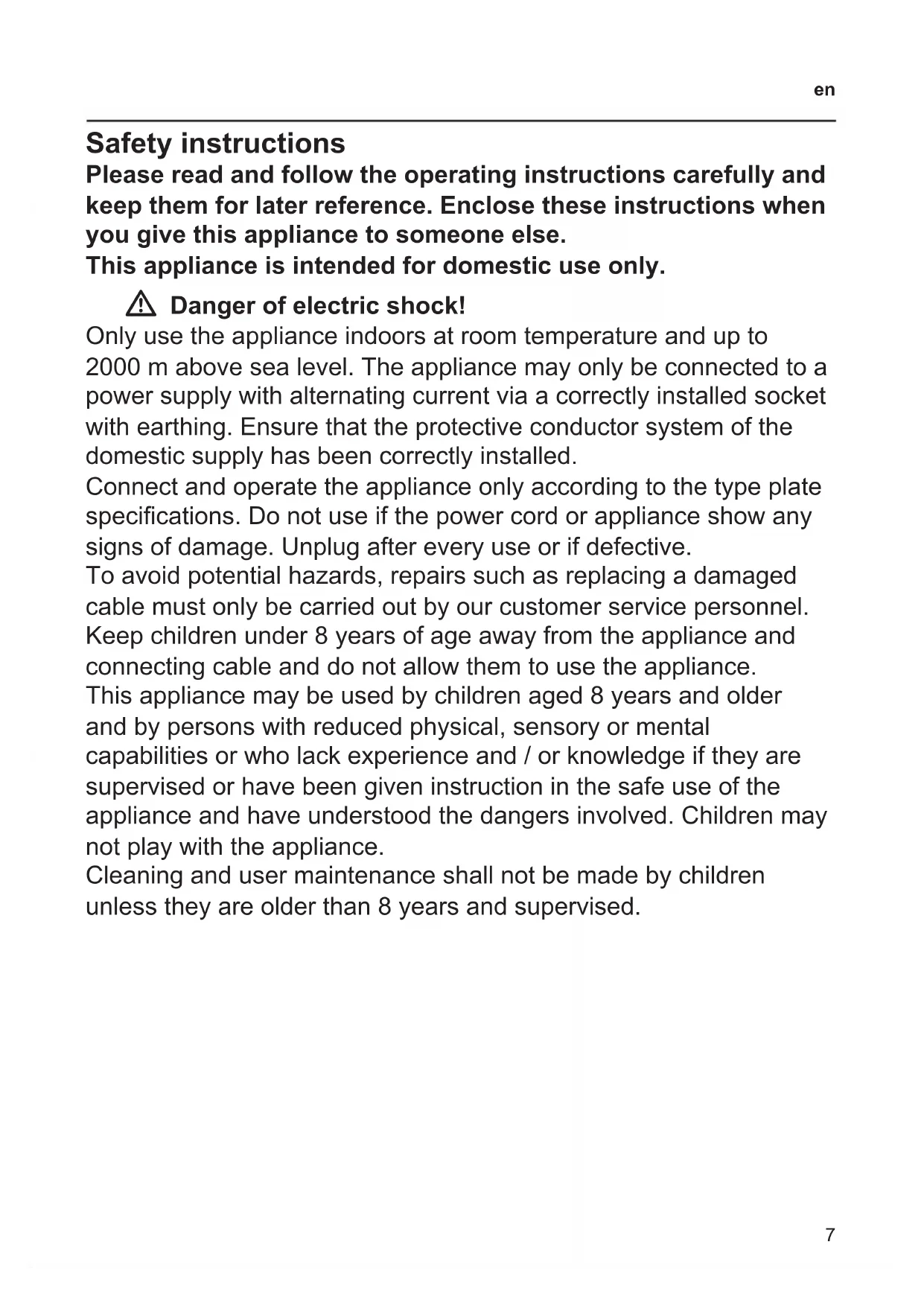

Sicherheitshinweise

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else.

This appliance is intended for domestic use only.

Danger of electric shock!

Only use the appliance indoors at room temperature and up to 2000 m above sea level. The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.

Connect and operate the appliance only according to the type plate specifications. Do not use if the power cord or appliance show any signs of damage. Unplug after every use or if defective.

To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance.

This appliance may be used by children aged 8 years and older and by persons with reduced physical, sensory or mental capabilities or who lack experience and / or knowledge if they are supervised or have been given instruction in the safe use of the appliance and have understood the dangers involved. Children may not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

en

⚠️ Risk of burns and fire!

Do not place the appliance on or near hot surfaces, e.g. hobs. Avoid spatters of grease as the plastic may be damaged.

A misuse of the appliance can potentially lead to injury.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Do not insert any objects into the toast slot.

Bread can burn. Never operate the toaster near or underneath curtains or other flammable materials. Never cover the toast slot.

Do not touch parts other than the operating controls as the toaster can become hot during toasting.

Press down the push-down lever only for toasting; never block it.

Do not use food that may drip as it is toasted or warmed, since this is a fire hazard.

Unplug the toaster and allow it to cool down before cleaning it.

Never immerse the appliance in water or place it in the dishwasher!

Do not steam-clean the appliance.

Do not use oven or grill spray for cleaning.

Use a firm brush to remove crumbs that may have accumulated under the warming rack.

Remove the crumb tray and wipe it clean.

Only operate the toaster when it is upright. Never leave the toaster unattended while it is in use!

WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

Risk of suffocation!

Do not allow children to play with packaging material.

Congratulations on purchasing this Bosch appliance. You have acquired a high-quality product that will bring you a lot of enjoyment.

Parts and controls

1 Selector for toasting level, adjustable from level 1 (lowest) – 7 (highest) toasting level
2 Push-down lever
3 Switch (integrated warming rack)
4 Warming rack
5 stop button with LED
6 defrost button with LED
7 reheat button with LED
8 Toast slot
9 Crumb tray
10 Cord tidy (with securing device)

Before using for the first time

■ Remove any stickers or film.
■ Unwind the power cord to the required length, secure and plug in.
■ With the window open, operate the toaster without bread in it at least three times at the highest toasting level setting and then let it cool down.

Operation

General

Please use this toaster only for toasting, heating or defrosting sliced white bread, bread or rolls. Do not insert any objects into the toast slot. Only operate the toaster when it is upright. Never cover the toast slot. Press down the push-down lever only for toasting; never block it. Do not use food that could drip during toasting.

Do not use food that contains grease, fat or sugar (e.g. waffles, bread that has been spread).

Attention!

Do not operate the appliance without the crumb tray!

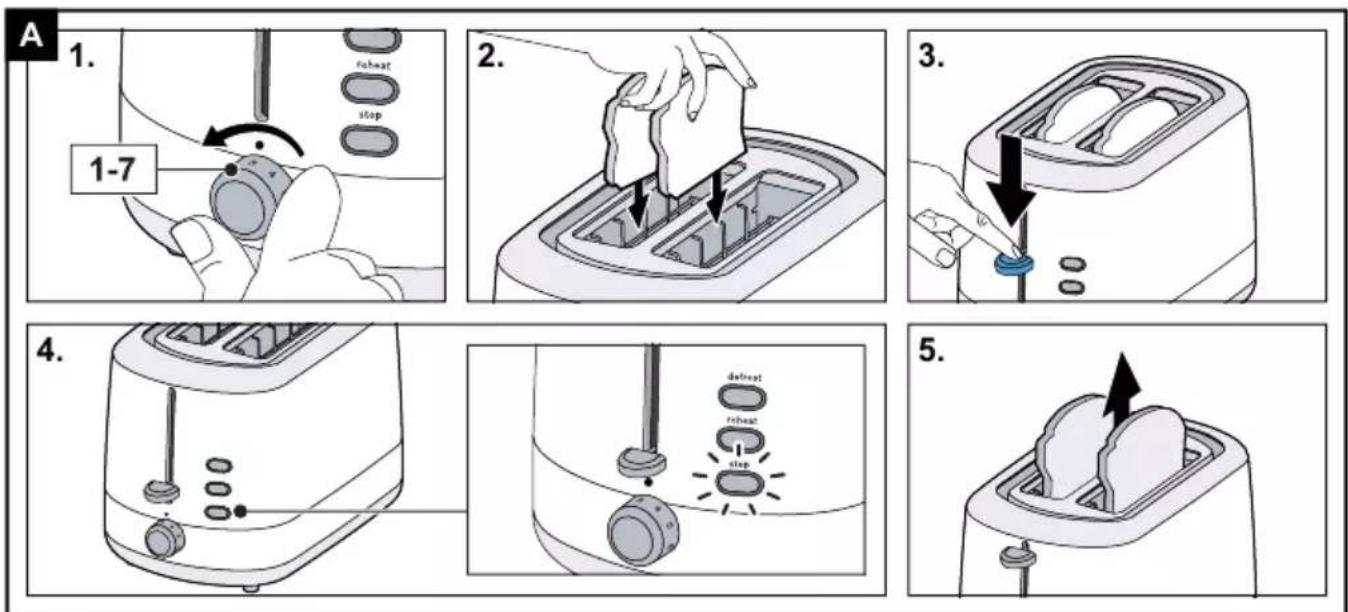

Toasting

→ Figures A

1. Set the desired toasting level with the selector.
2. Insert the bread to be toasted into the toast slot.
3. Press the push-down lever down until it engages.
4. The stop button lights up.
5. Toasting ends when the food being toasted is raised up.

To end the toasting process prematurely, press the stop button.

Warming cold bread or toast

■ Insert the bread to be toasted into the toast slot.
■ Press the push-down lever down until it engages. The stop button lights up.
■ Press the reheat button. The LED lights up.
■ Heating ends when the bread being toasted is ejected.

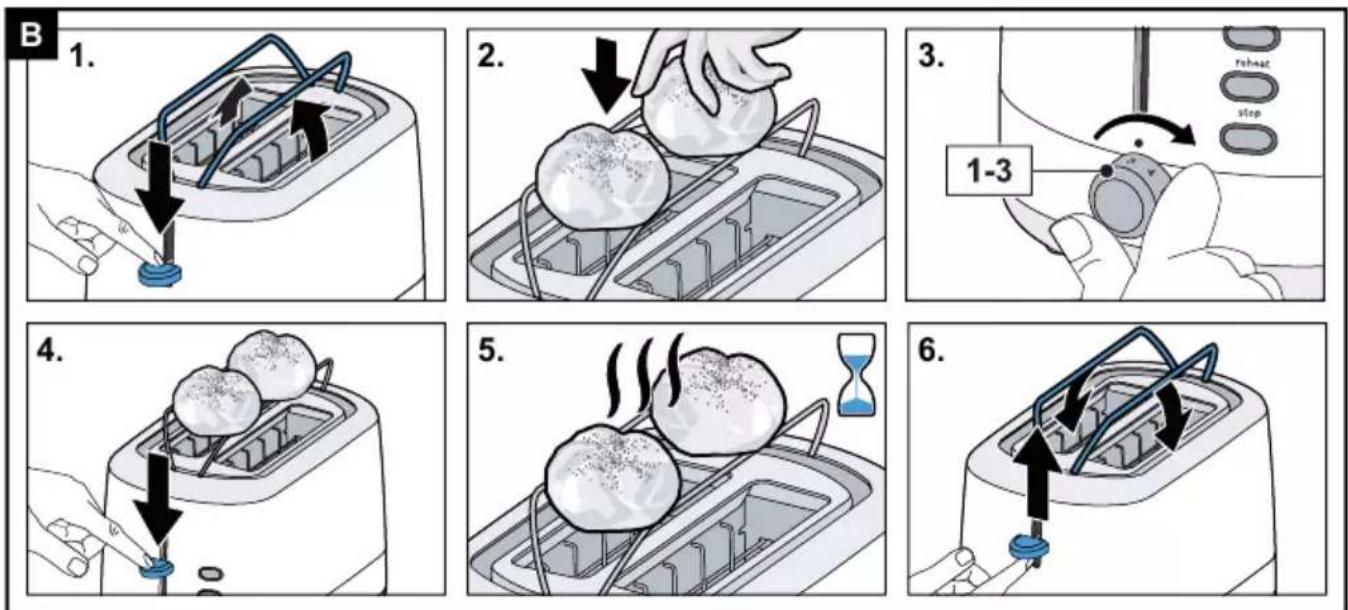

Crisping rolls

Do not place aluminium foil on the warming rack. Only use the crisping function when the warming rack is extended. Never heat and toast at the same time.

→ Figures B

1. Press the switch down as far as it will go. The warming rack for rolls extends.
2. Place rolls on the warming rack.
3. Using the selector, set the toasting level to max. level 3.
4. Press the push-down lever down until it engages. The stop button lights up.
5. Crisping ends when the stop button lights goes out.
6. Pull the switch up as far as it will go. The warming rack retracts.

Preparing frozen bread or toast

■ Set the desired toasting level with the selector.
■ Insert the bread to be toasted into the toast slot.
■ Press the push-down lever down until it engages. The stop button lights up.
■ Press the defrost button. The LED lights up.
■ Defrosting ends when the bread being toasted is ejected.

Notes

■ If the item being toasted gets stuck, the toaster turns itself off automatically.
■ If the item being toasted gets stuck in the toast slot, pull out the plug and carefully remove the bread after the toaster has cooled down.
■ For one slice of toast, set the toasting level lower than for two slices.
■ Toast items only until they are golden brown and not dark or brown. Remove any burnt edges. Do not over-toast foods containing starch, especially grain and potato products (to reduce the production of acrylamides).

Cleaning and maintenance

⚠️ Danger of electric shock!

Pull the power plug and let the toaster cool down. Never immerse the appliance in water or place it in the dishwasher!

Do not steam-clean the appliance.

Do not use oven or grill spray for cleaning.

■ Remove the crumb tray and wipe it clean.
■ Remove crumbs under the warming rack with a hard brush.
- Clean the toaster's exterior with a damp cloth; do not use strong or abrasive cleaning agents.

Tip: Clean the stainless steel surface with a commercial stainless steel care product.

Technical data

Electrical connection	220-240 V~50/60 Hz
Output 800 W
Appliance height 190 mm
Appliance width 310 mm
Appliance depth 160 mm

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
