USER MANUAL B24CB80ESW BOSCH

4.5 Connecting the appliance to the drinking water

connection ................................................................ 7

4.6 Connecting the appliance to the electricity supply ..... 7

5 Familiarizing yourself with your appliance ............. 8

6.3 Fruit and vegetable container with humidity

10.3 Switching on the connection to the WLAN home

network (Wi-Fi)....................................................... 12

10.4 Switching off the connection to the WLAN home

11.1 Tips for storing food in the refrigerator

compartment .......................................................... 13

11.2 Chill zones in the refrigerator compartment ............ 13

12 Freezer compartment............................................. 13

12.1 Tips for storing food in the freezer compartment .... 13

14.1 Defrosting in the freezer compartment.................... 16

16.2 Conducting an appliance self-test........................... 22

17 Storage and disposal............................................. 22

17.1 Taking the appliance out of operation..................... 22

19.1 Information regarding Free and Open Source

Software................................................................. 23en-us

Observe the following safety instructions. 1.1 Safety definitions Here you can find explanations of the safety signal words used in this manual. WARNING This indicates that death or serious injuries may occur as a result of non-observance of this warning. CAUTION This indicates that minor or moderate injuries may occur as a result of non-observance of this warning. NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory. Note:This alerts you to important information and/or tips. 1.2 General information ¡ Read this manual carefully. ¡ Keep the manual and the product information in a safe place for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.3 Intended use Only use this appliance: ¡ for chilling and freezing food, making ice and dispensing water. ¡ for normal household use and in enclosed spaces in a residential environment. ¡ Up to an altitude of 6560ft (2000m) above sea level. 1.4 Restrictive Use This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children unless they are being supervised. 1.5 Safe transport WARNING The heavy weight of the appliance may result in injury when lifted. ▶ Do not lift the appliance on your own. 1.6 Safe installation WARNING Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating current only via a correctly installed socket outlet with grounding. ▶ The protective conductor system of the domestic electrical installation must be properly installed. ▶ Never equip the appliance with an external switching device, e.g. a timer or remote control. ▶ When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an isolating switch must be integrated into the permanent electrical installation according to the installation regulations. ▶ When installing the appliance, check that the power cord is not trapped or damaged. If the insulation of the power cord is damaged, that can be dangerous. ▶ Never let the power cord come into contact with heat sources. WARNING If the appliance's ventilation openings are closed off, a leak in the refrigeration circuit may result in a flammable mixture of gas and air. ▶ Keep ventilation openings in the appliance casing or in the integrated casing clear of obstruction. WARNING It is dangerous to use an extended power cord and non- approved adapters. ▶ Do not use extension cords or multiple socket strips. ▶ Only use adapters and power cords approved by the manufacturer. ▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

Portable multiple socket strips or portable power supply units may overheat and cause a fire. ▶ Do not place portable multiple socket strips or power supply units on the back of the appliance. 1.7 Safe use WARNING Moisture intrusion may cause an electric shock. ▶ Use the appliance in enclosed spaces only. ▶ Never expose the appliance to intense heat or humidity. ▶ Do not use any steam cleaners or high-pressure cleaners to clean the appliance. WARNING Children may pull packaging material over their heads, or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶ Do not allow children to play with packaging material. Children may breathe in or swallow small parts, causing them to suffocate. ▶ Keep small parts away from children. ▶ Do not allow children to play with small parts. WARNING If the cooling circuit is damaged, flammable refrigerant may escape and explode. ▶ To accelerate the defrosting process, do not use any other mechanical devices or means other than those recommended by the manufacturer. ▶ If food is stuck to the freezer compartment, loosen it with a blunt implement such as the handle of a wooden spoon. Products which contain flammable propellants and explosive substances may explode, e.g. spray cans. ▶ Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. WARNING Electrical devices placed inside the appliance may cause a fire, e.g. heaters or electric ice makers. ▶ Do not operate electrical devices within the appliance. WARNING Containers which contain carbonated drinks may burst. ▶ Do not store containers which contain carbonated drinks in the freezer compartment. Injury to the eyes caused by escaping flammable refrigerant and hazardous gases. ▶ Do not damage the tubes of the refrigerant circuit or the insulation. The appliance may tip. ▶ Do not stand or lean on the base, runners or doors. WARNING Individual parts on the back of the appliance become hot during operation. ▶ Never touch these hot parts. WARNING Contact with frozen food and cold surfaces may cause burns by refrigeration. ▶ Never put frozen food straight from the freezer compartment into your mouth. ▶ Avoid prolonged skin contact with frozen food, ice and surfaces in the freezer compartment. CAUTION To prevent food from being contaminated, you must observe the following instructions. ▶ Leaving the door open for an extended period of time may lead to a considerable temperature increase in the compartments of the appliance. ▶ Regularly clean the surfaces that may come into contact with food and accessible drain systems. ▶ If water has not been dispensed for 5days, flush the water system. ▶ Store raw meat and fish in suitable containers in the refrigerator so that they do not touch or drip on other food. ▶ If the fridge/freezer is empty for an extended period of time, switch off the appliance, defrost it, clean it and leave the door open to prevent the formation of mold. Metal or metal-style parts in the appliance may contain aluminum. If acidic food comes into contact with aluminum in the appliance, aluminum ions may pass into the food. ▶ Do not consume soiled food. 1.8 Damaged appliance WARNING If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the power outlet.

▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the breaker in the circuit breaker box and turn off the water tap. ▶ Call Customer Service. → Page22 Improper repairs are dangerous. ▶ Repairs to the appliance should only be performed by authorized service providers. ▶ Only original spare parts may be used to repair the appliance. ▶ If the power cord of this appliance becomes damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service, or an authorized service provider in order to prevent injury. WARNING If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite. ▶ Keep open flames and ignition sources away from the appliance. ▶ Ventilate the room. ▶ Switch off the appliance. → Page10 ▶ Unplug the appliance from the power source or switch off the circuit breaker in the fuse box. ▶ Call Customer Service. → Page22 1.9 State of California Proposition 65 Warnings This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

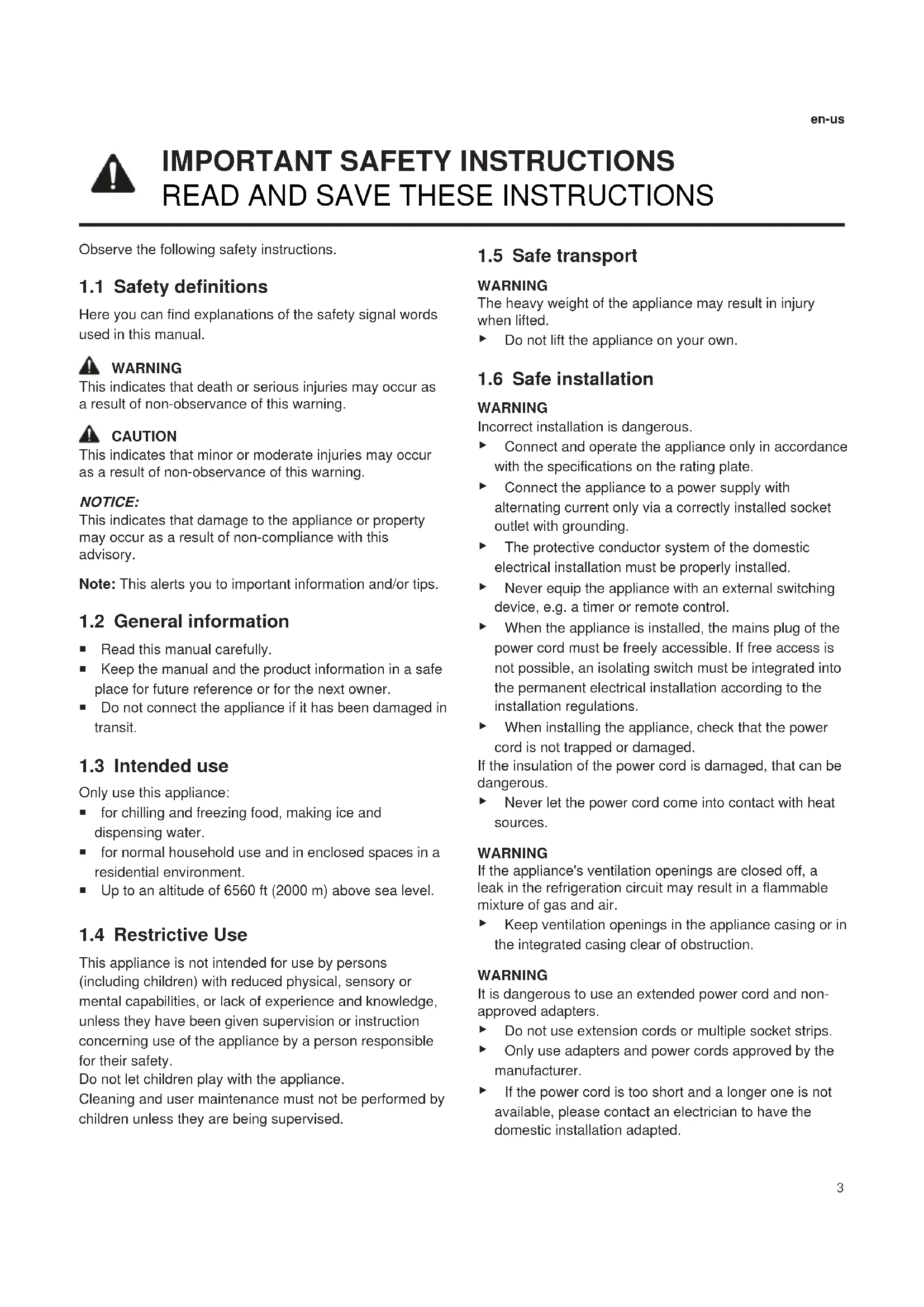

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONSen-us Preventing material damage Preventing material damage 2 Preventing material damage Preventing material damage NOTICE: If not rolling in a straight line, the appliance's castors may damage the floor when the appliance is moved. ▶ Transport the appliance using a hand-cart.▶ Use floor protection when moving the appliance, and do not move it in a zigzag fashion. Using the appliance, base, runners or doors as a seat or climbing surface may damage the appliance. ▶ Do not stand or lean on the appliance, base, runners or doors. If the water pressure is too high or too low, this may impair functioning of the appliance. ▶ Make sure that the water pressure in the water supply system is at least 29psi (200kPa) and max. 116psi (800kPa). ▶ If the water pressure exceeds the maximum value specified, a pressure-reducing valve must be installed between the drinking water connection and the hose set of the appliance. Modified or damaged water hoses may result in material damage and damage to the appliance. ▶ Never kink, crush, modify or cut through water hoses.▶ Never re-use water hoses that have been used before. Contamination with oil or fat may cause plastic parts and door seals to become porous. ▶ Keep plastic parts and door seals free of oil and grease. Metal or metal-style parts in the appliance may contain aluminum. When aluminum comes into contact with acidic foods, it corrodes and discolors. ▶ Only store packaged food in the appliance. If you clean fittings and accessories in the dishwasher, this may cause them to become deformed or discolor. ▶ Never clean fittings and accessories in the dishwasher.Environmental protection and energy-saving 3 Environmental protection and energy-saving Environmental protection and energy-saving 3.1 Disposal of packaging The packaging materials are environmentally compatible and can be recycled. ▶ Sort the individual components by type and dispose of them separately. 3.2 Saving energy If you follow these instructions, your appliance will use less power. Selecting the installation location ¡ Keep the appliance out of direct sunlight. ¡ Install the appliance as far away as possible from heating elements, stoves and other heat sources: – Maintain a 1

” (30mm) clearance to electric or gas stoves. – Maintain an 11

” (300mm) clearance to oil or solid-fuel stoves. ¡ Make sure there is a small gap between the side wall and the appliance. ¡ Never cover or block the external ventilation openings. Saving energy during use Note:The arrangement of the fittings does not affect the energy consumption of the appliance. ¡ Open the appliance only briefly and then close it carefully. ¡ Never cover or block the interior ventilation openings or the exterior ventilation openings. ¡ Transport purchased food in a cooler and place quickly in the appliance. ¡ Allow warm food and drinks to cool down before storing them. ¡ Thaw frozen food in the refrigerator compartment to utilize the low temperature of the food. ¡ Always leave some space between the food and to the back panel. Installation and connection 4 Installation and connection Installation and connection 4.1 Included in delivery After unpacking all the parts, check for any damage in transit and for completeness of delivery. If you have any concerns, contact your dealer or our Customer Service → Page22

The delivery consists of the following: ¡ Free-standing appliance ¡ Equipment and accessories

Depending on the appliance specifications

Not in all countriesInstallation and connection en-us

4.2 Criteria for the installation location WARNING If the appliance is in a space that is too small, a leak in the refrigeration circuit may result in a flammable mixture of gas and air. ▶ Only install the appliance in a space with a volume of at least 35ft

) per 0.3oz (8g) refrigerant. The amount of refrigerant is indicated on the rating label.

Page9 The weight of the appliance from factory may be up to 265lbs (120kg) depending on the model. The subfloor must be sufficiently stable to bear the weight of the appliance. The surface must be level. Over-and-under and side-by-side installation If you want to install 2 refrigerating appliances one over the other or side by side, you must maintain a clearance of at least 150mm between the appliances. Selected appliances can be installed without a minimum clearance. Ask your dealer or kitchen planner about this. 4.3 Installing the appliance ▶ Install the appliance in accordance with the enclosed installation instructions. 4.4 Preparing the appliance for first use

1. Remove the information material.2. Remove the protective film and transit bolts, e.g.

remove the adhesive strips and cardboard.

Clean the appliance for the first time. → Page16 4.5 Connecting the appliance to the drinking water connection Requirements ¡ A shut-off valve must be installed on the water connection and be freely accessible following installation of the appliance. ¡ Ensure that the water coming from the water connection is potable.

1. Rinse the drinking water connection thoroughly until the

drinking water is no longer cloudy and contains no deposits. If the drinking water is still cloudy or contains deposits, install an external water filter system.

2. Install the drinking water connection according to the

enclosed installation instructions. 4.6 Connecting the appliance to the electricity supply

1. Insert the power plug of the appliance's power cord in a

socket outlet with grounding nearby. The connection data of the appliance can be found on the rating plate.

2. Check the power plug is inserted properly.

a The appliance is now ready to use.en-us Familiarizing yourself with your appliance Familiarizing yourself with your appliance 5 Familiarizing yourself with your appliance Familiarizing yourself with your appliance5.1 ApplianceHere you can find an overview of the parts of your appliance.

Refrigerator compartment → Page13

Freezer compartment → Page13

Water filter → Page14

Water dispenser → Page15

Fruit and vegetable container with humiditycontroller → Page10Features en-us

Ice cube maker → Page15

Ice storage container → Page10

Door tray for large bottlesNote:Your appliance may differ from the diagrams withregard to features and dimensions. 5.2 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operatingstatus.

alarm switches the warning signal off.

switches the connection to the WLAN homenetwork (Wi-Fi) on or off.

lights up if user-defined settings have been setvia the HomeConnect®app. You can find moreinformation in the HomeConnect®app.

super(Freezer compartment) switches Superfreezing on or off.

Displays the set temperature for the freezercompartment in °F or °C.

super(Refrigerator compartment) switches Supercooling on or off.

Displays the set temperature for the refrigeratorcompartment in °F or°C.

3sec. switches the appliance on or off.Features 6 Features FeaturesThe features of your appliance depend on the model. 6.1 Shelf To vary the shelf as desired, you can remove the shelf andre-insert it elsewhere.

"Removing the shelf", Page16 6.2 Storage container The temperatures in the storage container are lower thanin the refrigerator compartment. Temperatures below32°F (0°C) may occur occasionally.In order to reach temperatures close to 32°F (0°C) in thestorage container, set the refrigerator compartmenttemperature to 34°F (2°C). → Page10 Use the lower temperatures in the storage container tostore highly perishable food, e.g. fish, meat and sausages.en-us Basic Operation

6.3 Fruit and vegetable container with humidity controller Store fresh fruit and vegetables loose in the fruit and vegetable container. Cover any chopped fruit and vegetables, or store in air- tight packaging. Condensation may form in the fruit and vegetable container depending on the food and quantity stored. Remove the condensation with a dry cloth and adjust the air humidity to a lower setting using the humidity controller. To ensure that the quality and aroma are retained, store fruit and vegetables that are sensitive to cold outside of the appliance at temperatures of approximately 46°F (8°C) to 54°F (12°C), e.g. pineapple, bananas, citrus fruits, cucumbers, zucchinis, bell peppers, tomatoes and potatoes. 6.4 Variable door tray To adjust the variable door tray as desired, you can move or remove the variable door tray, and re-insert it elsewhere. You can remove the door tray rail and re-insert it elsewhere.

"Removing the door tray rail", Page18 6.5 Ice storage container If ice cube production is switched on, the ice cubes are automatically stored in the ice storage container. NOTICE: The ice maker may become blocked or damaged by food or objects stored in the ice storage container. ▶ Never store food or objects in the ice storage container.Basic Operation 7 Basic Operation Basic Operation 7.1 Switching on the appliance

1. Connect the appliance to the electricity supply.

Page7 Note:If the appliance has been previously switched off using the control panel, press and hold 3sec. for 3seconds. a The appliance begins to cool. a A warning tone sounds and the temperature display (freezer compartment) and "alarm" flash because the freezer compartment is still too warm.

2. Switch off the warning tone using alarm.

a "alarm" goes out as soon as the set temperature has been reached.

Set the desired temperature. → Page10 7.2 Operating tips ¡ Once you have switched on the appliance, the set temperature is only reached after several hours. Do not put any food in the appliance until the set temperature has been reached. ¡ The front panels of the housing are temporarily heated slightly. This prevents condensation inthe area ofthedoor seal. ¡ When you close the door, a vacuum may be created. The door is then difficult to open again. Wait a moment until the vacuum is offset. ¡ The temperature in the appliance varies due to the following conditions: – How often the appliance is opened – Load capacity – Temperature of newly stored food – Ambient temperature – Direct sunlight 7.3 Switching off the appliance ▶ Press and hold 3sec. for 3seconds. 7.4 Setting the temperature Tip:Via the HomeConnect® app, you can set temperatures that are not shown on the control panel. Setting the refrigerator compartment temperature ▶ Press the desired temperature. The recommended temperature in the refrigerator compartment is 37°F (3°C). Setting the freezer compartment temperature ▶ Press the desired temperature. The recommended temperature in the freezer compartment is 0°F (−18°C).Additional functions en-us

Additional functions 8 Additional functions Additional functions Find out which additional functions can be used for your appliance. Additional functions can be set via the HomeConnect® app. 8.1 Super cooling With Super cooling, the refrigerator compartment cools as cold as possible. Switch on Super cooling before placing large quantities of food in the refrigerator compartment. Note:When Super cooling is switched on, increased noise may occur. Switching on Super cooling ▶ Press super(Refrigerator compartment). a "super"(Refrigerator compartment) lights up. Note:After approximately 6hours, the appliance switches to normal operation. Switching off Super cooling ▶ Press super(Refrigerator compartment). 8.2 Super freezing With Super freezing, the freezer compartment cools as cold as possible. Switch on Super freezing 4 to 6hours before placing food weighing 4.4lbs (2kg) or more into the freezer compartment. Note:When Super freezing is switched on, increased noise may occur. Switching on Super freezing ▶ Press super(Freezer compartment). a "super"(Freezer compartment) lights up. Note:After approximately 54hours, the appliance switches to normal operation. Switching off Super freezing ▶ Press super(Freezer compartment). 8.3 Sabbath mode To ensure that you can also use the appliance on the Sabbath, the Sabbath mode switches off all non-essential functions. During Sabbath mode, the following functions are switched off: ¡ Super cooling ¡ Super freezing ¡ Alarm ¡ Water dispensing ¡ Ice cube production ¡ Interior lighting ¡ Audible signals ¡ Messages on the control panel Note:The control panel lighting is switched off during the Sabbath mode. super(Freezer compartment) lights up at a reduced brightness level. Switching on Sabbath mode ▶ Press and hold super(Freezer compartment) for 15seconds until an audible signal sounds. a "super"(Freezer compartment) lights up. Note:After approx.80hours, the appliance switches to normal mode. Switching off Sabbath mode ▶ Press and hold super(Freezer compartment) for 15seconds until an audible signal sounds. Alarm 9 Alarm Alarm 9.1 Door alarm If the appliance door is open for a while, the door alarm switches on. A warning tone sounds, "alarm" flashes and the set temperature for the affected compartment flashes. Switching off the door alarm ▶ Close the appliance door or press alarm. a The warning tone is switched off. 9.2 Temperature alarm If the freezer compartment becomes too warm, the temperature alarm will switch on. A warning tone sounds and the set temperature (freezer compartment) and "alarm" flash. CAUTION During the thawing process, bacteria may multiply and spoil the frozen food. ▶ Do not refreeze partly or completely thawed food. ▶ Refreeze food only after cooking. ▶ The frozen items should no longer be stored for the maximum storage period. The temperature alarm can be switched on in the following cases: ¡ The appliance is switched on. Do not store any food until the appliance has reached the set temperature. ¡ Large quantities of fresh food are being placed inside. Switch on Super freezing before placing large quantities of food in the appliance. ¡ The freezer compartment door is open for too long. Check whether the frozen food has defrosted or thawed. Switching off the temperature alarm ▶ Press alarm. a The warning tone is switched off.en-us HomeConnect®

HomeConnect® 10 HomeConnect® HomeConnect® This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the HomeConnect® app. The HomeConnect® services are not available in every country. The availability of the HomeConnect® function depends on the availability of HomeConnect® services in your country. You can find information on this at: www.home-connect.com. To be able to use HomeConnect®, you must first set up the connection to the WLAN home network (Wi-Fi

) and to the HomeConnect® app. After switching on the appliance, wait at least 2minutes until internal device initialization is complete. Only then should you set up HomeConnect®. The HomeConnect® app guides you through the entire registration process. Follow the instructions in the HomeConnect® app to implement the settings. Tip:Follow the instructions in the HomeConnect® app as well. Notes ¡ Also note the safety information in this instruction manual and ensure that it is also observed when operating the appliance using the HomeConnect® app.

"Safety", Page3 ¡ Operating the appliance on the appliance itself always takes priority. It is not possible to operate the appliance using the HomeConnect® app during this time. 10.1 Setting up the HomeConnect® app

1. Install the HomeConnect® app on your mobile device.2. Start the HomeConnect® app and set up access for

HomeConnect®. The HomeConnect® app guides you through the entire registration process. 10.2 Setting upHomeConnect® Requirements ¡ The HomeConnect®app is installed on your mobile device. ¡ The appliance receives signals from the WLAN home network (Wi-Fi) at its installation location.

1. Open the HomeConnect® app and scan the following

2. Follow the instructions in the HomeConnect® app.

10.3 Switching on the connection to the WLAN home network (Wi-Fi) ▶ Press . 10.4 Switching off the connection to the WLAN home network (Wi-Fi) ▶ Press . 10.5 Installing updates for the HomeConnect®software Note:If an update of the HomeConnect® software is available, a message appears in the HomeConnect® app. ▶ To install the update for the HomeConnect® software, follow the instructions in the HomeConnect® app. a The control panel is partially locked during the installation. 10.6 Resetting the HomeConnect® settings If your appliance experiences connection problems with the WLAN home network (Wi-Fi) or your appliance wants to log into a different WLAN home network (Wi-Fi), you can reset the HomeConnect®settings. ▶ Press and hold for 6 seconds until goes out. a The HomeConnect®settings have been reset. 10.7 Data Protection Please read this information on data protection. The first time your appliance is registered on a home network connected to the Internet, your appliance transmits the following types of data to the HomeConnect® server (initial registration): ¡ Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module). ¡ Security certificate of the Wi-Fi communication module (to ensure a secure data connection).

Wi-Fi is a registered trade mark of the Wi-Fi Alliance.Refrigerator compartment en-us

¡ The current software and hardware version of your home appliance. ¡ Status of any previous reset to factory settings. This initial registration prepares the HomeConnect® functions for use and is only required when you want to use the HomeConnect® functions for the first time. Note:Please note that the HomeConnect® functions can only be used in conjunction with the HomeConnect® app. Information on data protection can be retrieved in the HomeConnect® app. Refrigerator compartment 11 Refrigerator compartment Refrigerator compartment You can keep dairy products, eggs, prepared meals, pastries, open preserves and hard cheese in the refrigerator compartment. The temperature can be set from 42°F (1°C) to 34°F (6°C). The refrigerator compartment can also be used to store highly perishable foods in the short to medium term. The lower the selected temperature, the longer the food remains fresh. 11.1 Tips for storing food in the refrigerator compartment ¡ Only store food when fresh and undamaged. ¡ Store food covered or in air-tight packaging. ¡ To avoid impeding the circulation of air and to prevent food from freezing, do not place food so that it has direct contact with the back wall. ¡ Allow hot food and drinks to cool down first before placing in the appliance. ¡ Observe the best-before date or expiration date specified by the manufacturer. 11.2 Chill zones in the refrigerator compartment The air circulation in the refrigerator compartment creates different chill zones. Coldest zone The coldest zone is in the storage container. Tip:Store highly perishable food such as fish, sausages and meat in the coldest zone. Warmest zone The warmest zone is at the very top of the door. Tip:Store groceries that do not spoil easily in the warmest zone, e.g. hard cheese and butter. Cheese can then continue to release its flavor and the butter will still be easy to spread. Freezer compartment 12 Freezer compartment Freezer compartment You can store frozen food, freeze food and make ice cubes in the freezer compartment. The temperature can be set from 6°F (−14°C) to −7°F (−22°C). Long-term storage of food should be at 0°F (−18°C) or lower. The freezer compartment can be used to store perishable food long-term. The low temperatures slow down or stop the spoilage. 12.1 Tips for storing food in the freezer compartment ¡ Store food in air-tight packaging. ¡ Do not bring food which is to be frozen into contact with frozen food. ¡ Place thefood over thewhole area ofthefrozen food containers. ¡ To ensure that the air can circulate freely in the appliance, push the frozen food containers in as far as they will go. 12.2 Tips for freezing fresh food ¡ Freeze fresh and undamaged food only. ¡ Freeze food in portions. ¡ Cooked food is more suitable for freezing than food that can be eaten raw. ¡ Vegetables: Wash, chop up and blanch before freezing. ¡ Fruit: Wash, pit and perhaps peel, possibly add sugar or ascorbic acid solution. ¡ Food that is suitable for freezing includes baked items, fish and seafood, meat, game, poultry, eggs without shells, cheese, butter and curd cheese, prepared meals and leftovers. ¡ Food that is unsuitable for freezing includes lettuce, radishes, eggs in shells, grapes, raw apples and pears, yogurt, sour cream, crème fraîche and mayonnaise. Packing frozen food If you select suitable packaging material and the correct type of packaging, you can determine the product quality and prevent freezer burn.

1. Place the food in the packaging.2. Squeeze out the air.3. Pack food airtight to prevent it from losing flavor or

4. Label the packaging with the contents and the date of

freezing. 12.3 Defrosting methods for frozen food CAUTION During the thawing process, bacteria may multiply and spoil the frozen food. ▶ Do not refreeze partly or completely thawed food. ▶ Refreeze food only after cooking.en-us Water system ▶ The frozen items should no longer be stored for the maximum storage period. ¡ Defrost animal-based food, such as fish, meat, cheese, curd cheese, in the refrigerator compartment. ¡ Defrost bread at room temperature. ¡ Prepare food for immediate consumption in the microwave, in the oven, or on the cooktop. Water system 13 Water system Water system Your appliance is equipped with water-carrying components. The water system only works if a water filter or a bypass cap is installed. Switch off ice cube production before disconnecting the appliance from the drinking water connection. → Page16 13.1 Water filter The water filter filters particles and the taste of chlorine out of the water. The water filter reduces further contamination, e.g. from chloramines, lead and pharmaceutical products. Note:The water filter does not filter bacteria or microbes out of the water. Change the water filter: ¡ Every 6months. ¡ If ##CP0717SY## flashes. ¡ If the water output has visibly reduced. Tips ¡ A new water filter can be purchased from customer service, your dealer or our website. ¡ If you do not want to use a water filter in your appliance or an external water filter system is installed, you can permanently replace the water filter with a bypass cap. The bypass cap filters only large particles out of the water and can be cleaned as required. A bypass cap can be purchased from customer service or our website. Changing the water filter or replacing it with a bypass cap

1. Reach into the recess below the filter cover, pull it

forward slightly and remove it.

2. Turn the water filter counterclockwise by 90° and

remove it . ‒ Remove the water filter with care as it is under pressure. Note:When removing it, a small amount of water may drip out of the water filter. Remove the drips of water with a dry cloth. Tip:You can dispose of the old water filter with your household garbage.

3. Insert the new water filter or the bypass cap all the way

into the filter opening and turn it 90° clockwise all the way.Water system en-us

4. Slide the filter cover over the water filter all the way

5. Discard the ice cubes produced during the first

24hours, and dispense water for 5minutes and discard. 13.2 Water dispenser Dispense filtered water via the water dispenser. Dispensing water ▶ Press and hold the glass against the dispensing button. ‒ If water has not been dispensed for 48hours, the water may have a "stale" taste. ‒ Flush the water system if water has not been drawn for 5days. To flush the water system, dispense 68floz (2liters) of water. 13.3 Ice maker Use the ice maker to produce ice cubes. WARNING Rotating parts may cause injury. ▶ Never reach into or underneath the ice maker. Note:The ice cube maker automatically detects that the ice storage container is full and stops producing ice cubes. It may take up to 48hours until the ice storage container is full. Tip:If the ice cubes taste stale, dispose of the remaining ice cubes and the cubes produced over the next 24hours. If the ice cubes still taste stale, change the water filter. Putting the ice maker into operation Notes ¡ Ice cube production starts as soon as the appliance is switched on and the freezer compartment has reached the set temperature. ¡ As soon as the freezer compartment reaches the set temperature, the first batch of ice cubes will be ready in approximately 4hours. Requirement:The appliance is connected to the drinking water connection. ▶ For hygiene reasons, discard the ice cubes produced within the first 24hours. Switching on ice cube production ▶ Press the ice cube maker button. a The ice maker button lights up. Note:If you press and hold the ice maker button for 3 seconds, the filter change status is reset.en-us Defrosting

Switching off ice cube production ▶ Press the ice cube maker button. a The ice maker button goes out. Note:If you press and hold the ice maker button for 3 seconds, the filter change status is reset. Defrosting 14 Defrosting Defrosting 14.1 Defrosting in the freezer compartment The fully automatic NoFrost system ensures that the freezer compartment remains frost-free. Defrosting is not required. Cleaning and maintenance 15 Cleaning and maintenance Cleaning and maintenance To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. Customer Service must clean inaccessible points. Cleaning by Customer Service can give rise to costs. 15.1 Preparing the appliance for cleaning

Switch off the appliance. → Page10

2. Disconnect the appliance from the power supply.

Unplug the appliance from the power source or switch off the circuit breaker in the fuse box.

3. Take out all of the food and store it in a cool place.

Place ice packs (if available) onto the food.

4. Remove all fittings and accessories from the appliance.

Remove the door tray rail. → Page18 15.2 Cleaning the appliance WARNING Moisture intrusion may cause an electric shock. ▶ Do not use any steam cleaners or high-pressure cleaners to clean the appliance. NOTICE: Unsuitable cleaning agents may damage the surfaces of the appliance. ▶ Do not use hard scouring pads or cleaning sponges.▶ Do not use strong or abrasive cleaning agents.▶ Do not use cleaning agents with a high alcohol content.▶ Do not use stainless-steel cleaning agents on the outside of the appliance. If you clean fittings and accessories in the dishwasher, this may cause them to become deformed or discolor. ▶ Never clean fittings and accessories in the dishwasher.

Prepare the appliance for cleaning. → Page16 Clean the following with a dish cloth, lukewarm water and a little pH-neutral liquid detergent: – The outside of the appliance – The inside of the appliance – The fittings – The accessories – The door seals 3. Dry thoroughly with a soft, dry cloth.4. Insert the fittings and install the appliance components.5. Connect the appliance to the electricity supply.

6. Put the food into the appliance.

15.3 Removing the fittings If you want to clean the fittings thoroughly, remove these from your appliance. Removing the shelf ▶ Lift the shelf at the front , pull it out and remove it . Removing the storage container

1. Pull the storage container out all the way.Cleaning and maintenance en-us

2. Lift the storage container at the front and remove it

Removing the fruit and vegetable container

1. Pull out the fruit and vegetable container as far as it will

2. Lift the fruit and vegetable container at the front and

remove it . Removing the frozen food container

1. Pull out the frozen food container as far as it will go.

2. Lift the frozen food container at the front and remove

it . Removing the front of the container You can remove the front of the fruit and vegetable container and frozen food container to facilitate cleaning. ▶ Press in the snap-in hooks on the side of the container and remove the front from the container in a turning motion . Removing the ice cube container

1. Pull out the flat frozen food container as far as it will go.

2. Lift the ice cube container at the front and remove it.en-us Cleaning and maintenance

15.4 Removing the appliance components If you want to clean your appliance thoroughly, you can remove certain components from your appliance. Removing the door tray rail ▶ Lift the door tray rail and remove it.Troubleshooting en-us

Troubleshooting 16 Troubleshooting Troubleshooting You can eliminate minor issues on your appliance yourself. Please read the information on eliminating issues before contacting Customer Service. This may avoid unnecessary repair costs. WARNING Improper repairs are dangerous. ▶ Repairs to the appliance should only be performed by authorized service providers. ▶ Only original spare parts may be used to repair the appliance. ▶ If the power cord of this appliance becomes damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service, or an authorized service provider in order to prevent injury. Issue Cause and troubleshooting The appliance is not cooling, the displays and lighting are lit. Showroom mode is switched on.

Switch off the appliance. → Page10

Switch the appliance back on. → Page10

4. Wait 1minute and then hold down super(Refrigerator compartment) until 4

audible signals sound.

5. After a short time, check whether your appliance is cooling.

The LED lighting does not work. Various causes are possible. ▶ Call customer service.

"Customer Service", Page22 Side panels of the appliance are warm. Not a fault. The side panels contain pipes which heat up during the cooling process. Units touching the appliance will not be damaged by the heat. No action required. HomeConnect® is not working properly. Various causes are possible. ▶ Go to www.home-connect.com. The temperature displays and "alarm" light up. A sensor is defective. ▶ Call customer service.

"Customer Service", Page22 A warning tone sounds and the set temperature (refrigerator compartment) and "alarm" flash. The refrigerator compartment door is open. ▶ Close the refrigerator compartment door. A warning tone sounds and the set temperature (freezer compartment) and "alarm" flash. Various causes are possible. ▶ Press alarm. a The alarm is switched off. The freezer compartment door is open. ▶ Close the freezer compartment door. External ventilation openings are covered up. ▶ Remove any obstructions from in front of the external ventilation openings. Large quantities of fresh food have been placed inside. ▶ Do not exceed the freezing capacity. The set temperature is not reached. Fully automatic defrosting no longer works. The freezer compartment door was open for a long time. The evaporator (refrigeration unit) in the NoFrost system is heavily iced up. Requirement:Store the frozen food well insulated in a cool place.

Switch off the appliance. → Page10

2. Disconnect the appliance from the power supply.

Unplug the power plug or switch off the circuit breaker in the fuse box.

3. Call customer service.

Issue Cause and troubleshooting The temperature differs greatly from the setting. Various causes are possible.

Switch off the appliance. → Page10

Switch the appliance back on after approximately 5minutes. → Page10 ‒ If the temperature is too warm, check the temperature again after a couple of hours. ‒ If the temperature is too cold, check the temperature again on the following day. Condensation accumulates on the surface of the appliance and on the shelves inside. The water contained in warm and humid air condenses on the colder surfaces of the appliance.

1. Wipe away the condensation water with a soft, dry cloth.

2. Open the appliance as briefly as possible.

3. Ensure that the appliance is always closed properly.

A large volume of condensation collects regularly in the fruit and vegetable container. Depending on the food and quantity stored, condensation may form in the fruit and vegetable container.

Remove the fruit and vegetable container. → Page17

2. Remove the ventilation clips and rotate them before inserting again .

Water is leaking out of the appliance. The water connection or water hose is not leak-tight. ▶ Check if the water connections are fastened firmly and the water hose is undamaged. If necessary, replace the water hose. Water output is reduced. Low water pressure. ▶ Check the pressure of the water supply system or the external water filter system, e.g. reverse osmosis system. Connect the appliance only to a water connection with sufficient water pressure.

Page6 The water filter is blocked. ▶ Change the water filter. Water is dripping from the water dispenser. Air is in the water system. ▶ Keep dispensing water until it contains no more air. The water dispenser is not functioning. There is no water being supplied to the appliance. ▶ Ensure that there is a water supply and that the shut-off valve on the water connection is open. Contact an installer if necessary. Kink in the water hose. ▶ Turn off the water supply and straighten the kink in water hose. If necessary, replace the water hose. Ice cube production is low. The appliance has only recently been connected. ▶ Wait approximately 4 hours until the first batch of ice cubes is ready. The freezer compartment has been opened frequently or for an extended period of time. ▶ Check ice cube production after a few hours. Low water pressure.Troubleshooting en-us

Issue Cause and troubleshooting Ice cube production is low. ▶ Check the pressure of the water supply system or the external water filter system, e.g. reverse osmosis system. Connect the appliance only to a water connection with sufficient water pressure.

Page6 The water filter is blocked. ▶ Change the water filter. Food or objects are blocking the fill level sensor for the ice maker. ▶ Remove all food and objects from the ice storage container. Fault in the ice maker.

Switch off the appliance. → Page10

2. Disconnect the appliance from the power supply.

Unplug the power plug or switch off the circuit breaker in the fuse box.

3. Reconnect the appliance after 5 minutes.

If the fault persists, call customer service. → Page22 The ice maker is not functioning. Ice cube production is switched off. ▶ Switch on ice cube production. There is no water being supplied to the appliance. ▶ Ensure that there is a water supply and that the shut-off valve on the water connection is open. Contact an installer if necessary. Kink in the water hose. ▶ Turn off the water supply and straighten the kink in water hose. If necessary, replace the water hose. Fault in the ice maker.

Switch off the appliance. → Page10

2. Disconnect the appliance from the power supply.

Unplug the power plug or switch off the circuit breaker in the fuse box.

3. Reconnect the appliance after 5 minutes.

If the fault persists, call customer service. → Page22 The appliance hums, bubbles, buzzes, gargles, clicks, crackles or rumbles. Not a fault. A motor is running, e.g. refrigerating unit, fan. Refrigerant is flowing through the pipes. The motor, switches, solenoid valves or water valves are switching on or off. Automatic defrosting is running. Ice cubes fall into the ice storage container. No action required. The appliance makes noises. The appliance is not level. ▶ Align the appliance using a bubble level and the screw feet. The appliance is not free-standing. ▶ Observe the minimum clearances for the appliance. Fittings wobble or stick. ▶ Check the removable fittings and, if required, replace these. Bottles or containers are touching. ▶ Move the bottles or containers away from each other. Super freezing is switched on. No action required.en-us Storage and disposal

16.1 Power failure During a power failure, the temperature in the appliance rises; this reduces the storage time and the quality of the frozen food. Notes ¡ Open the appliance as little as possible during a power failure and do not place any other food in the appliance.

Check the quality of the food immediately after a power failure. – Dispose of any frozen food that has defrosted and is warmer than 41°F (5°C). – Cook or fry slightly thawed frozen food, and then either consume it or freeze it again. 16.2 Conducting an appliance self-test Your appliance has an appliance self-test which displays faults that can be eliminated by your customer service.

Switch off the appliance. → Page10

2. Disconnect the appliance from the power supply.

Unplug the appliance from the power source or switch off the circuit breaker in the fuse box.

3. Connect the appliance to the electricity supply after 5

4. One minute after connecting to the power supply, press

and hold super(Freezer compartment) for 3 to 5seconds until a second audible signal sounds. a The appliance self-test starts when the temperature displays light up in succession. a If, at the end of the appliance self-test, two audible signals sound and the temperature display indicates the set temperature, your appliance is OK. The appliance switches to normal operation. a If, at the end of the appliance self-test, 5audible signals sound and the temperature display LEDs light up with a different brightness, inform customer service. The LEDs provide customer service with information about this fault. Storage and disposal 17 Storage and disposal Storage and disposal 17.1 Taking the appliance out of operation

Switch off the appliance. → Page10

2. Disconnect the appliance from the power supply.

Unplug the appliance from the power source or switch off the circuit breaker in the fuse box.

3. Disconnect the appliance from the drinking water

4. Remove all of the food.5. Remove the water filter.

Clean the appliance. → Page16

NOTICE: Objects jammed between the door and the housing may damage the door hinge. ▶ Open the door until it remains open by itself. ▶ Do not insert any objects between the door and the housing. To ensure the ventilation inside the appliance, leave the appliance open. 17.2 Disposal of your old appliance Environmentally compatible disposal allows valuable raw materials to be recycled. WARNING Children can lock themselves in the appliance, thereby putting their lives at risk. ▶ Remove the appliance doors. ▶ To prevent children from climbing in, leave shelves and containers in the appliance. ▶ Keep children away from the discarded appliance. WARNING If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite. ▶ Do not damage the tubes of the refrigerant circuit or the insulation. 1. Unplug the appliance from the power supply.2. Cut through the power cord.3. Remove the appliance doors.4. Dispose of the appliance in an environmentally responsible manner. Information about current disposal methods can be obtained from your specialist dealer or local authority. Customer Service 18 Customer Service Customer Service With any warranty repair, we will make sure your appliance is repaired by an authorized service provider using genuine replacement parts. We use only genuine replacement parts for all repairs. Detailed information on the warranty period and terms of warranty can be found in the Statement of Limited Product Warranty, from your retailer, or on our website. If you contact Customer Service, you will need the model number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance. USA: 1-800-944-2904 www.bosch-home.com/us/owner-support/get-support www.bosch-home.com/us/shop CA: 1-800-944-2904 www.bosch-home.ca/en/service/get-support www.bosch-home.ca/en/service/cleaners-and-accessoriesTechnical specifications en-us

For assistance with connecting to HomeConnect®, you can also view instructions here: www.home-connect.com/us/en/help-support/set-up 18.1 Model number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) You can find the model number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate.

Page9 Making a note of your appliance's details and the Customer Service telephone number will enable you to find them again quickly. Technical specifications 19 Technical specifications Technical specifications Refrigerant, cubic capacity and further technical specifications can be found on the rating plate.

Page9 19.1 Information regarding Free and Open Source Software This product includes software components that are licensed by the copyright holders as free or open source software. The applicable license information is stored on your home appliance. You can also access the applicable license information via your HomeConnect® app: "Profile -> Legal information -> License Information".

You can download the license information on the brand product website. (Please search on the product website for your appliance model and additional documents). Alternatively, you can request the relevant information from [e-mail] or BSH Hausgeräte GmbH, Carl- Wery-Str. 34, 81739 Munich, Germany. The source code will be made available to you on request. Please send your request to [e-mail] or BSH Hausgeräte GmbH, Carl-Wery-Str.34, 81739 Munich, Germany. Subject: „OSSREQUEST“ The cost of performing your request will be charged to you. This offer is valid for three years from the date of purchase or at least as long as we offer support and spare parts for the relevant appliance.
