Product Type	24-inch LED TV
Brand	Aiwa
Model	24AN4593-12HD
Screen Size	24 inches (61 cm)
Resolution	HD (1366 x 768)
Operating System	Android TV
Power Supply	100-240 V~, 50/60 Hz
Typical Power Consumption	30 W
Network Connectivity	Wi-Fi 802.11 b/g/n, Ethernet (LAN)
Connectors	HDMI (x2), USB (x1), ANT TV, ANT SAT, CI+, Optical Audio Output
Main Features	Android TV, Google Play, Netflix, Prime Video, YouTube, Built-in Chromecast, Dolby Audio
OSD Menu	Multilingual (including French)
Dimensions with Stand (W x H x D)	55.5 x 36.8 x 15.0 cm
Dimensions without Stand (W x H x D)	55.5 x 33.0 x 8.0 cm
Net Weight (with Stand)	3.2 kg
Net Weight (without Stand)	3.0 kg
Wall Mount Standard	VESA 100 x 100 mm
Included Accessories	Remote control with AAA batteries (x2), quick start guide, power cord
Safety	Wall mounting recommended, do not block ventilation, keep out of reach of young children
Care and Cleaning	Unplug before cleaning, use a soft dry cloth, do not use liquid or abrasive products
Spare Parts and Repairability	Contact authorized after-sales service for any repairs. No spare parts provided with the device.
General Information	Energy class not specified, maximum altitude 5000 m, indoor domestic use, moderate or tropical temperature

Frequently Asked Questions - 24AN4593-12HD AIWA

How to set up the remote control for the first time?

Insert two AAA batteries into the remote control, observing polarity. Remove the cover screw if present, then replace the cover. To pair the remote with the TV, press the Source button until the indicator blinks, then follow the on-screen instructions.

How to connect the TV to the Internet?

Go to Settings > Network & Internet. For a wired connection, plug an Ethernet cable into the LAN port. For Wi-Fi, enable Wi-Fi, select your network, and enter the password if required.

How to connect a TV antenna?

Connect your antenna cable (aerial or cable) to the ANT-TV port on the back of the TV. For satellite, use the ANT SAT port if available.

What to do if the screen does not turn on?

Check that the power cord is properly connected and the outlet works. Make sure the TV is not in standby mode (press the Standby button on the remote). If the problem persists, contact after-sales service.

How to clean the TV screen?

Unplug the TV and let it cool down. Use a soft dry cloth to gently wipe the screen. Never use liquid products, alcohol, or abrasive cleaners.

Can I mount the TV on the wall?

Yes, the TV is compatible with a VESA 100x100 mm wall mount. Use a suitable mounting kit and follow the instructions provided with the kit.

How to switch between input sources?

Press the Source button on the remote. Use the directional keys to select the desired source (HDMI, USB, TV, etc.) and press OK.

How to install apps like Netflix or YouTube?

From the home screen, open Google Play Store. Search for the desired app, select it, and press Install. Once installed, it will appear in your apps.

What to do if the remote control stops working?

Check the batteries and replace them if necessary. Make sure no obstacles are blocking the signal. If the problem persists, re-pair the remote by following the procedure described in the quick start guide.

How to activate subtitles?

Press the Subtitles button on the remote. Select your preferred language from the displayed menu. You can also configure them in the TV settings.

USER MANUAL 24AN4593-12HD AIWA

Detailed e/ User Manual can be easily accessed via "Favorite Apps" on the top line of the TV's main menu.

BG БЪЛГАРСКИ

1 Insert the batteries into the Remote Control

The remote may have a screw that secures the battery compartment cover onto the remote control (or this may be in a separate bag). Remove the screw, if the cover is screwed on previously. Then remove the battery compartment cover to reveal the battery compartment. Insert two 1.5V - size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Secure the cover again with the screw, if any.

2 Connect the antenna to your TV

REAR SIDE OF THE TV

3 Connect the TV to the mains socket

Simple line drawing of a plug inserted into a socket (no text or symbols)

4 Switch the TV on

After plugging the power cord to the mains socket outlet the TV will switch on automatically. If the TV is in standby mode the standby LED lights up.

To switch on the TV from standby mode either;

1. Press the Standby button on the remote control.
2. Press the centre of the control switch on the TV in.

①

②

5

Initial Setup Wizard

When turned on for the first time, "Welcome" message will be displayed along with the language selection options listed on the screen. Select the desired language from the list and press OK to continue. Follow the on-screen instructions to complete the initial setup process. Use the directional buttons and the OK button on the remote to select, set, confirm and proceed.

Note: For detailed information and instructions on the initial setup process refer to the Instruction Book of this TV.

6

Change the Input Source

If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. Use a suitable cable to connect two units together.

Once you have connected external systems to your TV, you can switch to different input sources. Press the Source button on your remote control consecutively or use the directional buttons and then press the OK button to switch to different sources when in Live TV mode. Besides this, you can switch to the desired input source by selecting the desired option from the Inputs menu on the Home Screen or TV options >Source menu in Live TV mode.

7

Connect your TV to the Internet

You can access the Internet via your TV, by connecting it to a broadband system. It is necessary to configure the network settings in order to enjoy a variety of streaming content and internet applications. These settings can be configured from the Network and Internet menu located under the TV Options>Settings menu in Live TV mode or under the Settings menu on the Home Screen. You can also highlight the Connected/Disconnected icon on the Home screen and press OK to access this menu.

Wired Connection

Connect your TV to your modem/router via an Ethernet cable. There is a LAN port on the rear side of your TV. The status of the connection under the Ethernet section in the Network and Internet menu will changed from Not connected to Connected.

Wireless Connection

A wireless LAN modem/router is required to connect the TV to the Internet via wireless LAN. Highlight Wi-Fi option in the Network and Internet menu and press OK to enable wireless connection. Available networks will be listed. Highlight your network from the list and press OK to connect. You may be asked to enter a password to connect to the selected network, in case the network is password protected.

Wired Connection

Wireless Connection

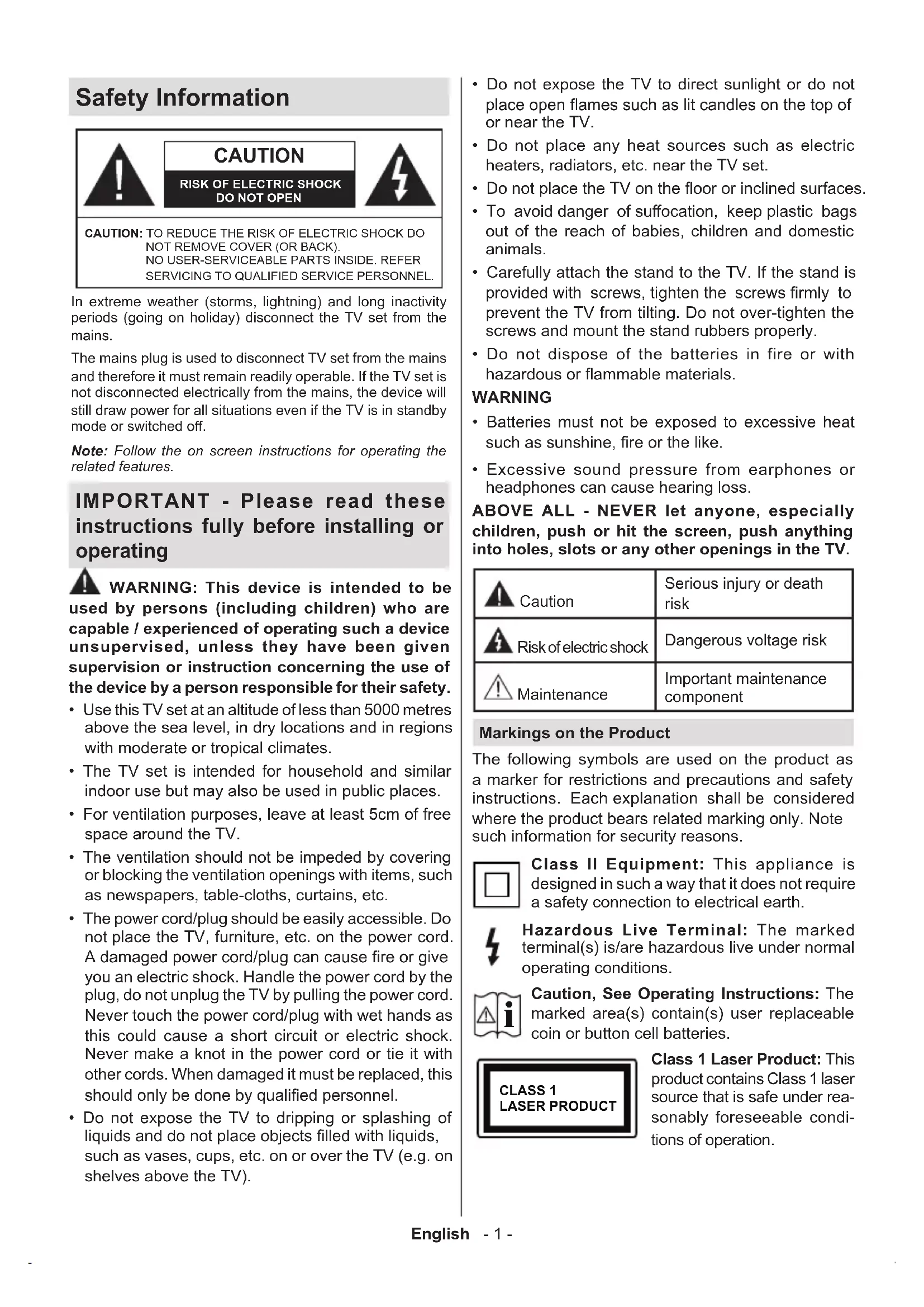

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby mode or switched off.

Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: This device is intended to be used by persons (including children) who are capable / experienced of operating such a device unsupervised, unless they have been given supervision or instruction concerning the use of the device by a person responsible for their safety.

• Use this TV set at an altitude of less than 5000 metres above the sea level, in dry locations and in regions with moderate or tropical climates.
• The TV set is intended for household and similar indoor use but may also be used in public places.
• For ventilation purposes, leave at least 5cm of free space around the TV.
• The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• The power cord/plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.

• Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g. on shelves above the TV).

• Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV.

• Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.
• Do not place the TV on the floor or inclined surfaces.
• To avoid danger of suffocation, keep plastic bags out of the reach of babies, children and domestic animals.
• Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly.
• Do not dispose of the batteries in fire or with hazardous or flammable materials.

WARNING

• Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
• Excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the TV.

Caution	Serious injury or death risk
, Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component

Markings on the Product

The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

WARNING

Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

A television may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

- ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.

- ALWAYS use furniture that can safely support the television set.

- ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.

- ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.

- ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.

- NEVER place a television set in an unstable location.

- NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

- NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.

- NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.

- The equipment is only suitable for mounting at heights ≤ 2 m.

If the existing television set is going to be retained and relocated, the same considerations as above should be applied.

Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator).

WALL MOUNTING WARNINGS

• Read the instructions before mounting your TV on the wall.
• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.
• Do not install the TV on a ceiling or on an inclined wall.
• Use the specified wall mounting screws and other accessories.
• Tighten the wall mounting screws firmly to prevent the TV from falling. Do not over-tighten the screws.

Figures and illustrations in these operating instructions are provided for reference only and may differ from the actual product appearance. Product design and specifications may be changed without notice.

Accessories Included

• Remote Control
• Batteries: 2 x AAA
• Quick Start Guide
• Power Cord(**)

(**) Depends on model

Remote Control(\*\*)

Inserting the Batteries into the Remote

The remote may have a screw that secures the battery compartment cover onto the remote control (or this may be in a separate bag). Remove the screw, if the cover is screwed on previously. Then remove the battery compartment cover to reveal the battery compartment. Insert two 1.5V - size AAA batteries. Make sure the (+) and (-) signs match (observing correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Secure the cover again with the screw, if any.

To pair remote with the TV

When the TV is turned on for the first time, a search for accessories will be performed after the initial setup starts. You will need to pair your remote control with your TV at this point.

Press and hold the Source button on the remote until the LED on the remote starts to blink, then release the Source button. That means the remote is in pairing mode.

Now you will wait for the TV to find your remote. Select the name of your remote and press OK when it appears on the TV screen.

When the pairing process is successful, the LED on the remote will go off. If the pairing process fails the remote will enter sleep mode after 30 seconds.

In order to pair your remote later on, you can go to Settings menu, highlight Remotes and Accessories option and press OK to start a search for accessories.

(**) Depends on model

1. Standby: Quick Standby / Standby / On
2. Numeric buttons: Switches the channel in Live TV mode, enters a number in the text box on the screen

3. Language: Switches among sound modes (analogue TV), displays and changes audio language (digital TV, where available)

4. Volume +/-: Increases/decreases the volume level

5. Microphone: Activates the microphone on the remote if the remote is paired with the TV previously

6. Home: Opens the Home Screen

7. Guide: Displays the electronic programme guide for Live TV channels

8. OK: Confirms selections, enters sub-menus, views channel list (in Live TV mode)

9. Back/Return: Returns to previous menu screen, goes one step back, closes open windows, closes teletext (in Live TV-Teletext mode)

10. Netflix: Launches the Netflix application

11. Prime Video: Launches the Amazon Prime Video application

12. Menu: Displays the main settings menu (on other sources than Android TV Home), displays available setting options such as sound and picture

13. Rewind: Moves frames backwards in media such as movies

14. Stop: Stops the media being played

15. Record: Records programmes in Live TV model(**)

16. Coloured Buttons: Follow the on-screen instructions for coloured button functions

17. Pause: Pauses the media being played, starts timeshift recording in Live TV mode Play: Resumes playing the paused media

18. Text: Opens and closes teletext (where available in Live TV mode)

19. Fast forward: Moves frames forward in media such as movies

20. Source: Shows all available broadcast and content sources, is also used in pairing process of the remote.

21. Google Play: Launches the Google Play Store application

22. YouTube: Launches the YouTube application

23. Exit: Closes and exits from the main settings menus (on other sources than Android TV Home), closes the Home Screen and switches to last set source, exits from any running application or menu or OSD banner

24. Directional buttons: Navigates menus, setting options, moves the focus or cursor, etc. and displays the subpages in Live TV-Teletext mode when pressed Right or Left. Follow the on-screen instructions

25. Info: Displays information about on-screen content

26. Programme +/-: Increases/decreases channel number in Live TV mode

27. Mute: Completely turns off the volume of the TV

28. Subtitles: Turns subtitles on and off, opens the subtitle settings menu (where available)

Standby Button

Press and hold the Standby button on the remote control. Power off dialogue will appear on the screen. Highlight OK and press the OK button. The TV will switch into standby mode. Press briefly and release to switch the TV into quick standby mode or to switch on the TV when in quick standby or standby mode.

Remote Control(\*\*)

Inserting the Batteries into the Remote

The remote may have a screw that secures the battery compartment cover onto the remote control (or this may be in a separate bag). Remove the screw, if the cover is screwed on previously. Then remove the battery compartment cover to reveal the battery compartment. Insert two 1.5V - size AAA batteries. Make sure the (+) and (-) signs match (observing correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Secure the cover again with the screw, if any.

Standby Button

Press and hold the Standby button on the remote control. Power off dialogue will appear on the screen. Highlight OK and press the OK button. The TV will switch into standby mode. Press briefly and release to switch the TV into quick standby mode or to switch on the TV when in quick standby or standby mode.

(**) Depends on model

1. Standby: Quick Standby / Standby / On
2. Numeric buttons: Switches the channel in Live TV mode, enters a number in the text box on the screen
3. Language: Switches among sound modes (analogue TV), displays and changes audio language (digital TV, where available)
4. Mute: Completely turns off the volume of the TV
5. Volume +/-: Increases/decreases the volume level
6. Guide: Displays the electronic programme guide for Live TV channels
7. Directional buttons: Navigates menus, setting options, moves the focus or cursor, etc. and displays the subpages in Live TV-Teletext mode when pressed Right or Left. Follow the on-screen instructions
8. OK: Confirms selections, enters sub-menus, views channel list (in Live TV mode)
9. Back/Return: Returns to previous menu screen, goes one step back, closes open windows, closes teletext (in Live TV-Teletext mode)
10. Netflix: Launches the Netflix application
11. Google Play: Launches the Google Play Store application
12. Menu: Displays the main settings menu (on other sources than Android TV Home), displays available setting options such as sound and picture
13. Rewind: Moves frames backwards in media such as movies
14. Stop: Stops the media being played
15. Record: Records programmes in Live TV mode(**)
16. Coloured Buttons: Follow the on-screen instructions for coloured button functions
17. Pause: Pauses the media being played, starts timeshift recording in Live TV mode Play: Resumes playing the paused media
18. Text: Opens and closes teletext (where available in Live TV mode)
19. Fast forward: Moves frames forward in media such as movies
20. MyButton1: Opens the picture mode setting menu on available sources
21. Prime Video: Launches the Amazon Prime Video application
22. YouTube: Launches the YouTube application
23. Exit: Closes and exits from the main settings menus (on other sources than Android TV Home), closes the Home Screen and switches to last set source, exits from any running application or menu or OSD banner
24. Info: Displays information about on-screen content
25. Source: Shows all available broadcast and content sources, is also used in pairing process of the remote.
26. Programme +/-: Increases/decreases channel number in Live TV mode
27. Home: Opens the Home Screen
28. Subtitles: Turns subtitles on and off, opens the subtitle settings menu (where available)

Licences

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Google, Android, Android TV, Chromecast, Google Play and YouTube are trademarks of Google LLC.

(**)For DTS patents, see http://patents.dts.com. Manufactured under licence from DTS Licensing Limited. DTS, DTS-HD, Virtual:X, and the DTS-HD logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2022 DTS, Inc. ALL RIGHTS RESERVED.

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate licence(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

The "CI Plus" Logo is a trademark of CI Plus LLP.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a licence from Microsoft or an authorised Microsoft subsidiary.

(**) Depends on model

Disposal Information

[European Union]

These symbols indicate that the electrical and electronic equipment and the battery with this symbol should not be disposed of as general household waste at its end-of-life. Instead, the products should be handed over to the applicable collection points for the recycling of electrical and electronic equipment as well as batteries for proper treatment, recovery and recycling in accordance with your national legislation and the Directive 2012/19/EU and 2013/56/EU.

By disposing of these products correctly, you will help to conserve natural resources and will help to prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of these products.

For more information about collection points and recycling of these products, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

[Business users]

If you wish to dispose of this product, please contact your supplier and check the terms and conditions of the purchase contract.

[Other Countries outside the European Union]

These symbols are only valid in the European Union. Contact your local authority to learn about disposal and recycling.

The product and packaging should be taken to your local collection point for recycling.

Some collection points accept products free of charge.

Note: The sign Pb below the symbol for batteries indicates that this battery contains lead.

1. Products
2. Battery

Simple line drawing of a plug inserted into a square socket with two dots, no text or symbols present.

5

Simple line drawing of a plug inserted into a socket (no text or symbols)

Illustration of a power plug inserted into a wall socket with a circular outlet (no text or symbols)

①

②

Simple line drawing of a plug inserted into a socket (no text or symbols)

4 Accendere la TV

Simple line drawing of a plug inserted into a socket (no text or symbols)

Simple line drawing of a plug inserted into a socket (no text or symbols)

4 Schakel de TV in

1. Producten

2. Batterij

Simple line drawing of a plug inserted into a square socket with two circular holes (no text or symbols)

4 Włącz telewizor

Simple line drawing of a plug inserted into a socket (no text or symbols)

4 Zapnutí televizoru

Simple line drawing of a plug inserted into a square socket with two circular holes (no text or symbols)

4 Uključivanje televizora

Laserski proizvod 1. klase: Ovaj proizvod sadrži laser 1.

Simple line drawing of a plug inserted into a wall socket with two circular holes (no text or symbols)

①

②

Simple line drawing of a plug inserted into a square socket with two circular holes (no text or symbols)

①

②

Illustration of a power plug inserted into an electrical socket (no text or symbols)

4 Vklopite televizor

EN: Hereby, VESTEL Elektronik Sanayi ve Ticaret declares that the radio equipment type TFT ID in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: doc.vosshub.com

www.eu-aiwa.com

AIWA CO., LTD.

Kita-Ku

All Rights Reserved.

Printed in Türkiye

7B02B0104V.1
