DO9260G - Grill plate DOMO - Free user manual and instructions

Brand	DOMO
Model	DO9260G
Product type	Electric grill plate
Usage	Indoor, domestic
Plate coating	Non-stick
Thermostat	Adjustable from MIN to MAX, with indicator light
Indicator light	Blue (on) / Red (heating)
Drip tray	For grease and moisture, removable
Grill and wind guard	Removable for cleaning
Handles	Present for moving
Plate cleaning	Dishwasher or warm soapy water
Accessories cleaning	Dishwasher or warm soapy water
Exterior maintenance	Damp cloth, no harsh detergent
Safety instructions	Do not immerse, unplug before cleaning, use on solid surface
Warranty	2 years (accessories and wear: 6 months)
Customer service	[phone], [e-mail]
Recommended accessories	Specifically for DOMO, available online

Frequently Asked Questions - DO9260G DOMO

How to clean the cooking plate?

After use, let it cool, remove the plate and wash it in the dishwasher or with warm water and mild detergent. Dry thoroughly before reassembling.

Why is there an odor or smoke during first use?

This is normal: manufacturing residues burn off. Let the appliance heat empty for a few minutes in a ventilated area.

Which utensils to use on the non-stick coating?

Use wooden or plastic spatulas. Metal utensils scratch the coating.

How to adjust the temperature?

Turn the thermostat from MIN to MAX. The MIN position is off. The indicator turns red during heating, then returns to blue when temperature is reached.

Can I use frozen food?

Yes, but it is recommended to thaw food before cooking for best results.

Where does excess grease go?

Excess grease and moisture drain into the removable drip tray at the back.

How to know when the appliance is ready?

The indicator light changes from red (heating) to blue (temperature reached). Then you can place the food.

Can I use an extension cord?

No, the appliance must not be used with an extension cord or power strip for safety reasons.

Does the appliance turn off automatically?

No, there is no automatic shut-off. You must turn the thermostat to MIN and unplug after use.

What to do if the indicator does not light up?

Check that the plug is properly connected and that no fuse has blown in the electrical panel.

USER MANUAL DO9260G DOMO

Black and white photo of a Domio grater with a side panel and control knob (no visible text or symbols)

DO9260G

Handleiding Tafelgrill – elektrische BBQ

Mode d’emploi Grill de table – BBQ électrique

Gebrauchsanleitung Tischgrill – elektrischen BBQ-grill

Instruction booklet Table grill – electric BBQ

Manual de instrucciones Plancha de mesa - barbacoa eléctrica

Istruzioni per l’uso Griglia da tavolo - barbecue elettrico

Návod k použití Stolní BBQ gril

Návod na použitie Stolný BBQ gril

Two black-and-white icons: a warning triangle with an exclamation mark and an open book (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Close-up of a black mechanical component with a numbered line marker (6) pointing to its edge, no text or symbols present.

Close-up of a black electronic component with a white line and number 7 annotation (no readable text or symbols)

- MIN + MAX

OPMERKINGEN

Exploded view of a kitchen appliance showing internal components like a tray, lid, and stove (no text or symbols visible)

PROBLEEM EN OPLOSSING

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

⚠️ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Close-up of a black mechanical component with a labeled dimension line (6), no readable text or symbols present.

Close-up of a black electronic component with a white line and number 7 annotation (no readable text or symbols)

AVANT LA PREMIÈRE UTILISATION

- MIN + MAX

REMARQUES

Exploded view of a portable electric stove with cooling unit and battery (no text or symbols visible)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black mechanical component with a labeled dimension line (6), no readable text or symbols present.

Close-up of a black mechanical component with a white line and number 7 annotation (no readable text or symbols)

- MIN + MAX

ANMERKUNGEN

Exploded view of a kitchen appliance showing internal components like a grater, oven, and drawer (no text or labels visible)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

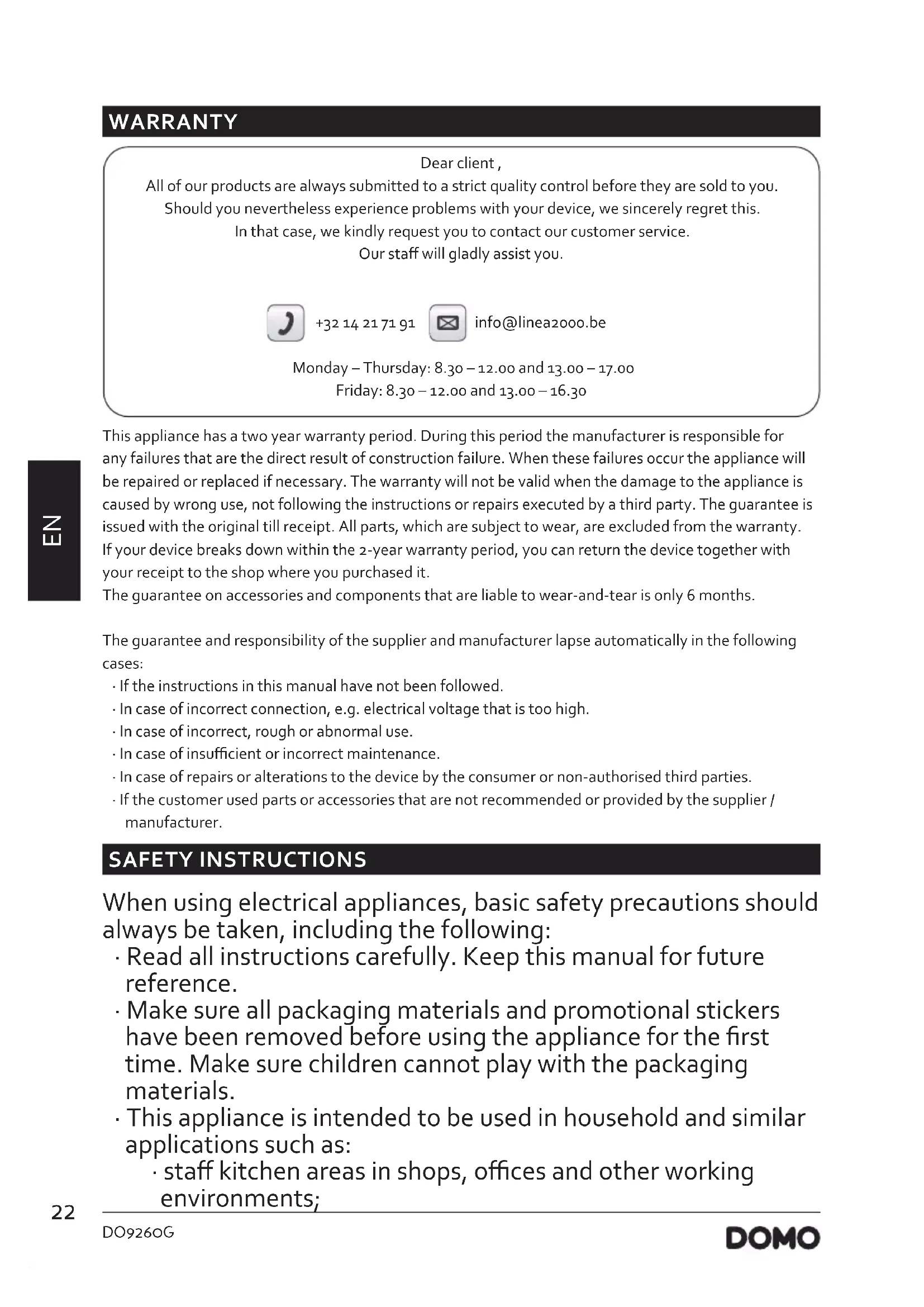

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;

· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

· Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “o” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

• Keep the power cord away from hot parts and don't cover the appliance.
• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• The appliance may not be used with an extension lead or a multiple socket.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

· Do not place near flammable materials, gases or explosives.
· Do not use or store this appliance outdoors.
· Always use the appliance on a steady, dry and level surface.
- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

· Do not use this appliance for other than intended use.
- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
· Never leave the appliance unattended while it is functioning.
· Do not operate the appliance with wet hands.
- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

The appliance becomes hot during use. Keep the power cord away from hot parts and don't cover the appliance.

· Do not touch any hot surfaces, use the handles.
- Make sure that the air can circulate freely around the appliance.
- Do not use any sharp objects to remove any remains.
· Always unplug the appliance when cleaning it. Also let the appliance cool down completely.
- Do not use this appliance with charcoal or similar flammable fuels.
· Take care with the hot griddle and steam escaping alongside the appliance to avoid injury, burns, or fire.
- Use the handles to move the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

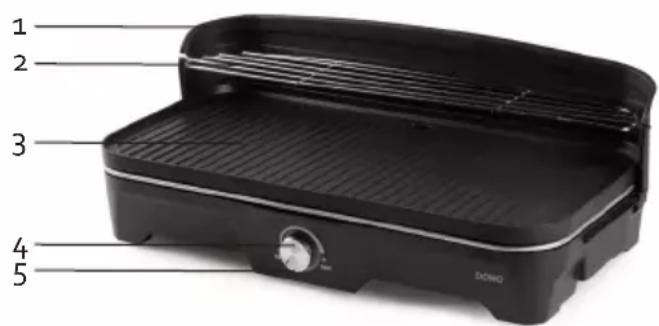

PARTS

1. Windscreen
2. Grill rack
3. Baking surface with non-stick coating
4. Thermostat
5. Indication light
6. Catch basin for fat and moisture
7. Handle

1 2 3 4 5 DONO

Close-up of a black mechanical component with a labeled dimension line (6), no readable text or symbols present.

Close-up of a black electronic component with a white line and numbered annotation (7), no readable text or symbols present.

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
• Wipe the baking plate and outside of the appliance clean with a soft cloth.
• When using the appliance for the first time there may be a slight smell and light smoke from the baking plate. This is normal.

USE

1. Place the appliance on a dry, flat surface and ensure there is adequate ventilation.
2. Turn the thermostat knob to "MIN". Put the mains plug in the wall socket. The indication light around the thermostat knob will turn blue.

3. You can set the temperature of the appliance as required. The temperature ranges from minimum (MIN) to maximum (MAX). A mid-way temperature is recommended. This switch is also the 'on' switch, and MIN is the off position.

4. The appliance will start to heat up. The indication light will turn red.

5. The indication light will change from red to blue when the unit has reached the set position.

6. Place the food on the appliance.

7. When your mixture has finished grilling, remove the food from the appliance using a plastic or wooden spatula. Never use metal objects as these can damage the non-stick coating.

8. After use, turn the thermostat to the "MIN" position. Remove the mains plug from the wall socket.

- MIN + MAX

NOTES

• Lightly grease the baking plate for best results.
• Defrost frozen food before putting it on the appliance.
  · The excess fat or moisture from the food is collected in the drip tray.

CLEANING AND MAINTENANCE

- After use, turn the thermostat to the "MIN" position. Remove the mains plug from the wall socket and wait until the appliance has cooled down completely.

- It is recommended that all food residues be removed with a wooden spatula or a heat-resistant plastic utensil while the appliance is still hot. If the residues dry up, they will be harder to remove.

- Remove the baking plate from the appliance. The baking plate is dishwasher-safe.

- The baking plate can also be cleaned with hot water and a mild detergent. Dry the baking plate thoroughly before placing it back in the appliance.

- Clean the outside of the appliance using a clean, damp cloth. Dry the appliance thoroughly. Never use aggressive or abrasive cleaning products.

- Never submerge the appliance, the electric cord or the plug into water or another liquid.

- Press down the tab at the back of the appliance and then pull to remove the drip tray. The drip tray for grease and moisture, the windshield and the grill rack can be removed for easy maintenance. Clean it in hot water using a mild detergent. These parts are dishwasher safe.

Exploded view of a smart appliance showing internal components like a heater, fan, and battery (no text or symbols visible)

PROBLEM AND SOLUTION

PROBLEM SOLUTION
The indication light does not illuminate. Check that the plug is in the socket and that a fuse in your fuse box has not been tripped.

ENVIRONMENTAL GUIDELINES

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Close-up of a black mechanical component with a small protrusion and a numbered line marker (6) pointing to it, no readable text or symbols present.

Close-up of a black electronic component with a white line and number 7 annotation (no readable text or symbols)

- MIN + MAX

OBSERVACIONES

Exploded view of a black appliance with internal compartments and heat sinks (no text or symbols visible)

PROBLEMAS Y SOLUCIONES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black mechanical component with a small protrusion and a numbered line marker '6' (no text or symbols on the object itself)

Close-up of a black electronic component with a white line and number 7 annotation (no readable text or symbols)

PRIMA DELL'USO

- MIN + MAX

NOTE

Exploded view of a black appliance with visible internal components (no text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

1 2 3 4 5 OCMO

Close-up of a black mechanical component with a labeled dimension line (6), no readable text or symbols present.

Close-up of a black electronic component with a white line and numbered annotation (7), no readable text or symbols present.

PŘED PRVNÍM POUŽITÍM

- MIN + MAX

POZNÁMKA:

Exploded view of a kitchen appliance showing internal components like a grater, oven, and drawer (no text or labels visible)

PROBLÉMY A ŘEŠENÍ

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black mechanical component with a labeled dimension line (6), no readable text or symbols present.

Close-up of a black electronic component with a white line and number 7 label (no readable text or symbols beyond the number)

PRED PRVÝM POUŽITÍM

- MIN + MAX

POZNÁMKA:

Exploded view of a portable electric stove with internal compartments and cooling unit (no text or symbols visible)

PROBLÉMY A RIEŠENIA

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Four-panel image showing milk products: two with clear liquid, four with sliced and packed food items, and a glass pitcher with black handle (no text or symbols)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
