Product Type	UHF Wireless Microphone
Brand	Lenco
Model	MCW-020BK
Frequency Band	863.5 – 864.5 MHz (FM)
Connectivity	Wireless, 6.3 mm output for receiver
Receiver Power Supply	Mains (adapter not included) or USB 5V DC
Microphone Power Supply	Rechargeable lithium-ion battery 3.7 V, 2000 mAh
Charging Time	Approximately 10 hours
Charging Indicator	Green LED during charging, off when charged
Approximate Range	Up to 30 meters
Display	Signal, channel, frequency
Main Functions	On/off switch, channel selector, receiving antenna
Package Contents	Microphone, receiver, 6.3 mm audio cable
Care and Cleaning	Soft dry cloth, no solvents
Safety	Do not expose to water, do not open, operating temperature 0–35 °C
Warranty	Compliant with European legislation, via the retailer
After-Sales Service	support.lenco.com
Manufacturer	Commaxx B.V., Wiebachstraat 37, 6466 NG Kerkrade, Netherlands
Repairability	Entrust to qualified personnel, never open the device
Battery Type	Li-ion 3.7 V 2000 mAh, replace with identical type

Frequently Asked Questions - MCW-020BK LENCO

How to charge the microphone?

Plug the receiver via USB DC 5V. The LED is green during charging and turns off when fully charged (about 10 hours).

What is the range of the microphone?

The range can reach up to 30 meters in open field.

Can I use this microphone with any amplifier?

Yes, thanks to the 6.3 mm output, you can connect it to most amplifiers, speakers, or audio systems.

How to change the frequency?

Use the selector on the receiver to change the channel and frequency.

What to do if the microphone does not turn on?

Check that the battery is charged. If the problem persists, contact after-sales service.

Can the microphone be used in the rain?

No, avoid any exposure to water or humidity. Do not use outdoors in rainy weather.

How to clean the microphone?

Use a soft dry cloth. Do not use solvent or liquid.

What is the warranty?

The warranty complies with European legislation. For any repairs, contact your retailer.

Can I replace the battery myself?

No, replacement must be done by a professional. Use a battery of the same type (Li-ion 3.7 V 2000 mAh).

Where can I find the full manual?

Download the PDF manual for free at notice-facile.com.

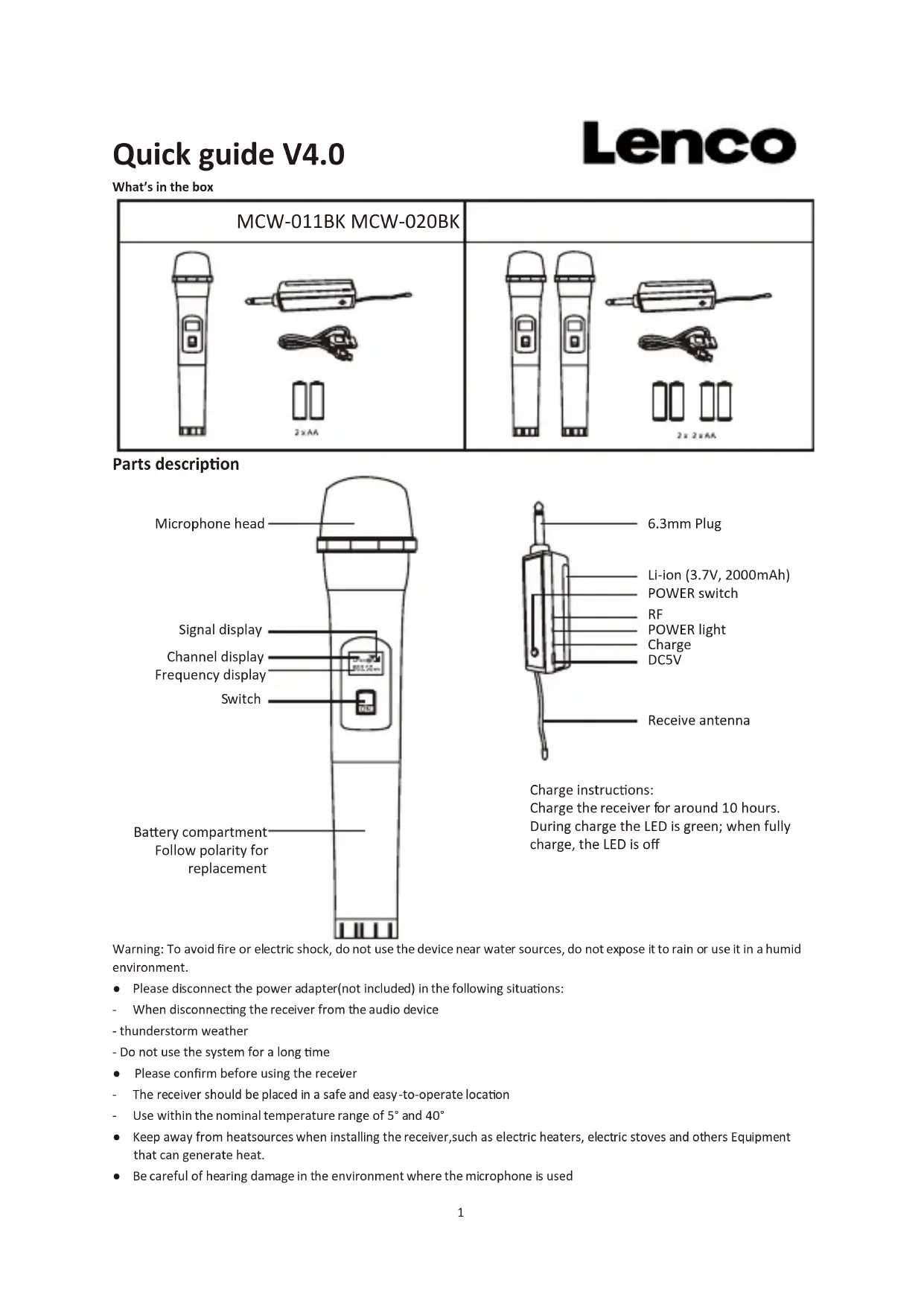

USER MANUAL MCW-020BK LENCO

MCW-011BK MCW-020BK 2×AA 2×2×AA

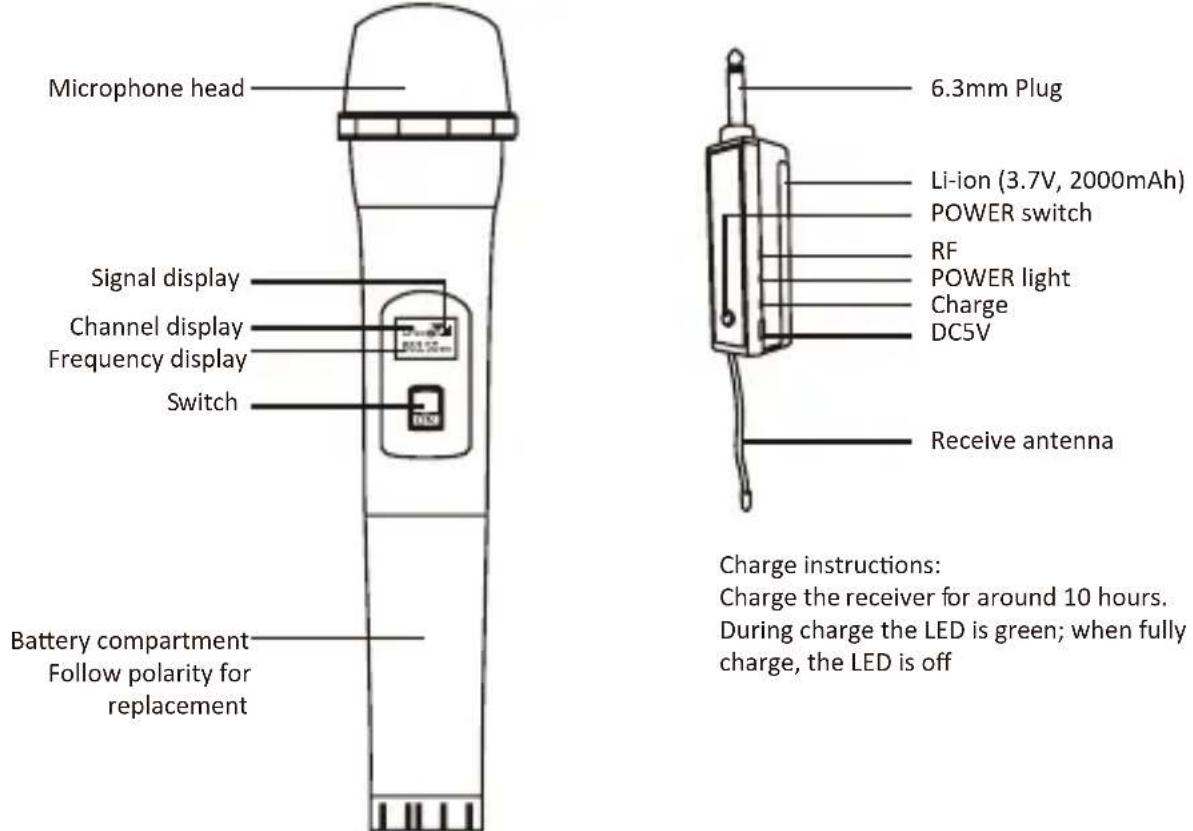

Parts description

Microphone head Signal display Channel display Frequency display Switch Battery compartment Follow polarity for replacement 6.3mm Plug Li-ion (3.7V, 2000mAh) POWER switch RF POWER light Charge DC5V Receive antenna Charge instructions: Charge the receiver for around 10 hours. During charge the LED is green; when fully charge, the LED is off

Warning: To avoid fire or electric shock, do not use the device near water sources, do not expose it to rain or use it in a humid environment.

• Please disconnect the power adapter(not included) in the following situations:
• When disconnecting the receiver from the audio device
• thunderstorm weather
• Do not use the system for a long time
• Please confirm before using the receiver
• The receiver should be placed in a safe and easy-to-operate location
• Use within the nominal temperature range of 5° and 40°
• Keep away from heatsources when installing the receiver, such as electric heaters, electric stoves and others Equipment that can generate heat.
• Be careful of hearing damage in the environment where the microphone is used

KEEP THESE INSTRUCTIONS IN MIND:

1. Install in accordance with the supplied user manual.
2. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0^ and 35^ C.
3. Avoid using the device near strong magnetic fields.
4. Warning! Never insert an object into the product through the vents or openings. High voltage flowsthrough the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
5. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
6. The device shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
7. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
8. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
9. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
10. Keep away from animals. Some animals enjoy biting on power cords.
11. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.
12. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.
13. The rating label has been marked on the bottom or back panel of the device.
14. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
15. This product is intended for non professional use only and not for commercial or industrial use.
16. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
17. Never remove the casing of this device.
18. Do not allow children access to plastic bags.
19. Only use attachments/accessories specified by the manufacturer.
20. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
21. Long exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.
22. Caution about the use of Batteries:
23. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

24. Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.

25. Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.

26. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
27. Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.
28. A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
29. Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

Guarantee

Commaxx B.V. offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Commaxx B.V. directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

Disposal of the Old Device

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

DECLARATION OF CONFORMITY

Hereby, Commaxx declares that the radio equipment type [Lenco MCW-020] is in compliance with directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: https://commaxx-certificates.com/doc/mcw-020_doc.pdf

Type RF Frequency range (MHz) Power (dBm)
FM 863.5-864.5 < 10

Service

For more informa on and helpdesk support, please visit support.lenco.com

Commaxx B.V. Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands

Snelstartgids V4.0

Lenco

Leveringsomvang

MCW-011BK		MCW-020BK
	2×AA		2×2×AA

Productoverzicht

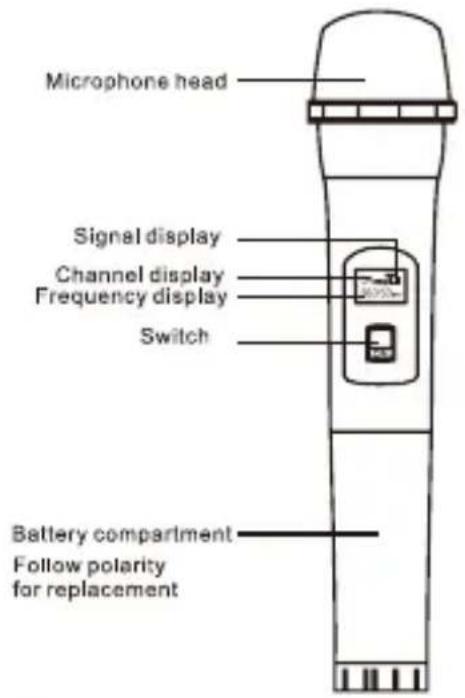

Microphone head Signal display Channel display Frequency display Switch Battery compartment Follow polarity for replacement

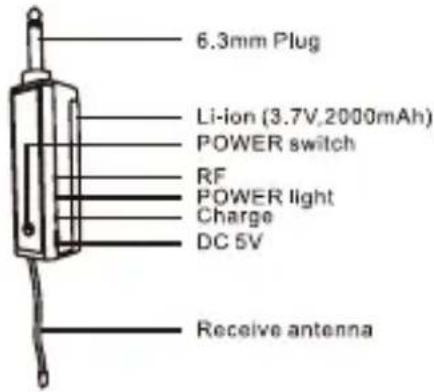

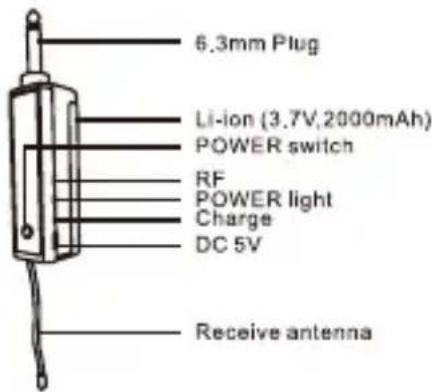

6.3mm Plug Li-ion (3.7V,2000mAh) POWER switch RF POWER light Charge DC 5V Receive antenna

Charge instructions:
Charge the receiver for around 10 hours.
During charge the LED is green;
when fully charge, the LED is off

EN	NL
Microphone head	Microfoonkop
Signal display	Signaaldisplay
Channel display	Kanaaldisplay
Frequency display	Frequentiedisplay
Switch	Schakelaar
Battery compartment	Batterijvak
Follow polarity for replacement	Let op de polariteit bij vervanging
6.3mm Plug	6,3 mm stekker
Li-ion (3.7V,2000mAh)	Li-ion (3,7 V, 2000 mAh)
POWER switch	AAN/UIT-SCHAKELAAR
RF	RF
POWER light	Stroomindicator
Charge	Opladen
DC 5V	DC 5V
Receive antenna	Ontvangstantenne
Charge instructions:	Oplaadins tructies:
Charge the receiver for around 10 hours.	Laad de ontvanger ca. 10 uur op.
During charge the LED is green; When fully charge, the LED is off	Tijdens het opladen brandt de led groen. De led is uit als de ontvanger volledig is opgeladen.

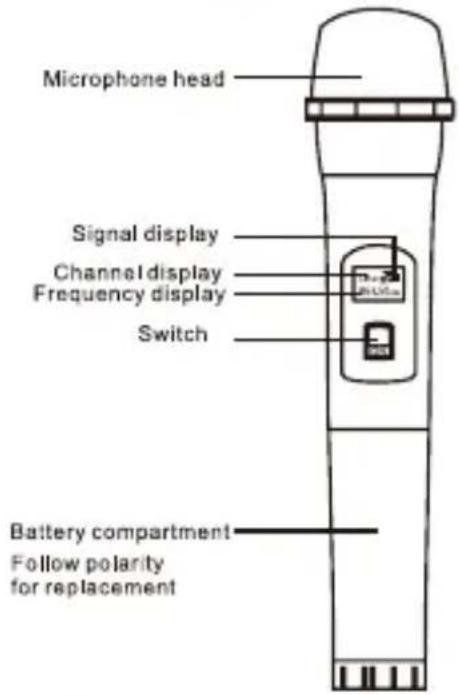

Microphone head Signal display Channel display Frequency display Switch Battery compartment Follow polarity for replacement

6.3mm Plug Li-ion (3.7V,2000mAh) POWER switch RF POWER light Charge DC 5V Receive antenna

Charge instructions:
Charge the receiver for around 10 hours.
During charge the LED is green;
when fully charge, the LED is off

MCW-011BK		MCW-020BK
	2×AA		2×2×AA

2×2×AA
Description des composants

Microphone head Signal display Channel display Frequency display Switch Battery compartment Follow polarity for replacement

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

6.3mm Plug
Li-ion (3.7V,2000mAh)
POWER switch
RF
POWER light
Charge
DC 5V
Receive antenna
Charge instructions:
Charge the receiver for around 10 hours.
During charge the LED is green;
when fully charge, the LED is off

MCW-011BK		MCW-020BK
	2×AA		2×2×AA

Información general

Microphone head Signal display Channel display Frequency display Switch Battery compartment Follow polarity for replacement

6.3mm Plug Li-ion (3.7V,2000mAh) POWER switch RF POWER light Charge DC 5V Receive antenna

Charge instructions:

Charge the receiver for around 10 hours.

During charge the LED is green;

when fully charge, the LED is off

EN	ES
Microphone head	Cabeza del micrófono
Signal display	Pantalla de señales
Channel display	Pantalla de canal
Frequency display	Pantalla de frecuencia
Switch	Selector
Battery compartment	Compartimento para las pilas
Follow polarity for replacement	Siga la polaridad para la sustitución
6.3mm Plug	Enchufe de 6.3mm
Li-ion (3.7V,2000mAh)	Batería de iones de litio (3.7V,2000mAh)
POWER switch	INTERRUPTOR DE CORRIENTE
RF	RF
POWER light	Luz de ALIMENTACIÓN
Charge	Carga
DC 5V	CC 5V
Receive antenna	Antena receptora
Charge instructions:	Instrucciones de carga:
Charge the receiver for around 10 hours.	Cargue el receptor durante aproximadamente 10 horas.
During charge the LED is green; When fully charge, the LED is off	Durante la carga el LED es verde; cuando esté completamente cargado, el LED se apaga

MCW-011BK		MCW-020BK
	2×AA		2×2×AA

Beskrivelse af dele

Microphone head Signal display Channel display Frequency display Switch Battery compartment Follow polarity for replacement

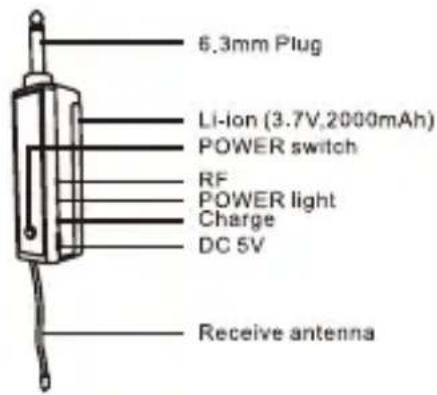

6.3mm Plug Li-ion (3.7V,2000mAh) POWER switch RF POWER light Charge DC 5V Receive antenna

Charge instructions:

Charge the receiver for around 10 hours.

During charge the LED is green;

when fully charge, the LED is off

EN	DK
Microphone head	Mikrofonhoved
Signal display	Signalskærm
Channel display	Kanalskærm
Frequency display	Frekvensskærm
Switch	Kontakt
Battery compartment	Batterirum
Follow polarity for replacement	Følg polaritet en ved udskiftning
6.5mm Plug	6,5 mm stik
Li-ion (3.7V, 2000mAh)	Li-ion (3,7 V, 2000 mAh)
POWER switch	Hovedkontakt
RF	RF
POWER light	Strømlampe
Charge	Oplader
DC 5V	DC 5V
Receive antenna	Modtagerantenne
Charge instructions:	Opladningsvejledning:
Charge the receiver for around 10 hours.	Oplad modtageren i ca. 10 timer.
During Charge the LED is green;	Under opladningen lyser LED'en grønt;
When fully Charge, the LED is off	Når den er fuldt opladet, slukker LED'en

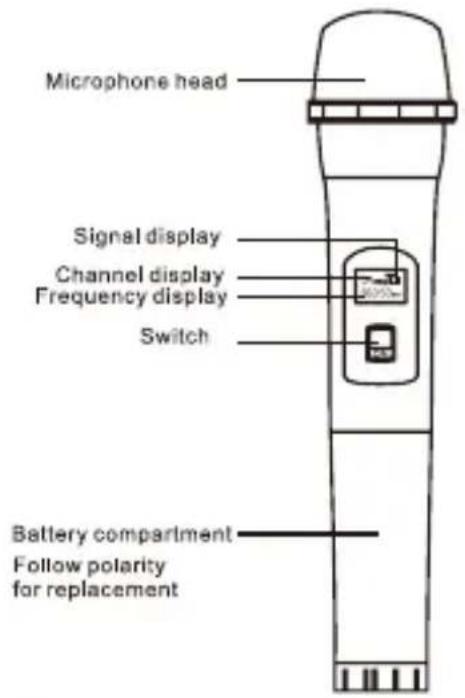

Microphone head Signal display Channel display Frequency display Switch Battery compartment Follow polarity for replacement

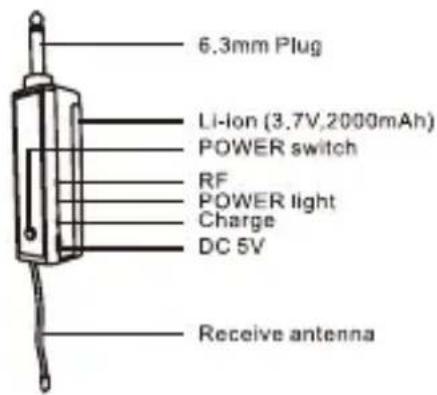

6.3mm Plug Li-ion (3.7V,2000mAh) POWER switch RF POWER light Charge DC 5V Receive antenna

Charge instructions:
Charge the receiver for around 10 hours.
During charge the LED is green;
when fully charge, the LED is off

EN	SV
Microphone head	Mikrofonhuvud
Signal display	Display som visar signalen
Channel display	Display som visar kanalen
Frequency display	Display som visar frekvensen
Switch	Reglage
Battery compartment	Batterifack
Follow polarity for replacement	Respektera polariteten vid utbyte
6.5mm Plug	6,5 mm kontakt
Li-ion (3.7V, 2000mAh)	Li-jon (3,7 V, 2000 mAh)
POWER switch	Strömbrytare
RF	RF-indikator
POWER light	Strömindikator
Charge	Laddningsindikator
DC 5V	DC 5V
Receive antenna	Mottagningsantenn
Charge instructions:	Laddningsinstruktioner:
Charge the receiver for around 10 hours.	Ladda mottagaren i cirka fem timmar.
During Charge the LED is green;	Vid laddning lyser LED-indikatorn grönt.
When fully Charge, the LED is off	När den är fulladdad släcks LED-indikatorn.

Microphone head Signal display Channel display Frequency display Switch Battery compartment Follow polarity for replacement

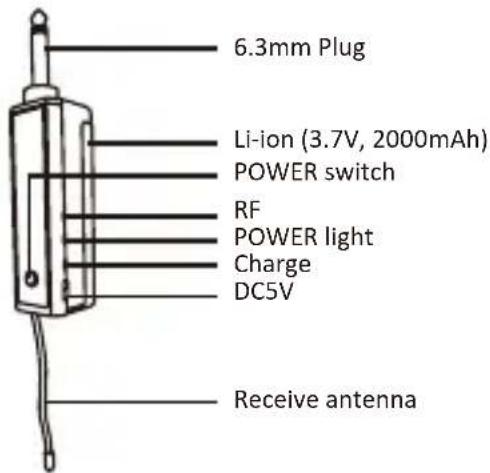

6.3mm Plug Li-ion (3.7V, 2000mAh) POWER switch RF POWER light Charge DC5V Receive antenna

Charge instructions:
Charge the receiver for around 10 hours.
During charge the LED is green; when fully charge, the LED is off
