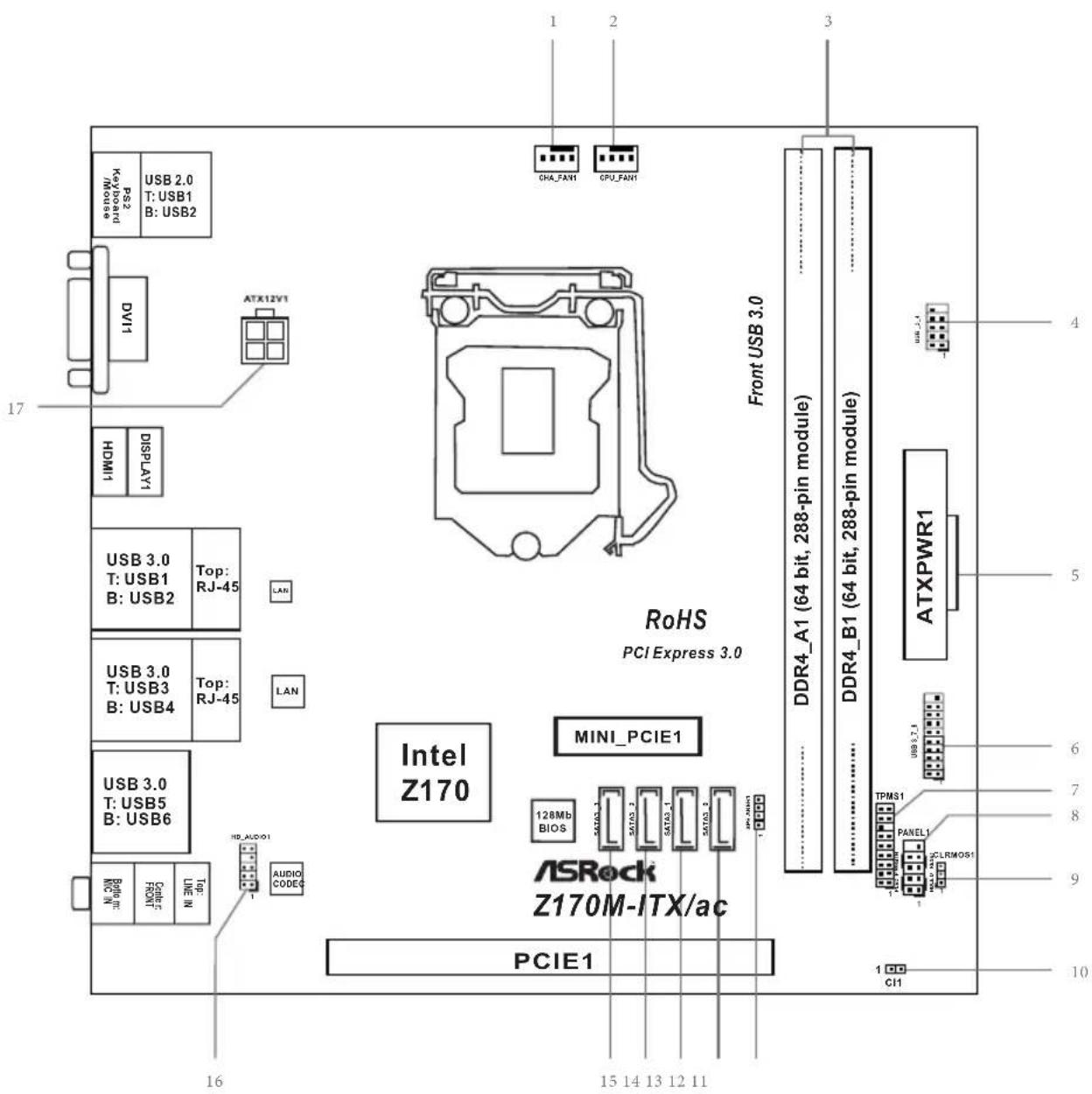

Motherboard Layout

RS2 PS2 /Mouse USB 2.0 T: USB1 B: USB2 DVI1 ATX12V1 HDMI1 DISPLAY1 USB 3.0 T: USB1 B: USB2 Top: RJ-45 LAN USB 3.0 T: USB3 B: USB4 Top: RJ-45 LAN USB 3.0 T: USB5 B: USB6 HD_AUDIO1 AUDIO CODE4 PCIE1 Front USB 3.0 DDR4_A1 (64 bit, 288-pin module) DDR4_B1 (64 bit, 288-pin module) ATXPWR1 ATX12V1 DDR4_A1 (64 bit, 288-pin module) DDR4_B1 (64 bit, 288-pin module) TPMS1 PANEL1 ASRock Z170M-ITX/ac Intel Z170 MINI_PCIE1 128Mb BIOS SETIO_1 SETIO_2 SETIO_3 SETIO_4 MINI_PCIE1 128Mb BIOS SETIO_1 SETIO_2 SETIO_3 SETIO_4 MINI_PCIE1 128Mb BIOS SETIO_1 SETIO_2 SETIO_3 SETIO_4 MINI_PCIE1 128Mb BIOS SETIO_1 SETIO_2 SETIO_3 SETIO_4 MINI_PCIE1 SETIO_1 SETIO_2 SETIO_3 SETIO_4 MINI_PCIE1 SETIO_1 SETIO_2 SETIO_3 SETIO_4 MINI_PCIE1 SETIO_1 SETIO_2 SETIO_3 SETIO_4

No. Description

1 Chassis Fan Connector (CHA_FAN1)
2 CPU Fan Connector (CPU_FAN1)
4 USB 2.0 Header (USB_3_4)
5 ATX Power Connector (ATXPWR1)
6 USB 3.0 Header (USB3_7_8)
7 TPM Header (TPMS1)
8 System Panel Header (PANEL1)
9 Clear CMOS Jumper (CLRMOS1)
10 Chassis Intrusion Header (CI1)
11 Chassis Speaker Header (SPEAKER1)
12 SATA3 Connector (SATA3_0)
13 SATA3 Connector (SATA3_1)
14 SATA3 Connector (SATA3_2)
15 SATA3 Connector (SATA3_3)
16 Front Panel Audio Header (HD_AUDIO1)
17 ATX 12V Power Connector (ATX12V1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

I/O Panel

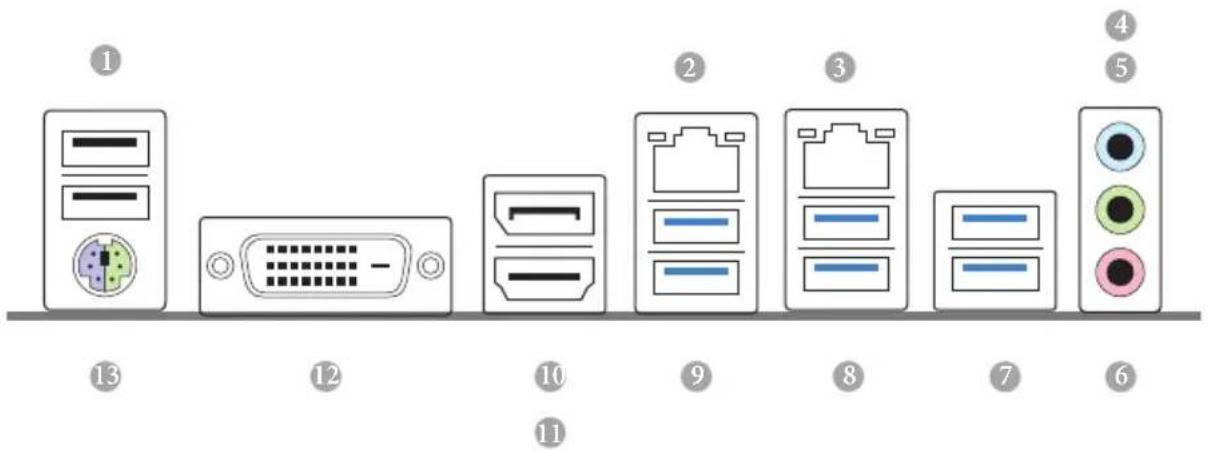

Diagram showing labeled electronic device ports and connectors, including server, VGA, Ethernet, and indicator lights.

No. Description No. Description

1 USB 2.0 Ports (USB12) 8 USB 3.0 Ports (USB3_34)

2 LAN RJ-45 Port (Realtek RTL8111H)* 9 USB 3.0 Ports (USB3_12)

3 LAN RJ-45 Port (Intel® I219V)* 10 DisplayPort 1.2

4 Line In (Light Blue) ^** 11 HDMI Port

5 Front Speaker (Lime) ^** 12 DVI-D Port

6 Microphone (Pink)** 13 PS/2 Mouse/Keyboard Port

7 USB 3.0 Ports (USB3_56)

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

LAN Port

Activity / Link LED Speed LED
Status	Description
Off	No Link
Blinking	Data Activity
On	Link

Status	Description
Off	10Mbps connection
Orange	100Mbps connection
Green	1Gbps connection

** To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

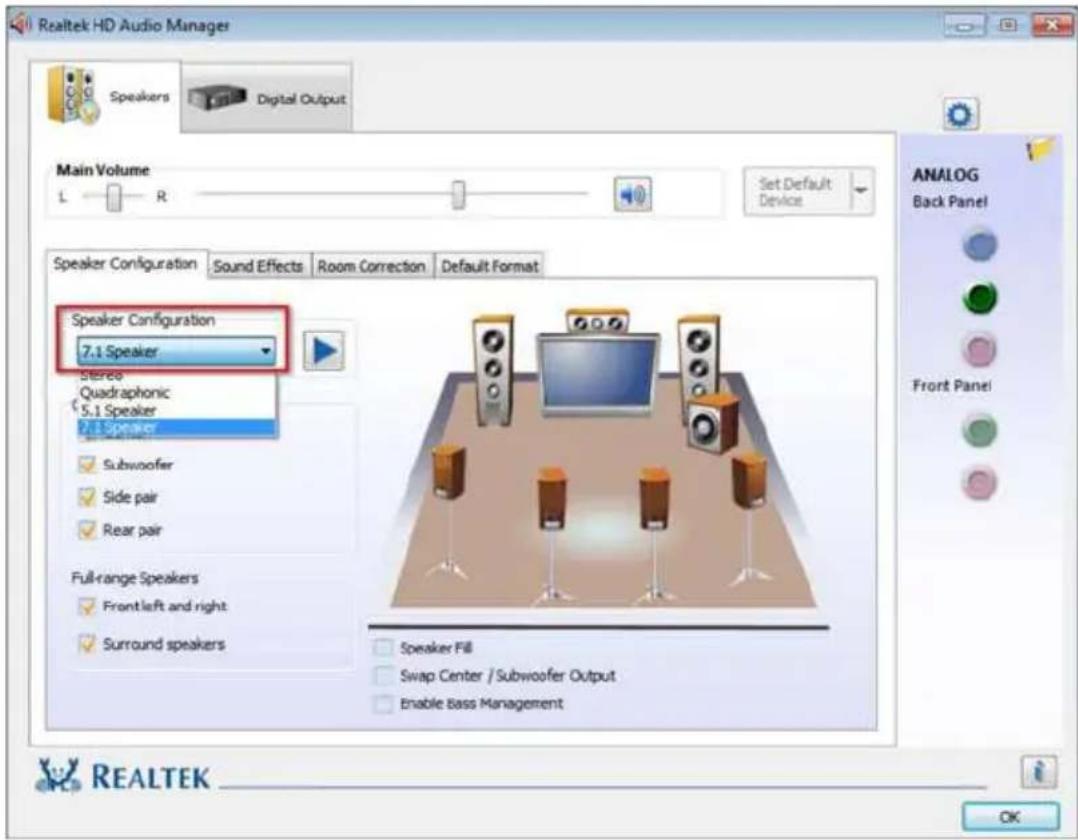

Please set Speaker Configuration to "7.1 Speaker" in the Realtek HD Audio Manager.

Realtek HD Audio Manager Speakers Digital Output Main Volume L — R Set Default Device Speaker Configuration Sound Effects Room Correction Default Format Speaker Configuration 7.1 Speaker Stereo Quadraphonic 5.1 Speaker 7.1 Speaker Subwoofer Side pair Rear pair Full-range Speakers Front left and right Surround speakers Speaker Fill Swap Center / Subwoofer Output Enable Bass Management ANALOG Back Panel Front Panel REALTEK OK

Function of the Audio Ports in 7.1-channel Configuration:

Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

Chapter 1 Introduction

Thank you for purchasing ASRock Z170M-ITX/ac motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

ASRock Z170M-ITX/ac Motherboard (Mini-ITX Form Factor)

ASRock Z170M-ITX/ac Quick Installation Guide

ASRock Z170M-ITX/ac Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

1 x WiFi-802.11ac Module

2 x SMA WiFi Antenna Cables

2 x ASRock WiFi 2.4/5 GHz Antennas

1 x WiFi Module Bracket

2 x Screws for WiFi Module

1.2 Specifications

Platform	Mini-ITX Form FactorSolid Capacitor designHigh Density Glass Fabric PCB
CPU	Supports 6^th Generation Intel® CoreTM i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)Digi Power design6 Power Phase designSupports Intel® Turbo Boost 2.0 TechnologySupports Intel® K-Series unlocked CPUsSupports ASRock BCLK Full-range Overclocking
Chipset	Intel ^4 Z170
Memory	Dual Channel DDR4 Memory Technology2 x DDR4 DIMM SlotsSupports DDR4 3200+(OC)*/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, un-buffered memory* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)Max. capacity of system memory: 32GBSupports Intel® Extreme Memory Profile (XMP) 2.0
Expansion Slot	1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)1 x Vertical Half-size Mini-PCI Express Slot: For WiFi + BT Module* This Mini-PCI Express Slot supports WiFi and mSATA devices.
Graphics	Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD Technology, Intel® InsiderTM, Intel® HD Graphics 510/530

Pixel Shader 5.0, DirectX 12 Max. shared memory 1792MB Three graphics output options: DVI-D, HDMI and DisplayPort 1.2 Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 24Hz or 4K x 2K (3840x2160) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports Accelerated Media Codecs: HEVC, VP8, VP9 Supports HDCP with DVI-D, HDMI and DisplayPort 1.2 Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.2 Ports

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) ELNA Audio Caps

LAN

1 x Intel ^® I219V (Gigabit LAN PHY 10/100/1000 Mb/s) 1 x Realtek RTL8111H (PCIE x1 Gigabit LAN 10/100/1000 Mb/s) Supports Wake-On-WAN (on Realtek RTL8111H) Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike Protection) Supports LAN Cable Detection (on Realtek RTL8111H) Supports Energy Efficient Ethernet 802.3az Supports PXE

Wireless LAN	Supports IEEE 802.11a/b/g/n/acSupports Dual-Band (2.4/5 GHz)Supports high speed wireless connections up to 433MbpsSupports Bluetooth 4.0 / 3.0 + High speed class II
Rear Panel I/O	1 x PS/2 Mouse/Keyboard Port1 x DVI-D Port1 x HDMI Port1 x DisplayPort 1.22 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))6 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone
Storage	4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug1 x mSATA Connector (shared with Mini-PCI Express Slot), support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug
Connector	1 x TPM Header1 x Chassis Intrusion Header1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)1 x 20 pin ATX Power Connector1 x 4 pin 12V Power Connector1 x Front Panel Audio Connector1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
BIOSFeature	128Mb AMI UEFI Legal BIOS with multilingual GUI supportACPI 1.1 Compliant wake up eventsSMBIOS 2.3.1 SupportCPU, GT_CPU, DRAM, PCH 1.0V, VCCIO, VPPM, VCCSA Voltage Multi-adjustment
HardwareMonitor	CPU/Chassis temperature sensingCPU/Chassis Fan TachometerCPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)CPU/Chassis Fan multi-speed controlCASE OPEN detectionVoltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS	Microsoft* Windows* 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* To install Windows* 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please refer to page 143 for more detailed instructions.* For the updated Windows* 10 driver, please visit ASRock's website for details: http://www.asrock.com
Certifications	FCC, CE, WHQLErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

1.3 WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz Antenna

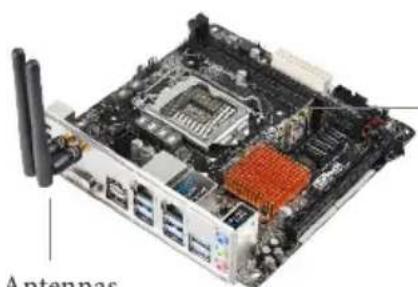

WiFi-802.11ac + BT Module

This motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.0 module that offers support for WiFi 802.11 a/b/g/n/ac connectivity standards and Bluetooth v4.0. WiFi + BT module is an easy-to-use wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth v4.0 standard features Smart Ready technology that adds a whole new class of functionality into the mobile devices. BT 4.0 also includes Low Energy Technology and ensures extraordinary low power consumption for PCs.

* The transmission speed may vary according to the environment.

Close-up of a computer motherboard with visible CPU socket, RAM slots, and antenna (no text or symbols)

WiFi + BT Module

(included in the package)

ASRock WiFi 2.4/5 GHz Antennas (included in the package)

WiFi Module and WiFi Antennas Installation Guide

Technical drawing of a mechanical bracket and mounting bracket with screws (no text or symbols)

Step 1

Prepare the WiFi Module, WiFi Module Bracket, and the two screws (M2*3) that come with the package. Prepare a Phillips #0 screwdriver.

Mechanical component diagram showing a lever mechanism with a red arrow indicating rotation (no text or symbols)

Step 2

Attach the WiFi Module Bracket to the WiFi card, aligning the screw hole on the WiFi card with the screw hole on the bracket. Use the screw to attach the bracket and the WiFi card, but do not tighten the screw.

Diagram showing a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Step 3

Insert the WiFi Module Card into the vertical mini PCI Express slot (MPCIE1).

Diagram of a mechanical device with a rotating lever and base, showing no text or symbols.

Step 4

Tighten the screw that holds the card in place.

Mechanical device with a rotating lever and base mount (no text or symbols visible)

Step 5

Tighten the screw that attaches the WiFi Module Bracket to the WiFi card (installed in Step 2).

Illustration of three different types of medical or laboratory instruments with no visible text or symbols

Step 6

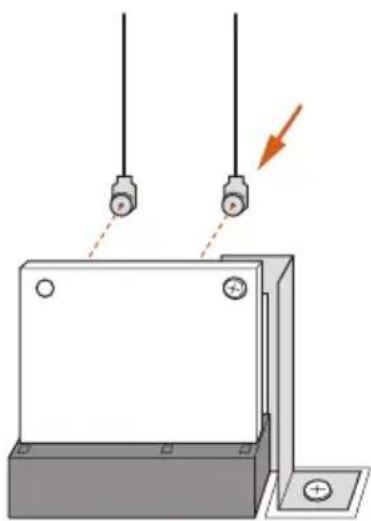

Prepare the SMA Wi-Fi Antenna Cables and WiFi 2.4/5 GHz Antennas that come with the package.

Diagram of a mechanical or electrical component with two hanging connectors and a downward arrow indicating force or direction (no text or symbols present)

Step 7

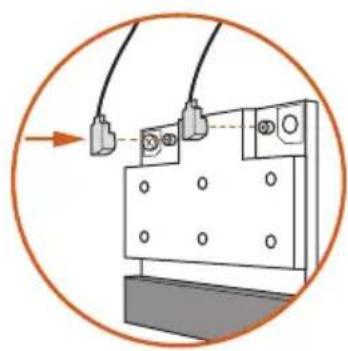

Attach the SMA Wi-Fi Antenna Cables to the WiFi Module.

Diagram of a mechanical assembly with two wires and a base plate, no text or symbols present

Pure electrical circuit lines without any symbols

Step 8

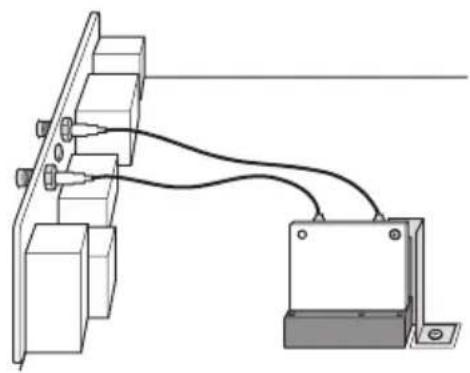

Insert the RP-SMA Wi-Fi Antenna Connectors to the antenna ports on the I/O shield

Mechanical assembly diagram showing two bolts connected to a bracket with connecting wires (no text or symbols)

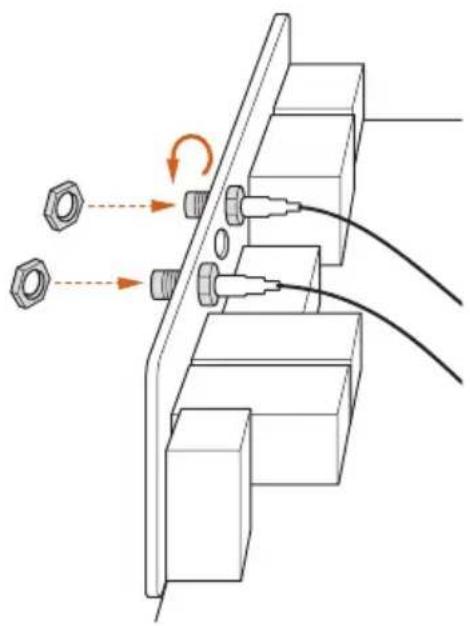

Step 9

Fasten the screw nuts to secure the antenna connectors.

Diagram of two probes inserted into a device with wires, no text or symbols present

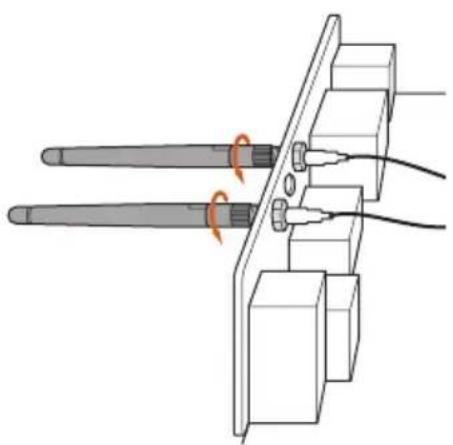

Step 10

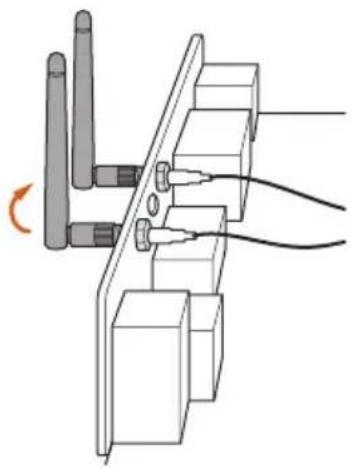

Connect the two WiFi 2.4/5 GHz

Antennas to the antenna connectors. Turn the antenna clockwise until it is securely connected.

Diagram of a device with connectors and cables, no text or symbols present

Step 11

Set the WiFi 2.4/5 GHz Antenna at 90-degree angle.

*You may need to adjust the direction of the antenna for a stronger signal.

Chapter 2 Installation

This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.

In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

2.1 Installing the CPU

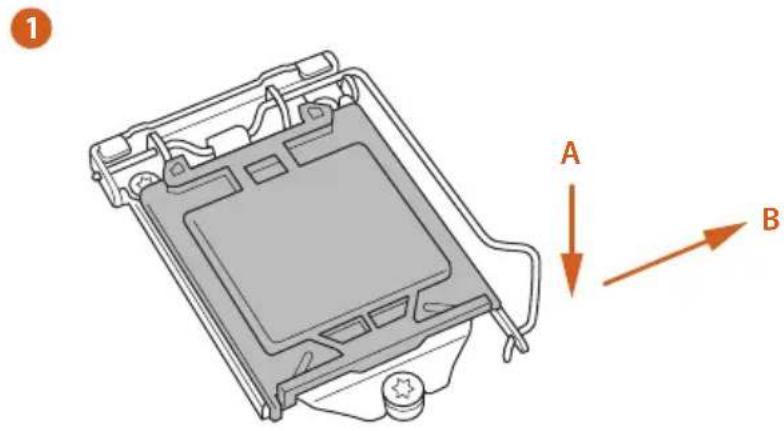

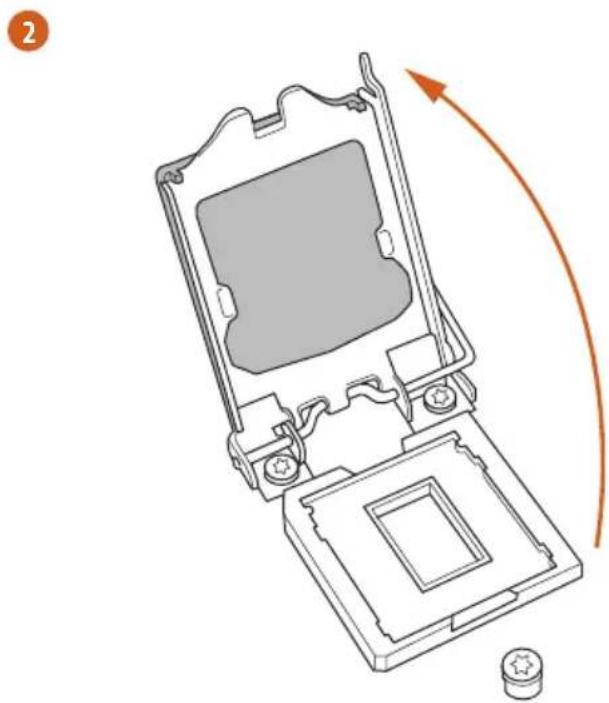

1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.

1 A B

Technical line drawing of a mechanical device with an arrow indicating rotation or assembly (no text or symbols present)

3

Technical diagram of a computer processor internal structure showing internal components and a highlighted section (no text or symbols)

Diagram of a computer monitor chassis with an orange curved arrow indicating motion (no text or symbols)

5

Diagram showing a computer processor's internal structure and external casing, with arrows indicating motion (no text or symbols)

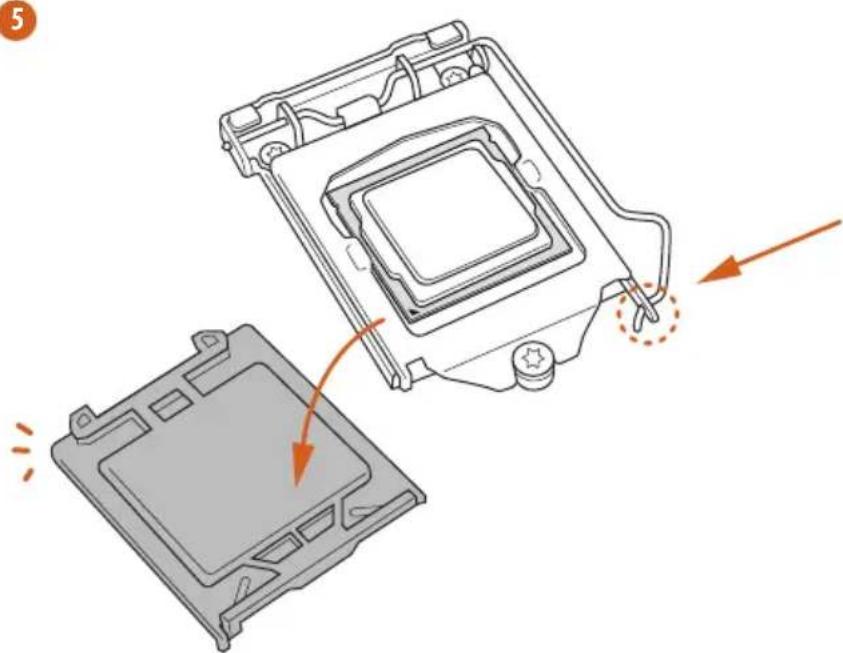

Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

2.2 Installing the CPU Fan and Heatsink

Line drawing of a pipette dispensing liquid into a container with a droplet inside (no text or symbols)

Diagram illustrating the cooling mechanism of a CPU, showing fan cooling and heatsink cooling process with directional arrows.

2 25.1 pm

2.3 Installing Memory Modules (DIMM)

This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Configuration

Priority DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2

1 Populated Populated
2 Populated Populated
3 Populated Populated Populated Populated

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

1

Technical line drawing of a mechanical support structure with rotational arrows indicating motion (no text or symbols)

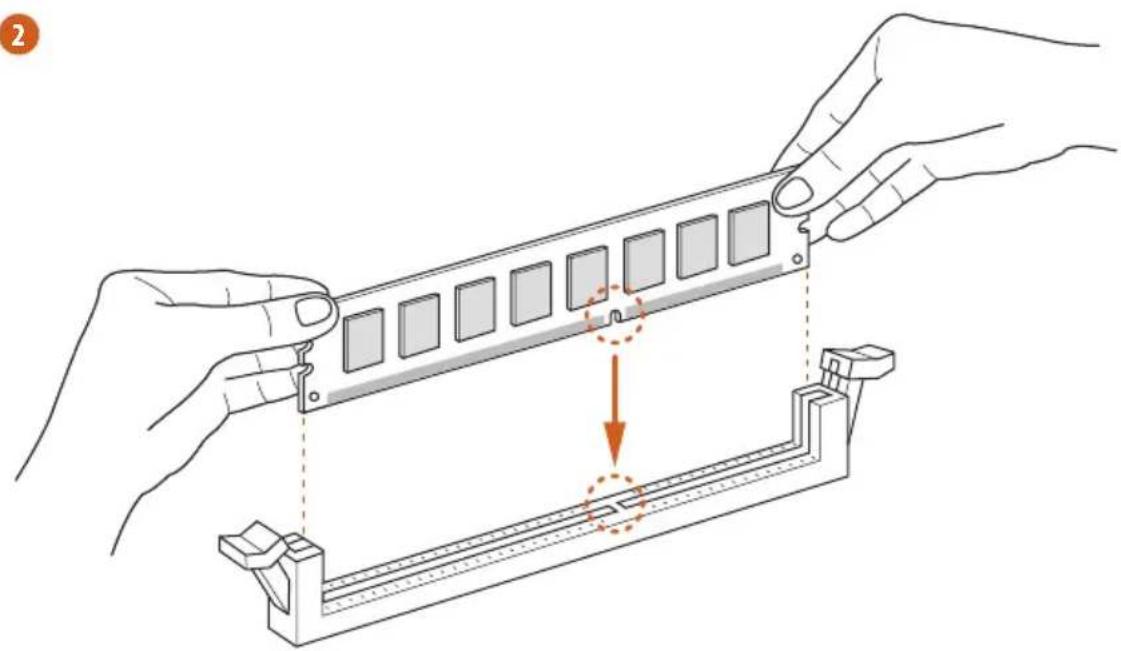

2

Illustration of hands assembling a mechanical component with a highlighted section (no text or symbols)

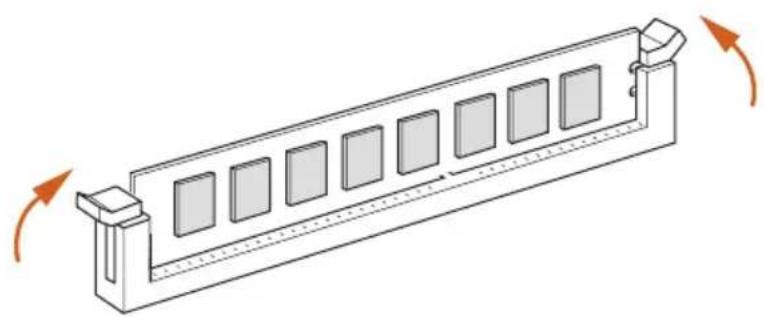

3

Isometric line drawing of a rectangular mechanical component with multiple square slots and directional arrows indicating rotation (no text or symbols)

2.4 Expansion Slots (PCI Express Slots)

There is 1 PCI Express slot and 1 mini-PCI Express slot on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCIe slot:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

mini-PCIe slot:

MINI_PCIE1 (mini-PCIe slot) is used for WiFi module.

* This Mini-PCI Express Slot supports WiFi and mSATA devices.

2.5 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open". The illustration shows a 3-pin jumper whose pin1 and pin2 are "Short" when a jumper cap is placed on these 2 pins.

Short

Open

Clear CMOS Jumper (CLRMOS1)

(see p.1, No. 9)

Clear CMOSDefault

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed.

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1) (see p.1, No. 8)

GND GND RESET# GND PWRBTN# GND PLED- HDLED- PLED+ HDLED+ 1

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Serial ATA3 Connectors

(SATA3_0:

see p.1, No. 12)

(SATA3_1:

see p.1, No. 13)

(SATA3_2:

see p.1, No. 14)

(SATA3_3:

see p.1, No. 15)

These four SATA3

connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.

USB 2.0 Header

(9-pin USB_3_4)

(see p.1, No. 4)

DUMMY GND P+ P- USB_PWR 1 G P+ P- USB_PWR

There is one header on this motherboard. This USB 2.0 header can support two ports.

USB 3.0 Header

(19-pin USB3_7_8)

(see p.1, No. 6)

Vbus IntA_PA_SRSX- IntA_PA_SRSX+ GND IntA_PA_SSTX- IntA_PA_SSTX+ GND IntA_PA_D- IntA_PA_D+ Vbus/Vbus IntA_PB_SRSX- IntA_PB_SRSX+ GND IntA_PB_SSTX- IntA_PB_SSTX+ GND IntA_PB_D- IntA_PB_D+ Dummy

Besides six USB 3.0 ports on the I/O panel, there is one header on this motherboard. This USB 3.0 header can support two ports.

Front Panel Audio Header

(9-pin HD_AUDIO1)

(see p.1, No. 16)

OUT_RET OUT2_L MIC_RED J_SENSE OUT2_R PRESENCE# MIC2_R GND MIC2_L 1

This header is for connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis Speaker Header

(4-pin SPEAKER1)

(see p.l, No. 11)

Please connect the chassis speaker to this header.

Chassis Fan Connector

(4-pin CHA_FAN1)

(see p.1, No. 1)

FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND

Please connect fan cables to the fan connectors and match the black wire to the ground pin.

CPU Fan Connector

(4-pin CPU_FAN1)

(see p.1, No. 2)

This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

ATX Power Connector

(20-pin ATXPWR1)

(see p.1, No. 5)

This motherboard provides a 20-pin ATX power connector. To use a 24-pin ATX power supply, please plug it along Pin 1 and Pin 11.

Using a 24-pin ATX power supply:

Pure diagram of a mechanical component with internal blades and mounting base (no text or symbols)

ATX 12V Power

Connector

(4-pin ATX12V1)

(see p.1, No. 17)

Please connect an ATX

12V power supply to this connector.

Chassis Intrusion Header

(2-pin CI1)

(see p.1, No. 10)

This motherboard supports CASE OPEN detection feature that detects if the chassis cove has been removed. This feature requires a chassis with chassis intrusion detection design.

TPM Header

(17-pin TPMS1)

(see p.1, No. 7)

This connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

1 Einleitung

Serial-ATA-III-Anschlüsse

(SATA3_0:

siehe S. 1, Nr. 12)

(SATA3_1:

siehe S. 1, Nr. 13)

(SATA3_2:

siehe S. 1, Nr. 14)

(SATA3_3:

siehe S. 1, Nr. 15)

DUMMY GND P+ P- USB_PWR G P+ P- USB_PWR 1

Pure diagram of a mechanical component with internal threads and mounting base (no text or symbols)

Short Open

Cavalier Clear CMOS (CLRMOS1) (voir p.1, No. 9)

DUMMY GND P+ P- USB_PWR 1 G P+ P- USB_PWR

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 e Intel Smart Response Technology), NCQ, AHCI e Hot Plug

Express), supporta RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 e Intel Smart Response Technology), NCQ, AHCI e Hot Plug

Connettore

DUMMY GND P+ P- USB_PWR G P+ P- USB_PWR 1

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Pure diagram of a mechanical component with internal blades and mounting base (no text or symbols)

B, VPPM, VCCIO, VCCSA

DUMMY GND G P+ P+ P- P- USB_PWR USB_PWR 1

На системной плате

Apagar o Jumper CMOS (CLRMOS1)

(ver p.1, N.° 9)

Apagar CMOSPadrão

DUMMY GND P+ P- USB_PWR G P+ P- USB_PWR 1

5, RAID 10, Intel Rapid Storage Technology 14 ve Intel Smart Response Technology), NCQ, AHCI ve Tak Çıkar destekler

DUMMY GND P+ P- USB_PWR G P+ P- USB_PWR 1

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Auto Lip Sync, Deep Color (12bpc), xvYCC 및 HBR (High Bit

Realtek RTL8111H 1 개 (PCIE x1 Gigabit LAN 10/100/1000 Mb/s)

Clear CMOS 점퍼 (CLRMOS1)

(1페이지,9번 항목 참조)

Clear CMOS기본값

DUMMY GND P+ P- USB_PWR G P+ P- USB_PWR 1

이 마더보드에는 하나

의 헤더가 있습니다.이

USB 2.0 헤더는 포트 두

개를 지원할 수 있습니다.

USB 3.0 헤더

(19 핀 USB3_7_8)

(1페이지,6번항목참조)

Vbus VbusVbus IntA_PB_SSRX- IntA_PB_SSRX+ GND GND IntA_PB_SSTX- IntA_PB_SSTX+ GND GND IntA_PB_D- IntA_PB_D+ Dummy 1

I/O 패널에 USB 3.0 포

트 여섯 개가 탑재되어

있을 뿐 아니라 마더보

드에 헤더 한 개가 탑재

되어 있습니다.이 USB

3.0 헤더는 포트 두 개를

지원할 수 있습니다.

전면 패널 오디오 헤더

(9 핀 HD_AUDIO1)

(1페이지,16번 항목 참조)

OUT_RET OUT2_L J_SENSE MIC_RED OUT2_R PRESENCE# MIC2_R GND MIC2_L 1

이 헤더는 오디오 장치

를 전면 오디오패널에

연결하는 데 사용됩니다.

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

ATX 12V 전원 커넥터

(4 핀 ATX12V1)

(1페이지,17번 항목 참조)

Simple graphic with a magnifying glass icon and a horizontal line, no text or symbols present.

1.1 パッケージの内容

1.2 仕様

プラット

フォーム

CPU

TM

チップセット

Intel ^* Z170

メモリ

拡張スロット

グラフィックス

TM

TM

Pixel Shader 5.0, DirectX 12

VP8, VP9

オーディオ

LAN

ワイヤレス

LAN

リアパネル

I/O

1 x DisplayPort 1.2

ストレージ

コネクタ

BIOS 機能

ハードウェアモニター

os

Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit

認証

1.3 ジャンパー設定

Short Open 1 2 3

(CLRMOS1)

Pure diagram of a connector or connector assembly without any text, numbers, or symbols

GND SERIRQ# S_PWRDWN# GND LAD0 LAD1 +3V LAD2 LAD3 SMB_DATA_MAIN PCIRST# SMB_CLK_MAIN FRAME GND PCICLK 1

1 简介

DUMMY GND P+ P- USB_PWR 1 G P+ P- USB_PWR

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

ATX 12V 电源接口

(4 针 ATX12V1)

(见第 1 页，第 17 个)

DUMMY GND P+ P- USB_PWR 1 G P+ P- USB_PWR

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

ATX 12V 電源接頭

(4-pin ATX12V1)

(請參閱第1頁，編號17)

請將 ATX 12V 電源接至此接頭。

機殼防護標頭

(2-pin CI1)

(請參閱第1頁，編號10)

Enabling USB Ports for Windows ^® 7 Installation

Intel® Braswell and Skylake has removed their support for the Enhanced Host Controller Interface (EHCI – USB2.0) and only kept the eXtensible Host Controller Interface (XHCI – USB3.0). Due to that fact that XHCI is not included in the Windows 7 inbox drivers, users may find it difficult to install Windows 7 operating system because the USB ports on their motherboard won’t work. In order for the USB ports to function properly, please create a Windows® 7 installation disk with the Intel® USB 3.0 eXtensible Host Controller (xHCI) drivers packed into the ISO file.

Requirements

A Windows ^® 7 installation disk or USB drive USB 3.0 drivers (included in the ASRock Support CD or website) A Windows ^® PC Win7 USB Patcher (included in the ASRock Support CD or website)

Scenarios

You have an ODD and PS/2 ports:

If there is an optical disc drive, PS/2 ports and PS/2 Keyboard or mouse on your computer, you can skip the instructions below and go ahead to install Windows ^® 7 OS.

You only have an ODD (For Intel Skylake platforms only):

If there is an optical disc drive but no PS/2 ports on your computer, please enable the "PS/2 Simulator" option in UEFI SETUP UTILITY > Advanced > USB Configuration, which allows the USB port to function as a PS/2 port, and then you can install the Windows* 7 OS. Please set PS/S Simulator back to disabled after the installation.

You've got nothing:

If you do not have an optical disc drive, please find another computer and follow the instructions below to create a new ISO file with the "Win7 USB Patcher". Then use the new patched Windows ^® 7 installation USB drive to install Windows ^® 7 OS.

Instructions

Step 1

Insert the Windows* 7 installation disk or USB drive to your system.

Step 2

Extract the tool (Win7 USB Patcher) and launch it.

Step 3

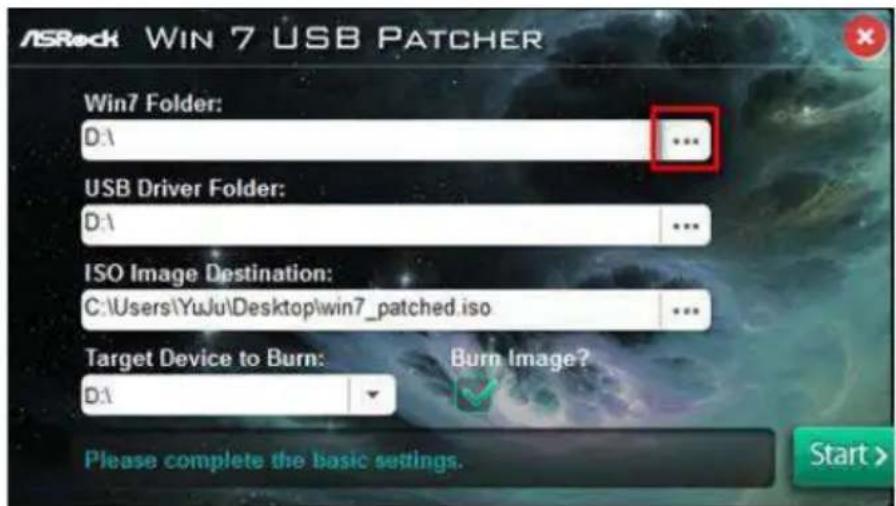

Select the "Win7 Folder" from Step1 by clicking the red circle as shown as the picture below.

ASRock WIN 7 USB PATCHER Win7 Folder: D:1 ... USB Driver Folder: D:1 ... ISO Image Destination: C:\Users\YuJu\Desktop\win7_patched.iso ... Target Device to Burn: D:1 Burn Image? Please complete the basic settings. Start >

Step 4

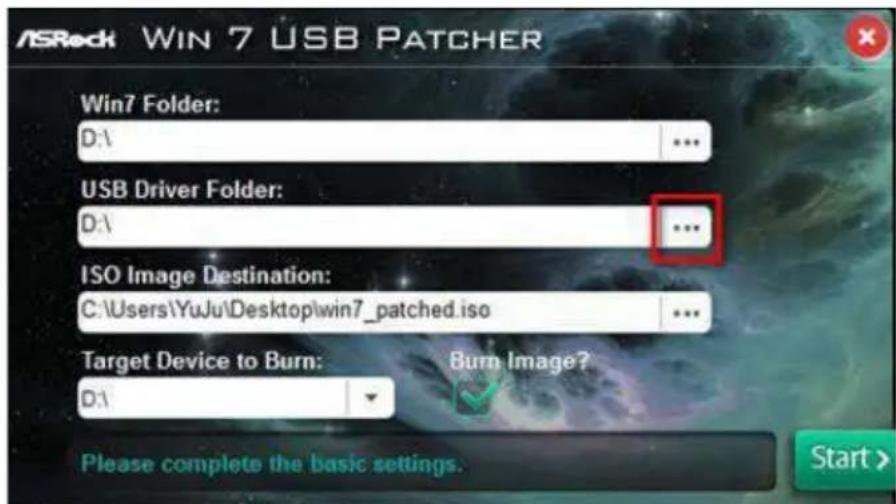

Select the "USB Driver Folder" by clicking the red circle as shown as the picture below.

ASRock WIN 7 USB PATCHER Win7 Folder: D:\ ... USB Driver Folder: D:\ ... ISO Image Destination: C:\Users\YuJu\Desktop\win7_patched.iso ... Target Device to Burn: D:\ Burn Image? Please complete the basic settings. Start >

If you are using ASRock's Support CD for the USB 3.0 driver, please select your CD-ROM.

Step 5

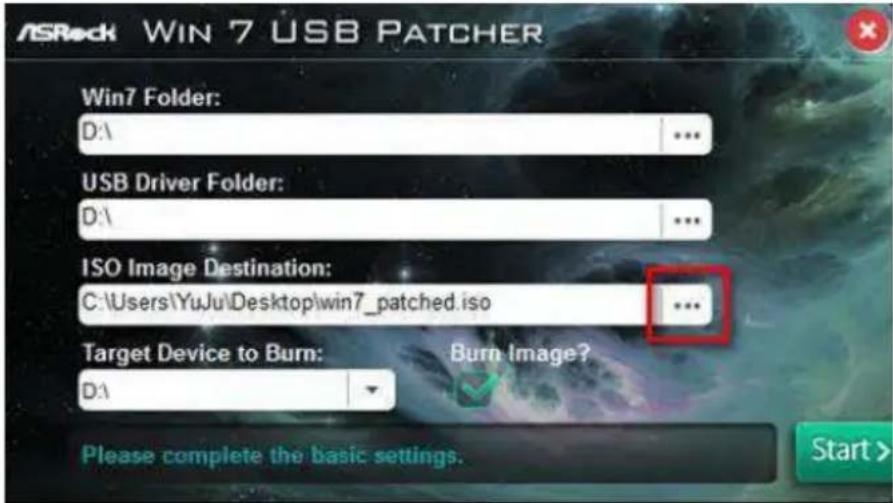

Select where to save the ISO file by pressing the red circle as shown as the picture below.

ASRock WIN 7 USB PATCHER Win7 Folder: D:\ ... USB Driver Folder: D:\ ... ISO Image Destination: C:\Users\YuJu\Desktop\win7_patched.iso ... Target Device to Burn: Burn Image? D:\ Please complete the basic settings. Start >

Step 6

If you want to burn the patched image to a CD, please check "Burn Image" and select "Target Device to Burn". If not, the patched ISO image will be exported to the destination selected in Step5. Then Press "Start" to proceed.

Step 7

Now you are able to install Windows ^® 7 on Braswell or Skylake with the new burned CD. Or please use the patched ISO image to make an OS USB drive to install the OS.

Contact Information

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 3151

6604 LV Wijchen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]
