USER MANUAL H310CM-HDV ASROCK

Copyright©2018 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel: [phone] ext.123 (Standard International call charges apply)

The terms HDMI ^™ and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

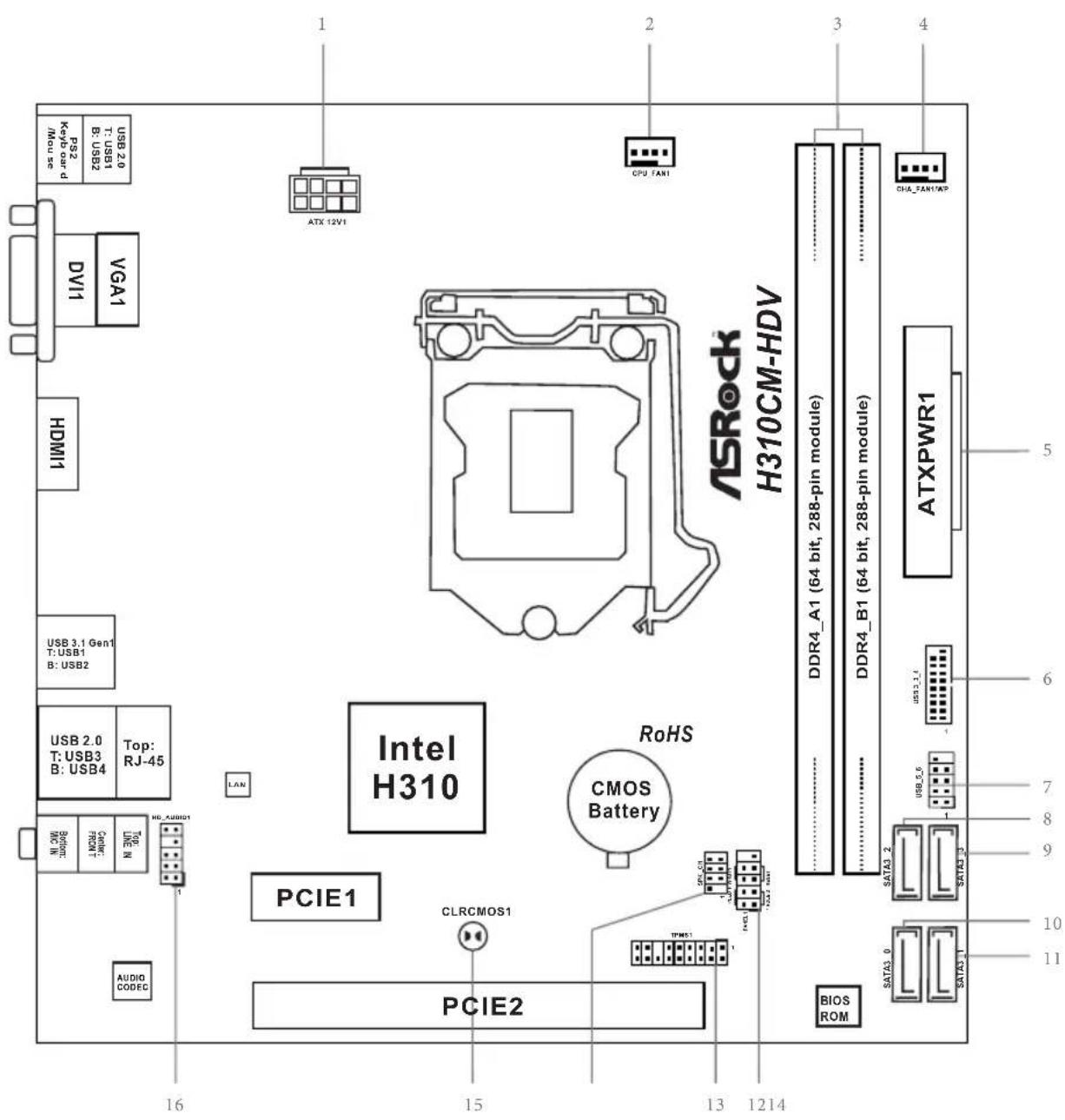

Motherboard Layout

H310CM-HDV:

USB 2.0 T: USB3 B: USB4 USB 2.0 Top: RJ-45 USB 3.1 Gen1 T: USB1 B: USB2 VGA1 DVI VGA1 USB 2.0 T: USB1 B: USB2 Red port d PSS2 Kipb or d 16 15 PCIE1 Intel H310 PCIE2 CLRCMOS1 RoHS CMOS Battery ASRock H310CM-HDV CPU 7211 1 2 3 4 13 1214 BIOS ROM SATA3_0 SATA3_2 SATA3_3 SATA3_4 SATA3_5 SATA3_6 SATA3_7 SATA3_8 SATA3_9 SATA3_10 SATA3_11 SATA3_12 SATA3_13 SATA3_14 SATA3_15 SATA3_16 ATXPWR1 HDMI

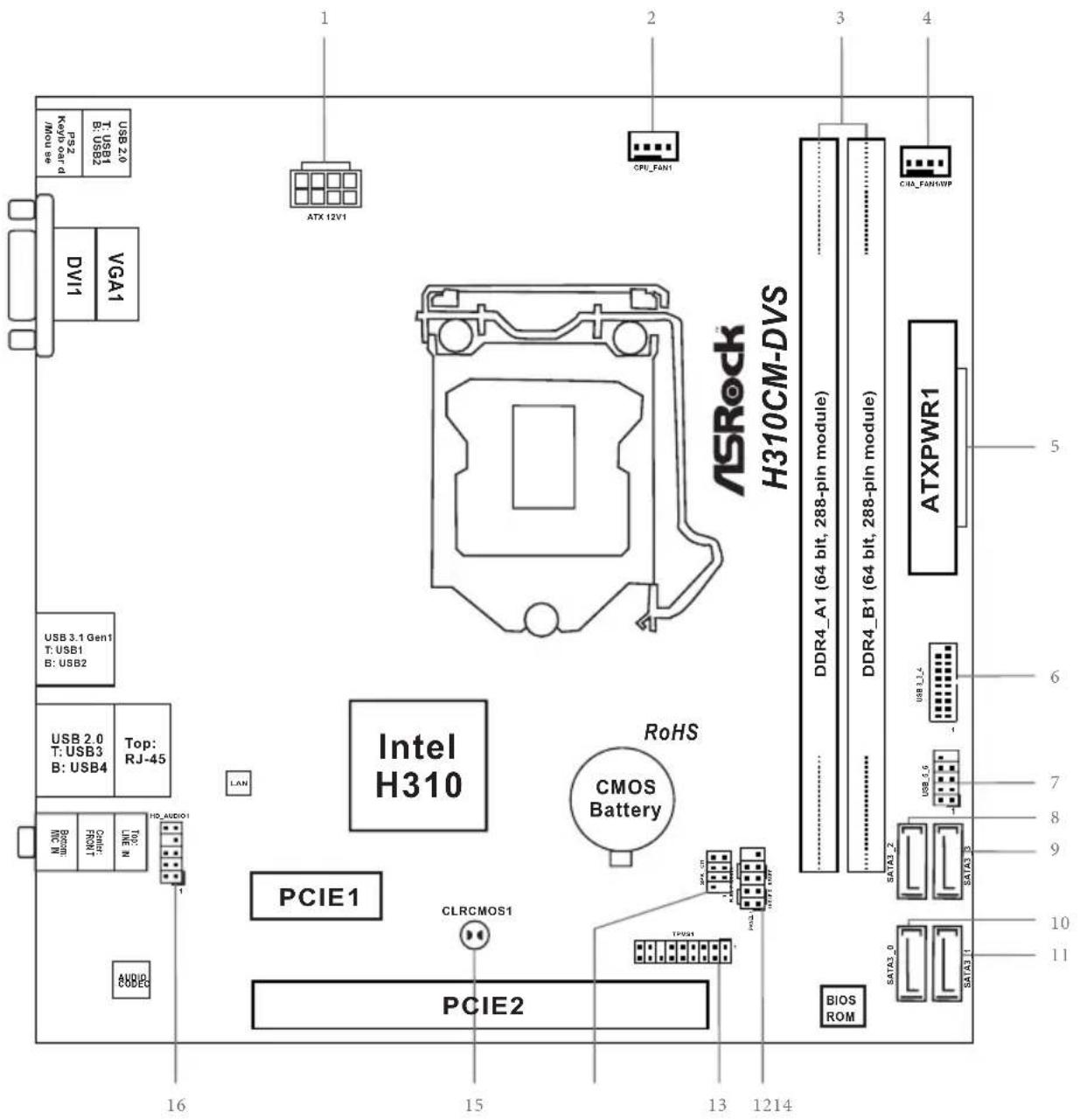

H310CM-DVS:

USB 2.0 USB 2.0 Gen1 USB 3.1 Gen1 USB 3.1 B: USB1 B: USB2 RV1 VGA1 Keyp card PS2 USB 2.0 T: USB1 B: USB2 CPU 2.0 Keyp card RV1 USB 2.0 USB 2.0 CPU 2.0 PCIE1 Intel H310 CLRCMOS1 PCIE2 ROHS CMOS Battery ASRock H310CM-DVS CPU 5/71 ATX 12/71 DDR4_A1 (64 bit, 288-pin module) DDR4_B1 (64 bit, 288-pin module) ATXPWR1 BIOS ROM SATA3_0 SATA3_2 SATA3_3 SATA3_4 SATA3_5 SATA3_6 SATA3_7 SATA3_8 SATA3_9 SATA3_10 SATA3_11 SATA3_12 ATX 12/71 CPU 5/71 ATX 12/71

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 Chassis/Water Pump Fan (CHA_FAN1/WP)

5 ATX Power Connector (ATXPWR1)

6 USB 3.1 Gen1 Header (USB3_3_4)

7 USB 2.0 Header (USB_5_6)

8 SATA3 Connector (SATA3_2)

9 SATA3 Connector (SATA3_3)

10 SATA3 Connector (SATA3_0)

11 SATA3 Connector (SATA3_1)

12 System Panel Header (PANEL1)

13 TPM Header (TPMS1)

14 Chassis Intrusion and Speaker Header (SPK_CI1)

15 Clear CMOS Pad (CLRMOS1)

16 Front Panel Audio Header (HD_AUDIO1)

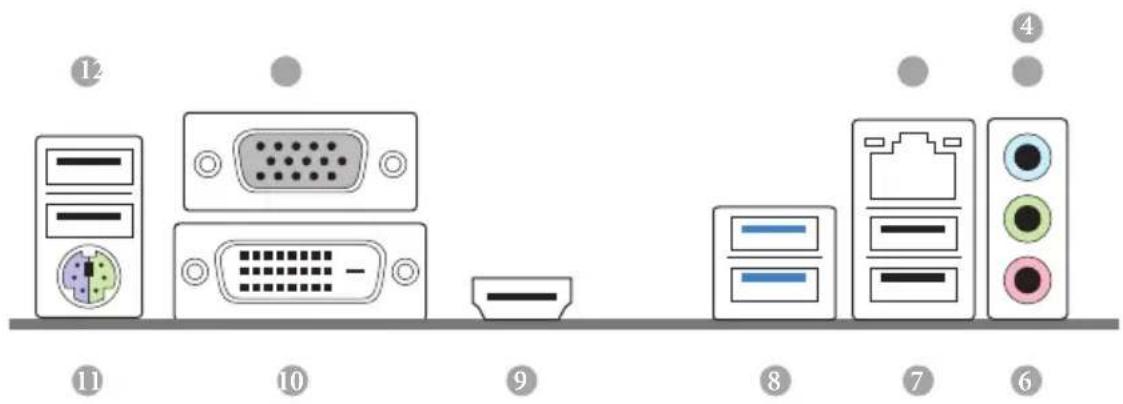

I/O Panel

H310CM-HDV:

Diagram showing labeled electronic device ports and connectors, including server, VGA, port, and indicator lights.

No. Description No. Description

1 USB 2.0 Ports (USB12) 7 USB 2.0 Ports (USB_34)
2 D-Sub Port 8 USB 3.1 Gen1 Ports (USB3_12)
3 LAN RJ-45 Port* 9 HDMI Port
4 Line In (Light Blue)** 10 DVI-D Port
5 Front Speaker (Lime)** 11 PS/2 Keyboard/Mouse Port
6 Microphone (Pink)**

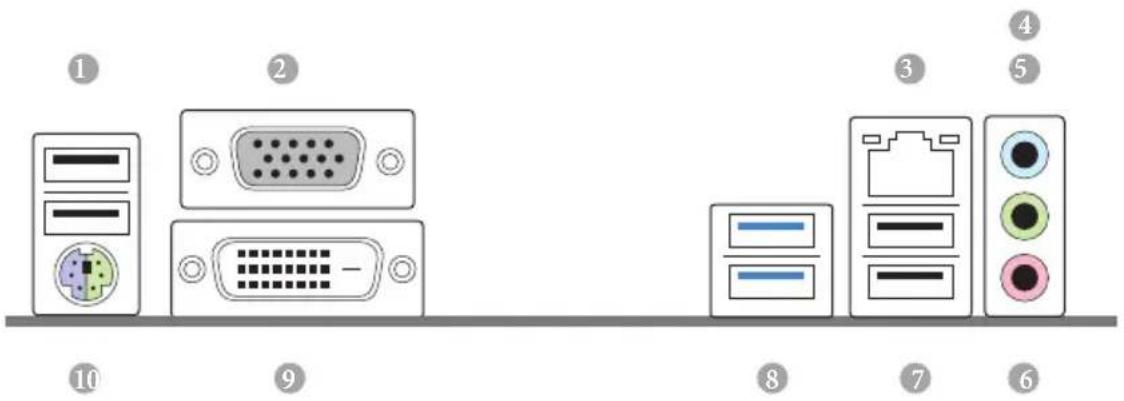

H310CM-DVS:

Diagram showing labeled components of a computer interface with ports and connectors

No. Description No. Description

1 USB 2.0 Ports (USB12) 6 Microphone (Pink)**
2 D-Sub Port 7 USB 2.0 Ports (USB_34)
3 LAN RJ-45 Port* 8 USB 3.1 Gen1 Ports (USB3_12)
4 Line In (Light Blue) ^ 9 DVI-D Port
5 Front Speaker (Lime) ^ 10 PS/2 Keyboard/Mouse Port

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

LAN Port

Activity / Link LED Speed LED
Status Description Status Description

Off	No Link	Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On	Link	Green	1Gbps connection

** To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

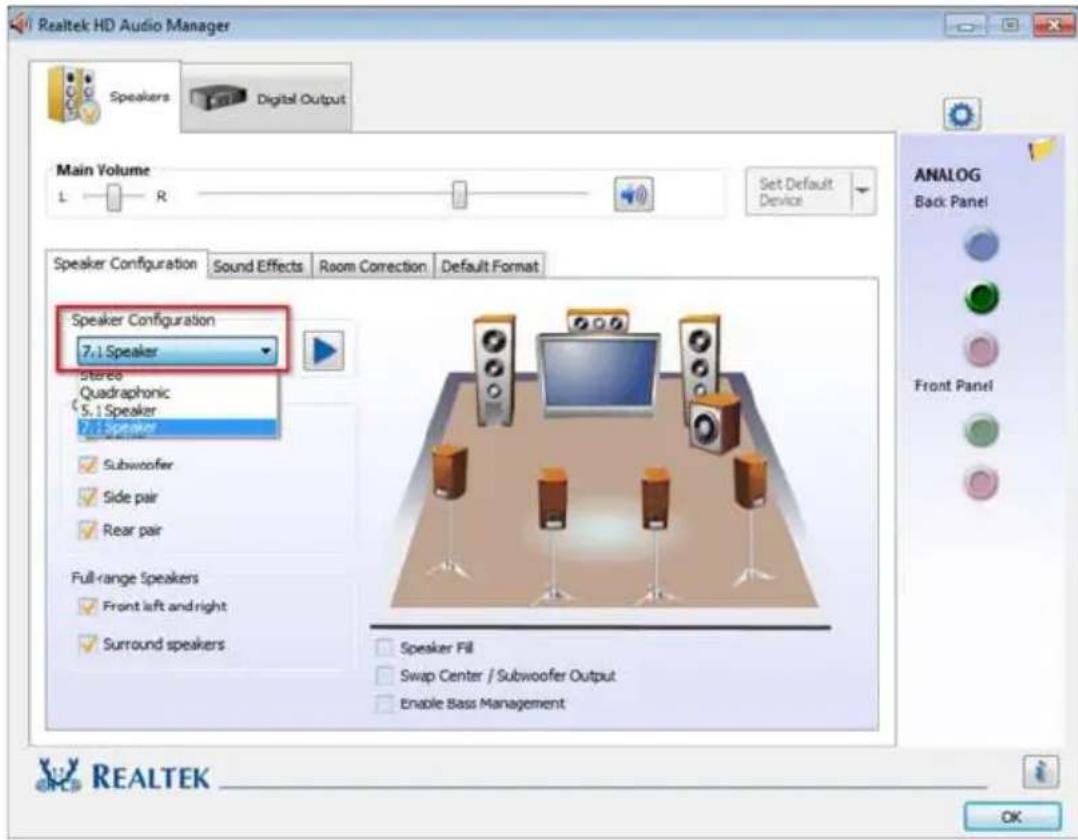

Please set Speaker Configuration to "7.1 Speaker" in the Realtek HD Audio Manager.

Realtek HD Audio Manager Speakers Digital Output Main Volume L — R Set Default Device Speaker Configuration Sound Effects Room Correction Default Format Speaker Configuration 7.1 Speaker Stereo Quadraphonic 5.1 Speaker 7.1 Speaker Subwoofer Side pair Rear pair Full-range Speakers Front left and right Surround speakers ANALOG Back Panel Front Panel Speaker Fill Swap Center / Subwoofer Output Enable Bass Management REALTEK OK

Function of the Audio Ports in 7.1-channel Configuration:

Port Function

Light Blue (Rear panel) Rear Speaker Out

Lime (Rear panel) Front Speaker Out

Pink (Rear panel) Central /Subwoofer Speaker Out

Lime (Front panel) Side Speaker Out

Chapter 1 Introduction

Thank you for purchasing ASRock H310CM-HDV / H310CM-DVS motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

• ASRock H310CM-HDV / H310CM-DVS Motherboard (Micro ATX Form Factor)
• ASRock H310CM-HDV / H310CM-DVS Quick Installation Guide
• ASRock H310CM-HDV / H310CM-DVS Support CD
- 1 x I/O Panel Shield
• 2 x Serial ATA (SATA) Data Cables (Optional)

1.2 Specifications

Platform	• Micro ATX Form Factor• Solid Capacitor design
CPU	• Supports 8 ^th Generation Intel ^ Core ^TM Processors (Socket 1151)• 4 Power Phase design• Supports Intel ^ Turbo Boost 2.0 Technology
Chipset	• Intel ^ H310
Memory	• Dual Channel DDR4 Memory Technology• 2 x DDR4 DIMM Slots• Supports DDR4 2666/2400/2133 non-ECC, un-buffered memory• Max. capacity of system memory: 32GB• Supports Intel ^ Extreme Memory Profile (XMP) 2.0• 15μ Gold Contact in DIMM Slots
Expansion Slot	• 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)** Supports NVMe SSD as boot disks• 1 x PCI Express 2.0 x1 Slot
Graphics	• Intel ^ UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.• Supports Intel ^ UHD Graphics Built-in Visuals : Intel ^ Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel ^ InTru ^TM 3D, Intel ^ Clear Video HD Technology, Intel ^ Insider ^TM , Intel ^ UHD Graphics• DirectX 12• HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)

H310CM-HDV:

• Three graphics output options: D-Sub, DVI-D and HDMI
* Supports up to 2 displays simultaneously
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
• Supports HDCP with DVI-D and HDMI Ports
• Supports 4K Ultra HD (UHD) playback with HDMI Port

H310CM-DVS:

• Dual graphics output: Support DVI-D and D-Sub ports by independent display controllers
• Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  • Supports HDCP with DVI-D Port

Audio

- 7.1 CH HD Audio (Realtek ALC887 Audio Codec) * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

• Supports Surge Protection
• ELNA Audio Caps

LAN

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• 1 x Realtek RTL8111H
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 4 x USB 2.0 Ports (Supports ESD Protection)

• 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

H310CM-HDV:

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

H310CM-DVS:

- 1 x D-Sub Port

- 1 x DVI-D Port

Storage

- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector

- 1 x TPM Header

• 1 x Chassis Intrusion and Speaker Header

• 1 x CPU Fan Connector (4-pin)

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x Front Panel Audio Connector

- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

BIOS

Feature

• AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

• DRAM, PCH 1.05V Voltage Multi-adjustment

Hardware Monitor

• Temperature Sensing: CPU, Chassis/Water Pump Fans
• Fan Tachometer: CPU, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
• Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
- CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

os

• Microsoft® Windows® 10 64-bit

Certifications

• FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Chapter 2 Installation

This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.
• In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

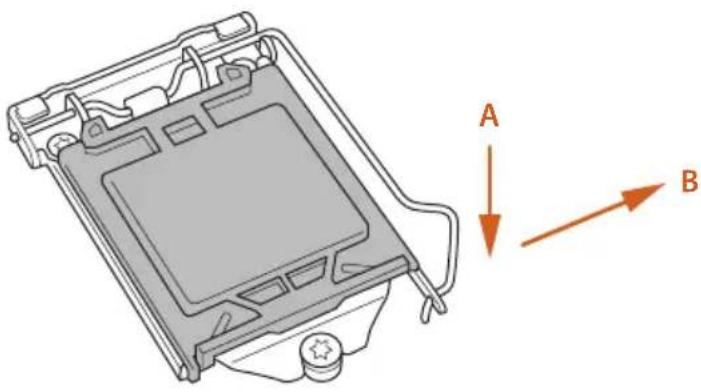

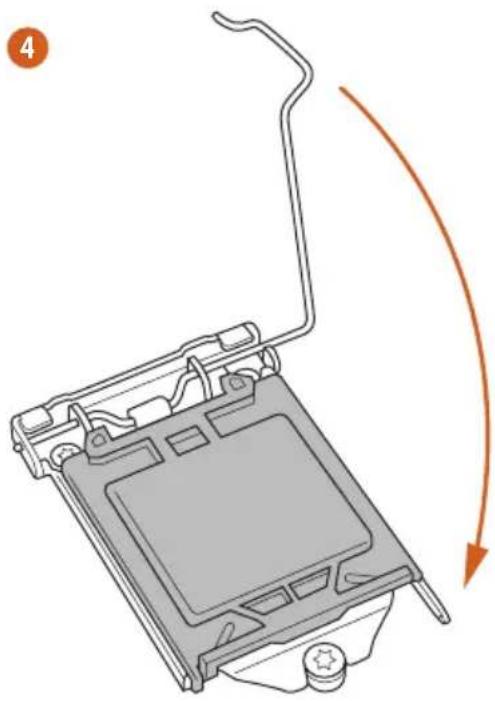

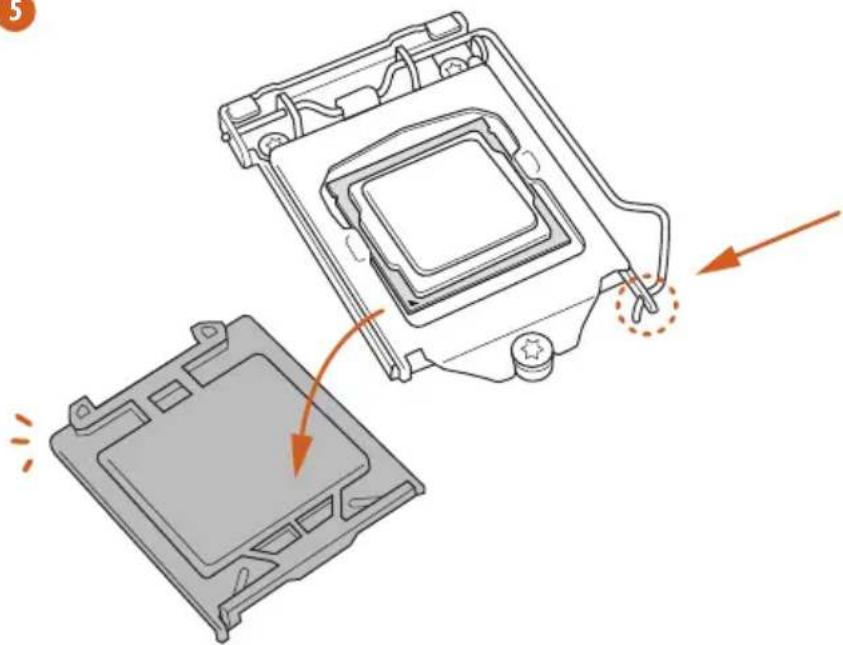

2.1 Installing the CPU

1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.

1

Technical line drawing of a device casing with labeled directional arrows (A and B), no readable text or symbols present.

2

Technical line drawing of a mechanical device with an orange curved arrow indicating rotation or movement (no text or symbols present)

3

Technical line drawing of a computer processor internal structure with no visible text or symbols

Diagram of a computer monitor with an orange curved arrow indicating motion or rotation (no text or symbols present)

5

Diagram of a computer processor showing the internal structure and base panel, with no text or symbols present.

Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

2.2 Installing the CPU Fan and Heatsink

Line drawing of a pipette dispensing liquid into a container with a droplet (no text or symbols)

Diagram illustrating the installation of a CPU cooling fan with labeled components and directional arrows indicating rotation or adjustment.

2 100.5kV

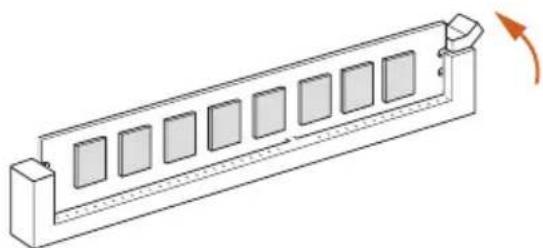

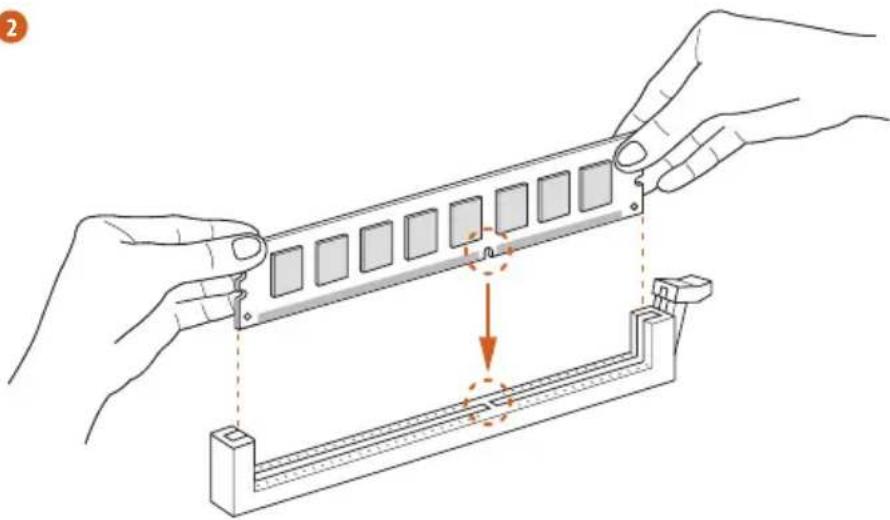

2.3 Installing Memory Modules (DIMM)

This motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

1

Technical line drawing of a mechanical lever or support structure with a rotation arrow indicating motion (no text or symbols)

2

Illustration of hands assembling a mechanical component with a dashed line indicating assembly (no text or symbols)

3

Isometric line drawing of a rectangular device with multiple square panels and a curved arrow indicating rotation (no text or symbols)

2.4 Expansion Slots (PCI Express Slots)

There are 2 PCI Express slots on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCIe slots:

PCIE1 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

2.5 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1)

(see p.1, 2, No. 12)

Connect the power button, reset button and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Button):

Connect to the power button on the chassis front panel. You may configure the way to turn off your system using the power button.

RESET (Reset Button):

Connect to the reset button on the chassis front panel. Press the reset button to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power button, reset button, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.1, 2, No. 14)

Please connect the chassis intrusion and the chassis speaker to this header.

Serial ATA3 Connectors

(SATA3_0:

see p.1, 2, No. 10)

(SATA3_1:

see p.1, 2, No. 11)

(SATA3_2:

see p.1, 2, No. 8)

(SATA3_3:

see p.1, 2, No. 9)

SATA3_0 SATA3_2 SATA3_1 SATA3_3

These four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.

USB 2.0 Header

(9-pin USB_5_6)

(see p.1, 2, No. 7)

DUMMY GND P+ P- USB_PWR 1 G P+ P- USB_PWR

There is one USB

2.0 header on this motherboard. This USB 2.0 header can support two ports.

USB 3.1 Gen1 Header

(19-pin USB3_3_4)

(see p.1, 2, No. 6)

VbusVbus Vbus IntA_P3_SSRX- IntA_P2_SSRX+ GND GND IntA_P3_SSTX- IntA_P2_SSTX+ GND GND IntA_P3_D- IntA_P2_D- IntA_P3_D+ IntA_P2_D+ ID

There is one header on this motherboard. This USB 3.1 Gen1 header can support two ports.

Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, 2, No. 16)

OUT_RET OUT2_L J_SENSE MIC_RED OUT2_R PRESENCE# MIC2_R GND MIC2_L 1

This header is for connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:
   A. Connect Mic_IN (MIC) to MIC2_L.
   B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
   C. Connect Ground (GND) to Ground (GND).
   D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
   E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis/Water Pump Fan Connector (4-pin CHA_FAN1/WP) (see p.1, 2, No. 4)

GND FAN_VOLTAGE FAN_SPEED FAN_SPEED_CONTROL 1 2 3 4

This motherboard provides a 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.

CPU Fan Connector (4-pin CPU_FAN1) (see p.1, 2, No. 2)

This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

ATX Power Connector (24-pin ATXPWR1) (see p.1, 2, No. 5)

This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.

ATX 12V Power

Connector

(8-pin ATX12V1)

(see p.1, 2, No. 1)

This motherboard

provides an 8-pin ATX

12V power connector. To

use a 4-pin ATX power

supply, please plug it along

Pin 1 and Pin 5.

TPM Header

(17-pin TPMS1)

(see p.1, 2, No. 13)

GN D +3VSB SERIRQ# S_PWRDWN# GN D LAD1 LAD2 LAD3 PCIIRST # FRAME PCIRST# SMB_DATA_MAIN SMB_CLK_MAIN GND PCICLK 1

This connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

Clear CMOS Pad

(CLRMOS1)

(see p.1, 2, No. 15)

CLRMOS1 allows you to

clear the data in CMOS. To

clear CMOS, take out the

CMOS battery and short the

Clear CMOS Pad.

Technische Daten

• Supporto WOL (Wake-On-LAN)

• Supporto Energy Efficient Ethernet 802.3az

- Supporto PXE

I/O pannello posteriore

• 1 x porta D-Sub
• 1 x porta DVI-D

Archiviazione

- 4 x connettori SATA3 6,0 Gb/s supportano NCQ, AHCI e Hot Plug

Connettore

- 4 x Conectores SATA3 6,0 Gb/s, suporte NCQ, AHCI, Conector a Quente

Conector

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

Contact Information

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name: ASRock Incorporation

Address: 13848 Magnolia Ave, Chino, CA91710

Phone/Fax N o: [phone]/[phone]

hereby declares that the product

Product Name : Motherboard

Model Number: H310CM-HDV / H310CM-DVS

Conforms to the following specifications:

☒ FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Representative Person's Name: James

Signature:

Date : May 12, 2017

EU Declaration of Conformity

ASRock®

For the following equipment:

Motherboard

(Product Name)

H310CM-HDV/H310CM-DVS / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

EMC — Directive 2014/30/EU (from April 20th, 2016)

□ EN 55022:2010/AC:2011 Class B

EN 55024:2010/A1:2015

☒ EN 55032:2012+AC:2013 Class B

EN 61000-3-3:2013

EN 61000-3-2:2014

□ LVD — Directive 2014/35/EU (from April 20th, 2016)

□ EN 60950-1:2011+A2:2013 □

EN 60950-1:2006/A12:2011

☒ RoHS — Directive 2011/65/EU

☒ CE marking

(EU conformity marking)

CE

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands

(Company Address)

Person responsible for making this declaration:

(Name, Surname)

A.V.P

(Position / Title)

July 20, 2018

(Date)

P/N: 15G062109000AK V1.0
