USER MANUAL H110M-DGS/D3 ASROCK

Published October 2015

Copyright©2015 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

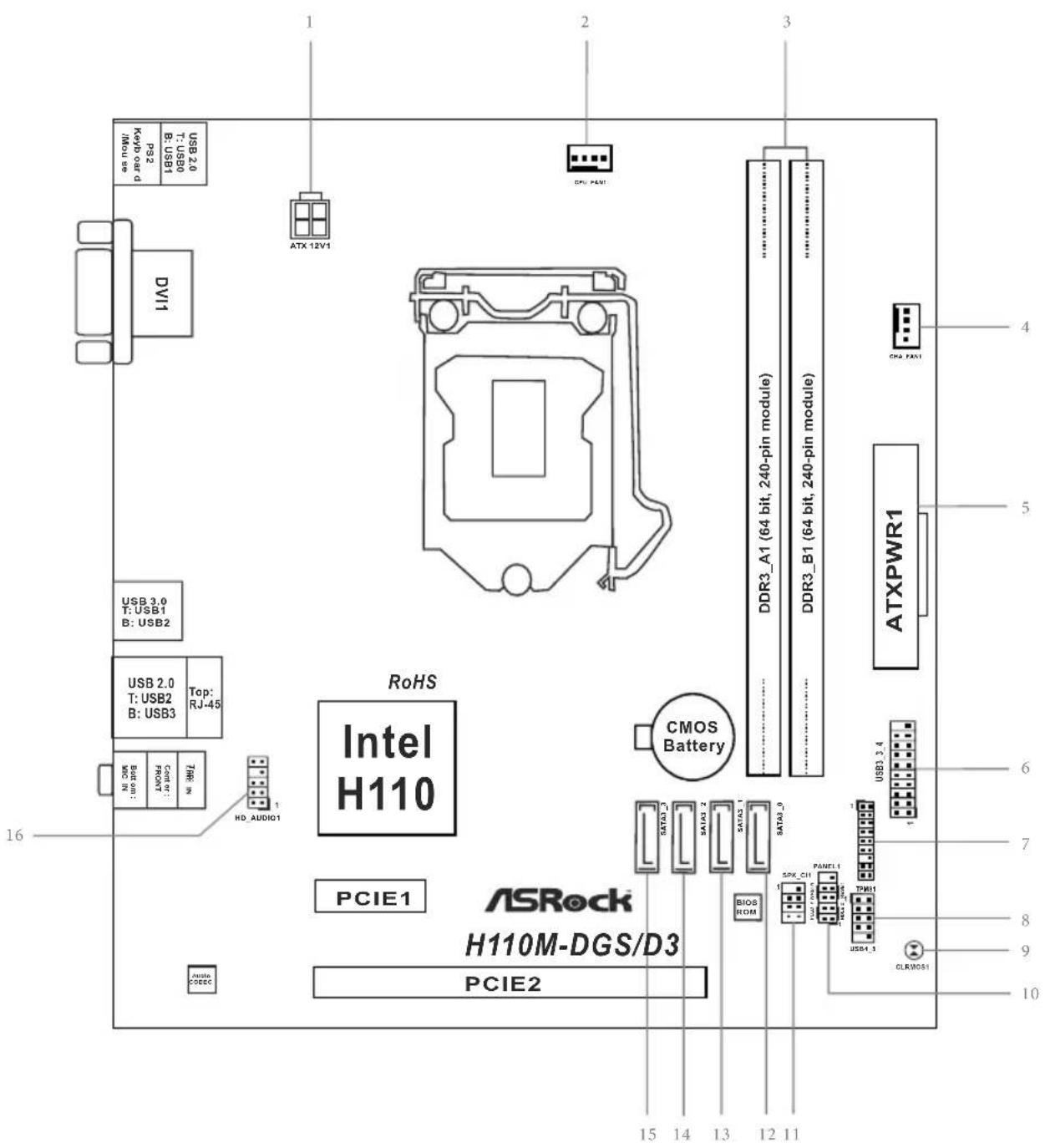

1.3 Motherboard Layout

USB 2.0 PS2 USB 2.0 B: USB1 ATX 12V1 CPU PAM1 DVI1 USB 3.0 T: USB1 B: USB2 USB 2.0 T: USB2 B: USB3 Top: RJ-45 INT 65 COM 100 COM 100 IWR IN HD_AUDIO1 RoHS Intel H110 CMOS Battery ASRock H110M-DGS/D3 PCIE1 PCIE2 15 14 13 12 11 16 4 5 6 7 8 9 10 CPU PAM1 DDR3_A1 (64 bit, 240-pin module) DDR3_B1 (64 bit, 240-pin module) ATXPWR1 USB_3.4 USB_3.4 SATA3_3 SATA3_3 SATA3_3 SATA3_3 BIOS ROM SPK_CII TM81 USB_1.5 CLKMOS1

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 240-pin DDR3/DDR3L DIMM Slots (DDR3_A1, DDR3_B1)

4 Chassis Fan Connector (CHA_FAN1)

5 ATX Power Connector (ATXPWR1)

6 USB 3.0 Header (USB3_3_4)

7 TPM Header (TPMS1)

8 USB 2.0 Header (USB4_5)

9 Clear CMOS Pad (CLRMOS1)

10 System Panel Header (PANEL1)

11 Chassis Intrusion and Speaker Header (SPK_CI1)

12 SATA3 Connector (SATA3_0)

13 SATA3 Connector (SATA3_1)

14 SATA3 Connector (SATA3_2)

15 SATA3 Connector (SATA3_3)

16 Front Panel Audio Header (HD_AUDIO1)

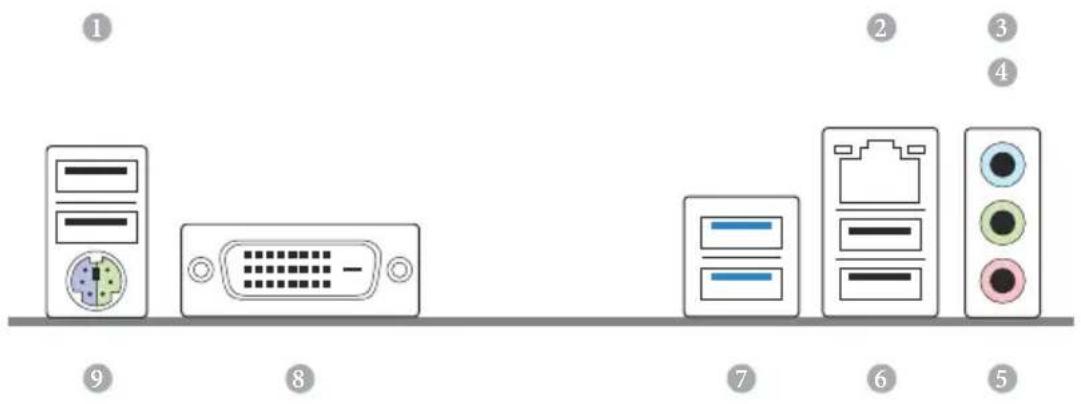

1.4 I/O Panel

Diagram showing labeled components of a computer setup with server, port, and indicator lights

No. Description No. Description

1 USB 2.0 Ports (USB01) 6 USB 2.0 Ports (USB23)
2 LAN RJ-45 Port* 7 USB 3.0 Ports (USB3_12)
3 Line In (Light Blue) ^ 8 DVI-D Port
4 Front Speaker (Lime) ^ 9 PS/2 Mouse/Keyboard Port
5 Microphone (Pink)**

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

Off No Link Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On	Link	Green	1Gbps connection

** To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

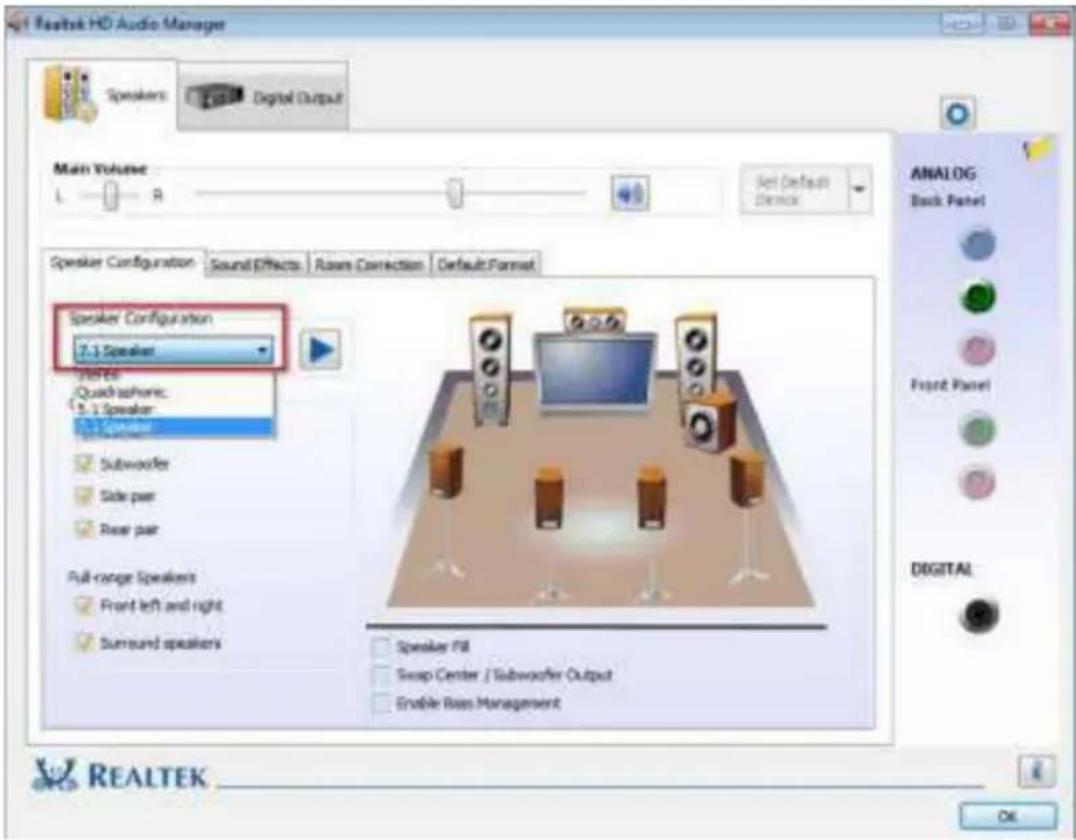

Please set Speaker Configuration to "7.1 Speaker" in the Realtek HD Audio Manager.

Realtek HD Audio Manager Speakers Digital Output Main Volume L R Set Default Device Speaker Configuration Sound Effects Room Correction Default Format Speaker Configuration 7.1 Speaker Source: Quadraphonic 3.1 Speaker Subwoofer Side pair Rear pair Full-range Speakers Front left and right Surround speakers Analog Back Panel Front Panel DIGITAL Speaker Fill Swap Center / Subwoofer Output Enable Bass Management REALTEK

Function of the Audio Ports in 7.1-channel Configuration:

Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

Chapter 1 Introduction

Thank you for purchasing ASRock H110M-DGS/D3 motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

In this documentation, Chapter 1 and 2 contains the introduction of the motherboard and step-by-step installation guides. Chapter 3 contains the operation guide of the software and utilities. Chapter 4 contains the configuration guide of the BIOS setup.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

1.2 Specifications

Platform

CPU

^TM i7/i5/i3/Pentium ^n /

Celeron® Processors (Socket 1151)

Chipset

Memory

ECC, un-buffered memory

Expansion

Slot

* Supports NVMe SSD as boot disks

Graphics

* Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel ^™ InTru ^TM 3D, Intel ^® Clear Video HD Technology, Intel ^® Insider ^TM , Intel ^® HD Graphics 510/530

60Hz

Port

Audio

* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

Protection)

Rear Panel I/O

Spike Protection))*

* ACPI wake-up function is supported on USB01 ports only.

Spike Protection))

LED)

Storage

Hot Plug

Connector

trol)

ESD Protection (ASRock Full Spike Protection))

ESD Protection (ASRock Full Spike Protection))

BIOS

Feature

Multi-adjustment

Hardware

Monitor

CPU temperature)

os

bit

* To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please refer to page 50 for more detailed instructions.

* For the updated Windows® 10 driver, please visit ASRock's website for details: http://www.asrock.com

Certifications

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

2.5 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1)

(see p.1, No. 10)

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Chassis Intrusion and

Speaker Header

(7-pin SPK_CI1)

(see p.1, No. 11)

chassis intrusion and the chassis speaker to this

header.

Serial ATA3 Connectors

(SATA3_0)

(see p.1, No. 12)

(SATA3_1)

(see p.1, No. 13)

(SATA3_2)

(see p.1, No. 14)

(SATA3_3)

(see p.1, No. 15)

SATA3_3 SATA3_2 SATA3_1 SATA3_0

These four SATA3

connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.

USB 2.0 Header

(9-pin USB4_5)

(see p.1, No. 8)

USB_PWR P- P+ GND 1 USB_PWR P- P+ G DUMMY N

Besides four USB 2.0 ports on the I/O panel, there is one header on this motherboard. Each USB

2.0 header can support two ports.

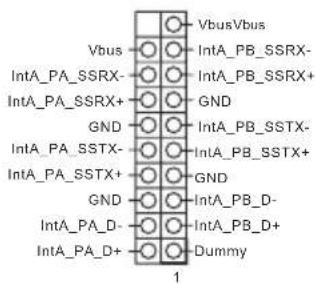

USB 3.0 Header

(19-pin USB3_3_4)

(see p.1, No. 6)

Vbus IntA_PA_SSRX- IntA_PA_SSRX+ GND GND GND GND INTA_PA_D- INTA_PA_D+ VbusVbus IntA_PB_SSRX- IntA_PB_SSRX+ GND GND INTA_PB_D- INTA_PB_D+ Dummy 1

Besides two USB 3.0 ports on the I/O panel, there is one header on this motherboard. Each USB 3.0 header can support two ports.

Technische Daten

Plattform

Prozessor

^TM i7/i5/i3/Pentium ^® /

NCQ, AHCI y "Hot Plug"

Conector

1866(OC)/1600/1333/1066 Non-ECC Unbuffered

Слот

расширения

Blank white image with no visible content, text, or symbols

Blank white image with no visible content, text, or symbols

os

Blank white image with no visible content, text, or symbols

!

规格

平台

CPU

^TM i7/i5/i3/Pentium ^® /Celeron ^® 处理器

(Socket 1151)

芯片集

内存

缓冲内存

扩充槽

* 支持 NVMe SSD 用作启动盘

图形

Enabling USB Ports for Windows® 7 Installation

Intel® Braswell and Skylake has removed their support for the Enhanced Host Controller Interface (EHCI – USB2.0) and only kept the eXtensible Host Controller Interface (XHCI – USB3.0). Due to that fact that XHCI is not included in the Windows 7 inbox drivers, users may find it difficult to install Windows 7 operating system because the USB ports on their motherboard won’t work. In order for the USB ports to function properly, please create a Windows® 7 installation disk with the Intel® USB 3.0 eXtensible Host Controller (xHCI) drivers packed into the ISO file.

Requirements

Scenarios

You have an ODD and PS/2 ports:

If there is an optical disc drive, PS/2 ports and PS/2 Keyboard or mouse on your computer, you can skip the instructions below and go ahead to install Windows ^® 7 OS.

You only have an ODD (For Intel Skylake platforms only):

If there is an optical disc drive but no PS/2 ports on your computer, please enable the "PS/2 Simulator" option in UEFI SETUP UTILITY > Advanced > USB Configuration, which allows the USB port to function as a PS/2 port, and then you can install the Windows® 7 OS. Please set PS/2 Simulator back to disabled after the installation.

You've got nothing:

If you do not have an optical disc drive, please find another computer and follow the instructions below to create a new ISO file with the “Win7 USB Patcher”. Then use the new patched Windows ^® 7 installation USB drive to install Windows ^® 7 OS.

Instructions

Step 1

Insert the Windows ^® 7 installation disk or USB drive to your system.

Step 2

Extract the tool (Win7 USB Patcher) and launch it.

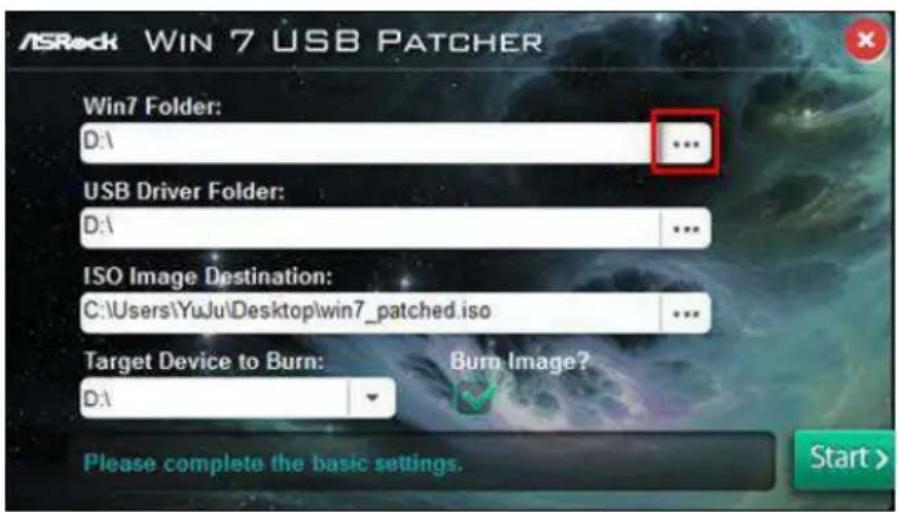

Step 3

Select the "Win7 Folder" from Step1 by clicking the red circle as shown as the picture below.

ASRock WIN 7 USB PATCHER Win7 Folder: D:\ ... USB Driver Folder: D:\ ... ISO Image Destination: C:\Users\YuJu\Desktop\win7_patched.iso ... Target Device to Burn: D:\ Burn Image? Please complete the basic settings. Start >

Step 4

Select the "USB Driver Folder" by clicking the red circle as shown as the picture below.

ASRock WIN 7 USB PATCHER Win7 Folder: D:\ ... USB Driver Folder: D:\ ... ISO Image Destination: C:\Users\YuJu\Desktop\win7_patched.iso ... Target Device to Burn: D:\ Burn Image? Please complete the basic settings. Start >

If you are using ASRock's Support CD for the USB 3.0 driver, please select your CD-ROM.

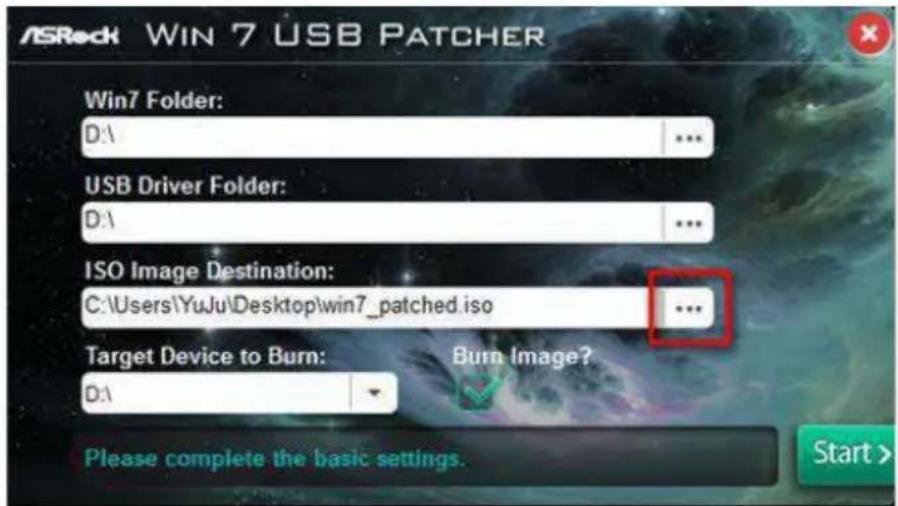

Step 5

Select where to save the ISO file by pressing the red circle as shown as the picture below.

ASRock WIN 7 USB PATCHER Win7 Folder: D:1 ... USB Driver Folder: D:1 ... ISO Image Destination: C:\Users\YuJu\Desktop\win7_patched.iso ... Target Device to Burn: D:1 Burn Image? Please complete the basic settings. Start >

Step 6

If you want to burn the patched image to a CD, please check “Burn Image” and select “Target Device to Burn”. If not, the patched ISO image will be exported to the destination selected in Step5. Then Press “Start” to proceed.

Step 7

Now you are able to install Windows ^® 7 on Braswell or Skylake with the new burned CD. Or please use the patched ISO image to make an OS USB drive to install the OS.
