Product type	Washing machine
Brand	Hoover
Model	H3TSM47TAMCE-S
Maximum loading capacity	Up to 8 kg depending on model (see control panel)
Water pressure	Min 0.05 MPa - Max 0.8 MPa
Wash programs	Cotton, Eco 40-60, Wool & Hand Wash, 20°C, Mixed Fabrics, Drain & Spin, Rinse, Fitness Care, Delicate Care, Fresh Care, Allergy Care 60°, Quick Care (14'/30'/44'), All in One 59', Cotton Care 59', Extra Care, and downloadable One Touch programs
Special functions	One Touch (NFC), Prewash, Aquaplus, Hygiene +, Steam, Easy Iron, Delay Start, Control Lock, Kg Mode
Temperature options	Cold to 90°C depending on program
Maximum spin speed	See rating plate (typically 1400 rpm)
Safety	Secure door, anti-overflow protection, child safety via control lock
Connectivity	NFC (One Touch) via Hoover Wizard app (Android with NFC)

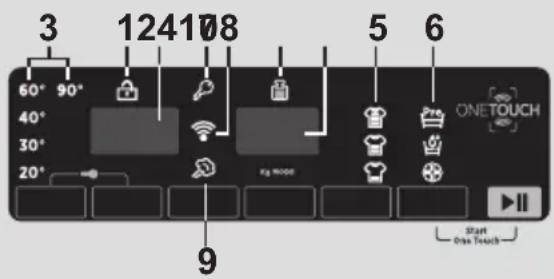

Display	Digital with temperature, spin, duration, lock indicators, Wi-Fi (on some models)

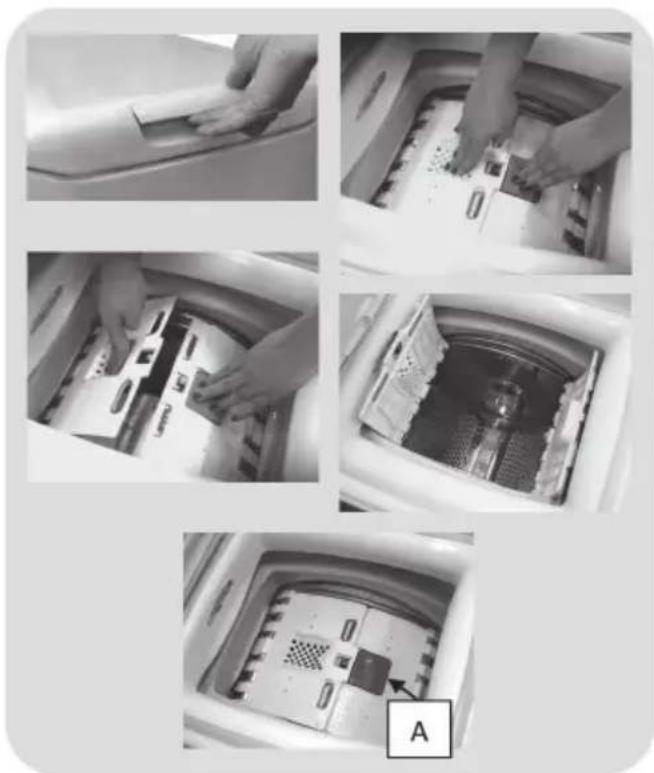

Drum type	Drum with button opening

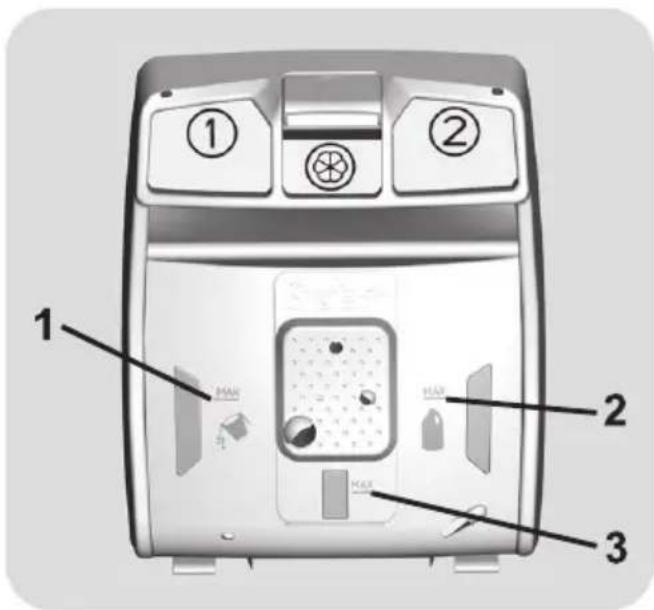

Dispenser drawer	3 compartments: powder detergent (1), liquid detergent (2), fabric softener/additives (3)
Maintenance	Monthly filter cleaning, detergent drawer cleaning, Auto-hygiene program every 50 washes
Installation	Removal of transport screws, leveling with front feet, water connection (cold and/or hot depending on model), drain at 50-75 cm from floor
Power supply	See rating plate (220-240 V, 50 Hz typical)
Warranty	According to provided certificate

Frequently Asked Questions - H3TSM47TAMCE-S HOOVER

How to install the washing machine?

Remove the 2 or 4 transport screws at the back with the spacers, then place the covers. Connect the new water hose to the tap (pressure 0.05-0.8 MPa) and the drain hose at a height of 50-75 cm from the floor. Level the appliance by adjusting the front feet. Plug in the power cord.

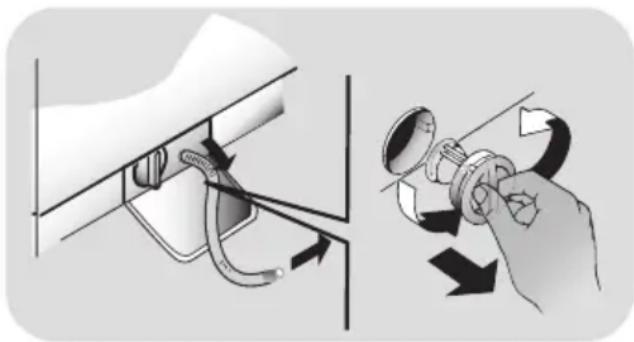

How to clean the filter?

Unplug the machine. Place a cloth on the floor. Turn the filter counterclockwise until it stops, remove and clean it. Reinstall by turning clockwise. Perform this cleaning monthly.

What does error code E2 mean?

Error code E2 indicates that the machine is not filling with water. Check that the tap is open, the hose is not kinked or blocked, and the water inlet filter is not clogged.

How to use the One Touch function?

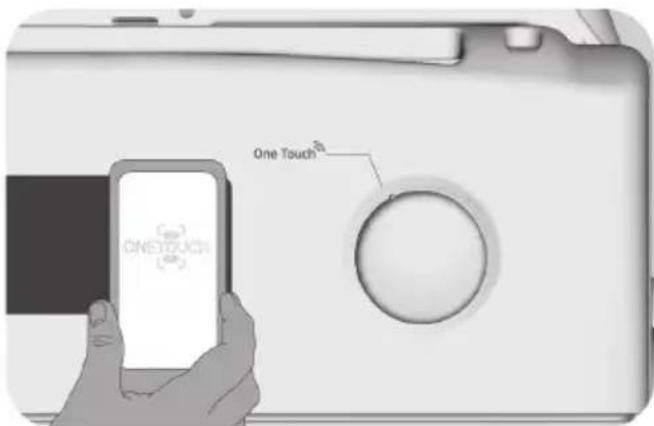

Turn the selector to One Touch. Enable NFC on your Android smartphone. Launch the Hoover Wizard app, bring the phone close to the One Touch logo and follow the instructions to download programs or run a diagnosis.

How to add laundry during a cycle?

Press and hold the Start/Pause button (about 2 seconds) until the display flashes. Check that the DOOR LOCKED indicator is off, then open the door. Add or remove laundry, close the door and press Start/Pause again to resume the cycle.

How to set a delayed start?

Select the program, press the DELAY START button to activate the function, then press again to set the delay from 1 to 24 hours. Confirm by pressing Start/Pause. To cancel, turn the selector to OFF.

What to do in case of water leak?

Check the sealing gasket between the hose and the tap. Replace it if necessary. Make sure the filter is properly closed. If the leak comes from the supply hose with AquaStop/AquaProtect, contact customer service.

How to use the steam function?

Select a program compatible with Steam (see program table). Press the STEAM button before starting the cycle. Steam reduces wrinkles and refreshes fibers.

How to lock the controls?

Press the TEMPERATURE SELECTION and SPIN SELECTION buttons simultaneously for 3 seconds. An indicator lights up. To unlock, press again simultaneously or turn off the machine.

Which program to choose for normally soiled laundry?

The Eco 40-60 program is recommended for normally soiled cotton laundry. It allows washing at 40°C or 60°C and is the reference program for energy efficiency.

USER MANUAL H3TSM47TAMCE-S HOOVER

BORN INNOVATIVE FR ES EN DE IT

Technical diagram of a device casing with labeled components A and B, showing internal structure and wiring.

Technical diagram of a washing machine with labeled components and part number ②

Diagram illustrating a recycling process with labeled steps and directional arrows, including a trash bin and a recycling bin icon.

50 cm max 100 cm +2,6 mt max min 4 cm min 50 cm max 85 cm

* ACCESSORIO VENDUTO SEPARATAMENTE

Diagram illustrating a mechanical assembly or turning process with numbered steps and directional arrows indicating motion.

Diagram showing a hand holding a device with a lock and a valve, alongside a mechanical component with a bolt and threaded end.

⑦ 1 *

⑧ A B ⑨ C D

3. CONSIGLI PRATICI

Illustration showing a hand holding a small mechanical component with directional arrows indicating rotation (no text or symbols)

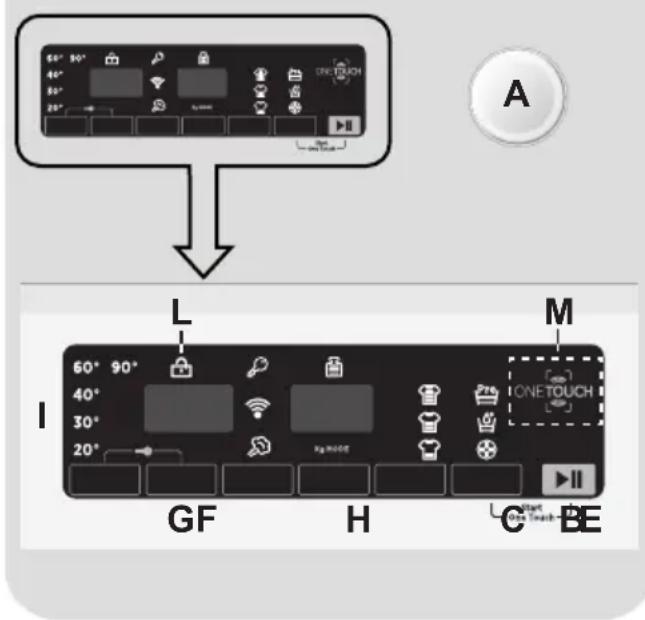

A L M I 60° 90° 40° 30° 20° GF H C E BD

Illustration of a hand holding a pen over a document (no text or symbols visible)

Close-up of a refrigerator interior showing a slot, ventilation slots, and a door handle (no text or symbols visible)

Close-up of a hand holding a white object on a surface (no visible text or symbols)

Close-up of hands inserting a device into a machine (no visible text or symbols)

Close-up of hands handling a rectangular object with printed labels (no legible text)

Interior view of a stainless steel washing machine (no visible text or symbols)

Close-up of a mechanical component with a labeled section 'A' and internal structure (no readable text or symbols)

Carico detersivo

Diagram of a portable air conditioner unit with labeled parts including buttons, vents, and control knobs

7. RISOLUZIONE PROBLEMI E GARANZIA

Technical diagram of a device rear panel with labeled components A and B, showing internal structure and wiring.

Technical diagram of a washing machine with labeled components and part number ②

Diagram illustrating a recycling process with an open bin, a handbar, and a labeled trash bin with a recycling symbol.

50 cm max 100 cm +2,6 mt max min 4 cm min 50 cm max 85 cm

* SEPARAT ERHÄLTLICHES ZUBEHÖR

Technical diagram showing two-step mechanical assembly steps with directional arrows indicating motion

Diagram showing a hand holding a device with a lock and a valve, alongside a mechanical component with a bolt and threaded end.

⑦ 1 *

⑧ A B ⑨ C D

3. PRAKTISCHE TIPPS

Beladungstipps

Illustration showing a hand adjusting a car seatbelt switch mechanism (no text or symbols present)

Close-up of a hand inserting a small object into a white plastic waste bin (no text or symbols visible)

Close-up of a hand holding a small circular object with a label 'S' pointing to it (no other text or symbols visible)

Close-up of a pipe connection with a black arrow pointing to a component labeled 'B' (no text or symbols beyond label)

Close-up of a mechanical component with a labeled arrow pointing to a feature (no readable text or symbols)

Einbau

Illustration of a hand holding a pen over a document (no text or symbols visible)

Close-up of a device's front panel showing a connector and a vertical rod, with no visible text or symbols.

Four-panel black-and-white photo sequence showing hands cleaning a kitchen appliance into a washing machine, with no visible text or symbols.

Waschmittelmenge

Diagram of a portable refrigerator with labeled parts including front panel, back panel, and interior compartments

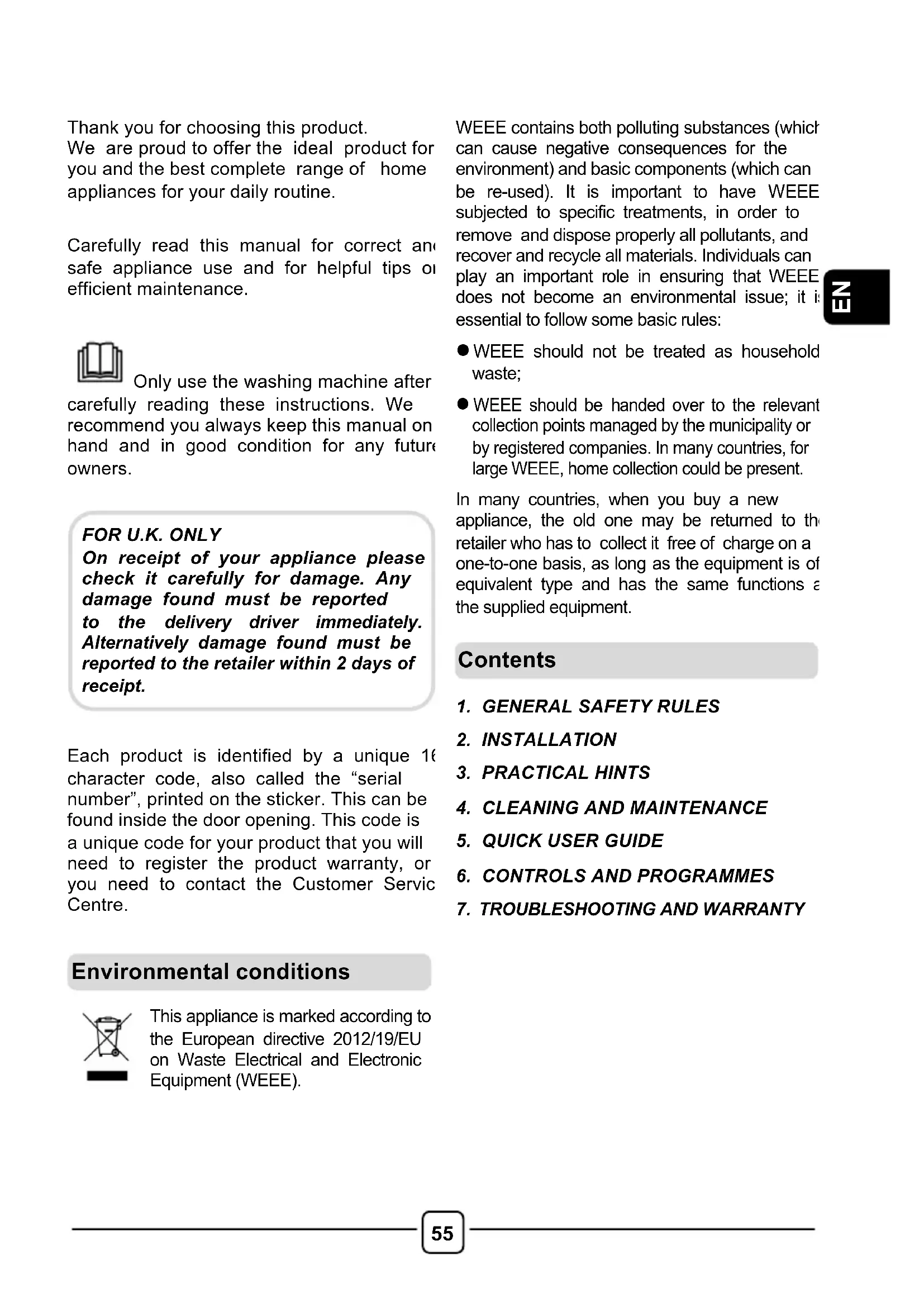

Thank you for choosing this product.

We are proud to offer the ideal product for you and the best complete range of home appliances for your daily routine.

Carefully read this manual for correct and safe appliance use and for helpful tips on efficient maintenance.

Only use the washing machine after carefully reading these instructions. We recommend you always keep this manual on hand and in good condition for any future owners.

FOR U.K. ONLY

On receipt of your appliance please check it carefully for damage. Any damage found must be reported to the delivery driver immediately. Alternatively damage found must be reported to the retailer within 2 days of receipt.

Each product is identified by a unique 16 character code, also called the "serial number", printed on the sticker. This can be found inside the door opening. This code is a unique code for your product that you will need to register the product warranty, or you need to contact the Customer Service Centre.

Environmental conditions

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

● WEEE should not be treated as household waste;
● WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions at the supplied equipment.

Contents

1. GENERAL SAFETY RULES
2. INSTALLATION
3. PRACTICAL HINTS
4. CLEANING AND MAINTENANCE
5. QUICK USER GUIDE
6. CONTROLS AND PROGRAMMES
7. TROUBLESHOOTING AND WARRANTY

1. GENERAL SAFETY RULES

• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments. A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the appliance.

● Children of less than 3 years should be kept away unless continuously supervised.

- If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

- Only use the hose-sets supplied with the appliance for the water supply connection (do not reuse old hose-sets).

● Water pressure must be between 0.05 MPa and 0.8 MPa.

● Make sure carpets or rugs do not obstruct the base or any of the ventilation openings.

- The OFF condition is reached by placing the reference mark on the programmes control/knob in the vertical position. Any other different position of such control sets the machine in ON condition (only for models with programmes knob).

● After installation, the appliance must be positioned so that the plug is accessible.
- The maximum load capacity of dry clothes depends on the model used (see control panel).
- To consult the product technical specification please refer to the manufacturer website.

Electrical connections and safety instructions

• The technical details (supply voltage and power input) are indicated on the product rating plate
• Make sure that the electrical system is earthed, complies with all applicable law and that the (electricity) socket is compatible with the plug of the appliance. Otherwise, seek qualified professional assistance.
• The use of converters, multiple sockets or extension cords is strongly advised against
• Before cleaning or maintaining the washing machine, unplug the appliance and turn off the water tap.
• Do not pull on the power cord or appliance to unplug the machine.

WARNING:

water may reach very high temperatures during the wash cycle.

• Do not expose the washing machine to rain, direct sunlight or other weather elements. Protect from possible freezing.

- In the event of fault and/or malfunction, turn off the washing machine, close the water tap and do not tamper with the appliance.

Immediately contact the Customer Service Centre and only use original spare parts. Failure to observe these instruction may jeopardise appliance safety.

2. INSTALLATION

Technical diagram of a device rear panel with labeled components A and B, showing internal structure and wiring connections.

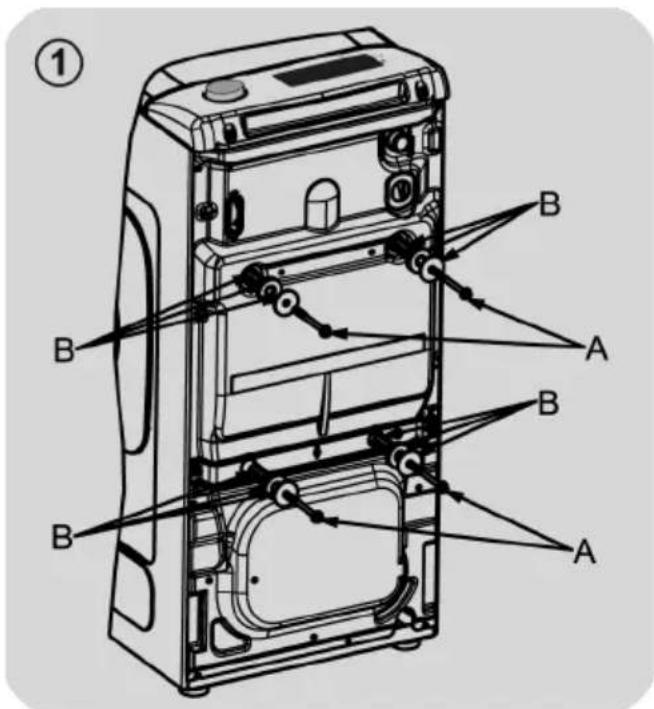

- Remove the 2 or 4 transportation screws (A) on the back and remove the 2 or 4 flat washers, rubber bungs and plastic spacer tubes (B) as illustrated in figure 1.

Technical diagram of a front-mounted computer case with labeled components and part number ②

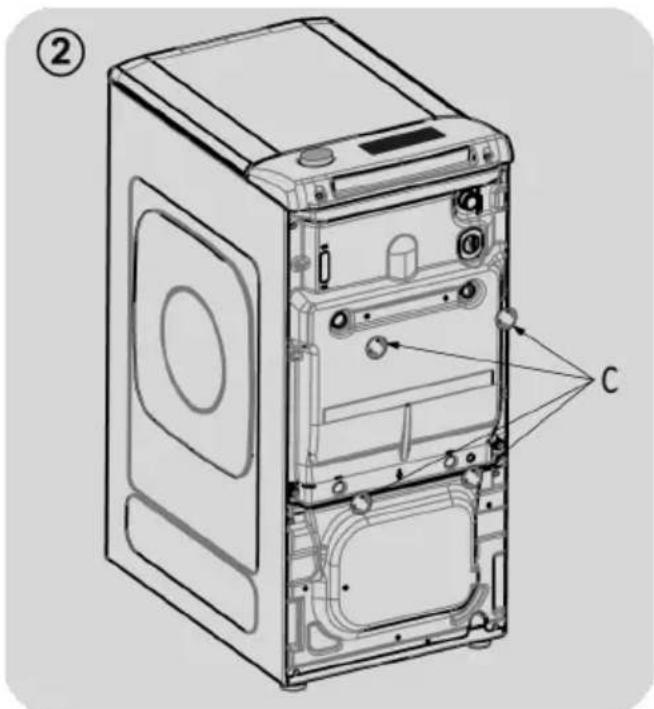

● Fit the trims provided "C" (fig. 2).

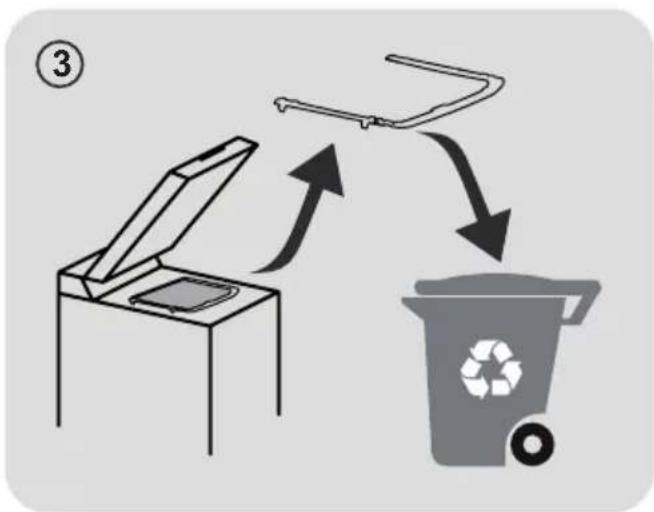

Diagram illustrating a recycling process with an open bin, a handle, and a recycling bin labeled with the number 3.

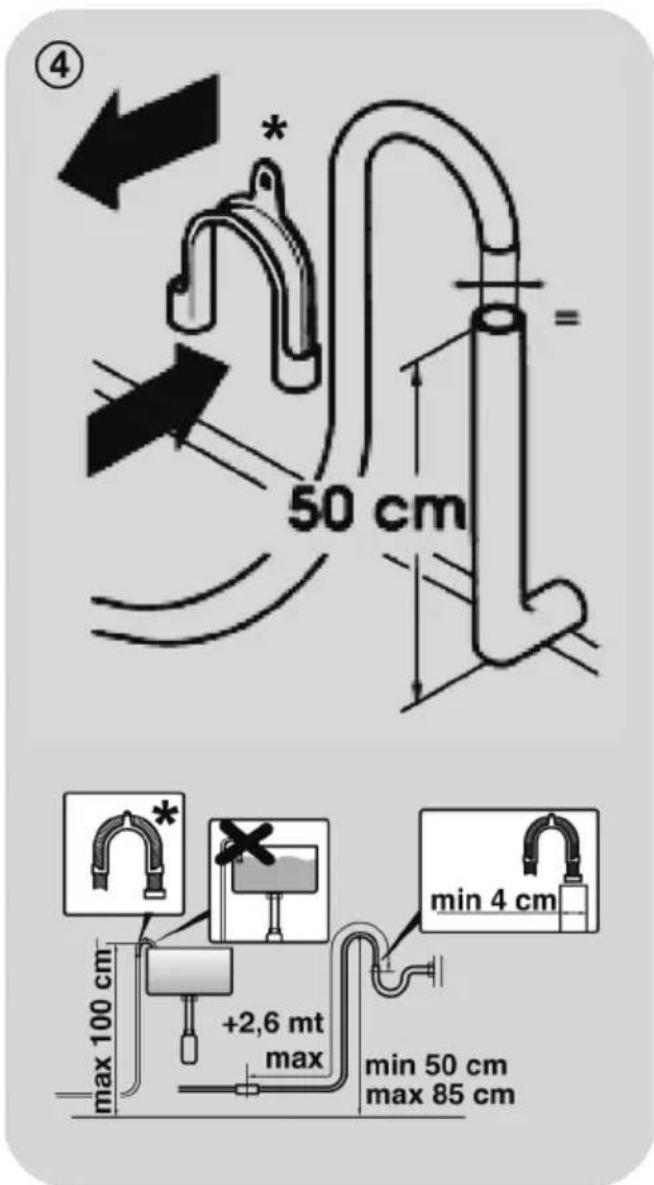

50 cm max 100 cm +2,6 mt max min 4 cm min 50 cm max 85 cm

* ACCESSORY SOLD SEPARATELY

Diagram illustrating a mechanical assembly or turning process with numbered steps and directional arrows indicating motion.

- The washing machine should be connected to the water mains via the new tube supplied with the appliance (inside the drum). Do not use the old tube for this purpose.

- Connect one end of the water inlet pipe with the elbow bend to the electrovalve (top rear part of the machine) and the other end to a tap or a plumbed-in 3/4" gas threaded connection.

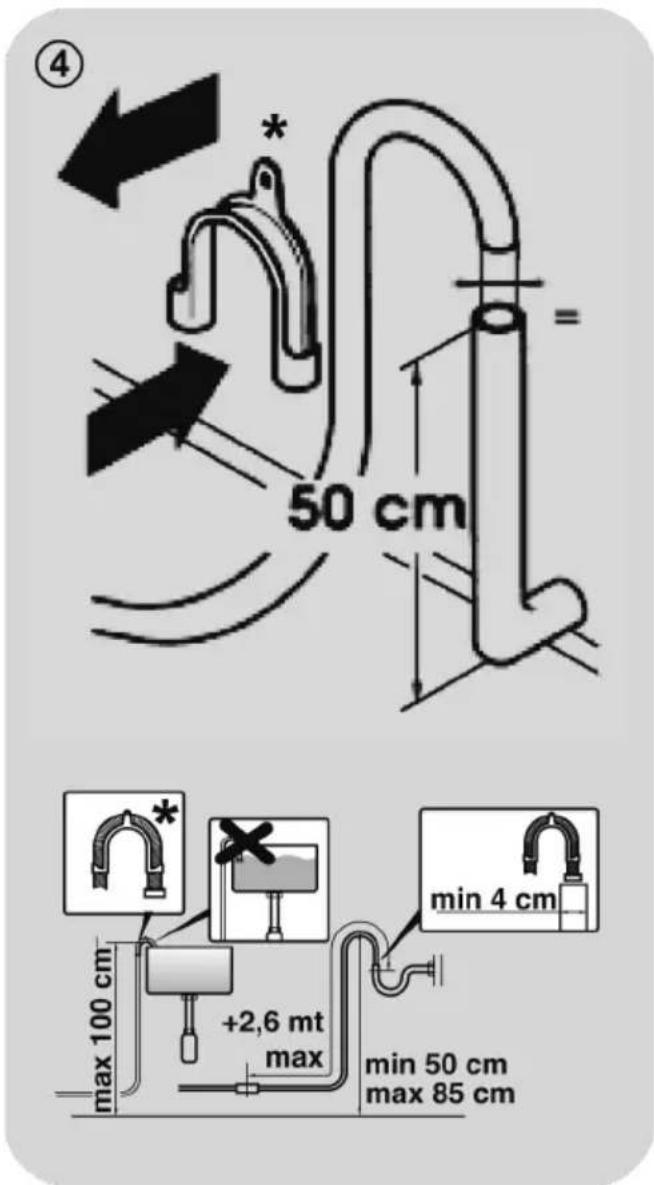

- Place the washing machine close to the wall, ensuring that there are n bends or kinks anywhere in the tube. Hook the outlet pipe to the edge of the sink or preferably to a fixed drainage outlet of a diameter greater

than that of the outlet pipe and at a height of min. 50 cm. and a maximum of 75 cm. from the floor (fig. 4).

- If necessary, use the curved* accessory to attach and support the outlet pipe more securely.

If your model offers this function:

• To move the washing machine easily, turn the trolley lever to the right. Once you have finished moving the machine, return the lever to its original position.

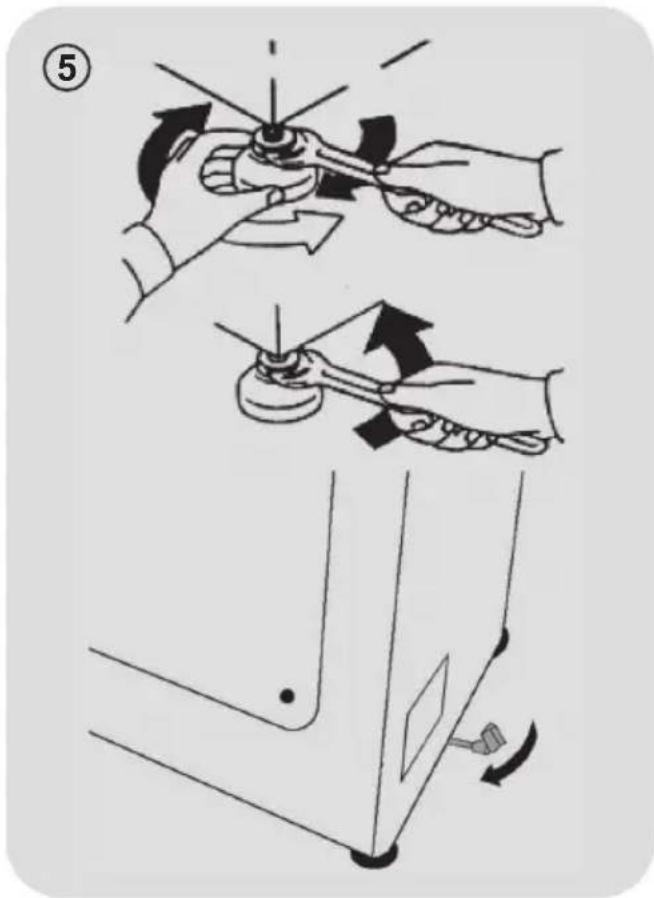

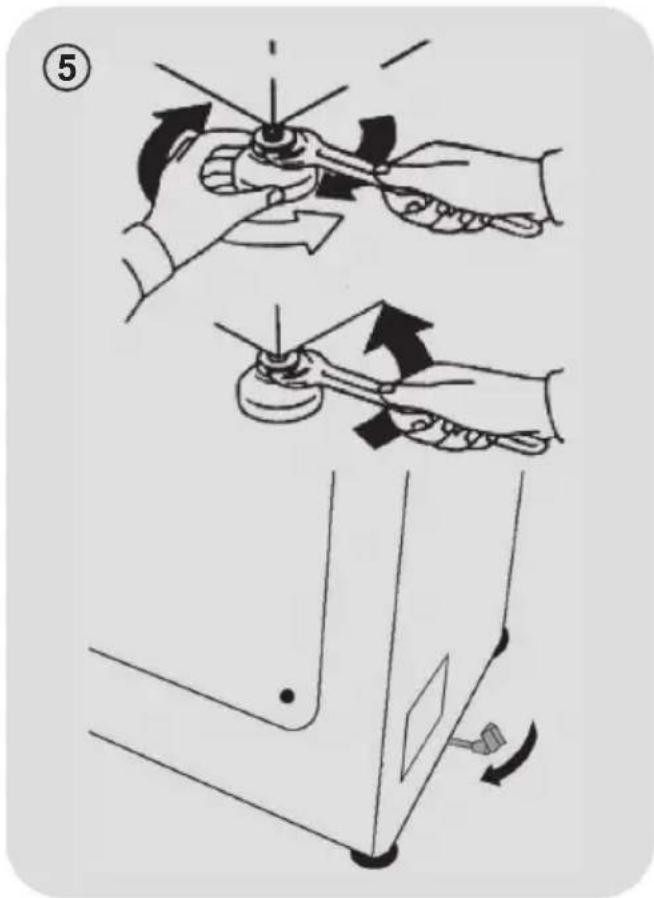

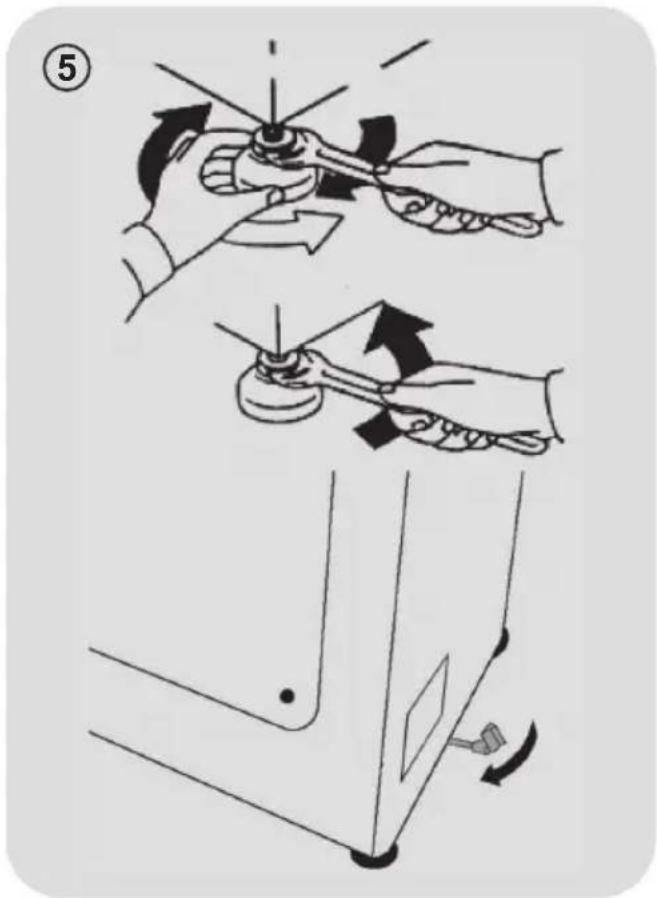

  ● Level the machine by adjusting the front feet (fig. 5).

a) Turn the nut clockwise to release the screw on the foot.
b) Raise or lower the foot by rotating it until it stands firmly on the floor.
c) Lock the foot in position by turning the nut anticlockwise until it comes up against the bottom of the washing machine.

• Check that the appliance is properly levelled.
• Check that the washing machine does not rock by trying to move two diagonally opposite top corners at the same time.
• If you move the washing machine from one place to another, you must level the feet again afterwards.

Hydraulic connections

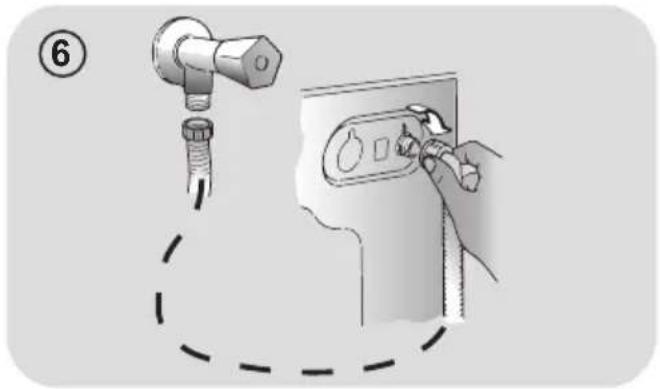

- Connect the water hose to the water supply tap (fig. 6) only using the hose supplied with the appliance (do not reuse old hose-sets).

● SOME MODELS may include one or more of the following features:

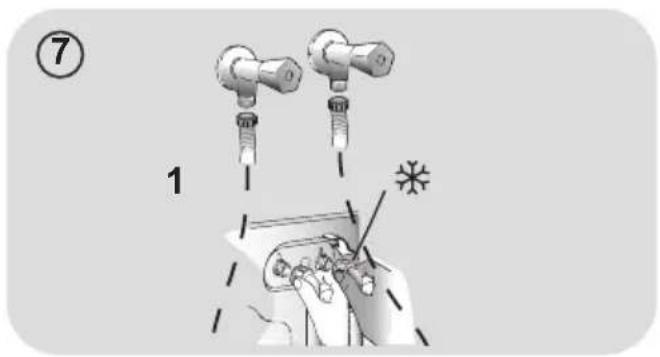

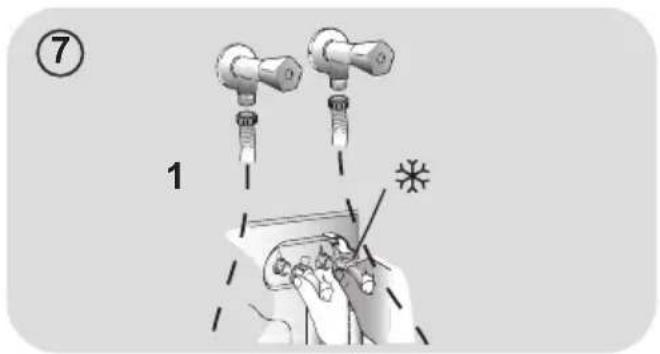

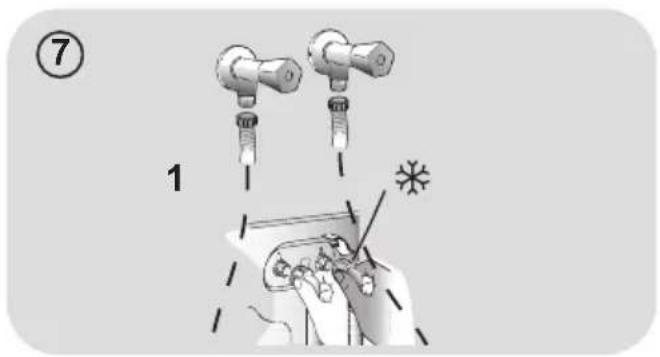

● HOT&COLD (fig. 7):

water mains connection settings with hot and cold water for higher energy savings. Connect the grey tube to the cold wat faucet ✦ and the red one to the hot water faucet. The machine can be connected to the cold water faucet only: in this case some programs may start a few minute later.

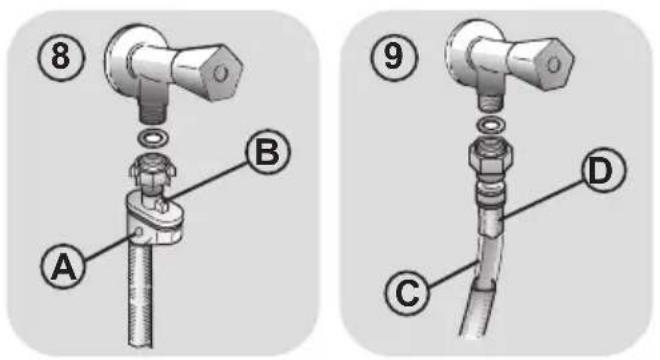

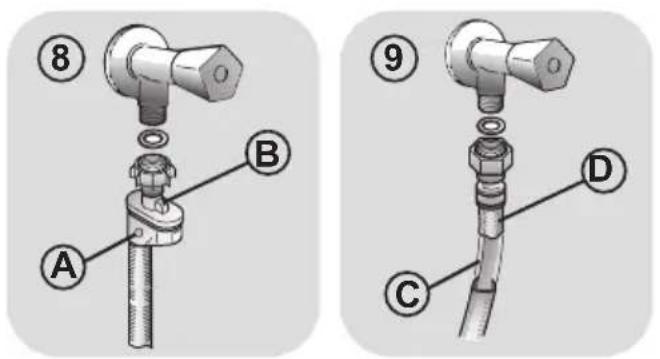

● AQUASTOP (fig. 8):

a device located on the supply tube stops water flow if the tube deteriorate in this case, a red mark will appear in the window "A" and the tube must be replaced. To unscrew the nut, press the one-way lock device "B".

● AQUAPROTECT – SUPPLY TUBE WITH GUARD (fig. 9):

Should water leak from the primary internal tube "C", the transparent containment sheath "D" will contain water to permit the washing cycle to complete. At the end of the cycle, contact the Customer Service Centre to replace the supply tube.

Diagram showing a hand holding a water dispenser with a valve, illustrating the process of cleaning or repair.

⑦ 1 *

Technical diagram showing two configurations (8 and 9) of a pipe fitting with labeled parts A, B, C, D.

3. PRACTICAL HINTS

Load tips

When sorting laundry, make sure:

• have eliminated metallic objects such as hair clips, pins, coins, from laundry;
• to have buttoned pillow cases, closed zips, tied loose belts and long robe ribbons;
• to have removed rollers, hooks or clips from curtains;
• to have carefully read clothing washing labels;
• to have removed any persistent stains using specific detergents.
• When washing rugs, bedcovers or other heavy clothing, we recommend you avoid the spinning cycle.
  ● To wash wool, make sure the item can be machine washed. Check the fabric label.

Useful advice for saving

Tips on how to save money and not damage the environment when using your appliance.

• Load the machine to the highest capacity shown in the programme table for each programme - this will allow you to SAVE energy and water.
  ● Noise and residual laundry moisture are affected by spin speed: a faster spin is associated with greater noise and lower residual moisture in the laundry.
• The most efficient programmes in terms of combined use of water and energy are usually the longer-lasting ones with lower temperature.

Maximise the load size

- Achieve the best use of energy, water, detergent and time by using the recommended maximum load size. Save up to 50% energy by washing a full load instead of 2 half loads.

Do you need to pre-wash?

- For heavily soiled laundry only! SAVE detergent, time, water and between 5 to 15% energy consumption by NOT selecting Prewash for slight to normally soiled laundry.

Is a hot wash required?

- Pretreat stains with stain remover or soak dried in stains in water before washing to reduce the necessity of a hot wash programme. Save energy by using a low temperature wash programme.

Before using a drying programme (WASHER-DRYERS)

- SAVE energy and time by selecting a high spin speed to reduce the water content in laundry before using a drying programme.

Dosing the detergent

Below is a short guide with tips and advice on the use of detergent.

• Only use detergents suitable for machine washing.
• Select your detergent according to the type of fabric (cotton, delicates, synthetics, wool, silk, etc.), the colour, the type and level of soiling and the programmed washing temperature.
• To use the right amount of detergent, softener or any other additives, carefully follow the manufacturer's instructions every time: correctly using the appliance with the right dose allows you to avoid waste and to reduce the environmental impact.

When washing heavily soiled whites we recommend using cotton programs of 60^ C or above and a normal washing powder (heavy duty) that contains bleaching agents that at medium/high temperatures provide excellent results.

For washes between 40°C and 60°C the type of detergent used needs to be appropriate for the type of fabric and level of soiling. Normal powders are suitable for “white” or colour fast fabrics with high soiling, while liquid detergents or “colour protecting” powders are suitable for coloured fabrics with light levels of soiling.

For washing at temperatures below 40^ C we recommend the use of liquid detergents or detergents specifically labeled as suitable for low temperature washing.

For washing wool or silk, only use detergents specifically formulated for these fabrics.

● Too much detergent leads to excessive foam, which prevents the cycle being carried out correctly. It could also affect the quality of the washing and rinsing.

The use of ecological detergents without phosphates may cause the following effects:

• cloudier rinse drain water: This effect is tied to the suspended zeolites which do not have negative effects on rinse efficiency.
• white powder (zeolites) on laundry at the end of the wash: this is normal, the powder is not absorbed by fabric and does not change its colour.

To remove the zeolites, select a rinse programme. In the future consider using slightly less detergent.

- foam in the water at last rinse: this does not necessary indicate poor rinsing.

Consider using less detergent in future washes.

- abundant foam: This is often due to the anionic surfactants found in the detergents which are hard to eliminate from laundry. In this case, do not re-rinse to eliminate these effects: it will not help at all.

We suggest conducting a maintenance wash using a proprietary cleaner.

If the problem persists or if you suspect a malfunction, immediately contact an Authorised Customer Service Centre.

4. CLEANING AND MAINTENANCE

Looking after your appliance correctly can extend its lifespan.

Cleaning the appliance's exterior

- Disconnect the machine from the power supply.

To clean the washing machine exterior, use a damp cloth, avoiding abrasives, alcohol and/or solvents. The washing machine does not require any special care for ordinary cleaning: clean drawer compartments and the filter; some tips on how to move the machine or on long periods of disuse are provided below.

Filter cleaning

● The washing machine comes with a special filter able to trap large residue, such as buttons or coins, which could clog the drain.
- ONLY AVAILABLE ON CERTAIN MODELS: pull out the corrugated hose, remove the stopper and drain the water into a container.
- Before unscrewing the filter, we recommend you place an absorbent cloth under it to keep the floor dry.
● Turn the filter counter-clockwise to the limit stop in the vertical position.
- Remove and clean the filter; when finished, replace it turning it clockwise.
- Repeat the previous steps in reverse order to reassemble all parts.

Diagram showing a hand holding a magnifying glass connected to a cable, with arrows indicating motion (no text or symbols present)

Suggestions for moves or prolonged disuse

- Should the washing machine be stored in an unheated room for a long period of time, drain all water from tubes.

● Unplug the washing machine.
- Detach the tube from the strap and lower it, fully draining water into a bowl.
- Secure the drain tube with the strap when finished.

Cleaning the detergent dispenser and its compartments

• Press button (A).
• Hold down the button and turn the detergent dispenser outwards.

• Remove the dispenser and clean it.

• It is recommended to remove any remaining detergent in the compartments to avoid any build up that could cause blockages and restrict the water flow from the dispenser to drum.

• Pulling out and extract the trap/traps (S) that are located in the back part of the dispenser and clean them carefully.
• Remove any solid residue which could block the holes in the compartments.

Close-up of a hand placing a small object into a white plastic waste bin (no text or symbols visible)

S

Close-up of a pipe fitting with a black arrow pointing to a component labeled 'B' (no text or symbols beyond label)

Close-up of a mechanical component with a labeled arrow pointing to a section (no readable text or symbols)

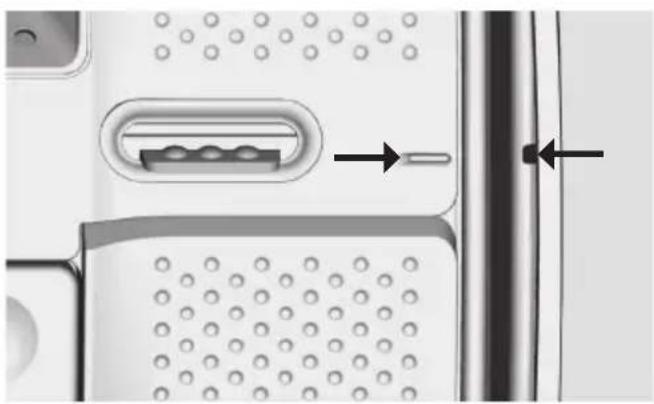

Fitting

Fit in the tabs as shown (B).

Turn the detergent dispenser towards the housing (C) in the door until the tab clicks into place.

5. QUICK USER GUIDE

This washing machine automatically adjusts the level of the water to the type and quantity of washing. This system gives a reduction in energy consumption and a saving in washing times.

Program selection

• Turn on the washing machine and select the required program.
• Adjust the washing temperature if necessary and press the required "option" buttons.
• Press the START/PAUSE button to start washing.

Should power go out when the washing machine is running, a special memory saves the settings and, when power returns, the machine resumes the cycle from where it left off.

- At the end of the programme, the message "End" will appear on the display or, on some models, all wash stage indicator lights will turn on.

Wait until the DOOR LOCKED light has gone out before opening the door.

● Turn off the washing machine.

For any type of wash, see the program table and follow the operating sequence as indicated.

Technical data

Water pressure:

min 0.05 Mpa / max 0.8 Mpa

(0.05 MPa dispenses approximately 1 litre of water in 10 seconds)

Power input / Power current fuse amp / Supply voltage: See rating plate.

6. CONTROLS AND PROGRAMMES

A L M I 60° 90° 40° 30° 20° GF H C BE ONE TOUCH ONE TOUCH One Touch

A Programme selector with OFF position
B START/PAUSE button
C DELAY START button
D OPTIONS button
E RAPID / STAIN LEVEL button
F TEMPERATURE SELECTION button
G SPIN SPEED button
H ACTIVE STEAM button (only available on certain models)
H EASY IRON button (only available on certain models)
D+B Start ONE TOUCH
F+G KEY LOCK
I Digital display
L DOOR LOCKED indicator light
M ONE TOUCH area

WARNING:

Don't touch the display (and the Touch Control) while inserting the plug because the machines calibrates the systems during the first seconds: touching the display, the machine couldn't work property. In this case, remove the plug and repeat the operation.

PROGRAMME selector with OFF position

When the programme selector is turned the display lights up to show the settings for the programme selected.

For energy saving, at the end of the cycle or with an inactivity period, the display level contrast will decrease.

N.B.: To switch the machine off, turn the programme selector to the OFF position.

• Press the START/PAUSE button to start the selected cycle.
• Once a programme is selected the programme selector remains stationary on the selected programme till cycle ends.
  ● "End" will appear in the display at the end of the program and the DOOR LOCKED light will go off, it is now possible to open the door.
• Switch off the washing machine by turning the selector to OFF.

The programme selector must be returned to the OFF position at the end of each cycle or when starting a subsequent wash cycle prior to the next programme being selected and started.

START/PAUSE button

Close the door BEFORE selecting the button START/PAUSE.

- Press to start the selected cycle.

When the START/PAUSE button has been pressed, the appliance can take few seconds before it starts working.

ADD OR REMOVE ITEMS AFTER THE PROGRAMMES HAS STARTED (PAUSE)

• Press and hold the START/PAUSE button for about 2 seconds (some indicator light and the time remaining indicator will flash, showing that the machine has been paused).

● Wait until the DOOR LOCKED light has gone out before opening the door.

● After you have added or removed items, close the door and press the START/PAUSE button (the programme will start from where it left off).

CANCELLING THE PROGRAMME

• To cancel the programme, set the selector to the OFF position.
  ● Wait 2 minutes until the safety device unlocks the door.

DELAY START button

• This button allows you to pre-programme the wash cycle to delay the start of the cycle for up to 24 hours.
  ● To delay the start use the following procedure:

• Select the required programme.

• Press the delay start button once to activate it (h00 appears on the display) and then press it again to set a 1 hour delay (h01 appears on the display). The pre-set delay increases by 1 hour each time the button is pressed, until h24 appears on the display, at which point pressing the button again will reset the delay start to zero.

• Confirm by pressing the START/PAUSE button. The delay countdown will begin and when it has finished the programme will start automatically.

• It is possible to cancel the delay start by turning the programme selector to OFF.

If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left OFF.

The following options must be selected before pressing the START/PAUSE button.

- This function can be used for children's items and for washing of very dirty items, for which you are required to use a lot of detergent, or for washing of Towels whose fibres have the tendency to hold the detergent.

- HYGIENE +

Activated when you set 60^ C of temperature. This option allows deep cleaning of your clothes by maintaining the same temperature for the whole wash.

If an option is selected that is not compatible with the selected programme then the option indicator light first flashes and then goes off.

OPTIONS button

This button allows you to choose between three different options:

- PREWASHING

• This option allows you to make a prewash and it is particularly useful for heavily soiled loads (can be used only on some programmes as shown in the table of programmes).
• We recommend you use only 20% of the recommended quantities shown on the detergent pack.

- AQUAPLUS

• This option (available only in some programmes) allows you to wash the load in a much larger quantity of water and this, together with the new combined action of the drum rotation cycles, where water is filled and emptied, will give you garments which have been cleaned and rinsed to perfection so that the detergent dissolves completely, ensuring an efficient cleaning action.
  ● This function is for the people with delicate and sensitive skin.

RAPID / STAIN LEVEL button

This button allows you to choose between two different options, depending on the selected programme.

- RAPID

The button becomes active when you select the RAPID (14/30/44 Min.) programme on the knob and allows you to select one of three durations indicated.

- STAIN LEVEL button

• Once the programme has been selected the wash time set for that programme will be automatically shown.
• This option allows you to choose between 3 levels of wash intensity modifying the length of the programme, depending on how much the fabrics are soiled (can only be used on some programmes as shown in the table of programmes).

TEMPERATURE SELECTION button

● This button allows you to change the temperature of the wash cycles.
- It is not possible to raise the temperature over the maximum allowed for every programme, in order to save the fabrics.

- If you want carry out a cold wash all the indicators must be off.

SPIN SELECTION button

• By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle can be cancelled.
• If the label does not indicate specific information, it is possible to use the maximum spin expected in the program.

To prevent damage to the fabrics, it is not possible to increase the speed over the maximum allowed for the programme.

• To reactivate the spin cycle press the button until you reach the spin speed you would like to set.
• It is possible to modify the spin speed without pausing the machine.

An over dosing of detergent can cause excessive foaming. If the appliance detects the presence of excessive foam, it may exclude the spinning phase or extend the duration of the program and increase water consumption.

The machine is fitted with a special electronic device, which prevents the spin cycle without load or on particularly unbalanced load. This reduces the noise and vibration in the machine and so prolongs the life of your machine.

ACTIVE STEAM button

(only available on certain models)

- By this option you can add a specific steam treatment to some washing cycles (see programme table).

● The steam function relaxes the folds and makes ironing times shorter.
- Fibres are regenerated and refreshed, removing all smells from the items.
● A dedicated steam treatment was devised for each programme, to guarantee washing top efficiency depending on item fabrics and colours.

This option must be selected before pressing the START/PAUSE button.

EASY IRON button

(only available on certain models)

This function allows you to minimize creases as much as possible, eliminating the intermediate spins or reducing the intensity of the last one.

This option must be selected before pressing the START/PAUSE button.

START ONE TOUCH

Simultaneously pressing the START/PAUSE and OPTIONS buttons allows a previously downloaded cycle to be started whilst the One Touch position is selected on the programme knob (for downloading cycles from the App see the relevant section of this user manual).

KEY LOCK

• Pressing simultaneously the buttons TEMPERATURE SELECTION and SPIN SPEED for about 3 seconds, the machine allows you to lock the keys. In this way, you can avoid making accidental or unwanted changes if a button on the display is pressed accidentally during a cycle.
• The key lock can be simply cancelled by pressing the two buttons simultaneously again or turning off the appliance.

Digital Display

The display's indicator system allows you to be constantly informed about the status of the machine.

3 60° 90° 40° 30° 20° 124108 5 6 ONE TOUCH 9 Start One Touch

1) DOOR LOCKED INDICATOR LIGHT

● The indicator light is illuminated when the door is fully closed.

Close the door BEFORE selecting the START/PAUSE button.

- When START/PAUSE is pressed on the machine with the door closed, the indicator will flash momentarily and then illuminate.

If the door is not properly closed, the light will continue to flash for about 7 seconds, after which the start command will be automatically delete. In this case, close the door in the proper way and press the START/PAUSE button.

● Wait until the DOOR LOCKED light has gone out before opening the door.

2) SPIN SPEED

This show the spin speed of the selected programme that can be changed or omitted by the relevant button.

3) WASH TEMPERATURE INDICATOR LIGHTS

This shows the washing temperature of the selected programme that can be changed (where allowed) by the relevant button. If you want carry out a cold wash all the indicators must be off.

4) CYCLE DURATION

• When a programme is selected the display automatically shows the cycle duration, which can vary, depending on the options selected.
• Once the programme has started you will be kept informed constantly of the time remaining to the end of the wash.
• The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to that applicable to the size and composition of the load.

5) STAIN LEVEL INDICATORS LIGHTS

• Once the programme has been selected, the indicator light will automatically show the stain level set for that programme.
• Selecting a different stain level the relevant indicator will light up.

6) OPTIONS INDICATOR LIGHTS

The indicator lights show the option that can be selected by the relevant button.

7) KEY LOCK INDICATOR LIGHT

The indicator light show that the keys are locked.

8) WI-FI (some models only)

• In the models with the Wi-Fi option, the icon indicates that the Wi-Fi system is working.
• For all the information about the functionality and the instructions for an easy configuration of the Wi-Fi, please refer to the "Download" section on http://wizardservice.candy-hoover.com.

9) STEAM INDICATOR LIGHT (only included in some models)

The indicator light shows the selection of the relevant option.

9) EASY IRON INDICATOR LIGHT (only included in some models)

The indicator light shows the selection of the relevant option.

10) Kg MODE (function active only on certain programmes)

- During the first minutes of the cycle, the "Kg MODE" indicator remain on while the intelligent sensor will weigh the laundry and adjust the cycle time, water and electricity consumption accordingly.

- Through every wash phase "Kg MODE" allows to monitor information on the wash load in the drum and in the first minutes of the wash it:

• adjusts the amount of water required;
• determines the length of the wash cycle;
• controls rinsing according to the type of fabric selected to be washed it;
• adjusts the rhythm of drum rotation for the type of fabric being washed;
• recognizes the presence of lather, increasing, if necessary, the amount of water during rinsing;
• adjusts the spin speed according to the load, thus avoiding any imbalance.

ONE TOUCH

This appliance is equipped with One Touch technology that allows you to interact, via the App, with smartphones based on Android operating system and equipped with NFC (Near Field Communication) function.

- Download on your smartphone the Hoover Wizard App.

The Hoover Wizardi App is available for devices running both Android and iOS, both for tablets and for smartphones. However, you can interact with the machine and take advantage of the potential offered by One Touch only with Android smartphones equipped with NFC technology, according to following functional scheme:

Android smartphone with NFC technology	Interaction with the machine + contents
Android smartphone without NFC technology	Contents only
Android Tablet	Contents only
Apple iPhone	Contents only
Apple iPad	Contents only

FUNCTIONS

The main functions available using the App are:

● Voice Coach – A guide to help you choose the ideal cycle with only three voice inputs (clothes/fabrics, color, stain level).

- Programmes – To download and launch new washing programmes.

• Clever Care – Clever Check-up and Auto-Hygiene cycles and a troubleshooting guide.
• Reports – Washing statistics and tips for a more efficient use of your machine.

Get all the details of the One Touch functions, browsing the App in DEMO mode or go to: www.hooveronetouch.com

HOW TO USE ONE TOUCH

FIRST TIME - Machine registration

- Enter the "Settings" menu of your Android smartphone and activate the NFC function inside the "Wireless & Networks" menu.

Depending on the smartphone model and its Android OS version, the process of the NFC activation may be different. Refer to the smartphone manual for more details.

● Turn the knob to the One Touch position to enable the sensor on the dashboard.
- Open the App, create the user profile and register the appliance following the instructions on the phone display or the "Quick Guide" attached on the machine.

More information, F.A.Q. and the video for an easy registration are available on:

www.hooveronetouch.com/how-to

NEXT TIME – Regular usage

• Every time you want to manage the machine through the App, first you have to enable the One Touch mode by turning the knob to the One Touch indicator.
  ● Make sure you have unlocked your phone (from stand-by mode) and you have activated the NFC function; then, follow the steps mentioned earlier.
• If you want to start a washing cycle, load the laundry, the detergent and close the door.
• Select the desired function in the App (e.g.: starting a programme, the Clever Check-up cycle, update statistics, etc...).
• Follow the instructions on the phone display, KEEPING IT ON the One Touch logo on the machine dashboard, when requested to do so by the App.

One Touch® ONE TOUCH®

NOTES:

Place your smartphone so that the NFC antenna on its back matches the position of the One Touch log on the appliance (as illustrated below).

Illustration of a hand holding a document or folder, no visible text or symbols

If you do not know the position of your NFC antenna, slightly move the smartphone in a circular motion over the One Touch logo until the App confirms the connection. In order for the data transfer to be successful, it is essential TO KEEP THE SMARTPHONE ON THE DASHBOARD DURING THESE THE FEW SECONDS OF THE PROCEDURE; a message on the device will inform about the correct outcome of the operation and advise you when it is possible to move the smartphone away.

Thick cases or metallic stickers on your smartphone could affect or prevent the transmission of data between machine and telephone. If necessary, remove them.

The replacement of some components of the smartphone (e.g. back cover, battery, etc...) with non-original ones, could result in the NFC antenna removal, preventing the full use of the App.

The management and the control of the machine via App is only possible "by proximity": it is therefore not possible to perform remote operations (e.g.: from another room; outside of the house).

PROGRAMME		(see control panel)						1)(MAX.)	DETERGENT
		5kg	5,5kg	6kg	6,5kg	7kg	8kg		I o ll
	COTTONS 2)4)	5	5,5	6	6,5	7	8	90°	●	●	(●)
[8WTE]	ECO 40-60 2)	5	5,5	6	6,5	7	8	60°	●	●
[05SH]	WOOL & HAND WASH	1	1	1	1	1	2	30°	●	●
	20°C 2)4)	5	5,5	6	6,5	7	8	20°	●	●
[00DX]	MIXED 4)	2,5	2,5	3	3	3,5	4	60°	●	●	(●)
	DRAIN & SPIN	-	-	-	-	-	-	-
[C862]	RINSE	-	-	-	-	-	-	-	△	●
	FITNESS CARE	2	2	2	2	2,5	2,5	40°	●	●
[TGWH]	SOFT CARE 4)	2	2	2	2	2,5	2,5	40°	●	●
[HK40]	FRESH CARE 4)	2	2	2	2	2,5	2,5	40°	●	●
	ALLERGY CARE 60°	2	2	2	2	2	2	60°	●	●
14'/30'/44'	RAPID CARE 14'30'44'	1	1	1	1	1	1,5	30°	●	●
		1,5	1,5	2	2	2,5	2,5	30°	●	●
		3	3	3	3	3,5	3,5	40°	●	●
	ALL IN ONE 4)59**	5	5,5	6	6,5	7	8	40°	●	●
[YGT]	COTTON CARE 4)59**	2,5	2,5	3	3	3,5	4	40°	●	●
	EXTRA CARE	2,5	2,5	3	3	3,5	4	30°	●	●
[SCZX]	Customizable setting that interacts with the App on your smartphone and to download the cycles (see the dedicated section). The factory sets the default programme Auto-Hygiene, which will sanitize the machine.

Please read these notes:

* Maximum load capacity of dry clothes, according to the model used (see control panel).

**Only available on certain models

INFORMATION FOR THE TEST LABORATORIES

STANDARD PROGRAMMES ACCORDING TO

(EU) No 1015/2010 e No 1061/2010

ECO 40-60 PROGRAMME

SETTING THE TEMPERATURE TO 40°C

ECO 40-60 PROGRAMME

SETTING THE TEMPERATURE TO 60°C

STANDARD PROGRAMME ACCORDING TO (EU) No 2019/2023

ECO 40-60 PROGRAMME

Before closing the cover and start the washing process, please check that the internal drum is perfectly closed. When possible, please align the position indicators with drum to assure the best washing performance.

Close-up of a device's front panel showing a connector and a vertical line, with no visible text or symbols.

The spin speed may also be reduced, to match any guidelines suggested on the fabric label, or for very delicate fabrics cancel the spin completely this option is available with a spin speed button. This function can be activated with the button SPIN SELECTION. If the label does not indicate specific information, it is possible to use the maximum spin expected in the program. An over dosing of detergent ca cause excessive foaming. If the appliance detects the presence of excessive foam, may exclude the spinning phase or extend the duration of the program and increase water consumption.

(●) Only with PREWASH option selected (programmes with PREWASH option available).

1) When a programme is selected, on the display is shown the display shows the recommended wash temperature that can be reduced (where allowed) by the relevant button.

2) For the programmes shown you can adjust the duration and intensity of the wash using the STAIN LEVEL button.

3) Selecting the RAPID program on the knob, it will be possible to select with the RAPID button, one of the three rapid programs available among 14', 30' and 44'.

4) Steam function available (only on models with this option).

- PREWASH: if the dispenser has the specific compartment for pre-wash, pour the detergent in it. Otherwise, pour the detergent in the perforated area preser on the drum, following the dosage indications of the detergent producer.

IMPORTANT: do not use the pre-wash mode with start-delay option.

Description of programmes

To clean different types of fabrics and various levels of dirt, the washing machine has specific programs to meet every need of washing (see table of programmes).

Choose programme in accordance with the laundry instructions appearing on labels, especially the maximum recommended temperature.

WARNING:

IMPORTANT WASH PERFORMANCE ADVICE.

● New, coloured garments should be washed separately for at least 5 or 6 washes.
● Certain large dark items such as jeans and towels should always be washed separately.
● Never mix NON COLOURFAST fabrics.

One Touch

Customizable setting of the knob that you have to select when you would like to transfer a command from the App to the machine and to download/start a cycle (see the dedicated section and the user manual of the App for more info). In the One Touch option the factory sets as a default the "Auto-Hygiene" cycle, made to clean the drum, remove bad smells and extend the life of the washing machine. Make sure there is no load in the drum before starting the "Auto-Hygiene" cycle, use a proprietary washing machine cleaning agent or powder detergent. Leave the door of the machine open at the end of the cycle to allow the drum to dry. Recommended every 50 washes.

COTTONS

This programme is suitable for washing coloured cotton garments at 40°C or for ensuring the highest degree of cleanliness for cotton resistant laundry washing at 60^ C or 90^ C. The final spin is at maximum speed that ensures excellent water removal.

ECO 40-60

The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle. This programme is used to assess the compliance with the EU Ecodesign legislation (environmentally friendly products design).

WOOL & HAND WASH

This programme performs a wash cycle dedicated to the wool fabrics that can be washed in a washing machine, the articles to be washed by hand or laundry items made from silk or specified as "Wash as Silk" on the fabric label.

20°C

This innovative programme, allows you to wash different fabrics and colours together, such as cottons, synthetics and mixed fabrics at only 20^ C and provides an excellent cleaning performance. Consumption on this program is about 40% of a conventional 40^ C cottons wash.

MIXED

This programme allows you to wash different type's fabrics and different colours all together. The rotation movement of the drum and the water levels are optimized both during the washing the rinsing phase. The accurate spin action, ensures a reduced formation of creases in the fabrics.

DRAIN & SPIN

The program completes the drain and a maximum spin. It is possible to delete or reduce the spin through the SPIN SELECTION button.

RINSE

This program performs 3 rinses with an intermediate spin (which can be reduced or excluded by using the appropriate button). It is used for rinsing any type of fabric, for example after a wash carried out by hand.

FITNESS CARE

The perfect combination of time and performance. Created to eliminate dirt from athletic garments and sportswear. A low temperature wash recommended for small loads of synthetic items.

SOFT CARE

Developed to take good care of delicate items, this programme washes at a low temperature in 59 minutes. An extended, in-depth rinse nourishes fabric fibres.

FRESH CARE

This programme is designed to remove everyday stains with a refreshing action to guarantee outstanding laundry. Low temperature wash recommended for small loads.

ALLERGY CARE 60°

This programme offers thorough cleaning of all cotton items, sanitising and eliminating bacteria. It is an efficient high temperature washing cycle. Recommended for small loads.

RAPID CARE (14'/30'/44')

Saving without compromising! This new programme may be used to obtain excellent results while saving water, energy, detergent and time. This option washes at a medium temperature suitable for any kind of fabric. Recommended for small loads and lightly soiled items.

ALL IN ONE 59'

(only available on certain models)

This programme allows you to wash different fabrics together such as cottons, synthetics and mixed fabrics in only 59 minutes, using the full load of the washing machine, at 40^ C (or less) temperature. This programme is particularly suited to slightly dirty fabrics.

COTTON CARE 59'

(only available on certain models)

This programme guarantees excellent results for cotton laundry. This option wa designed to cut washing time at medium temperatures for medium-soiled cotton laundry. Fill the machine only halfway for best results.

EXTRA CARE

This new programme may be used to wash laundry of different colourfast colours and fabrics together without altering their original look and feel. Through a perfect emulsion of water and detergent, the best possible care of your clothes is guaranteed, with optimal washing performance at a temperature of 30^ C.

Preparing the wash

Opening/ closing the drum

• Open the washing machine lid.
• Open the drum by pressing the (A) button with one hand while pressing down on the opposite door with the other.
• Place clothes in the drum one item at a time, and without squashing. Do not exceed the load limits recommended in the “programme table”. An overloaded washing machine will not wash properly, and will leave clothing wrinkled.
  ● To close the drum, place the doors so that the one with the (A) button is below the other and they fit together perfectly.

Four-panel sequence showing hands cleaning a kitchen appliance with a labeled component (A), no text or symbols present.

● The compartment ✿ is for fabric conditioners, scenting agents and special additives such as starch, blueing, etc.
● MAX - on the detergent case is underlined the maximum level of detergent to be used. Do not exceed this level.
- When the clothes present stains that need treatment with bleaches liquids products, you can proceed to their preliminary cleaning in the washing machine. For that: Introduce the bleac product in the "compartment 2", and set the rinse program. Once finished the treatment set the programmer to the OFF position, add the rest of the laundry, and proceed to the normal washing with the wanted program.

1) Maximum Main wash washing powder
2) Maximum Main wash washing liquid
3) Maximum scenting agent

Diagram of a microwave oven with labeled parts including buttons, doors, and air filters

Detergent load

The detergent dispenser is divided into 3 compartments:

● Compartment 1 is for powder detergent.
● Compartment 2 is for liquid detergent.

7. TROUBLESHOOTING AND WARRANTY

If you believe the washing machine is not working correctly, consult the quick guide provided below which includes some practical tips on how to fix the most common problems.

The Hoover Wizard app has a Clever Check-up function that allows you to confirm the functionality and status of the product at any time. To use the Hoover Wizard app you will need an Android smartphone with NFC technology. More info can be found on the App. If the display of the machine is showing an error (by a code or blinking LEDs), you should turn on the App on your Android smartphone, with NFC on. Place your smart phone against the One Touch logo on the control panel. You should now be able to read the fault directory to solve the issue.

ERROR CODE FORMAT

• Models with a display: the error is shown by a number preceded by the letter "E" (example: E2 = Error 2).
• Models without display: an error is shown by a sequence of flashes of every LED. The error code is shown by the number of flashes followed by a pause of 5 seconds (example: two flashes – pause 5 seconds – two flashes – repeating = Error 2).

Error shown	Possible causes and practical solutions
E2 (with display)2 flashes of the LEDs (without display)	The machine cannot load water.
	Make sure the water supply tap is open.
	Make sure the water supply hose isn't bent, kinked or trapped.
	Make sure the drain pipe is at the proper height (see installation section).
	Close the water supply tap, unscrew the filler hose from the back of the washing machine and make sure the “anti-sand” filter is clean and not blocked.
	Check that the filter is not clogged or that there are no foreign bodies inside the filter compartment that can obstruct the proper flow of water.
E3 (with display)3 flashes of the LEDs (without display)	The washing machine does not drain water.
	Check that the filter is not clogged or that there are no foreign bodies inside the filter compartment that can obstruct the proper flow of water.
	Make sure the drain hose isn't bent, kinked or trapped.
	Make sure the home drainage system is not blocked and is allowing water to flow through without obstruction. Try to drain the water in the sink.
E4 (with display)4 flashes of the LEDs (without display)	There is too much foam and/or water.
	Ensure the correct amount of detergent is being used and the detergent is designed for use in a washing machine.
E7 (with display)7 flashes of the LEDs (without display)	Door problem.
	Make sure the door is correctly closed. Make sure the clothes inside the drum are not preventing the door from closing fully.
	If the door is locked, turn off and unplug the washing machine from the electrical supply socket, wait 2-3 minutes and reopen the door.
Any other code	Turn off and unplug the washing machine, wait a minute. Turn on the machine and restart a program. If the error occurs again contact an Authorised Customer Service Centre directly.

OTHER ANOMALIES

Problem	Possible causes and practical solutions
The washing machine does not work / start	Make sure the product is plugged into a working supply socket.
	Make sure power is on.
	Make sure the wall socket is working, testing it with another appliance such as a lamp.
	The door may not be correctly closed: open and close it again.
	Check whether the required program was correctly selected and the start button pressed.
	Make sure the washing machine is not in pause or time delay mode.
Water leaked on the floor near the washing machine	This may be due to a leak from the seal between the tap, supply hose and fill valve; in this case, replace it and tighten the hose connections correctly.
	Make sure the front filter is correctly closed.
The washing machine does not spin	The machine is fitted with a detection system that protects the load and product from damage if the load is not balanced before spinning. This may result in:- · The machine attempts to balance the load, increasing the time of spin. · Reduction of the speed of spin to decrease vibrations and noise. · The spin cycle aborting to protect the machine and load. If this is experienced remove the load de-tangle it, reload it and restart the spin program.
	This could be due to the fact that water has not been completely drained: wait a few minutes. If the problem persists, see Error 3 section.
	Some models include a "no spin" function: make sure it is not selected.
	Check which options are selected and their effect on the spin cycle.
	Excessive detergent can impede the spin cycle, ensure the correct amount of detergent is being used.
Strong vibrations / noises are heard during the spin cycle	The washing machine may not be fully levelled: if necessary, adjust the feet as indicated in the specific section.
	Make sure transport screws, rubber bungs and spacer tubes were removed.
	Make sure there are no foreign objects inside the drum (coins, hinges, buttons, etc...).

The standard manufacturer warranty covers faults caused by electrical or mechanical faults in the product due to an act or omission of the manufacturer. If a fault is found to be caused by factors outside the product supplied, misuse or as a result of the instructions on use not being followed, a charge may be applied.

It is always recommended to use original spare parts, that are available at our Authorised Customer Service Centres.

Warranty

The product is guaranteed under the terms and conditions stated on the certificate included with the product. The certificate has to be stored so as to be shown to the Authorized Customer Service Centre in case of need. You can also check the warranty conditions on our web site. To obtain assistance, please fill in the form on-line or contact us at the number indicated on the support page of our web site.

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

The manufacturer declines all responsibility for any printing errors in the booklet included with this product. Moreover, it also reserves the right to make any changes deemed useful to its products without changing their essential characteristics.

Technical diagram of a device casing with labeled components A and B, showing internal structure and assembly lines.

Technical diagram of a washing machine with labeled components and part number ②

- Poner los embellecedores suministrados “C” (figura 2).

Diagram illustrating a recycling process with an open bin, a recycling bin, and a handbar, labeled with number ③.

50 cm max 100 cm +2,6 mt max min 4 cm min 50 cm max 85 cm

* ACCESORIO VENDIDO POR SEPARADO

Diagram illustrating a mechanical assembly or turning process with numbered steps and directional arrows indicating motion.

Diagram showing a hand holding a device with a lock and a valve, alongside a mechanical component with a bolt and threaded end.

⑦ 1 *

⑧ A B ⑨ C D

3. CONSEJOS PRÁCTICOS

Diagram showing a hand holding a circular component with directional arrows, alongside a close-up of the cable being inserted into a device (no text or symbols present)

Close-up of a hand placing a small object into a white plastic container (no text or symbols visible)

S

Close-up of a bathroom toilet sink with pipe fittings and a black arrow pointing to the outlet (no text or symbols visible)

Close-up of a mechanical component with a labeled arrow pointing to a feature (no readable text or symbols)

Montar

A L M I 60° 90° 40° 30° 20° F G H C E D Start On Touch -10

Illustration of a hand holding a small object over a surface (no text or symbols visible)

Close-up of a device's front panel showing a connector and a vertical rod, with no visible text or symbols.

Four-panel black-and-white photo showing hands cleaning a kitchen appliance with a labeled component (A), no visible text or symbols.

Carga del detergente

Diagram of a portable water heater with labeled parts including front panel, back panel, and interior compartments

7. DIAGNÓSTICO DE AVERÍAS Y GARANTÍA

Technical diagram of a device rear panel with labeled components A and B, showing internal structure and wiring connections.

Technical diagram of a washing machine with labeled component C, showing internal structure and mounting points

Diagram illustrating a recycling process with labeled steps and directional arrows

④ 50 cm max 100 cm +2,6 mt max min 4 cm min 50 cm max 85 cm

* ACCESSOIRE VENDU SÉPARÉMENT

Diagram illustrating a mechanical assembly or turning process with numbered steps and directional arrows indicating motion.

Diagram showing a hand holding a device with a lock and a valve, alongside a mechanical component with a bolt and threaded end.

⑦ 1 *

⑧ A B ⑨ C D

3. CONSEILS PRATIQUES

Diagram showing a hand holding a car handle with a magnified view of the handle being adjusted (no text or symbols present)

Close-up of a hand placing a small white object into a white plastic container (no text or symbols visible)

S

Close-up of a bathroom sink with a black arrow pointing to a component labeled 'B' (no text or symbols beyond label)

Close-up of a mechanical component with a labeled arrow pointing to a feature (no text or symbols present)

ANNULATION DU PROGRAMME

Touche DEPART DIFFERE

6) INDICATEURS OPTIONS

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Close-up of a white electronic device with a port and ventilation slots, showing no visible text or symbols.

Close-up of a hand holding a white cylindrical object on a surface (no visible text or symbols)

Close-up of hands placing objects into a sink in a washing machine (no visible text or symbols)

Close-up of hands inserting a card into a box (no visible text or symbols)

Interior view of a stainless steel kitchen drawer with mesh and perforated interior (no text or symbols visible)

Interior view of a mechanical or electronic component with a labeled section 'A' (no readable text or symbols beyond label)

Charge detergent

Diagram of a portable air conditioner unit with labeled parts including buttons, vents, and control knobs

7. DÉPANNAGE ET GARANTIES
