Freet FR18 - Deep fryer Eldom - Free user manual and instructions

Brand	Eldom
Model	Freet FR18
Product type	Electric deep fryer
Rated power	1800 W
Supply voltage	220-240 V ~ 50/60 Hz
Oil tank capacity	2.5 L
Temperature range	150 °C - 190 °C
Temperature settings	3 positions: 150 °C, 170 °C, 190 °C
Thermostat type	Adjustable thermostat
Lid	With opening button, removable
Viewing window	Yes, in the lid
Odor filter	Mesh filter in the lid, washable
Basket	With handle and lock
Handle	Foldable, integrated into the tank
Indicator lights	Power indicator (POWER) and operation indicator (WORKING)
Switch	On/Off (positions 0/1)
Use	Household use only
Warranty	Warranty valid for private household use

Frequently Asked Questions - Freet FR18 Eldom

What is the oil capacity for the Eldom Freet FR18 deep fryer?

The oil tank capacity is 2.5 liters. Do not exceed the internal markings.

What temperature to choose for fries?

For crispy fries, set the thermostat to 170 °C. For more delicate foods, use 150 °C.

Can I use solid fat in the deep fryer?

Yes, cut the solid fat into small pieces, melt it in a separate container then pour it into the deep fryer. Never put it directly into the basket.

How to clean the oil tank?

After cooling, pour out the used oil, remove the lid by sliding it out of the fixings, then wash the tank with hot water and dish soap. Do not use abrasive products.

How often to change the oil?

Replace the oil every 8 to 12 uses to preserve the flavor and quality of the food.

What to do if the fat catches fire?

Immediately close the lid to smother the flames. Never use water to extinguish a grease fire.

How to avoid oil overflow?

Do not overload the basket, especially with frozen foods. First immerse the basket with the frozen foods for 10 seconds before closing the lid.

Can I clean the lid in the dishwasher?

No, the lid must be hand washed with a damp cloth and liquid detergent. Dry it thoroughly before putting it back in place.

How to store the power cord?

The cord can be wound around the handle located at the back of the housing for easy storage.

What to do if the appliance no longer heats up?

Check that the switch is in position 1 and that the thermostat is set. If the problem persists, contact an authorized service center. Do not attempt to repair the appliance yourself.

USER MANUAL Freet FR18 Eldom

_

| _

一

1

/EN/ The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batte ries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

UŻYTKOWANIE URZĄDZENIA

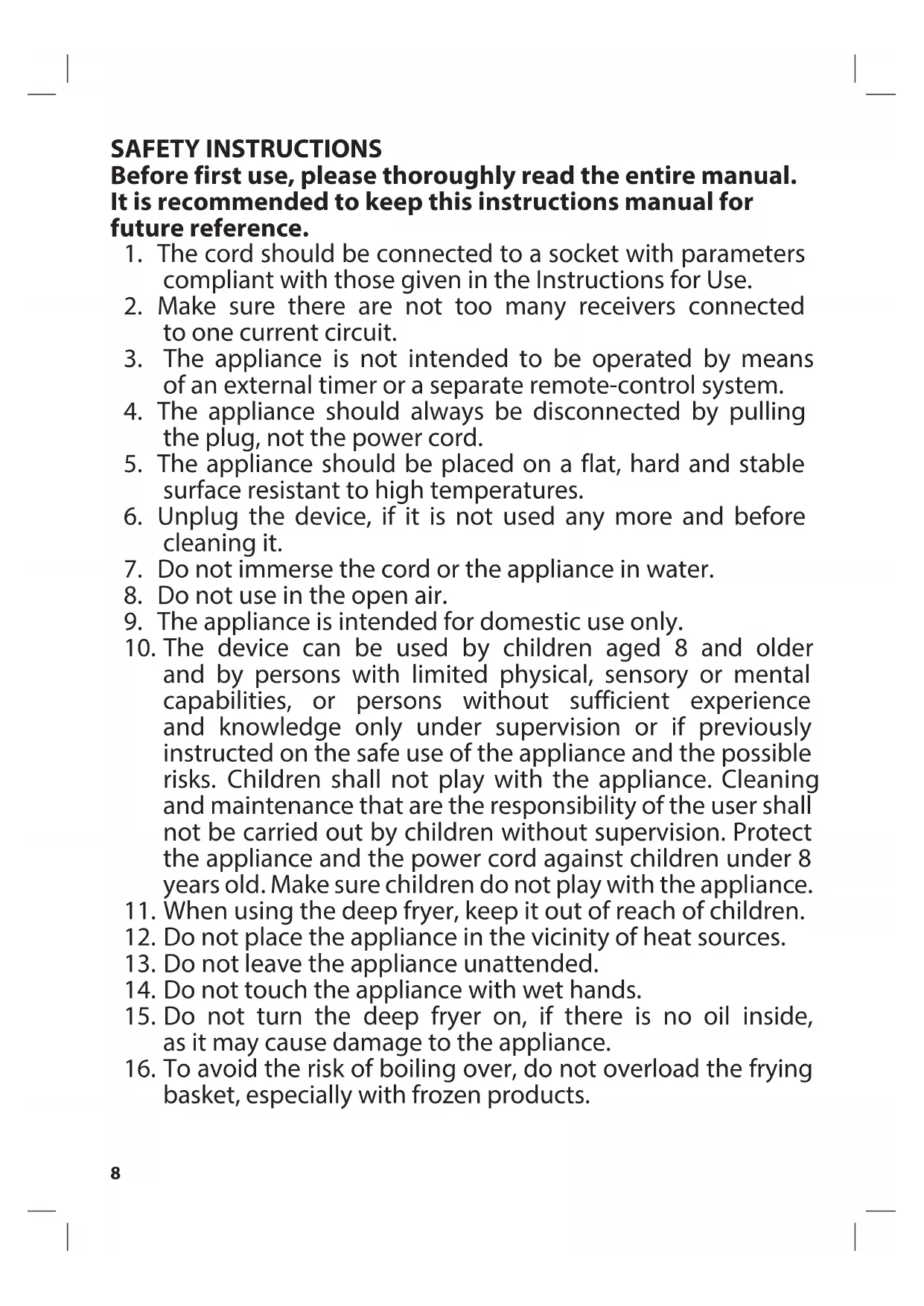

SAFETY INSTRUCTIONS

Before first use, please thoroughly read the entire manual. It is recommended to keep this instructions manual for future reference.

1. The cord should be connected to a socket with parameters compliant with those given in the Instructions for Use.

2. Make sure there are not too many receivers connected to one current circuit.

3. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

4. The appliance should always be disconnected by pulling the plug, not the power cord.

5. The appliance should be placed on a flat, hard and stable surface resistant to high temperatures.

6. Unplug the device, if it is not used any more and before cleaning it.

7. Do not immerse the cord or the appliance in water.

8. Do not use in the open air.

9. The appliance is intended for domestic use only.

10. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old. Make sure children do not play with the appliance.

11. When using the deep fryer, keep it out of reach of children.

12. Do not place the appliance in the vicinity of heat sources.

13. Do not leave the appliance unattended.

14. Do not touch the appliance with wet hands.

15. Do not turn the deep fryer on, if there is no oil inside, as it may cause damage to the appliance.

16. To avoid the risk of boiling over, do not overload the frying basket, especially with frozen products.

17. When frying, do not keep your hands over the filter chamber.

18. Do not move the deep fryer, if the oil inside is hot.

19. Do not pour the oil away, if the deep fryer is hot. Wait until the appliance cools down.

20. If the fat catches fire, close the lid and smother the fire. Do not try to extinguish the fire with water in any case.

21. Use only with the originally included accessories.

22. Do not use the appliance, if the power cord is damaged or if the appliance fell down or was otherwise damaged. The appliance should be repaired in an authorised Service Centre; a list of Service Centres can be found in the attachment and on the website www.eldom.eu.

23. The appliance can be repaired only in an authorised Service Centre. Any modernisation or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.

24. The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.

WARNING: Improper use of the appliance may cause injury. WARNING:

Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

This symbol is a warning against the high temperature of the appliance surface.

• ENVIRONMENTAL PROTECTION

- The appliance is made of materials which can be recycled.

- It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

• WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.

EN

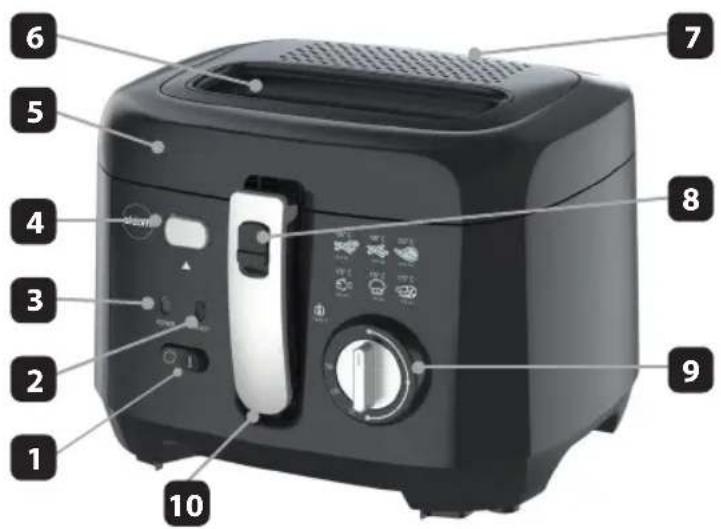

1. ON/OFF switch

2. WORKING signal light

3. POWER signal light

4. Lid release button

5. Lid

6. Viewing window (monitoring of cooking)

7. Filter

8. Handle lock

9. Temperature control

10. Handle

TECHNICAL DATA

- power: 1800W

- supply voltage: 220-240V\~50/60Hz

- capacity: 2,51

- oil temperature control: 150 °C-190°C

HOW TO USE THE APPLIANCE

After unpacking the appliance, make sure it has not been damaged during transport. In case of any doubts, do not use the appliance until consulting a service centre. Before using the appliance for the first time, wash the frying basket and the fat container.

Filling the fat container

Place the appliance on a flat, hard and stable surface resistant to high temperatures.

• Open the lid by pressing the button (4).
• Raise the frying basket with the use of the handle (10) (the handle will lock) and pull it out, releasing it from the catch.
• Fill the container with fat (about 2-2.5 l).

It is recommended to use pure vegetable oil. Do not mix different types of oil or fat. The oil level may not exceed the markings inside the container. In case of using solid vegetable fat, cut it up into small pieces, melt in a separate dish and pour into the deep fryer (900 g of solid fat is equivalent to 1 litre of oil). Never place the fat directly on the frying basket as it may cause damage to the appliance.

Placing products in the appliance

• Open the lid (5) of the deep fryer by pressing the button (4).
• Place the frying basket back into the appliance fot.1
• Place the prepared products in the frying basket.
• Close the lid of the deep fryer by pressing it lightly until it audibly clicks in.

Turning the deep fryer on

Set the thermostat knob (9) and the ON/OFF switch (1) to position "0". Plug the appliance in. Set the switch (1) to position "1". The indicating lamp (3) signals that the deep fryer is in operation. Turn the temperature controller (9) to the desired temperature of frying.

The thermostat is calibrated in steps marked 150°C, 170°C and 190°C. After about 10 minutes the fat reaches the right temperature. When frying, the indicating lamp of the thermostat (7) may light up and go out several times. The lamp goes out when the desired temperature is reached. After frying, raise the frying basket and leave it to drip off phot1.

CLEANING AND MAINTENANCE

1. Fat container

The fat must be changed on a regular basis (every 8 to 12 frying sessions), not only to achieve the best flavour but also to ensure lightness of dishes. The nutrition value of the fried dishes depends largely on the quality of the fat. Do not pour away the used fat into the sink. It is better to cool it down and throw away in the rubbish bin. Before pouring away the fat and cleaning the container, remove the lid by opening and releasing it from the hinges at the back wall of the body of the deep fryer. Wash the container with hot water, washing-up liquid and a sponge. Do not use any scrubbing agents. If the container is burnt, we recommend soaking it in water for about 30 min before washing. Dry the container carefully before using. The appliance must not be immersed in water.

2. Lid.

Remove the lid (phot. 2) from the hinges of the appliance body. Clean with a moist cloth with some washing-up liquid. Dry the lid carefully before putting it back into place.

3. Frying basket

Wash the frying basket with hot water, using a cloth and washing-up liquid.

4. Appliance body

The outside surfaces and the conductor should be cleaned with a moist cloth. Do not use any scrubbing agents or sharp tools. Before putting the appliance away, coil the conductor at the back.

5. Filter

There is a filter in the lid of the appliance (phot. 3). Its condition should be checked regularly. If dirty, the filter should be replaced.

PRACTICAL ADVICE

- Do not place too much food in the frying basket.

- Do not add water to oil as it will lower its quality.

- Do not mix fresh oil with the old one.

- Do not mix different types of fats.

- Make sure the food you use is as dry as possible and remove frost from deep-frozen products.

- in case of intensely frosted products - immerse the basket with the meal, wait approx. 10 seconds, and only then close the lid of the fryer. Otherwise steam may condense inside the fryer, which will lead to steam leakages from the side of the device

- When frying, do not lean over the lid of the deep fryer, in particular when the deep fryer is open and full of hot fat.

- In case of any irregularities regarding the operation of the appliance, consult an authorised Service Centre. Any repairs, including replacement of power cord, can be carried out only by an authorised repair shop.

- Do not place the deep fryer in the vicinity of heat sources.

- If the deep fryer is not used very often, the oil can be kept in a separate container in the fridge.

- The power cord can be coiled around the handle at the back of the casing.
