USER MANUAL AutoFeed+ GBC

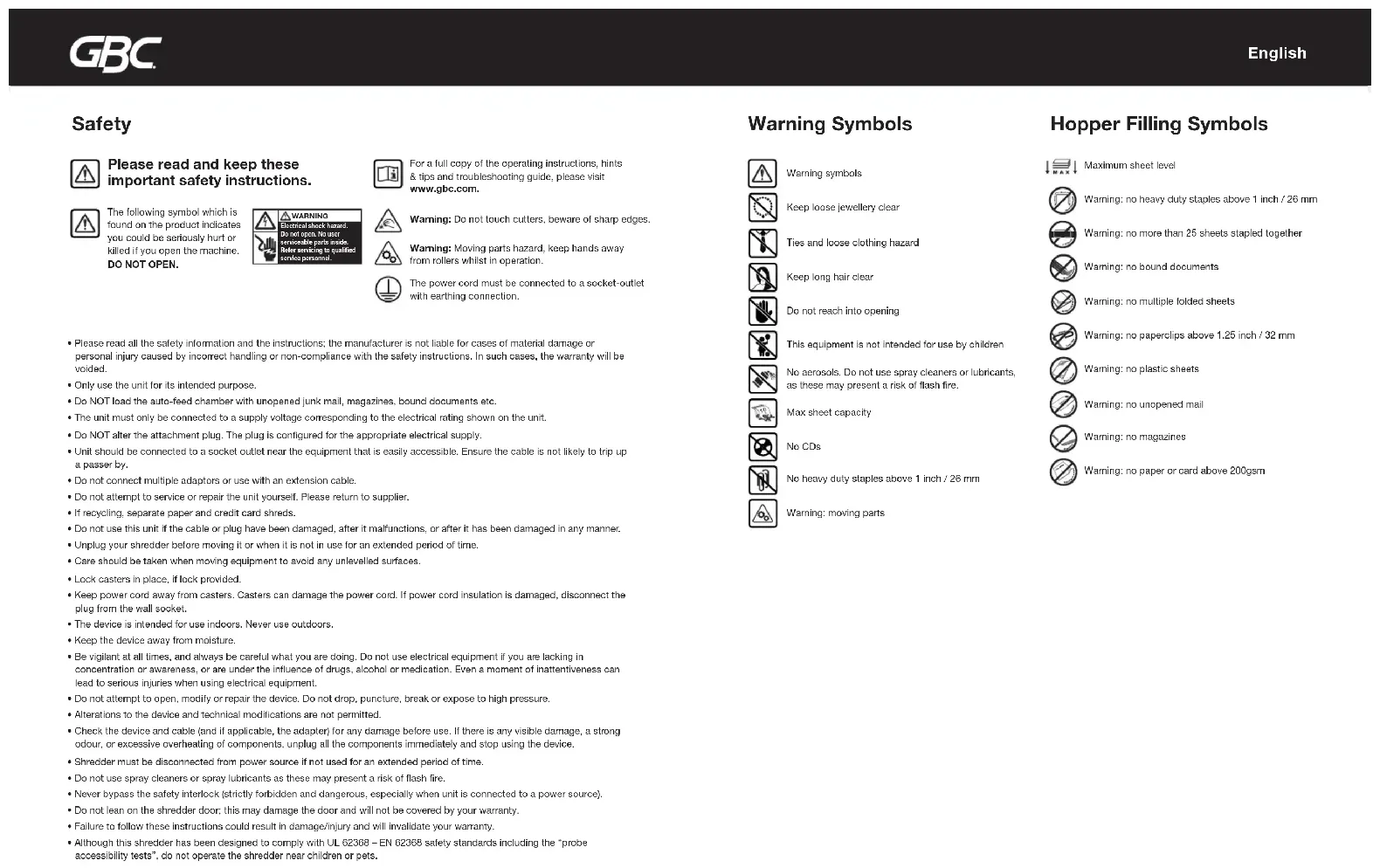

SHREDDERS Sheet Capacity Bin Size Manual Feed Gallons / Liters 6 5.3 / 20 8 9 / 34 6 9 / 34 8 11.6 / 44 6 11.6 / 44 10 15.9 / 60 8 15.9 / 60 10 15.9 / 60 8 15.9 / 60 15 29 / 110 10 29 / 110 20 37 / 140 15 37 / 140 English Operation Power On Manual Shredding Auto Shredding Remove Jam Credit Card Shredding 4 5English Safety Please read and keep these For a full copy of the operating instructions, hints & tips and troubleshooting guide, please visit important safety instructions. www.gbc.com. The following symbol which is WARNING Electrical shock hazard. Do not open. No user serviceable parts inside. Refer servicing to qualified service personnel.

Warning: Do not touch cutters, beware of sharp edges.

found on the product indicates you could be seriously hurt or killed if you open the machine.

Warning: Moving parts hazard, keep hands away

DO NOT OPEN. from rollers whilst in operation. The power cord must be connected to a socket-outlet with earthing connection.

• Please read all the safety information and the instructions; the manufacturer is not liable for cases of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions. In such cases, the warranty will be voided.

• Only use the unit for its intended purpose.

• Do NOT load the auto-feed chamber with unopened junk mail, magazines, bound documents etc.

• The unit must only be connected to a supply voltage corresponding to the electrical rating shown on the unit.

• Do NOT alter the attachment plug. The plug is congured for the appropriate electrical supply.

• Unit should be connected to a socket outlet near the equipment that is easily accessible. Ensure the cable is not likely to trip up a passer by.

• Do not connect multiple adaptors or use with an extension cable.

• Do not attempt to service or repair the unit yourself. Please return to supplier.

• If recycling, separate paper and credit card shreds.

• Do not use this unit if the cable or plug have been damaged, after it malfunctions, or after it has been damaged in any manner.

• Unplug your shredder before moving it or when it is not in use for an extended period of time.

• Care should be taken when moving equipment to avoid any unlevelled surfaces.

• Lock casters in place, if lock provided.

• Keep power cord away from casters. Casters can damage the power cord. If power cord insulation is damaged, disconnect the plug from the wall socket.

• The device is intended for use indoors. Never use outdoors.

• Keep the device away from moisture.

• Be vigilant at all times, and always be careful what you are doing. Do not use electrical equipment if you are lacking in concentration or awareness, or are under the inuence of drugs, alcohol or medication. Even a moment of inattentiveness can lead to serious injuries when using electrical equipment.

• Do not attempt to open, modify or repair the device. Do not drop, puncture, break or expose to high pressure.

• Alterations to the device and technical modications are not permitted.

• Check the device and cable (and if applicable, the adapter) for any damage before use. If there is any visible damage, a strong odour, or excessive overheating of components, unplug all the components immediately and stop using the device.

• Shredder must be disconnected from power source if not used for an extended period of time.

• Do not use spray cleaners or spray lubricants as these may present a risk of ash re.

• Never bypass the safety interlock (strictly forbidden and dangerous, especially when unit is connected to a power source).

• Do not lean on the shredder door; this may damage the door and will not be covered by your warranty.

• Failure to follow these instructions could result in damage/injury and will invalidate your warranty.

• Although this shredder has been designed to comply with UL 62368 – EN 62368 safety standards including the “probe accessibility tests”, do not operate the shredder near children or pets. Warning Symbols Warning symbols Keep loose jewellery clear Ties and loose clothing hazard Keep long hair clear Do not reach into opening This equipment is not intended for use by children No aerosols. Do not use spray cleaners or lubricants, as these may present a risk of ash re. Max sheet capacity No CDs No heavy duty staples above 1 inch / 26 mm

Warning: moving parts

Warning: no more than 25 sheets stapled together

Warning: no bound documents

Warning: no multiple folded sheets

Warning: no magazines

Warning: no paper or card above 200gsm

Bin full indication (open door and empty the bin) Door open or shredder head removed indication (close door rmly or replace head on bin) Hopper locked indication (unlock by entering 4 digit combination) 300, 600, 750 models Hopper Locking combination buttons Hopper locking security combination button 1 Hopper locking security combination button 2 Hopper locking security combination button 3 Hopper locking security combination button 4 Operation

1. Unpack the product.

2. Connect the shredder to a power outlet with voltage

corresponding to the electrical rating shown on the unit.

3. Ensure the ON/OFF button on the back of the machine

is in the ON position, which will illuminate the blue standby symbol

4. To load the shredder, simply lift the loading door handle

to open the loading door and insert documents. You can open the door further to 90 degrees for easier access if required. Load up to MAX sheets at a time into the feed chamber. Do not ll above the MAX level, this could damage the shredder.

5. The shredder will start the shredding cycle

automatically ONLY after closing the loading door. If there is still paper in the AutoFeed chamber after rst attempt, open and re-close the paper loading door a second time. Attention: If required you can now lock the loading door by entering a 4 digit code (see Locking the Paper Loading Door section).

6. If you only have a few sheets to shred, you can use the

manual feed slot, provided the auto feed chamber is empty.

7. Insert paper to be shredded into the feed area. The

shredder will detect the paper and start automatically.

8. If the shredder is left in auto mode for more than

2 minutes without being used, the shredder will automatically turn back to sleep mode in order to save power.

9. The shredder will automatically ‘wake up’ from sleep

mode when paper is inserted into the shred mouth or you open the loading door. There is no need to press the Auto button

Auto Feed Technology The AutoFeed+ shredders have been designed to automatically shred up to 750 sheets from the auto-feed chamber and up to 20 sheets through the manual feed slot. The auto-feed mechanism has been designed to handle paper fastened with staples and paper clips and to only pull a few sheets of paper into the cutting mechanism to minimise the risk of paper jams. See specications tables for the capacity details on your model. Locking the Paper Loading Door For additional security the paper loading door can be locked during the shredding of condential material. To lock shredder:

1. Place documents in tray. Close paper loading door.

• 4 digit code is re-entered.

• Shredding is complete.

• Shredder is inactive for 30 minutes (but documents remain in tray) Bin Full The shredder will not function when the bin is full and the bin full symbol is illuminated. You should empty the bin.

• Pull open the bin slowly to empty.

• Push the empty bin back into place and press the auto button to resume shredding. Over Heating If the AutoFeed+ shredder is used continuously without pausing, it may overheat and the cool down indicator will ash red . Please allow the shredder to cool down. When the shredder is ready to be used the thermometer symbol will no longer illuminate. If the shredder needs to cool down while shredding, no action is needed. The shredder will automatically restart shredding paper once it has cooled down after periods of continuous use. All you need to do is ensure paper is loaded into the chamber and the bin is empty when the machine is cooling down. Serviceable Machines (for 600 sheet and above) We recommend these machines are serviced every 6 to 12 months by a GBC service engineer – see www.gbc.com/ support for enquiries about maintenance contracts. 8 9English AutoFeed+ Shredding Capability CAN shred the following:

• Stapled paper, 1 inch / 25 mm within the corner • 11’’ x 17’’ folded in half max. 2 sheets

• 26/6 and 24/6 or smaller staples • 300 sheets

• Small sized paper • 80gsm paper - Letter - 8.5" x 11"

• Paperclipped paper, 1 inch / 25 mm within the corner - 1/2 Sheet - 5.5" x 8.5"

• Capable of shredding small/medium paperclips - Tabloid - 11" x 17" (max. wire thickness = .035 inches / .9 mm)

• 65-100gsm paper CAN shred (through the manual feed slot): Glossy paper or a sheet Multiple folded sheets Thick paper or card <200gsm covered with print on both (11’’ x 17’’ sheets folded sides. in half). CANNOT shred the following: Heavy duty staples. Large clips. Check the length Plastic sheets, Check the staple leg of the paperclip is not longer laminated documents, length is not greater than 1.25 inches / 32 mm. plastic folders. than .23 inches / 6 mm. Magazines or other Bulldog clips documents bound by Bound documents multiple staples or clips. Adhesive labels No aerosols No Liquid Oil No CDs & DVDs Lubrication of the Shredder Maintenance GBC recommends using an oil sheet after the bin has been The rollers on the auto-feed mechanism may become dirty emptied three times (and every three bin emptying after this). over time, please wipe clean with a dry cloth to maintain Insert the oil sheet into the manual feed slot and NOT in maximum product performance. the auto-feed chamber. Using an oil sheet in the auto-feed The auto-start infrared sensor, located in the paper feed chamber will contaminate the feed rollers preventing the entry-slot, can occasionally become covered in paper- auto-feed mechanism shredding. Follow the maintenance dust causing the shredder to run despite no paper being instructions if the rollers become contaminated. fed into the machine. Switch the shredder off at the rear of the machine and carefully clean the sensor using a cotton-swab. Limited Warranty Cutter warranties vary by model. Limited 2 year warranty on the shredder unit. ACCO Brands USA LLC, Four Corporate Drive, Lake Zurich, IL 60047-8997 (in Canada, ACCO Brands Canada Inc., 5 Precidio Court, Brampton, ON L6S 6B7; and in Mexico, ACCO Mexicana, S.A. de C.V. Av. Circuito Industrial Norte #6 Parque Industrial Lerma 52000, Lerma Edo. De México) (each, respectively, “ACCO Brands”) warrants to the original purchaser that the cutters of these GBC® AutoFeed Shredders are free from defects in workmanship and material under normal use and service for a period of 2 years after purchase and all other parts are free from defects in workmanship and material under normal use and service for a period of 2 years after purchase. ACCO Brands’ obligation under this warranty is limited to replacement or repair, at ACCO Brands’ option, of any warranted part found defective by ACCO Brands without charge for material or labor. Any replacement, at ACCO Brands’ option, may be the same product or a substantially similar product that may contain remanufactured or refurbished parts. This warranty shall be void in the following circumstances: (i) if the product has been misused, (ii) if the product has been damaged by negligence or accident, or (iii) if the product has been altered by anyone other than ACCO Brands or ACCO Brands’ authorized agents. For warranty execution, please call: 1-800-541-0094 in the USA 1-800-263-1063 in Canada 01-(55)-1500-5700 / 5778 in Mexico Or go to www.gbc.com to register your product. TO THE EXTENT ALLOWED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESSED WARRANTIES. REPRESENTATIONS OR PROMISES INCONSISTENT WITH OR IN ADDITION TO THIS WARRANTY ARE UNAUTHORIZED AND SHALL NOT BE BINDING ON ACCO BRANDS. TO THE EXTENT PERMITTED BY APPLICABLE LAWS, ANY IMPLIED WARRANTIES (IF APPLICABLE) ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ACCO BRANDS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL OR SIMILAR DAMAGES, WHETHER OR NOT FORSEEABLE. SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INCIDENTAL, PUNITIVE, EXEMLARY, CONSEQUENTIAL, OR SIMILAR DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU. FOR CONSUMERS WHO HAVE THE BENEFIT OF CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR JURISDICTION OF PURCHASE OR, IF DIFFERENT, IN THEIR JURISDICTION OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS. To the extent permitted by law, this warranty is not transferable and will automatically terminate if the original product purchaser sells or otherwise disposes of the product. This warranty gives you specic legal rights. Other rights, which vary from jurisdiction to jurisdiction, may exist. In addition some jurisdictions do not allow (i) the exclusion of certain warranties, (ii) limitations on how long an implied warranty lasts and/or (iii) the exclusion or limitation of certain types of costs and/or damages, so the above limitations may not apply.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

CANADA CLASS B NOTICE

This Class B digital apparatus complies with Canadian ICES-003 MODIFICATIONS Any modications made to this device may void the authority granted to the user by the FCC and/or by Industry Canada to operate this equipment. ACCO is a registered trademark of ACCO Brands. Copyright © 2021 ACCO Brands. All rights reserved. *ACCO Brands North America accepts no liability for product performance or safety when other types or brands of lubricants are used on any part(s) of this machine.
