Product type	Fan
Brand	Ardes
Model	AR5F03
Power supply	USB 5V DC (via included USB cable)
Power	Low consumption (standard USB)
Approximate dimensions	25 cm diameter (grille), height 30 cm
Approximate weight	1 kg
Material	Plastic
Color	White (likely)
Functions	On/Off switch, adjustable vertical tilt via feet
Protection grille	Removable front grille for blade cleaning
Handle	Integrated for easy transport
Safety	Stop before removing grille, do not use near water, do not obstruct
Noise level	Not specified, but low (silent fan)
Usage	Indoor only, on stable surface
Maintenance and cleaning	Unplug before cleaning, removable front grille, clean with dry soft cloth, do not immerse
Warranty	24 months, subject to conditions
Spare parts and repairability	Contact authorized after-sales service, no user repair
Package contents	Fan, USB cable, instruction manual
USB compatibility	Computer, standard USB power adapter (5V)

Frequently Asked Questions - AR5F03 ARDES

How to connect the AR5F03 fan?

Plug the included USB cable into a USB port (computer, wall charger, etc.). Make sure the switch is on 0 before plugging in.

How to turn the fan on and off?

Use the switch on the fan: position | to turn on, position 0 to turn off. Then unplug the USB cable if necessary.

Can I tilt the fan?

Yes, the fan has feet that allow vertical tilt adjustment. Open the feet to change the angle.

How to clean the fan?

Always unplug the device before cleaning. Remove the front grille by turning it to the left, clean the blades with a soft dry cloth, then replace the grille by turning it to the right. Do not use water or chemicals.

Is the fan noisy?

The fan is designed to be quiet. However, if abnormal noise occurs, check that nothing is obstructing the blades or grille, and that the fan is on a stable surface.

Can I use the fan outdoors?

No, the fan is designed for indoor use only. Do not expose it to rain, direct sunlight, or dust.

What to do if the fan does not work?

First check that the USB cable is properly connected and that the power source works. Make sure the switch is on |. If the problem persists, contact an authorized after-sales service.

How to store the fan in winter?

Store the fan in its original packaging or in a dry, dust-free place. Before reusing after a long period, check that it is clean and that the blades turn freely.

Can the fan be used by children?

Yes, from 8 years old under supervision. Children should not play with the device. Cleaning should not be carried out by children without supervision.

How to dispose of the fan at end of life?

Do not dispose of the device with household waste. In accordance with the WEEE directive, deposit it at a collection point for recycling of electrical and electronic equipment.

USER MANUAL AR5F03 ARDES

3D rendering of a mechanical fan with labeled parts (no text or symbols on the fan itself)

Technical line drawing of a mechanical fan or impeller assembly with rotational arrow (no text or symbols)

1

Technical illustration of a mechanical gear assembly with no visible text or symbols

2

Technical illustration of a mechanical fan assembly with internal blades and a handle (no text or symbols)

1

Technical line drawing of a mechanical fan or impeller assembly with rotational motion indicator (no text or symbols)

2

This appliance may be used by children 8 years of age and older and people with reduced physical, sensory or mental capacities or with a lack of experience and knowledge if they are adequately supervised or have been instructed on the safe use of the appliance and are aware of the related dangers.

Children must not play with the appliance.

Cleaning and maintenance operations must not be performed by children without supervision.

If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer.

Ensure that the fan is switched off from the supply before removing the guard.

Assemble the guard immediately after maintenance and before using the appliance.

The appliance must only be supplied at safety extra low voltage corresponding to the ratings on the appliance (5V DC) by USB socket.

ATTENTION : read this booklet carefully it contains important instructions for a safe installation, use and maintenance.

Important instructions to be kept for future reference.

It is forbidden for the children to play with the device.

This device must be used only for the purpose it was expressly designed; any use not complying with the instructions contained in the manual is considered inappropriate and dangerous. The manufacturer is not responsible for possible damages caused by the inappropriate and/or unreasonable use.

This device is NOT suitable to use it in an explosive environment (in the presence of flammable substances such as gas, vapor, mist or dust, in atmospheric conditions when, after ignition, the combustion is spread in the air).

The packing materials (plastic bags, expanded polystyrene, etc.) must be kept out of the reach of children or disabled persons since they represent potential sources of danger.

The installation/assembly of the device will be made/ or according to the indications of the manufacturer. A wrong procedure may cause damages to persons, animals or objects, for which the manufacturer cannot be considered responsible.

After removing the packaging, check the appliance for any signs of damage. In case of visible damage, do not use it and contact a qualified technician.

Place and use the device on a horizontal and stable surface.

DO NOT use or store the device near heat sources (heaters, stoves etc.).

DO NOT dip the device in water or other liquids; in case the accidental fall in the water DO

NOT try to take it out, but first of all unplug immediately the power cable from the socket.

If you use the device for the first time, make sure to remove any label or protective sheet which blocks its proper functioning.

Plug and unplug the power cable with dry hands and hold it firmly.

Before plugging make sure the start button of the device is in the "OFF" position (turned off).

Always unplug the power cable to avoid the overheating and avoid stretching it (do not pull it, tug it or use it to drag the device to which is connected).

Avoid placing the power cable on abrasive or sharp surfaces or in positions where it can be damaged easily.

DO NOT obstruct totally nor partially the air vents or inserts objects inside.

During the use the device must be keep at a safety distance from any object and/or flammable or potentially explosive substance.

In case of a breakdown or malfunctioning of the appliance, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer. Avoid carrying out operations which are not specified in this manual (such as disassembling and/or altering).

Always remember to unplug the power cable of the device if it is not used for a long period, before storing, cleaning or performing any maintenance operation.

Store and use the device only indoor or in any case protected from weathering such as rain, direct radiation of the sun and dust. The device is not design for the external use or storage.

Before unplugging the device, switch it off, using the proper command on the control panel.

DO NOT hang the fan on the wall or ceiling unless this type of installation is provided and explained in this manual.

Place the device at a proper distance from the objects or surrounding walls making sure that its functioning will not cause accidental damages.

DO NOT use the device near gas stoves or open flames in general.

DO NOT use the device near curtains or textiles.

DO NOT hang the fan on the wall or ceiling unless this type of installation is provided and explained in this manual.

DO NOT cover the device during functioning.

DO NOT insert objects or body parts inside the protection grille of the fan.

DO NOT leave the device unsupervised for a long period during functioning.

DO NOT expose yourself for a long period to the air flow generated by the device because it can cause damage to the health.

If the fan must be stored for a long period and is not used regularly, place the fan in its original packaging in a dry place. When you use it for the first time after a long period of inactivity, make sure the fan is clean and the motor blades turn feely (with the device not powered) without any restraint.

(EN) Technical informations

3D rendering of a mechanical fan with labeled parts (no text or symbols beyond labels)

1. Handle

2. ON/OFF switch

3. Air-outlet grid

4. Feet - vertical tilt

(EN) Instructions for use

1. Place and use the device on a horizontal and stable surface;
2. Open the feet (4) to adjust the vertical tilt of the fan;
3. Ensure that the switch (3) is set to "0";
4. Connect the USB cable to the USB socket of the computer or of the power supply;
5. To switch on the appliance, set the switch (3) to "|";
6. To switch off the appliance, set the switch (3) to "0" and then disconnect the USB cable from the USB socket.

(EN) MAINTENANCE

Before carrying out the regular cleaning operations turn off the fan and unplug it.

Ensure that the fan is switched off from the supply before removing the guard.

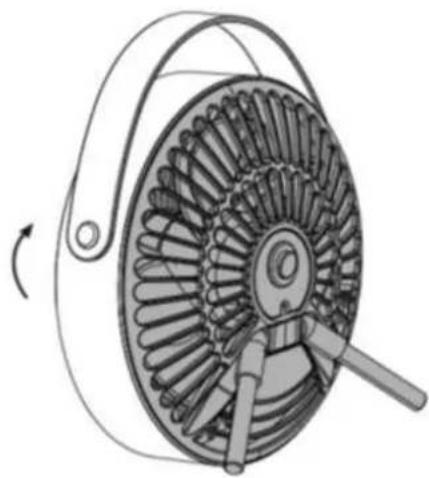

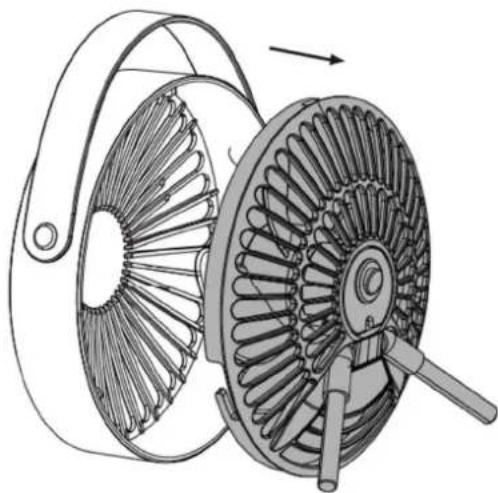

The front grill can be easily detachable to clean: rotate the front grill counterclockwise to take it down:

Technical line drawing of a mechanical fan or impeller assembly with rotational arrow (no text or symbols)

1

Technical illustration of a mechanical fan assembly with internal blades and a handle (no text or symbols)

2

Clean the blades by using a soft dry cloth then close the grid by rotating it clockwise to assemble it with the rear grill:

Technical illustration of a mechanical fan assembly with internal blades and a handle (no text or symbols)

1

Technical line drawing of a mechanical fan or impeller with internal blades and a handle, showing rotational motion (no text or symbols)

2

For external cleaning use a soft and dry cloth.

DO NOT dip the device in water, or splash it with any other liquids.

DO NOT use solvents or any other chemical products for cleaning it. When you do not use it, after cleaning it, store the fan in a dry place.

(EN) DISPOSAL

USER INFORMATION

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)", pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal".

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.

For more details, please contact the appropriate local authority.

Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.

(EN) GUARANTEE

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

- mishandled by unauthorized persons

- improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.
