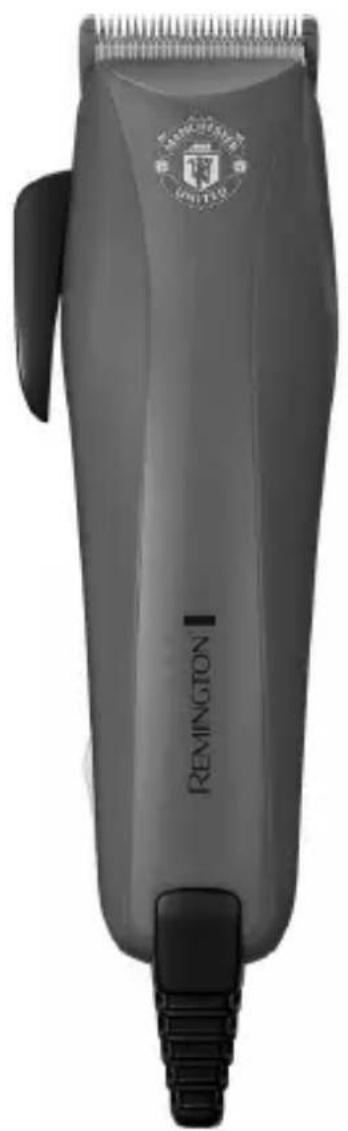

USER MANUAL ColourCut HC5038 REMINGTON

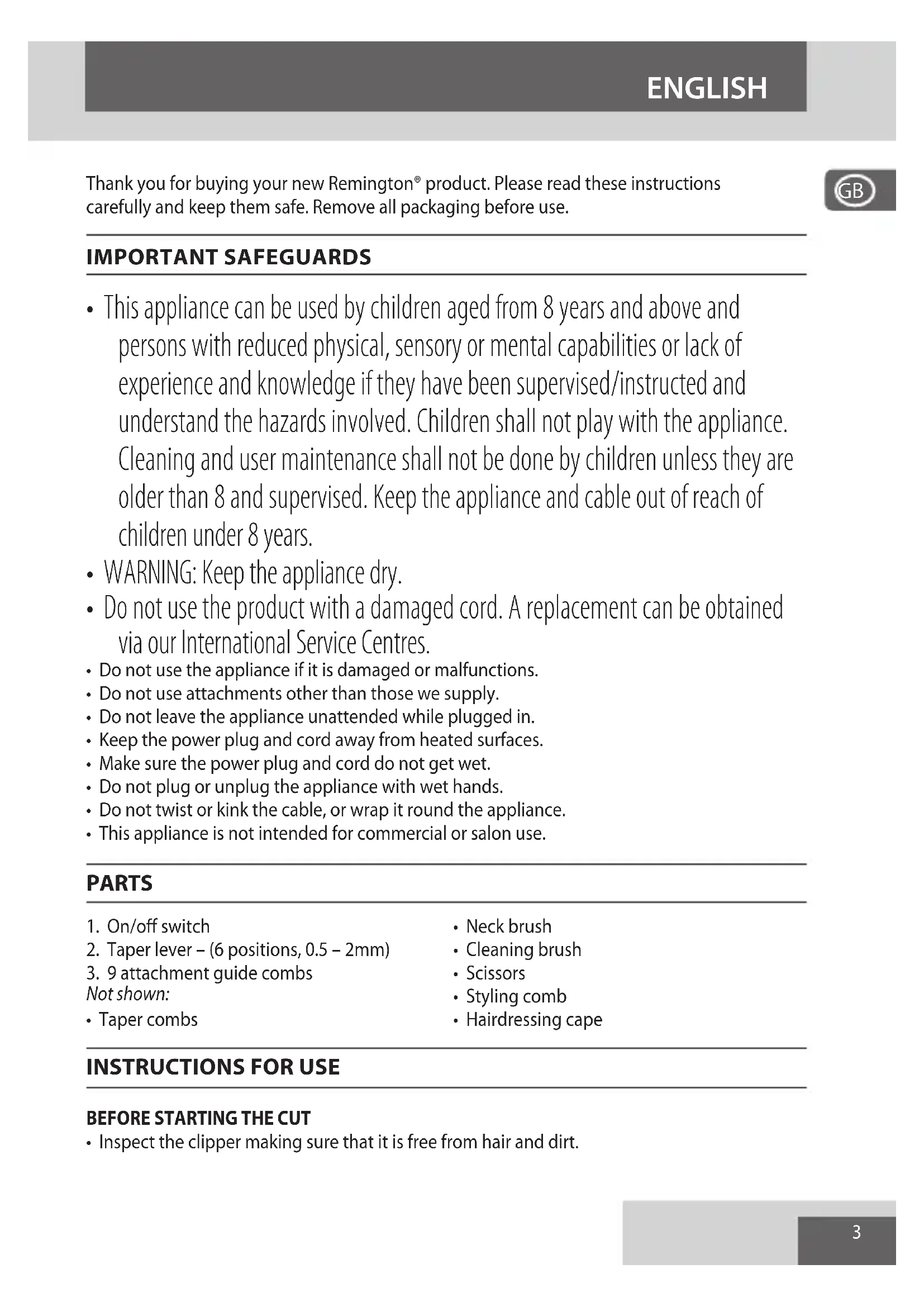

Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use. IMPORTANT SAFEGUARDS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.

• WARNING: Keep the appliance dry.

• Do not use the product with a damaged cord. A replacement can be obtained via our International Service Centres.

• Do not use the appliance if it is damaged or malfunctions.

• Do not use attachments other than those we supply.

• Do not leave the appliance unattended while plugged in.

• Keep the power plug and cord away from heated surfaces.

• Make sure the power plug and cord do not get wet.

• Do not plug or unplug the appliance with wet hands.

• Do not twist or kink the cable, or wrap it round the appliance.

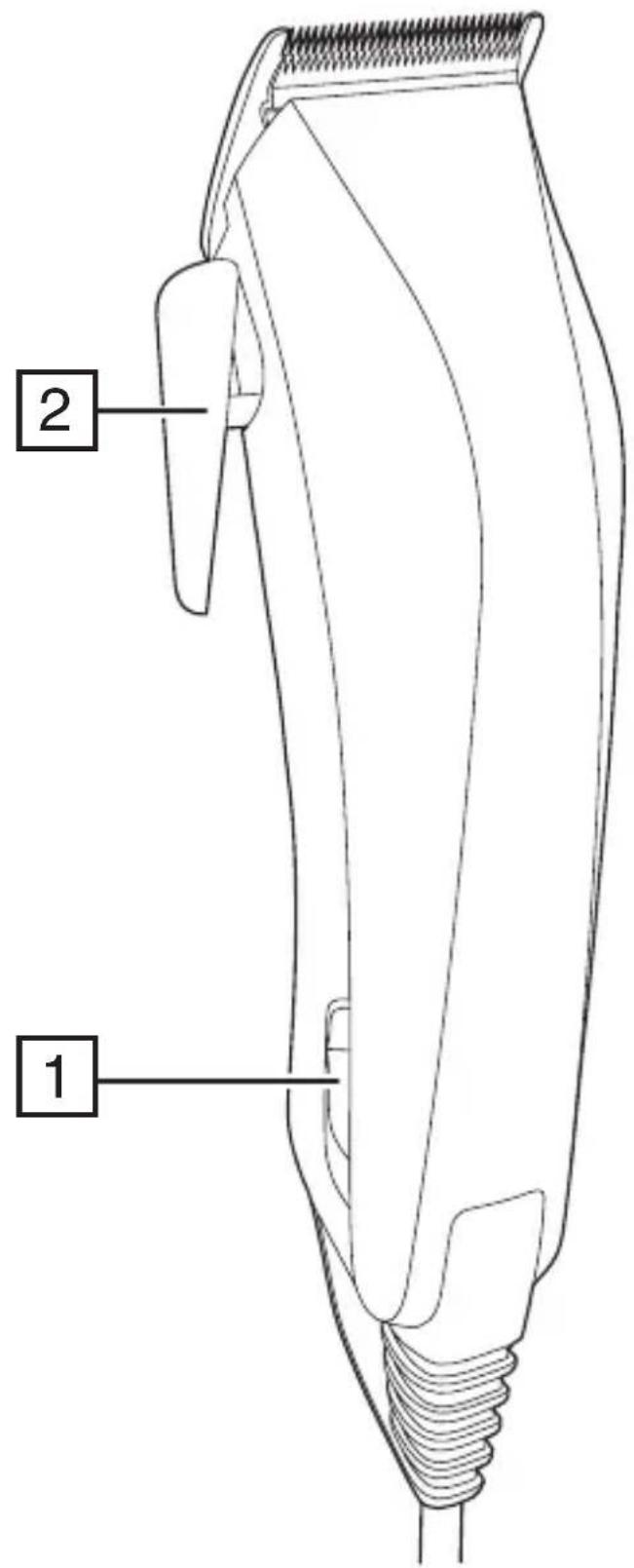

• This appliance is not intended for commercial or salon use. PARTS

• Inspect the clipper making sure that it is free from hair and dirt. ENGLISH

• Seat the person so that their head is approximately at your eye level.

• Before cutting, always comb the hair so it is tangle free and dry.

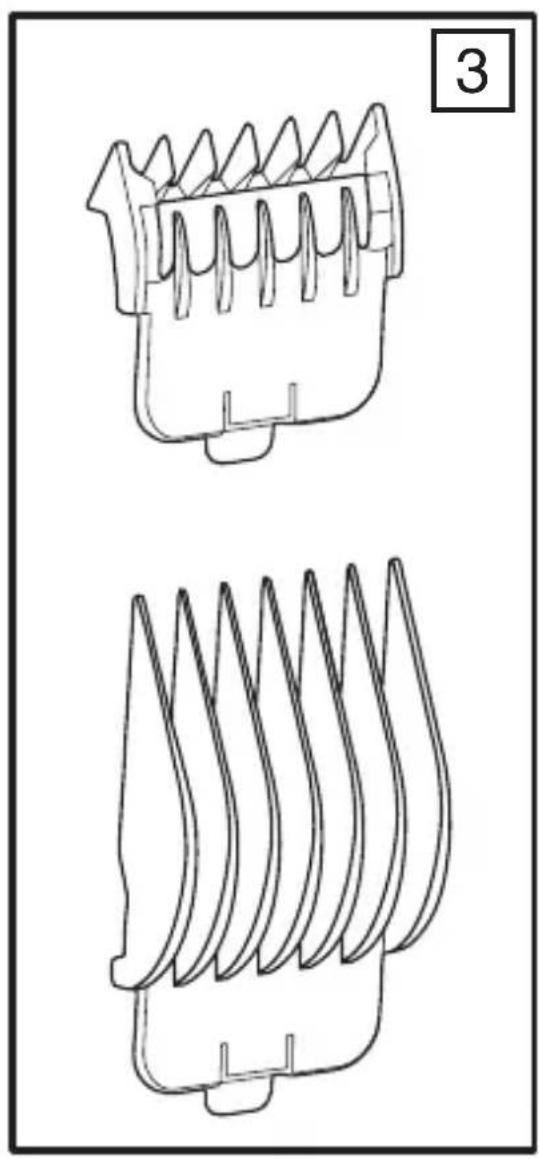

• Hold the comb with its teeth upward.

• Slide it onto and along the clipper blade until the front of the comb rmly sits against the clipper and click into position.

• Holding the clipper with the blades facing away from you, rmly push the comb upward and away from the blades.

• Each comb attachment is marked accordingly on its outside middle surface.

• Please note a 0.5mm cutting length can be achieved from holding the clipper, with no comb attachment, perpendicular to the skin. A 1.0mm cutting length is achieved from holding the clipper, with no comb attachment, with the top of the blade surface in contact with the skin.

• This is with the taper setting set at the closest gap between the blades. Guide Combs Cutting Length (mm) 1 (# 0) 1.5 2 (# 1) 3 3 (# 2) 6 4 (# 3) 9 5 (# 4) 12 6 (# 5) 16

• For even cutting, allow the comb attachment/blade to cut its way through the hair. Do not force it through quickly. If you are cutting for the rst time, start with the maximum comb attachment. STEP 1 – Nape of the neck

• Attach the 3mm or 6mm xed comb

• Hold the clipper with the blade teeth pointing upwards. Begin starting at the centre of the head at the base of the neck.

• Slowly lift the clipper, working upwards and outwards through the hair, trimming just a little at a time. STEP 2 – Back of the head

• With the 12mm or 16mm guide comb attached, cut the hair at the back of the head. ENGLISH5 STEP 3 – Side of the head

• With the 3mm or 6mm guide comb attached, trim sideburns. Then change to the longer 9mm guide comb and continue to cut the top of the head. STEP 4 – Top of the head

• Use the longer length xed combs of 22mm or 25mm to cut hair on top of the head against the direction in which the hair normally grows.

• Always work from the back of the head. STEP 5 – The nishing touches

• Use the clipper without an attachment comb for close trimming around the base and sides of the neck.

• To produce a clean straight line at the sideburns, reverse the hair clipper. Place the reversed clipper at right angles to the head, tips of the blades lightly touching the skin and then work downwards. SHORT TAPERED STYLES – “FLAT TOPS” & SHORT CUTS

• Starting with the longest xed comb (25mm), cut from the back of the neck to the crown. Hold the guide comb at against the head and slowly move the clipper through the hair.

• Use the same procedure from the lower side to the upper side of the head. Then cut the hair against the direction in which it grows and level with the sides.

• To give a “at top” look, the hair on top of the head must be cut over the top of a at comb.

• Use a closer guide comb to taper the hair down to the neckline as desired.

• To ensure long lasting performance of your clipper, clean the blades and unit regularly.

• Ensure the appliance is switched o and unplugged from the mains before cleaning.

• Brush the accumulated hair from the blades and body of the clipper. Do not submerge the clipper in water.

• We recommend oiling the blades after cleaning with a little sewing machine oil.

• Note: Ensure the clipper is turned o when cleaning.

• At regular intervals the blade set should be removed and cleaned.

• The blade set can be removed and reinstalled by using a screwdriver.

• Brush out hair and do not use water or cleaners on the blade set or internal body housing. CAUTION:

• Do not use liquid cleaners on the blades or harsh or corrosive chemicals on the blade casing. Always use a soft brush to remove the accumulated hairs.

• Always store this appliance and cord in a moisture-free area.

• Do not wrap the supply cord around the appliance. ENGLISH
