USER MANUAL CFT610/5S/1/4U CANDY

Line drawing of a kitchen air conditioner unit with ventilation grilles and ventilation slots (no text or symbols)

ENGLISH (EN)----PAGE 001

SPANISH (ES)----PAGE 012

FRENCH (FR)----PAGE 023

PORTUGUÊS (PT) PÁGINA 034

CZECH (CS) PAGE 045

SLOVENSKY (SK) PAGE 056

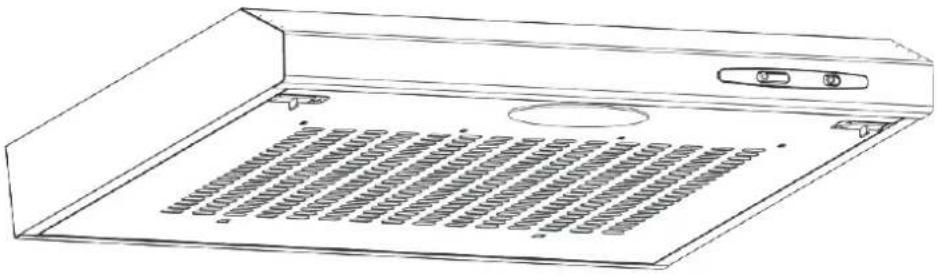

Cooker Hood Instruction Manual

Line drawing of a kitchen air conditioner cover with ventilation grilles and ventilation slots (no text or symbols)

Content

1....Safety instructions
2....Installation
3....Start using your cooker hood
4....Troubleshooting
5....Maintenance and cleaning
6 Environment protection

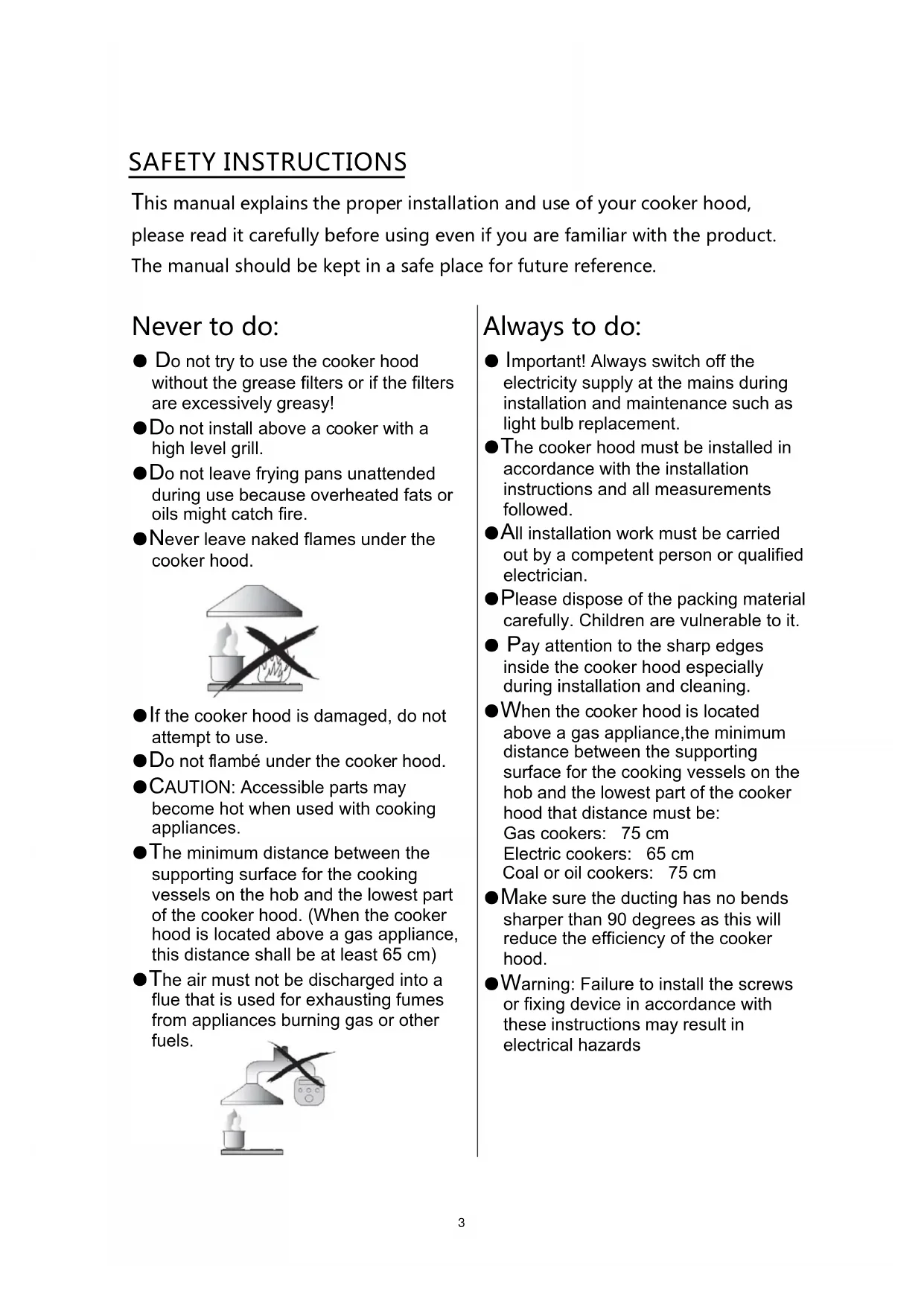

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high level grill.
  ● Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.

Illustration of a steaming lamp with flames and a cross mark, no text or symbols present

• If the cooker hood is damaged, do not attempt to use.
  ● Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Illustration of a laboratory setup with a lamp, beaker, and heating device (no text or symbols)

Always to do:

● Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.

● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.

● All installation work must be carried out by a competent person or qualified electrician.

● Please dispose of the packing material carefully. Children are vulnerable to it.

● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.

- When the cooker hood is located above a gas appliance, the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood that distance must be: Gas cookers: 75 cm Electric cookers: 65 cm Coal or oil cookers: 75 cm

● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.

●Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
● Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Black and white pictogram showing two people crossed out of a diagonal line, no text or symbols present

● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
● There is a fire risk if cleaning is not carried out in accordance with the instructions
● Regulations concerning the discharge of air have to be fulfilled.
● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
● Cleaning and user maintenance shall not be made by children without supervision.
- When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
● WARNING: Danger of fire: do not store items on the cooking surfaces.
●A steam cleaner is not to be used.
● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION

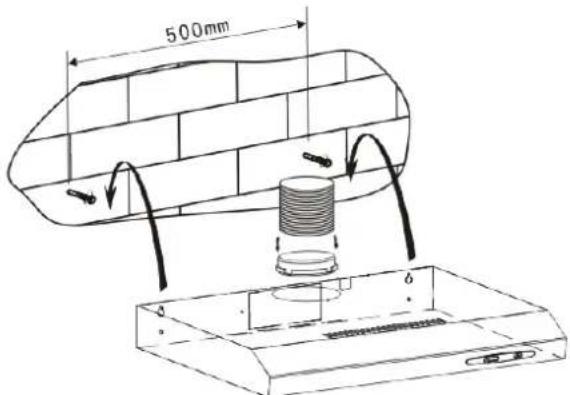

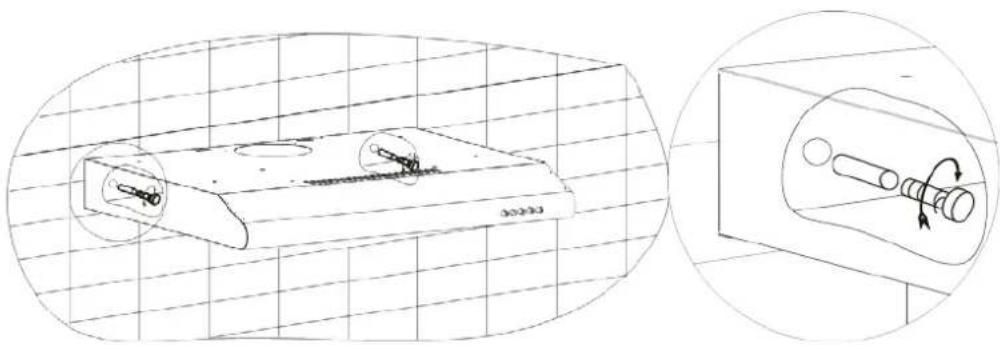

A. INSTALLATION (Wall Mounting)

(1) Decide the location of the holes for fixing the cooker hood.
(2) Mount the cooker hood on the wall by 4 screws (4x 30mm)

500mm

60cm cooker hood

Technical line drawing of a mechanical component with internal components and a close-up view showing rotation (no text or symbols)

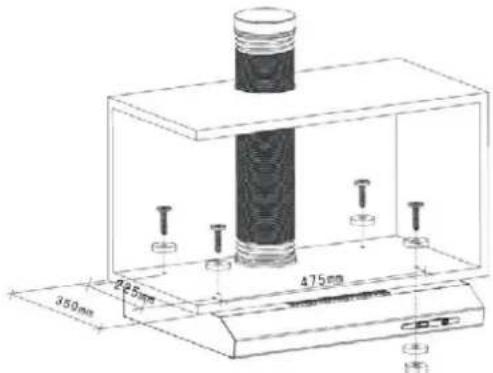

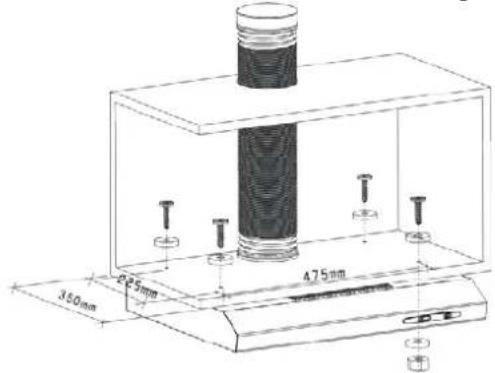

B. INSTALLATION (Cabinet Mounting)

(1) Mount the cooker hood on the cabinet by 4 screws (4x35mm), 4 nuts and flat washers. Fix the hood on the cabinet by passing 4 screws and 4 flat washers from the top of cabinet to the cooker hood. Then inside the cooker hood, pass the flat washer and nut through the screw to hold the appliance on the cabinet.

350mm 25mm 475mm CD-1

60cm cookerhood

Noise: There are 2 methods for ventilation, including 'horizontal ventilation' and 'vertical ventilation'. Please pay attention to the ventilation method when installation.

Horizontal ventilation: See Pic 4A, please use the cover to seal the outlet on the top, then the air can be vented from back.

Vertical ventilation: See Pic 4B, please use the cover to seal the outlet on the back, then the air can be vented from top.

Technical line drawing of a rectangular electronic component with circular holes and mounting feet (no text or symbols)

Simple line drawing of a rectangular box with a circular hole and an arrow indicating direction (no text or symbols)

Pic 4

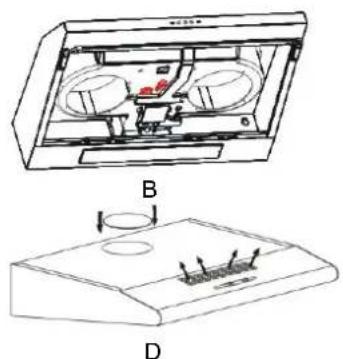

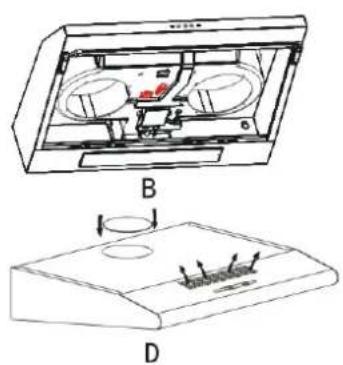

Air ventilation setting

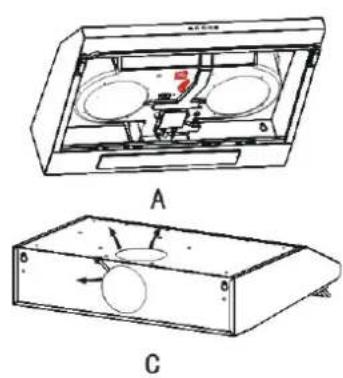

Outdoor air ventilation: Turn the adjuster to outdoor position(pic.5A), install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet.

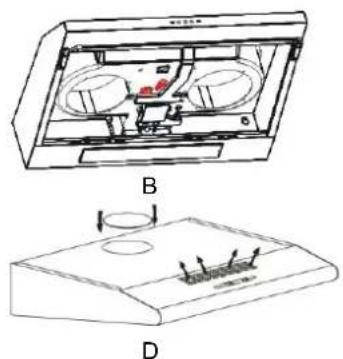

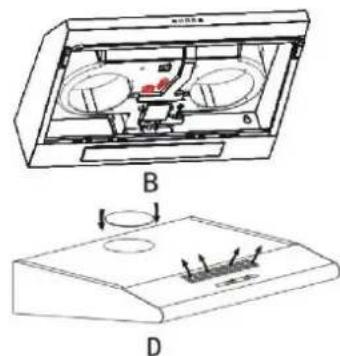

Indoor air ventilation: Turn the adjuster to indoor position (pic.5B), install the outlet cover, turn on the cooker hood, then the air can be vented from the inside outlet.

Technical line drawing of a device with two circular components and labeled sections A and C (no text or symbols present)

Technical line drawing of a microwave oven with labeled components (B and D), showing internal chambers and mounting holes (no text or symbols beyond labels)

Pic 5

WARNING:

➢ For safety reason, please use only the same size of fixing or mounting screw which recommended in this instruction manual.➢ Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

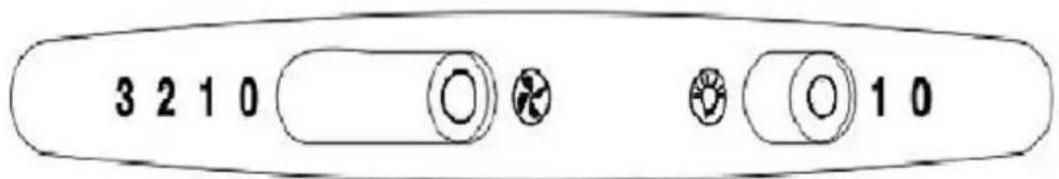

Toggle switch

There are 3 speeds for the motor and on off switch for the lamp.

Slide the switch for operation.

Motor Operation

0- off

1- Low Power Setting
2- Mid Power Setting
3- High Power Setting

Light Operation

0- Off
1- On

3 2 1 0 1 0

TROUBLESHOOTING

Fault	Possible Cause	Solution
Light on, but motor does not work	Fan switch turned off	Select a fan switch position.
	Fan switch failed	Contact service center.
	Motor failed Contact service center.
Light does not work, motor does not work	House fuses blown	Reset/Replace fuses.
	Power cord loose or disconnected	Refit cord to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working	Broken/Faulty globes	Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before

undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

- Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

Abstract line drawing of a stylized animal figure with a cat-like head, set against a circular background (no text or symbols)

- External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

GREASE MESH FILTERS

The filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it . (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

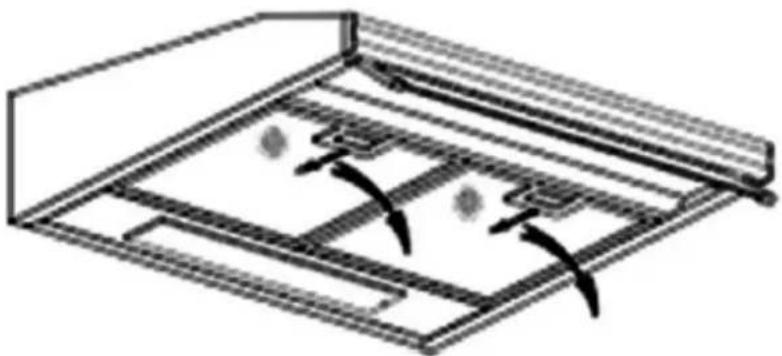

• Removing the filters as the instruction in Pic.below.
• Please do not use abrasive detergent for it will damage the hood.

Diagram of a solar panel array with arrows indicating direction (no text or symbols)

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps.
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.

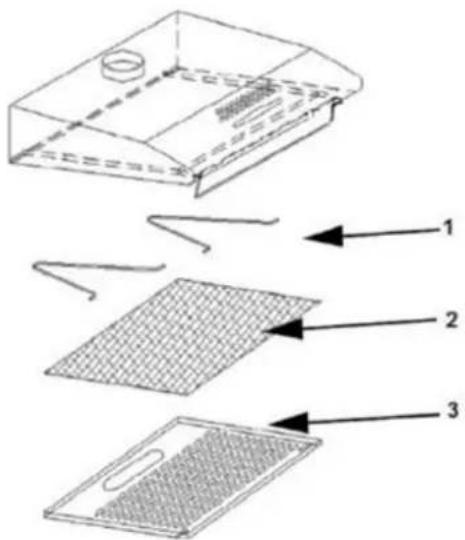

CARBON FILTER

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

1. Remove the grease filter.
2. Place the carbon filter onto the grease filter.
3. Fix the properly-adjusted carbon filter with the small steel wire.
4. Reinstall the grease filter.
5. Use carbon filters for recirculation mode only.

Diagram showing three labeled components of a device or panel assembly, with arrows indicating direction of movement.

1 Steel hanger

2 Carbon filter

3 Grease filter

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch of f t he electricity s upply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
When handling globes hold with a cloth or gloves to ensure perspiration does not come in contact with the globe as this can reduce the life of the globe.

Changing the light:

*Before changing the lights, make sure that the appliance is plugged off.
*Use the screw driver loosen the ST4*8MM self tapping screw (2pcs) from the lighting panel, take out the lighting fixture. Open the terminal box that connected with the wire, disconnect the wire connector and replace the lamp.

• ILCOS D code for this lamp is: DBS-2/65-H-120/33
• LED modules -rectangle lamp
• Max wattage: 1x2 W
  – Voltage range: AC 110-240V
• Dimensions:

Technical line drawing of a rectangular electronic component with mounting holes and side brackets (no text or symbols)

120±1 33±0.5

ENVIRONMENTAL PROTECTION:

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• the WEEE should not be treated as domestic waste;
• the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.

Line drawing of a kitchen fan with ventilation grilles and ventilation slots (no text or symbols)

Índice

Illustration of a steaming lamp with flames and a crossed black mark (no text or symbols)

Illustration of a desk lamp illuminating a steaming lamp with a control panel (no text or symbols)

Black and white pictogram showing a person crossed out of a diagonal line, no text or symbols present

Technical line drawing of a mechanical component with internal components and a close-up view showing rotational motion (no text or symbols)

Simple line drawing of a rectangular box with circular cutouts and labeled point A (no text or symbols beyond labels)

Simple line drawing of a rectangular box with a circular hole and labeled point B (no text or symbols beyond label)

FIG 4

Technical line drawing of two views (A and C) of a mechanical device with internal components and directional arrows, no text or symbols present.

Technical line drawing of a device with two circular components and a base plate, labeled B and D (no text or symbols present)

FIG 5

PRECAUCIÓN:

Yellow triangular warning sign with black exclamation mark symbol

Abstract line drawing of a stylized animal figure with a cat and pig, no text or symbols present

Diagram of a solar panel array with arrows indicating direction (no text or symbols)

Diagram of a device with labeled parts, showing internal structure and assembly steps

1 Gancho de acero

2 Filtro de carbono

Technical line drawing of a rectangular electronic component with mounting holes and side brackets (no text or symbols)

120 ± 1 33 ± 0.5

Line drawing of a kitchen air conditioner cover with ventilation grilles and ventilation slots (no text or symbols)

Sommaire

Illustration of a steaming pot with flames and a crossed iron, no text or symbols present

Illustration of a laboratory setup with a lamp, heating element, and control panel (no text or symbols)

À toujours faire :

Black and white pictogram showing two people crossed out of a diagonal line, no text or symbols present

Technical line drawing of a mechanical component with internal components and a close-up view showing rotation (no text or symbols)

Technical line drawing of a rectangular device with circular features and labeled point A (no text or symbols beyond labels)

Simple line drawing of a rectangular box with a circular component and labeled point B (no text or symbols on the object itself)

Fig. 4

Technical line drawings of two electronic devices labeled A and C, showing internal components and wiring (no text or symbols present)

Technical line drawing of a kitchen appliance with two fans and a base plate, labeled B and D (no text or symbols on the diagram itself)

Fig. 5

AVERTISSEME NT :

Yellow triangular warning sign with black exclamation mark symbol

Abstract line drawing of a stylized figure with geometric shapes and a circular element, no text or symbols present.

Diagram of a solar panel array with arrows indicating direction (no text or symbols)

Diagram showing three labeled components of a device or panel assembly, with arrows indicating directional flow.

1 Support en acier

2 Filtre à charbon

3 Filtre à graisse

REMARQUE :

REPLACEMENT DE L'AMPOULE

Important :

Technical line drawing of a rectangular electronic component with mounting holes and a base plate (no text or symbols)

120±1 33±0.5

PROTECTION DE L'ENVIRONNEMENT

Line drawing of a kitchen air conditioner cover with ventilation grilles (no text or symbols)

Índice

Illustration of a steaming pot and fire with crossed tools (no text or symbols)

Illustration of a lamp illuminating a wall-mounted device with a black X mark (no text or symbols)

Prohibition sign with two stick figures and a diagonal line, indicating no smoking or anti-smoking.

Technical line drawing of a mechanical component with grid background and magnified inset showing internal rotation (no text or symbols)

225mm 350mm 475mm

Exaustor de 60 cm

Technical line drawing of a rectangular electronic component with circular holes and mounting feet (no text or symbols)

Simple line drawing of a rectangular box with a circular hole and an arrow labeled B (no text or symbols)

Fig. 4

Technical line drawing of a device with two circular components and internal flow arrows, labeled A and C (no text or symbols present)

Technical line drawing of a device with labeled components (B and D), showing internal components and a base plate (no text or symbols beyond labels)

Fig. 5

Abstract line drawing of a stylized figure interacting with a geometric shape (no text or symbols)

Diagram of a container with internal compartments and directional arrows indicating flow or movement (no text or symbols)

INSTALAR OS FILTROS DE REDE DE GORDURA

Diagram showing three labeled components of a device or panel assembly, with arrows indicating direction of movement.

Technical line drawing of a rectangular electronic component with mounting holes and a base plate (no text or symbols)

120±1 33±0.5

Line drawing of a kitchen air conditioner cover with ventilation grilles and ventilation slots (no text or symbols)

Obsah

Illustration of a steaming lamp with flames and a crossed black mark (no text or symbols)

Illustration of a laboratory setup with a lamp, test tube, and control panel (no text or symbols)

Co je vždy nutné:

Prohibition sign with two pictograms showing a person and child crossed out, indicating no prohibition or rejection.

Technical line drawing of a mechanical component with internal components and a close-up view showing rotational motion (no text or symbols)

Technical line drawing of a rectangular device with circular features and mounting holes (no text or symbols)

Simple line drawing of a rectangular box with a circular component and an arrow labeled B (no text or symbols)

Obr. 4

Nastavení větrání

Technical line drawings of two electronic devices labeled A and C, showing internal components and wiring (no text or symbols present)

Technical line drawing of a device with two fans and a base plate, labeled B and D (no text or symbols on the diagram itself)

Obr. 5

VAROVÁNÍ:

Yellow triangular warning sign with black exclamation mark symbol

Abstract line drawing of a stylized animal figure with a cat and a pig, no text or symbols present

Diagram of a filtration or drying system with internal channels and directional arrows (no text or labels)

INSTALACE MŘÍ KOVÝCH TUKOVÝCH FILTRŮ

Diagram showing three labeled components of a device or panel assembly, with arrows indicating direction of movement.

1 Ocelová vzpěra

2 Uhlíkový filtr

3 Tukový filtr

POZNÁMKA:

Technical line drawing of a rectangular electronic component with mounting holes and a base plate (no text or symbols)

120±1 33±0.5

OCHRANA ŽIVOTNÍHO PROSTŘEDÍ

Line drawing of a kitchen air conditioner cover with ventilation grilles (no text or symbols)

Obsah

Prohibition sign with two pictograms showing a person and a child, indicating no smoking or prohibition.

Technical line drawing of a mechanical component with internal features, shown in two views: one with grid lines and one with a magnified view showing rotational motion (no text or symbols)

B. INŠTALÁCIA (montáž na skrinku)

(1) Digestor namontujte na skrinku 4 skrutkami (4x35 mm), 4 maticami a plochými podložkami. Nasad'te digestor na skrinku tak, že zhora zo skrinky prestrčíte k digestoru 4 skrutky a 4 ploché podložky. Potom, vnútri digestora nasad'te na skrutku plochú podložku a maticu, aby ste prichytili spotrebič ku skrinke.

350mm 225mm 475mm CCT

60 cm digestor

Technical line drawing of a rectangular electronic component with circular features and mounting holes (no text or symbols)

Simple line drawing of a rectangular box with a circular hole and an arrow labeled B (no text or symbols)

Obr. 4

Technical line drawings of two electronic devices labeled A and C, showing internal components and wiring (no text or symbols present)

Obr. 5

Technical line drawing of a front-mounted appliance with internal components and a base plate (no text or symbols)

VAROVANIE:

Yellow triangular warning sign with black exclamation mark symbol

Abstract line drawing of a stylized figure interacting with a wall and abstract shapes (no text or symbols)

Diagram of a solar panel array with arrows indicating direction (no text or symbols)

INŠTALÁCIA MRIEŽKOVÉHO FILTRA PROTI MASTNOTE

Diagram showing three labeled components of a device or panel assembly, with arrows indicating direction of movement.

Technical line drawing of a rectangular electronic component with mounting holes and a base plate (no text or symbols)

120±1 33±0.5

OCHRANA ŽIVOTNÉHO PROSTREDIA
