WHVA62FLMK - Basket WHIRLPOOL - Free user manual and instructions

Product type	Kitchen hood
Brand	Whirlpool
Model	WHVA62FLMK
Version	Extractor (convertible to recirculating)
Dimensions (H x W x D)	67-101.5 x 59.8-89.8 x 25 cm
Exhaust diameter	15 cm
Power supply	230 V - 50 Hz
Number of speeds	3
Lighting	LED (not user replaceable)
Grease filter	Metallic, dishwasher safe (monthly)
Charcoal filter	Washable mat or circular (replace every 4 months)
Minimum distance (electric hob)	45 cm
Minimum distance (gas or mixed hob)	65 cm
Installation type	Wall-mounted
Controls	Control panel with speeds and lighting
Filter maintenance	Clean grease filters once a month; charcoal filter every 2 months
Safety	Unplug before maintenance; do not use naked flame
Material	Stainless steel

Frequently Asked Questions - WHVA62FLMK WHIRLPOOL

How to clean the grease filters?

The metal grease filters must be cleaned once a month. Use non-aggressive detergents, by hand or in the dishwasher at low temperature and short cycle. Dishwashing may discolour them, but does not affect their performance. To remove, pull the spring release handle.

How to install the hood in recirculating mode?

Your hood is delivered ready for extraction mode. To use it in recirculating mode, you must install an accessory kit containing a charcoal filter. Check in the first pages of the manual whether the kit is supplied or must be purchased separately. Follow the conversion instructions provided.

What minimum distance should be maintained between the hood and the hob?

The minimum distance between the support surface for containers and the lowest part of the hood is 45 cm for electric cookers and 65 cm for gas or mixed cookers. If the hob instructions specify a greater distance, follow that.

What to do if the hood does not work?

Before calling the after-sales service, check: that there is no power cut, that a speed has been selected, and that the circuit breaker has not tripped. If the problem persists, unplug the hood for about 5 seconds then plug it back in. If the fault continues, contact a professional.

How to replace the LED lights?

The LED lighting system cannot be replaced by the user. In case of malfunction, contact the authorized technical support service.

How often should I clean the filters?

The metal grease filter must be cleaned once a month. The mat-type charcoal filter can be cleaned every two months with hot water or in the dishwasher at 65°C, then dried in the oven at 100°C for 10 minutes. The circular charcoal filter is not washable and must be replaced every 4 months.

Can the hood be used without the filters?

No, it is imperative to never use the hood without the filters correctly mounted. The absence of filters exposes internal components to grease and increases the risk of fire. Additionally, the hood must never be used without the grid mounted.

How to switch from extraction to recirculation mode?

If you wish to use the hood in recirculation mode, you must install an active charcoal filter (accessory kit). Remove the charcoal filter if already present (for extraction mode). Follow the manual's instructions for conversion. The diameter of the exhaust pipe must be equal to that of the collar.

What to do if the hood turns off during use?

First check that there is no power cut or that the omnipolar disconnection device has not tripped. If the problem persists, unplug the hood for 5 seconds then plug it back in. If the fault continues, contact the repair service.

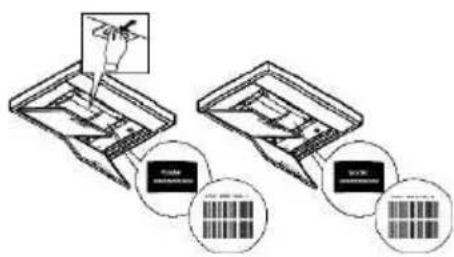

Where is the hood's rating plate located?

The rating plate is located inside the hood. It indicates voltage, frequency and other technical specifications. Note the visible codes when contacting the after-sales service.

USER MANUAL WHVA62FLMK WHIRLPOOL

EN Instructions for use

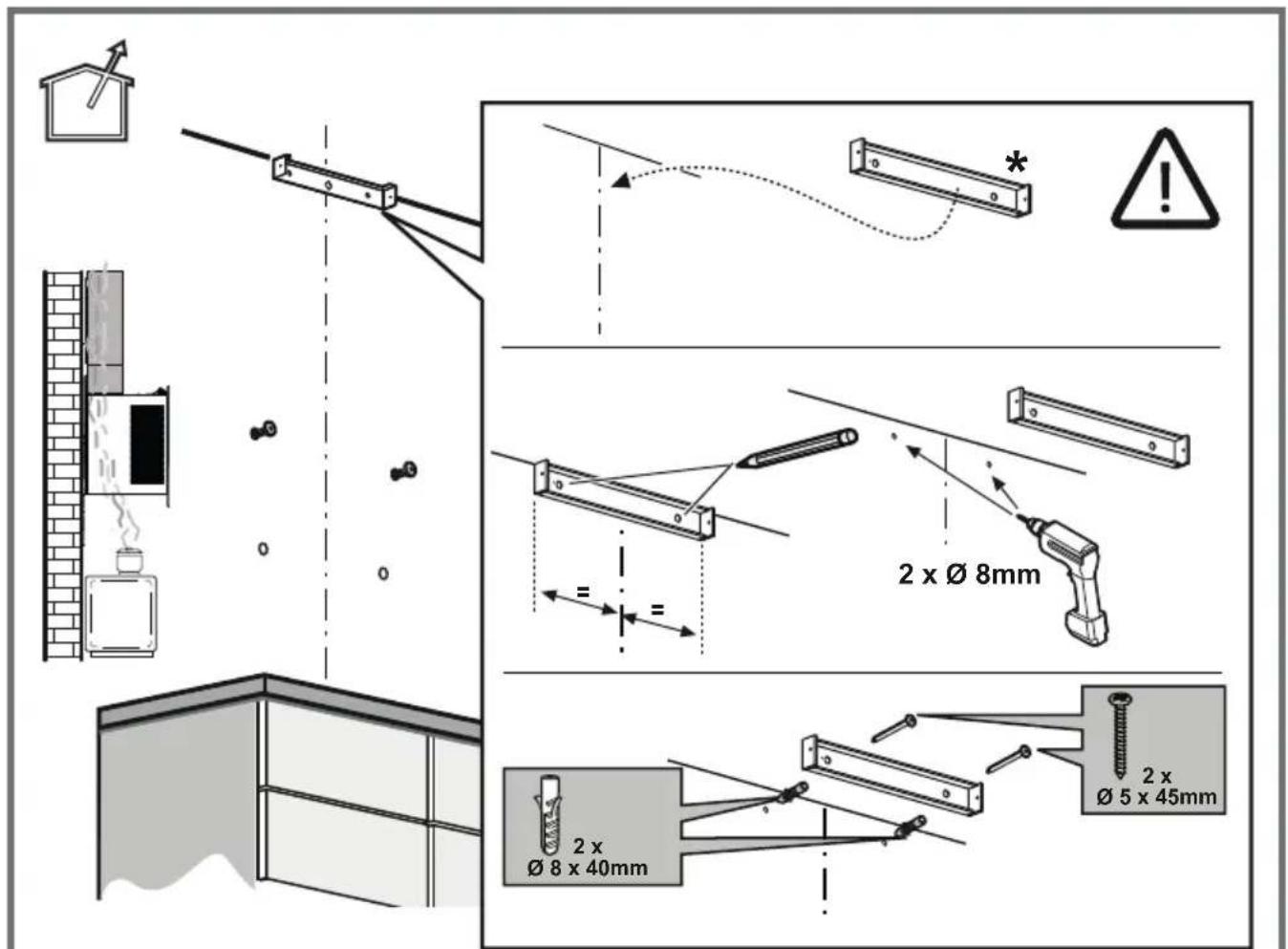

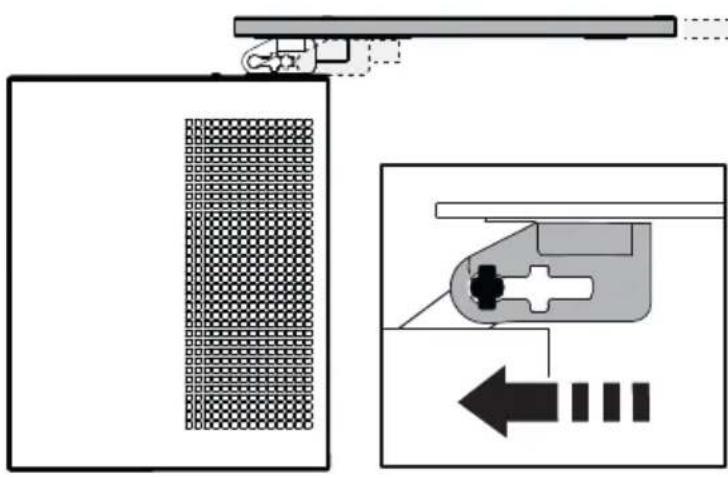

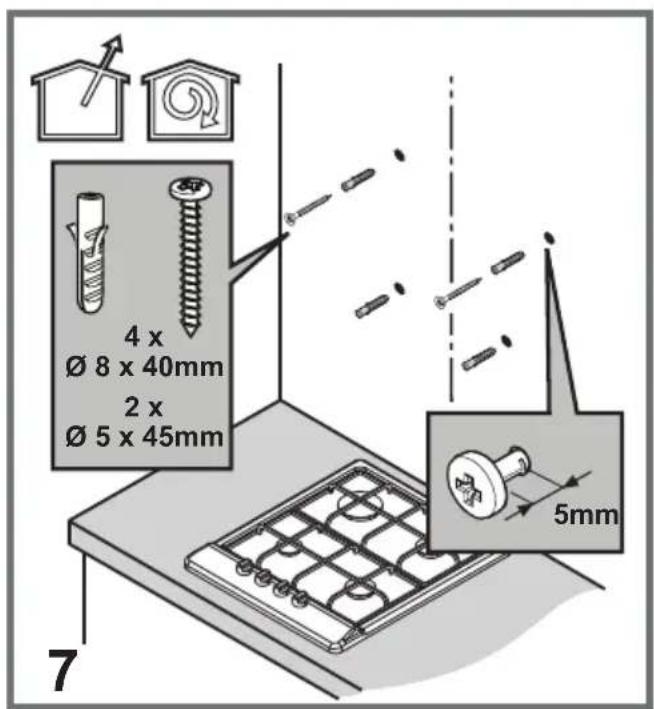

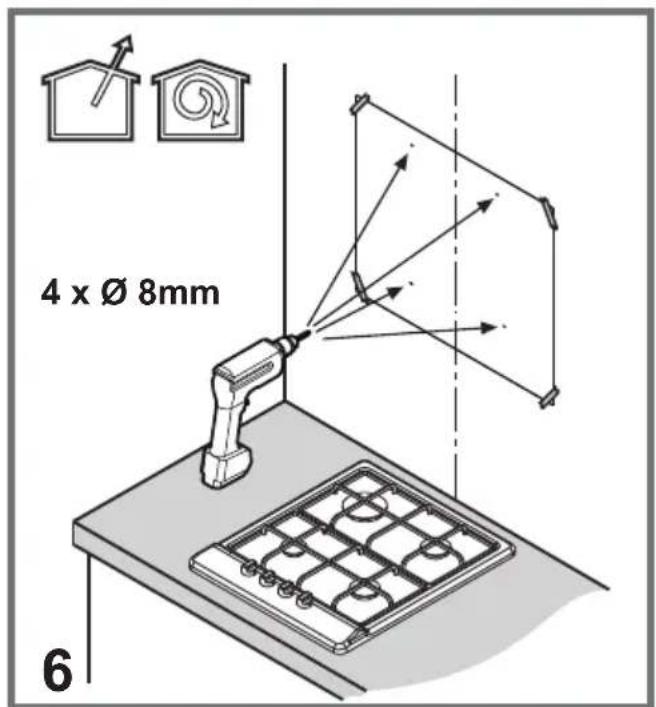

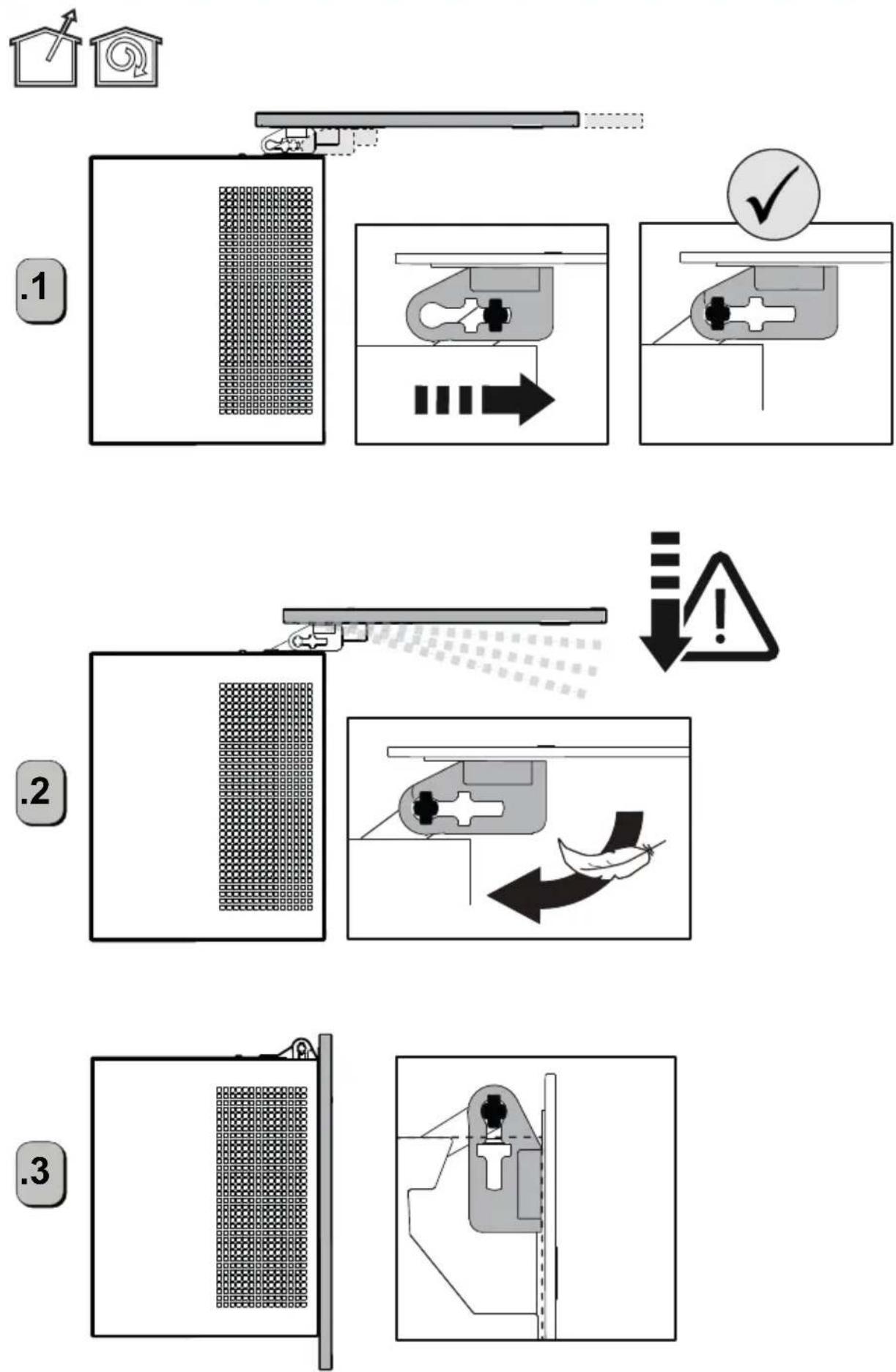

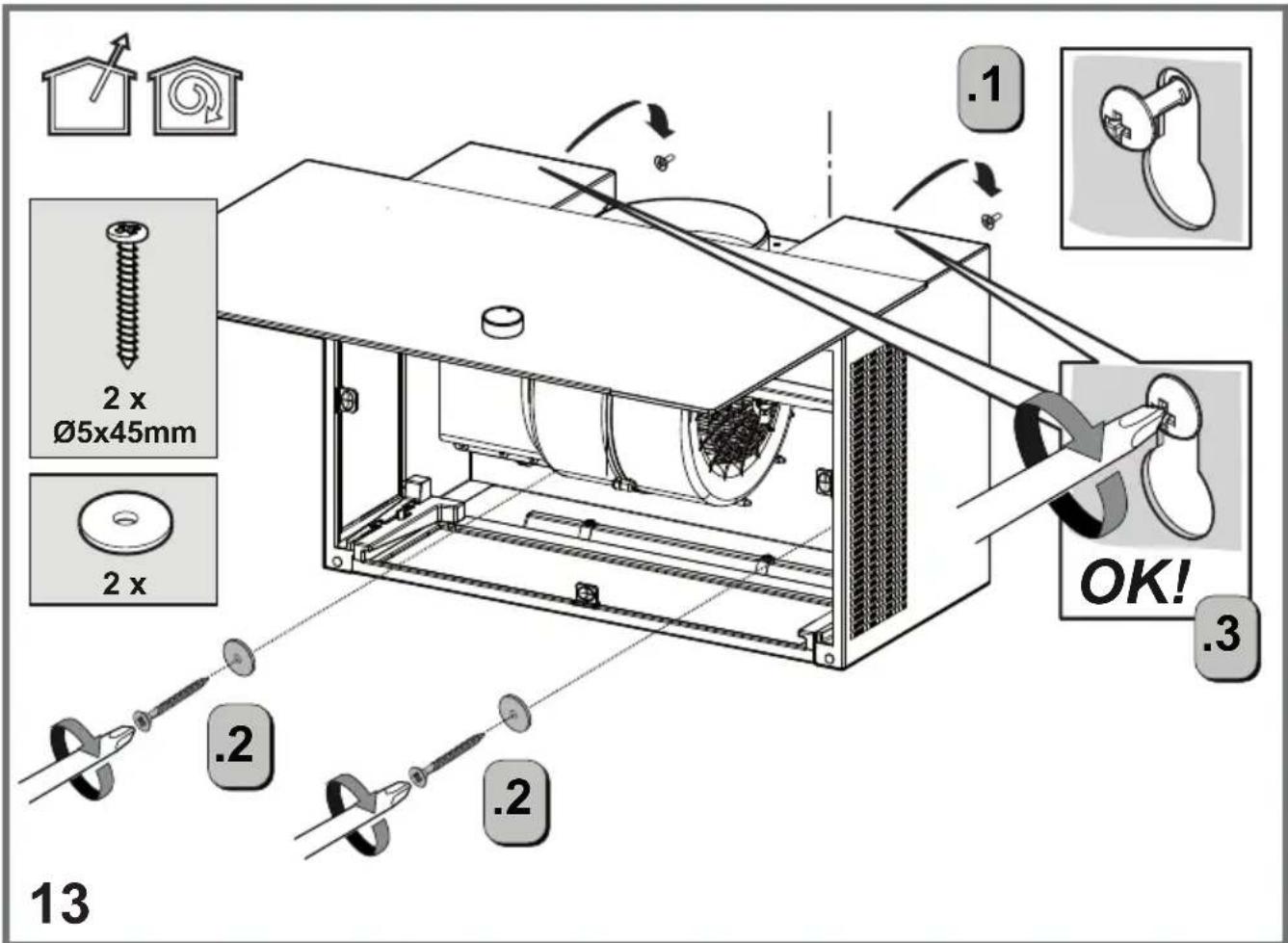

.1

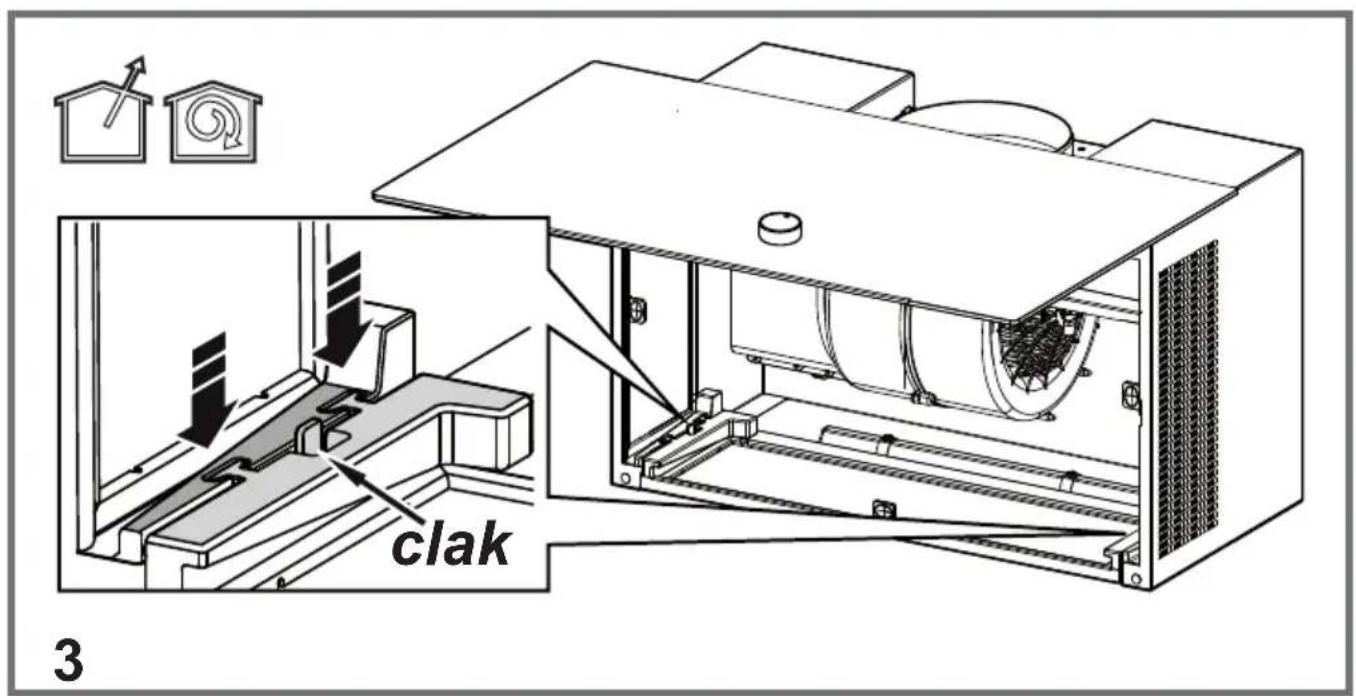

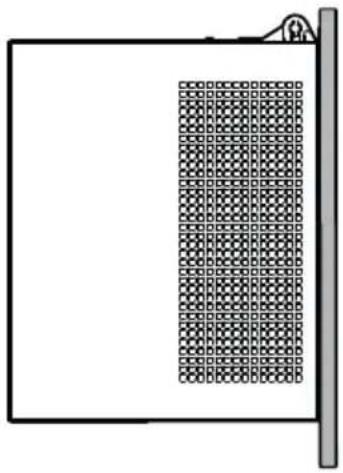

Simple line drawing of a rectangular frame with a vertical grid pattern on the right side and a small protrusion on the left (no text or symbols)

Mechanical assembly diagram showing a piston and crankshaft mechanism with an upward arrow (no text or labels)

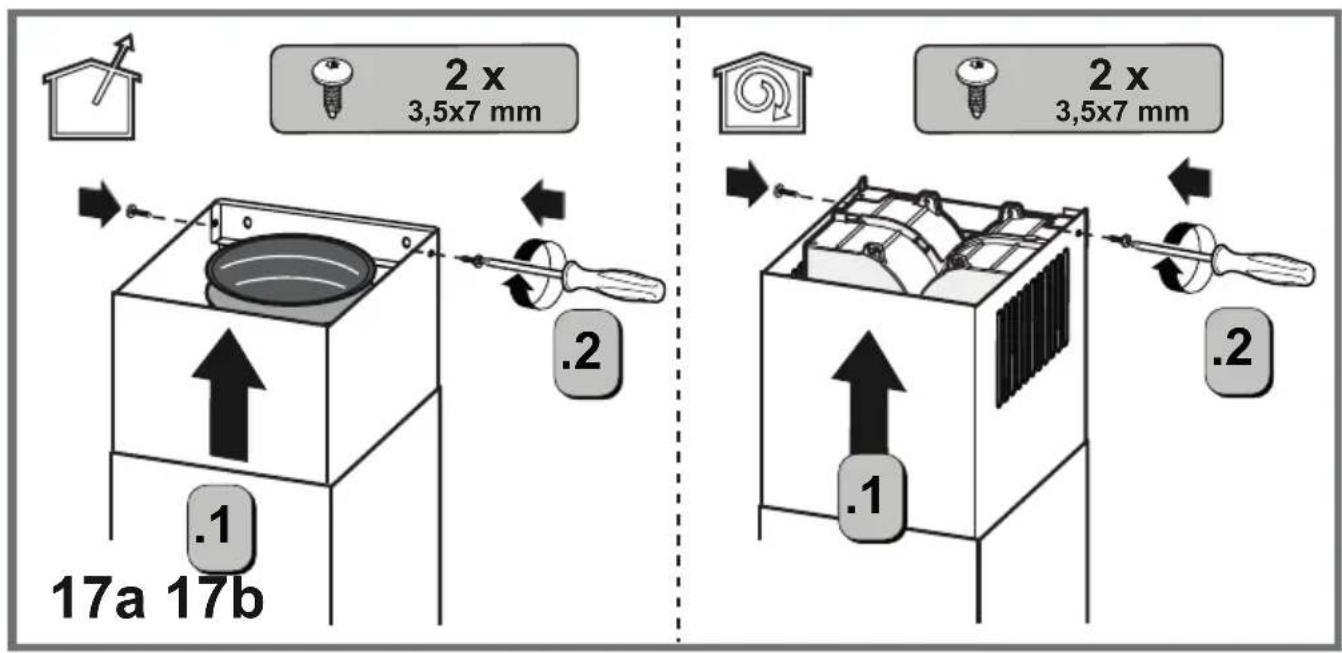

.2

Diagram showing a device with grid pattern and a mechanical component, no text or symbols present

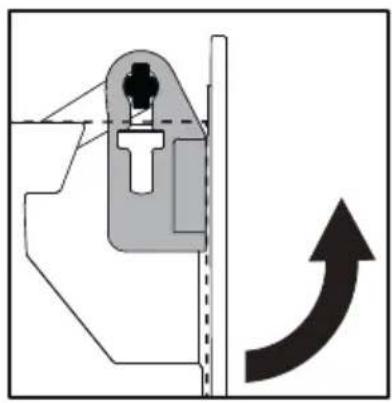

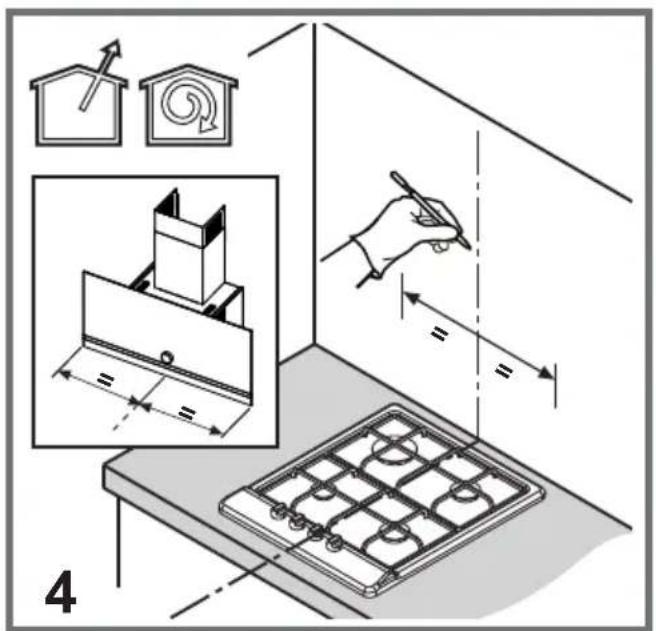

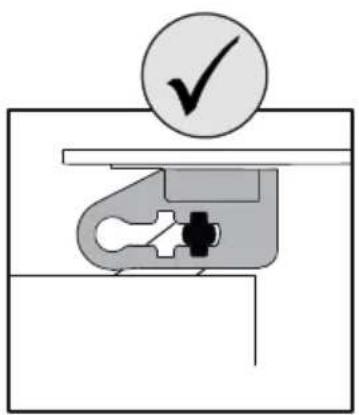

Pure mechanical diagram showing a checkmark and a bracket with no text or symbols

Technical line drawing of an industrial machine with cooling unit and housing (no text or symbols)


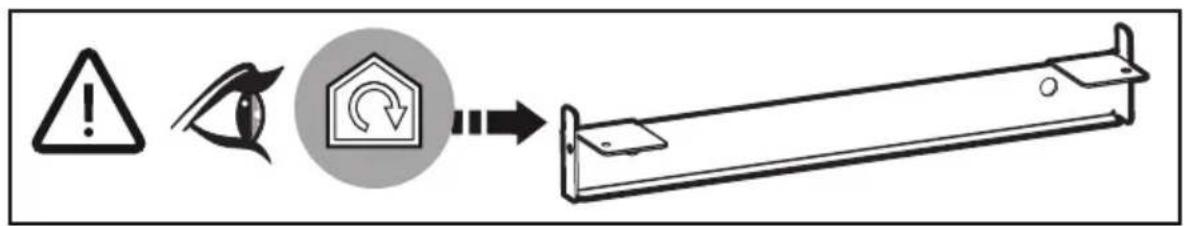

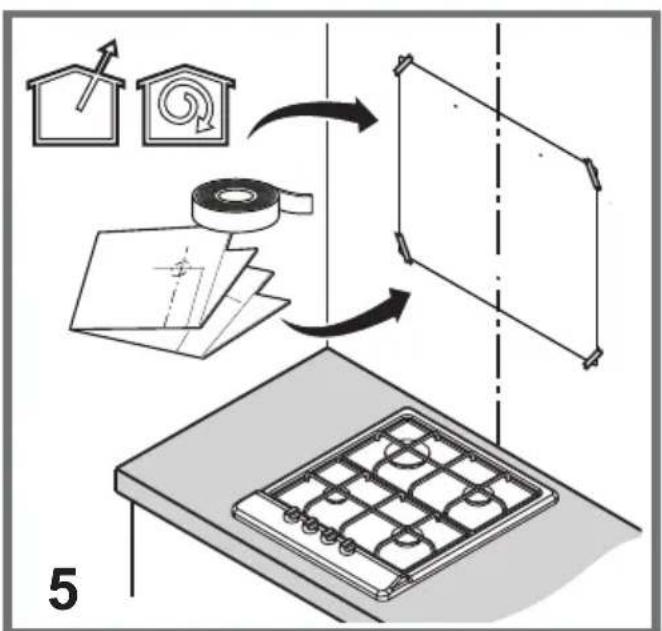

    A["House renovation with tape roll"] --> B["Rolling pin"]
    B --> C["Assembly grid printing"]
    C --> D["Final assembly"]

IT

SICUREZZA GENERALE
    subgraph_Left_Circle["6th sense"]
        A["Sun icon"] --> B["Water tank"]
        B --> C["Container"]
        C --> D["Light bulb"]
        D --> E["Light bulb with container"]
        E --> F["Light bulb with container"]
        F --> G["Light bulb with container"]
        G --> H["Light bulb with container"]
        H --> I["Light bulb with container"]
        I --> J["Light bulb with container"]
        J --> K["Light bulb with container"]
        K --> L["Light bulb with container"]
        L --> M["Light bulb with container"]
        M --> N["Light bulb with container"]
        N --> O["Light bulb with container"]
        O --> P["Light bulb with container"]
        P --> Q["Light bulb with container"]
        Q --> R["Light bulb with container"]
        R --> S["Light bulb with container"]
        S --> T["Light bulb with container"]
        T --> U["Light bulb with container"]
        U --> V["Light bulb with container"]
        V --> W["Light bulb with container"]
        W --> X["Light bulb with container"]
        X --> Y["Light bulb with container"]
        Y --> Z["Light bulb with container"]
        Z --> AA["Light bulb with container"]
        AA --> AB["Light bulb with container"]
        AB --> AC["Light bulb with container"]
        AC --> AD["Light bulb with container"]
        AD --> AE["Light bulb with container"]
        AE --> AF["Light bulb with container"]
        AF --> AG["Light bulb with container"]
        AG --> AH["Light bulb with container"]
        AH --> AI["Light bulb with container"]
        AI --> AJ["Light bulb with container"]
        AJ --> AK["Light bulb with container"]
        AK --> AL["Light bulb with container"]
        AL --> AM["Light bulb with container"]
        AM --> AN["Light bulb with container"]
        AN --> AO["Light bulb with container"]
        AO --> AP["Light bulb with container"]
        AP --> AQ["Light bulb with container"]
        AQ --> AR["Light bulb with container"]
        AR --> AS["Light bulb with container"]
        AS --> AT["Light bulb with container"]
        AT --> AU["Light bulb with container"]
        AU --> AV["Light bulb with container"]
        AV --> AW["Light bulb with container"]
        AW --> AX["Light bulb with container"]
        AX --> AY["Light bulb with container"]

.Luce ON

OFF

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Technical illustration of a structural panel assembly with cross-sectional views and a checkmark indicating inspection (no text or symbols present)

Technical illustration of a mechanical fan assembly with rotating blades and housing (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

EN

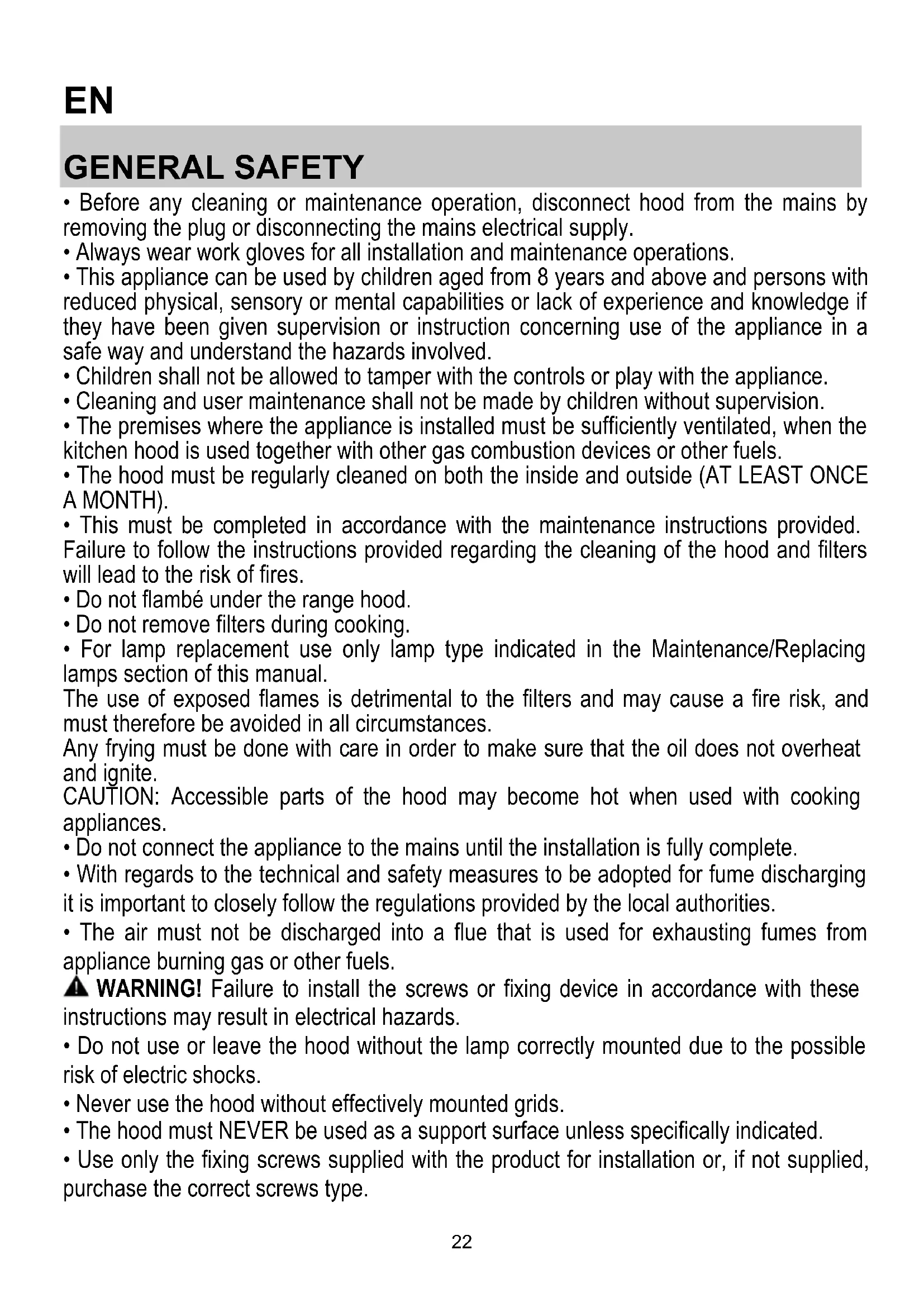

GENERAL SAFETY

- Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

• Always wear work gloves for all installation and maintenance operations.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

- The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

- This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

- Do not flambé under the range hood.

- Do not remove filters during cooking.

- For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

- Do not connect the appliance to the mains until the installation is fully complete.

- With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

- The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

- Never use the hood without effectively mounted grids.

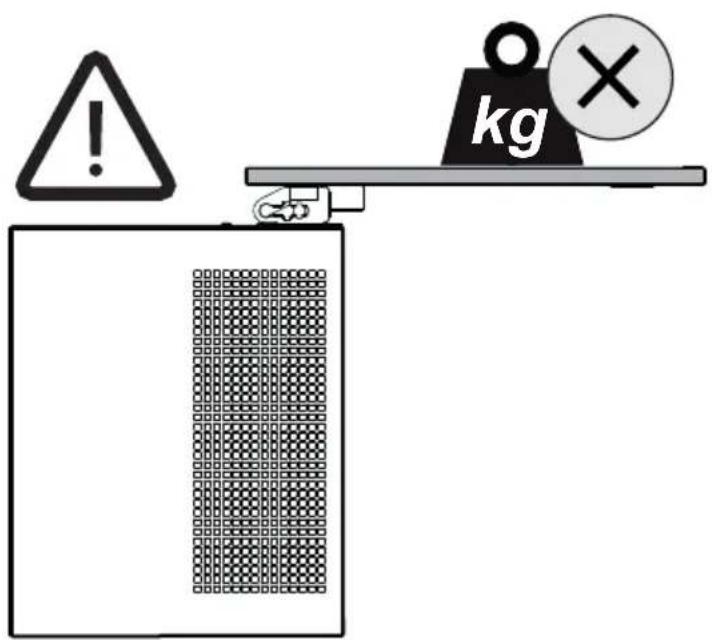

- The hood must NEVER be used as a support surface unless specifically indicated.

- Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

- Use the correct length for the screws which are identified in the Installation Guide. - In case of doubt, consult an authorized service assistance center or similar qualified person.

⚠ WARNING! Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Very young children(0-3years)should be kept away from the appliance. Young children (3-8 years)should be kept away from the appliance unless continuously supervised.

CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.

This appliance is not for professional use. Do not use the appliance outdoors.

The appliance must be handled and installed by two or more persons-risk of injury.

Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children – risk of suffocation.

Do not use the appliance when you are wet or barefoot. Never use steam cleaning equipment – risk of electric shock.

The packaging material is 100% recyclable and is marked with the recycle symbol.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

- The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 45cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

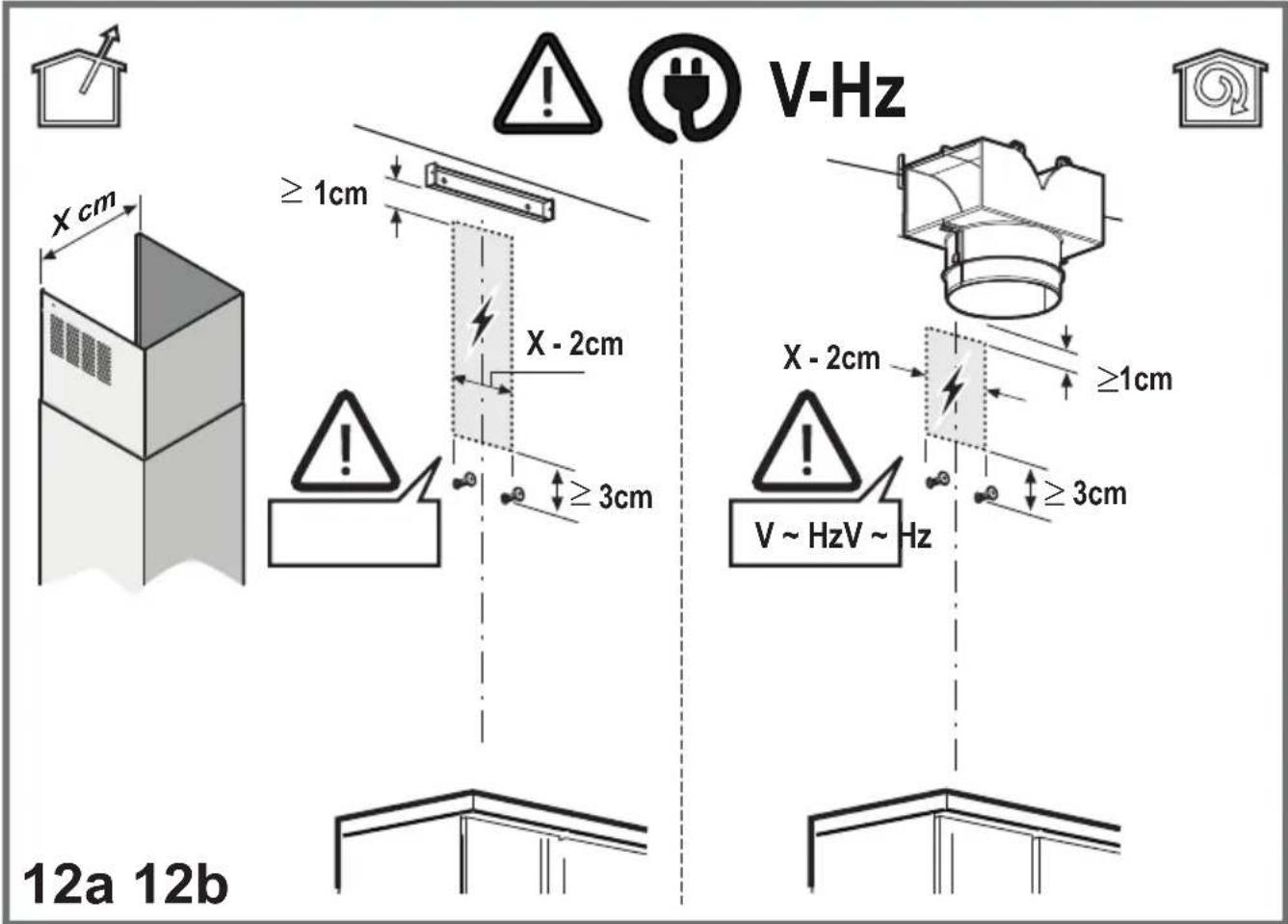

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

▲ WARNING! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

If the cable is not fitted with a plug, connect the wires according to the following table:

Mains voltage and frequency

Refer to the rating indicated on the plate inside of the hood

Wire connection

Replacing the power cable

The hood is provided with a special power cable ; if the cable is damaged, request a new one from Technical Service.

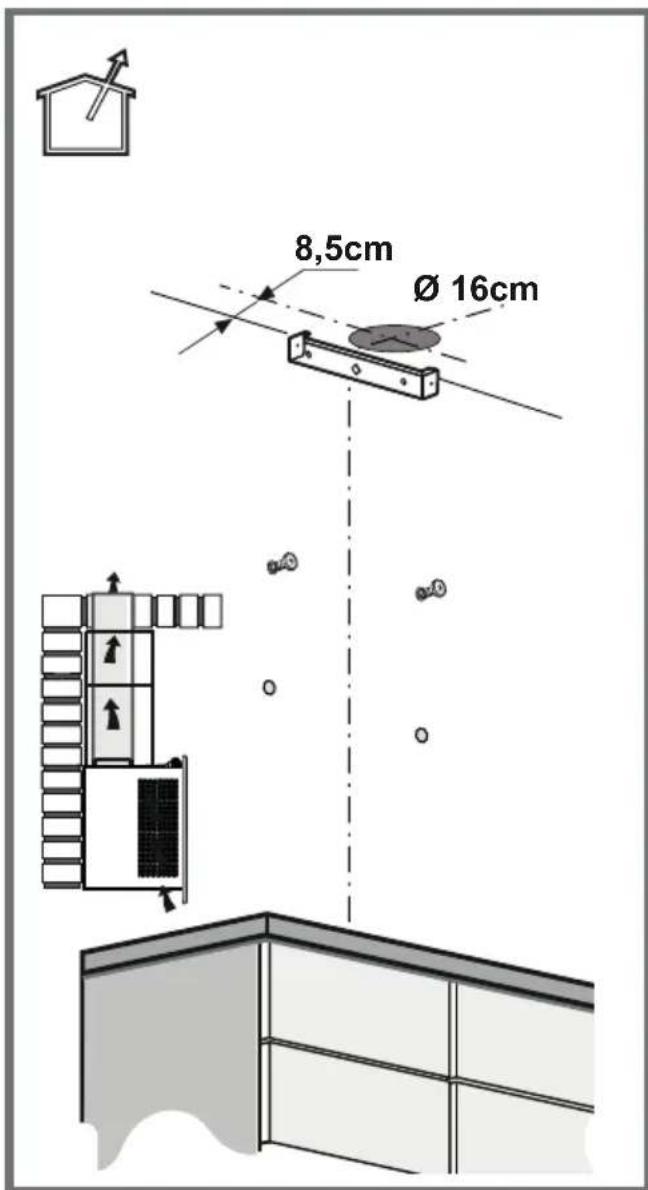

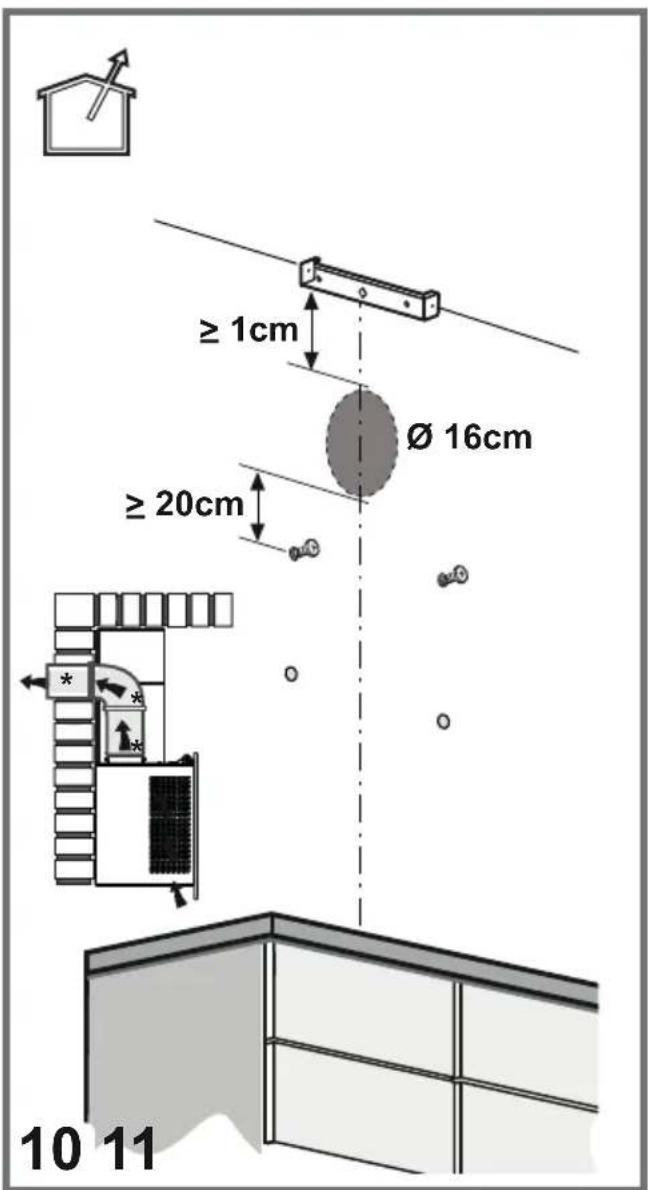

AIR VENT

(for the suction versions)

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! The company declines any responsibility whenever these regulations are not respected.

FILTERING OR DUCTING ?

! Your cooker hood is ready to be used in suction version.

To use the hood in filtering version the special ACCESSORY KIT must be installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering version is present in this manual.

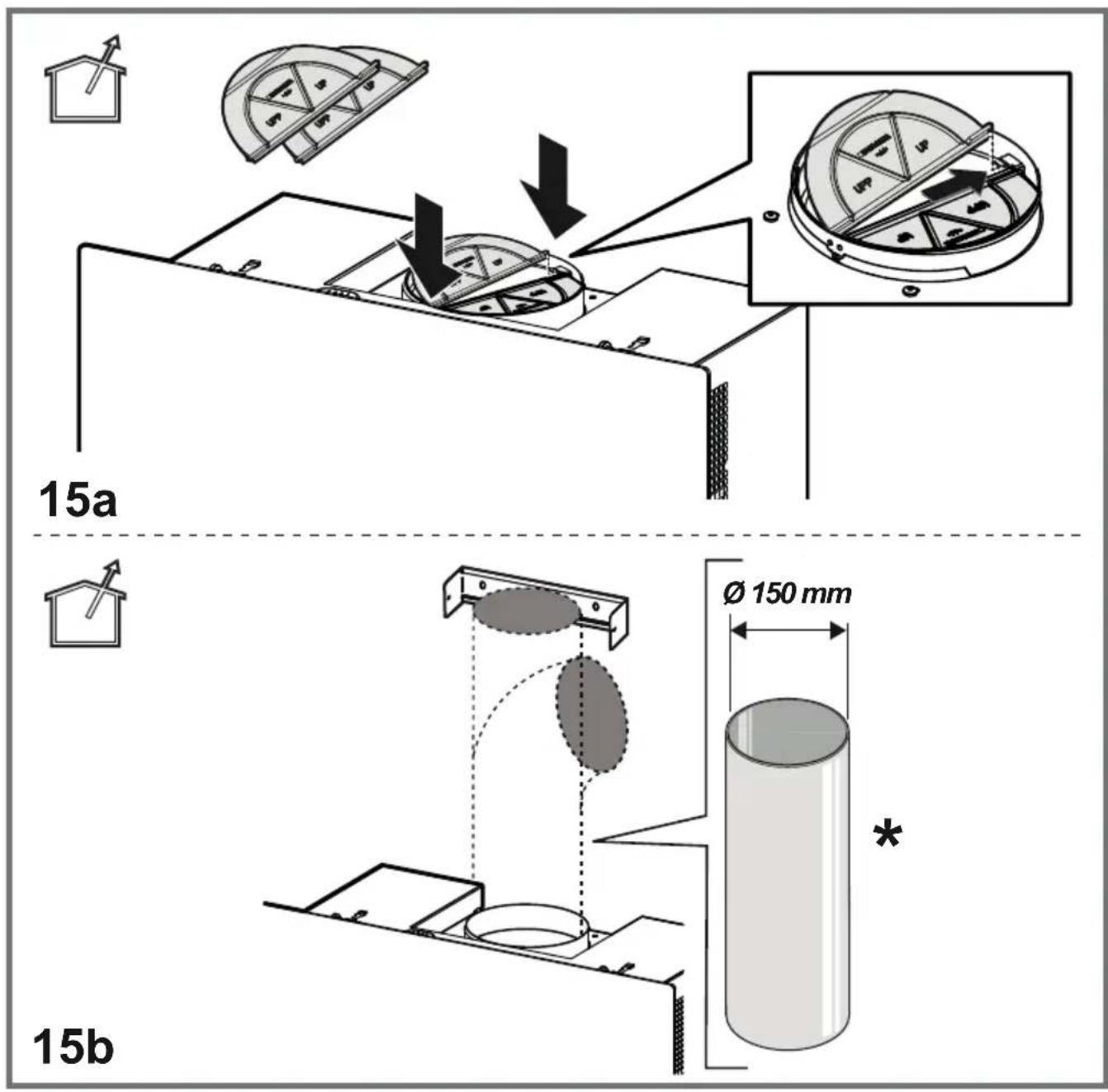

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

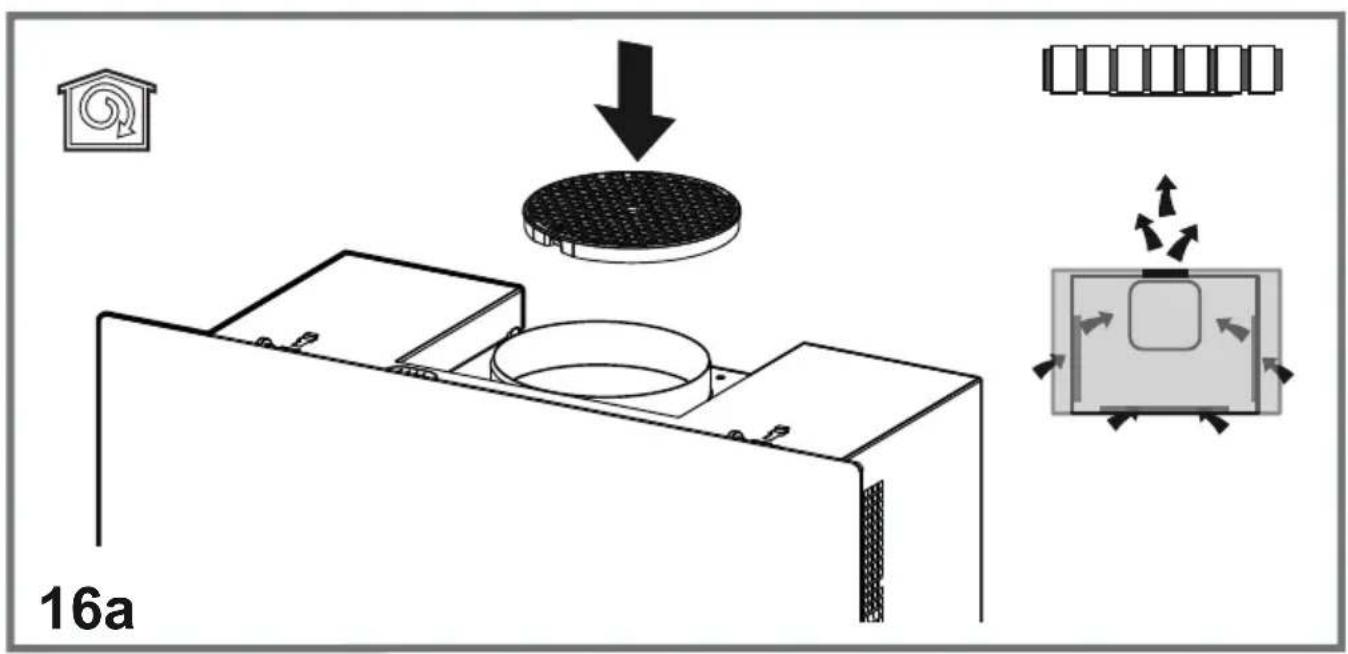

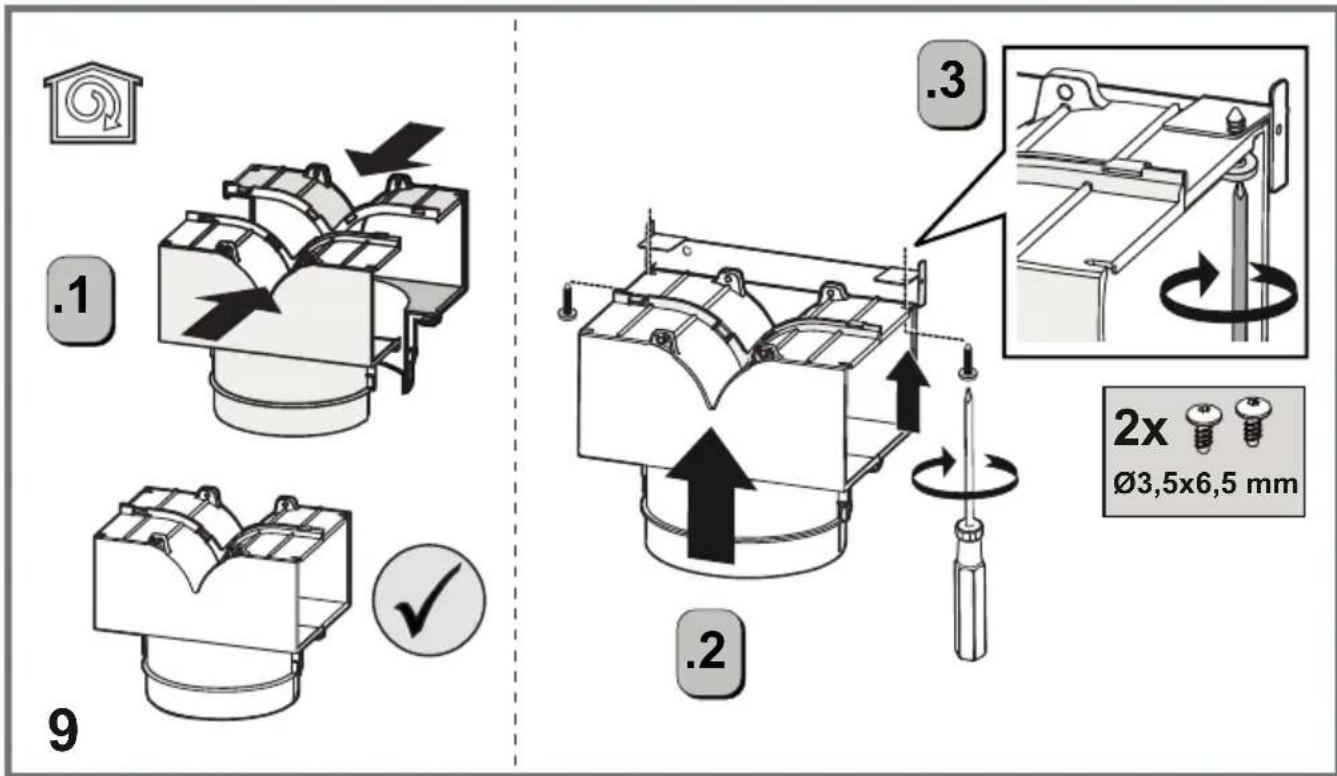

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

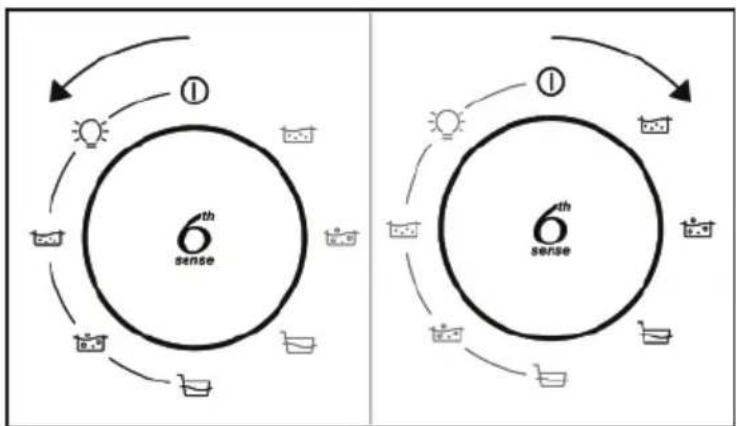

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.
    subgraph_Left_Circle["Circle"]
        A["①"] --> B["sun"]
        B --> C["sense"]
        C --> D["②"]
    end
    subgraph_Right_Circle["Circle"]
        E["①"] --> F["sun"]
        F --> G["sense"]
        G --> H["②"]
    end
    C --> I["③"]
    G --> J["④"]
    style Left_Circle fill:#f9f,stroke:#333
    style Right_Circle fill:#bbf,stroke:#333

Light ON

① OFF

Speed 1 Light ON

Speed 1 Light OFF

Speed 2 Light ON

Speed 2 Light OFF

Speed 3 Light ON

Speed 3 Light OFF

MAINTENANCE

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

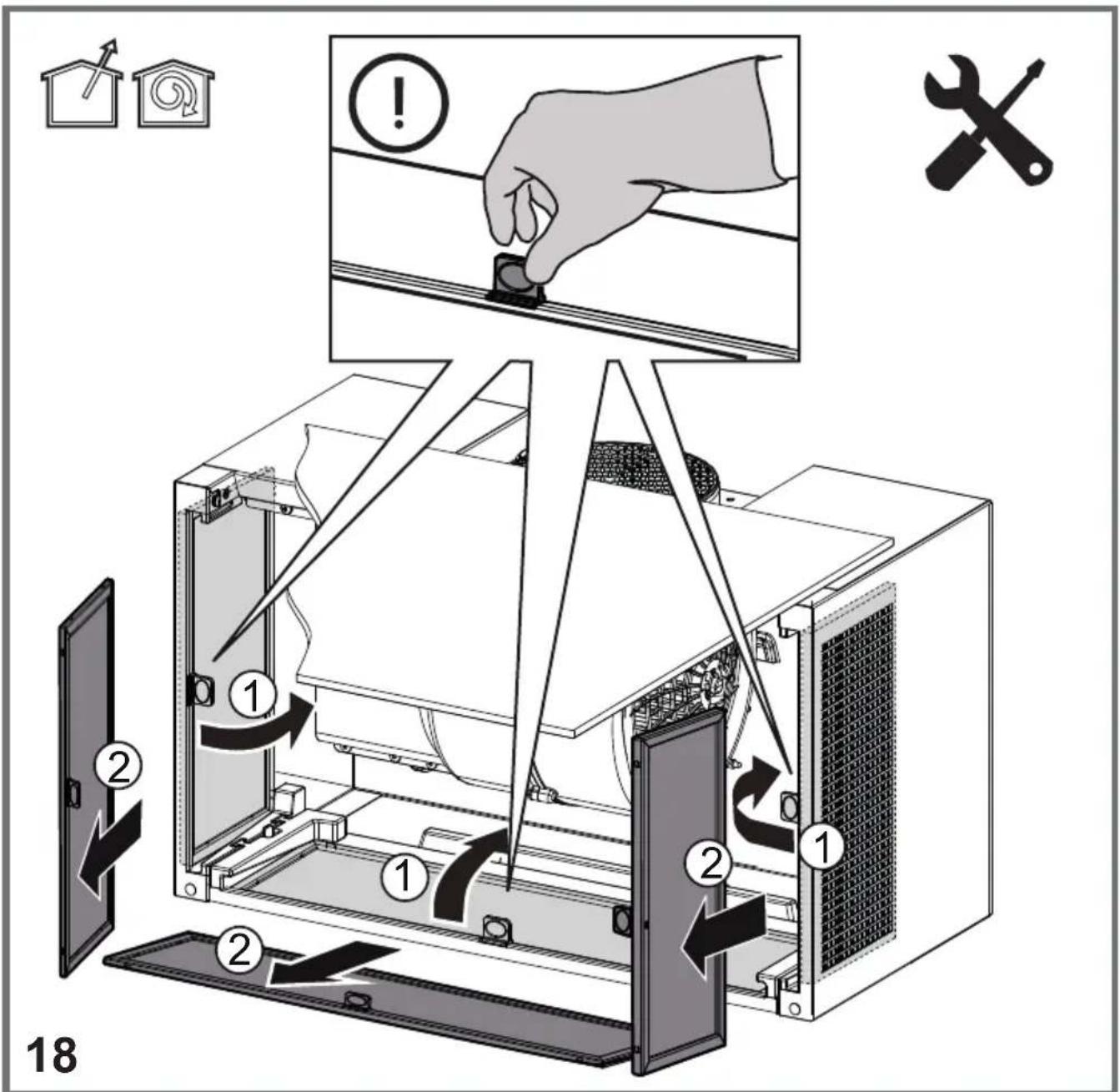

Perimeter aspiration panel

Clean the perimeter aspiration panel with the same frequency as the anti-grease filter, using a cloth and not too concentrated liquid detergent. Do not use abrasive substances.

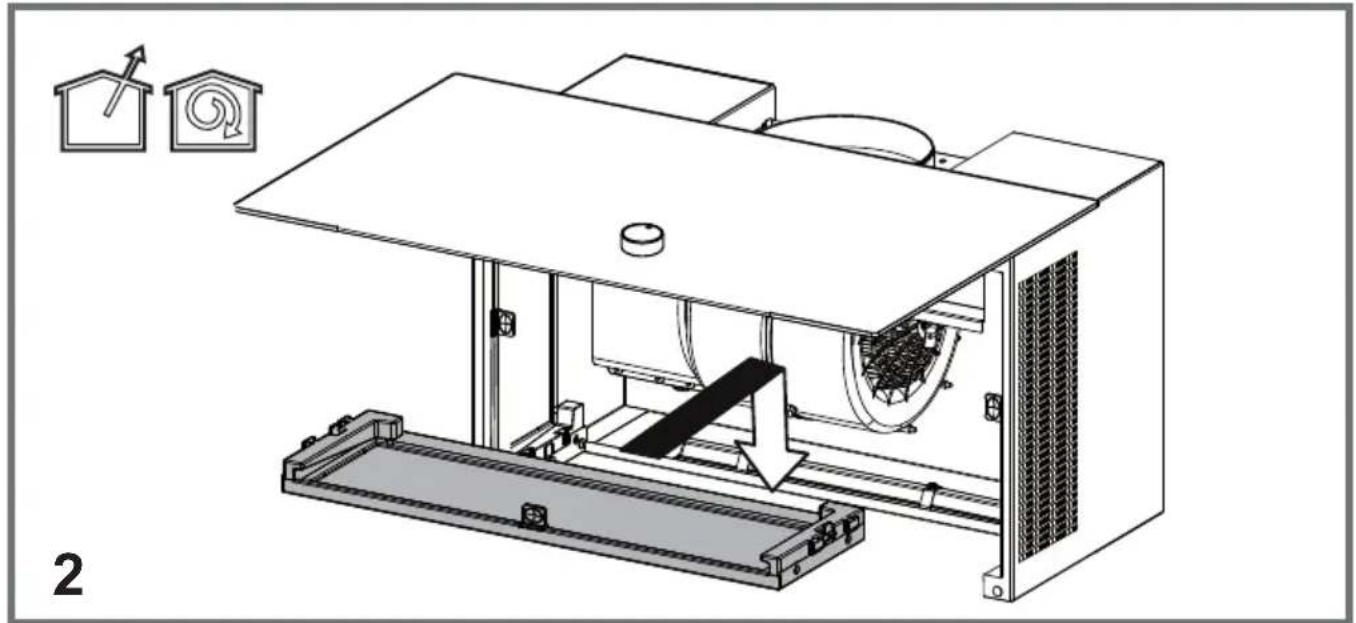

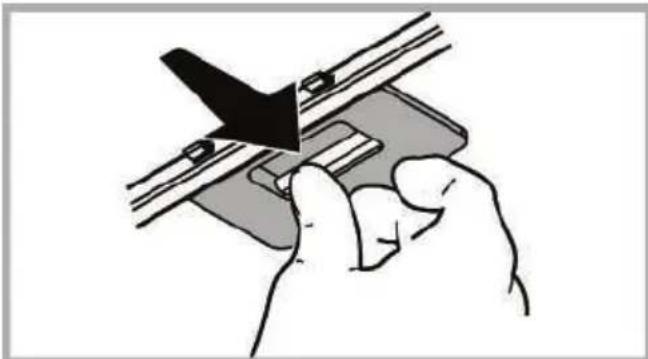

Maintenance of the anti-grease filters Traps cooking grease particles.

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

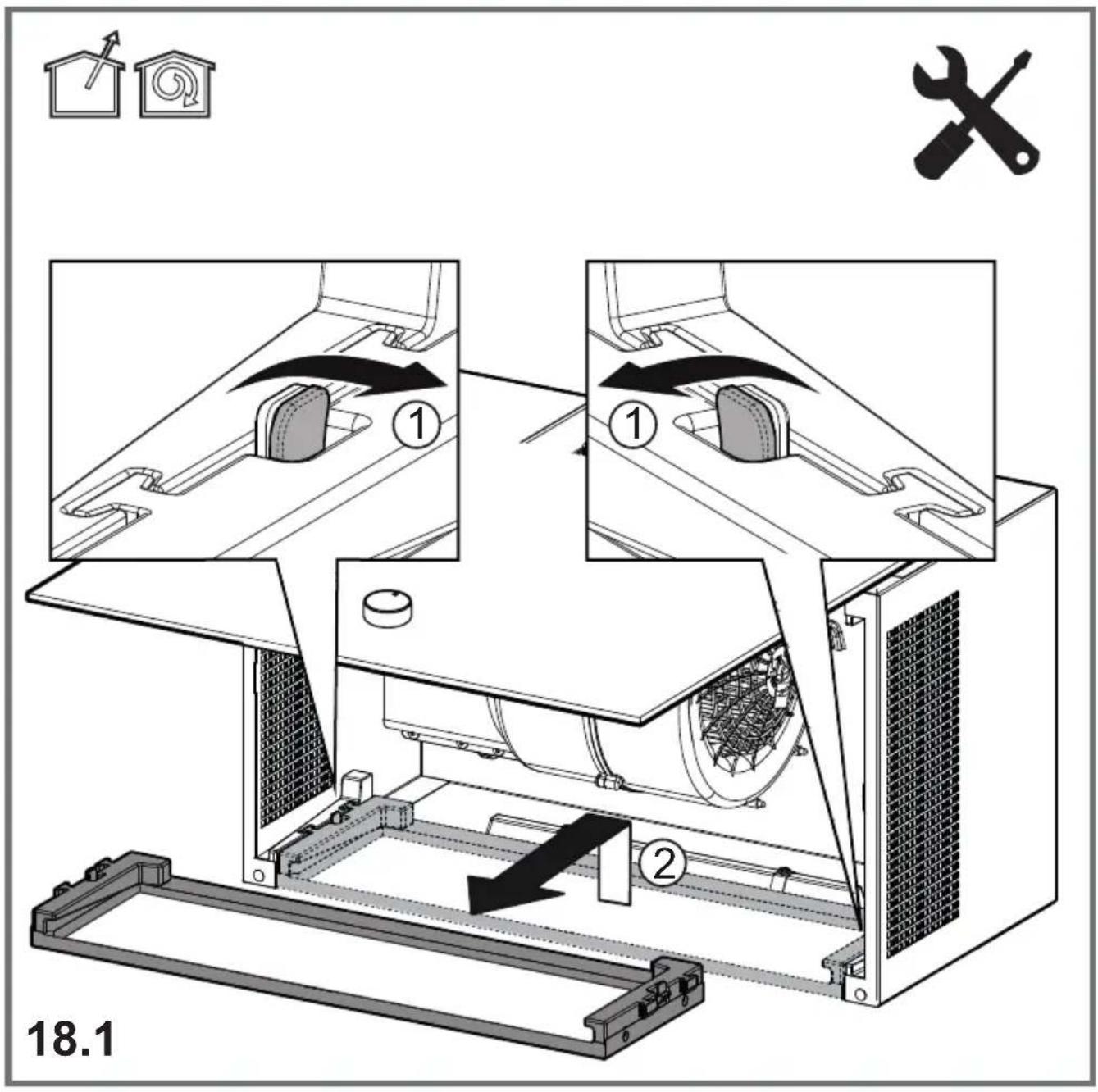

To remove the grease filter, pull the spring release handle.

Hand holding a small electronic device with a black arrow pointing to it (no text or symbols visible)

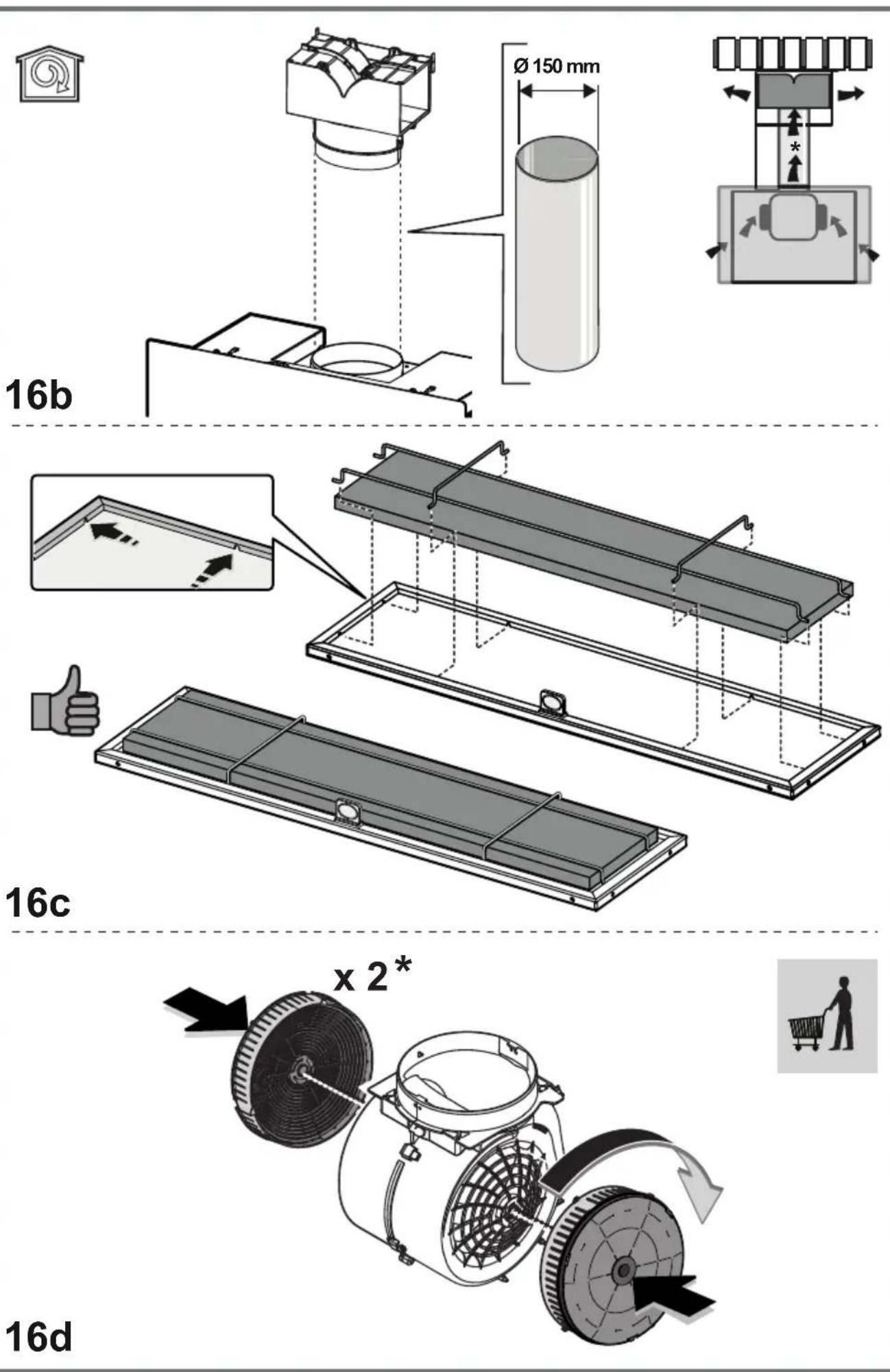

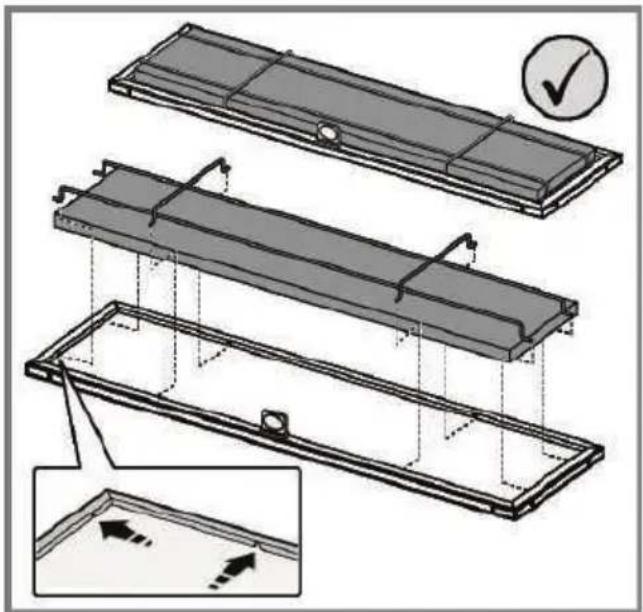

Maintenance of the charcoal filter

It absorbs unpleasant odors caused by cooking. Synthetic mat filter (supplied with the product)

The charcoal filter can be washed once every two months (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

The synthetic mat filter can be replaced with the round carbon filter.

Technical illustration of a structural panel assembly with cross-sections and detail view (no text or symbols)

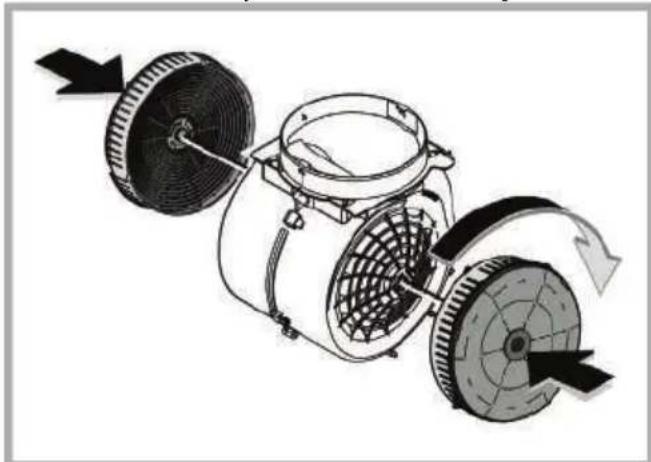

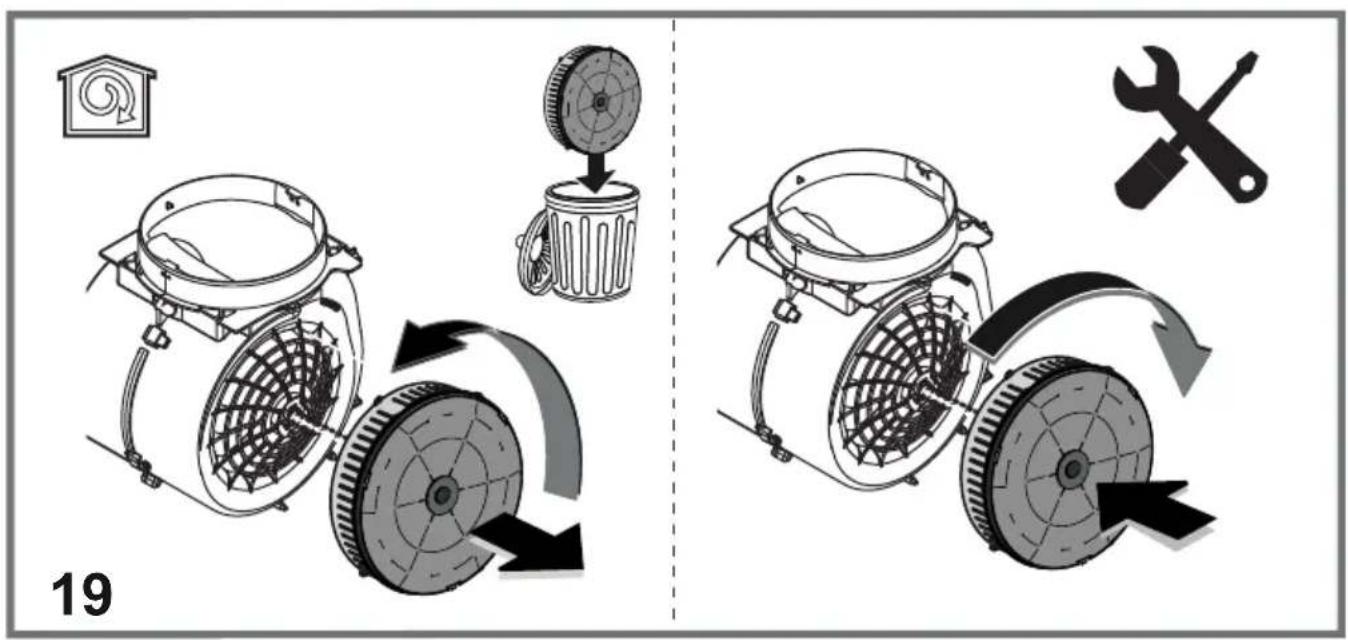

Circular charcoal filter

Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise.

For the disassembly, tum counter-clockwise.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Technical illustration of a mechanical fan assembly with rotating blades and housing (no text or symbols)

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times longer than the traditional lamps and allow to save 90% electrical energy.

The lighting system cannot be replaced by the user, contact Customer Service in case of malfunction.

DISPOSAL

• This appliance is marked according to the European directive 2012/19/EC - UK SI 2013 No.3113 on Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

- The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

- For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.

- Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.

- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. - Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301. - EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

- If the hood is not working:

Check that:

- The power has not been disconnected.

- A speed has been selected.

• If the hood performs inefficiently:

Check that:

• The motor speed selected is sufficient for the amount of smoke and vapours released.
• The kitchen is sufficiently ventilated to allow air intake.
• The charcoal filter is not worn (hood in filtering version).

• If the hood has turned off during normal functioning:

Check that:

• The power has not been disconnected.
• the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. Then connect it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Height (cm)		Width (cm)	Depth (cm)	∅ of the exhaust tube (cm)
	67-101,5	59,8 - 89,8	25	15
	77,5-101,5

Silhouette of a person pushing a shopping cart (no text or symbols)

Components not provided with the product

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website docs.whirlpool.eu
• Using QR Code
  • Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

DE

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Technical illustration of a structural panel assembly with cross-sections and detail views (no text or symbols)

Diagram of a mechanical fan assembly with two wheels and a central fan (no text or symbols)

Ersetzen der Lampen

Silhouette of a person pushing a shopping cart (no text or symbols)

FR

SÉCURITÉ GÉNÉRALE
    subgraph_Left_Circle["Circle"]
        A["①"] --> B["Sun"]
        B --> C["Water Tank"]
        C --> D["Bucket"]
        D --> E["Sense"]
        E --> F["②"]
    end
    subgraph_Right_Circle["Circle"]
        G["①"] --> H["Sun"]
        H --> I["Water Tank"]
        I --> J["Bucket"]
        J --> K["Sense"]
        K --> L["③"]
    end

= ..Lumière ON

① OFF

Illustration of a hand using a tool to cut or install a mechanical component (no text or symbols visible)

Technical illustration of a structural panel assembly with cross-sectional views and a checkmark indicating inspection (no text or symbols present)

Technical illustration of a mechanical fan assembly with rotating blades and fan blades (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

NL

ALGEMENE VEILIGHEID
    subgraph_Left_Circle["Circle"]
        A["①"] --> B["Sun"]
        B --> C["Water Tank"]
        C --> D["Container Tank"]
        D --> E["②"]
    end
    subgraph_Right_Circle["Circle"]
        F["①"] --> G["Sun"]
        G --> H["Water Tank"]
        H --> I["Container Tank"]
        I --> J["③"]
    end
    style Left_Circle fill:#f9f,stroke:#333
    style Right_Circle fill:#bbf,stroke:#333

.Licht AAN

UIT

Snelheid 1 Licht AAN

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Technical illustration of a structural frame assembly with arrows indicating force direction (no text or symbols present)

Rond koolstofffilter

Diagram of a fan-shaped electric motor with blades and rotor, showing internal structure and airflow direction (no text or labels)

Vervanging lampjes

Silhouette of a person pushing a shopping cart (no text or symbols)

ES

SEGURIDAD GENERAL

.Luz ON

① OFF

Velocidad 1 Luz ON

Velocidad 1 Luz OFF

Velocidad 2 Luz ON

Velocidad 2 Luz OFF

Velocidad 3 Luz ON

Velocidad 3 Luz OFF

MANTENIMIENTO

Limpieza

Hand holding a small mechanical component with a black arrow indicating a cutting or dissection (no text or symbols visible)

Technical illustration of a structural panel assembly with cross-sectional views and a checkmark indicating inspection (no text or symbols present)

Filtro de carbòn circular

Diagram of a mechanical fan assembly with rotating blades and fan blades (no text or labels)

Silhouette of a person pushing a shopping cart (no text or symbols)

RU

ОБЩИЕ ПРАВИЛА ТЕХНИКИ БЕЗОПАСНОСТИ

Illustration of a hand using a tool to cut or apply a mechanical component (no text or symbols visible)

Technical illustration of a structural frame assembly with arrows indicating force direction (no text or symbols)

Diagram of a mechanical fan assembly with two blades and a central fan, showing internal components and directional arrows (no text or labels)

Замена ламп

Silhouette of a person pushing a shopping cart (no text or symbols)

PL

OGÓLNE BEZPIECZEŃSTWO

Oświetlenie ON

① OFF

Illustration of a hand using a tool to cut or install a mechanical component (no text or symbols visible)

Technical illustration of a structural frame assembly with mounting holes and internal supports, showing cross-sections and detail (no text or symbols)

Diagram of a mechanical fan assembly with blades and internal components, showing motion direction (no text or labels)

Wymiana żarówek

Silhouette of a person pushing a shopping cart (no text or symbols)

ET

ÜLDINE OHUTUSTEAVE
    subgraph_Left_Circle["Circle"]
        A["①"] --> B["Sun icon"]
        B --> C["Water tank icon"]
        C --> D["Water tank icon"]
        D --> E["Water tank icon"]
        E --> F["Water tank icon"]
        F --> G["Water tank icon"]
        G --> H["Water tank icon"]
        H --> I["Water tank icon"]
        I --> J["Water tank icon"]
        J --> K["Water tank icon"]
        K --> L["Water tank icon"]
        L --> M["Water tank icon"]
        M --> N["Water tank icon"]
        N --> O["Water tank icon"]
        O --> P["Water tank icon"]
        P --> Q["Water tank icon"]
        Q --> R["Water tank icon"]
        R --> S["Water tank icon"]
        S --> T["Water tank icon"]
        T --> U["Water tank icon"]
        U --> V["Water tank icon"]
        V --> W["Water tank icon"]
        W --> X["Water tank icon"]
        X --> Y["Water tank icon"]
        Y --> Z["Water tank icon"]
        Z --> AA["Water tank icon"]
        AA --> AB["Water tank icon"]
        AB --> AC["Water tank icon"]
        AC --> AD["Water tank icon"]
        AD --> AE["Water tank icon"]
        AE --> AF["Water tank icon"]
        AF --> AG["Water tank icon"]
        AG --> AH["Water tank icon"]
        AH --> AI["Water tank icon"]
        AI --> AJ["Water tank icon"]
        AJ --> AK["Water tank icon"]
        AK --> AL["Water tank icon"]
        AL --> AM["Water tank icon"]
        AM --> AN["Water tank icon"]
        AN --> AO["Water tank icon"]
        AO --> AP["Water tank icon"]
        AP --> AQ["Water tank icon"]
        AQ --> AR["Water tank icon"]
        AR --> AS["Water tank icon"]
        AS --> AT["Water tank icon"]
        AT --> AU["Water tank icon"]
        AU --> AV["Water tank icon"]
        AV --> AW["Water tank icon"]
        AW --> AX["Water tank icon"]
        AX --> AY["Water tank icon"]
        AY --> AZ["Water tank icon"]
        AZ --> BA["Water tank icon"]
        BA --> BB["Water tank icon"]
        BB --> BC["Water tank icon"]
        BC --> BD["Water tank icon"]
        BD --> BE["Water tank icon"]
        BE --> BF["Water tank icon"]
        BF --> BG["Water tank icon"]
        BG --> BH["Water tank icon"]
        BH --> BI["Water tank icon"]
        BI --> BJ["Water tank icon"]
        BJ --> BK["Water tank icon"]
        BK --> BL["Water tank icon"]
        BL --> BM["Water tank icon"]
        BM --> BN["Water tank icon"]
        BN --> BO["Water tank icon"]
        BO --> BP["Water tank icon"]
        BP --> BQ["Water tank icon"]
        BQ --> BR["Water tank icon"]
        BR --> BS["Water tank icon"]
        BS --> BT["Water tank icon"]
        BT --> BU["Water tank icon"]
        BU --> BV["Water tank icon"]
        BV --> BW["Water tank icon"]
        BW --> BX["Water tank icon"]
        BX --> BY["Water tank icon"]
        BY --> BZ["Water tank icon"]
        BZ --> CA["Water tank icon"]
        CA --> CB["Water tank icon"]

..Valgus sees ON

OFF

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Söefiltri hooldus

Technical illustration of a structural panel assembly with cross-sectional views and a checkmark indicating inspection (no text or symbols present)

Ümmargune söefilter

Technical illustration of a mechanical fan assembly with rotating blades and housing (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

LT

BENDROJI SAUGA

Illustration of a hand using a tool to cut or apply a mechanical component (no text or symbols visible)

Technical illustration of a structural frame assembly with mounting holes and internal supports, showing cross-sections and detail (no text or symbols)

Apvalüs anglies filtrai

Diagram of a fan assembly with two blades and internal blades, showing airflow direction (no text or labels)

Lempučių pakeitimas

Silhouette of a person pushing a shopping cart (no text or symbols)

Komponentai su gaminiu netiekiami.

LV

VISPĀRĒJA DROŠĪBA

Gaisma ON

① OFF

Ātrums 1 Gaisma ON

Ātrums 1 Gaisma OFF

Atrums 2 Gaisma ON

Atrums 2 Gaisma OFF

Ātrums 3 Gaisma ON

Ātrums 3 Gaisma OFF

TEHNISKÄ APKOPE

Tirīšana

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Technical illustration of a structural panel assembly with cross-sectional views and a checkmark indicating inspection (no text or symbols present)

Cirkulārs oglu filtrs

Diagram of a fan-shaped electric fan with blades and fan blades, showing internal structure and airflow direction (no text or labels)

Spuldžu nomainišana

Silhouette of a person pushing a shopping cart (no text or symbols)

CS

VŠEOBECNÁ BEZPEČNOSTNÍ OPATŘENÍ

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Technical illustration of a structural panel assembly with cross-sectional details and a checkmark indicating inspection (no text or symbols present)

Diagram of a fan-shaped electric fan with internal blades and fan blades, showing mechanical components without any text or symbols.

Výměna svítidel

Silhouette of a person pushing a shopping cart (no text or symbols)

VŠEOBECNÁ BEZPEČNOST

Illustration of a hand using a tool to cut or apply a mechanical component (no text or symbols visible)

Technical illustration of a structural frame assembly with mounting holes and internal supports, showing three views (top, front, side) with no visible text or symbols.

Okružno uholný filter

Diagram of a fan-shaped electric motor with two blades and a central fan, showing internal blades and fan blades (no text or symbols)

Výmena žiaroviek

Odsávač pary je vybavený systémom osvetlenia založenom na technoloógii LED.

Silhouette of a person pushing a shopping cart (no text or symbols)

SR

OPŠTA SIGURNOST

- Pre nego što započnete proces održavanja i čišćenja, odvojite aspirator od električnog napajanja, isključite ga iz struje i izvucite kabl iz utičnice ili ugasite glavni prekidač u kuć.

- Uvek nosite radne rukavice za sve operacije instalacije i održavanja.

- Ovaj aparat mogu da koriste deca, ali ne mlađa od 8 godina i osobe sa smanjenim fizičkim ili mentalnim sposobnostima ili sa nedostatkom iskustva i potrebnog znanja, ako se nalaze pod kontorolom ili nakon dobijanja uputstava za sigurno korišćenje aparata i razumevanja opasnosti do kojih može doći prilikom korišćenja.

- Deca moraju da budu pod kontrolom kako se ne bi igrala sa aparatom. Čišćenje i održavanje ne smeju da obavljaju deca bez kontrole.

- Prostorija mora da bude dovoljno prozračena kada se kuhinjski aspirator koristi zajedno sa ostalim aparatima na gas ili drugo sagorevanje.

- Aspirator mora redovno da se čisti iznutra i spolja (BAREM JEDANPUT MESEČNO). Takođe, neophodno je pridržavati se izričitih uputstava za održavanje.

- Nepridržavanje uputstava za čišćenje aspiratora i za promenu i čišćenje filtera može da izazove požar.

- Strogo je zabranjeno pripremati hranu na plamenu ispod aspiratora.

- Za zamenu sijalice, koristite samo tip sijalice naveden u poglavlju održavanje/zamena sijalice u ovom uputstvu.
    subgraph_Left_Circle["Circle"]
        A["①"] --> B["Sun"]
        B --> C["Water Tank"]
        C --> D["Food Container"]
        D --> E["sense"]
        E --> F["②"]
    end
    subgraph_Right_Circle["Circle"]
        G["①"] --> H["Sun"]
        H --> I["Water Tank"]
        I --> J["Food Container"]
        J --> K["sense"]
        K --> L["③"]
    end

.Svetlo ON

OFF

Brzina 1 Svetlo ON

Brzina 1 Svetlo OFF

Brzina 2 Svetlo ON

Brzina 2 Svetlo OFF

Brzina 3 Svetlo ON

Brzina 3 Svetlo OFF

ODRŽAVANJE

Čišćenje

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

Održavanje karbonskog filtera

Technical illustration of a structural frame assembly with mounting holes and internal supports, showing three views (top, front, side) with no visible text or symbols.

Kružni karbonski filter

Postavite jedan sa svake strane da bi pokrio obe zaštitne rešetke obrtajnog dela motora, posle čega pomerite u smeru kazaljki na satu.

Da biste razmontirali okrenite u smeru suprotnom od smera kazaljki na satu.

Do zasićenja ugljenog filtera dolazi posle produžene upotrebe i zavisi od vrste kuhinje i od toga koliko često se prao filter za uklanjanje masnoće. U svakom slučaju je potrebno zameniti uložak svaka 4 meseca.

Diagram of a fan-shaped electric motor with cooling fans and blades, showing internal blades and fan structure (no text or labels)

Zamena lampa

Aspirator je opremljena sistemom rasvete koja se bazira na LED tehnologiji.

LED garantuje optimalnu rasvetu, trajanje 10 puta duže od tradicionalnih lampi i omogućuje uštedu električne energije za 90%.

Korisnik ne može da zameni sistem osvetljenja, u slučaju kvara kontaktirajte servisnu službu.

ODLAGANJE

Ovaj aparat je označen u skladu sa Evropskom Direktivom 2012/19/EC - UK SI 2013 No.3113, Waste Electrical and Electronic Equipment (WEEE). Proverite da li je ovaj proizvod odložen na pravilan način jer na taj način korisnik pomaže u sprečavanju eventualnih negativnih posledica za zdravlje i za okolinu.

Simbol na proizvodu ili na propratnoj dokumentaciji ilustruje da se ovaj proizvod ne sme tretirati kako kućni otpad nego treba da se odloži na prikladnom sabirnom mestu za odbacivanje električnih i elektronskih aparata. Odložite ovaj otpad na način da se strogo pridržavate lokalnih pravilnika o odlaganju smeća. Za dobijanje detaljnijih informacija o tretmanu, odlaganju i ponovnom korišćenju ovog proizvoda, stupite u kontakt sa prikladnim lokalnim ustanovama, službom za sakupljanje kućnog otpada i/ili sa prodavnicom u kojoj ste kupili ovaj proizvod.

Silhouette of a person pushing a shopping cart (no text or symbols)

Komponente koje se ne prilažu sa proizvodom

Da biste preuzeli bezbednosna uputstva, uputstvo za upotrebu, tehnički list i podatke o energiji:

• Posetite sajt docs.whirlpool.eu
• Koristite QR kod
  • Ili, kontaktirajte službu za servisiranje (na telefonski broj naveden u garancijskoj knjižici). Kada kontaktirate službu za servisiranje, navedite kodove na pločici sa serijskim brojem proizvoda.

HU

ÁLTALÁNOS BIZTONSÁGI ELŐÍRÁSOK

Illustration of a hand using a tool to cut or apply a mechanical component (no text or symbols visible)

Technical illustration of a structural frame assembly with arrows indicating direction and a checkmark (no text or symbols present)

Köralakú szénfilter

Diagram of a fan-shaped electric motor with two blades and internal blades, showing airflow direction (no text or labels)

Izzók cseréje

Silhouette of a person pushing a shopping cart (no text or symbols)

RO

SIGURANTĂ GENERALĂ

Lumina ON

① OFF

Viteza 1 Lumina ON

Viteza 1 Lumina OFF

Viteza 2 Lumina ON

Viteza 2 Lumina OFF

Viteza 3 Lumina ON

Viteza 3 Lumina OFF

ÎNTRETINEREA

Curățarea

Illustration of a hand using a tool to cut or apply a mechanical component (no text or symbols visible)

Technical illustration of a structural frame assembly with mounting holes and internal supports, showing cross-sections and detail (no text or symbols)

Diagram of a mechanical fan assembly with two blades and internal blades, showing airflow direction (no text or labels)

Silhouette of a person pushing a shopping cart (no text or symbols)

BG

ОБЩА БЕЗОПАСНОСТ

Illustration of a hand using a tool to cut or install a mechanical component (no text or symbols visible)

Technical illustration of a structural panel assembly with cross-sectional views and a checkmark indicating inspection (no text or symbols present)

Diagram of a mechanical fan assembly with two blades and a central fan, showing airflow direction (no text or labels)

Подмяна на лампите

Silhouette of a person pushing a shopping cart (no text or symbols)

UK

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Technical illustration of a structural panel assembly with cross-sectional views and directional arrows (no text or symbols)

Diagram of a mechanical fan assembly with two blades and a central fan, showing internal components and directional arrows (no text or labels)

Заміна лампочок

Silhouette of a person pushing a shopping cart (no text or symbols)

HR

UPOZORENJA

- Prije bilo koje operacije čišćenja ili održavanja, odvojite napu od električnog napajanja uklanjanjem utičnice ili odspajanjem glavnog prekidača u kući.

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Technical illustration of a structural frame assembly with arrows indicating force direction (no text or symbols)

Diagram of a fan or fan assembly with two blades and a central fan, showing internal structure and airflow direction (no text or symbols)

Zamjena žarulja

Silhouette of a person pushing a shopping cart (no text or symbols)

EL

ΓΕΝΙΚΗ ΑΣΦΑΛΕΙΑ

Hand holding a small electronic device with a black arrow pointing to it (no text or symbols visible)

Technical illustration of a structural panel assembly with cross-sectional views and a checkmark indicating inspection (no text or symbols present)

Diagram of a mechanical fan assembly with rotating blades and fan blades, showing internal structure and motion direction (no text or labels)

Silhouette of a person pushing a shopping cart (no text or symbols)

SL

SPLOŠNA VARNOST
    subgraph_Left_Circle["Circle"]
        A["①"] --> B["Sun"]
        B --> C["Water Tank"]
        C --> D["Food Container"]
        D --> E["sense"]
        E --> F["②"]
    end
    subgraph_Right_Circle["Circle"]
        G["①"] --> H["Sun"]
        H --> I["Water Tank"]
        I --> J["Food Container"]
        J --> K["sense"]
        K --> L["③"]
    end

..Luč ON

① OFF

Hitrost 1 Luč ON

Hitrost 1 Luč OFF

Hitrost 2 Luč ON

Hitrost 2 Luč OFF

Hitrost 3 Luč ON

Hitrost 3 Luč OFF

VZDRŽEVANJE

Čiščenje

Illustration of a hand using a tool to cut or apply a mechanical component (no text or symbols visible)

Technical illustration of a structural panel assembly with cross-sectional details and a checkmark indicating inspection (no text or symbols present)

Diagram of a fan assembly with two blades and internal blades, showing fan blades and blades (no text or labels)

Zamenjava žarnic

Silhouette of a person pushing a shopping cart (no text or symbols)

Komponente niso priložene izdelku

TR

GENEL GÜVENLİK

Illustration of a hand using a tool to cut or install a mechanical component (no text or symbols visible)

Technical illustration of a structural frame assembly with mounting holes and internal supports, showing cross-sections and detail (no text or symbols)

Sirküler karbonlu filtre

Diagram of a fan assembly with two blades and internal blades, showing mechanical components and airflow direction (no text or labels)

Silhouette of a person pushing a shopping cart (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

Technical diagram showing three views of a structural panel assembly with mounting holes and internal supports, plus an inset view of flow direction (no text or symbols)

Diagram of a three-bladed electric fan with cooling fans and blades, showing internal structure and airflow direction (no text or labels)

استبideal المصابيح

Hand holding a small electronic device with a black arrow pointing to its component (no text or symbols visible)

صيانة مرشح الكربون
