Brand	Samsung
Model	NV7B6775LDK
Product type	Built-in oven
Interior volume	76 L
Dimensions (W x H x D)	595 x 596 x 570 mm
Built-in dimensions (W x H x D)	560 x 579 x 549 mm
Net weight	43.1 kg
Power supply	230-240 V ~ 50 Hz
Maximum connected power	3650-3950 W
Cooking modes	Convection, Conventional, Grill, Air Fry, Sous-vide, Steam, Dual Cook, Slow Cook, Defrost, Dough proof, Pizza bake, Drying
Special functions	Auto cook, Healthy cook, Temperature probe, Timer, Lock, Pyrolytic cleaning, Steam cleaning, Descaling, Drain
Connectivity	Wi-Fi, SmartThings, Remote control, Software update
Display	LCD display with rotary dial and touch controls
Door	Soft door with soft close and flex door (double section)
Safety	Safety shutdown, child lock, intelligent safety mechanism (elements cut off when door opened)
Maintenance and cleaning	Pyrolytic cleaning, steam cleaning, catalytic enamel surface, removable side racks, removable door glass (3-4 panes)
Included accessories	Wire shelf, baking tray, universal tray, deep tray, Air Fry basket, temperature probe, steam container, divider plate, telescopic rails (depending on model)
Water tank	500 ml, for steam cooking
Energy efficiency class	A+
Energy consumption (convection)	0.71 kWh/cycle
Energy consumption (conventional)	1.05 kWh/cycle
Noise	Audible cooling fan, no specific level
Warranty	Refer to Samsung terms

Frequently Asked Questions - NV7B6775LDK SAMSUNG

How to connect the oven to the SmartThings app?

During first startup, the screen displays a QR code. Scan it with your smartphone and follow the instructions. You can also go to Settings > Connections > Easy Connection to establish the Wi-Fi link.

What to do if the oven displays error code C-d1?

The C-d1 code indicates a door lock malfunction. Turn off the oven and restart it. If the problem persists, cut off power for 30 seconds then restore. Contact a Samsung service center if necessary.

How to use the Air Fry mode?

Place the divider, put the food on the wire shelf with the Air Fry basket at level 4. Select Air Fry mode, set the temperature (150-250 °C) and time. No preheating is necessary. For best results, turn the food halfway through cooking.

How to clean the oven with the steam function?

Make sure the oven is cold. Fill the water tank. In the Cleaning menu, select Steam cleaning. Follow the on-screen instructions. Do not open the door during the cycle. Afterwards, wipe the interior with a cloth.

The oven does not heat up, what to check?

Check that the door is properly closed (the oven stops if the door is open). Check the cooking settings. Make sure the circuit breaker has not tripped. If the problem persists, contact a technician.

How to replace the oven bulb?

Unplug the oven. Turn the glass cover counterclockwise to remove it. Replace the bulb with a 25-40 W / 220-240 V one resistant to 300 °C. Use a dry cloth to handle the halogen bulb.

What accessories are included with the oven?

Depending on the model, the oven may include: wire shelf, baking tray, universal tray, deep tray, Air Fry basket, temperature probe, steam container (glass lid, pot, steam tray, nozzle), divider plate, telescopic rails. Check the list in the manual.

How to start a descaling cycle?

The oven alerts you when descaling is needed. Go to Cleaning > Descaling. Follow the instructions: use a suitable descaling agent, fill the water tank. The cycle lasts about 30 minutes. Afterwards, rinse the tank.

The oven emits smoke during first use, is this normal?

Yes, it's normal. Manufacturing residues burn off. Heat the empty oven in Convection mode at 200 °C for one hour, then clean the interior. Make sure to ventilate the kitchen well.

How to set the water hardness?

In Settings > Water hardness, choose between Soft (up to 120 ppm), Medium (120-240 ppm), Medium-Hard (240-350 ppm) or Hard (above 350 ppm). This optimizes the steam function and descaling.

USER MANUAL NV7B6775LDK SAMSUNG

Line drawing of a rectangular tray with ribbed pattern and two circular ends (no text or symbols)

Horna (mm)

A 560 G 503
B 166 H 481
C 383 I 21
D 45 J 549
E 596 K 579
F 595 L 559

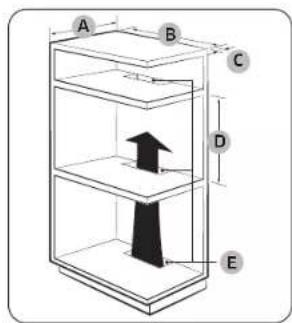

Armario empotrado (mm)

A M in. 550

B M in. 560

C M in. 50

D M in. 590 - Máx. 600

E M in. 460 x M in. 50

NOTA

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Pure geometric diagram showing a circle inscribed in a rectangular frame with diagonal lines, no text or symbols present.

Architectural line drawing of a window frame structure with an inset showing a mechanical component (no text or symbols)

Illustration of four electronic components: a square container, a rectangular box, a keypad, and a small battery (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting a specific feature (no text or symbols present)

Illustration of a rectangular container with internal compartments and decorative patterns (no text or symbols)

Line drawing of a hand inserting a small component into a door (no text or symbols)

1. Presione completamente la palanca del tirador.

Diagram of a kitchen appliance with a handle and arrow indicating rotation (no text or symbols)

1. Tire de la palanca.

Architectural line drawing of a rectangular building facade with internal horizontal panels (no text or symbols)

Line drawing of a hand using a tool to clean or store items (no text or symbols visible)

Line drawing of a rectangular panel or tray with internal compartments, no text or symbols present

PRECAUCIÓN

Illustration of a hand inserting a component into a device (no text or symbols present)

Illustration of a hand pouring liquid into a container with a ring (no text or symbols)

Technical diagram of a mechanical component with labeled section A and arrow indicating direction (no readable text or symbols)

NOTA

Simple line drawing of a cabinet with doors and an arrow indicating upward motion (no text or symbols)

Diagram of a two-tiered dormer or bunk bed structure with no text or symbols

Illustration of a raw steak inside a bag (no text or symbols)

Simple line drawing of a rectangular enclosure with a central platform and surrounding shelves (no text or symbols)

Diagram showing two connectors with a circle highlighting a cross symbol, no text or labels present

Diagram showing a hand pressing down on a device, with an inset circular view highlighting the mechanism (no text or symbols present)

Diagram of a kitchen appliance with directional arrows indicating motion (no text or symbols)

Diagram of a car's seatbelt mechanism showing rotation and adjustment (no text or labels)

Diagram of a folded paper or sheet with an inset showing a magnified view of the edge detail (no text or symbols present)

Diagram of a mechanical assembly with a ruler and a square plate, no visible text or symbols

3D diagram of a square frame with an arrow and label '02' (no text or symbols beyond labels)

Diagram of a mechanical or architectural component with labeled points and a central circular feature (no readable text or symbols)

Technical line drawing of a mechanical assembly with a circular component and mounting base (no text or symbols)

Illustration of a cylindrical object with a protruding rod, resembling a battery or cable (no text or symbols)

Diagram of a door frame with a labeled component '01' (no text or symbols beyond label)

01 Colector de agua

Technical line drawing of a mechanical assembly with an inset showing a bracket detail (no text or symbols)

Diagram of a mechanical ladder inside a rectangular frame, with an arrow indicating rotational motion (no text or symbols)

Simple line drawing of a hand holding a small object inside a circular frame (no text or symbols)

Illustration of a hand using a tool inside a container (no text or symbols)

Simple line drawing of a rectangular tray with two circular ends, no text or symbols present.

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

FR

Courant nominal (A) Section minimale

10 < A ≤ 16.5 mm^2

16 < A ≤ 25.25 mm^2

Four (mm)

A 560 G 503
B 166 H 481
C 383 I 21
D 45 J 549
E 506 K 579
F 595 L 559

Meuble encastré (mm)

A 550 minimum

B 560 minimum

C 50 minimum

D 590 minimum - 600 maximum

E 460 minimum x 50 minimum

REMARQUE

Pure technical line drawing of a rectangular frame with a small circular component and dimension lines (no text or symbols)

Pure geometric diagram showing a circle intersected by two diagonal lines, with a labeled point A inside (no text or symbols beyond the label)

Architectural line drawing of a window frame structure with an inset showing a mechanical component (no text or symbols)

Illustration of four electronic components: a square container, a rectangular box, a keypad, and a small battery (no text or symbols)

Close-up of a mechanical component with a magnified inset showing a threaded fastener (no text or symbols visible)

Illustration of a rectangular container with internal mesh and circular patterns (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Diagram of a kitchen appliance with a handle and arrow indicating rotation (no text or symbols)

1. Tirez la poignée,

Technical line drawing of a rectangular electronic component or panel with internal layered structure (no text or symbols)

Line drawing of a hand holding a tool near a window (no text or symbols)

Line drawing of a door frame with no text or symbols

Illustration of a hand holding a clipboard next to stacked documents with a prohibition symbol (no text or labels)

ATTENTION

Line drawing of a hand inserting a device into a door, with an inset showing the opening (no text or symbols)

Illustration of a hand pouring liquid into a container with a spoon (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and an arrow indicating direction (no text or symbols)

REMARQUE

Simple line drawing of a cabinet with doors and a central shelf, no text or symbols present

Diagram of a two-tier dormitory bed structure with no text or symbols

Illustration of a loaf of bread inside a bag (no text or symbols)

Simple line drawing of a rectangular frame with a central horizontal bar and a circular top (no text or symbols)

Diagram showing two connected cables with a cross symbol and circle, no readable text or labels present.

Diagram showing a hand pressing down on a vehicle, with an inset circular view highlighting the motion (no text or symbols present)

Diagram of an oven with a door and drawer, showing airflow direction (no text or symbols)

Diagram of a car's seatbelt mechanism showing rotation and adjustment (no text or labels)

Diagram of a folded paper or sheet with an inset showing a hand holding a small object (no text or symbols present)

Diagram of a mechanical assembly with a ruler and a flat plate, no visible text or symbols

3D diagram of a square frame with an arrow and label '02' indicating a specific area (no text or symbols beyond labels)

Pure diagram of a rectangular frame with a circular label '03' and directional arrows, no text or symbols present.

Technical line drawing of a mechanical assembly with a circular component and mounting base (no text or symbols)

Illustration of a cylindrical object with a central rod, resembling a battery or plug (no text or symbols)

Simple line drawing of a refrigerator with a drawer and drawer holder (no text or symbols)

Diagram of a door or panel corner with a labeled component '01' (no text or symbols beyond label)

01 Collecteur d'eau

Technical line drawing of a mechanical assembly with an inset showing a bracket detail (no text or symbols)

Diagram of a mechanical structure with a rotating component, no text or symbols present

Diagram of a hand holding a small object inside a circular frame (no text or symbols)

Illustration of a hand holding a tool inside a circular frame (no text or symbols)
