TCG27EBDP - Grass trimmer Tanaka - Free user manual and instructions

Product type	String trimmer (brush cutter)
Model	TCG27EBDP
Brand	Tanaka
Engine	2-stroke, displacement 26.9 cm³ (1.64 cu in)
Spark plug	NGK BMR7A
Idle speed	2,800 – 3,200 min⁻¹
Output shaft speed (max)	7,600 min⁻¹
Max engine power	0.9 kW
Fuel tank capacity	0.48 L (16.2 fl. oz)
Dry weight	5.4 kg (11.9 lbs)
Cutting element	Nylon cutting line (diameter 2.4 mm, length 4 m)
Cutting head type	Semi-automatic (tap advance)
Sound pressure level (LpA)	86 dB(A) (uncertainty 3 dB)
Measured sound power level (LwA)	108 dB(A)
Guaranteed sound power level (LwA)	111 dB(A)
Vibration level (front/left handle)	5.3 m/s² (uncertainty 2.0 m/s²)
Vibration level (rear/right handle)	3.4 m/s² (uncertainty 2.0 m/s²)
Fuel	Unleaded gasoline (octane rating 89) / 2-stroke oil mixture (ratio 25:1 to 50:1)
Spark plug electrode gap	0.6 mm (0.024 in)
Safety perimeter	15 m (50 ft) for bystanders
Included safety equipment	Cutting tool guard, harness, on/off switch
Recommended maintenance	Regular cleaning of air filter, fuel filter, spark plug; greasing of angle gear every 50 hours

Frequently Asked Questions - TCG27EBDP Tanaka

What type of fuel to use for the Tanaka TCG27EBDP?

Use a mixture of unleaded gasoline (octane rating 89) and 2-stroke engine oil in a ratio of 25:1 to 50:1. For California, the ratio is 50:1. Use JASO FC or ISO EGC quality oil.

How to start the trimmer?

Set the on/off switch to the forward position, press the primer bulb several times, set the choke lever to the START (closed) position, then pull the starter cord briskly. As soon as it tries to start, move the choke to the open position and pull again.

What essential safety precautions should be followed?

Always wear a face shield, safety glasses, hearing protection, gloves, thick trousers, and sturdy shoes. Keep people and animals at least 15 meters away. Never start indoors due to toxic exhaust fumes.

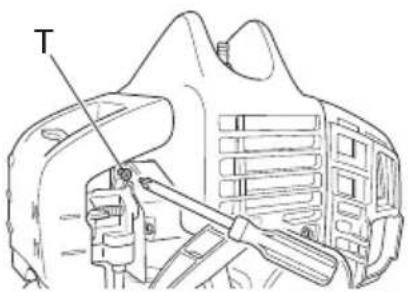

How to adjust the engine idle speed?

The idle speed should be adjusted so that the cutting tool does not rotate at idle. Turn the idle adjustment screw (T) clockwise until the blade starts to rotate, then turn counterclockwise until it stops. The correct idle speed is 2,800 to 3,200 min⁻¹.

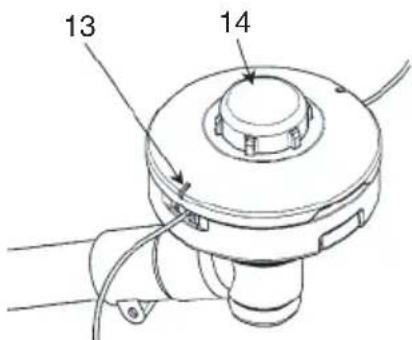

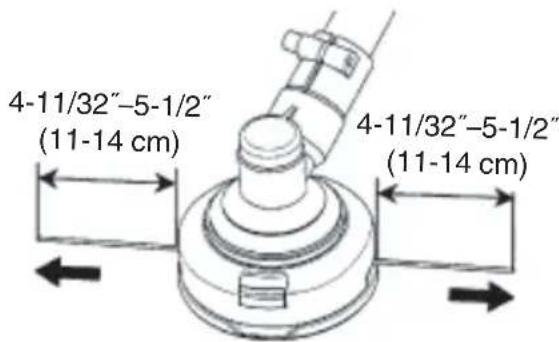

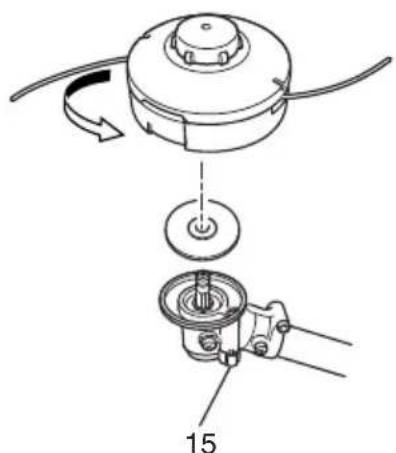

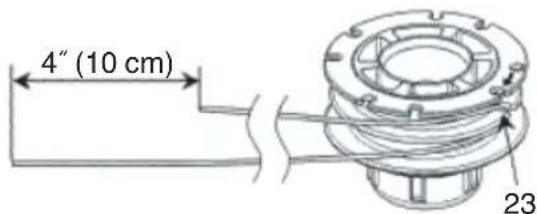

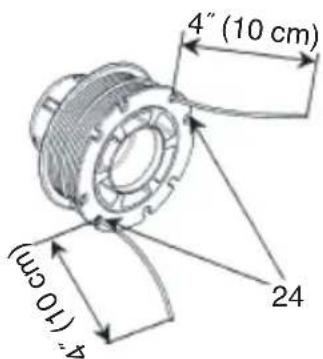

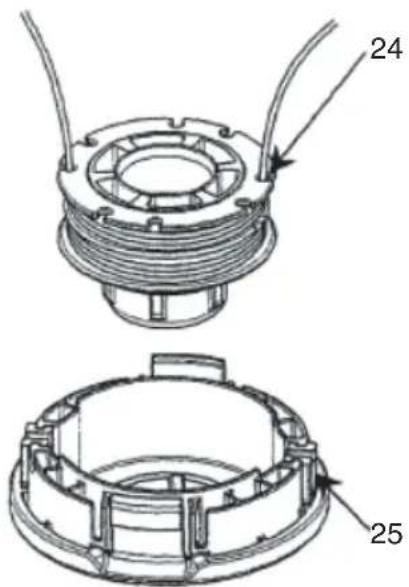

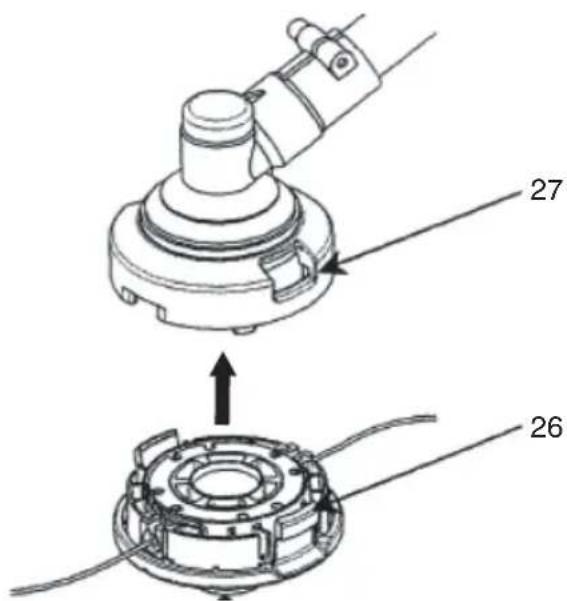

How to replace the cutting line on the semi-automatic head?

Remove the housing by pushing the locking tabs, extract the spool and discard the remaining line. Fold a new nylon line (diameter 2.4 mm) in half, hook it into the central groove, wind both halves in the same direction, then pass each end through the stop holes. Reinsert the spool and housing.

What regular maintenance is required?

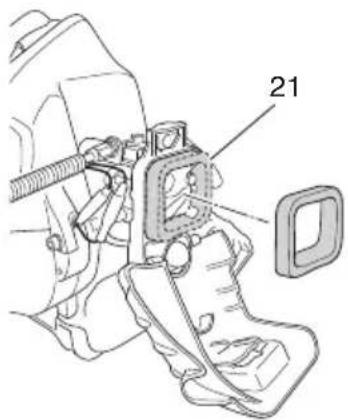

Clean the air filter daily (more often in dusty conditions). Check and clean the spark plug weekly, adjust the gap to 0.6 mm. Check the angle gear grease level every 50 hours. Clean the fuel filter regularly.

What to do if the engine does not start?

Check the fuel tank: if empty, fill with fresh mixture. If the spark plug is flooded, disconnect it, dry it, and pull the starter several times to expel excess fuel. Clean or replace the spark plug if dirty. Check the fuel filter.

How to safely stop the trimmer?

Slow down the engine and let it idle for a few minutes, then set the on/off switch to the stop position. Wait for the cutting tool to stop completely before setting the machine down.

Can I use a metal wire or other non-recommended accessory?

No, use only Tanaka-recommended nylon cutting lines. Using metal wire or cable can cause dangerous projectiles and damage the machine.

What is the declared sound level guarantee?

The guaranteed sound power level is 111 dB(A) according to directive 2000/14/EC. Always wear hearing protection when using this device.

USER MANUAL TCG27EBDP Tanaka

Designed for operating in USA & Canada only. When this product is used in areas other than the USA & Canada, we cannot guarantee the product quality and performance.

Grass Trimmer Coupe-Herbes Motoguadañas

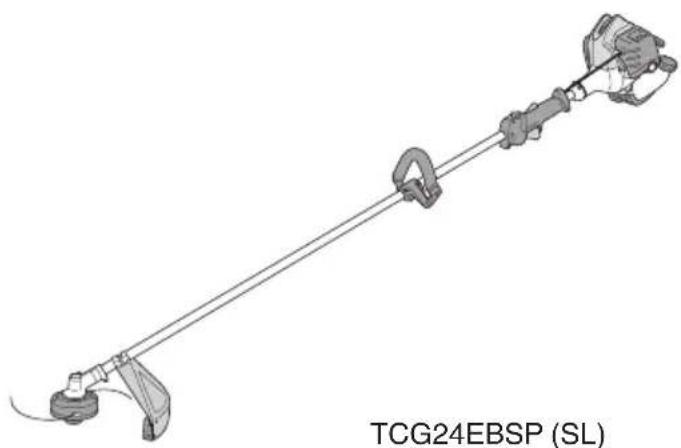

Technical line drawing of a TCG24EBSP (SL) mechanical device with lever and clamp (no text or symbols on the diagram itself)

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

! WARNING

IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury!

This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

AVERTISSEMENT

NOTE: Some units do not carry them.

	Symbols
	WARNINGThe following show symbols used for the machine. Be sure that you understand their meaning before use.
	It is important that you read, fully understand and observe the following safety precautions and warnings. Careless or improper use of the unit may cause serious or fatal injury.		Choke - Run position (Open)
			Choke - Start position (Closed)
	Read, understand and follow all warnings and instructions in this manual and on the unit.		Ignition stop
	Always wear eye, head and ear protectors when using this unit.		Fuel and oil mixture
	Keep all children, bystanders and helpers 15 m away from the unit. If anyone approaches you, stop the engine and cutting attachment immediately.		Guaranteed Sound power level
	Be careful of thrown objects.		Hot surface – Contact with hot surface can cause serious burns.
	Shows maximum shaft speed. Do not use the cutting attachment whose max rpm is below the shaft rpm.		Indicate handle location. Do not attach handle above this point.
	Gloves should be worn when necessary, e.g., when assembling cutting equipment.		Indicates cutting attachment guard location for a trimmer head or semi-auto cutting head.
	Use anti-slip and sturdy footwear.
Before using your machineRead the manual carefully.Check that the cutting equipment is correctly assembled and adjusted.Start the unit and check the carburetor adjustment. See “MAINTENANCE”.

Contents

WHAT IS WHAT 3

WARNINGS AND SAFETY INSTRUCTIONS ..... 4

SPECIFICATIONS....6

ASSEMBLY PROCEDURES 8

OPERATING PROCEDURES 10

MAINTENANCE 12

TROUBLESHOOTING.... 16

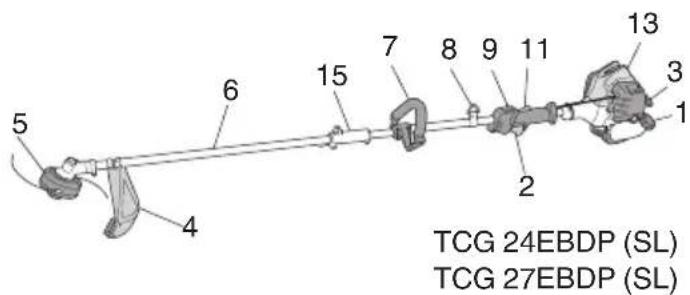

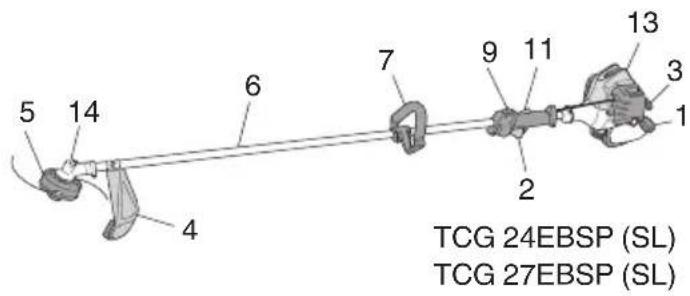

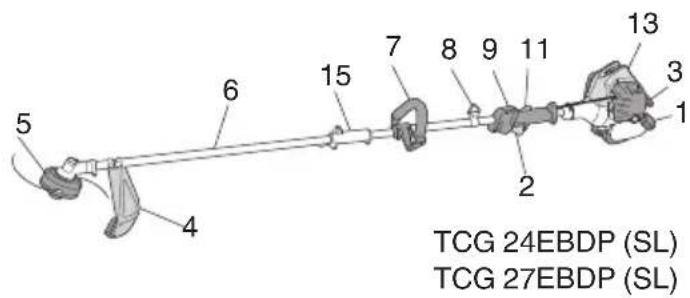

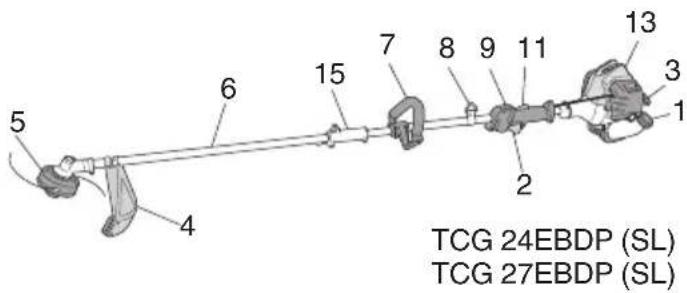

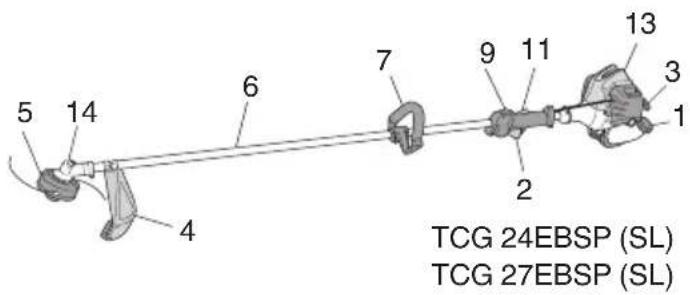

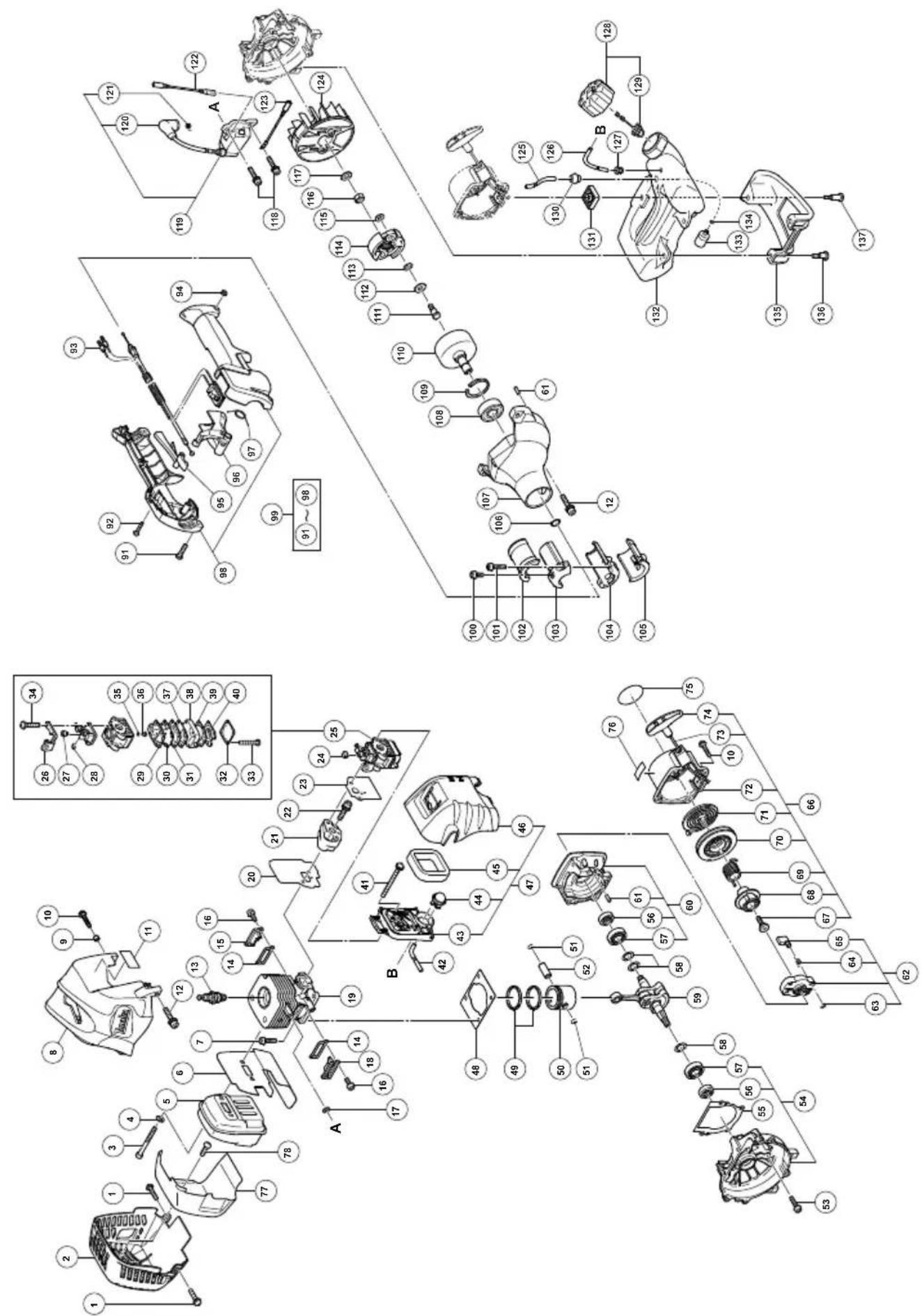

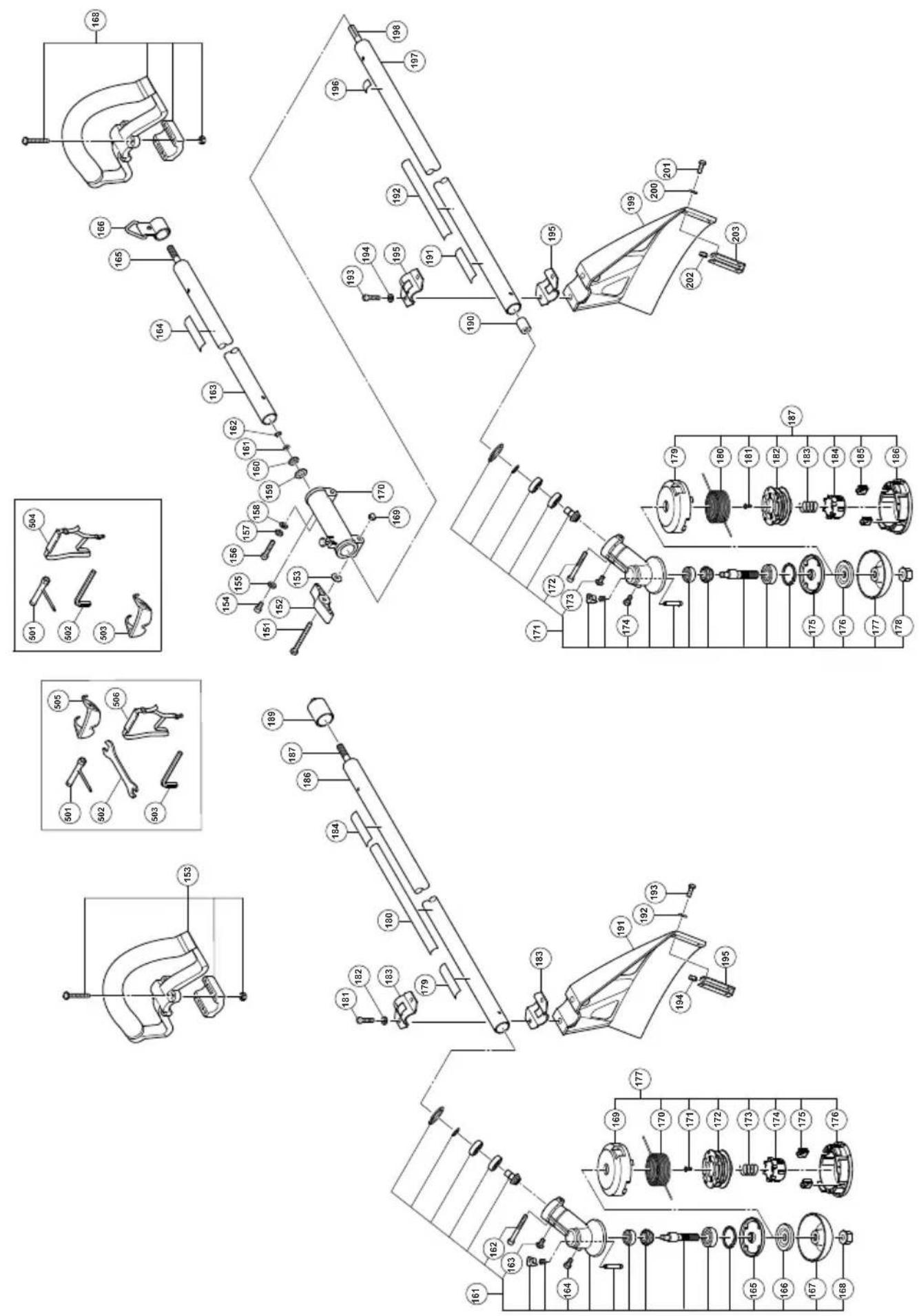

WHAT IS WHAT

Since this manual covers several models, there may be some difference between pictures and your unit. Use the instructions that apply to your unit.

1. Fuel cap
2. Throttle trigger
3. Starter handle
4. Cutting attachment guard
5. Cutting attachment
6. Drive shaft tube
7. Handle
8. Suspension eyelet
9. Ignition switch
   10.Harness
10. Throttle trigger lockout
11. Chokelever
12. Engine
13. Angletransmission
    15.Jointcase
14. Combi box spanner
15. Spanner (if so equipped)
16. Hex bar wrench
    19.Swivelcap
17. Handling instructions

Technical line drawing of a mechanical component with labeled part 10 (no text or symbols beyond label)

WARNING

The engine exhaust from this product contains chemical known to the State of California to cause cancer, birth defects or other reproductive harm.

WARNINGS AND SAFETY INSTRUCTIONS

Operator safety

○ Always wear a safety face shield or goggles.
○ Approved protective goggles comply with standard ANSI Z87.1 in the USA.
○ Always wear heavy, long pants, boots, gloves and a long-sleeve shirt. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair so it is above shoulder length.
○ Do not operate this tool when you are tired, ill or under the influence of alcohol, drugs or medication.
○ Never let a child or inexperienced person operate the machine.
○ Long-term exposure to noise can result in permanent hearing impairment. Wear approved hearing protection. Pay attention to your surroundings. Be aware of any bystanders who may be signaling a problem. Remove safety equipment immediately upon shutting off engine.
○ Wear head protection.
Never start or run the engine inside a closed environment, such as a room or building. Breathing carbon monoxide exhaust fumes can kill.
○ Keep handles free of oil and fuel.
○ Keep hands away from cutting equipment.
○ Do not grab or hold the unit by the cutting equipment.
○ Always wear gloves when assembling or disassembling the cutting attachment, otherwise serious personal injury may result.
○ When the unit is turned off, make sure the cutting attachment has stopped before the unit is set down.
When operation is prolonged, take a break from time to time so that you may avoid possible Hand-Arm Vibration Syndrome (HAVS) which is caused by vibration.

WARNING

• Antivibration systems do not guarantee that you will not sustain Hand-Arm Vibration Syndrome or carpal tunnel syndrome. Therefore, continual and regular users should monitor closely the condition of their hands and fi ngers. If any symptoms of the above appear, seek medical advice immediately.
• If you are using any medical electric/electronic devices such as a pacemaker, consult your physician as well as the device manufacturer prior to operating any power equipment.

Unit/machine safety

○ Inspect the entire unit/machine before each use. Replace damaged parts. Check for fuel leaks and make sure all fasteners are in place and securely tightened.
○ Replace parts that are cracked, chipped or damaged in any way before using the unit/machine.
○ Make sure the cutting attachment is properly installed and securely fastened.
○ Make sure the safety guard is properly attached.
- Keep others away when making carburetor adjustments.
○ Use only accessories as recommended for this unit/machine by the manufacturer.

WARNING

Never modify the unit/machine in any way. Do not use your unit/machine for any job except that for which it is intended.

Fuel safety

○ Mix and pour fuel outdoors where there are no sparks and flames.
○ Use a container approved for fuel.
☐ Do not smoke or allow smoking near fuel or the unit/machine or while using the unit/machine and fueling or mixing fuel.
○ Wipe up all fuel spills from the unit.
○ Move at least 10 ft (3 m) away from fueling site before starting engine.
○ Stop engine before removing fuel cap.
○ Empty the fuel tank before storing the unit/machine. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
○ Store unit/machine and fuel in area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces. etc.

WARNING

Fuel is easy to ignite or get explosion or inhale fumes, so that pay special attention when handling or fi lling fuel.

Cutting safety

○ Do not cut any material other than grass and brush.
☐ Clear the area to be cut before each use. Remove objects which can be thrown or become entangled in the cutting attachment.
☐ For respiratory protection, wear an aerosol protection mask when cutting the grass after insecticide is scattered.
Keep others including children, animals, bystanders and helpers outside the 50 ft (15 m) hazard zone. There is still a risk of injury from thrown object. Bystanders should be encouraged to wear eye protection. Stop the engine immediately if you are approached.
○ Always keep the engine on the right side of your body.
○ Hold the unit/machine firmly with both hands.
- Keep firm footing and balance. Do not overreach.
- Keep all parts of your body away from the muffler and cutting attachment when the engine is running.
○ Keep cutting attachment below waist level.
When relocating to a new work area, be sure to shut off the machine and ensure that all cutting attachments are stopped.
○ Never place the machine on the ground when running.
○ Always ensure that the engine is shut off and any cutting attachments have completely stopped before clearing debris or removing grass from the cutting attachment.
○ Always carry a first-aid kit when operating any power equipment.
Never start or run the engine inside a closed room or building and/or near infl ammable liquids. Breathing exhaust fumes can kill.
Please use the unit/machine in accordance with state and local legislation.

Maintenance safety

○ Maintain the unit/machine according to recommended procedures.
○ Disconnect the spark plug before performing maintenance except for carburetor adjustments.
- Keep others away when making carburetor adjustments.
○ Use only genuine Tanaka replacement parts as recommended by the manufacturer.

Transport and storage

○ Carry the unit/machine by hand with the engine stopped and the muffler away from your body.
○ Allow the engine to cool, empty the fuel tank, and secure the unit/machine before storing or transporting in a vehicle.
○ Empty the fuel tank before storing the unit/machine. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
○ Store unit/machine out of the reach of children.
○ Clean and maintain the unit carefully and store it in a dry place.
○ Make sure engine switch is off when transporting or storing.
☐ You have to secure the machine during transport to prevent loss of fuel, damage or injury.

If situations occur which are not covered in this manual, take care and use common sense. Contact your Tanaka dealer if you need assistance. Pay special attention to statements preceded by the following words:

WARNING

Indicates a strong possibility of severe personal injury or loss of life, if instructions are not followed.

CAUTION

Indicates a possibility of personal injury or equipment damage, if instructions are not followed.

NOTE

Helpful information for correct function and use.

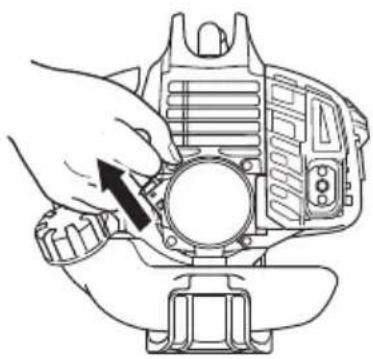

CAUTION

Do not disassemble the recoil starter. You may get a possibility of personal injury with recoil spring.

SPECIFICATIONS

Model	TCG24EBSP (SL) TCG24EBDP (SL)
Engine
Displacement (cu. in.)	1.46 (23.9 ml)	1.46 (23.9 ml)
Spark plug	NGK BMR7A	NGK BMR7A
Idling speed ( min^-1 )	2,800 – 3,200	2,800 – 3,200
Speed of output shaft ( min^-1 )	7,600	7,600
Max. engine output (kW)	0.8	0.8
Fuel tank capacity (fl . oz) 16.2 (0.48 l)
Dry weight (lbs) 11.0 (5.0 kg) 11.7 (5.3 kg)
Cutting attachment Type Nylon cord Nylon cord
Sound pressure level LpA(dB (A))	(ISO22868)Equivalent*Uncertainty	853
Measured sound power level LwA (dB (A))	(2000/14/EC)Racing	108
Guaranteed sound power level LwA (dB (A))	(2000/14/EC)Racing	111
Vibration level ( m/s^2 ) (ISO22867)
Equivalent (Front / Left handle)*	5.6	6.2
Equivalent (Rear / Right handle)*	4.0	3.4
Uncertainty	2.0	2.0
Model TCG27EBSP (SL) TCG27EBDP (SL)
Engine Displacement (cu. in.) Spark plug Idling speed (min-1) Speed of output shaft (min-1) Max. engine output (kW)	1.64 (26.9 ml) NGK BMR7A 2,800 - 3,200 7,600 0.9	1.64 (26.9 ml) NGK BMR7A 2,800 - 3,200 7,600 0.9
Fuel tank capacity (fl. oz) 16.2 (0.48 l)
Dry weight (lbs) 11.5 (5.2 kg) 11.9 (5.4 kg)
Cutting attachment Type Nylon cord Nylon cord
Sound pressure level LpA (dB (A)) (ISO22868) Equivalent* Uncertainty	86 3	86 3
Measured sound power level LwA (dB (A)) (2000/14/EC) Racing	108	108
Guaranteed sound power level LwA (dB (A)) (2000/14/EC) Racing	111	111
Vibration level (m/s2) (ISO22867) Equivalent (Front / Left handle)* Equivalent (Rear / Right handle)* Uncertainty	6.7 4.1 2.0	5.3 3.4 2.0

NOTE

Equivalent noise level/vibration level are calculated as the time-weighted energy total for noise/vibration levels under various working conditions with the following time distribution:

* 1/2 Idle, 1/2 racing.

All data subject to change without notice.

ASSEMBLY PROCEDURES

Installation of attachment

1. Join the attachment in place of it.

2. Make sure the lock pin (1) fi ts in the location hole (2) of tube and that the tube will not come off. (Fig. 1)

3. Tighten the knob nut (3) securely. (Fig. 1)

Fig. 1

Installation of handle (Fig. 2)

Mechanical clamp mechanism diagram showing force application on a curved bracket (no text or symbols)

Fig. 2

Attach the handle to the drive shaft tube with the angle towards the engine.

Adjust the location to the most comfortable position before operation.

NOTE

If your unit has handle location label on drive shaft tube, follow the illustration.

Throttle wire / stop cord

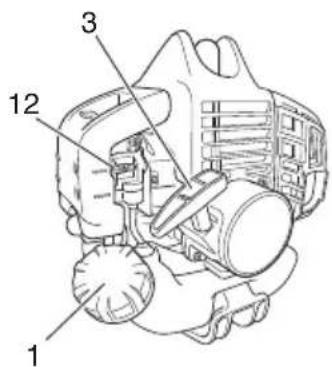

Press the upper tab (4) and open the air cleaner cover. (Fig. 3)

Fig. 3

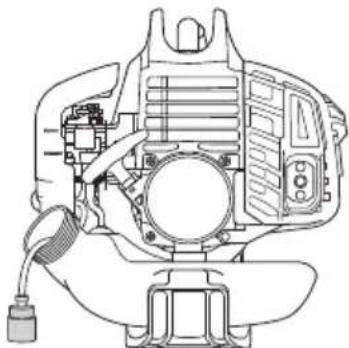

Connect stop cords. (Fig. 4)

Two identical line drawings of cylindrical electronic components with no text or symbols

Fig. 4

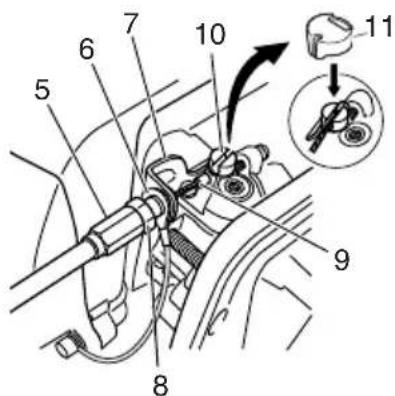

If the throttle outer end (5) is threaded on your unit, screw it and the earth terminal (6) (if so equipped) into the cable adjuster stay (7) all the way, and then tighten this cable end using the adjuster nut (8) against the cable adjuster stay (7).

Connect throttle wire end (9) to carburetor (10) and install swivel cap (11) (if so equipped) where is included in tool bag, onto swivel (10) (Fig. 5).

Press the upper tab (4) and close the air cleaner cover. (Fig. 3)

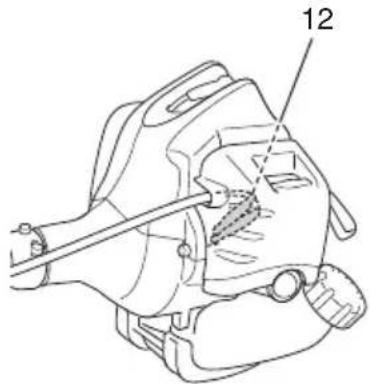

Store stop cords (12) into the air cleaner cover. (Fig. 6)

Some models may come with the parts installed.

Fig. 5

Fig. 6

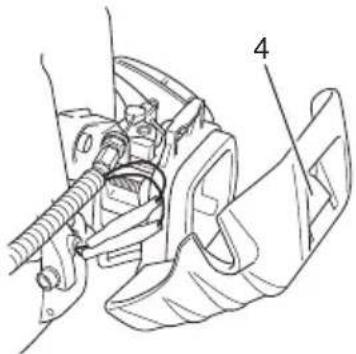

Installation of cutting attachment guard (Fig. 7)

WARNING

• Do not start or operate unit unless each guard is properly assembled to unit.
• If unit is operated without a sharp line limiters, the line will become too long, the engine will overheat, and engine damage may occur.
• Check sharp line limiters surely cut nylon line when operating.

WARNING

If an incorrect or faulty guard is fitted, this may cause serious personal injury.

Technical line drawing of a mechanical device with no visible text or symbols

Fig. 7

NOTE

The guard bracket may come already mounted to the gear case on some models.

Install the cutting attachment guard on drive shaft tube against angle transmission. Tighten the guard bracket fi rmly so that the cutting attachment guard does not swing or move down during operation.

Install the cutting attachment guard to the guard bracket, which also secures the guard to the gear case using the two guard mounting screws.

CAUTION

Some cutting attachment guards are equipped with sharp line limiters. Be careful with handling it.

NOTE

If your unit has guard location label on drive shaft tube, follow the indication.

Installation of semi-auto cutting head

1. Function

Automatically feeds more nylon cutting line when it is tapped at low rpm (not greater than 4,500 min ^-1 ).

Specifications

Code No.	Type of attaching screw	Direction of rotation	Size of attaching screw
6696454	Female screw	Counterclockwise	M10×P1.25-LH
6698639

Applicable nylon cord

Cord diameter: 3/32" (Φ2.4 mm) Length: 13 ft (4 m)

2. Precautions

○ The case must be securely attached to the cover.
○ Check the cover, case and other components for cracks or other damage.
○ Check the case and button for wear.
If the wear limit mark (13) on the case is no longer visible or there is a hole in the bottom (14) of the button, change the new parts immediately. (Fig. 8)

Fig. 8

○ The cutting head must be securely mounted to the unit's gear case.
For outstanding performance and reliability, always use Tanaka nylon cutting line. Never use wire or other materials that could become a dangerous projectile.

○ If the cutting head does not feed cutting line properly, check that the nylon line and all components are properly installed. Contact your Tanaka dealer if you need assistance.

1. Installation (Fig. 9)

○ Install cutting head on gear case of grass trimmers/brush cutters. The mounting nut is left-hand-threaded. Turn clockwise to loosen/ counterclockwise to tighten.

Fig. 9

NOTE

○ Press the stopper pin (15) of the gear case in order to lock the cutter holder.

1. Adjusting line length

○ Set the engine speed as low as possible and tap the head on the ground. The nylon line will be drawn out about 1-3/16" (3 cm) with each tap. (Fig. 10)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols)

Fig. 10

Also, you can extend the nylon line by hand but the engine must be completely stopped. (Fig. 11)

Technical line drawing of a mechanical component with a black arrow indicating direction (no text or symbols)

Fig. 11

○ Adjust the nylon line to the proper length of 4-11/32"-5-1/2" (11-14 cm) before each operation.

WARNING

For Tanaka heads, use only flexible, non-metallic line recommended by the manufacturer. Never use wire or wire ropes. They can break off and become a dangerous projectile.

OPERATING PROCEDURES

Fuel (Fig. 12)

Fig. 12

WARNING

● The trimmer is equipped with a two-stroke engine. Always run the engine on fuel, which is mixed with oil.

Provide good ventilation, when fueling or handling fuel.

● Fuel contains highly flammable and it is possible to get the serious personal injury when inhaling or spilling on your body. Always pay attention when handling fuel. Always have good ventilation when handling fuel inside building.

Fuel

○ Always use branded 89 octane unleaded gasoline.

○ Use genuine two-cycle oil or use a mix between 25:1 to 50:1, please consult the oil bottle for the ratio or Tanaka dealer.

○ Only for the state of California at 50:1.

If genuine oil is not available, use an anti-oxidant added quality oil expressly labeled for air-cooled 2-cycle engine use (JASO FC GRADE OIL or ISO EGC GRADE). Do not use BIA or TCW (2-stroke water-cooling type) mixed oil.

○ Never use multi-grade oil (10 W/30) or waste oil.

○ Always mix fuel and oil in a separate clean container.

Always start by fi ling half the amount of fuel, which is to be used. Then add the whole amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of fuel.

Mix (shake) the fuel-mix thoroughly before filling the fuel tank.

Fueling

WARNING

● Always shut off the engine before refueling.
- Slowly open the fuel tank, when filling up with fuel, so that possible over-pressure disappears.
● Tighten the fuel cap carefully, after fueling.
● Always move the trimmer at least 10 ft (3 m) from the fueling area before starting.
● Always wash any spilled fuel from clothing immediately with soap.
- Be sure to check for any fuel leakage after refueling.

Before fueling, clean the tank cap area carefully, to ensure that no dirt falls into the tank. Make sure that the fuel is well mixed by shaking the container, before fueling.

Starting

CAUTION

Before starting, make sure the cutting attachment does not touch anything.

1. Set ignition switch (16) to forward away from stop position. (Fig. 13)

Fig. 13

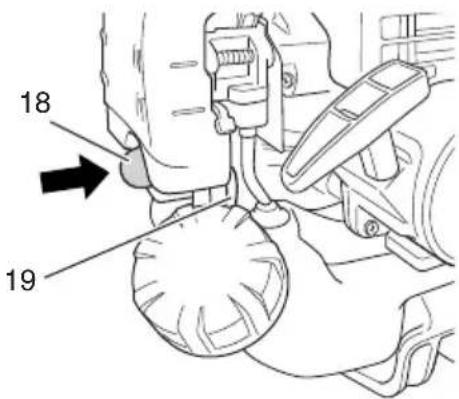

* Push priming bulb (18) several times so that fuel flows through return pipe (19). (Fig. 14)

Fig. 14

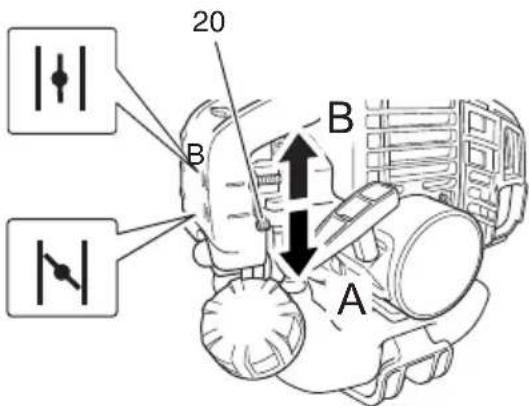

1. Set choke lever (20) to START position (closed) (A). (Fig. 15)

Fig. 15

1. Pull recoil starter briskly, taking care to keep the handle in your grasp and not allowing it to snap back. (Fig. 16)

Line drawing of a hand adjusting a mechanical component with an arrow indicating the process (no text or symbols present)

Fig. 16

1. When you hear the engine want to start, return choke lever to RUN position (open) (B). Then pull recoil starter briskly again.

NOTE

If engine does not start, repeat procedures from 2 to 4.

1. Then allow the engine about 2–3 minutes to warm up before subjecting it to any load.

2. Check that the cutting attachment does not rotate when the engine is idling.

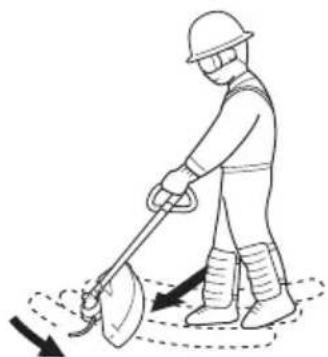

Cutting (Fig. 17, 18, 19)

When cutting, operate engine at over 6,500 min ^-1 . Extended time of use at low rpm may wear out the clutch prematurely.
○ Cut grass from right to left.
○ Wear the harness as shown in the figure (if so equipped). The cutting attachment turns counterclockwise, therefore, be advised to operate the unit from right to left for effi cient cutting. Keep onlookers out of working area at least 50 ft (15 m).
Please use the unit/machine in accordance with state and local legislation.

Illustration of a worker using a handheld tool to measure a surface (no text or symbols)

Fig. 17

Line drawing of a person wearing a helmet and safety harness (no text or symbols)

Fig. 18

Fig. 19

WARNING

If cutting attachment should strike against stones or other debris, stop the engine and make sure that the attachment and related parts are undamaged. When grass or vines wrap around attachment, stop engine and attachment and remove them.

Stopping (Fig. 20)

Decrease engine speed and run at an idle for a few minutes, then turn off ignition switch (16).

Fig. 20

WARNING

A cutting attachment can injure while it continues to spin after the engine is stopped or power control is released. When the unit is turned off, make sure the cutting attachment has stopped before the unit is set down.

Semi-auto cutting head

When cutting, operate engine at over 6,500 min ^-1 . Extended time of use at low rpm may wear out the clutch prematurely.
○ Cut grass from right to left.

WARNING

A cutting attachment can injure while it continues to spin after the engine is stopped or power control is released. When the unit is turned off, make sure the cutting attachment has stopped before the unit is set down.

Automatically feeds more nylon cutting line when it is tapped at low rpm (not greater than 4,500 min ^-1 ).

MAINTENANCE

MAINTENANCE, REPLACEMENT OR REPAIR OF THE EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY ANY NON-ROAD ENGINE REPAIR ESTABLISHMENT OR INDIVIDUAL.

Carburetor adjustment (Fig. 21)

Fig. 21

WARNING

● The cutting attachment may be spinning during carburetor adjustments.
● Never start the engine without the complete clutch cover and tube assembled! Otherwise the clutch can come loose and cause personal injuries.

In the carburetor, fuel is mixed with air. When the engine is test run at the factory, the carburetor is basically adjusted. A further adjustment may be required, according to climate and altitude. The carburetor has one adjustment possibility:

T = Idle speed adjustment screw.

Idle speed adjustment (T)

Check that the air filter is clean. Be sure the cutting attachment stop turning when the engine idle. When the idle speed is correct, the cutting attachment will not rotate. If adjustment is required, close (clockwise) the T-screw, with the engine running, until the cutting attachment starts to rotate. Open (counter-clockwise) the screw until the cutting attachment stops. You have reached the correct idle speed when the engine runs smoothly in all positions well below the rpm when the cutting attachment starts to rotate.

If the cutting attachment still rotates after idle speed adjustment, contact your Tanaka dealer.

NOTE

Standard Idle rpm is 2,800 - 3,200 min ^-1 .

WARNING

When the engine is idling the cutting attachment must under no circumstances rotate.

Air fi Iter (Fig. 22)

The air filter must be cleaned from dust and dirt in order to avoid:

○ Carburetor malfunctions
○ Starting problems
○ Engine power reduction
○ Unnecessary wear on the engine parts
○ Abnormal fuel consumption

Clean the air fi lter daily or more often if working in exceptionally dusty areas.

Fig. 22

Cleaning the air fi Iter

Open the air filter cover and the filter (21). Rinse it in warm soap suds. Check that the fi liter is dry before reassembly. An air fi liter that has been used for some time cannot be cleaned completely. Therefore, it must regularly be replaced with a new one. A damaged fi liter must always be replaced.

Fuel fi Iter (Fig. 23)

Drain all fuel from fuel tank and pull fuel filter line from tank. Pull filter element out of holder assembly and rinse element in warm water with detergent.

Rinse thoroughly until all traces of detergent are eliminated. Squeeze, do not wring, away excess water and allow element to air dry.

NOTE

If element is hard due to excessive dirt buildup, replace it.

Technical line drawing of a mechanical device with no visible text or symbols

Fig. 23

Spark plug (Fig. 24)

The spark plug condition is influenced by:

○ An incorrect carburetor setting
○ Wrong fuel mixture (too much oil in the gasoline)
○ A dirty air fi Iter
○ Hard running conditions (such as cold weather)

These factors cause deposits on the spark plug electrodes, which may result in malfunction and starting difficulties. If the engine is low on power, difficult to start or runs poorly at idling speed, always check the spark plug first. If the spark plug is dirty, clean it and check the electrode gap. Re-adjust if necessary. The correct gap is 0.024" (0.6 mm). The spark plug should be replaced after about 100 operation hours or earlier if the electrodes are badly eroded.

Fig. 24

NOTE

In some areas, local law requires using a resistor spark plug to suppress ignition signals. If this machine was originally equipped with resistor spark plug, use same type of spark plug for replacement.

Angle transmission (Fig. 25)

Check angle transmission or angle gear for grease level about every 50 hours of operation by removing the grease filler plug on the side of angle transmission.

If no grease can be seen on the fl anks of the gears, fi ll the transmission with quality lithium based multipurpose grease up to 3/4. Do not completely fill the transmission.

Technical line drawing of a mechanical device with a lever and base (no text or symbols)

Fig. 25

Semi-auto cutting head

Nylon line replacement

(1) Remove the case (22) by firmly pushing inward the locking tabs with your thumbs as shown in Fig. 26.

Fig. 26

(2) After removing the case, take out the reel and discard the remaining line.
(3) Fold the new nylon line unevenly in half as shown in picture.
Hook the U-shaped end of the nylon line into the groove (23) on the center partition of the reel. Wind both halves of the line on the reel in the same direction, keeping each half of the line on its own side of the partition. (Fig. 27)

Fig. 27

(4) Push each line into the stopper holes (24), leaving the loose ends approx. 4" (10 cm) in length. (Fig. 28)

Fig. 28

(5) Insert both loose ends of the line through the cord guide (25) when placing the reel in the case. (Fig. 29)

Fig. 29

NOTE

When placing a reel in the case, try to line up the stopper holes (24) with the cord guide (25) for easier line release later.

(6) Place the cover over the case so that the cap locking tabs (26) on the case meet the long holes (27) on the cover. Then push the case securely until it clicks into place. (Fig. 30)

Fig. 30

(7) The initial cutting line length should be approx. 4-11/32"-5-1/2" (11-14 cm) and should be equal on both sides. (Fig. 31)

Fig. 31

Maintenance schedule

Below you will fi nd some general maintenance instructions. For further information please contact your Tanaka dealer.

Daily maintenance

○ Clean the exterior of the unit.
○ Check that the harness is undamaged.
☐ Check the cutting attachment guard for damage or cracks. Change the guard in case of impacts or cracks.
☐ Check that the cutting attachment is properly centred, sharp, and without cracks. An off-centre cutting attachment induces heavy vibrations that may damage the unit.
○ Check that the cutting attachment nut is suffi ciently tightened.
○ Check that nuts and screws are sufficiently tightened.
○ Check that the unit is undamaged and free of defects.

Weekly maintenance

☐ Check the starter, especially the cord and return spring.
○ Clean the exterior of the spark plug.
○ Remove it and check the electrode gap. Adjust it to 0.024" (0.6 mm), or change the spark plug.
☐ Check that the angle gear is filled with grease up to 3/4.
○ Clean the air fi iter.

Monthly maintenance

○ Rinse the fuel tank with gasoline.
○ Clean the exterior of the carburetor and the space around it.
○ Clean the fan and the space around it.

TROUBLESHOOTING

Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult your dealer or the Tanaka dealer.

Condition Cause Remedy
Engine does not start	Fuel system	Fuel tank is empty or fuel level is low	Fill the fuel tank with the correct fuel mix (25:1-50:1)
		Fuel tank contains old fuel (offensive odor)	Replace with new fuel
		Too much fuel is absorbed and spark plug is wet	1. Disconnect the spark plug and allow to dry2. Pull the starter handle 5 or 6 times to remove the surplus fuel3. Attach the spark plug4. Set the choke lever to RUN position and pull the starter handle
		Fuel filter is clogged with dirt	Clean the fuel filter
		Fuel pipe is bent or disconnected	Ensure that the fuel flows smoothly
		Carburetor malfunction Contact Tanaka dealer
	Electrical system	Stop switch lead has short-circuited	Contact Tanaka dealer
		Spark plug is dirty Replace or clean	the spark plug
		Electrode gap is too big Adjust the gap to 0.6mm
		Poor connection between high tension cable and spark plug	Reconnect
		Electrical system malfunction Contact Tanaka dealer
	Other	Muffler exhaust port is clogged with carbon	Contact Tanaka dealer for repair
Engine starts but cuts out straightawayEngine is apt to cut out	Fuel system	Fuel tank is empty or fuel level is low	Fill the fuel tank with the correct fuel mix (25:1-50:1)
		Fuel tank contains old fuel (offensive odor)	Replace with new fuel
		Two-cycle oil has not been added	Contact Tanaka dealer
		Choke lever is in START position Set the choke lever to RUN position
		Air has got into fuel system Reconnect the fuel pipe or joint
		Carburetor malfunction Contact Tanaka dealer
	Electrical system	Ignition failure
		Spark plug failure Replace with new spark plug
		Electrical system failure Contact Tanaka dealer
	Other	Engine overheating
		Wrong spark plug model	Replace with designated part See “SPECIFICATIONS”
		Dirty air cleaner Clean
		Carbon clogging (muffl er exhaust port)	Clean
		Insuffi cient compression (piston, piston ring, cylinder)	Contact Tanaka dealer
Abnormal vibration		Cutting attachment is not properly installed	See “Installation of cutting attachment”
		Handle, handle bracket or other fastening part is loose	Check and tighten
		Blade is bent or damaged Replace with new blade
		Grass is wrapped round gear case	Remove grass
Engine is running but blade does not moveMovement is poor		Grass is wrapped round gear case	Remove grass and dirt
Engine does not stop Stop switch failure			Set the choke lever to START position to stop the engineCease use immediately and contact Tanaka dealer
Engine stops when throttle is closed		Idle speed is too low Contact Tanaka dealer
Blade continues rotating when throttle is closed		Idle speed is too highThrottle wire is too taut	Contact Tanaka dealer

SIGNIFICATION DES SYMBOLES

Simple line drawing of a mechanical clamp or bracket with labeled part '10' (no text or symbols beyond label)

ATTENTION

Fig. 1

Mechanical clamp mechanism diagram showing force application on a bracket (no text or labels)

Fig. 2

Fig. 3

Two identical line drawings of cylindrical electronic components with no text or symbols

Fig. 4

Fig. 5

Fig. 6

Technical line drawing of a mechanical device with no visible text or symbols

Fig. 7

REMARQUE

Cordon de nylon applicable

Fig. 9

REMARQUE

Mechanical assembly diagram showing a tool interacting with a mechanical component (no text or symbols)

Fig. 10

Technical line drawing of a mechanical device with a central hub and cable (no text or symbols)

Fig. 11

Line drawing of a hand adjusting a mechanical component with a black arrow pointing to the part (no text or symbols present)

Fig. 16

Illustration of a worker using a shoveling machine to measure a surface (no text or symbols)

Fig. 17

Line drawing of a person wearing a hard hat and safety vest, holding a tool (no text or symbols)

Fig. 18

Fig. 19

ATTENTION

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Fig. 23

Bougie (Fig. 24)

Fig. 24

les REMARQUE

Technical line drawing of a mechanical device with a lever and base (no text or symbols)

Fig. 25

Fig. 27

Fig. 28

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

ADVERTENCIA

Fig. 1

Mechanical clamp mechanism diagram showing force application on a bracket (no text or labels)

Fig. 2

Fig. 3

Conecte los cables de parada. (Fig. 4)

Illustration of two types of cylindrical electronic components with no visible text or symbols

Fig. 4

Fig. 5

Fig. 6

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 7

NOTA

Fig. 9

NOTA

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Fig. 10

Technical line drawing of a mechanical device with a central hub and cable (no text or symbols)

Fig. 11

Line drawing of a hand adjusting a mechanical component with a black arrow indicating the tool (no text or symbols present)

Fig. 16

Illustration of a worker using a manual shoveling machine (no text or symbols)

Fig. 17

Line drawing of a person wearing a helmet and safety harness (no text or symbols)

Fig. 18

Fig. 19

ADVERTENCIA

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 23

Bujía (Fig. 24)

Fig. 24

NOTA

Technical line drawing of a mechanical device with a lever and base (no text or symbols)

Fig. 25

Fig. 27

Fig. 28

Fig. 29

NOTA

TCG27EBSP (SL) / TCG27EBDP (SL)

TCG27EBSP (SL) TCG27EBDP (SL)

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

AVERTISSEMENT:

Minato-ku, Tokyo 108-6020, Japan

Distributed by

Hitachi Koki U.S.A., Ltd.

3950 Steve Reynolds Blvd.

Norcross, GA 30093

Hitachi Koki Canada Corp.

450 Export Blvd. Unit B,

Mississauga ON L5S 2A4
