| Product type | Built-in cooker (ceramic hob) |
| Brand | Exquisit |
| Model | EKC601-5BZ |
| Number of cooking zones | 4 (including 1 double zone) |
| Total power | 7000 W |
| Supply voltage | 230 V ~ (single-phase) or 400 V ~ (two-phase) 50/60 Hz |
| Cut-out dimensions | 560 x 490 mm |
| Front left zone | Diameter 140/215 mm, 1000/2200 W |
| Rear left zone | Diameter 150 mm, 1200 W |
| Rear right zone (double zone) | Dimensions 270 x 175 mm, 1500/2400 W |
| Front right zone | Diameter 150 mm, 1200 W |
| Energy consumption (hob) | 175,4 Wh/kg |
| Main functions | Automatic cooking, timer, double zone, lock, residual heat indicator |
| Display | Digital with touch controls |
| Safety | Automatic shut-off, overheating protection, control lock, emergency stop |
| Cleaning | Damp cloth, non-abrasive products, do not use steam |
| Installation | Built-in, heat-resistant worktop (100°C), minimum distance to wall 50 mm |
| Electrical connection | By a qualified electrician, cable 3x2.5 mm² (230 V) or 4x1.5 mm² (400 V) |
| Protection class | Y |
Frequently Asked Questions - EKC601-5BZ Exquisit
User questions about EKC601-5BZ Exquisit
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cooker in PDF format for free! Find your manual EKC601-5BZ - Exquisit and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EKC601-5BZ by Exquisit.
USER MANUAL EKC601-5BZ Exquisit
Instructions for use and installation
PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 17
PRECAUTIONS IN CASE OF APPLIANCE FAILURE 18
OTHER PROTECTIONS 18
DESCRIPTION OF THE APPLIANCE 19
TECHNICAL CHARACTERISTICS 19
CONTROL PANEL 19
USE OF THE APPLIANCE....20
DISPLAY....20
STARTING-UP AND APPLIANCE MANAGEMENT 20
BEFORE THE FIRST USE 20
SENSITIVE TOUCH 20
STARTING-UP....20
RESIDUAL HEAT INDICATION 20
EXTENSION ZONE 21
CONTROL PANEL LOCKING 21
AUTOMATIC COOKING "GO AND STOP" 21
TIMER....22
COOKING ADVICES....23
EXAMPLES OF COOKING POWER SETTING 23
MAINTENANCE AND CLEANING 23
WHAT TO DO IN CASE OF A PROBLEM 24
ENVIRONMENT PROTECTION 24
INSTALLATION INSTRUCTIONS....25
ELECTRICAL CONNECTION 26

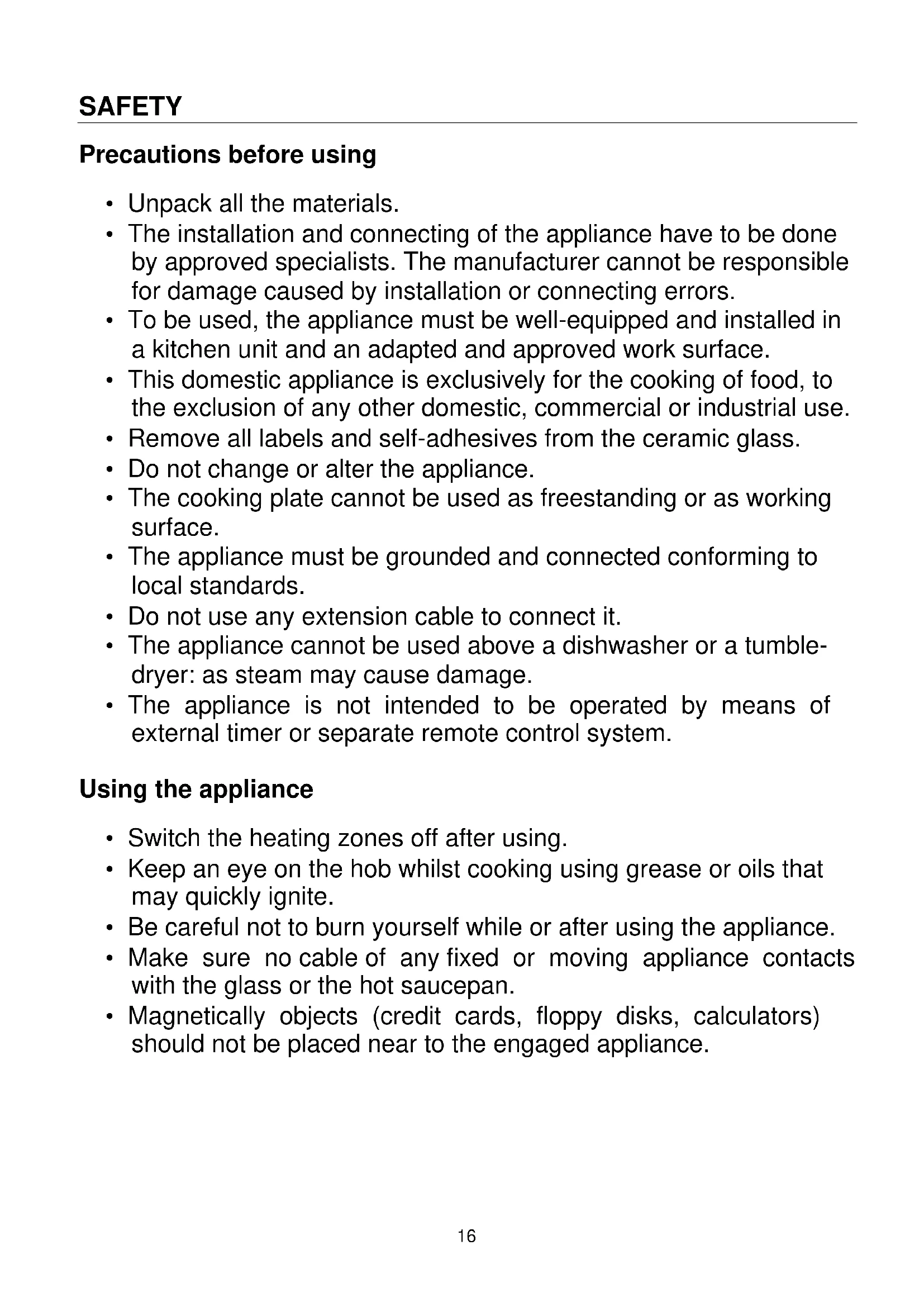

Precautions before using
- Unpack all the materials.
- The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by installation or connecting errors.
- To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
- This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
- Remove all labels and self-adhesives from the ceramic glass.
- Do not change or alter the appliance.
- The cooking plate cannot be used as freestanding or as working surface.
- The appliance must be grounded and connected conforming to local standards.
- Do not use any extension cable to connect it.
- The appliance cannot be used above a dishwasher or a tumble-dryer: as steam may cause damage.
- The appliance is not intended to be operated by means of external timer or separate remote control system.
Using the appliance
- Switch the heating zones off after using.
- Keep an eye on the hob whilst cooking using grease or oils that may quickly ignite.
- Be careful not to burn yourself while or after using the appliance.
- Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.
- Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.
- Do not place any metallic object on the hob except for pans or cooking utensils. In case of untimely engaging or residual heat, this one may heat, melt or even burn.
- Never cover the appliance with a cloth or a protection sheet. This could become very hot and catch fire.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
Precautions not to damage the appliance
- Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.
- Sand or other abrasive materials may damage ceramic glass.
- Avoid dropping objects, even little ones, on the vitroceramic.
- Do not hit the edges of the glass with saucepans.
- Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
- Do not put or leave empty saucepans on the vitroceramic hobs.
- Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).
- WARNING: Danger of fire: do not store items on the cooking surface.
- Never place any hot container over the control panel.
- If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the underside of the appliance is large enough (2cm). This is essential to guarantee correct ventilation.
- Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. All cutlery drawers must be resistant to heat.
Precautions in case of appliance failure
- If a defect is noticed, switch off the appliance and turn off at the main electrical supply.
- If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
- Repairing has to be done by specialists. Do not open the appliance by yourself.
- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
Other protections
- Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.
- For the users of pacemaker, the magnetic field could influence its operating. We recommend getting information from the retailer or from the doctor.
- Do not to use aluminium or synthetic material containers: they could melt on still hot cooking zones.
- NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
Technical characteristics
| Type | EKC601-5BZ |
| Total power 7000 WEnergy consumption for the hob EC _hob * 175.4 | Wh/kg |
| Front left heating zoneNominal power* 1000 / 2200 WStandardised cookware category* CEnergy consumption EC _cw * 172.7 Wh/kg | ∅ 140 / 215 mm |
| Rear left heating zoneNominal power* 1200 WStandardised cookware category* AEnergy consumption EC _cw * 173.8 Wh/kg | ∅ 150 mm |
| Rear right heating zoneNominal power* 1500 / 2400 WStandardised cookware category* DEnergy consumption EC _cw * 181.3 Wh/kg | ∅ 270 X 175 mm |
| Front right heating zoneNominal power* 1200 WStandardised cookware category* AEnergy consumption EC _cw * 173.8 Wh/kg | ∅ 150 mm |
* calculated according to the method of measuring performance (EN 60350-2).

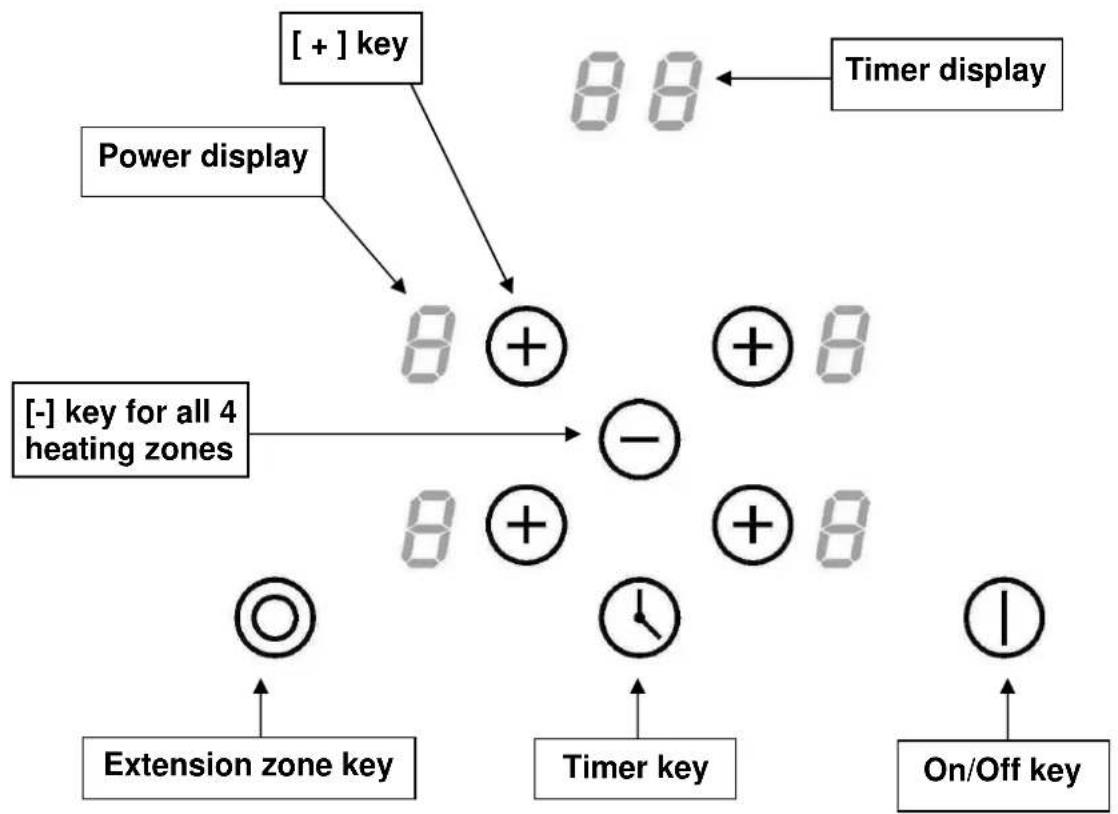

Control panel
Display
Display Designation Function
0 Zero The heating zone is activated
1...9 Power level Selection of the cooking level
A Heat accelerator Automatic cooking
E Error message Electronic failure
H Residual heat The heating zone is hot
L Locking The Control panel is locking
STARTING-UP AND APPLIANCE MANAGEMENT
Before the first use
Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted color on the glass surface.
Sensitive touch
Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger touches the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a “beep” sound.
Touch only one key on the same time.
Starting-up
Start-up/ switch off the hob
| Action | Control panel | Display |
| To start: | touch key [ 1 ] | [0] |
| To stop: | touch key [ 1 ] | nothing or [H] |
Start-up/ switch off a heating zone
| Action | Control panel | Display |
| Increase power | touch key [ + ] | [ 4 ] to [ 9 ] |
| Decrease power | touch key [ - ] | [ 9 ] to [ 1 ] |
| Stop | touch simultaneous [ + ] and [ - ] | [ 0 ] or [ H ] |
Residual heat indication
After the switch off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [H] on the display.
The symbol [H] disappears when the heating zones may be touched without danger.
As far as the residual heat indicators are on light, don't touch the heating zones and don't put any heat sensitive object on them. There are risks of burn and fire.
Extension zone
| Action | Control panel | Display | |
| Zone select | Touch key [ + ] | Control light is blinking | |
| Switch off | Touch key [ | ◎] | Extension zone light is off |
| Switch on | Touch key [ | ◎] | Extension zone light is on |
Control panel locking
To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning the control panel can be locked (with exception to the On/Off key [1]).
Locking:
| Action | Control panel | Display |
| Start | Touch key [ ] | [0] or [HI] on 4 displays |
| Hob locking | Touch simultaneous [-] and [+] | No modification from the front right zone |
| Touch key [+] | [L] on 4 displays | |
Unlocking:
| Action | Control panel | Display |
| Unlocking the hob | Touch simultaneous [-] and [+] [0] or [H] on 4 displays from the front right zone |
| Touch key [-] | No light on the displays |
Automatic cooking "go and stop"
All the cooking zones are equipped with an automatic “go and stop” cooking device. The cooking zone starts at full power during a certain time, then reduces automatically its power on the preselected level.
Start-up:
| Action | Control panel | Display | |
| Zone selection | Touch key [ + ] | [ 0 ] and control light on | |
| Full power setting | Touch key [ + ] | [ 1 ] to [ 9 ] | |
| Automatic cooking | Touch key [ + ] | [ 9 ] is blinking with [ A ] | |
| Power level selection | Touch key [ - ] | [ 9 ] [ 8 ] [ 7 ] to [ 1 ] | |
| (for example « 7 ») | [ 7 ] is blinking with [ A ] | ||
Switching off the automatic cooking :
| Action | Control panel | Display |
| Zone selection | Touch key [-] | |
| Power level selection | Touch key [+] | Level selected |
Timer
The timer is able to be used simultaneous with all 4 heating zones and this with different time settings (from 0 to 99 minutes) for each heating zone.
- Setting and modification of the cooking time :
Action
Control panel
Display
Zone selection Press key [ + ] from the zone [ 0 ]
Increase power Press key [ + ] or [ - ] [ 1 ] to [ 9 ]
Decrease the time Press key [- ] [00] wents to 60,59...
Increase the time Press key [ ] The time increases
After a few seconds the control light stops with blinking.
The time is confirmed and the cooking starts until the time reaches [00].
• To stop the cooking time :
Action
Control panel
Display
Zone selection Press key [ + ] from the zone [ 0 ]
To select « Timer » Press key [ ] The remaining time
To stop the « Timer » Press key [- ] and [ ] [ 00 ] then stops
simultaneously
If several timers are activated repeat the process.
• Automatic stop at the end of the cooking time :
As soon as the selected cooking time is finished the timer displays blinking [00] and a sound rings.
To stop the sound and the blinking it is enough to press the key [
- Egg timer function :
Action
Control panel
Display
Activate the hob Press key [ ] 3 or 4 x [0] or [H]
Select« Timer » Press key [ ] Timer[00] min
Decrease the time Press key [- ] [00] wents to 60,59...
Increase the time Press key [ ] The time increases
After a few seconds the control light stops with blinking.
As soon as the selected cooking time is finished the timer displays blinking [00] and a sound rings.
To stop the sound and the blinking it is enough to press the key [④]
Examples of cooking power setting
(The values below are indicative)
| 1 to 2 Melting | Reheating | Sauces, butter, chocolate, gelatineDishes prepared beforhand |
| 2 to 3 Simmering | Defrosting | Rice, pudding, sugar syropDried vegetables, fish, frozen products |
| 3 to 4 Steam Vegetables | es, fish, meat | |
| 4 to 5 Water Steamed | potatoes, soups, pasta, | fresh vegetables |
| 6 to 7 Medium cooking | Simmering | Meat, lever, eggs, sausagesGoulash, roulade, tripe |
| 7 to 8 Cooking Potatoes | es, fritters, wafers | |
| 9 Frying, rosting | Boiling water | Steaks, omelettes, fried dishesWater |
MAINTENANCE AND CLEANING
Switch-off the appliance before cleaning.
Do not clean the hob if the glass is too hot : risk of burn.
- Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
- Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
- Do not ever use any steam-cleaner or pressure washer.
- Do not use any object that may scratch the ceramic glass.
- Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
- Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.
The hob or the cooking zone doesn't start-up:
- The hob is badly connected on the electrical network.
• The protection fuse cut-off
• The looking function is activated - The sensitive keys are covered of grease or water.
- An object is put on a key.
The symbol [F] displays :
- You cannot use this cooking zone anymore.
- Call the After-sales Service.
The symbol [E] displays :
• The electronic system is defective.
- Disconnect and replug the hob.
- Call the After-sales Service.
One or all cooking zones cut-off:
• The safety system functioned
- You forgot to cut-off the cooking zone for a long time.
• One or more sentive keys are covered.
- The pan is empty and its bottom overheated.
The automatic cooking system « go and stop » doesn't start-up:
• The cooking zone is still hot [ H ]
• The highest power level is set [9]
- The cooking level was engaged with [ - ]
The control panel displays [L]:
• Refer to the chapter control panel locking.
The control panel displays [Er03]:
- An object or liquid covers the control keys. The symbol disappear as soon as the key is released or cleaned.
The control panel displays [ER21]:
- The hob is overheated, let it cool and then turnit on again.
The control panel displays [U400], [Er25] or [U4]:
- The hob is not connected to the network. Check the connection and reconnect the hob.
If one of the symbols above persists, call the SAV.
ENVIRONMENT PROTECTION
- The packaging material is ecological and can be recycled.
-
The worn appliances contain certain noble metals. Apply to the local government about the possibilities of recycling.
-
Don't throw your appliance with the household refuses
- Get in touch with the waste collection center of your commune that is adapted to the recycling of the household appliances.
The installer is held to respect the legislation and the standards enforce in his home country.
How to stick the gasket:
The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.
The gasket supplied with the appliance also allows to maintain in position the appliance, it is not necessary to use another fixation system.
His installation has to be done carefully, in conformity of the following drawing.
Fitting - installing:
• The cut out sizes are:
| Reference Cut-size | |
| EKC601-5BZ 560 x 490 mm | |
- Ensure that there is a distance of 50 mm between the hob and the wall or sides.
- The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.
- The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100 °C.
- The mural rods of edge must be heat-resisting.
- Not to install the hob to the top of a not ventilated oven or a dishwasher.
- To guarantee under the bottom of the hob casing a space of 20 mm to ensure a good air circulation of the electronic device.
- If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects.
- Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guarantees a correct seal when used in conjunction with smooth work top surfaces.
- The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760 mm.
- The connection cord should be subjected, after building, with no mechanical constraint, such for example of the fact of the drawer.
-
WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.
-
The installation of this appliance and the connection to the electrical system should be entrusted only to a qualified electrician.
- Protection against the parts under tension must be ensured after installation
- The data of connection necessary are on the stickers place on the hob casing near the connection box.
- The connection to the mains must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.
- The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
- If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
- The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or even.
Caution!
This appliance has only to be connected to a network 230 V\~ 50/60 Hz
Always connect the earth wire.
Respect the connection diagram.
The connection box is located underneath at the back of the hob casing. To open the cover, use a medium screwdriver. Place it in the slits and open the cover.
| Mains Connection Cable diameter | Cable | Protection calibre | ||
| 230V~ 50/60Hz | 1 Phase + N | 3 x 2,5 mm ^2 | H 05 VV - FH 05 RR - F | 25 A * |
| 400V~ 50/60Hz | 2 Phases + N | 4 x 2.5 mm ^2 | H 05 VV - FH 05 RR - F | 16 A * |
(*) calculated with the simultaneous factor following standard EN 60 335-2-6
For the various kinds of connection, use the brass bridges which are in the box next the terminal.
Monophase 230V\~1P+N
Put a bridge between terminal 1 and 2.
Attach the earth to the terminate "earth", the neutral N to terminal 4, the Phase L to one of the terminals 1 or 2.
Biphase 400V\~2P+N
Attach the earth to the terminate “earth”, the neutral N to terminal 4, the Phase L1 to the terminals 1 and the Phase L2 to the terminal 2.
Caution! Frequent loosening and screwing of the screws on the connection box risks damaging the efficiency of the tightness once screwed. It is therefore advisable to keep screwing and unscrewing to a minimum.
Ensure that the cables are correctly inserted and tightly screwed down.
We cannot be held responsible for any accident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection
SECURITE 28
PRÉCAUTIONS AVANT UTILISATION EN CUISSON 28
UTILISATION DE L'APPAREIL 29
PRÉCAUTIONS POUR NE PAS DÉTÉRIORER L'APPAREIL 30
AUTRES PROTECTIONS 31
PRÉCAUTIONS EN CAS DE DÉFAILLANCE DE L'APPAREIL 31
DESCRIPTION DE L'APPAREIL 32
CARACTÉRISTIQUES TECHNIQUES 32
BANDEAU DE COMMANDE 32
UTILISATION DE L'APPAREIL 32
AFFICHAGE....33
MISE EN ROUTE ET GESTION DE L'APPAREIL....33
AVANT LA PREMIÈRE UTILISATION ....33
TOUCHES SENSITIVES....33
MISE EN ROUTE 33
INDICATEUR DE CHALEUR RÉSIDUELLE.... 33
DOUBLE ZONES 34
VERROUILLAGE DU BANDEAU DE COMMANDE 34
PROGRAMMATION D'AUTOMATISME DE CUISSON 34
FONCTION MINUTERIE 35
