USER MANUAL NT50AE2 METABO

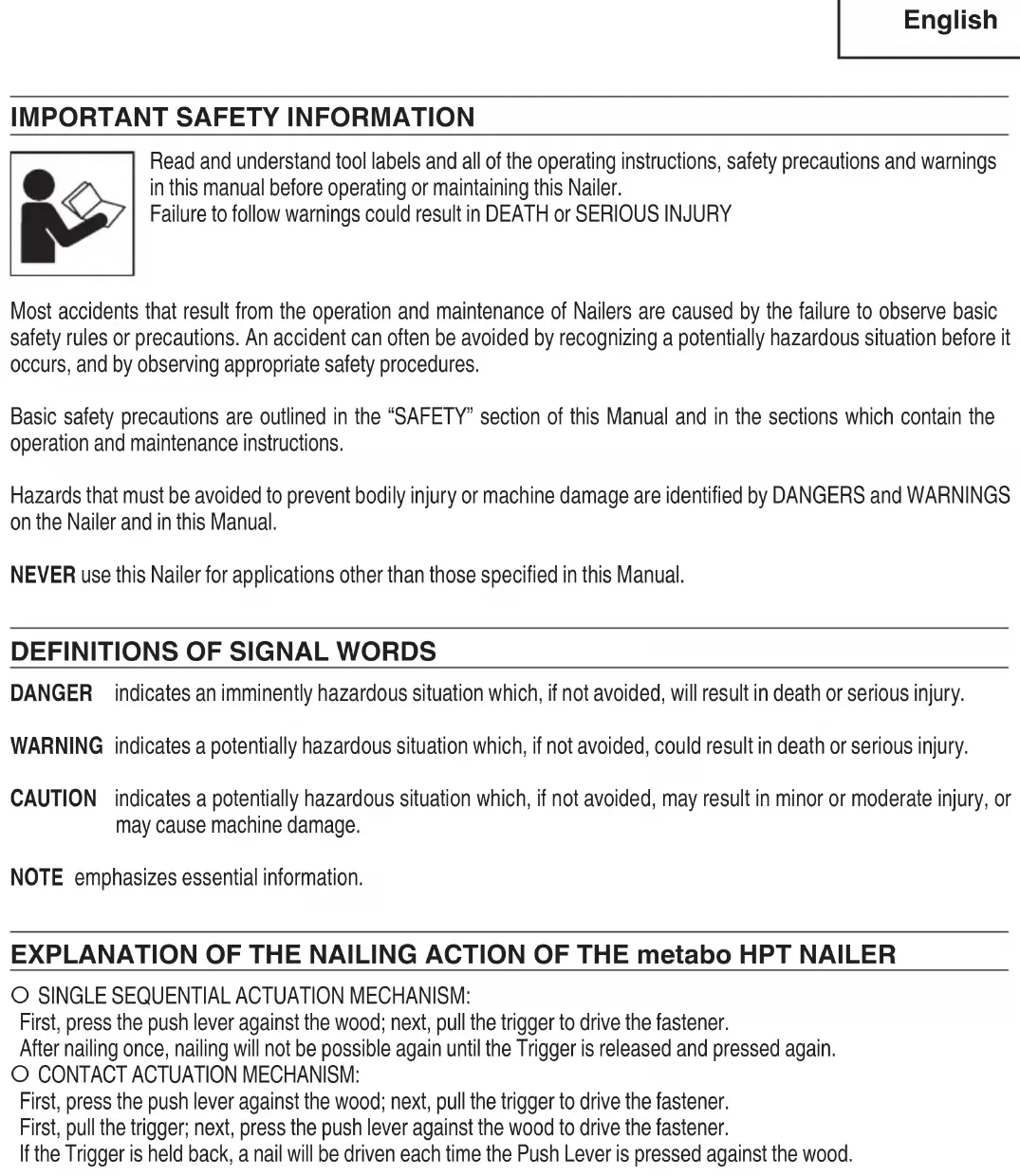

Read and understand tool labels and all of the operating instructions, safety precautions and warnings in this manual before operating or maintaining this Nailer. Failure to follow warnings could result in DEATH or SERIOUS INJURY Most accidents that result from the operation and maintenance of Nailers are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the “SAFETY” section of this Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identifi ed by DANGERS and WARNINGS on the Nailer and in this Manual. NEVER use this Nailer for applications other than those specifi ed in this Manual.

DEFINITIONS OF SIGNAL WORDS

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. EXPLANATION OF THE NAILING ACTION OF THE metabo HPT NAILER

SINGLE SEQUENTIAL ACTUATION MECHANISM: First, press the push lever against the wood; next, pull the trigger to drive the fastener. After nailing once, nailing will not be possible again until the Trigger is released and pressed again.

CONTACT ACTUATION MECHANISM: First, press the push lever against the wood; next, pull the trigger to drive the fastener. First, pull the trigger; next, press the push lever against the wood to drive the fastener. If the Trigger is held back, a nail will be driven each time the Push Lever is pressed against the wood. 000BookNT50AE2US.indb3000BookNT50AE2US.indb3 2018/03/2215:09:032018/03/2215:09:034 English SAFETY IMPORTANT SAFETY INSTRUCTIONS - FOR USING NAILERS INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

General To reduce the risks of electric shock, fi re, and injury to persons, READ ALL THE INSTRUCTIONS BEFORE USING THE TOOL. DANGER

1. OPERATORS AND OTHERS IN WORK AREA

MUST WEAR EYE PROTECTION (SAFETY

GLASSES WITH SIDE SHIELDS). When operating the Nailer, always wear safety glasses with side shields, and make sure others in work area wear safety glasses, too. Safety glasses must conform to the requirements of American National Standards Institute, ANSI Z87.1 and provide protection against fl ying particles both from the front and side. Ordinary eyeglasses do not provide adequate protection. The employer must enforce the use of safety glasses by the Nailer operator and others in work area.

2. NEVER USE REACTIVE GASES OR OTHER

BOTTLED GASES. EXPLOSION MAY OCCUR. Never use reactive gases such as oxygen, combustible gases or any other bottled gases as a power source for the Nailer. Use of the above gases is dangerous, as the Nailer will explode. Use only clean, dry, regulated compressed air. WARNING

3. NEVER POINT TOOL AT YOURSELF OR OTHERS

IN WORK AREA. Always assume that the Nailer contains fasteners. Never point the Nailer toward yourself or others, whether it contains fasteners or not. If fasteners are mistakenly driven, it can lead to severe injuries. Never engage in horseplay with the Nailer. Respect the Nailer as a working implement.

DISCHARGE. Never carry the Nailer with fi nger on Trigger since you could drive a fastener unintentionally and injure yourself or someone else. Always carry the Nailer by the handle only.

5. KNOW AND UNDERSTAND WHAT TRIGGER

SYSTEM YOU ARE USING. Read and understand section titled “METHODS OF OPERATION.” (pages 15 – 17)

6. DO NOT MAKE CONTACT WITH SAFETY TIP

(PUSH LEVER) WHEN NOT DRIVING FASTENERS. 000BookNT50AE2US.indb4000BookNT50AE2US.indb4 2018/03/2215:09:042018/03/2215:09:045 English SAFETY — Continued WARNING When using tools, basic precautions should always be followed, Including the following:

(1) Keep the work area clean and well lighted. Cluttered benches and dark areas increase the risks of electric shock, fi re, and injury to persons. (2) Do not operate the Nailer in explosive atmospheres, such as in the presence of fl ammable liquids, gases, or combustible dust. The Nailer is able to create sparks resulting in the ignition of the dust or fumes. (3) Keep bystanders, children, and visitors away while operating the Nailer. Distractions are able to result in the loss of control of the Nailer.

(1) Stay alert. Focus on your work and use common sense when working with the Nailer. Do not use the Nailer while tired, after having consumed drugs or alcohol, or while under the infl uence of medication. A moment of inattention while operating the Nailer increases the risk of injury to persons. (2) Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair increases the risk of injury to persons as a result of being caught in moving parts. (3) Avoid unintentional starting. Be sure the switch is off before connecting to the air supply. Do not carry the Nailer with your fi nger on the switch or connect the Nailer to the air supply with the switch on. (4) – Disconnect the Nailer from the air source before making adjustments, doing Nailer maintenance, clearing jams, touching the Push Lever, attaching or removing the nose cap, when not in use, leaving work area, leaving the Nailer outside of the operator's supervision or control, loading, or unloading the Nailer, handing it to another person, elevating, lowering or otherwise moving the Nailer to a new location. Never attempt to clear a jam or repair the Nailer unless you have disconnected air hose from the Nailer and removed all remaining fasteners from the Nailer. The Nailer should never be left unattended since people who are not familiar with the Nailer might handle it and injure the themselves. Such precautionary measures reduce the risk of injury to persons. (5) Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the Nailer in unexpected situations. (6) Use safety equipment. A dust mask, non-skid safety shoes and a hard hat must be used for the applicable conditions. (7) – Risk of hearing loss. Wear hearing protection. Hearing protection shall have a Noise Reduction Rating (NRR) determined in accordance with US Environmental Protection Agency rules that is appropriate for noise exposure. (8) Always wear head protection. Always wear head protection to protect your head from fl ying objects. (9) Do not attach the hose or Nailer to your body. Attach the hose to the structure to reduce the risk of loss of balance if the hose shifts. (10) – Drive Nails into proper work surface only. Do not drive nail into other nails. This is able to cause the fastener to be defl ected and hit someone, or cause the Nailer to react and result in a risk of injury to persons.

3. Nailer use and care

(1) Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against the body is unstable and is able to lead to loss of control. (2) Do not force the Nailer. Use the correct Nailer for the application. The correct Nailer will do the job better and safer at the rate for which the Nailer is designed. (3) Do not use the Nailer if the switch does not turn the Nailer on or off . Any Nailer that cannot be controlled with the switch is dangerous and must be repaired. Never use Nailer which is defective or operating abnormally. If the Nailer appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center. 000BookNT50AE2US.indb5000BookNT50AE2US.indb5 2018/03/2215:09:042018/03/2215:09:046 English (4) Disconnect the Nailer from the air source before making any adjustments, changing accessories, or storing the Nailer. Such preventive safety measures reduce the risk of starting the Nailer unintentionally. (5) Store the Nailer when it is idle out of reach of children and other untrained persons. A Nailer is dangerous in the hands of untrained users. (6) Maintain the Nailer with care. Keep the Nailer Clean and lubricated for better and safer performance. (7) Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may aff ect the Nailer's operation. If damaged, have the Nailer serviced before using. Because of high air pressure in the Nailer, cracks in the surface are dangerous. To avoid this, do not drop the Nailer or strike the Nailer against hard surfaces; and do not scratch or engrave signs on the Nailer. Many accidents are caused by poorly maintained Nailers. There is a risk of bursting if the Nailer is damaged. (8) Do not use the Nailer that is not in proper working order. Tags and physical segregation shall be used for control. (9) Use only accessories that are identifi ed by metabo HPT for the specifi c Nailer. Use of an accessory not intended for use with the specifi c Nailer, increases the risk of injury to persons. (10) Use only those fasteners listed in the Accessories section of this manual. Fasteners not identifi ed for use with this Nailer by metabo HPT are able to result in a risk of injury to persons or Nailer damage when used in this Nailer.

(1) Tool service must be performed only by qualifi ed repair personnel. (2) When servicing a Nailer, use only identical replacement parts. Use only authorized parts. (3) Use only the lubricants supplied with the Nailer or specifi ed by metabo HPT.

(1) Never connect to an air source that is capable of exceeding 200 psi (13.7 bar 14 kgf/cm

) if a regulator fails. Over pressurizing the Nailer is able to result in bursting, abnormal operation, breakage of the Nailer or serious injury to persons. DO NOT EXCEED 120 psi (8.3 bar 8.5 kgf/cm

Use only clean, dry, regulated compressed air at the rated pressure or within the rated pressure range as marked on the Nailer. Always verify prior to using the Nailer that the air source has been adjusted to the rated air pressure or within the rated air-pressure range. (2) Never use reactive gases such as oxygen, carbon dioxide, combustible gases or any bottled gas as an air source for the Nailer. Such gases are capable of explosion and serious injury to persons.

(1) Before starting work, check the nailing operation switching device. This metabo HPT nailer includes a nailing operation switching device. Before starting work, check the setting of the operation switching device. If the switching device is not set properly, the Nailer will not operate correctly. (2) Always select the switching device that is appropriate to the application and the training of the operator. (3) Be careful of double fire and being hit by the Nailer due to spring back (“recoil”). After driving a nail, the Nailer may recoil causing it to move away from the work surface. To reduce risk of injury always manage recoil by:

1) always maintaining control of the Nailer.

2) allowing recoil to move the Nailer away from work

surface. SAFETY — Continued WARNING 000BookNT50AE2US.indb6000BookNT50AE2US.indb6 2018/03/2215:09:042018/03/2215:09:047 English

3) not resisting recoil such that the Nailer will be

forced back into the work surface. In “CONTACT ACTUATION MECHANISM”, if push lever is allowed to re-contact work surface before the trigger is released, an unintended discharge of a nail will occur. In order to avoid this undesirable double fi re,

Intermittent operation (Trigger fi re)

Set the switching device to SINGLE SEQUENTIAL ACTUATION MECHANISM.

Pull the trigger rapidly and fi rmly.

Continuous operation (Push lever fi re)

Set the switching device to CONTACT ACTUATION MECHANISM.

Do not press the Nailer against the wood with excessive force.

Separate the Nailer from the wood as it recoils after nailing.

4) keeping face and body parts away from the Nailer.

(4) Never Use NON relieving coupler on Nailer. If a non relieving coupler is used on the Nailer, the Nailer can remain charged with air after disconnecting and thus will be able to drive a fastener even after disconnecting. The Nailer and air hose must have a hose coupling such that all pressure is removed from the Nailer when the coupling joint is disconnected. (5) Check Push Lever before use. Make sure the Push Lever operates properly, and is not inoperable, disconnected, or altered. (The Push Lever may be called “Safety”.) Never use the Nailer unless the Push Lever is operating properly, otherwise the Nailer could drive a fastener unexpectedly. Do not tamper with or remove the Push Lever, or otherwise cause the Push Lever to become inoperable. (6) Keep all screws and covers tightly in place. Keep all screws and covers tightly mounted. Check their condition periodically. Never use the Nailer if parts are missing or damaged. (7) Do not load fasteners with Trigger or Push Lever depressed. When loading fasteners into the Nailer or when connecting the air hose,

1) do not depress the Trigger;

2) do not depress the Push Lever; and

3) keep the Nailer pointed downward.

(8) Keep hands and body away from fi ring head during use. Never place your hands or feet closer than 8 inches (200 mm) from the fi ring head. A serious injury can result if the fasteners are defl ected by the workpiece, or are driven away from the point of entry. (9) When working close to an edge of a workpiece or at steep angles, or driving fasteners into thin workpiece use care to minimize chipping, splitting or splintering, or free fl ight, ricochet or piercing of fasteners, which may cause injury. (10) Never drive fasteners from both sides of a wall at the same time. The fasteners can be driven into and through the wall and hit a person on the opposite side. (11) Use extra caution when driving the Nailer into existing walls or other blind areas to prevent contact with hidden objects or persons on other side (eg., wires, pipes). (12) Check for live wires. Avoid the risk of severe electrical shock by checking for live electrical wires that may be hidden by walls, fl oors or ceilings. Turn off the breaker switch to ensure there are no live wires. (13) Do not lift, pull or lower the Nailer by the hose. (14) Do not disconnect air hose from Nailer with fi nger on Trigger. The Nailer can fi re when re- connected to An air supply. (15) Handle Nailer correctly. Operate the Nailer according to this Manual. Never allow the Nailer to be operated by children, individuals unfamiliar with its operation or unauthorized personnel. (16) Never use Nailer for applications other than those specifi ed in this manual. (17) Never modify or alter a Nailer. Doing so may cause it to malfunction and personal injuries may result. SAFETY — Continued WARNING 000BookNT50AE2US.indb7000BookNT50AE2US.indb7 2018/03/2215:09:042018/03/2215:09:048 English RESPONSIBILITIES OF EMPLOYER, TOOL OWNER AND TOOL OPERATOR

1. Ensure that this MANUAL is available to operators

and personnel performing maintenance.

2. Select an appropriate switching device considering

the applications for which the Nailer is used.

3. Train the operator in the safe use of the Nailer as

described in this MANUAL.

4. Ensure that only persons who have read and

understand this MANUAL operate the Nailer.

5. Ensure that Nailers are used only when operators and

others in work area are wearing EYE PROTECTION, and other appropriate personal protective equipment such as HEAD, HEARING, FOOT PROTECTION.

6. Enforce the use of EYE PROTECTION by operators

and others in work area.

7. Ensure that Nailers are kept in safe working order as

described in this MANUAL.

8. Maintain Nailers properly.

9. Ensure that only qualifi ed personnel shall repair

10. Ensure that Nailers that require repair are removed

from service and that tags and physical segregation are used as a means of control.

SAVE THIS MANUAL AND

KEEP IT AVAILABLE FOR OTHERS! SAFETY — Continued 000BookNT50AE2US.indb8000BookNT50AE2US.indb8 2018/03/2215:09:042018/03/2215:09:049 English OPERATION NOTE: The information contained in this Manual is designed to assist you in the safe operation of the Nailer. Some illustrations in this Manual may show details or attachments that diff er from those on your own Nailer. Outlet (Firing head) Push lever Exhaut cover Piston o-ring Driver blade Lock lever Guide plate Piston Nose cap Feed spring Trigger Valve part Air plug Magazine Body Top cover Magazine cover Stop lever Adjuster

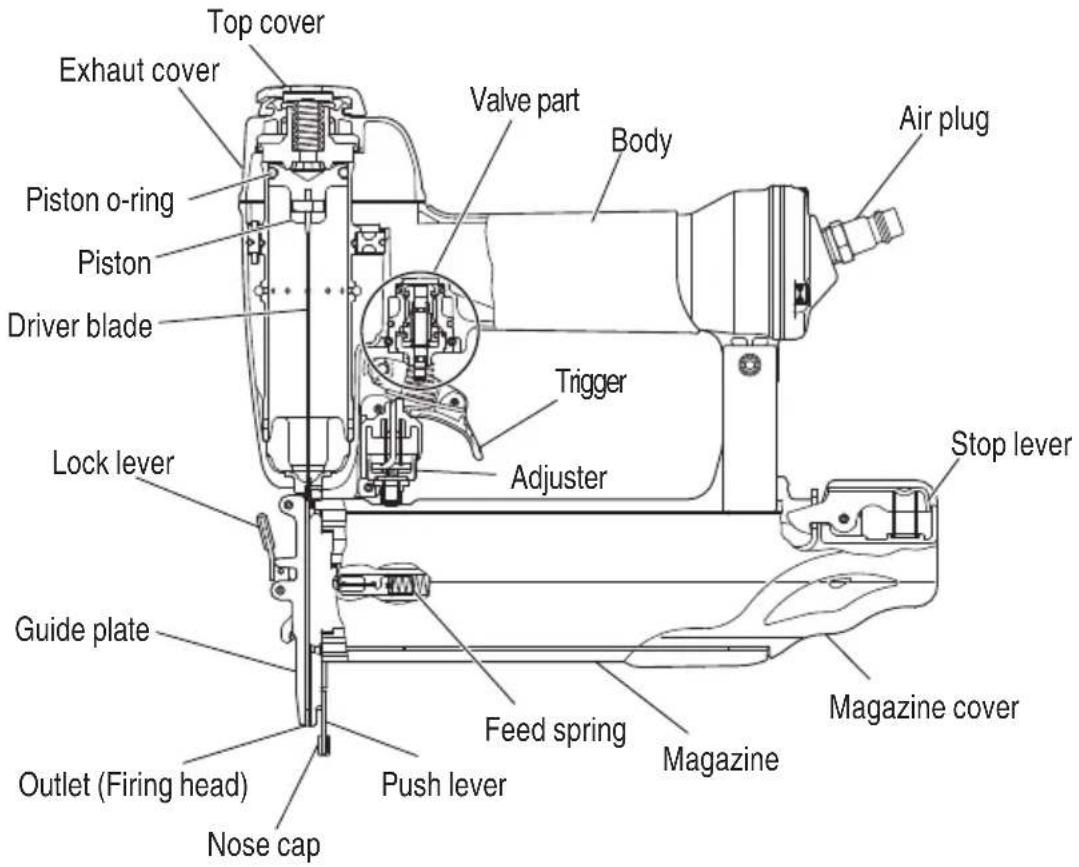

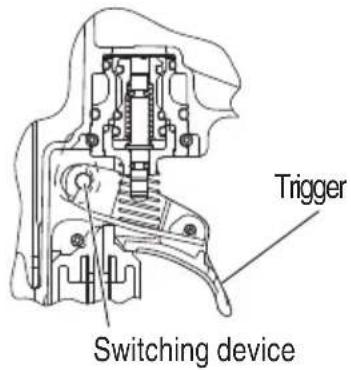

Trigger Enlarged view of the valve part Switching device Nailing operation switching device Switching Device Upward position Switching Device Downward position

SINGLE SEQUENTIAL ACTUATION

MECHANISM (Switching device: upward position) CONTACT ACTUATION MECHANISM (Switching device: downward position) 000BookNT50AE2US.indb9000BookNT50AE2US.indb9 2018/03/2215:09:042018/03/2215:09:0410 English SPECIFICATIONS Model NT50AE2 (S) NT32AE2 (S) Operating pressure 70 – 120 psi (4.9 – 8.3 bar, 5 – 8.5 kgf/cm

Dimensions Length × Height × Width 10" × 9-3/16" × 2-3/8" (254 mm × 233 mm × 60 mm) 10" × 7-3/4" × 2-3/8" (254 mm × 197 mm × 60 mm) Weight 2.2 lbs. (1.0 kg) 2.0 lbs. (.9 kg) Nail capacity 100 Nails Air consumption .025 ft

/cycle at 100 psi (.73 ltr/cycle at 6.9 bar) (.73 ltr/cycle at 7 kgf/cm

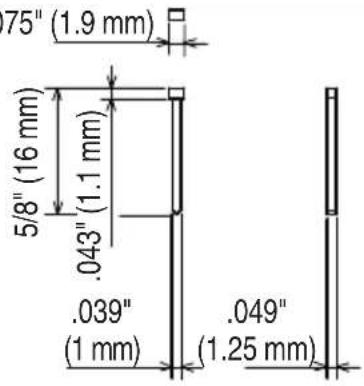

Be sure to use only the genuine metabo HPT nails for the NT50AE2 (S), NT32AE2 (S). The use of any other nails can result in tool malfunction and/or nail breakdown, leading to serious injuries. Only nails shown in the Table below can be driven with this Nailer. Dimensions of nails 18 Gauge brad nails Min. Max. NT50AE2 (S) • NT32AE2 (S) NT50AE2 (S) NT32AE2 (S) .075" (1.9 mm) 5/8" (16 mm) .043" (1.1 mm) .049" (1.25 mm) .039" (1 mm) 2" (50 mm) 1-1/4" (32 mm) 000BookNT50AE2US.indb10000BookNT50AE2US.indb10 2018/03/2215:09:042018/03/2215:09:0411 English ACCESSORIES WARNING

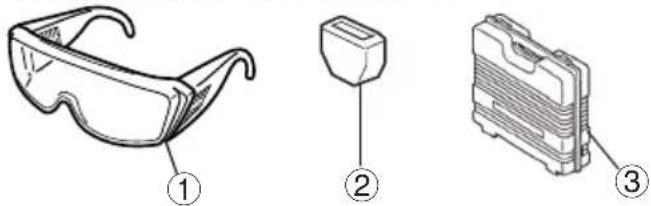

Accessories other than those shown below can lead to malfunction and resulting injuries. STANDARD ACCESSORIES

Nose cap (mounted on tool) 2

Case 1 OPTIONAL ACCESSORIES ... sold separately

Single sequential actuation mechanism kit (Code No. 887916)

Pneumatic Tool Lubricant 1 oz. (30 cc) oil feeder (Code No.877153) 4 oz. (120 cc) oil feeder (Code No.874042) 1 quart (1 ltr) can (Code No.876212) NOTE: Accessories are subject to change without any obligation on the part of metabo HPT. APPLICATIONS

Cabinet and picture frame assembly, furniture trim.

On-site and mobile home trim and molding. BEFORE OPERATION Read section titled “SAFETY” (pages 4 – 8). Make sure of the followings before operation. WORKING ENVIRONMENT WARNING

No fl ammable gas, liquid or other fl ammable objects at worksite.

Clear the area of children or unauthorized personnel. AIR SUPPLY DANGER

NEVER use reactive gases or other bottled gases. Explosion may occur. WARNING

Never connect Nailer to pressure which potentially exceeds 200 psi (13.7 bar 14 kgf/cm

Use only clean, dry, regulated compressed air as a power source for this Nailer.

Air compressors used to supply compressed air to this Nailer must comply with the requirements of the latest version of ANSI Standard B 19.3 “Safety Standard For Compressors For Process Industries.”

Moisture or oil in the air compressor may accelerate wear and corrosion in the Nailer. Drain daily.

Use a regulator with a pressure range of 0 – 120 psi (0 – 8.3 bar 0 – 8.5 kgf/cm

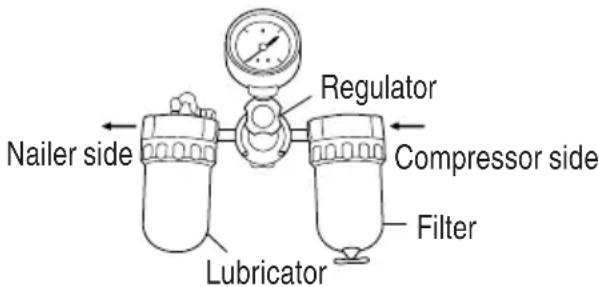

Filter-regulator-lubricator units supply an optimum condition for the Nailer and extend the Nailer life. These units should always be used. Filter ............ The fi lter removes moisture and dirt mixed in compressed air. Drain daily unless fi tted with an automatic drain. Keep the fi lter clean by regular maintenance. Regulator ..... The regulator controls the operating pressure for safe operation of the Nailer. Inspect the regulator before operation to be sure it operates properly. Lubricator .... The lubricator supplies an oil mist to the Nailer. Inspect the lubricator before operation to be sure the supply of lubricant is adequate. Use metabo HPT pneumatic tool lubricant. 000BookNT50AE2US.indb11000BookNT50AE2US.indb11 2018/03/2215:09:042018/03/2215:09:0412 English Nailer side Filter Lubricator Compressor side Regulator

Compressed air supply hoses shall have a minimum working pressure rating equal to or greater than the pressure from the power source if a regulator fails, or 150 psi (10.4 bar 10.6 kgf/cm

), whichever is greater.

Using the Air consumption table and the Air compressor size formula, fi nd a correct compressor size. Air consumption table Operating pressure psi (bar) (kgf/cm

(6.9) (7) Air consumption

(.73) Air compressor size formula Amount of air required = number of Nailers × average nails driven each minute per Nailer × air consumption at given air pressure × safety factor (always 1.2) Example: 3 Nailers (NT50AE2 (S) or NT32AE2 (S)) operating at 100 psi driving 30 nails per minute Amount of air required = 3 × 30 × .025 (.73) × 1.2 = 2.7 CFM (ft

/min) (78.8 ltr/min) After making the calculations as shown above, you should fi nd a compressor providing 2.7 CFM of air that is required. LUBRICATION It is important that the Nailer be properly lubricated. Without proper lubrication, the Nailer will not work properly and parts will wear prematurely.

Use metabo HPT pneumatic tool lubricant. Do not use detergent oil or additives. These lubricants will harm the O-rings and other rubber parts. This will cause the Nailer to malfunction.

Filter-regulator-lubricator units should always be used. Keep the lubricator fi lled with metabo HPT pneumatic tool lubricant.

If a lubricator is not available, supply 5 – 10 drops of metabo HPT pneumatic tool lubricant into the air plug on the Nailer twice a day.

Do not store the Nailer in a cold weather environment. Keep the Nailer in a warm area until beginning the work.

If the Nailer is already cold, bring it in a warm area and allow the Nailer to warm up before use.

Reduce the air pressure to 70 psi (4.9 bar

Remove all nails from the Nailer.

Connect the air hose and free-fi re (blank-fi re) the Nailer. The lowered air pressure will be enough to free- fi re the Nailer. Slow speed operation tends to warm up the moving part. CAUTION

Do not free-fi re the Nailer at high pressure.

Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifi cations. Ordinary eyeglasses do not provide adequate protection. WARNING

Never use Nailer unless push lever is operating properly. Before actually beginning the nailing work, test the Nailer by using the check list below. Conduct the tests in the following order. If abnormal operation occurs, stop using the Nailer and contact a metabo HPT authorized service center immediately. (1) DISCONNECT AIR HOSE FROM NAILER. REMOVE ALL NAILS FROM NAILER.

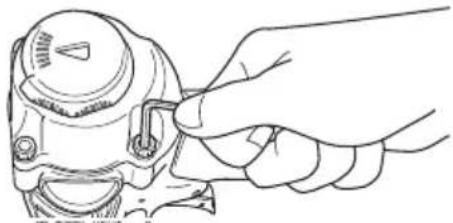

ALL SCREWS MUST BE TIGHTENED. If any screws are loose, tighten them. 000BookNT50AE2US.indb12000BookNT50AE2US.indb12 2018/03/2215:09:052018/03/2215:09:0513 English

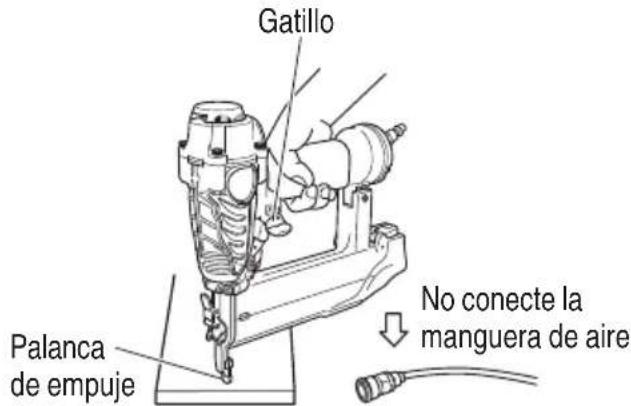

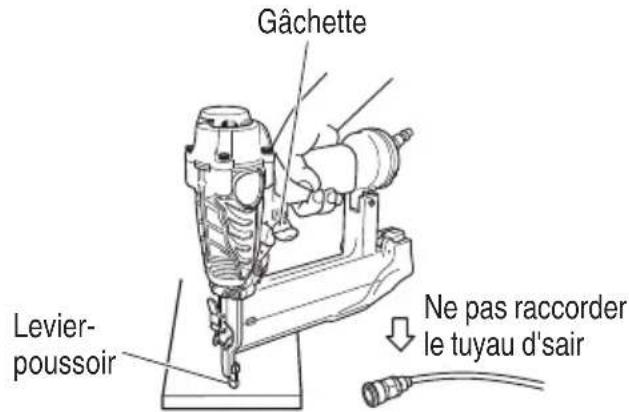

Connect the air hose. Do not load any nails in the Nailer. Set the switching device to the upward position (SINGLE SEQUENTIAL ACTUATION MECHANISM). (Set the switching device to the upward position completely as shown in the diagram. Otherwise, it will not operate properly.) Upward position Switching Device

THE NAILER MUST NOT LEAK AIR. (3) Remove the fi nger from the trigger and press the push lever against the wood.

THE NAILER MUST NOT OPERATE. Depress push lever Do not pull trigger (4) Separate the push lever from the wood. Next, point the nailer downward, pull the trigger and then wait in that position for 5 seconds or longer.

Without touching the trigger, depress the push lever against the workpiece. Pull the trigger.

Remove the fi nger from the trigger.

Nailer operation will end (the driver blade will return to the top). (6) Set the switching device to the downward position (CONTACT ACTUATION MECHANISM). (Set the switching device to the downward position completely as shown in the diagram. Otherwise, it will not operate properly.) Switching Device Downward position With the Nailer off the workpiece, pull the trigger. Depress the push lever against the workpiece.

THE NAILER MUST OPERATE. (7) If no abnormal operation is observed, you may load nails in the Nailer. Drive nails into the workpiece that is the same type to be used in the actual application.

THE NAILER MUST OPERATE PROPERLY. 000BookNT50AE2US.indb13000BookNT50AE2US.indb13 2018/03/2215:09:052018/03/2215:09:0514 English Magazine Gap Side guide groove Nail Groove (3) Slide the nail strip into the blade guide. Nail strip Blade guide (4) Confi rm that nail strip is placed with side guide grooves and Groove properly, then push the magazine cover forward to be latched. NAILER OPERATION Read section titled “SAFETY”(pages 4 – 8). DANGER

Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifi cations. Ordinary eyeglasses do not provide adequate protection. WARNING

Only person who have read and understand this MANUAL should operate the Nailer.

NEVER point tool at yourself or others in work area.

Keep fi ngers AWAY from trigger when not driving nails to avoid accidental discharge.

Know and understand what trigger system you are using. Please read and understand “METHODS OF OPERATION” found below.

Adjust the air pressure at recommended operating pressure 70 – 120 psi (4.9 – 8.3 bar 5 – 8.5 kgf/cm

) according to the length of nails and the hardness of workpiece. The correct air pressure is the lowest pressure which will do the job. Using the Nailer at a higher than required air pressure unnecessarily over stresses the Nailer. LOADING NAILS WARNING

When loading nails into Nailer,

3) keep Nailer pointed downward.

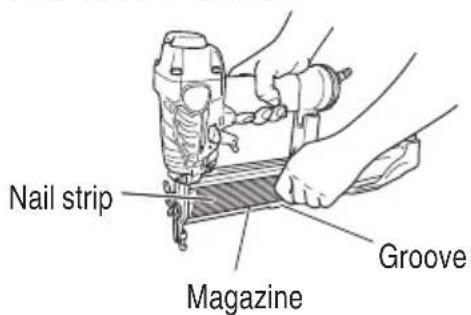

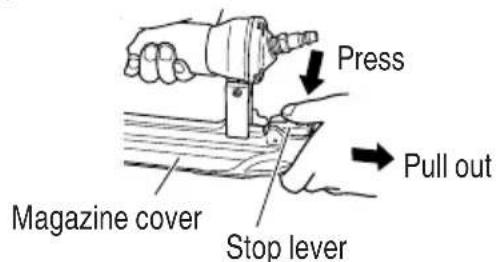

(1) Lightly press the stop lever and gently pull out the magazine cover. Stop lever Magazine cover Pull out Press (2) Set nail strip into the magazine and keep the points of nails in contact with Groove. Groove Nail strip Magazine NOTE

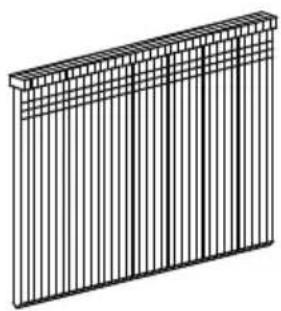

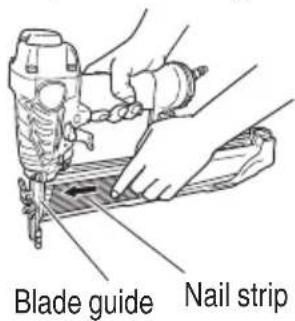

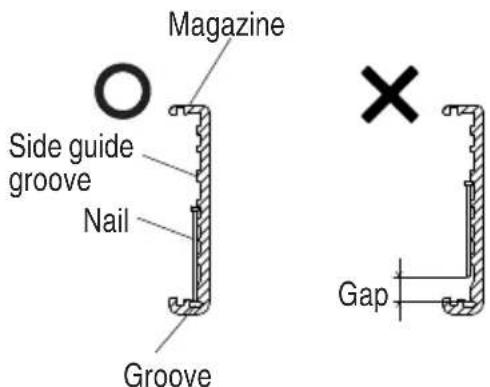

The nails shown in page 10 can be loaded onto the side guide groove of the magazine without any adjustment. Always keep the points of nails in contact with Groove. 000BookNT50AE2US.indb14000BookNT50AE2US.indb14 2018/03/2215:09:052018/03/2215:09:0515 English

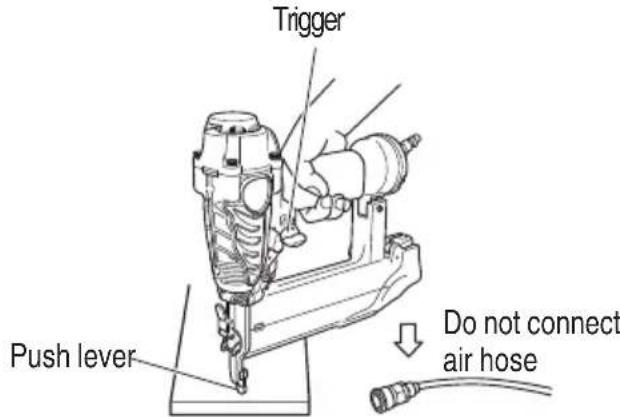

Inspect the Nailer before operating to determine actuation system. Before starting work, check the nailing operation switching device. This metabo HPT nailer includes a nailing operation switching device. Before starting work, make sure that the switching device is properly set. If the switching device is not set properly, the nailer will not operate correctly.

Never place your hands or body closer than 8 inches (200 mm) from fi ring head when using.

Do not drive nails into other nails; nails can ricochet and hurt someone.

Do not actuate Nailer unless Nailer is placed fi rmly against the workpiece.

When working close to an edge of a workpiece or at steep angles, or driving fasteners into thin workpiece use care to minimize chipping, splitting or splintering, or free fl ight, ricochet or piercing of fasteners, which may cause injury.

Never drive nails from both sides of a wall at the same time. Nails can be driven into and through the wall and hit a person on the opposite side.

Never use Nailer which is defective or operating abnormally.

Do not use Nailer as hammer.

Disconnect air hose from Nailer when:

1) it is not in use;

2) leaving work area;

3) elevating, lowering or otherwise moving it

to another location;

4) handing it to another person;

5) changing switching device;

6) performing any maintenance or repairs;

8) Nailer is outside of the operator's

supervision or control;

9) removing nails from the magazine;

10) adjusting nailing depth;

11) attaching or removing the nose cap; and

12) turning the top cover.

This metabo HPT nailer is equipped with a nailer operation switching device. Use SINGLE SEQUENTIAL ACTUATION MECHANISM or CONTACT ACTUATION MECHANISM in accordance with the work to be performed. Explanation of the various nailing operations

SINGLE SEQUENTIAL ACTUATION MECHANISM: First, press the push lever against the wood; next, pull the trigger to drive the nail. After nailing once, nailing will not be possible again until the trigger is released and pressed again.

CONTACT ACTUATION MECHANISM: First, press the push lever against the workpiece; next, pull the trigger to drive the nail. Or, pull the trigger; next, press the push lever against the workpiece to drive the nail. If the trigger is held back, a nail will be driven each time the push lever is pressed against the wood. NOTE: If you wish to fi x the setting to the SINGLE SEQUENTIAL ACTUATION MECHANISM, the SINGLE SEQUENTIAL ACTUATION MECHANISM KIT is also available as order part number 887916.

METHODS OF OPERATION

This Nailer is equipped with the push lever and does not operate unless the push lever is depressed (upward position). There are two methods of operation to drive nails with this Nailer. They are:

1. Intermittent operation (Trigger fi re):

2. Continuous operation (Push lever fi re):

(1) Intermittent operation (Trigger fi re) Use the SINGLE SEQUENTIAL ACTUATION MECHANISM setting. WARNING

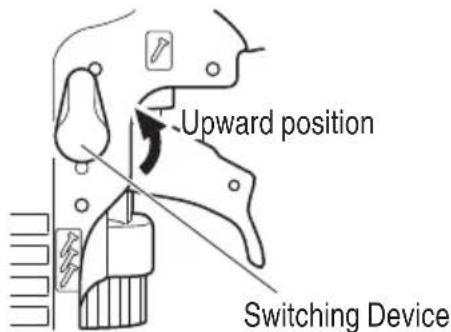

For intermittent operation, set the switching device to the upward position completely. (i.e. Set to SINGLE SEQUENTIAL ACTUATION MECHANISM.)

To avoid double fi ring or accidental fi ring due to recoil.

1) Set the switching device to SINGLE

SEQUENTIAL ACTUATION MECHANISM.

2) Pull the trigger rapidly and fi rmly.

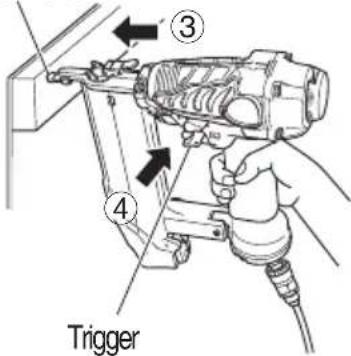

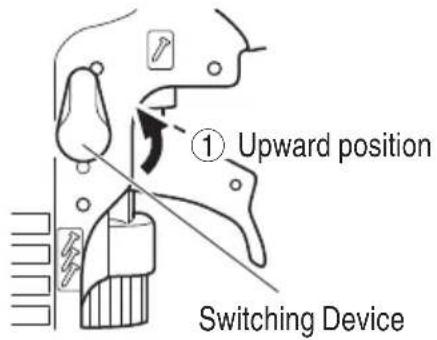

Set the switching device to the upward position (to set to SINGLE SEQUENTIAL ACTUATION MECHANISM). (Set the switching device to the upward position completely as shown in the diagram. Otherwise, it will be set to CONTACT ACTUATION MECHANISM.)

Position the nail outlet on the workpiece with fi nger off the trigger. 000BookNT50AE2US.indb15000BookNT50AE2US.indb15 2018/03/2215:09:052018/03/2215:09:0516 English

Depress the push lever fi rmly until it is completely depressed.

Pull the trigger to drive a nail.

Remove fi nger from the trigger. To continue nailing in a separate location, move the nailer along the wood, repeating steps

required. Switching Device

A nail will fi re each time the trigger is depressed as long as the push lever remains depressed. (2) Continuous operation (Push lever fi re) Using CONTACT ACTUATION MECHANISM WARNING

To avoid double fi ring or accidental fi ring due to recoil.

1) Do not press the nailer against the wood

with excessive force.

2) Separate the nailer from the wood as it

recoils after nailing.

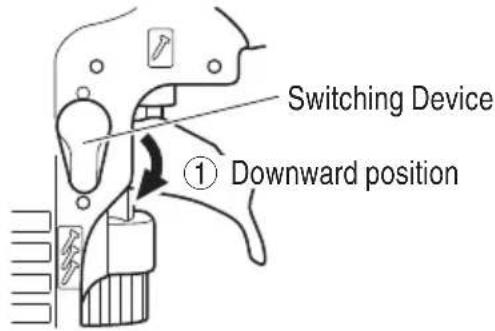

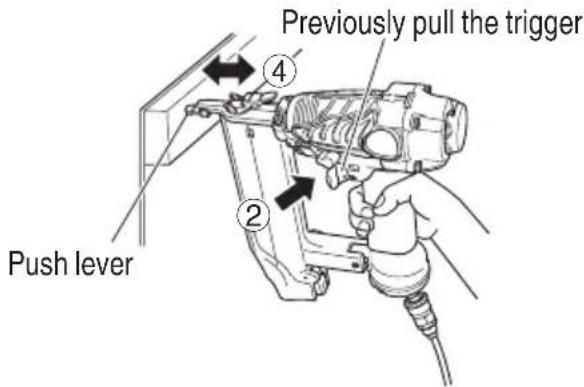

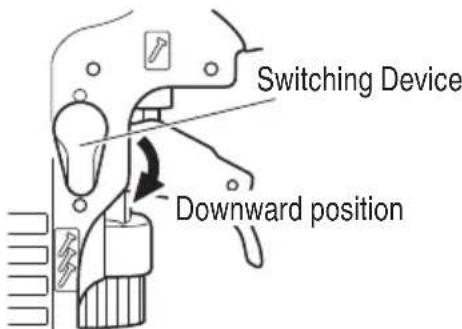

Set the switching device to the downward position (to set to CONTACT ACTUATION MECHANISM). (Set the switching device to the downward position completely as shown in the diagram. Otherwise, it will not operate properly.)

Pull the trigger with the Nailer off the workpiece.

Depress the push lever against the workpiece to drive a nail.

Move the Nailer along the workpiece with a bouncing motion. Each depression of the push lever will drive a nail. As soon as the desired number of nails have been driven, remove fi nger from the trigger. Switching Device

Downward position Previously pull the trigger

Keep your fi nger off the trigger except during nailing operation, because serious injury could result if the push lever accidentally contacts you or others in work area.

Keep hands and body away from the discharge area. This metabo HPT nailer may bounce from the recoil of driving a nail and unwanted subsequent nail may be driven, possibly causing injury. The SINGLE SEQUENTIAL ACTUATION MECHANISM is for use where precision fastener placement is desired. The SINGLE SEQUENTIAL ACTUATION MECHANISM may reduce the possibility of bodily injury to you or others in the work area compared to the CONTACT ACTUATION MECHANISM. This is because it is less likely to drive an unwanted nail if you keep the trigger pulled and accidentally bump the push lever against yourself or others. The SINGLE SEQUENTIAL ACTUATION MECHANISM may also reduce the speed of operation compared to the CONTACT ACTUATION MECHANISM. The SINGLE SEQUENTIAL ACTUATION MECHANISM is recommended to inexperienced users. 000BookNT50AE2US.indb16000BookNT50AE2US.indb16 2018/03/2215:09:062018/03/2215:09:0617 English NOTE

If all warnings and instructions are followed, safe operation is possible with two systems: SINGLE SEQUENTIAL ACTUATION MECHANISM, and CONTACT ACTUATION MECHANISM.

Always handle nails and package carefully. If nails are dropped, collating bond may be broken, which will cause mis-feeding and jamming.

1) disconnect air hose from the Nailer;

2) remove all nails from the Nailer;

3) supply 5 – 10 drops of metabo HPT pneumatic

tool lubricant into the air plug on the Nailer; and

4) open the petcock on the air compressor tank to

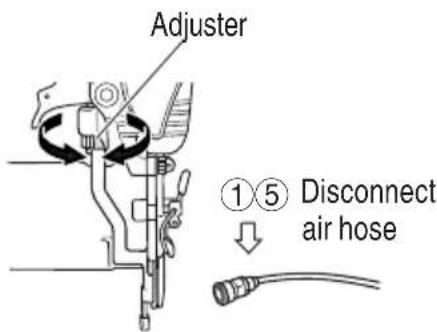

ADJUSTING THE NAILING DEPTH

When adjusting the Adjuster, be sure to remove your fi nger from the trigger and disconnect the air hose from the nailer. To assure that each nail penetrates to the same depth, be sure that:

1) the air pressure to the Nailer remains constant

(regulator is installed and working properly), and

2) the Nailer is always held fi rmly against the workpiece.

If nails are driven too deep or shallow into the workpiece, adjust the nailing in the following order.

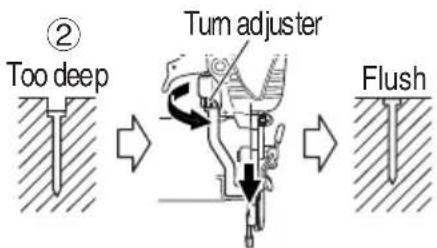

If nails are driven too deep, turn the adjuster to the shallow side. Too deep Turn adjuster Flush

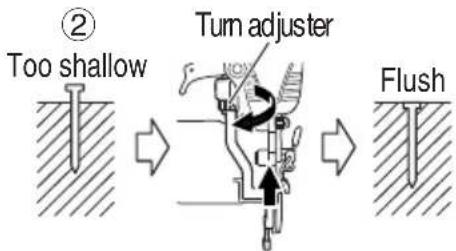

If nails are driven too shallow, turn the adjuster to the deep side. Too shallow Turn adjuster Flush

Stop turning the adjuster when a suitable position is reached for a nailing test.

Connect the air hose. ALWAYS WEAR SAFETY GLASSES. Perform a nailing test.

Choose a suitable position for the adjuster. NOTE

The nail might not drive deep enough if using high pressure with the adjuster set upwards (shallow side) due to factors such as the material hardness or nail type. If that happens, reduce pressure and set the adjuster to lowest position so the nail drives in at a good position.

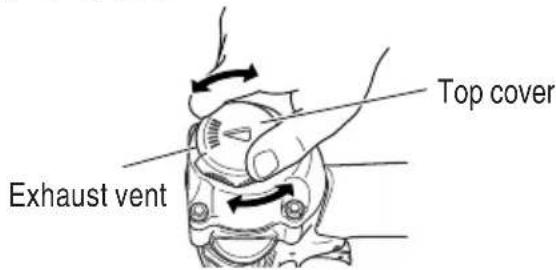

When changing the exhaust direction, be sure to remove your fi nger from the trigger and disconnect the air hose from the nailer. The direction of the exhaust vent can be changed by turning the top cover. Exhaust vent Top cover

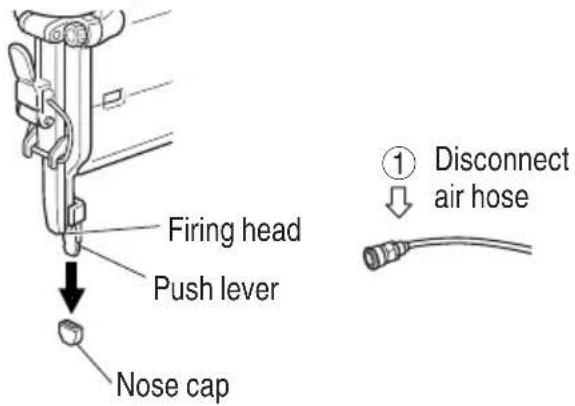

When detaching or attaching the nose cap, be sure to remove your fi nger from the trigger and disconnect the air hose from the nailer. The nose cap is attached to the push lever tip to protect the workpiece from scratches or damage. Remove in the order shown below when not using.

When not in use for an extended period, apply a thin coat of the lubricant to the steel parts to avoid rust.

Do not store the Nailer in a cold weather environment. Keep the Nailer in a warm area.

When not in use, the Nailer should be stored in a warm and dry place. Keep out of reach of children. MAINTENANCE NOTE: The information contained in this Manual is designed to assist you in the safe maintenance of the Nailer. Some illustrations in this Manual may show details or attachments that diff er from those on your own Nailer.

MAINTENANCE AND INSPECTION

Read section titled “SAFETY” (pages 4 – 8). WARNING

Disconnect air hose and remove all nails from Nailer when:

1) doing maintenance and inspection; and

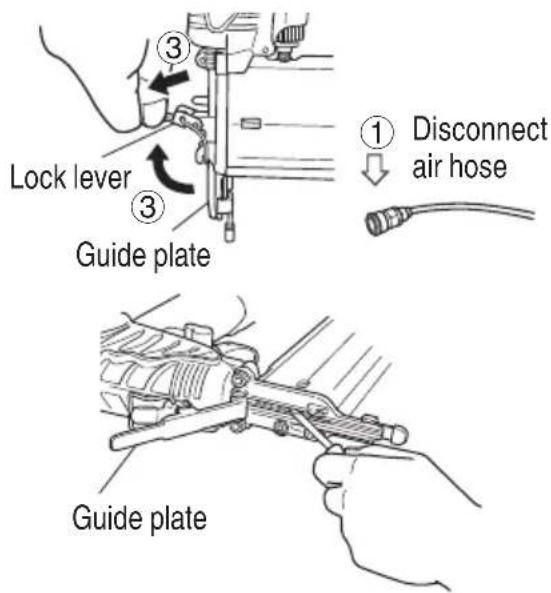

Remove a jammed nail in the following order:

Release the lock lever and open guide plate.

Remove the jammed nail with a slotted-head screwdriver.

Close guide plate and latch.

In case of frequent jam, contact a metabo HPT authorized service center.

Pull out the nose cap in the direction of the arrow as shown in the diagram.

Attach to the tip of the push lever in the reverse order of detaching. Firing head Nose cap Push lever

Disconnect air hose When not using the nose cap, attach to the storage area in back of the magazine. Nose cap 000BookNT50AE2US.indb18000BookNT50AE2US.indb18 2018/03/2215:09:062018/03/2215:09:0619 English

Do not use the Nailer with missing or damaged WARNING LABEL. A new WARNING LABEL is available from a metabo HPT authorized service center. Warning label

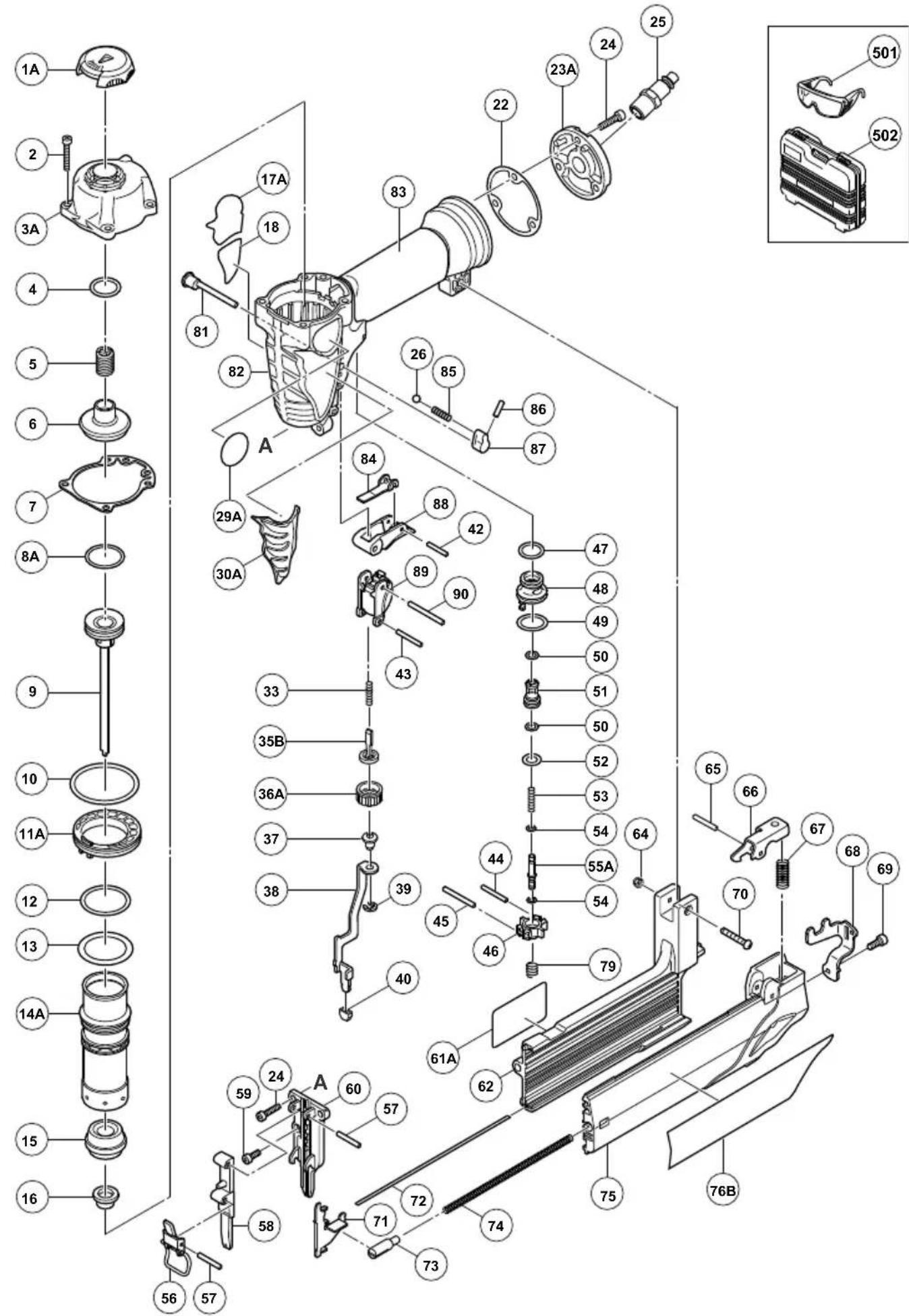

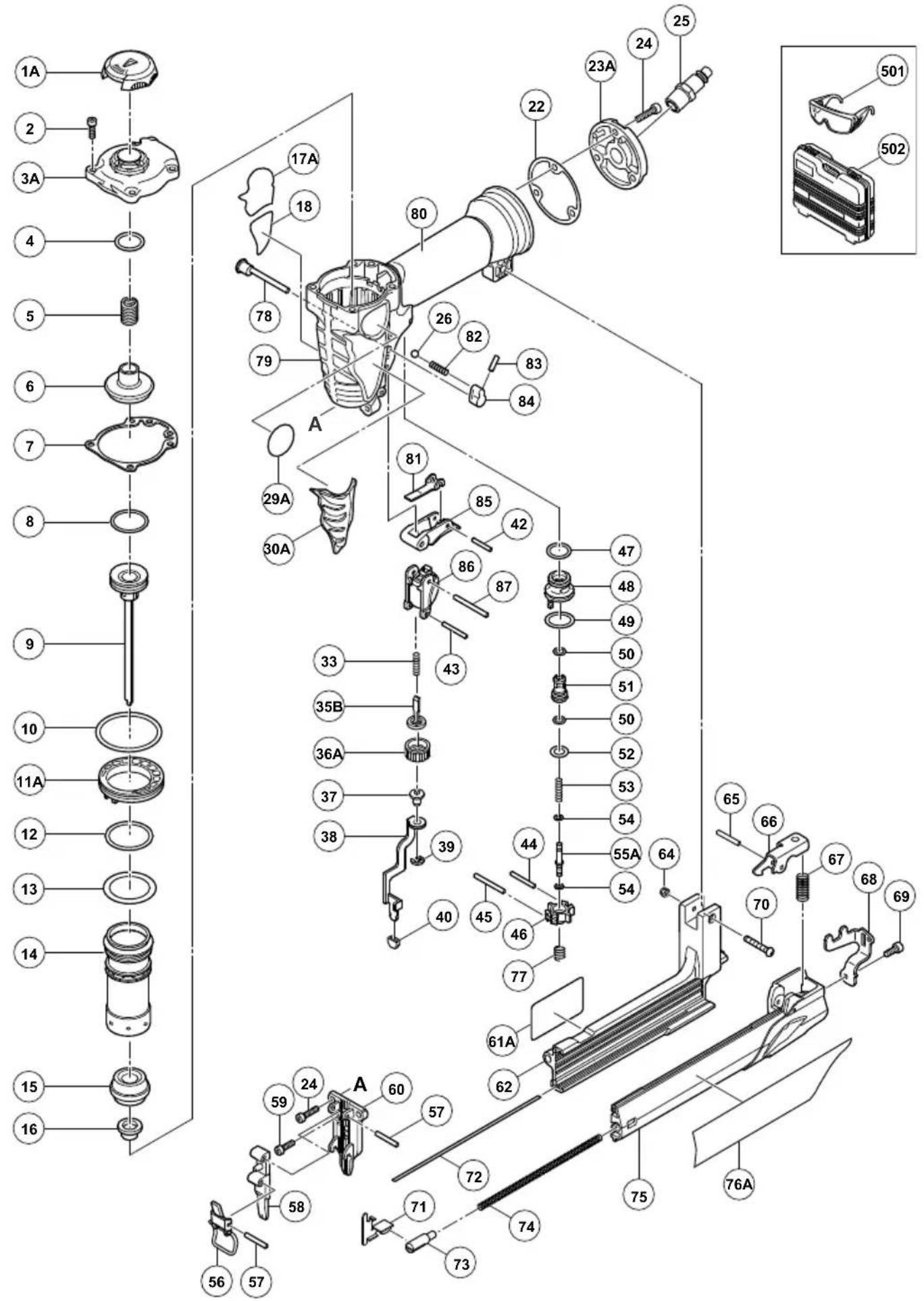

A: Item No. B: Code No. C: No. Used D: Remarks CAUTION Repair, modifi cation and inspection of metabo HPT Power Tools must be carried out by a metabo HPT Authorized Service Center. This Parts List will be helpful if presented with the tool to the metabo HPT Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. Maintenance chart

Drain air line fi lter daily. Prevent accumulation of moisture and dirt. Open manual petcock. Keep lubricator fi lled. Keep the Nailer lubricated. Fill with metabo HPT pneumatic tool lubricant. Clean fi lter element and blow air through fi lter in direction opposite to normal fl ow daily. Prevent clogging of fi lter with dirt. Follow manufacturer’s instructions. Clean magazine and feeder mechanism. Prevent a jam. Blow clean daily. Keep push lever working properly. Promote operator safety and effi cient Nailer operation. Blow clean daily. Lubricate the Nailer after nailing. Extend the Nailer life. Supply 5 – 10 drops of lubricant into the Nailer. Drain air compressor daily. Keep the Nailer operated properly. Open petcock on air compressor tank. MODIFICATIONS metabo HPT Power Tools are constantly being improved and modifi ed to incorporate the latest technological advancements. Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

Only service personnel trained by metabo HPT, distributor or employer shall repair the Nailer.

Use only parts supplied or recommended by metabo HPT for repair. All quality Nailers will eventually require servicing or replacement of parts because of wear from normal use. NOTE: Specifi cations are subject to change without any obligation on the part of metabo HPT. 000BookNT50AE2US.indb19000BookNT50AE2US.indb19 2018/03/2215:09:062018/03/2215:09:0620 English Operator troubleshooting Most minor problems can be resolved quickly and easily using the table below. If problems persist, contact a metabo HPT authorized service center for assistance.

PROBLEM CHECK METHOD CORRECTION

Nailer operates, but no nail is driven. Check for a jam. Clear a jam page 18. Nail feeder damaged? Replace nail feeder. Feed spring weakened or damaged? Replace feed spring. Check for proper nails. Use only recommended nails. Weak drive. Slow to cycle. Check air pressure. Increase air pressure. (Do not exceed 120 psi (8.3 bar 8.5 kgf/cm

Use metabo HPT pneumatic tool lubricant. Driver blade worn? Contact metabo HPT for replacement. Piston O-ring worm or damaged? Drives too deep. Check air pressure. Reduce air pressure. (Adjust 70 – 120 psi (4.9 – 8.3bar 5 – 8.5 kgf/cm

Check position of nailing depth adjustment. Readjust per page 17. Skipping nails. Intermittent feed. Check for proper nails. Use only recommended Nail feeder damaged? Replace nail feeder. Feed spring weakened or damaged? Replace feed spring. Piston O-ring worn or damaged? Contact metabo HPT for replacement. Nails jam. Driven nail is bent. Check for proper nails. Use only recommended nails. Driver blade worn? Contact metabo HPT for replacement. Drives properly during normal operation, but does not drive fully at faster nailing speeds. Check inside diameter of air hose. Use larger air hose. 000BookNT50AE2US.indb20000BookNT50AE2US.indb20 2018/03/2215:09:062018/03/2215:09:0621 Français
