USER MANUAL CMCGG001 Craftsman

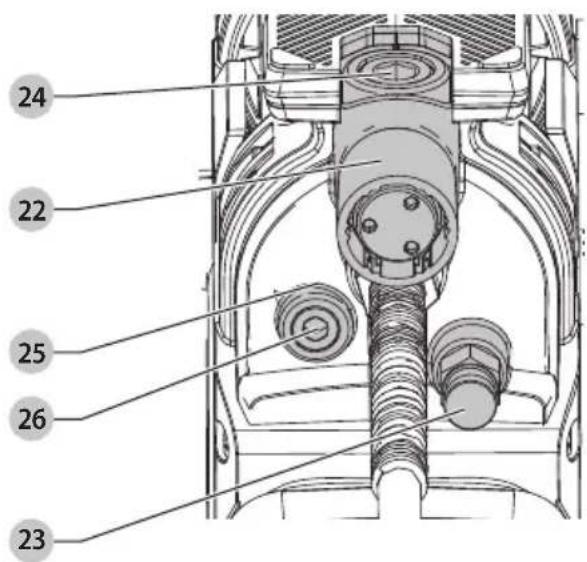

Flexible hose safety spring guard

Flexible hose coupler

Battery release button

a ) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electricshock. b ) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. c ) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electricshock. d ) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock. e ) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock. f ) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non‑skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off‑position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invitesaccidents. d ) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personalinjury. e ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpectedsituations. f ) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in movingparts. g ) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust‑relatedhazards.

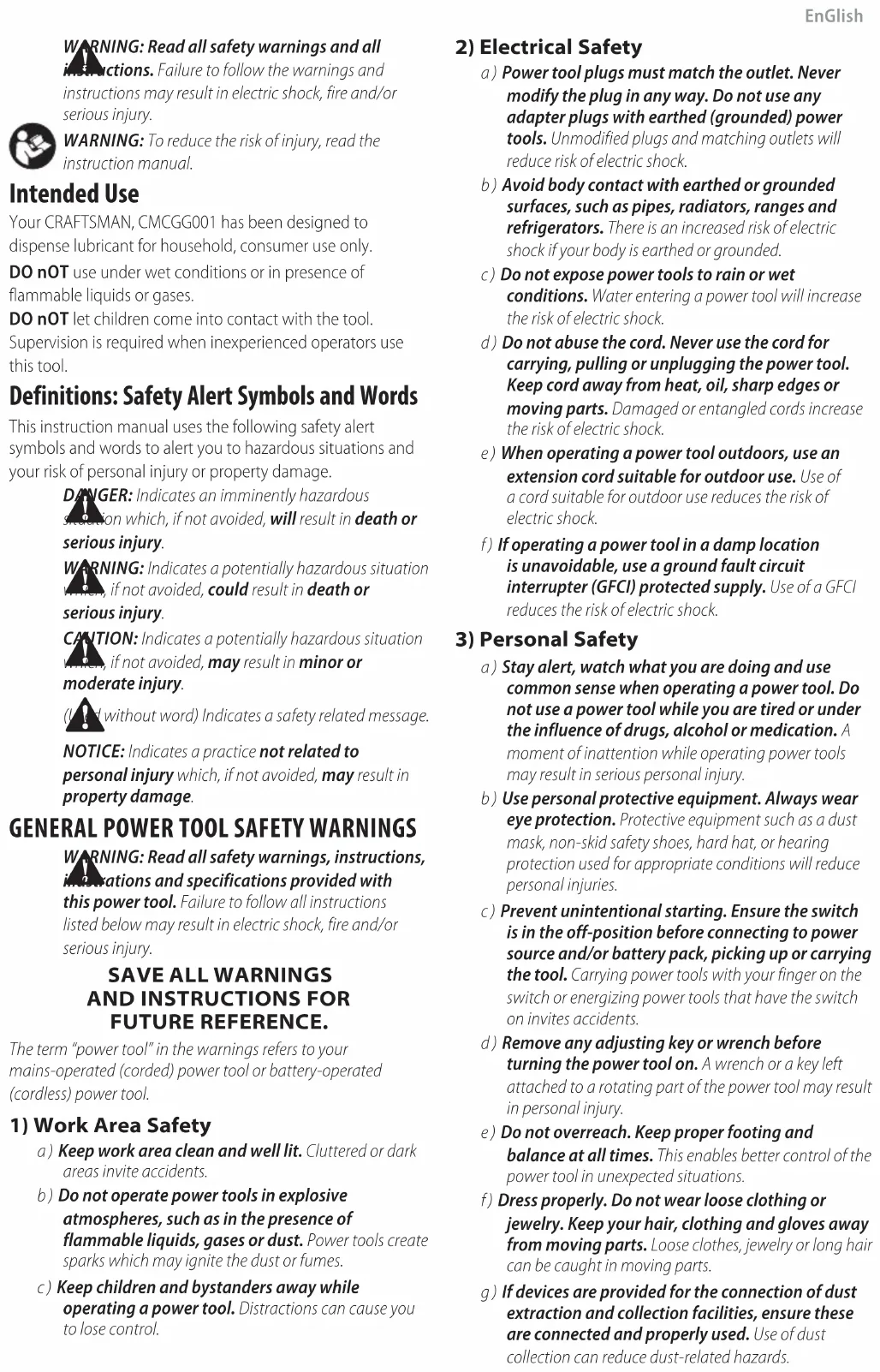

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

AND INSTRUCTIONS FOR

FUTUREREFERENCE. The term “power tool” in the warnings refers to your mains‑operated (corded) power tool or battery‑operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust orfumes. c ) Keep children and bystanders away while operating a power tool. Distractions can cause you to losecontrol. Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or propertydamage.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety relatedmessage. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage. Intended Use Your CRAFTSMAN, CMCGG001 has been designed to dispenselubricant for household, consumer useonly. DO nOT use under wet conditions or in presence of flammable liquids orgases. DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool. English (original instructions)

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

Additional Specific Safety Rules for GreaseGuns

• Parts of the tool or the hose assembly can break or rupture due to high pressure. Risk of serious injury may occur. Before using, always inspect the tool and hose assembly for damage or wear. Never use if any part of the tool is damaged orworn.

• Use only CRAFTSMAN‑approved flexible hoses. Hold the hose only by the flexible hose safety spring guard to avoid personal seriousinjury.

• If the hose kinks or is damaged, a rupture may occur which could cause serious injury. Replace the hose at the first sign of wear, kink ordamage.

• Only use the grease recommended in this manual (refer to Specifications).

• To reduce the risk of serious personal injury, do not use the grease gun around or on moving parts, mechanisms or runningequipment.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts.

WARNING: Risk of injection or severe injury.

Rupture of components can inject grease into skin or eyes, causing serious injury or infection. Do not treat as a simple cut. Seek immediate medicalattention.

WARNING: Output can be at high pressure. Do not

direct discharge at yourself orothers. d ) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns. e ) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk ofinjury. f ) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion. g ) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk offire.

a ) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool ismaintained. b ) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized serviceproviders. h ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of asecond.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it wasdesigned. b ) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must berepaired. c ) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power toolaccidentally. d ) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrainedusers. e ) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools. f ) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier tocontrol. g ) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardoussituation. h ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack. b ) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire. c ) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire.7 EnGlish

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non‑compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in CRAFTSMANchargers.

• DO NOT splash or immerse in water or otherliquids.

• DO NOT allow water or any liquid to enter batterypack.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage. The label on your tool may include the following symbols. The symbols and their definitions are asfollows: V ......................... volts Hz .......................hertz min ..................... minutes or DC ......direct current ...................... Class I Construction (grounded) …/min ..............per minute BPM .................... beats per minute IPM ..................... impacts per minute OPM .................... oscillations per minute RPM .................... revolutions per minute sfpm ................... surface feet per minute SPM .................... strokes per minute A ......................... amperes W ........................watts Wh ......................watt hours Ah ....................... amp hours or AC ...........alternating current or AC/DC .... alternating or direct current ...................... Class II Construction (double insulated)

do not expose to rain Additional Safety Information

WARNING: Never modify the power tool or any part of

it. Damage or personal injury couldresult.

WARNING: ALWAYS use safety glasses. Everyday

eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicalsare:

• lead from lead‑based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically‑treatedlumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to grease tube cavity out microscopicparticles.

• Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmfulchemicals. Direct particles away from face andbody.

• Use the appropriate dust extractor vacuum to remove the vast majority of static and airborne dust. Failure to remove static and airborne dust could contaminate the working environment or pose an increased health risk to the operator and those in closeproximity.

• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control andinjury.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knockedover.

WARNING: The grease gun may generate high

pressure—up to 10,000 PSI (690 bar). Always wear gloves during operation. Keep hands clear of the exposed rubber portion of thehose.

WARNING: Grease and lubricants may be

flammable. Do not expose to flame or heat source. Follow all warnings and instructions from grease and lubricantmanufacturer.ENGLISH

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN chargers and battery packs are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable battery packs. Charging other types of battery packs may cause them to overheat and burst, resulting in personal injury, property damage, fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Do not allow water or any liquid to entercharger.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the heavier the cord and thus the greater its capacity. An undersized cord will The RBRC® Seal Please take your spent battery packs to an authorized CRAFTSMAN service center or to your local retailer for recycling. In some areas, it is illegal to place spent battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit www.call2recycle.org. or call the toll free number in the RBRC®Seal. RBRC® is a registered trademark of Call 2Recycle,Inc. example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, coins, hand tools, etc. When transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Li‑ion battery packs should not be put in checked baggage on airplanes and must be properly protected from short circuits if they are in carry‑onbaggage. a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium‑ion battery packs areburned.

• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion.

• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk offire.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

• Battery liquid may be flammable if exposed to spark orflame.

• Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Storage Recommendations The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged battery pack out of thecharger. Battery Pack Cleaning Instructions Dirt and grease may be removed from the exterior of the battery pack using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions. Fuel Gauge Battery Packs (Fig.B) Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the approximate level of charge remaining. This does not indicate tool functionality and is subject to variation based on product components, temperature, and end-userapplication. Transportation

WARNING: Fire hazard. Do not store, carry, or

transport the battery pack so that metal objects can contact exposed battery terminals. For9 ENGLISH Wall Mounting Some CRAFTSMAN chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which NOTE: To remove the battery pack, some chargers require the battery pack release button to bepressed. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack may charge at a slower rate than a warm batterypack. The hot/cold pack delay will be indicated by the green light(s) continuing to blink but with the red light continuously ON. Once the battery pack has reached an appropriate temperature, the red light will turn OFF and the charger will resume the chargingprocedure. Electronic Protection System Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge. The tool will automatically turn off and the battery pack will need to berecharged. Important Charging Notes

1. Longest life and best performance can be obtained if

the battery pack is charged when the air temperature is between 65°F – 75°F (18° C– 24°C). DO NOT charge when the battery pack is below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the batterypack.

2. The charger and battery pack may become warm to the

touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulatedtrailer.

3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out thelights; c. If charging problems persist, take the tool, battery pack and charger to your local servicecenter.

4. You may charge a partially used pack whenever you

desire with no adverse effect on the batterypack. Charger Cleaning Instructions

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non‑metallic brush. Do not use water or any cleaningsolutions. cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on total length of all extension cords plugged together, and nameplate ampere rating. If in doubt, use the next heaviergauge. Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) Ampere Rating American Wire Gauge More Than Not More Than

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord orplug. Have them replacedimmediately.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

• Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities and ventilation slots.

• Always unplug the charger from the power supply when there is no battery pack in thecavity. Charging a Battery (Fig.C)

1. Plug the charger into an appropriate outlet.

2. Insert and fully seat battery pack

. Green charging light(s) will continuously blink whilecharging.

3. Charging is complete when the green charging light(s)

remain(s) continuously ON. Battery pack can be left in charger or removed.

Only charge batteries in air temperature over 40° F (4.5° C) and below 104° F (+40°C).

4. Charger will not charge a faulty battery pack, which may

be indicated by the charging light(s) staying OFF. Take charger and battery pack to an authorized service center if light(s) stay(s)OFF. NOTE: Refer to label near charging light(s) on charger for blinkpatterns.EnGlish

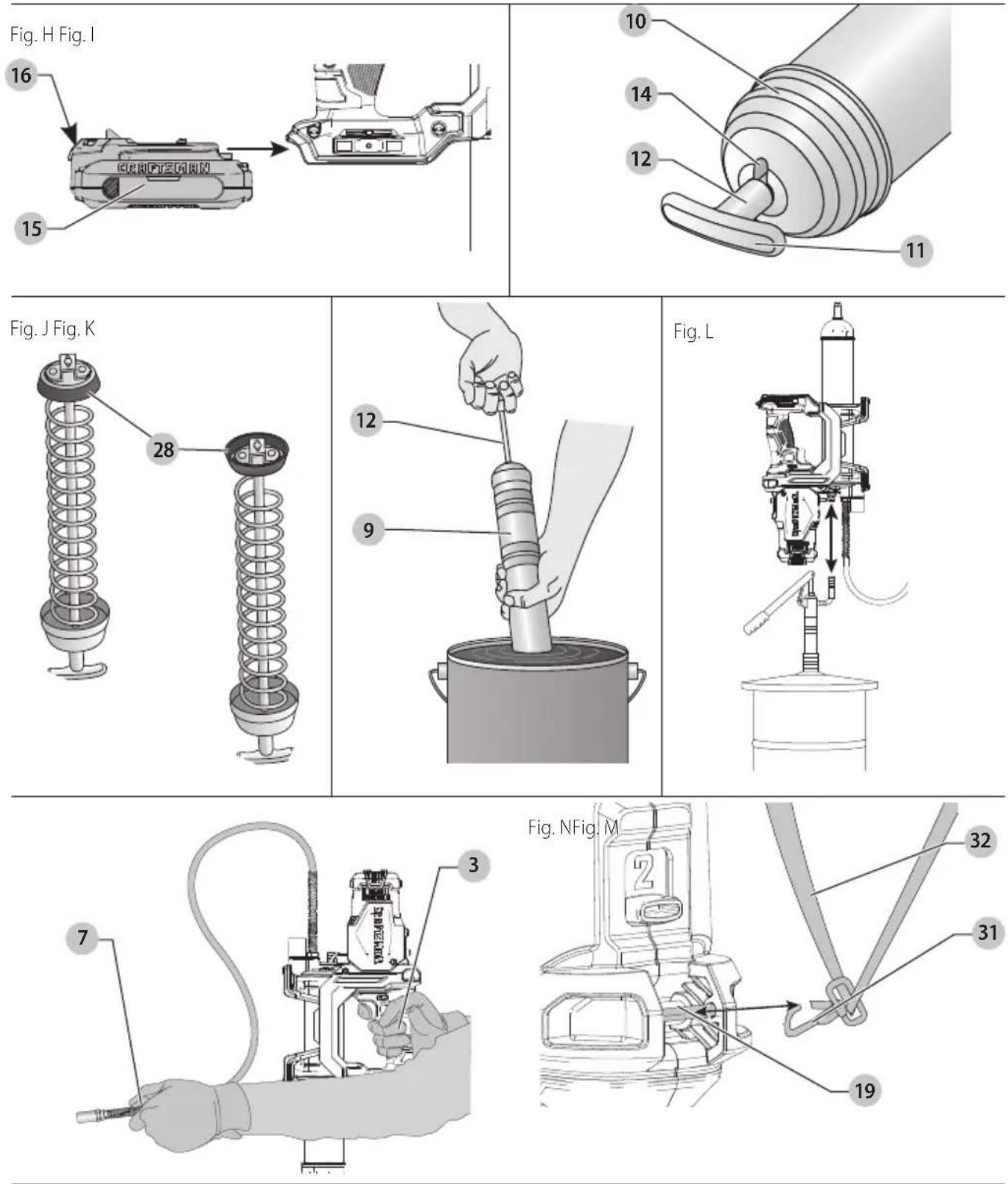

1. Pull the grease tube handle

out as far as it will go, then secure the grease tube rod

into the retaining slot

by moving the rod to the side. Ensure the rod is placed securely in the slot to prevent it fromdisengaging. Pressure Relief Valve (Fig.G) The pressure relief valve

is set at the factory to relieve pressure above 10,000 PSI (690 bar). Grease coming out of the pressure relief valve indicates a clog in the fitting, line or bearing. Any of these conditions must be corrected beforeproceeding.

WARNING: The grease gun may generate high

pressure. Do not remove or tamper with the pressure relief valve. Serious injury mayoccur. Variable Speed Trigger Switch (Fig.A,F) Lock-Off Button and Trigger Switch Your grease gun is equipped with a lock-off button

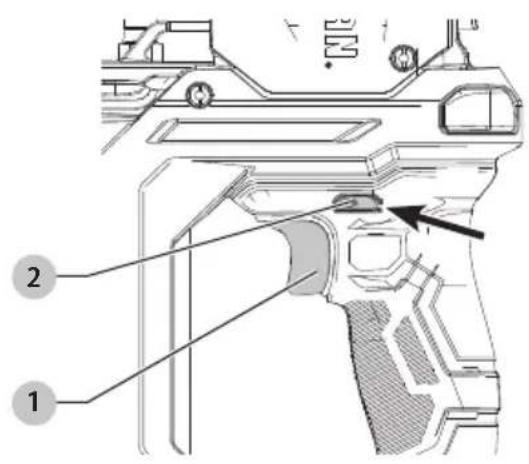

has a locked or unlocked iconat either end to indicate if the trigger switch is locked or unlocked.

, press the lock-off button from the locked icon end as shown in Fig.F. nOTE: Always lock the trigger switch

when carrying or storing the tool to eliminate unintentional starting.

from the unlocked icon end as shown in Fig.F.

to turn the motor ON.

4. Releasing the trigger switch turns the motorOFF.

nOTE: The variable speed trigger switch will give you added versatility. The further the trigger is depressed the higher the output ofgrease.

WARNING: This tool has no provision to lock the

switch in the ON position, and should never be locked ON by any othermeans. Tool Specifications CMCGG001 Voltage V 20 Output pressure psi Speed 1 Speed 2 10,000 5,000 Flow rate fl. oz./min Speed 1 Speed 2

Grease type Up to NLGI #2 Grease capacity Bulk oz 16 Cartridge oz 14.5 Hose length in 40 Weight (without battery pack) lbs 7.6 may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1” (25.4mm) long, with a screw head diameter of 0.28–0.35” (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32” (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. nOTE: Do not attempt to mount CMCB101 charger under a bench ortable. nOTE: Only mount CMCB101 charger with the charging lights pointed upward toward theceiling. VersaTrack™

WARNING: Do not charge batteries while charger is

hung onTrackwall. CRAFTSMAN chargers, except the CMCB101, can be stored on CRAFTSMAN VersaTrack™ Trackwall. Hooks and accessories are sold separately. Please refer to the VersaTrack™ Trackwall accessory sheet for furtherinformation. nOTE: The CMCB101 charger is not CRAFTSMAN VersaTrack™ Trackwallcompatible.

SAVE THESE INSTRUCTIONS FOR

CAUTION: Do not stare into the LED. Serious eye injury couldresult. When the tool is activated by pressing the trigger switch

will automatically turn on. The LED worklight will turn off 60seconds after the trigger switch has beenreleased. Installing a Grease Cartridge (Fig.A,I,G)

1. Pull the grease tube handle

out as far as it will go, then secure the grease tube rod

into the retaining slot

by moving the rod to the side. Ensure the rod is placed securely in the slot to prevent it fromdisengaging.

2. Unscrew the grease tube assembly

3. Remove the plastic cap from the grease cartridge, then

insert the cartridge, open end first, into the grease tube

4. Remove the seal from the other end of the

5. Thread the grease tube assembly

back into the grease gun and screw it insecurely.

6. Release the grease tube rod

from the retaining slot

and slowly press it back into thetube.

, Fig.G) to bleed off any air that may be trapped in the cartridge. Refer to Purging AirPockets. iMPORTAnT: The grease gun will lose its prime if there are air pockets in thelubricant.

ASSEMBLY AND ADJUSTMENTS

To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments, accessories or when filling with grease. An accidental start‑up can causeinjury.11 ENGLISH Purging Air Pockets (Fig.A,G) IMPORTANT: Air pockets in the grease can cause the grease gun to lose prime. Eliminate air pockets after each refill or if the grease gun fails to pump grease:

without removing it, until all air hasescaped.

2. Tighten the purge valve

4. If grease fails to flow through the hose, repeat

fromstep1. NOTE: This tool has been tested at the factory, which may result in a small amount of grease left in the grease tube and hose assembly. It is recommended to purge the tool with the brand of grease to be used before firstuse. Installing The Low Pressure Coupler (Not Supplied With The Tool)

1. Thread the grease tube assembly

back into the grease gun and screw it insecurely.

2. Pull the grease tube handle

out as far as it will go, then secure the grease tube rod

into the retainingslot

by moving the rod to the side. Ensure the rod is placed securely in the slot to prevent it fromdisengaging.

4. Thread the appropriate low pressure coupler onto the

5. Release the grease tube rod

from the retaining slot

and slowly press it back into thetube.

to bleed off any air that may be trapped in the cartridge. Refer to Purging AirPockets. Filling The Tool From The Low Pressure Filler Pump (Fig.A,G, I—L)

1. Pull back on the grease tube handle slowly and rotate the

rod until it is secure inplace. NOTE: Do not lock the rod into the retaining slot

2. Connect the low pressure fitting on the grease gun to the

appropriate low pressure fitting on the filler pump. These fittings DO NOT lock together. This prevents the grease gun cartridge from being overfilled.

3. Fill until the rod is pushed out of the grease tube

approximately 8" (20cm). Do not overfill. If the rod fails to move during the filling process, stop. This indicates that the rod is not connected to the plunger and step one must be repeated beforeproceeding.

4. Rotate rod to release and carefully push rod back into the

to bleed off any air that may be trapped in the cartridge. Refer to Purging AirPockets. Filling the Grease Gun from a Bulk Container (Fig.A,G, I–L) Preparing the Grease Gun for Suction and Filler Pump Filling (Fig.A,H, I) NOTE: Be sure the grease gun is empty of grease before beginning thisprocess.

1. Unscrew the grease tube

from the grease tube assembly

from the grease tube

and pull out the grease tube rod

3. Using your thumb and forefinger, flip the rubber seal

from the rear to the front. Refer to Fig.J. NOTE: The seal resembles a cup, which should open toward the motor housing (

, Fig.A) when prepared for suction and filler pumpfilling.

back into the greasetube

Suction Filling from a Bulk Container (Fig.A,G, I–L)

1. Put the open end of the grease tube assembly into the

2. Slowly pull back the grease tube handle

to suction the lubricant into the greasegun. NOTE: Be sure to keep the open end of the grease tube assembly far enough into the lubricant to prevent air pockets in the greasetube.

is fully extended, secure it into the retaining slot

4. Remove the grease gun tube assembly from the bulk

lubricant and wipe off excessgrease.

5. Screw the grease gun tube assembly

back into the greasegun.

6. Release the grease tube rod

from the retaining slot

and slowly press it back into thetube.

, Fig.G) to bleed off any air that may be trapped in the cartridge. Refer to Purging AirPockets. Filler Pump Filling From a Bulk Container (Fig.A,G, I–L) This tool comes with a 1/8" NPT fill port (

WARNING: Never thread a high‑pressure coupler

onto the grease gun’s 1/8" NPT fill port. Serious injury may occur due to excessive pressure. Use low‑ pressure couplersonly.

CAUTION: The fill pump loader must connect correctly with the grease gun’s 1/8" NPT port. The filler pump may not operate if the components are notcompatible.

2. Unscrew the grease tube assembly

from the grease gun andremove.

3. Gently release the grease tube handle

to expel the empty cartridge from the greasetube.ENGLISH

Since accessories, other than those offered by CRAFTSMAN , have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with thisproduct. Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569. Cleaning

WARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing thisprocedure.

WARNING: Never use solvents or other harsh

chemicals for cleaning the non‑metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Using the Grease Gun (Fig.A)

WARNING: To reduce the risk of serious personal

injury, always maintain a grip on the handle when operating the grease gun or positioning the hose ontofittings.

1. To operate the grease gun, hold the grease gun by the

, or place it on a stable surface upright on its rubber feet

maintaining a grip on the handle.

2. Holding the hose by the flexible hose safety spring

, connect the flexible hose grease coupler

other appropriate grease coupler, onto the grease fitting to be filled.

3. Carefully depress the variable speed trigger switch to

begin the filling process. Once the correct amount of grease has been dispensed, release the trigger and remove the coupler from the grease fitting.

4. If the coupler does not release, there may still be residual

pressure in the line. Moving the coupler from side to side can relieve the residual pressure so it can be removed from the coupling.

5. If the coupler leaks excessively or does not hold on to the

grease fitting, it should bereplaced. Installing and Removing the Battery Pack (Fig.H)

WARNING: Ensure the tool/appliance is in the off

position before inserting the batterypack. NOTE: For best results, make sure your battery pack is fullycharged.

1. To install the battery pack

into the tool handle, align the battery pack with the rails inside the tool’s handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does notdisengage.

2. To remove the battery pack from the tool, press the

and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of thismanual. Proper Hand Position (Fig. M)

WARNING: To reduce the risk of serious personal injury,

ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. Proper hand position requires one hand on the flexible hose safety spring guard

with the other hand on the handle

asshown. Speed Selection (Fig.A) The CMCGG001 features two speed settings for greaterversatility. Speed 1, low output/high PSI, is recommended for general lubrication applications. Speed 2, high output/low PSI, is recommended for general lubrication applications not requiring high PSI such as large bearings or filling areas where a lot of grease is required. NOTE: Do not change speeds when the tool is running. Always allow the tool to come to a complete stop before changingspeed.

1. To select speed 1 (low output/high PSI), turn the tool

off and permit it to stop. Slide the speed selector

towards the motor housing

2. To select speed 2 (high output/low PSI), turn the tool off

and permit it to stop. Slide the speed selector

down towards the handle

NOTE: If the tool does not change speeds, confirm that the speed selection switch is completely engaged in the speed 1 or speed 2position. MAINTENANCE

To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments, accessories or when filling with grease. An accidental start‑up can causeinjury. Your CRAFTSMAN power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning. OPERATION

To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments, accessories or when filling with grease. An accidental start‑up can causeinjury.13 ENGLISH AVAILABLE ACCESSORIES CMCGGA001 Heavy Duty 1/8" NPT Grease Gun Coupler CMCGGA002 Heavy Duty, 3-Pack 1/8" NPT Grease Gun Coupler CMCGGA003 Right Angle Grease Gun Coupler CMCGGA004 Shoulder Strap Attaching and Adjusting the Shoulder Strap (Fig.N) Optional accessory, sold separately.

WARNING: The shoulder strap should only be slung

over one shoulder and not across the body. See Fig N. A shoulder strap is recommended for any tool with a total weight exceeding 13lbs. (6 kg). (Total weight includes the tool, attachment, and battery.) A shoulder strap is available at an additional cost from CRAFTSMAN at www.craftsman.com or call 1-888-331-4569, part number CMCGGA004. Attach the strap to the tool as shown in Fig. N and adjust for proper balance and support

WARNING: The strap should only be slung over one

shoulder and not across the body. See Fig N.

onto the shoulder strap mount

located on the unit, just in front of the ON/OFF trigger as shown in Fig. N.

2. Adjust the strap so it fits over yourshoulder and

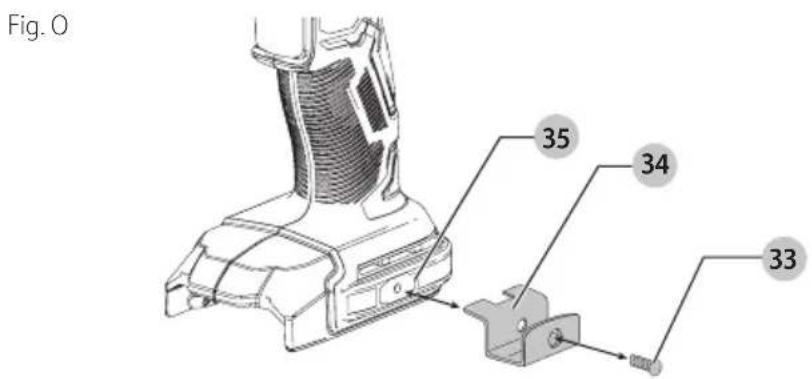

provides proper balance andsupport. VersaTrack™ (Fig. O) Optional accessory, sold separately.

To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments, accessories or when filling with grease. An accidental start‑up can causeinjury.

WARNING: To reduce the risk of serious personal

injury, do not use a damaged VersaTrack™ hang hook or VersaTrack™ Trackwall. A damaged VersaTrack™ hang hook or VersaTrack™ Trackwall will not support the weight of thetool.

WARNING: To reduce the risk of serious personal

injury, ensure the screw holding the VersaTrack™ hang hook is securelytightened.

WARNING: To reduce the risk of serious personal

injury, DO NOT suspend tool overhead or suspend objects from the hang hook. ONLY suspend tool on the VersaTrack™ Trackwall using the hanghook.

WARNING: The Versatrack™ integral hang hook is not

WARNING: Ensure that the tool weight does not

exceed the maximum rated weight of 20lb (9 kg) for the selected VersaTrack™hook. Register Online Thank you for your purchase. Register your product nowfor:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct.

• Register online at www.craftsman.com/registration Repairs The charger and batteries are notserviceable. There are no serviceable parts inside the charger or batterypack.

WARNING: To assure product SAFETY and RELIABILITY,

repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacementparts.

WARNING: When hanging objects on a VersaTrack™

Trackwall rail, adequately space the tools in order to not exceed 75lb (35 kg) per linearfoot. IMPORTANT: When attaching the VersaTrack™ hang hook, use only the screw that is provided. Be sure to securely tighten the screw. VersaTrack™ accessories mount compatible tools securely to the VersaTrack™ Trackwallsystem.

1. Turn the tool off, remove the battery pack

CAUTION: Any product with exposed cutting teeth must have them covered securely if it is to be on theVersaTrack™Trackwall.

on thetool. a. Place the VersaTrack™ hang hook onto the mounting location

at the base of thetool. b. Use a screwdriver to secure the hang hook with the provided screw

. Do not use any other screw forthis. NOTE: VersaTrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.ENGLISH

Troubleshooting Problem Possible Cause Possible Solution Unable to pull back rod Vacuum build up Unscrew the purge valve to release vacuum. Unable to push rod forward Pressure build up Unscrew the purge valve to release pressure. Rod is still connected to plunger Rotate grease tube handle 90 degrees to disengage it. No grease when trigger is pulled Grease tube is empty Add grease. Air pockets in the grease tube Refer to Purging Air Pockets. Grease appears in relief valve Zerk fitting is blocked Disconnect coupler from fitting, clean zerk fitting and grease path. Motor does not run when trigger is pulled Battery Make sure the battery is fully charged. Grease leaks out of the back of the grease tube Rubber seal is flipped the wrong direction Refer to Preparing the Grease Gun for Suction and Filler Pump Filling.

90DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90days from the date of purchase with a receipt for a full refund – no questionsasked. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a freereplacement. Three Year Limited Warranty CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL

OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states orprovinces.

CMCB201, CMCB2011, CMCB2015

CMCB202, CMCB204, CMCB205, CMCB206, CMCB209

NOTE: Battery warranty voided if the battery pack is tampered with in any way. CRAFTSMAN is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted bylaw.FRAnçAis

located on the unit, just in front of the ON/OFF trigger comme illustré à la Fig. N.

CMCB201, CMCB2011, CMCB2015

CONTRAT D’ENTRETIEN GRATUIT DETROIS ANS SUR LESBLOC-PILES CRAFTSMAN

CMCB202, CMCB204, CMCB205, CMCB206, CMCB209

CMCB201, CMCB2011, CMCB2015

CMCB202, CMCB204, CMCB205, CMCB206, CMCB209

• Maximum initial battery voltage (measured without a workload) is 20volts. Nominal voltage is18.

WARNING: Use of any other battery packs may create a risk of injury andfire.
