Product Type	Grill Plate
Brand	Waring Commercial
Model	WGR240X
Voltage	240 V
Power	3300 W
Plug Type	6-20P Nema
Dimensions (L x W x H)	685 x 572 x 323 mm
Housing Material	Stainless Steel
Cooking Surface	Steel Plate
Temperature Control	Yes, adjustable thermostat
Preheat Indicator	Yes, "READY" light
Grease Tray	Removable, easy to clean
Adjustable Height Feet	Yes, 4 screw feet
Usage	Commercial
Automatic Safety Shut-off	Yes, in case of overheating
Grounding	3-prong plug, requires grounded outlet
Preparation Before First Use	Clean with steel wool, apply oil several times
Cleaning After Each Use	With warm water and detergent, warm surface

Frequently Asked Questions - WGR240X Waring Commercial

How to prepare the WGR240X grill plate before first use?

Scrub the plate with steel wool and detergent. Plug in the appliance, set to HIGH and wait for the READY light to come on. Pour a tablespoon of oil (corn or peanut) in the center, spread evenly with a cotton cloth. Let heat for 5-10 minutes until the plate appears dry. Repeat the process eight times, reducing the amount of oil.

What are the voltage and power of the Waring Commercial WGR240X grill?

The grill operates at 240 V and has a power of 3300 W. It requires a compatible 6-20P Nema plug.

How to clean the cooking surface after use?

Clean the cooking surface while still warm, with warm water and detergent. Never pour cold water on a hot surface to avoid thermal shock.

How to adjust the height of the grill feet?

Turn the grill over, screw each foot into the corner holes by turning clockwise. To adjust height, turn the base of the foot. Make sure all four feet are at the same height and the grill is level.

Can I use an extension cord with this grill?

Yes, if necessary. Use a three-wire grounding extension cord with a voltage rating at least equal to that of the appliance. Do not let the cord hang and keep it away from hot or sharp surfaces.

What to do if the grill shuts off automatically?

The grill is equipped with a safety mechanism that shuts it off in case of overheating. Turn the thermostat to OFF, unplug the appliance and let it cool down. Once cool, plug it back in and use normally.

Does the grill require grounding?

Yes, for your safety, the grill is equipped with a three-prong plug. Plug it only into a properly grounded outlet. Do not use an ungrounded adapter (prohibited in Canada and Europe).

What types of oil to use for initial plate preparation?

Use corn or peanut oil, or any frying oil. Avoid synthetic materials for spreading; prefer a cotton cloth or paper towel.

Can I use non-Waring accessories with this grill?

The use of accessories not recommended by Waring Commercial may present a risk of fire, electric shock or injury. Use only approved accessories.

How to maintain the grease tray?

Remove the removable tray and wash it with warm water and detergent. Let it dry completely before putting it back. Do this after each use.

USER MANUAL WGR240X Waring Commercial

Exterior view of a Waring commercial griddle appliance (no visible text or symbols on the device body)

WGR240X

Intertek

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, basic safety precautions should always be taken, including the following:

1. READ ALL INSTRUCTIONS.

2. To protect against risk of electric shock, do not put appliance in water or other liquids.

3. Do not touch surfaces that may be hot. Use handles and knobs provided.

4. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.

5. Avoid coming into contact with moving parts.

6. Do not operate the Waring™ Professional Countertop Griddle or any other electrical equipment with a damaged cord or plug, or after the unit malfunctions, or is dropped or damaged in any manner. Return it to the nearest Waring Authorized Service Center for examination, repair, and/or adjustment.

7. The use of attachments not recommended or sold by Waring ^™ Commercial may cause fire, electric shock, or injury.

8. Do not use outdoors.

9. Always check that the power switch is in the OFF position and the temperature dial is in the MIN position before plugging cord into wall outlet. To disconnect, turn the temperature dial to MIN, turn the switch to the OFF position, then remove plug from wall.

10. Do not place near a hot gas or electric burner or heated oven.

11. Do not let cord hang over edge of table or counter, or touch hot surfaces.

12. When in the ON position, the Waring™ Professional Countertop Griddle should always be on a stable countertop or table.

13. Do not use appliance for other than its intended use.

14. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

15. C hildren should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS

APPROVED FOR COMMERCIAL USE

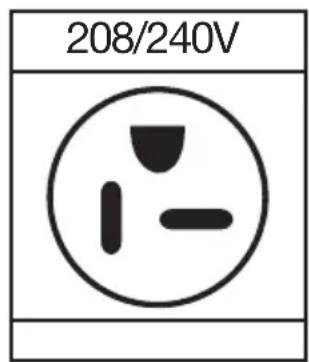

GROUNDING INSTRUCTIONS

For your protection, the Waring™ Countertop Griddle is supplied with a molded 3-prong grounding-type plug and should be used in combination with a properly connected grounding-type outlet. Use of any other voltage or altering of the plug or cord may damage the unit, will void the warranty and may cause injury.

Caution: Before using an adapter, it must be determined that the outlet cover plate screw is properly grounded. If in doubt, consult a licensed electrician. Never use an adapter unless you are sure it is properly grounded.

NOTE: Use of an adapter is not permitted in Canada and Europe.

EXTENSION CORDS

Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole cord connectors that accept the plug from the appliance. Use only extension cords that are intended for indoor use. Use only extension cords having an electrical rating not less than the rating of the appliance. Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not yank on any cord to disconnect. Keep cord away from heat and sharp edges.

WARNING

RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated, dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of fire or electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

SPECIAL CORD SET INSTRUCTIONS

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a long cord.

An extension cord may be used with this product provided that care is exercised in its use. If a long extension cord is used, the marked electrical rating of the extension cord must be at least as great as the electrical rating on the appliance, and the longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

EVERY GRIDDLE NEEDS TO BE SEASONED BEFORE FIRST USE

The seasoning process will last about 1 to 1 12 hours.

Seasoning is an important step to prepare the surface for a natural nonstick finish.

1. Pre-clean surface with steel wool and detergent.
2. Plug unit into outlet in a well-ventilated area.
3. Switch on the appliance and set to HIGH. Allow to heat until green READY light is lit.
4. Pour about a tablespoon of corn or peanut oil suitable for frying in the center of the cooking surface. Using a cotton cloth or paper towel (synthetic materials will adhere to the surface), spread the oil evenly and let heat for 5 to 10 minutes, until the surface loses its initial sheen and appears dry.
5. Repeat step 4 eight times, burnishing the surface with the towel and decreasing the amount of oil used each time until a smooth, non-tacky surface has developed.

ADJUSTABLE FEET INSTALLATION

Ensure that all feet are attached correctly before operation of this griddle.

Your griddle includes four adjustable feet, which are packaged unattached. Each foot has a screw protruding from the top for assembly. Locate the four screw holes at each corner of the bottom housing of the griddle. Insert the screw and turn foot clockwise until snug.

Repeat for all four feet. The height of the feet can be adjusted by rotating the bottom of the foot. Ensure that all four feet are adjusted to the same height to make a level cooking surface.

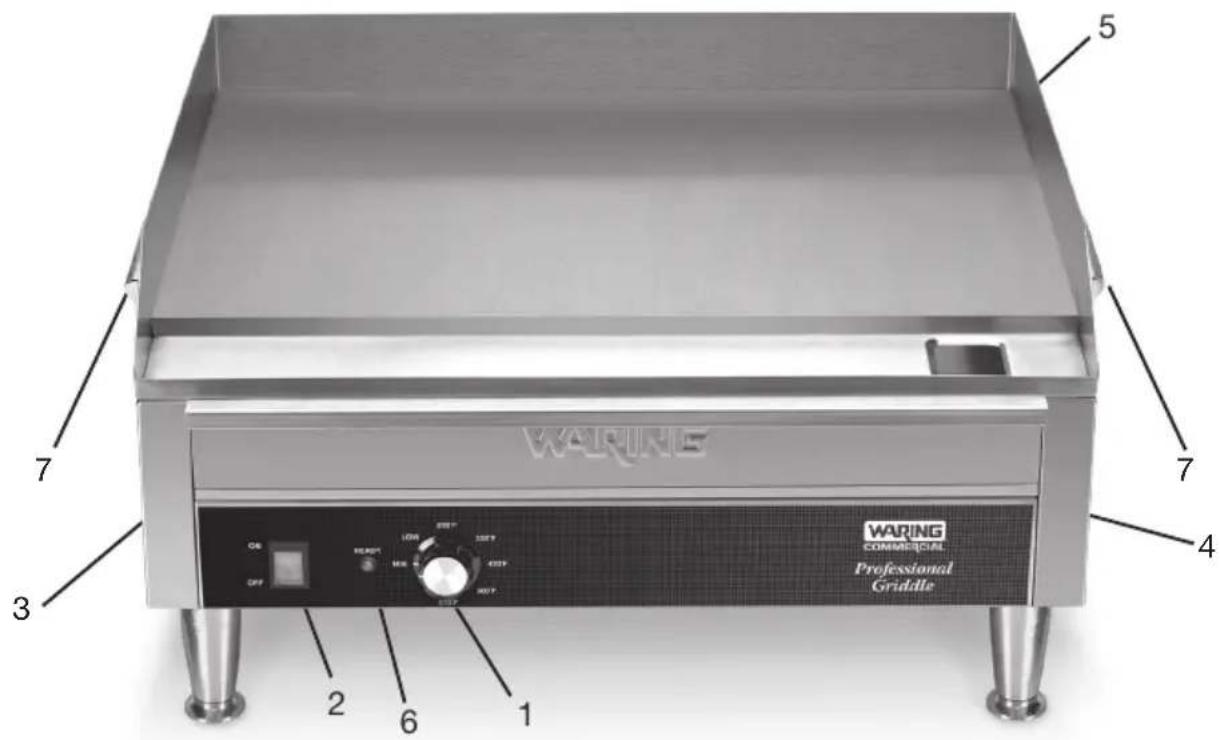

PARTS

1. Temperature dial
2. Lighted ON/OFF power switch
3. Removable drip tray
4. Stainless steel housing
5. Griddle surface
6. Ready indicator light
7. Handles
8. Power cord (not shown)

MODEL DESCRIPTION VOLTAGE POWER				PLUG TYPE	DIMENSIONS (INCHES)
WGR240X	Countertop Griddle	240V	3300W	6-20PNema	29.96" (W) x 22.5" (D) x 12.7" (H)

INSTRUCTIONS FOR USE

1. Remove the Waring™ Professional Countertop Griddle from packaging.
2. Place on a firm and stable surface.
3. Remove all packaging and the instruction book.
4. Please read all instructions before you begin to cook.
5. Keep this instruction book in a safe location for future reference.
6. It is highly recommended that you clean and season the griddle before first use.
7. After cleaning and seasoning, the Waring™ Professional Countertop Griddle is ready for use.
8. Turn unit on. Allow cooking surface to warm up. The Ready indicator light will illuminate once temperature is reached.
9. Carefully place food on cooking surface.

SAFETY AND TROUBLESHOOTING

Please note that the Waring ^™ Professional Countertop Griddle will be too hot to handle immediately after use.

The griddle has a thermal cutoff safety device to avoid overheating. If griddle shuts off automatically, turn off the unit, unplug it and allow it to cool. Plug back in and continue use.

CLEANING AND MAINTENANCE

The Waring ^™ Professional Countertop Griddle should be cleaned after each use. Clean griddle surface while the unit is warm, using warm, soapy water. DO NOT USE COLD WATER ON WARM SURFACE.

The exterior of unit may be cleaned by carefully wiping with a damp cloth.

To clean drip tray, carefully remove tray, and wash with warm, soapy water and dry. Tray must be completely dry before putting back into the unit.

ADVERTENCIA

RISQUE D'INCENDIE OU D'ÉLECTROCUTION—NE PAS OUVRIR

AVERTISSEMENT : AFIN DE RÉDUIRE LE RISQUE D'INCENDIE OU D'ÉLECTROCUTION, NE PAS OUVRIR LE BOÎTIER. CET APPAREIL NE CONTIENT AUCUNE PIÈCE POUVANT ÊTRE RÉPARÉE PAR L'UTILISATEUR. TOUTE RÉPARATION DOIT ÊTRE EFFECTUÉE PAR UN TECHNICIEN AUTORISÉ.
