USER MANUAL GRKS 1800 Güde

Exterior view of a blue and black lawn mower with red handlebars (no text or symbols visible)

GRKS 1800

95318

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

Güde

ENGLISH Please read the instructions carefully before starting the machine.

Scanned document page with placeholder text and a blue circular logo, likely a form or report section.

Silhouette of a vintage airship with wheels and tools, no text or symbols present

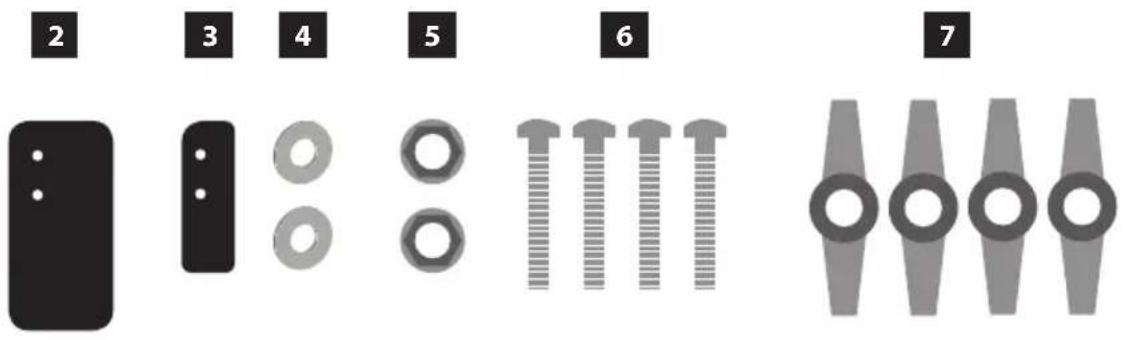

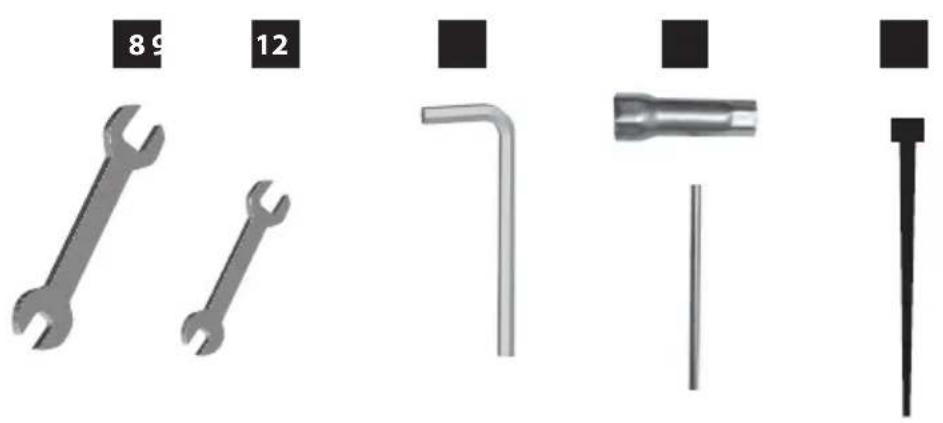

2 3 4 5 6 7

8 9 12 1 1

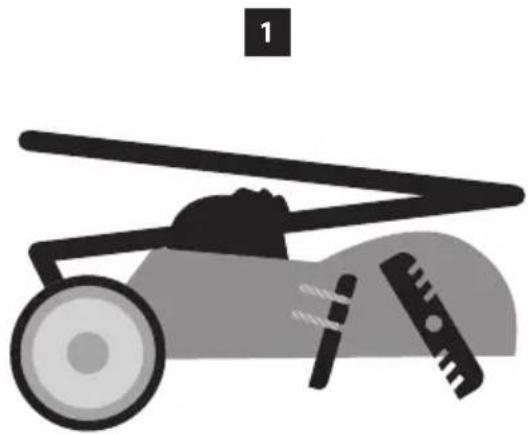

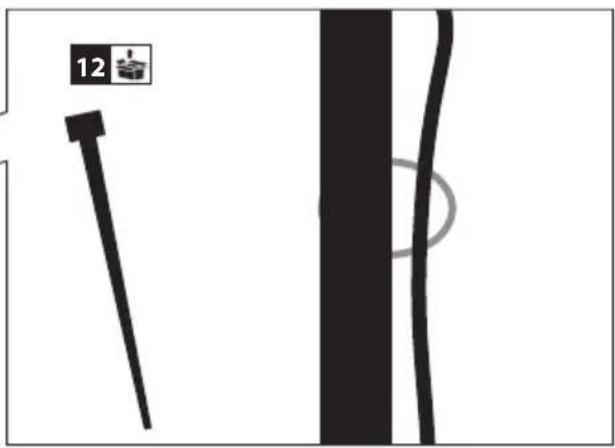

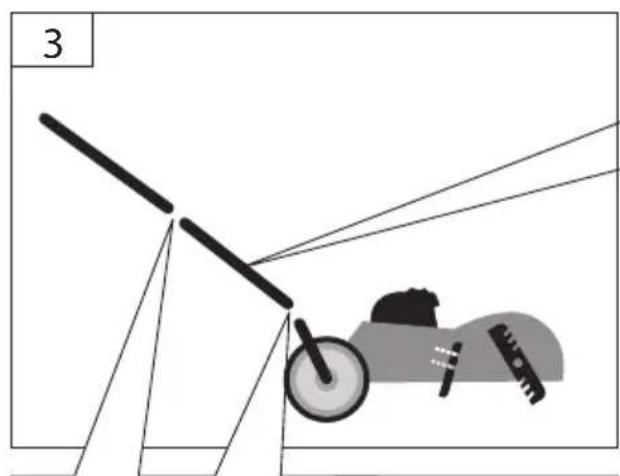

DE Montage

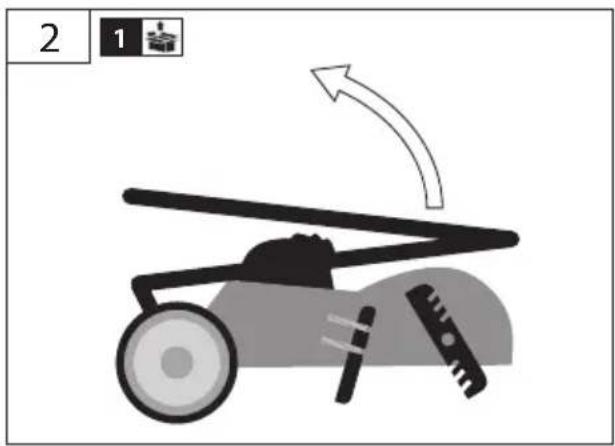

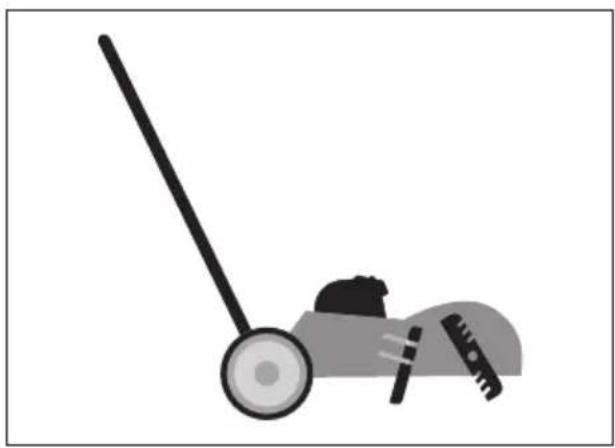

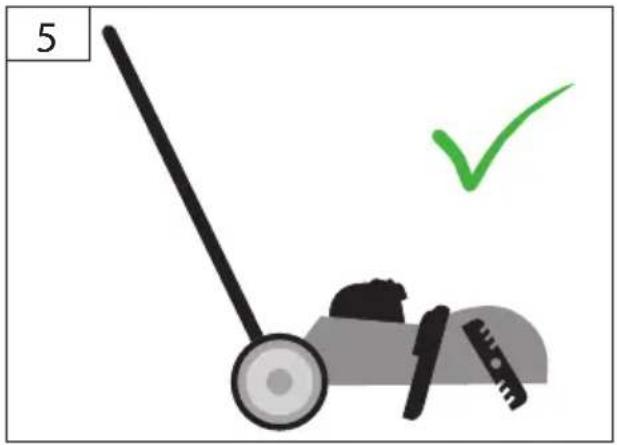

EN Assembly

FR Assemblage

IT Montaggio

NL Montage

CZ Montáž

SK Montáž

HU Szerelés

1

2-3

DE Inbetriebnahme

EN Starting-up the machine

FR Mise en service

EN Cleaning / Maintenance

FR Nettoyage / Entretien

Warning symbol and icon set showing a yellow triangular warning sign with an exclamation mark, alongside a mechanical device with a wrench and open book.

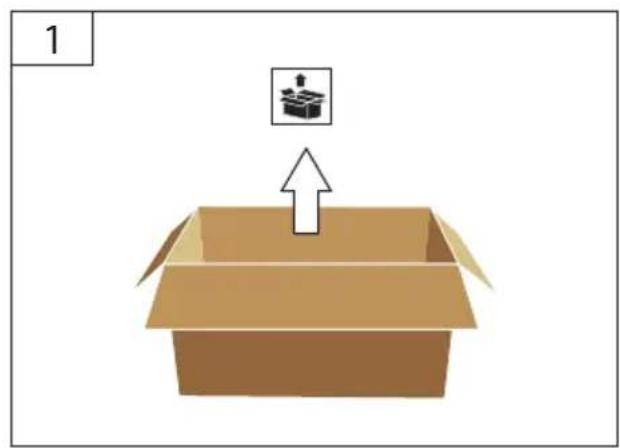

Illustration of an open cardboard box with an upward arrow and a small box icon above it (no text or symbols)

2 1 番

Diagram showing mechanical components including a wheel, gear, and tool, with no visible text or symbols

Abstract black-and-white graphic with vertical lines and a small icon, no readable text or symbols

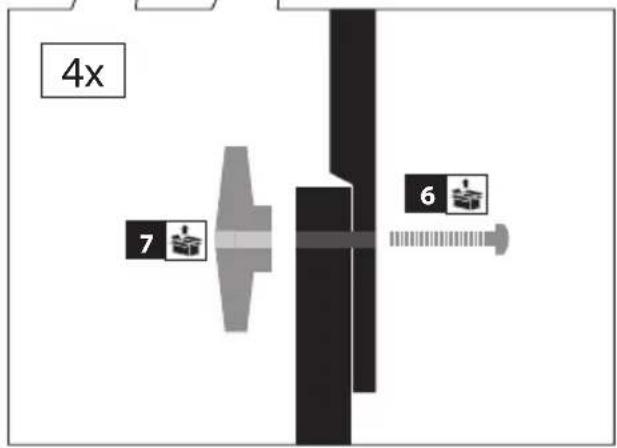

4x 7 6

Illustration of a manual lawn mower with a tool handle (no text or symbols)

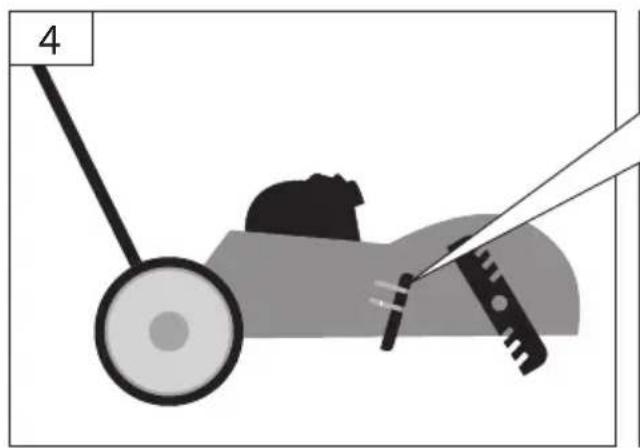

DE Montage
EN Assembly
FR Assemblage
IT Montaggio
NL Montage
CZ Montáž
SK Montáž
HU Szerelés

4

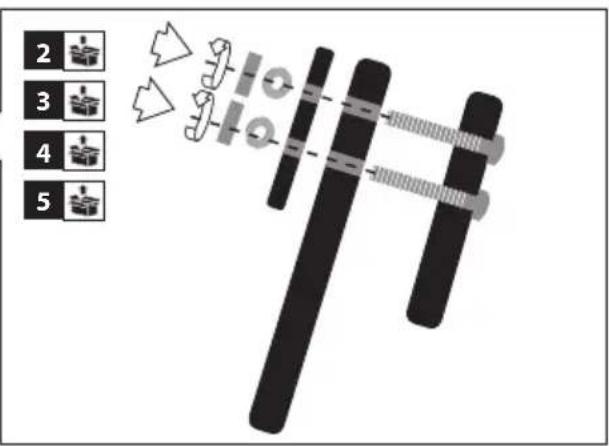

2 3 4 5

Illustration of a lawn pusher with a green checkmark indicating inspection (no text or symbols)

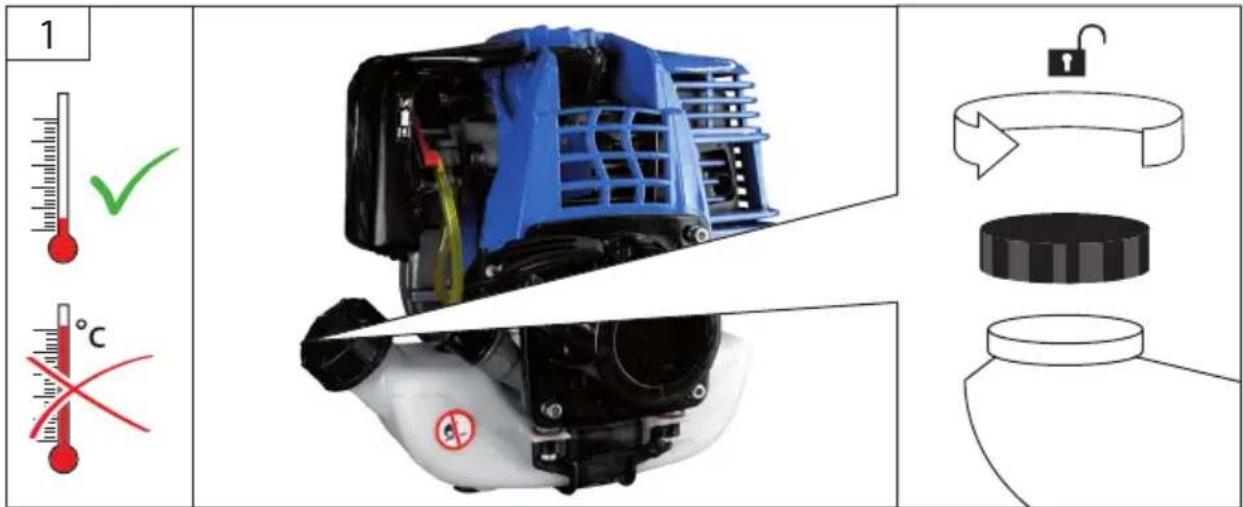

2	D	Tanken
	EN	Fuel tank fi lling
	FR	Ravitaillement
	IT	Rabbocco
	NL	Tanken
	CZ	Tankování
	SK	Tankovanie
	HU	Tankolás

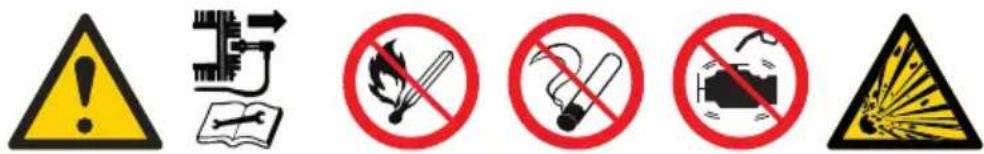

Six safety warning symbols including warning sign, electrical circuit, cigarette stop, no-smoking, firecracker, and explosion hazard

1 √ °C

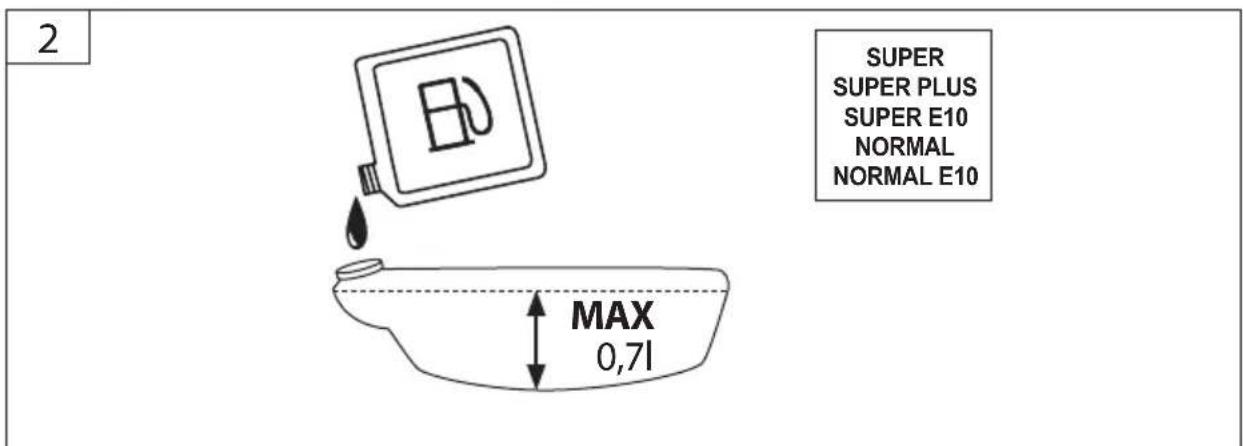

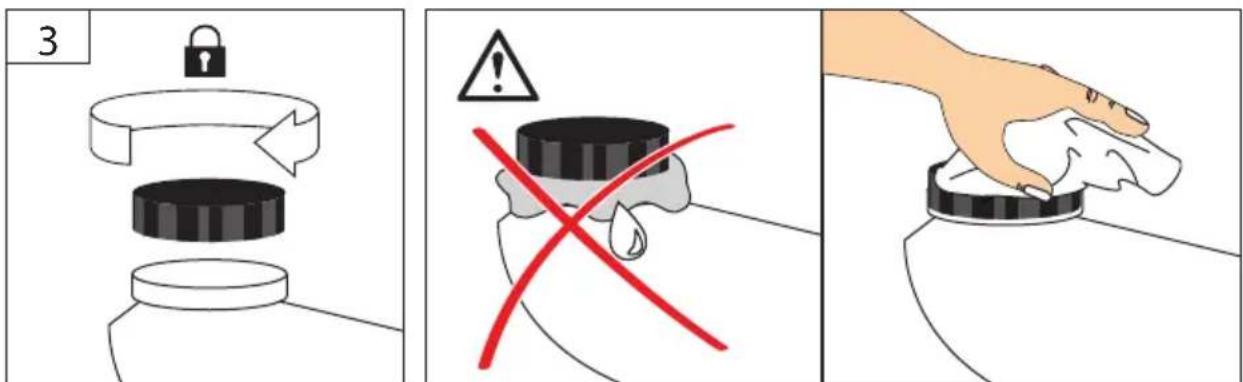

2 SUPER SUPER PLUS SUPER E10 NORMAL NORMAL E10 MAX 0,7l

3 1 2 3

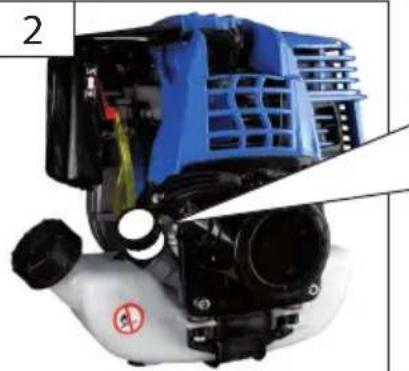

DE Ölstandkontrollieren
EN Oil level inspection
FR Contrôle du niveau d'huile
IT Controllo livello d'olio
NL Oliepeil controleren
CZ Kontrola stavu oleje
SK Kontrola stavu oleja
HU Olajszint ellenőrzése

10W-30

Simple line drawing of a lawn mower with a green checkmark indicating completion (no text or symbols)

2

Close-up of a blue and black engine component with no visible text or symbols

3D illustration of a mechanical component with an arrow pointing upward (no text or symbols)

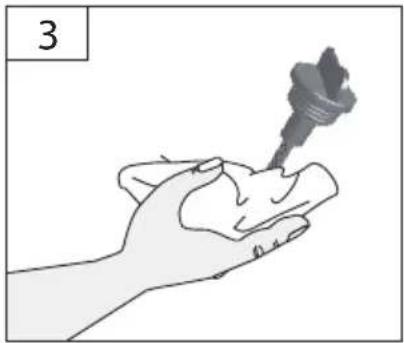

2 DE Ölstandkontrollieren EN Oil level inspection FR Contrôle du niveau d'huile IT Controllo livello d'olio NL Oliepeil controleren CZ Kontrola stavu oleje SK Kontrola stavu oleja HU Olajszint ellenőrzése

Illustration of a hand holding a small object with a dropper, no text or symbols present

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

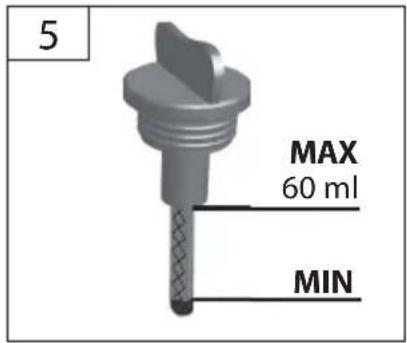

5 MAX 60 ml MIN

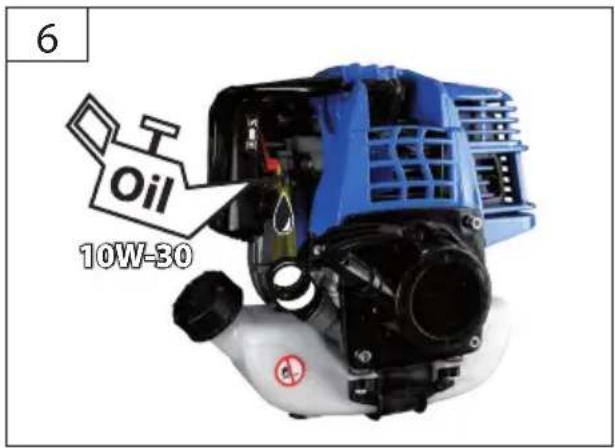

6 Oil 10W-30

Diagram showing a mechanical component with a pin and zigzag motion arrow, no text or symbols present

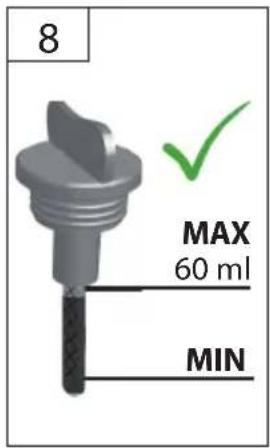

8 MAX 60 ml MIN

DE Ölstand kontrollieren

EN Oil level inspection

EN To ensure quality, every piece of equipment is subject to a test operation and filled with motor oil. Oil is drained before transport; however, there can be some motor oil remains on the dip stick. Please check carefully the oil level and add motor oil again.

Warning symbol and related icons including a yellow warning triangle, a black lightning bolt, a mechanical device with a tool, and an open book with a cross.

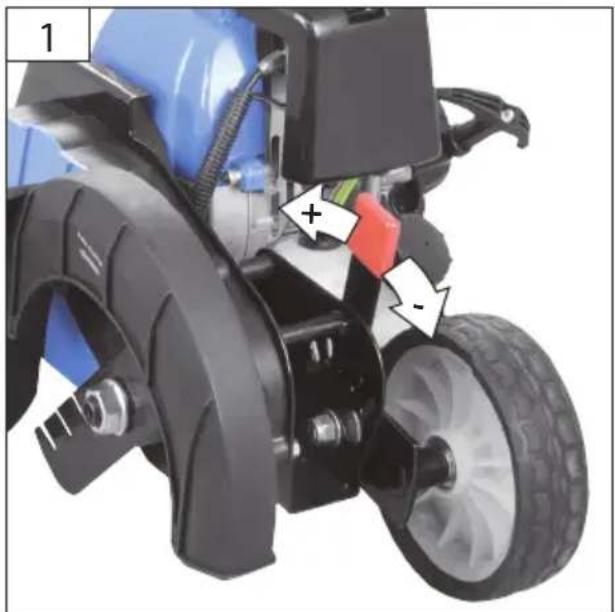

1 + - -

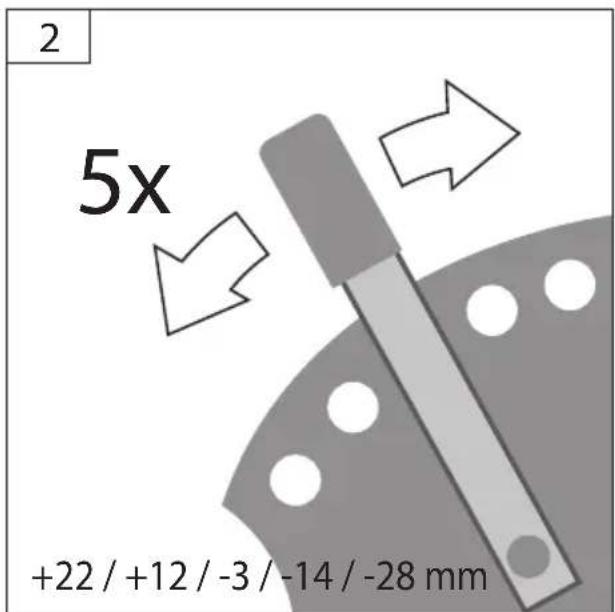

2 5x +22 / +12 / -3 / -14 / -28 mm

DE Betrieb

EN Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU Üzemeltetés

START 3 STOP

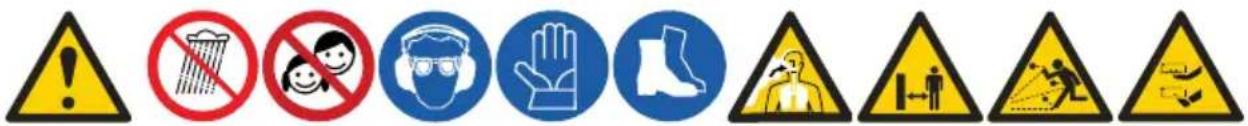

Warning symbols and pictograms including trash, noise, child protection, helmet, hand, shoe, person safety, and construction workers

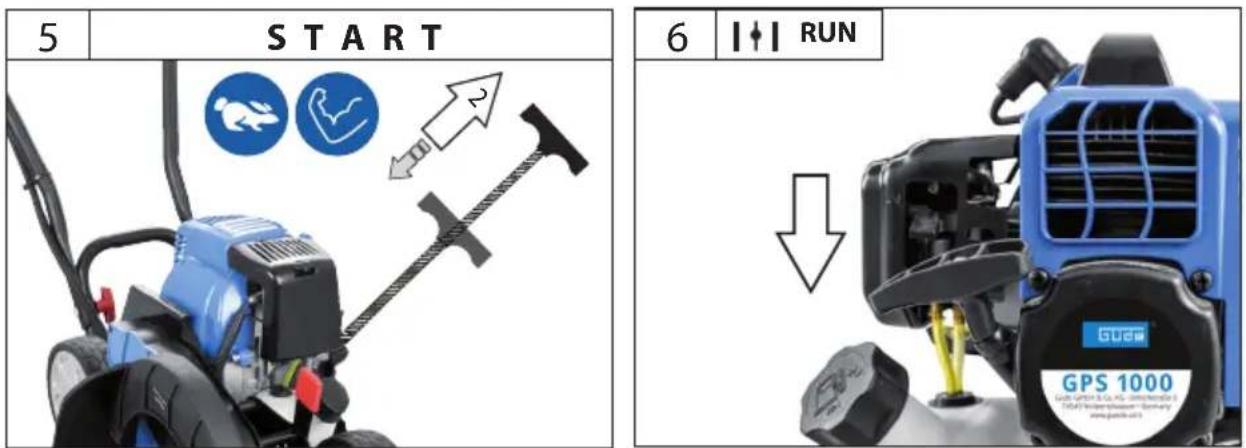

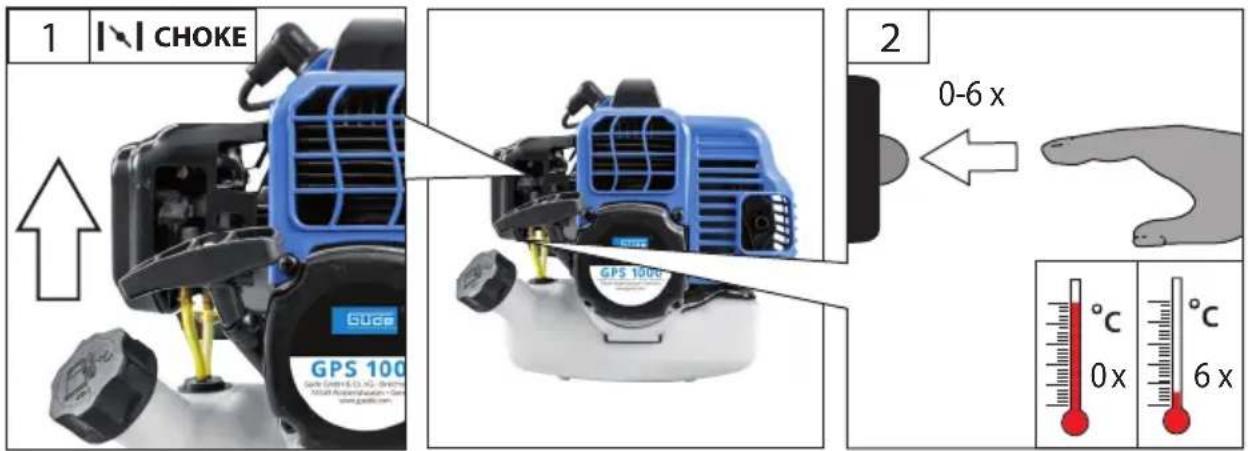

1 |CHOKE 2 0-6 x GPS 100 GUGE GPS 1000 Sue (GUGE & CO., INC.) - Drought Routledge Automation Service www.guolo.com °C 0x °C 6x

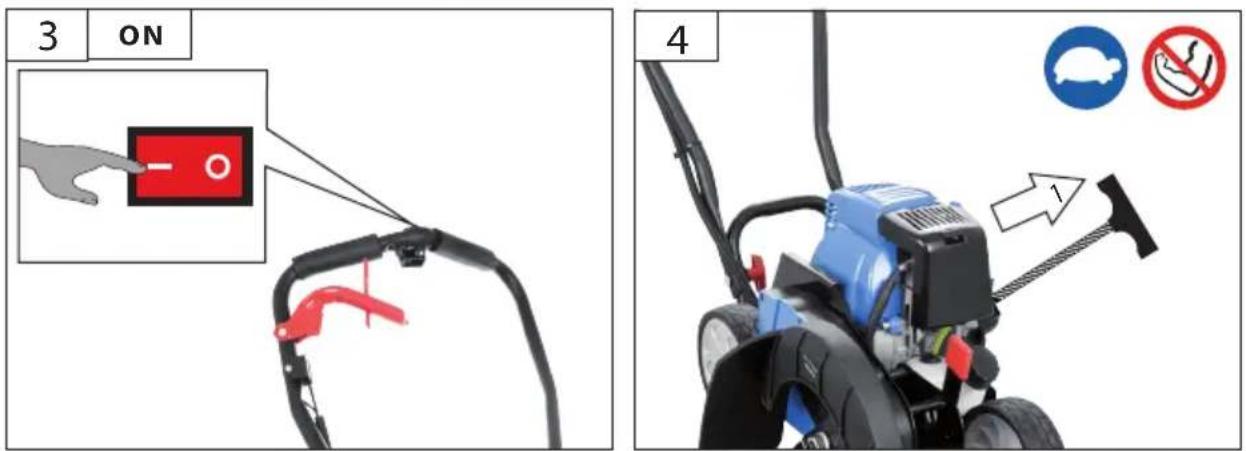

3 ON 4

5 | START 6 | RUN GPS 1000 Guitar Gotion & Co. KG - (accessible) / TOMA / (accessible) / Germany / www.guitar.com

3

DE Betrieb
EN Operation
FR Fonctionnement
IT Esercizio
NL Gebruik
CZ Provoz
SK Prevádzka
HU Üzemeltetés

7

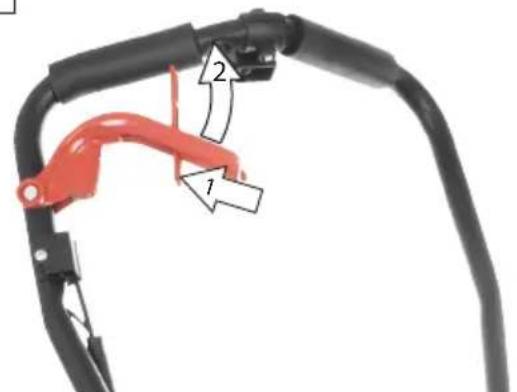

Diagram of a car body panel with labeled parts 1 and 2, showing red and black components and directional arrows.

8

Close-up of a blue tractor blade with black cutting edge and white directional arrows indicating rotation (no text or symbols)

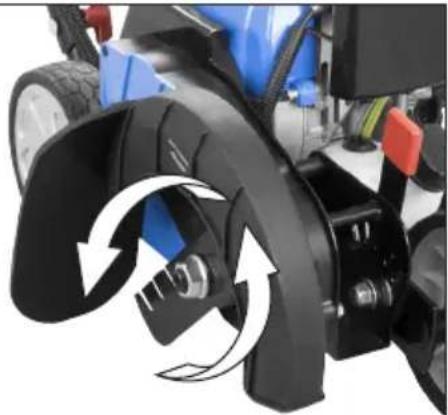

DE Messerwechsel

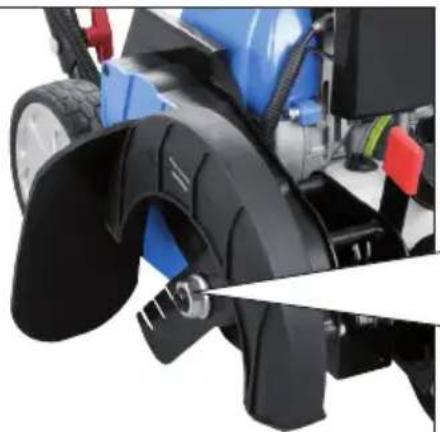

EN Changing the knife
FR Remplacement de la lame
IT Cambio della lama
NL Vervangen van messen
CZ Výměna nože
SK Výmena noža
HU Késcsere

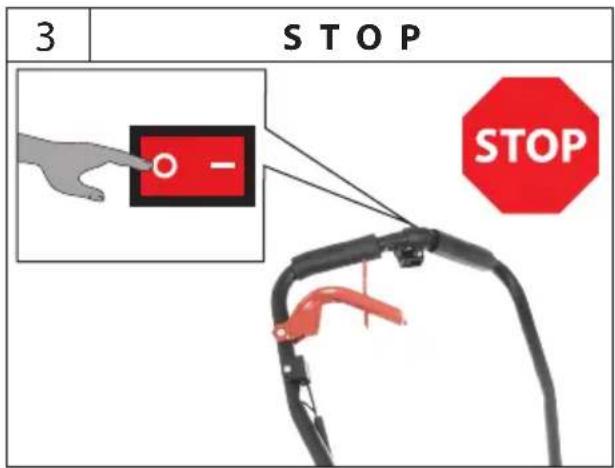

START 3 STOP

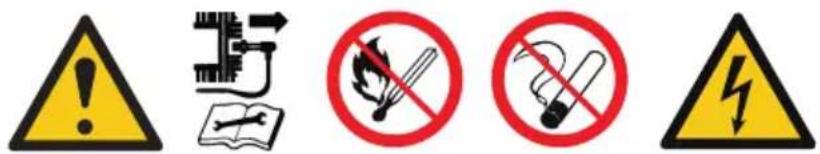

Warning symbols including warning sign, electrical circuit, cigarette stop, no smoking, and lightning warning

1

Close-up of a blue tractor's wheel and side gear assembly (no visible text or symbols)

2

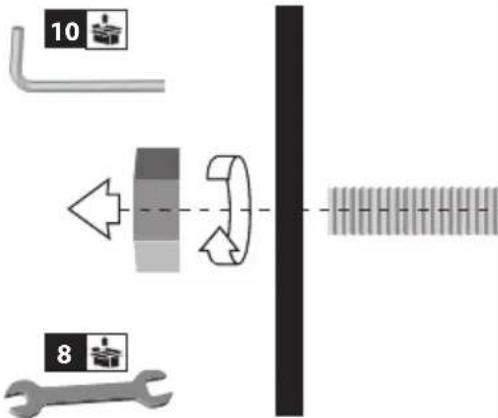

10 8

4 → 0 1 2

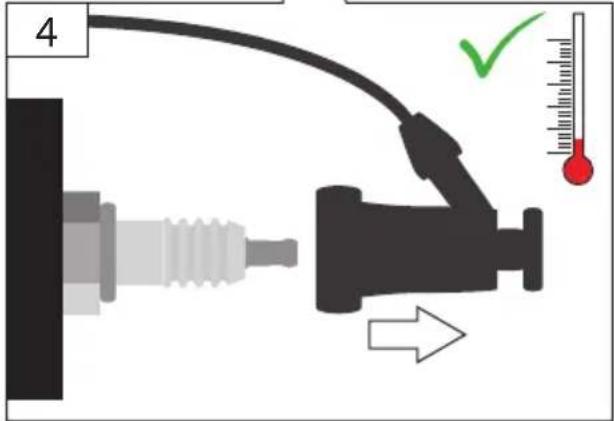

DE Zündkerze
EN Spark plug
FR Bougie d'allumage
IT Candela d'accensione
NL Bougie
CZ Zapalovací svíčka
SK Zapalovacia sviečka
HU Gyújtógyertya

Warning symbols including warning sign, electrical circuit, cigarette stop, no smoking, and lightning warning

Technical diagram showing temperature measurement setup with thermometer, warning sign, and mechanical component labeled '1'

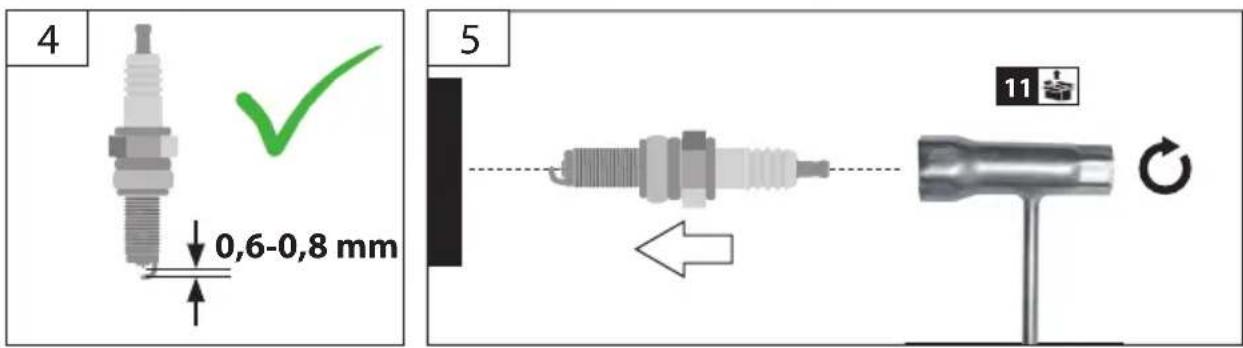

2 11 3

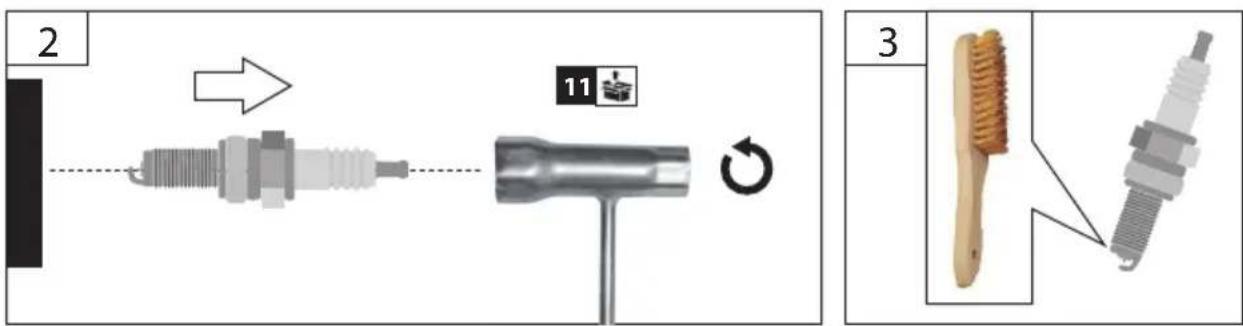

4 0,6-0,8 mm 5 11

5	DE Reinigung / Wartung
	EN Cleaning / Maintenance
	FR Nettoyage / Entretien
	IT Pulizia / Manutenzione
	NL Schoonmaken / Onderhoud
	CZ Čištění / Údržba
	SK Čistenie / Údrzba
	HU Tisztítás / Karbantartás

STOP

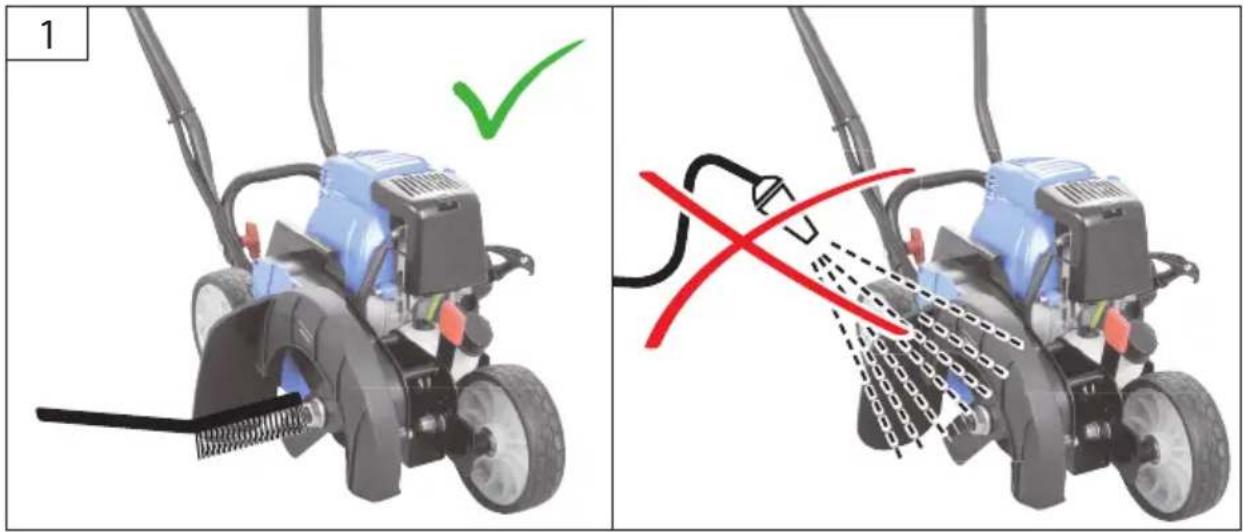

1 ✓ X

5

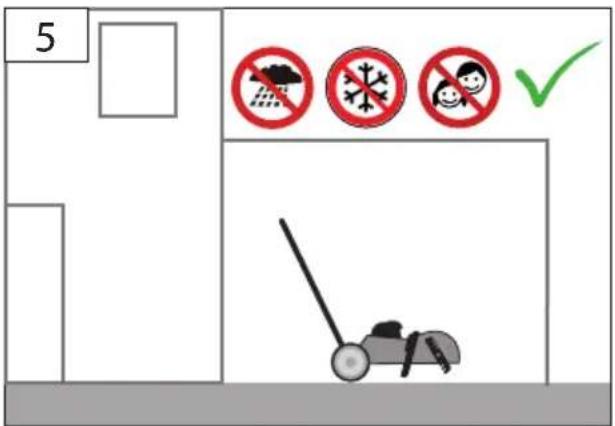

DE Reinigung / Wartung
EN Cleaning / Maintenance
FR Nettoyage / Entretien
IT Pulizia / Manutenzione
NL Schoonmaken / Onderhoud
cz Čištění / Údržba
SK Čistenie / Údrzba
HU Tisztítás / Karbantartás


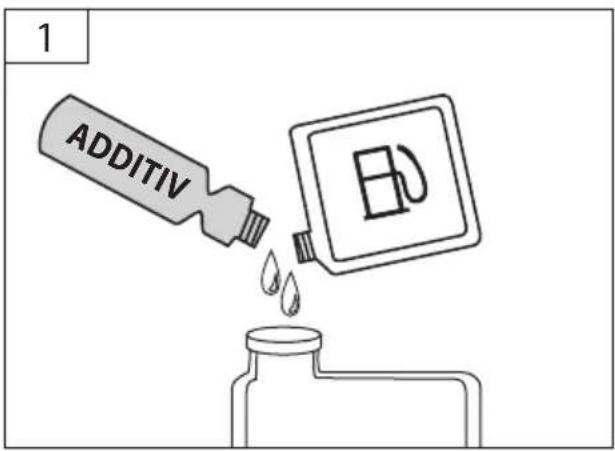

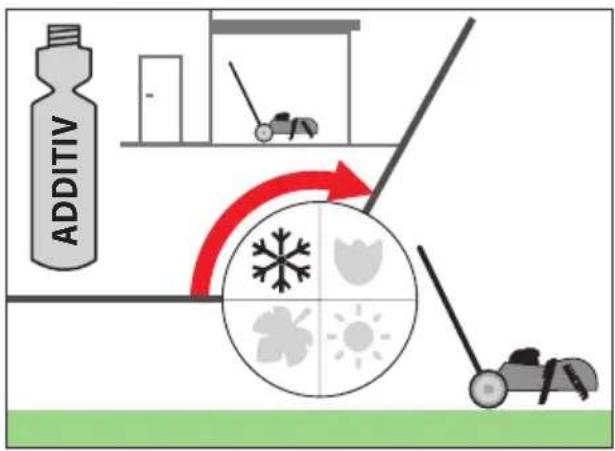

1 ADDITIV ED

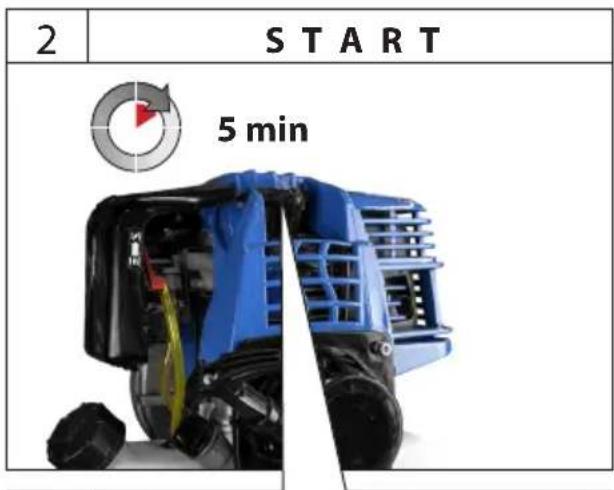

2 | START 5 min

3 STOP STOP

4 ✓ mmHg

5 Nozzles Snowflake Child ✓

Technische Daten

WARNING The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

This appliance is not intended for use by children.

The machine may not be used by persons with reduced physical, sensory or mental capabilities or persons with a lack of knowledge or experience unless they are supervised by a person responsible.

Children must be supervised in order not to play with the machine.

Specified Conditions Of Use

The lawn edger is designed to look after domestic areas of grass and lawn. Due to the physical danger to the user and other persons, the appliance may not be used for other purposes.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

It is necessary to comply with the regulations applicable in the country where the truck is used.

The appliance must not be used for cutting shes, hedges and thickets, for cutting and lching creepers or lawns on roofs or in cony boxes. The mower must also not be used a crusher for mulching tree cuttings and dges or levelling any terrain roughness.

Use the appliance only outside, never use it in confined and bad ventilated areas.

Requirements for operating staff

The appliance may only be operated and maintained by persons familiarised with it and informed about possible risks.

Never let children work with the appliance. Never let adults work with the appliance unless they have been properly trained.

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Residual risks

Rotating blades may lead to serious injuries cutting or amputating parts of the body.

Never touch under the housing body when the engine is running. Wear protective shoes. Never remove the collection bag when the machine is being operated.

Thrown-off stones or soil may lead to injuries.

Before mowing, check the area to be mowed for any undesirable objects. Make sure the collection bag is properly suspended. Wear safety goggles when working.

Poor lighting/light conditions represent a h safety risk.

Provide adequate lighting or good lighting conditions when working with the machine.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated.

Contacting hot parts of the unit may cause burns. Let the unit cool down after its operation is over.

Risk of poisoning!

Exhaust gases, fuel and lubricants are toxic. Inhaling exhaust gases may be fatal!

Do not operate the unit in closed spaces where dangerous carbon monoxide gases may accumulate.

Risk of explosion / Risk of fire!

Petrol and petrol vapours are highly flammable, explosive.

Do not work with the unit in an environment with a risk of explosion where there are flammable liquids, gases or dust.

Never operate the unit near highly flammable materials.

Even when the device is used properly and all safety

regulations are complied with, there still may be some residual risks.

• Cutting injury
• Hearing damage

A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!

- Damage to health arising from vibrations to hand and arms if the device is used for a long time or if the device is not guided and evaluated properly.

Vibration damping systems are no guaranteed protection against white fi nger disease or carpal tunnel syndrome. Therefore, it is necessary to carefully check the state of your fi ners and wrist if you have regularly used the appliance for a long time. If any symptom of the diseases above appears, seek medical advice immediately. To reduce the white fi nger disease risk, keep your hands warm and take regular breaks during your work.

Despite the observance of the operating instructions there still may be some hidden residual risks.

Emergency procedure

Conduct a fi rst-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a fi rst-aid kit. It is essential to replace any used material in the fi rst-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Accident type
4. Injury type(s)

Symbols

Warning/caution!

Read the operating instructions to reduce the risk of injury.

Wear eye protective goggles!

Wear ear protectors!

Wear safety cut through resistant shoes with safety sole and steel toe!

Wear protective gloves!

Switch the engine off and remove the socket plug before any work on the engine.

Warning against cutting injuries

Warning against hot surfaces! Danger of burns!

Warning against dangerous voltage

Warning about infl ammable substances

CAUTION! Risk of explosion

Do not let other persons get near due to foreign objects being thrown off. Minimum safe distance is 10 m.

Risk of poisoning! Use the appliance only outside, never use it in confined and bad ventilated areas.

Prohibited smoking and open fire using.

Switch off the engine before any work on it.

Refuel the engine only when switched off.

Keep the machine out of reach of children.

Protect against humidity. Never expose tool to rain.

CE marking

Protect against humidity

This side up

Safety Instructions

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not let other persons get near due to foreign objects being thrown off. Minimum safe distance is 15 m.

Wear suitable work clothing such as sturdy shoes with non-slip sole, safety glasses and hearing protection!

Do not wear loose clothing or jewels. Hear, clothing and gloves must be out of reach of moving parts as they could get caught by the rotating parts. Do not use the appliance when barefooted or in open sandals.

Do not use the appliance if you are tired, ill, under influence of drugs, alcohol drinks or medicaments.

Poor lighting/light conditions represent a high safety risk. Provide adequate lighting or good lighting conditions when working with the machine.

Carefully check the terrain where the appliance is going to be used and remove all objects that could get caught or thrown off by the appliance such as stones, branches, wires, animals, etc.

Keep all parts of the body in safe distance from the knife. Do not try to remove the material being cut or hold material to be cut when the knife is running. Jammed cuttings to be removed only when the machine is off. A moment of inattention during use may result in serious injury.

⚠️ Before using, check the tightness and proper seating of all screwed and socket joints and protective equipment and if all moving parts are moving smoothly.
⚠ It is strictly prohibited to demount, adjust and alienate the protective equipment on the machine or put other protective equipment on the machine.
Do not use the appliance if damaged or the safety equipment is defective. Replace any worn and damaged parts.

Turn the appliance on only when in a normal working position.

Do not overreach. Keep proper footing and balance at all times.

When working, keep the appliance firmly with both hands and with a distance from your body.

Be careful when going backwards – risk of tripping!

Kickback can lead to casualties.

When knives are blocked, switch the appliance immediately off and remove the blocked object.

The ON/OFF switch and safety switch must not be locked.

Use only blades that are designed for the machine. Using other spare parts can result in accidents/injuries of the user. The manufacturer will not be liable for any such damage.

Take care to prevent from fuel and oil leakage during

transport.

Risk of explosion / Risk of fire! Fuel is highly flammable.

Prohibited smoking and open fire using.

Do not store any fuel near the unit.

Keep the fuel in suitable containers only.

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Refuel the engine only when switched off.

Emergency procedure

After use, let the unit cool down for at least 10 minutes before refuelling.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.

Replace all fuel tank and container caps securely.

Fuel tank to be emptied outdoors only.

Never keep the unit with petrol in the tank inside a building where petrol vapours could get in contact with open fire or sparks.

Safety instructions for lawn edger

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 15 m.

Wear personal protective equipment. Wear solid shoes and long trousers. Never use the appliance when barefooted or in light sandals. Wear protective gloves if necessary.

Carefully check the terrain where the appliance is going to be used and remove all objects that could get caught or thrown off by the appliance such as stones, branches, wires, animals, etc.

Avoid operating the equipment in wet grass, where feasible.

Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not blunt, worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance;
The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.
The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Do not start the engine before your feet are in a safe distance from the cutting tools.

Do not incline the appliance when being started.

Do not start the appliance when you are standing in front of the ejection opening.

Walk! Never run!

Make sure your posture is safe, especially on slopes. Do not cut on too steep slopes. Be particularly careful when changing travelling direction on slopes.

Pay maximum attention when turning around and pulling the appliance to you.

Switch the appliance off whenever carrying or inclining it or when being outside a grass area. Wait until all rotating parts have stopped.

If an undesirable item is encountered or the appliance starts vibrating, the appliance must be switched off. Check whether the appliance is not damaged. Repair any damage.

Switch the appliance immediately off after finishing your work.

• To release a blocked blade.
• To adjust the mowing height.
- Check the machine if working perfectly after catching an undesirable object. Repairs must be executed before putting the machine into operation again.
• To lift the machine or take it away.
- To flip the machine over or carry it (e.g. from lawn to lawn or across a road).
- Before checking the machine, clean it or do any other works.

The ON/OFF switch and safety switch must not be locked.

Do not use the device near fl ammable liquids or gases. Risk of fi re and explosion in case of short circuit.

Do not use the machine in adverse weather conditions, particularly if there is a risk of lightning.

WARNING! Danger of injury!

The appliance must not be used to cut hedges, hard branches and wood or to crush material for compost.

Do not use the appliance to cut grass that is not on the ground, e.g. grass growing on walls, rocks, etc.

Danger of injury!

Rotating blades may lead to serious injuries by cutting or amputating parts of the body.

Always have your arms and legs in safe distance from the cutting mechanism, in particular after turning the engine on. Never touch under the housing body when the engine is running. Safety gloves to be used! After the appliance is turned off, the cutting head keep rotating for a couple of seconds. Keep your arms and legs in safe distance.

Thrown-off stones or soil may lead to aries.

Careful treatment with the appliance reduces the risk of injury by the blade.

Warning against sharp knives. Be careful to avoid injury by the cutting tools.

Never cross any gravel roads or paths with the running appliance.

Maintenance

Rotating blade

Any works / adjusting on the machine to be only performed with the engine switched off, unplugged and when the mowing blade is not moving.

Switch the engine off and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped and the stance has cooled down.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!

Never clean the machine and its components with solvents, fl ammable or toxic liquids. Us only a damp cloth making.

Check the cutting equipment function.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

If necessary, a list of spare parts can be found at www.guede.com.

Disposal

The disposal instructions are based on the icons placed on the appliance or its package.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Transport packaging disposal

The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children.

Risk of suffocation!

Keep parts of the packagings out of reach of children and dispose them as soon as possible.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Failure removal

Defect	Cause	Removal
The motor does not start	Empty fuel tank/Lack of fuel Add some fuel
	Choke has not been used Use the choke
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor.Add fresh petrol.
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big.	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refit it.
	Main switch is not controlled	See „Operation“ below
The motor does not develop maximum power	Sooted spark plug (carbon residues on electrodes), electrodes distance too big.	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
	Dirty air filter Clean or replace the air filter
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor.Add fresh petrol.
Unsteady running, strong vibrations	Blade is damaged Replace the blade
	Blade is loose Check and tighten the blade clamping
Cutting capacity Blade is blunt Have the blade sharpened or replaced
	Mowing height adjustment not regulated	Adjust the mowing height

Inspection and maintenance plan

Regular servicing period		Before any start-up	After every take out of service	After 12 months	After 24 months
Air filter	Inspection	√
	Change			√
Spark plug	Inspection			√
	Clean
	Change				√
ON/OFF switch	Functional test
Complete machine	Clean		√
	Let regularly checked by authorized workshop
Plastic body	Check for cracks and fissures	√
Oil tank cap	Check for tightness	√
	In case damage let repaired in authorized workshop

Attentions substances infl ammables

⚠ WAARSCHUWING! Letselgevaar!

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
