Product type	Powered subwoofer
Brand	Energy
Model	Power 12
Speaker	25.4 cm (10") front-firing
Power	500 W
Power supply	Mains 120 V, 60 Hz
Controls	Volume, low-pass filter (50-150 Hz), phase (0/180°), Auto/Off/On mode
Inputs	Line In (RCA) and speaker-level input (binding posts)
Auto function	Auto standby after 20 minutes without signal, red/green LED indicator
Recommended placement	In a corner of the room, near the wall of the front speakers
Maintenance and cleaning	Dust with a dry cloth; grille can be vacuumed
Safety	Do not expose to water or moisture; unplug during storms; refer all servicing to a qualified professional
Supplied parts	Subwoofer, power cord, user manual
Repairability	No user-serviceable parts; contact an authorized servicer
General information	Complies with FCC Class B and NMB-003 standards; CE marking

Frequently Asked Questions - Power 12 Energy

Where should I place the Energy Power 12 subwoofer?

For optimal bass, place it in a corner of the room on the wall where the front speakers are located. You can also try other positions to adjust the sound.

How do I connect the subwoofer to my receiver?

Use the Line In (RCA) input if your receiver has a subwoofer output, or the Speaker In terminals with 16 gauge or larger speaker wire. Do not use both simultaneously.

What does the LED indicator on the back of the subwoofer mean?

The indicator lights up RED when the amplifier is in standby or Auto mode without signal. It turns GREEN when it receives a signal in Auto or On mode.

How do I adjust the low-pass filter (Low Pass)?

Turn the Low Pass knob between 50 and 150 Hz to select the upper cutoff frequency. Frequencies above are attenuated, which blends the subwoofer output with your main speakers.

How do I adjust the phase (Phase 0/180)?

The Phase control allows you to acoustically match the subwoofer with the main speakers. Try the 0 or 180 position and choose the one where the bass level is highest at your listening position.

What should I do if the subwoofer does not turn on?

Check that the power cord is securely plugged in and the outlet works. Make sure the rear switch is set to Auto or On. If the indicator remains off, contact a repair technician.

How do I clean the subwoofer?

Use a dry cloth to dust. For the grille, you can use a vacuum brush. Never use abrasive or solvent-based cleaners.

Can I repair the subwoofer myself?

No, the device contains dangerous voltages and no user-serviceable parts. Refer all servicing to a qualified professional repair technician.

What is the power rating of the Energy Power 12 subwoofer?

The subwoofer is powered with approximately 500 W from its built-in amplifier.

Is the subwoofer compatible with any receiver?

Yes, it can be connected via the Line In (RCA) input to receivers with a subwoofer output, or via the Speaker In terminals to standard stereo receivers. Make sure not to use both inputs at the same time.

USER MANUAL Power 12 Energy

Black rectangular electronic device labeled 'ENERGY' on its front face, shown in studio setting (no additional text or symbols visible)

Energy Power™ 12 Sub

Owner's Manual

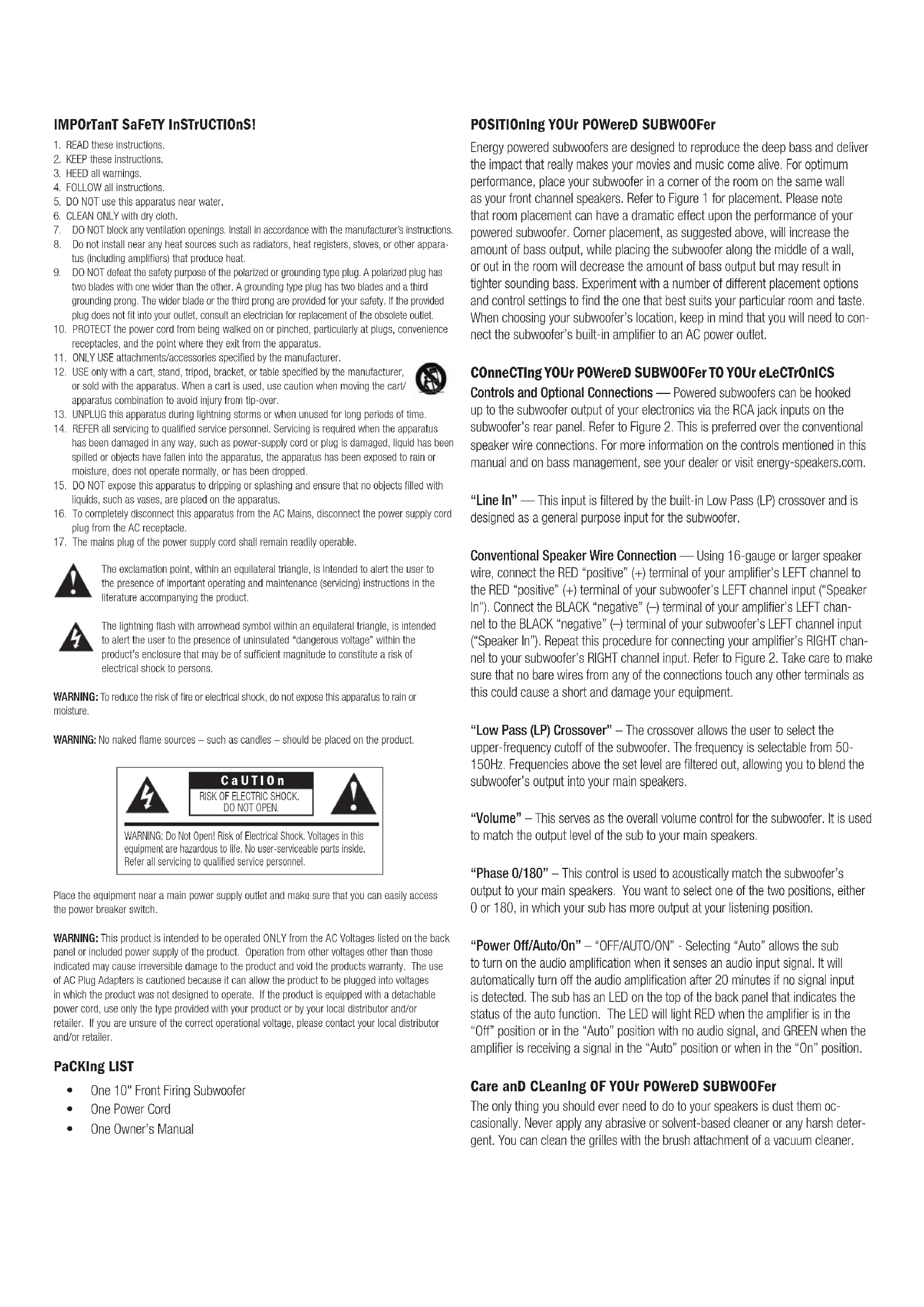

IMPOrTanT SaFeTY InSTrUCTIONS!

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
13. UNPLUG this apparatus during lightning storms or when unused for long periods of time.
14. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.
16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle.
17. The mains plug of the power supply cord shall remain readily operable.

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.

WARNING: No naked flame sources – such as candles – should be placed on the product.

CaUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

Place the equipment near a main power supply outlet and make sure that you can easily access the power breaker switch.

WARNING: This product is intended to be operated ONLY from the AC Voltages listed on the back panel or included power supply of the product. Operation from other voltages other than those indicated may cause irreversible damage to the product and void the products warranty. The use of AC Plug Adapters is cautioned because it can allow the product to be plugged into voltages in which the product was not designed to operate. If the product is equipped with a detachable power cord, use only the type provided with your product or by your local distributor and/or retailer. If you are unsure of the correct operational voltage, please contact your local distributor and/or retailer.

PaCKIng LIST

• One 10" Front Firing Subwoofer
- One Power Cord
• One Owner's Manual

POSITIONIng YOUR POWereD SUBWOOFer

Energy powered subwoofers are designed to reproduce the deep bass and deliver the impact that really makes your movies and music come alive. For optimum performance, place your subwoofer in a corner of the room on the same wall as your front channel speakers. Refer to Figure 1 for placement. Please note that room placement can have a dramatic effect upon the performance of your powered subwoofer. Corner placement, as suggested above, will increase the amount of bass output, while placing the subwoofer along the middle of a wall, or out in the room will decrease the amount of bass output but may result in tighter sounding bass. Experiment with a number of different placement options and control settings to find the one that best suits your particular room and taste. When choosing your subwoofer's location, keep in mind that you will need to connect the subwoofer's built-in amplifier to an AC power outlet.

COnneCTIng YOUR POWereD SUBWOOFer TO YOUR eLeCTrOnICS

Controls and Optional Connections — Powered subwoofers can be hooked up to the subwoofer output of your electronics via the RCA jack inputs on the subwoofer's rear panel. Refer to Figure 2. This is preferred over the conventional speaker wire connections. For more information on the controls mentioned in this manual and on bass management, see your dealer or visit energy-speakers.com.

"Line In" — This input is filtered by the built-in Low Pass (LP) crossover and is designed as a general purpose input for the subwoofer.

Conventional Speaker Wire Connection — Using 16-gauge or larger speaker wire, connect the RED "positive" (+) terminal of your amplifier's LEFT channel to the RED "positive" (+) terminal of your subwoofer's LEFT channel input ("Speaker In"). Connect the BLACK "negative" (−) terminal of your amplifier's LEFT channel to the BLACK "negative" (−) terminal of your subwoofer's LEFT channel input ("Speaker In"). Repeat this procedure for connecting your amplifier's RIGHT channel to your subwoofer's RIGHT channel input. Refer to Figure 2. Take care to make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

"Low Pass (LP) Crossover" – The crossover allows the user to select the upper-frequency cutoff of the subwoofer. The frequency is selectable from 50-150Hz. Frequencies above the set level are filtered out, allowing you to blend the subwoofer's output into your main speakers.

"Volume" – This serves as the overall volume control for the subwoofer. It is used to match the output level of the sub to your main speakers.

"Phase 0/180" – This control is used to acoustically match the subwoofer's output to your main speakers. You want to select one of the two positions, either 0 or 180, in which your sub has more output at your listening position.

"Power Off/Auto/On" – "OFF/AUTO/ON" - Selecting "Auto" allows the sub to turn on the audio amplification when it senses an audio input signal. It will automatically turn off the audio amplification after 20 minutes if no signal input is detected. The sub has an LED on the top of the back panel that indicates the status of the auto function. The LED will light RED when the amplifier is in the "Off" position or in the "Auto" position with no audio signal, and GREEN when the amplifier is receiving a signal in the "Auto" position or when in the "On" position.

Care and CLeaning OF YOUR POWereD SUBWOOFer

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PrODUCT regISTraTlOn

Register your product online at www.Energy.com/register

• Energy will keep you up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes.
  Please retain your receipt for warranty claims.

FCC and CanaDa eMC COMPLianCe InFORMaTION:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Approved under the verification provision of FCC Part 15 as a Class B Digital Device.

Caution: Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this device.

Caution: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules, this device is to comply with Class B limits. All peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables may result in interference to radio or reception.

This Class B digital apparatus complies with Canadian ICES-003.

eU COMPLianCe InFORMaTION:

Eligible to bear the CE mark, Conforms to European Union Low Voltage Directive 2006/95/EC; Conforms to European Union EMC Directive 2004/108/EC.

Wee e nOTICe

Note: This mark applies only to countries within the European Union (EU) and Norway.

This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

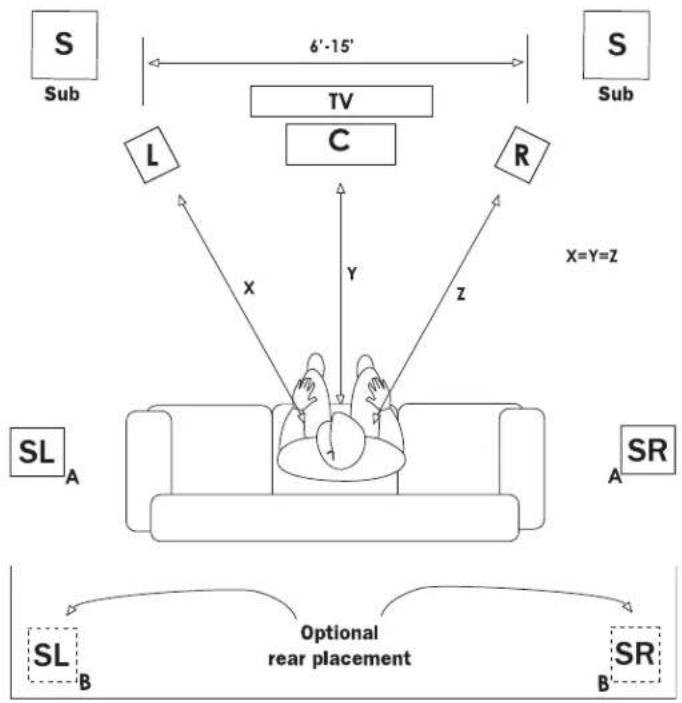

Figure 1 Speaker Placement in Listening Area
        direction TB
        L["X=Y=Z"] --> C
        Y["Y"] --> C
        Z["Z"] --> D
    end
    subgraph Section
        direction LR
        SL_B["SL B"] --> SR_B["SR B'"]
        SR_B --> SL_B
        SL_B --> Other["Optional rear placement"]
        SR_B --> Other
    end

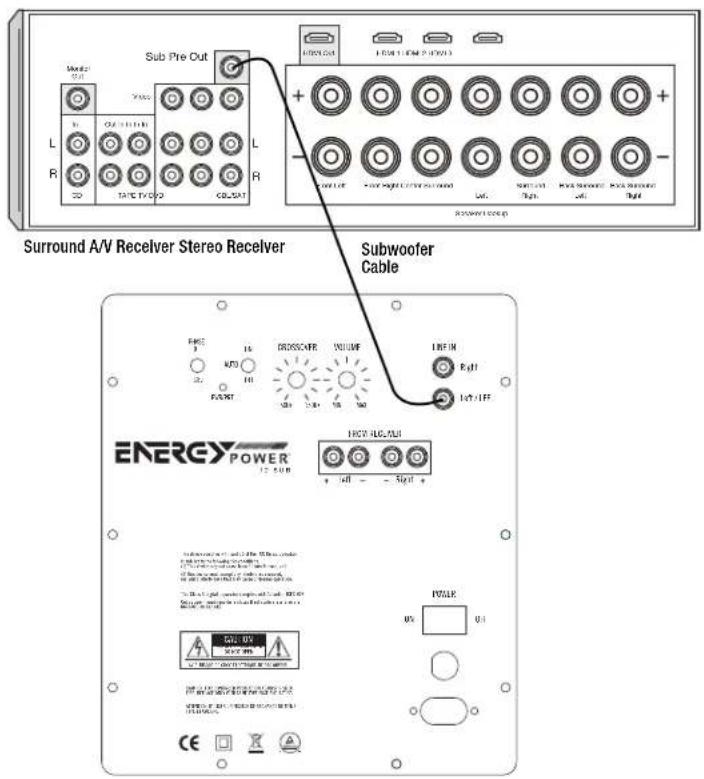

Figure 2 Energy Power™ 12 Subwoofer Hook Up

Your Energy subwoofer is equipped with both Speaker (High) Level and Line In (Low) Level hookups. The connection you use depends on what type of receiver (or pre-amplifier) you are hooking the subwoofer to. Do not hook up both connections together as damage to your system may be a result! Most connections will use the Line In Connection.

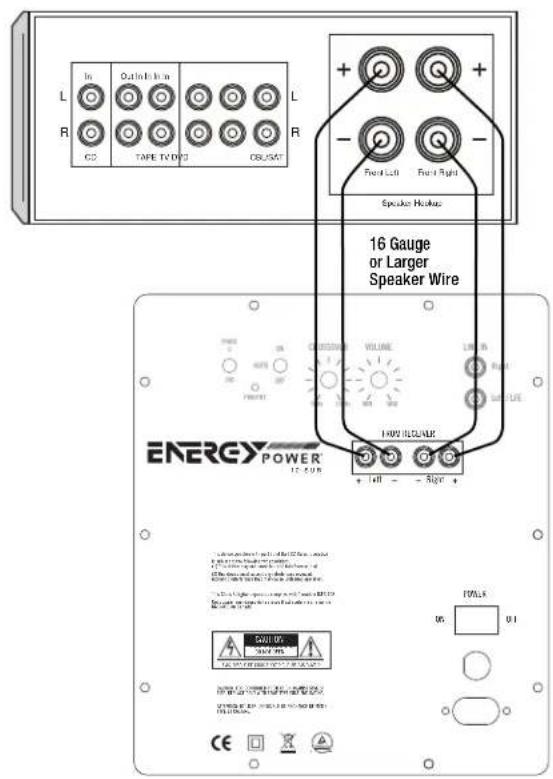

"Line In" Connection "Conventional Speaker Wire" Connection

Sub Pre Out L R 2D DATE TV/D CEL-DAT HOLD OUT LED LED (LED) + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord + - Power cord

L R C2 OutLine In TAPE TV D3 OBLIGAT L R + - Front Left Front Right Speaker Wire 16 Gauge or Larger Speaker Wire TWO VOLUME ENERGY POWER 16-208 + Left - Sign + POWER OK U1
