Product Type	Commercial immersion blender
Brand	Waring Commercial
Model	Bolt WSB38X2
Power Source	Rechargeable lithium-ion battery, AC adapter 100-240 V, 50/60 Hz, 0.5 A, output 14 V DC, 1200 mA
Number of Speeds	5 speeds (5000 to 13000 RPM)
Shaft Material	Stainless steel
Blades	Metal knife with blade guard
Safety	Safety button, overheat protection
Cleaning	Dishwasher-safe blending shaft
Charging Time	1.5 to 2 hours for a full charge
Charge Indicator	4 levels: red (less than 50%), orange (50-70%), flashing green (70-90%), solid green (100%)
Battery Life	Varies depending on speed and food; recharge regularly
Warranty	1 year (USA and Canada)
Included Accessories	Quick charge station, storage/carrying case, AC adapter
Usage	Commercial (restaurants, large kitchens)
Battery Type	Rechargeable lithium-ion (2 batteries)
Recycling	Recyclable batteries, do not dispose of in household waste

Frequently Asked Questions - Bolt WSB38X2 Waring Commercial

How to charge the battery of the Waring Bolt WSB38X2 blender?

Place the battery pack on the quick charge station. The green light flashes during charging and stays solid when charging is complete. Initial charging time is 1.5 to 2 hours. Keep the battery away from moisture and at a temperature below 26°C.

How to use the blender for the first time?

Wipe the motor unit and battery pack with a damp cloth. Rinse the stainless steel blending shaft under tap water and dry it. Charge the battery for 1.5 to 2 hours before first use. Attach the blending shaft to the motor unit by turning clockwise, then connect the battery pack.

How to clean the blending shaft?

Remove the battery pack and blending shaft from the motor unit. The stainless steel blending shaft is dishwasher safe. For hand washing, use a non-foaming detergent solution, rinse with warm water, then disinfect with a bleach solution (10 ml per gallon of water). Run the shaft in the solution at high speed for 2 minutes for cleaning, then at low speed for disinfection. Do not rinse after disinfection; air dry.

What to do if food gets stuck between the blade and the blade guard?

Release the on/off button. Remove the battery pack from the motor unit. Unscrew the blending shaft. Carefully dislodge stuck food using a plastic spatula. Never use your fingers as the blades are very sharp. Reassemble the unit before continuing.

What are the available speeds?

The blender has 5 speeds: speed 1 (5000 RPM), speed 2 (7000 RPM), speed 3 (7000 RPM), speed 4 (11500 RPM), and speed 5 (13000 RPM). The default speed is the last one used.

How to check the battery charge level?

Connect the battery pack to the motor unit. Press the safety button for about 6 seconds. The speed indicators light up red: all on = full charge, only one = low charge. You can also refer to the indicator on the charging station.

What to do if all indicators flash during use?

This indicates overheating. Immediately stop using, remove the battery pack, and let it cool for about 90 seconds. The unit is protected against overheating to prevent permanent damage.

Can I use non-Waring accessories with this appliance?

No, using accessories not recommended or sold by Waring may present a risk of fire, electric shock, or injury. Use only parts supplied or approved by Waring.

How to store the appliance?

After use, remove the battery pack from the appliance. Clean and dry the blending shaft. Store the entire set in the provided storage/carrying case. Keep the battery away from moisture and in a place with temperature below 26°C.

Where can I get replacement parts or repair?

In the USA or Canada, contact the Waring Service Center at 314 Ella T. Grasso Ave., Torrington, CT 06790, or visit an authorized repair center. Spare parts for out-of-warranty repairs are also available at this address.

USER MANUAL Bolt WSB38X2 Waring Commercial

Black BOLT brand electric shaver with metallic tip and metal base (no visible text or symbols)

WSB38X

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, basic safety precautions should always be taken, including the following:

1. READ ALL INSTRUCTIONS.

2. WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire or serious injury.

3. To protect against risk of electrical shock, do not place battery pack or motor housing in water or other liquids. The protective blade guard and shaft of this appliance have been designed for submersion in water or other liquids. Never submerge any other portion of this unit in any liquid.

4. This appliance should not be used by children. Care should be taken when used near children.

5. Avoid contact with moving parts.

6. Keep hands, hair, clothing and utensils away from blade and mixing container while operating the BOLT™ Cordless Lithium Immersion Blender, to prevent the possibility of severe injury to persons and/or damage to the Immersion Blender.

7. A spatula may be used, but must be used only when the unit is not operating.

8. Do not operate the BOLT ^™ Cordless Lithium Immersion Blender or any other electrical appliance after the unit malfunctions, or is dropped or damaged in any manner. Return it to the nearest authorized service facility for examination, repair, or adjustment.

9. The use of accessory attachments not recommended or sold by Waring for this specific model may cause fire, electric shock, or injury.

10. Do not use outdoors.

11. Blades are very sharp. Handle carefully.

12. When mixing liquids, especially hot liquids, use a tall container to reduce spillage and possibility of injury.

13. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

14. Use only original equipment. Use of any other battery pack may create a risk of injury and fire.

15. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

16. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
17. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265^ F ( 130^ C) may cause explosion.
18. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
19. To prevent unintentional starting, do not carry the appliance with your finger on the Power or Safety switch.
20. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
21. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
22. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
23. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
24. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

SAVE THESE INSTRUCTIONS

APPROVED FOR COMMERCIAL USE

Only use with supplied adapter model.

Only use with supplied battery pack to charger for charging or unit for operation.

Rating – Input 100\~240V, 50/60 Hz, 0.5A

Output 14v DC 1200mA

INTENDED USE

Waring® Immersion Blenders are intended for use in restaurants, large kitchens and small companies when mixing for the perfect consistency. You can operate directly in the pot to mix everything from soups, salad dressings, pancake mixes, pastes, sauces, mayonnaise and more. For nurseries or for special diets, use the immersion blender to prepare purées of vegetables, porridge, fresh carrot purée, fruit creams, etc.

BEFORE YOU BEGIN

After unpacking your new immersion blender, wipe the exterior of the motor housing and battery pack with a clean, damp cloth to remove any dirt or dust that may have accumulated during shipping. While the stainless steel shaft is detached, rinse under running water, being sure to rinse the metal blade. Dry thoroughly with a soft, absorbent cloth. CAUTION: Blade is sharp.

CHARGING THE BATTERY

The battery needs to be charged for 1.5 to 2 hours before first use.

See Charging Instructions on page 6.

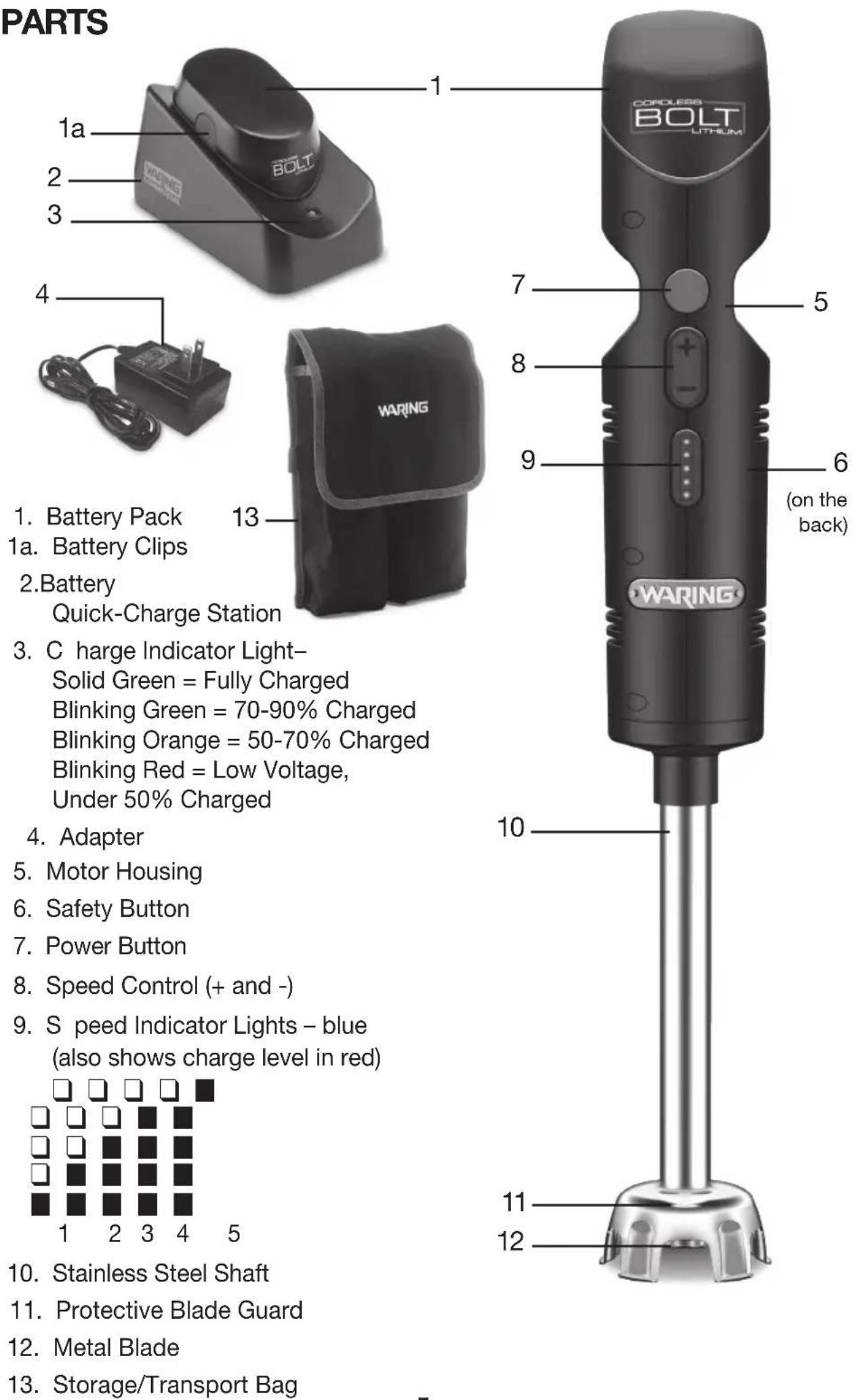

PARTS 1. Battery Pack 1a. Battery Clips 2. Battery Quick-Charge Station 3. C charge Indicator Light- Solid Green = Fully Charged Blinking Green = 70-90% Charged Blinking Orange = 50-70% Charged Blinking Red = Low Voltage, Under 50% Charged 4. Adapter 5. Motor Housing 6. Safety Button 7. Power Button 8. Speed Control (+ and -) 9. S peed Indicator Lights – blue (also shows charge level in red) 10. Stainless Steel Shaft 11. Protective Blade Guard 12. Metal Blade 13. Storage/Transport Bag 1 2 3 4 5 6 (on the back) 7 8 9 10 11 12

CHARGING INSTRUCTIONS

CAUTION: Charge and store the battery pack at room temperature only. Avoid exposure to high temperatures to prevent damage.

Before first use, place the battery pack into the battery quick-charge station and charge for 1.5 to 2 hours. Charge indicator light will illuminate when properly placed. Blinking green light indicates battery is charging, and solid green light indicates that it is fully charged.

To remove the battery from the motor housing or the quick charging station, press the blue clips inward and lift the battery up.

When the unit is assembled, you can check the level of charge by holding down on the safety button for around 6 seconds. The speed indicators will illuminate in red; if all the lights are lit, battery is fully charged. If only one light is lit, the battery charge is low.

NOTE: Always return battery to charger after each service day. Remove the battery from the charger once it is fully charged and ready for use.

Store the battery pack where the temperature is below 80F and away from moisture.

Every six months of storage, charge the pack as normal.

USING YOUR WARING® IMMERSION BLENDER

ASSEMBLY

1. Attach the stainless steel shaft to the motor housing by aligning the metal coupling on the housing with the coupling on the shaft. Turn clockwise to secure.
2. Insert the battery pack onto the top of the motor housing. Battery pack will click into place.

OPERATION

1. Plunge the immersion blender into the pot/mixing vessel. DO NOT SUBMERGE MORE THAN 34 OF THE SHAFT.

2. The immersion blender has two buttons: safety (back) and power (front). To start unit, press the safety and power buttons simultaneously. Release the safety button, but keep pressing the power button for as long as you wish to blend.

3. Select speeds by pressing the up and down (+ or -) switch. Speed ranges from 1, the lowest speed, to 5, the highest.

NOTE: You can also select the speed before you start the unit.

1. Angle the immersion blender slightly and start to stir while keeping the blade off the bottom of the pot/mixing vessel.

2. Remove the immersion blender from the pot/mixing vessel after the blender has come to a complete stop. To prevent splattering, do not remove the immersion blender from liquid while it is on.

NOTE: Always remove the battery pack after each use. Keep the appliance out of reach of children.

NOTE: If a piece of food becomes lodged in the protective blade guard surrounding the metal blade, follow the safety instructions below:

1. Release the power button.

2. Remove the battery pack from the housing.

3. Detach the shaft from the housing.

4. Use a spatula to carefully remove the food lodged in the blade guard. CAUTION: The blade is very sharp. DO NOT USE YOUR FINGERS TO REMOVE LODGED FOOD.

5. Reassemble unit and continue blending.

HELPFUL TIPS

- For best results, when a recipe calls for ice, use crushed ice and not whole cubes.

- Unit will default to the same speed it was on when last in use.

- Depending on the speeds used and what you are blending, the amount of time the charge will last may vary. For best results, charge the battery pack regularly.

- Speeds:

Speed 1: Low speed, 5K RPM

Speed 2: 7K RPM

Speed 3: 8.5K RPM

Speed 4: 11.5K RPM

Speed 5: High speed, 13K RPM

TROUBLESHOOTING

This immersion blender is equipped with overload protection so that it does not overheat and cause any permanent damage. During operation, if you notice that the speed indicator lights on the front of the housing are blinking, stop use, remove the battery and allow it to cool down for approximately 90 seconds.

CLEANING INSTRUCTIONS

THE BOLT™ CORDLESS LITHIUM IMMERSION BLENDER MUST BE CLEANED AND DRIED AFTER EACH USE, ACCORDING TO THE FOLLOWING INSTRUCTIONS.

Always remove the battery pack and shaft from housing before cleaning the metal blade. The stainless steel shaft is dishwasher safe.

TO WASH BY HAND

For Food Service Applications

• Wash, rinse, and sanitize the stainless steel shaft of the immersion blender prior to initial use, after each use, or whenever it will not be used again within a period of 1 hour.
• Washing solutions based on non-sudging detergents, and chlorine-based sanitizing solutions having a minimum chloride concentration of 100 PPM are recommended.

The following washing, rinsing, and sanitizing solutions, or their equivalents may be used.

SOLUTION	PRODUCT DILUTION IN	WATER TEMPERATURE
Washing International Products 1%-2%: 114 - 234 Room Corporation LF2100 Ounce/Gallon (lower dilution of Liquid Low-Foam 1% for normal cleaning and up Cleaner to 2% for more stubborn soils)			Temperature
Rinsing	Plain Water		Warm 95°F (35°C)
Sanitizing Clorox® Regular Bleach (8.25% Hypochlorite Concentration)		2 Teaspoons/Gallon(Alternately, a bleach with 5.25% Hypochlorite Concentration can be used at dilution of 3 teaspoons/gallon)

To Wash and Sanitize:

1. Rinse the exterior of the stainless steel shaft under running water. Scrub and flush the exterior and under the blade guard/blade to dislodge and remove as much food residue as possible.
2. Wipe down the stainless steel shaft with a soft cloth or sponge dampened with the washing solution.
3. Immerse approximately 34 of the length of the stainless steel shaft in a container of the washing solution and run for two (2) minutes on High.
4. Repeat steps 2 and 3, using clean rinse water in place of the washing solution.

NOTE - IMPORTANT

IN ORDER TO MINIMIZE THE POSSIBILITY OF SCALDING, TEMPERATURE OF THE WASHING SOLUTION AND RINSE WATER MUST NOT EXCEED 115°F (46°C).

1. Immerse approximately 34 of the length of the stainless steel shaft in a container of sanitizing solution and run for two minutes on LOW.
2. DO NOT RINSE AFTER SANITIZING IS COMPLETE. Allow to air-dry before use.

NOTE:

DO NOT IMMERSE BATTERY PACK OR MOTOR HOUSING IN WASHING SOLUTION, RINSE WATER, OR SANITIZING SOLUTION. PREVENT LIQUID FROM RUNNING INTO BATTERY PACK BY WRINGING ALL EXCESS MOISTURE FROM CLOTHS OR SPONGES BEFORE USING THEM.

LIMITED ONE YEAR WARRANTY

(U.S. and Canada only)

Waring warrants every new COMMERCIAL PRODUCT to be free from defects in materials and workmanship for a period of one year from the date of purchase when used with foodstuffs, nonabrasive liquids (other than detergents) and nonabrasive semi-liquids, providing it has not been subject to loads in excess of the indicated rating.

Under this warranty, Waring will repair or replace any part, which, upon our examination, is defective in materials or workmanship provided the product is delivered prepaid to the Waring Service Center at 314 Ella T. Grasso Ave., Torrington, CT 06790, or any Factory Approved Service Center.

This warranty does not: a) apply to any product which has become worn, defective, damaged or broken due to use or due to repairs or servicing by other than the Waring Service Center or a Factory Approved Service Center or due to abuse, misuse, overloading or tampering; b) cover consequential damages of any kind.

The one year warranty is applicable only to appliances used in the United States and Canada. This supersedes all other express product warranty or guaranty statements. For Waring products sold outside of the U.S. and Canada, the warranty is the responsibility of the local importer or distributor.

This warranty may vary according to local regulations.

WARNING: This warranty is VOID if appliance is used on Direct Current (DC).

SERVICE

Should service on this product in the United States or Canada be required at any time, call or write to:

WARING COMMERCIAL

WARING	Service	Center
314 Ella T. Grasso Avenue
Torrington,	CT	06790
Tel.	(800)	492-7464
Fax.	(860)	496-9017

or nearest Authorized Service Center.

Replacement parts for Out of Warranty repairs are obtainable at the above address.

DISPOSAL/RECYCLING OF BATTERIES

This product uses two Li-ion rechargeable and recyclable batteries. At the end of the batteries' useful life, they should be recycled. These batteries must not be incinerated or composted. Li-ion batteries should not be put in municipal waste systems. Contact your local waste collection agency for proper recycling and disposal information for your area. Please do not attempt to dismantle the power handle to replace these batteries on your own. Damage could result to the unit.

WARING COMMERCIAL

W ARING Service Center

314 Ella T. Grasso Avenue

Torrington, CT 06790

Tel. [phone]

Fax. [phone]

GARANTIE LIMITÉE D'UN AN

WARING COMMERCIAL

W ARING Service Center

314 Ella T. Grasso Avenue

Torrington, CT 06790

Tel. [phone]

Fax. [phone]
