Brand	Panasonic
Model	TX-32LSW504S
Type	LED TV
Screen size	32 inches (80 cm)
Dimensions with stand (W × H × D)	725.9 × 475.4 × 178.5 mm
Dimensions without stand (W × H × D)	725.9 × 430.8 × 81.7 mm
Weight with stand	3.6 kg
Weight without stand	3.5 kg
Power supply	220-240 V~ 50/60 Hz
Operating system	Android TV (Google)
Connectivity	Wi-Fi 802.11 a/b/g/n/ac (2.4/5 GHz), Bluetooth v5.0, HDMI ×2, USB ×1, Ethernet, antenna input, optical audio output, headphone jack
Smart TV functions	Google Assistant, built-in Chromecast, Netflix, Prime Video, YouTube, Google Play
TV reception	DVB-T/T2, DVB-C, DVB-S (satellite)
Audio power	10 W (5 W + 5 W)
Maintenance	Unplug before cleaning; use a soft cloth and diluted neutral detergent (1:100); do not use solvents or abrasive cloths
Safety	Do not remove covers, avoid humidity, do not expose to water, use an approved stand, keep away from heat sources
Supplied accessories	Remote control RC700E, AAA batteries ×2, audio-video adapter, stand, assembly screws, instruction manual
USB compatibility	FAT32, up to 1 TB, USB 1.1/2.0

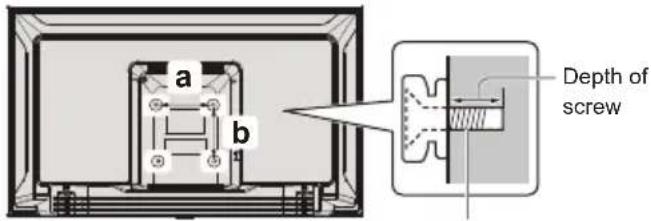

Wall mounting	Optional wall mount (VESA 100 × 100 mm)
Repairability	Contact your local Panasonic dealer for spare parts and repair

Frequently Asked Questions - TX-32LSW504S PANASONIC

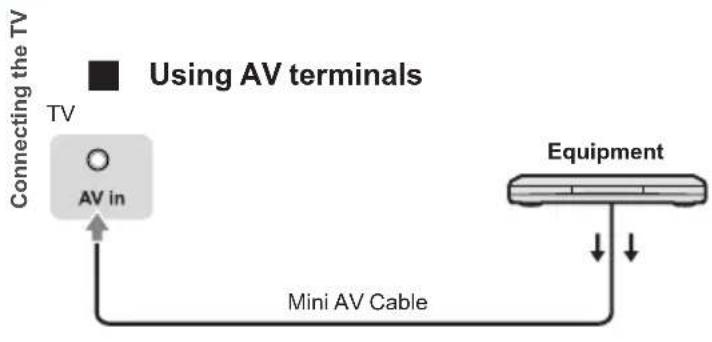

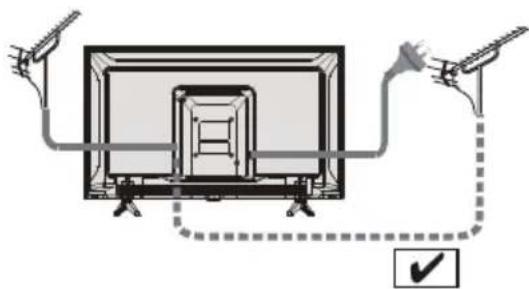

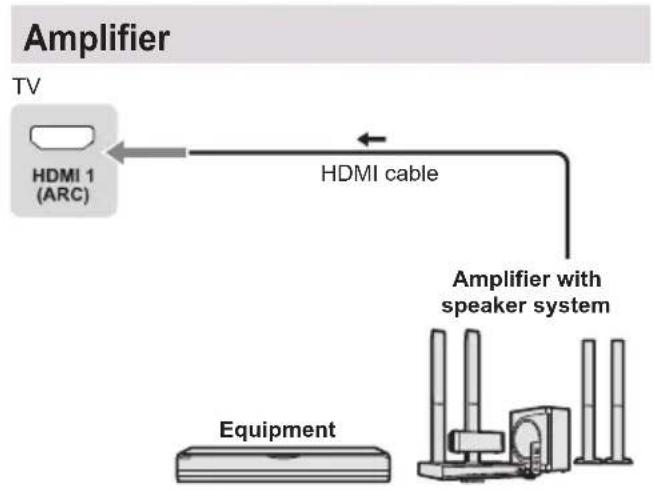

How to connect the TV?

Make sure the TV is unplugged before connecting any cable. Connect the RF antenna, external devices via HDMI or audio-video adapter, then plug the mains plug into a 220-240 V~ 50/60 Hz socket. Then turn on the TV.

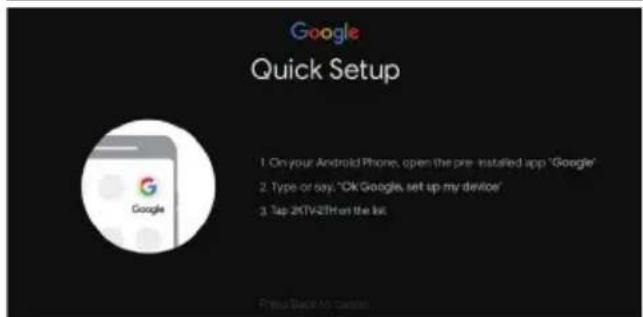

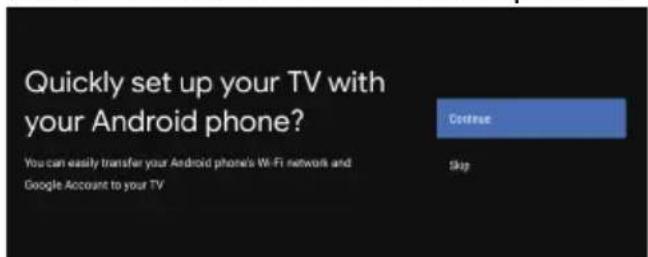

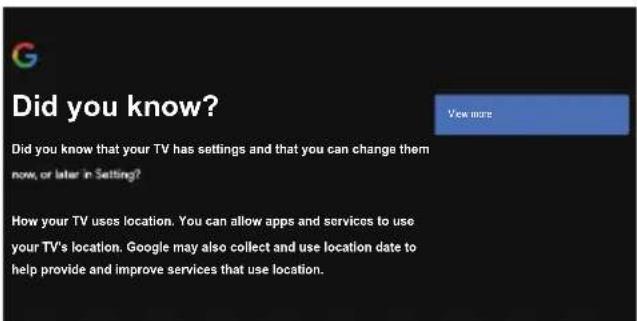

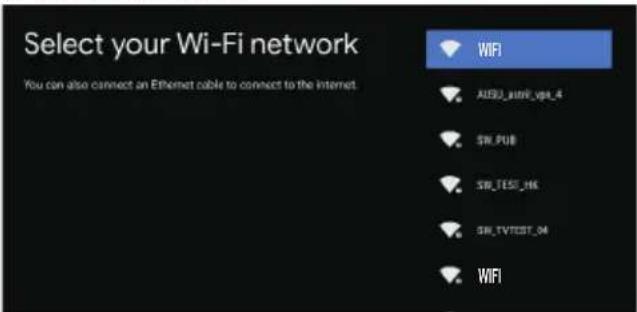

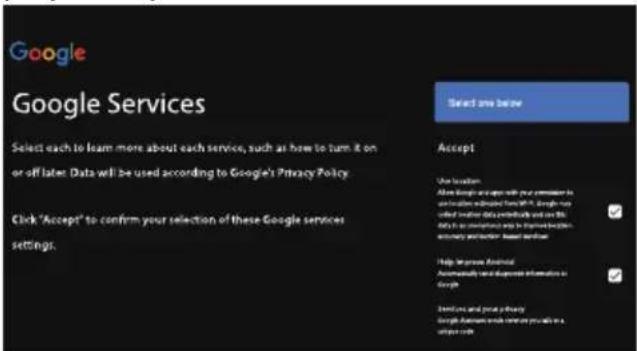

How to perform initial setup?

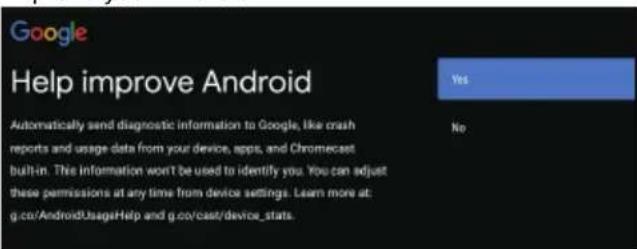

At first power-on, a Google assistant appears. Follow the steps: select language, connect to Wi-Fi, accept Google terms, and choose location and diagnostic options.

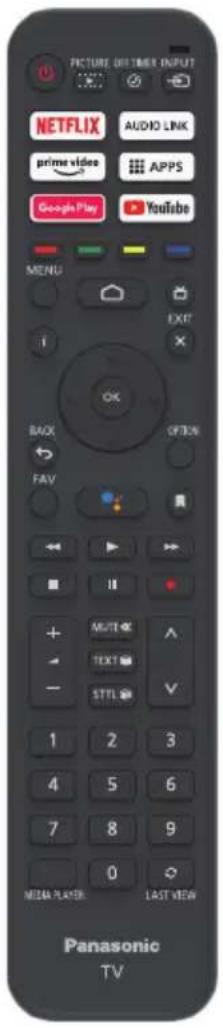

How to use the Bluetooth remote control?

The supplied remote uses Bluetooth. To pair, press the Home key, go to 'Remote pairing', then press the OK and Microphone keys simultaneously until 'Successful!' is displayed.

What to do if the remote does not respond?

Press and hold the Power key for 3 seconds to reset the remote. If that fails, unpair from the menu: Home > Setup > Remotes and accessories, select the remote and 'Unpair', then re-pair.

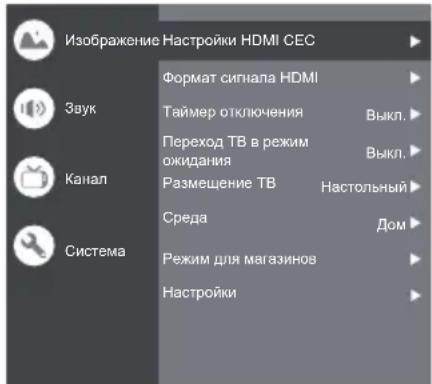

How to navigate the TV menus?

Use the direction keys (▲/▼/◄/►) to select an option, then press OK to confirm. The MENU key opens the main menu. The BACK key returns to the previous menu, and EXIT exits.

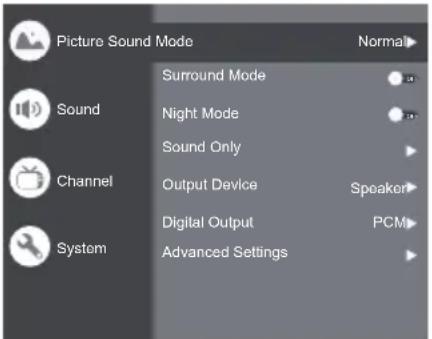

How to adjust picture and sound?

Press the MENU key, then select the Picture or Sound icon. You can adjust the picture mode (Normal, Dynamic, Filmmaker, etc.), backlight, aspect ratio, color temperature, and for sound, choose a mode (Standard, Voice, Music) or adjust the equalizer.

How to connect a USB device?

Insert the USB flash drive into the USB port (5 V, 500 mA max.). Press the Media Player key, then select the file type (Photo, Video, Music, Document). Use the direction keys to choose a file and press OK to play.

How to clean the TV screen?

First unplug the TV. Use a soft dry cloth for dust. For stains, dampen a soft cloth with clean water or diluted neutral detergent (1:100), wring it well, then wipe gently. Do not rub hard and avoid any liquid entering the device.

What to do if there is no picture or sound?

Check that the TV is on and the input source is correct (HDMI, antenna). For picture, adjust contrast and brightness in the Picture menu. For sound, check that volume is not muted and the sound mode is not silent. If problem persists, restart the TV.

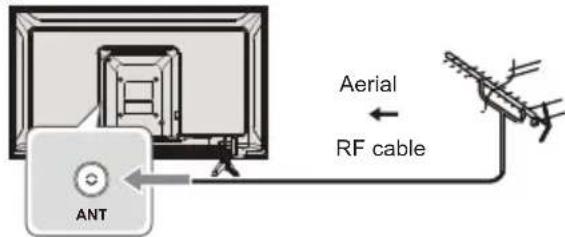

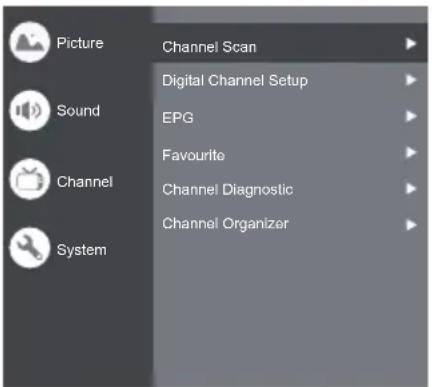

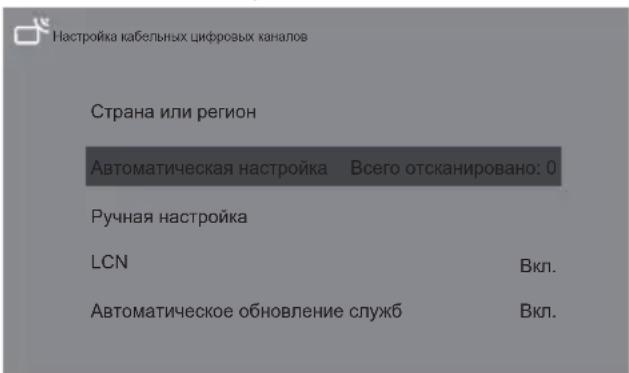

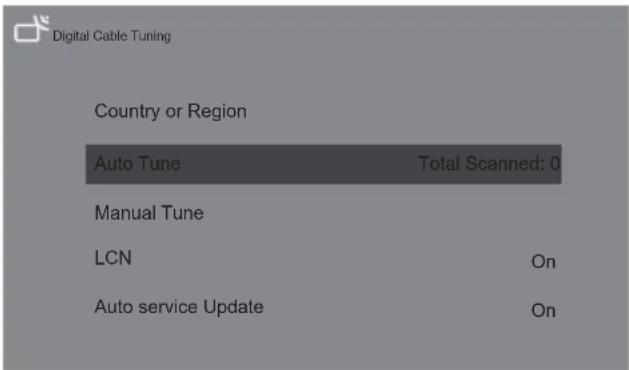

How to receive digital channels?

Connect a suitable antenna to the TV. Go to the Channel menu, select 'Channel search' and choose the type (Antenna or Cable). Start automatic search; available channels will be stored.

USER MANUAL TX-32LSW504S PANASONIC

Operating Instructions

LED TV

Model No.

TX-24LSW504

TX-32LSW504

TX-43LSW504

TX-24LSW504S

TX-32LSW504S

TX-43LSW504S

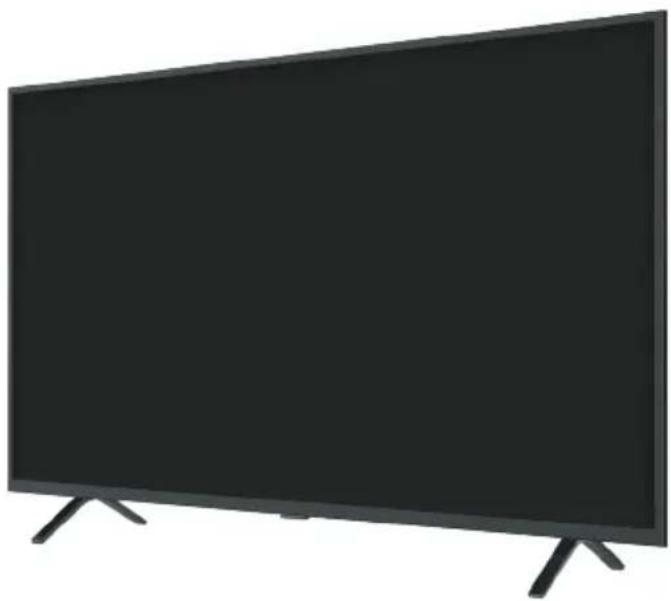

(image: TX-43LSW504*)

Thank you for purchasing this Panasonic product.

Please read these instructions carefully before operating this product and retain them for future reference.

Please carefully read the "Safety Precautions" of this manual before use.

The images shown in this manual are for illustrative purposes only.

Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.

English

Deutsch

Italiano

Français

Nederlandsl

Pycckn

Contents

Be Sure to Read

Important Notice 3

Safety Precautions 5

Setting Up the TV 9

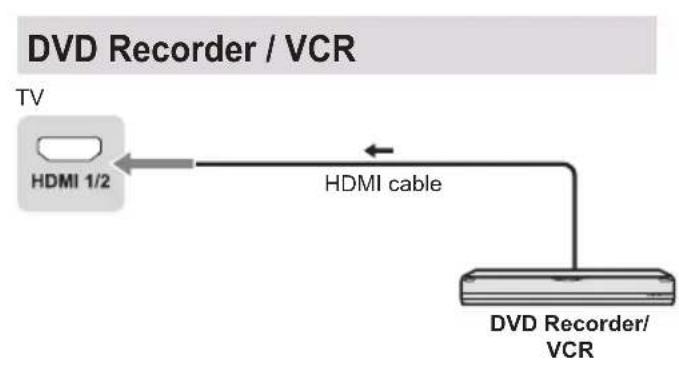

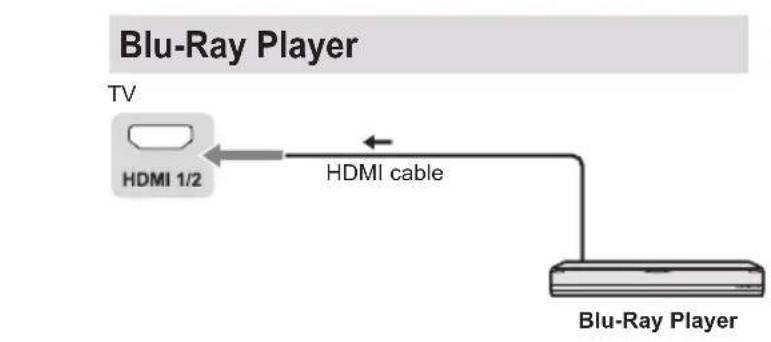

Connecting the TV. 11

Initial Setup. 13

Operating the TV 14

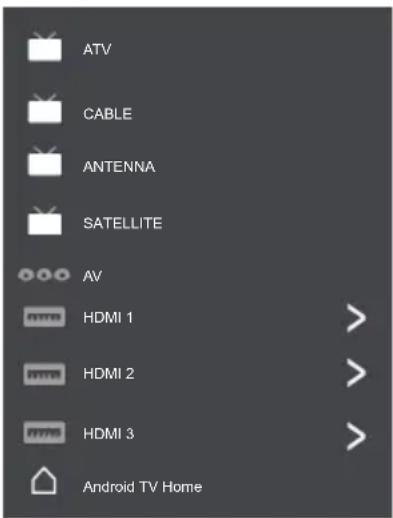

Watching External Inputs. 16

Using Homepage - Apps. 17

Using the Menu Functions. 18

Using Media Player 21

Additional Information 22

Troubleshooting 23

Maintenance 24

Specifications 25

Oss License 27

HEVCAdvance

Covered by Patents at patentlist.hevcadvance.com

Dolby Audio

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license from Dolby Laboratories.

Confidential unpublished works. Copyright © 1992-2015

Dolby Laboratories. All rights reserved.

Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA2™, WPA™ are trademarks of Wi-Fi Alliance.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license.

DVB and the DVB logos are trademarks of the DVB Project.

x.v. Colour^TM is a trademark.

DiSEqCTM is a trademark of EUTELSAT.

Google is a trademark of Google LLC.

Amazon, Prime Video and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

This product complies with the UHD Alliance Technical Specification: UHDA Specified Reference Mode, Version 1.0. FILMMAKER MODETM logo is a trademark of the UHD Alliance, Inc. in the United States and other countries.

The illustration for TX-43LSW504* is used in this manual unless otherwise mentioned. Illustrations shown may be different depending on the model.

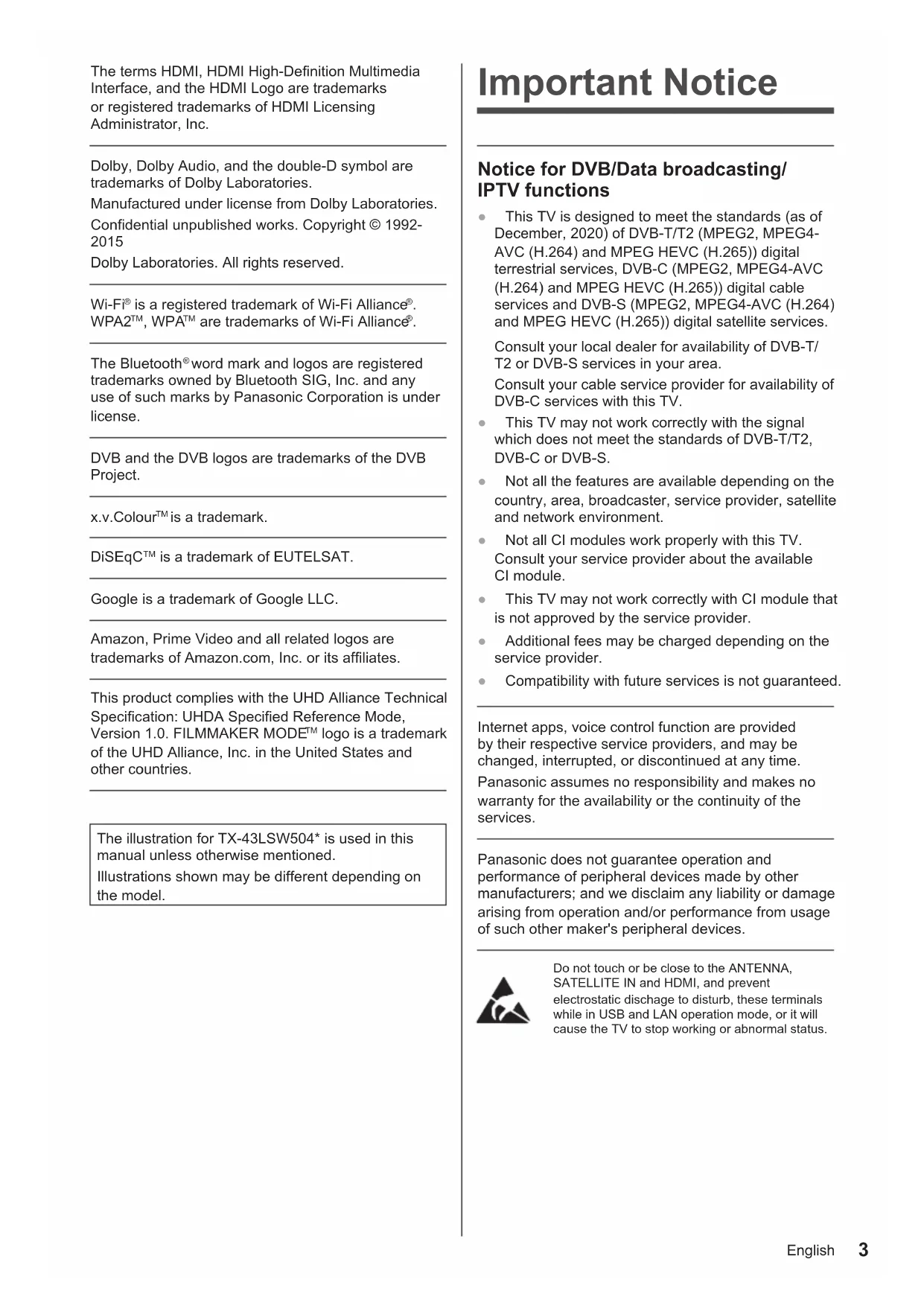

Important Notice

Notice for DVB/Data broadcasting/ IPTV functions

This TV is designed to meet the standards (as of December, 2020) of DVB-T/T2 (MPEG2, MPEG4-AVC (H.264) and MPEG HEVC (H.265)) digital terrestrial services, DVB-C (MPEG2, MPEG4-AVC (H.264) and MPEG HEVC (H.265)) digital cable services and DVB-S (MPEG2, MPEG4-AVC (H.264) and MPEG HEVC (H.265)) digital satellite services.

Consult your local dealer for availability of DVB-T/ T2 or DVB-S services in your area.

Consult your cable service provider for availability of DVB-C services with this TV.

This TV may not work correctly with the signal which does not meet the standards of DVB-T/T2, DVB-C or DVB-S.
- Not all the features are available depending on the country, area, broadcaster, service provider, satellite and network environment.
- Not all CI modules work properly with this TV. Consult your service provider about the available CI module.
This TV may not work correctly with CI module that is not approved by the service provider.
Additional fees may be charged depending on the service provider.
- Compatibility with future services is not guaranteed.

Internet apps, voice control function are provided by their respective service providers, and may be changed, interrupted, or discontinued at any time.

Panasonic assumes no responsibility and makes no warranty for the availability or the continuity of the services.

Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/or performance from usage of such other maker's peripheral devices.

Do not touch or be close to the ANTENNA, SATELLITE IN and HDMI, and prevent electrostatic discharge to disturb, these terminals while in USB and LAN operation mode, or it will cause the TV to stop working or abnormal status.

Handling of customer information

Certain customer information such as IP address of your device (this TV)'s network interface will be collected as soon as you connect your Panasonic-branded smart television (this TV) or other devices to the internet (excerpted from our privacy policy). We do this to protect our customers and the integrity of our Service as well as to protect the rights or property of Panasonic.

When using Internet connecting function of this TV, after agreeing (in the jurisdictions where customer's consent is required to collect personal information under applicable privacy laws) to or reviewing Panasonic's terms of service/privacy policy (hereinafter referred to as terms and conditions etc.), customer information on the use of this unit may be collected and used according to terms and conditions etc.

• Panasonic will not be held responsible for collecting or using customer information via application provided by third party on this TV or website.
• When entering your credit card number, name, etc., pay special attention to the trustworthiness of the provider.
• Registered information may be registered in the server etc. of provider. Before repairing, transferring or discarding this TV, be sure to erase the information according to the terms and conditions etc. of provider.

The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.

This product is licensed under the AVC patent portfolio license for the personal use of a consumer or other uses in which it does not receive remuneration to (i) encode video in compliance with the AVC Standard ("AVC Video") and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use.

Additional information may be obtained from MPEG LA, L.L.C.

See http://www.mpegla.com.

This mark indicates the product operates on AC voltage.

This mark indicates a Class II or double insulated electrical appliance wherein the product does not require a safety connection to electrical earth (ground).

Transport only in upright position.

Safety Precautions

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings and cautions below:

Mains plug and lead

Warning

If you detect anything unusual, immediately remove the mains plug.

• Mains plug types vary between countries.

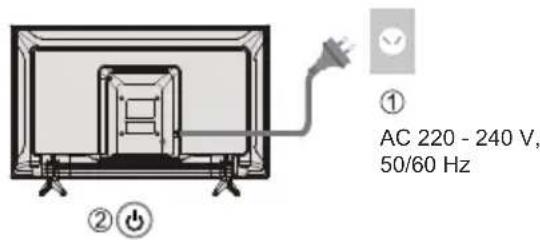

This TV is designed to operate on AC 220 - 240V 50 / 60Hz

• Insert the mains plug fully into the mains socket.

• To turn off the apparatus completely, you must pull the mains plug out of the mains socket.
  Consequently, the mains plug should be easily accessible at all times.

• Disconnect the mains plug when cleaning the TV.

• Do not touch the mains plug with wet hands.

Do not damage the mains lead.

• Do not place a heavy object on the lead.

• Do not place the lead near a high temperature object.

• Do not pull on the lead. Hold onto the mains plug body when disconnecting the plug.

• Do not move the TV with the lead plugged into a mains socket.

• Do not twist the lead, bend it excessively or stretch it.

• Do not use a damaged mains plug or mains socket.

• Ensure the TV does not crush the mains lead.

Take care

Warning

• Do not remove covers and never modify the TV yourself as live parts are accessible and risk of electric shock when they are removed. There are no user serviceable parts inside.

• Do not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

• Do not insert foreign objects into the TV through the air vents.

If the TV is used in an area where insects may easily enter the TV.

It is possible for insects to enter the TV, such as small flies, spiders, ants, etc. which may cause damage to the TV or become trapped in an area visible on the TV, e.g. within the screen.

If the TV is used in an environment where there is dust or smoke.

It is possible for dust/smoke particles to enter the TV through the air vents during normal operation which can become trapped inside the unit. This may cause overheating, malfunction, deterioration in picture quality, etc.

• Do not use an unapproved pedestal/ Mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.

• Do not apply any strong force or impact to the display panel.

• Ensure that children do not climb on the TV.

• Do not place the TV on sloping or unstable surfaces, and ensure that the TV does not hang over the edge of the base.

Warning Stability Hazard

A TV may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the TV.
• ALWAYS use furniture that can safely support the TV.
• ALWAYS ensure the TV is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the TV or its controls.
• ALWAYS route cords and cables connected to your TV so they cannot be tripped over, pulled or grabbed.
• NEVER place a TV in an unstable location.
• NEVER place the TV on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the TV to a suitable support.
• NEVER place the TV on cloth or other materials that may be located between the TV and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the TV or furniture on which the TV is placed.

If the existing TV is going to be retained and relocated, the same considerations as above should be applied.

This TV is designed for table-top use.
- Do not expose the TV to direct sunlight and other sources of heat.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

Suffocation/Choking Hazard

Warning

The packaging of this product may cause suffocation, and some of the parts are small and may present a choking hazard to young children. Keep these parts out of reach of young children.

Pedestal

Warning

• Do not disassemble or modify the pedestal.

English

Caution

• Do not use any pedestal other than the one provided with this TV.
• Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer immediately.
  During setup, make sure that all screws are securely tightened.
• Ensure that the TV does not suffer any impact during installation of the pedestal.
• Ensure that children do not climb onto the pedestal.
  Install or remove the TV from the pedestal with at least two people.
  Install or remove the TV according to the specified procedure.

Radio waves

Warning

• Do not use the TV and the remote control in any medical institutions or locations with medical equipment. Radio waves may interfere with the medical equipment and may cause accidents due to malfunction.
• Do not use the TV and the remote control near any automatic control equipment such as automatic doors or fire alarms. Radio waves may interfere with the automatic control equipment and may cause accidents due to malfunction.
• Keep at least 15cm away from the TV and the remote control if you have a cardiac pacemaker. Radio waves may interfere with the operation of the pacemaker.
• Do not disassemble or alter the TV and the remote control in any way.

Common Interface

• Turn the TV off with Mains power On/Off switch whenever inserting or removing the Cl module.
• If a smart card and a CI module come as a set, first insert the CI module, then insert the smart card into the CI module.
• Insert or remove the CI module completely in the correct direction as shown.
• Normally encrypted channels will appear. (Viewable channels and their features depend on the CI module.)

If encrypted channels do not appear

Common Interface] ([Setup] menu)

• There might be some CI modules in the market with older firmware versions that do not work fully interoperable with this new Cl + v1.4TV . In this case, please contact your content provider.
• Be sure to remove the CI module card, etc. before repairing, transferring or discarding.

CI module

Built-in wireless LAN

Caution

• Do not use the built-in wireless LAN to connect to any wireless network (SSID) for which you do not have usage rights. Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.
  SSID is a name for identifying a particular wireless network for transmission.
• Do not subject the built-in wireless LAN to high temperatures, direct sunlight or moisture.
  Data transmitted and received over radio waves may be intercepted and monitored.
  The built-in wireless LAN uses 2.4 GHz and 5 GHz frequency bands. To avoid malfunctions or slow response caused by radio wave interference when using the built-in wireless LAN, keep the TV away from other devices that use 2.4 GHz and 5 GHz signals such as other wireless LAN devices, microwave ovens, and mobile phones.
• When problems occur due to static electricity, etc., the TV might stop operating to protect itself. In this case, turn the TV off at the Mains power On/Off switch, then turn it back on.

Bluetoothless technology

Caution

The TV and the remote control use the 2.4 GHz radio frequency ISM band (Bluetooth®). To avoid malfunctions or slow response caused by radio wave interference, keep the TV and the remote control away from the devices such as other wireless LAN devices, other Bluetooth® devices, microwaves, mobile phones and the devices that use 2.4 GHz signal.

Ventilation

Caution

Allow sufficient space (at least 10cm around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

(cm)

• Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.

• Whether you are using a pedestal or not, always ensure the vents at the bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.

Moving the TV

Caution

Before moving the TV, disconnect all cables.

At least two people are required to move the TV to prevent injury that may be caused by the tipping or falling of TV.

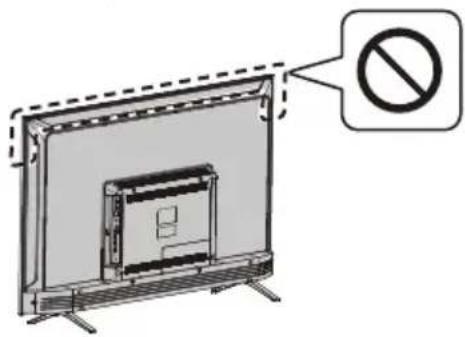

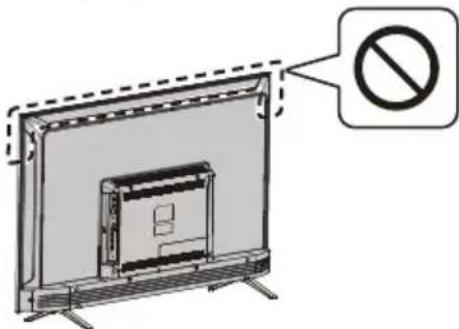

- Do not hold the screen part as shown below when moving the TV. This may cause malfunction or damage.

When not in use for a long time

Caution

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live mains socket.

• Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.

Excessive volume

Caution

Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

If you hear a drumming noise in your ears, turn down the volume or temporarily stop using the headphones.

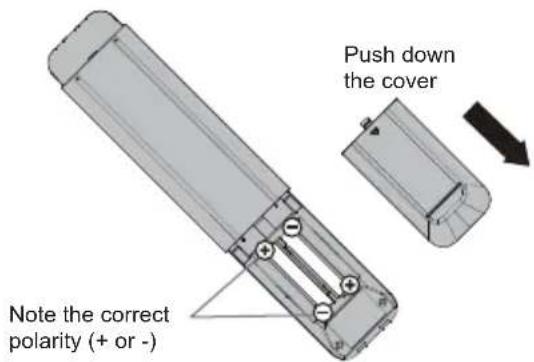

Battery for the Remote Control

Warning

• Keep the batteries out of reach of children to prevent swallowing.

Adverse physical effects can result if accidentally swallowed. If you suspect a child has swallowed one, seek medical attention immediately.

Caution

Incorrect installation may cause battery leakage, corrosion and explosion.
- Replace only with the same or equivalent type.
- Do not mix old and new batteries.
- Do not mix different battery types (such as alkaline and manganese batteries).
- Do not use rechargeable batteries (Ni-Cd, etc.).
- Do not bum or break up batteries.
- Do not expose batteries to excessive heat such as sunshine, fire or the like.
Make sure you dispose of batteries correctly.
- Remove the battery from the unit when not using for a prolonged period of time to prevent battery leakage, corrosion and explosion.

LED TV

Declaration of Conformity (DoC)

"Hereby, Panasonic Corporation declares that this TV is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU." If you want to get a copy of the original DoC of this TV, please visit the following website:

https://www.ptc.panasonic.eu/compliance-documents

Authorized Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, D-22525 Hamburg, Germany

5.15 - 5.35 GHz band of wireless LAN is restricted to indoor operation only in the following countries.

Austria, Belgium, Bulgaria, Czech Republic, Denmark, Estonia, France, Germany, Iceland, Italy, Greece, Spain, Cyprus, Latvia, Liechtenstein, Lithuania, Luxembourg, Hungary, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovenia, Slovakia, Turkey, Finland, Sweden, Switzerland, Croatia Maximum radio-frequency power transmitted in the frequency bands

Type of wireless	Frequency band	Maximum EIRP
Wireless LAN	2412-2472 MHz	18 dBm
	5150-5250 MHz	18 dBm
	5725-5850 MHz	13.7 dBm
Bluetooth®	2402-2480 MHz	7 dBm

Moving the TV

Caution

Before moving the TV, disconnect all cables.

• Move the TV with at least two people. Support as shown to avoid injury by the TV tipping or falling.

Use conditions

Caution

This appliance is intended for use in tropical climates.

Setting Up the TV

Supplied accessories

Accessories may not be placed all together. Take care not to throw them away unintentionally.

Operating Instructions

Remote Control

• RC700E

p.14

Batteries (AAA) × 2

p.10

Mini Jack Adapter

• Adapter AV

Pedestal

24-inch model

Assembly screws

（ST3×12）×4

32-inch model

Assembly screws

（ST4×15）×4

43-inch model

Assembly screws

（ST4×20）×4

Base

Base

• Base

• Base

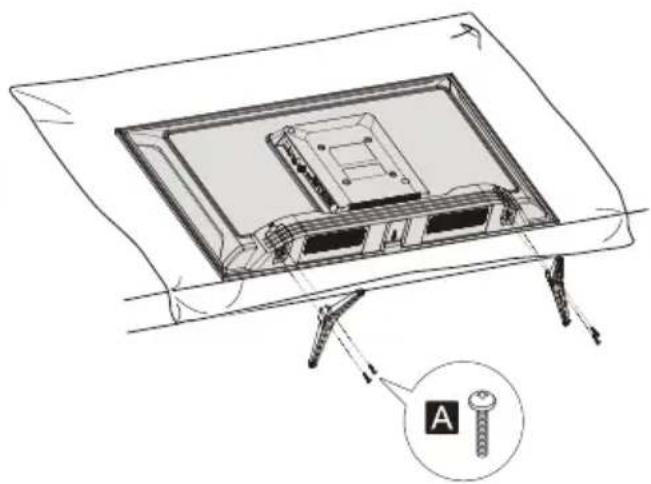

Attaching the pedestal

1 Assemble the pedestal

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.

1 Lay the TV on a foam mat or thick soft cloth on a table.
2 Remove the assembly screws Afrom the TV.

Inserting remote's batteries

Wall mounting the TV (optional)

Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket. Rear of the TV (View from the side)

Screw for fixing the TV onto the wall-hanging bracket (not supplied)

Holes for wall-hanging bracket installation

Model a b

24-inch 200 mm 100 mm

32-inch 100 mm 100 mm

43-inch 200 mm 100 mm

Screw specification

Model Type	Depth of screw
	Minimum	Maximum
24-inch M4 11 mm 12 mm
32-inch M4 8 mm	9 mm
43-inch M6 10 mm 12 mm

Warning

• When optional accessories such as wall brackets etc. are used, always read and follow the manufacturer installation and usage instructions.
• Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give off high heat. Doing so may warp or damage plastic cabinet parts.
• When installing wall brackets you must ensure the wall bracket is not electrically grounded to metal wall studs. Always ensure that there are no electrical cables, pipes etc. in the wall before you begin the wall bracket installation.
• To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

Connecting the TV

• Please ensure the TV is disconnected from the mains socket/power point before attaching or disconnecting any RF/AV leads.
• External equipment and cables are for illustrative purposes only and not supplied with this TV.
• Check the type of terminals and cable plugs are correct when connecting.
• When using an HDMI cable, use the fully wired one.
• Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise, distortion of image/sound may occur or operation of other equipment may be interfered.
• Also read the manual of the equipment being connected.

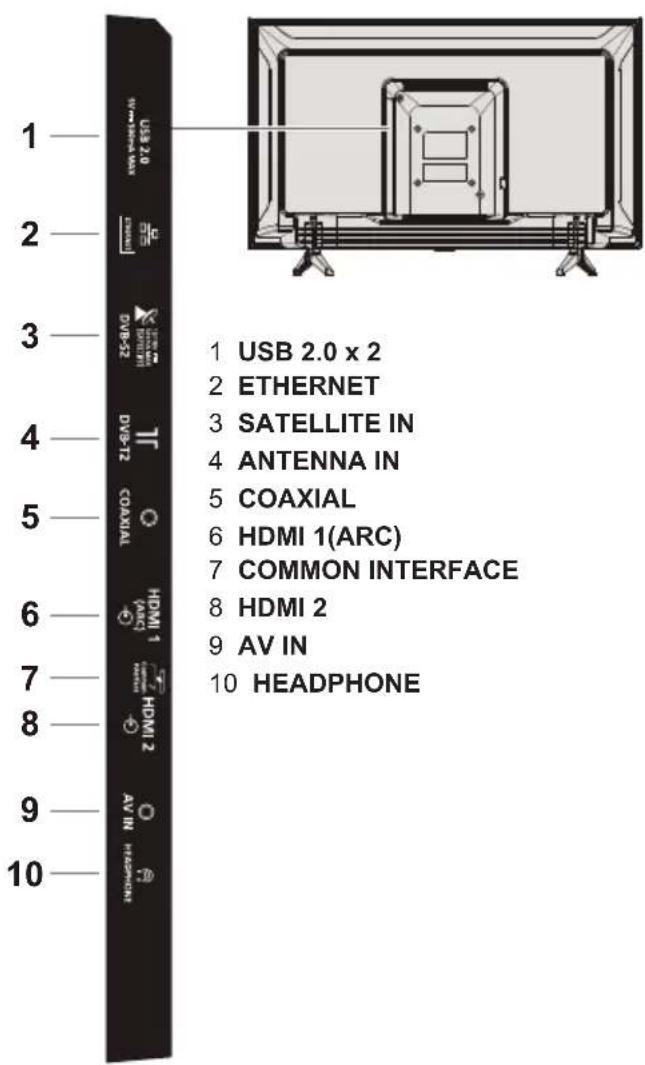

Terminals

Rear of the TV

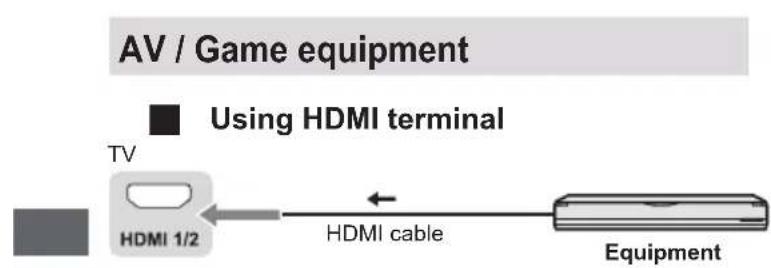

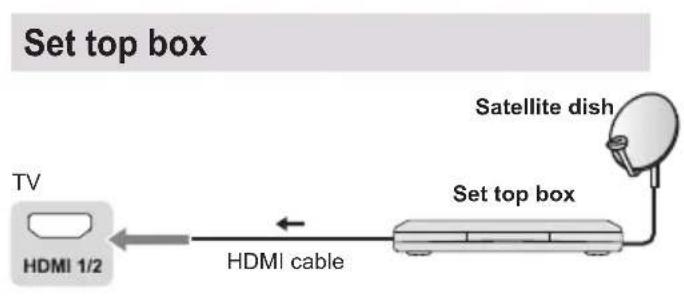

Connections

Aerial

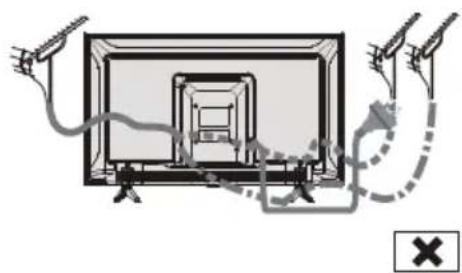

• Keep RF (aerial) cable away from the mains lead to avoid and minimise mains interference pickup.
  Do not place the RF cable under the TV.
  An aerial, correct cable (75Ω coaxial) and correct terminating plug are required to obtain optimum quality picture and sound.
  If a communal aerial system is used, you may require the correct connection cable and plug between the wall aerial socket and the TV.
• Your local Television Service Centre or dealer may be able to assist you in obtaining the correct aerial system for your particular area and the accessories required.
• Any matters regarding aerial installation, upgrading of existing systems or accessories required, and the costs incurred, are the responsibility of you, the customer.
  If the aerial is placed in the wrong location, interference might happen.

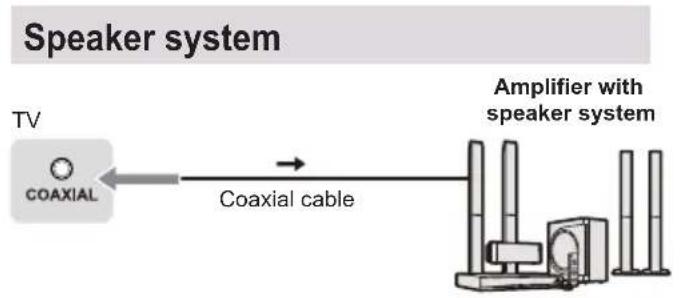

To enjoy the sound from the external equipment in multi-channel sound (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For the connections, read the manuals of the equipment and amplifier.

• Use HDMI1 to connect the TV to an amplifier which has ARC (Audio Return Channel) function.

Initial Setup

Plug the mains plug into the socket outlet and turn on the TV.

It may take a few seconds before the screen is displayed.

Google - Initial Setup

When you turn on the TV for the first time, there will show a wizard to guide you to finish the following initial settings:

Step 1: Select the menu language as you need.

Note: English (United States) is recommended. Illustrations within this publication are provided for reference only.

Step 2: (Only for some countries) Select whether or not to use and Android device to setup the TV.

Note: If you don't want to use your Android device to setup the TV, you will skip to Step 3. If you want to use your Android device to setup the TV, please turn on the Bluetooth functions of your Android phone, then find and open "Google" application on your phone. Follow the instruction tips to set device.

Step 3: Select whether or not to connect your TV set to the Wi-Fi network.

Note: If you have connected the TV to the WI-Fi network, it will check for updates like Google service updates and so on. Then please select whether or not to sign in to your Google account.

Step 4: Read to accept the Google terms of service and privacy policy.

Step 5: Select whether or not to let Google or third party to use your TV location.

Step 6: Select whether or not to allow Google to help improve your Android TV.

Remote Control Functions

Most of your television's functions are available via the menus that appear on the screen. The remote control supplied with your set can be used to navigate through the menus and to configure all the general settings.

POWER (On/Off button) Turns the TV on or off

PICTURE To enter the picture mode.

OFF TIMER To enter the sleep timer.

INPUT To enter source selection interface

NETFLIX Goes to the NETFLIX homepage

AUDIO LINK Goes to the AUDIO LINK homepage

prime video Goes to the prime video homepage

APPS To select the apps

Google Play Goes to the Google Play homepage

YouTube Goes to the YouTube homepage

Colour buttons Perform multis operations which correspond to the operation guide displayed on the menu screen

MENU To open the settings menu

Goes to the smart TV homepage

Press to display the electronic programme guide

i Display to the information

OK Confirms your selection.

up, down, left and right direction buttons) Highlights different items in the menu system and adjusts the menu controls.

EXIT X To exit the program

BACK Exit the menu and return to the previous menu.

OPTION Displays the options menu of selected functions

FAV To enter the channel list

(Mic) (Available only when the network connection is normal.)

To open the apps, move the apps or remove from favorites

To fast backward

To play

To fast forward

To end the running program

To pause

Start recording

Increases or decreases the volume

MUTE

To mute and un-mute the sound

TEXT

To show the picture and text

STTL

To show the subtitles

Channel up/down

0~9

Select the digital key number

MEDIA PLAYER

To enter the media player

LAST VIEW

Return to the last program

How to Pair Remote Control with the TV

This is a Bluetooth remote control, and before using it, please pair it with the TV firstly. The following steps are for your reference:

Step 1: Press button to enter the home page.

Step 2: Press button to enter the "RC pairing".

Step 3: Follow the "Settings tips" page, press OK and together.

Step 4: The screen will display "Pairing..." and the screen will display "Success!" after pairing is complete.

NOTE: If you wait more than 2 minutes and it can't pair, please repeat the above steps for pairing again.

If you want to unpair the Bluetooth remote, follow these steps:

Step 1: Press button to enter the home page.

Step 2: Press / / to choose, and then press OK to enter.

Step 3: Press to select "Remotes & accessories" and then to choose the Bluetooth remote name to enter next steps.

Step 4: Press unpair and then choose OK button.

When remote control does not respond

1. Press and hold the button as shown below for 3 seconds to reset remote control.

1. Aim remote control reception and unpair by following below. Home > Setting > Remotes & accessories > RCU03 > Unpair

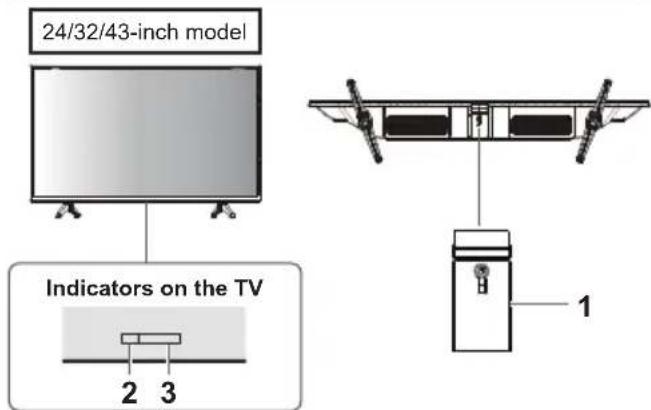

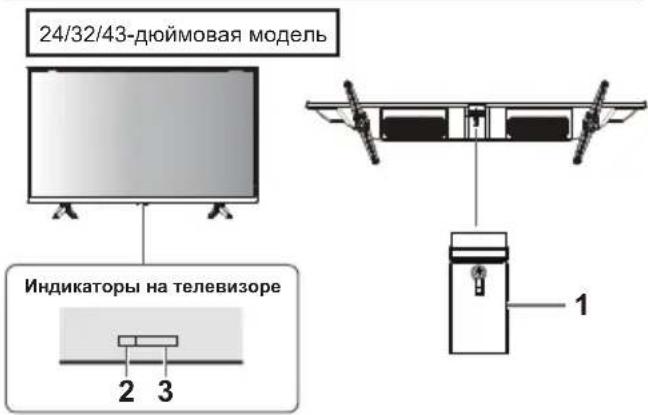

Using the TV controls

1 Power On/Power Off
2 Power LED

Red: Standby
Green: On

3 Remote control signal receiver

Watching External Inputs

1 Connect the external equipment.

(p.12)

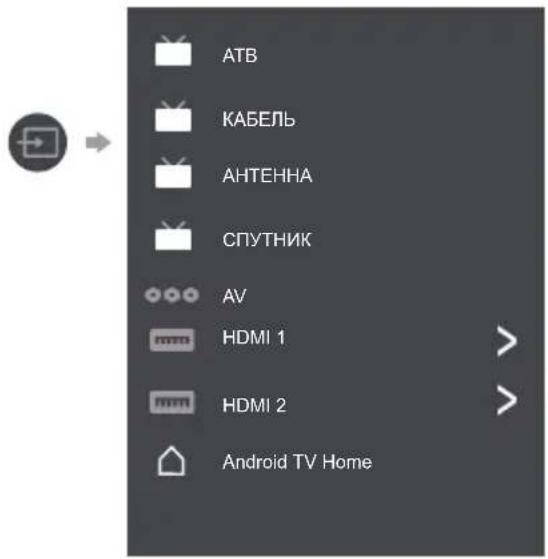

2 Display the [Input] menu, then select the input of the connected equipment.

Press OK key only can access.

Note

If the external equipment has an aspect adjustment function, set it to "16:9".

Note: This manual is for common use. Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. And for some models, certain options are not available.

You can select all the features from homepage.

Press to display homepage.

Press / / to select icons from the screen list.

Press OK to enter each option.

To exit the APP, press or

Google Assistant: Click to interact with Google Assistant of the TV.

Notifications: Remind you of system-critical information, such as low disk space, Google sign in or account errors, network connectivity issues, etc.

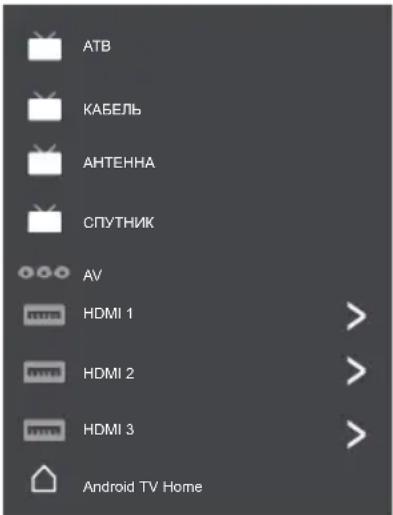

Input: Select the input source.

Settings: Access the system setting.

Apps: Show the list of favorite applications, or access the application center.

CUSTOMISE CHANNELS: Add and remove channels from your Home screen.

Note:

1) The functions and contents of "Home Page" may vary by different countries or models.
2) Before using network functions in home page like network applications and so on, please connect the TV to the network firstly.
3) Icon copyrights are owned by the application providers.

Using the Menu Functions

Using Quick Access Menu

Note: Some of the functions might be unavailable in certain sources. And for some models, certain options are not available.

This section explores the menus and settings of your TV. Each menu is outlined and detailed to help you get the most from your TV. To access the menu system:

1. In TV mode, press Option Remote control to display the quick access list.
2. Press / to select the desired item, then press OK to open the corresponding submenu.
3. In submenu, use / and OK buttons to make the adjustments, or use / to select an item, use OK to enter and operate according to the on-screen display or guide.
4. Press to return to the previous menu.

Option

Picture: Enter to adjust picture mode or advanced settings.
Sound: Select this option to set the sound adjustments.
Channel: Select this option to adjust the channel.
System: Select this option to adjust the settings.


Picture Mode: To select the mode of Normal, Dynamic, Filmmaker, Sport, Game and Custom.

Backlight: Select the level of 1-100.

ECO Setting: To select the Off, Low and High.

Aspect Ratio:

Displays the [Aspect Ratio] screen. Follow the operation guide to select the mode. [4:3] / [16:9] / Auto / Original.

Advanced Settings:

Color Temperature: To select the Normal, Warm, Cool.

HDMI PC/AV Mode: Auto

Overscan: To select ON or OFF

Noise Reduction: To select Off, Low, Medium, High and Auto.

Picture Reset:To reset the picture.

Gamma: Select 2.2 or 2.4.

Motion Estimate and Motion Compensation (MEMC): To select Off, Low, Middle, and High.

Sound

Sound Mode: To select the mode of Standard, Speech, Music, Stadium and User.

Surround Mode: Select ON or OFF/ Pure Sound/ Surround.

Night Mode: Select ON or OFF.

Sound Only: Select it and the TV screen will turn off in 10 seconds.

Output Device: To select the Speaker, SPDIF/Optical and HDMI-ARC.

Digital Output: Select the PCM/ByPass/Auto.

Advanced Settings:

1. DAC-4 Dialogue Enhanced
2. DAC-4 Dialogue Enhanced Level
3. Balance
4. Digital Audio Delay (ms)
5. Digital Audio Volume
   6.eARC
6. Sound Reset

Channel

Note: This function is only available in TV mode.

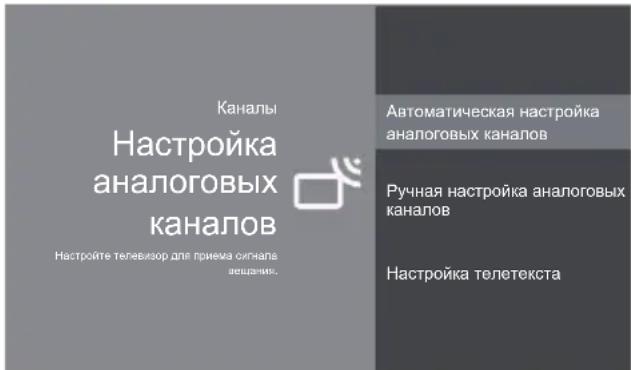

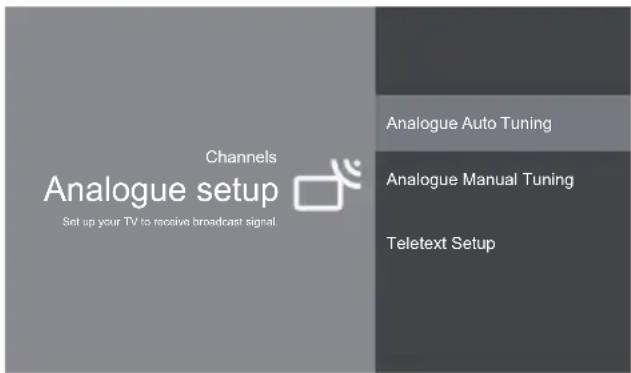

Channel Scan: Allows you to scan for all available analog and digital channels.

Digital Channel Setup:

To select the option to adjust the Subtitle Setup, Teletext Setup, Audio Setup, CI Plus, LCN, Auto Service Update, Update Scan.

EPG:

Press OK to enter the Program Guide menu.

Favourite:

Setup favourite channel list.

Channel Diagnostic:

Press OK to display some signal information on the current digital channel, such as signal strength, frequency, etc.

Channel Organizer:

This option allows you to organize channels.

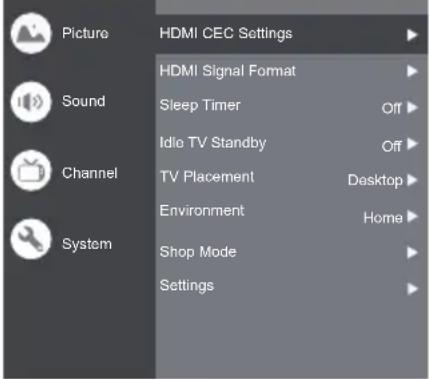

System

HDMI CEC Settings:

CEC control: To select On or Off.

Device Auto Power Off: To select On or Off.

Tv Auto Power On: To select On or Off.

CEC Device List: Turn devices on and select [Enable] to enable control of HDMI devices.

HDMI Signal Format: To select On or Off.

Idle TV Standby: To select After 1 hour of inactivity, After 2 hour of inactivity, After 4 hour of inactivity, After 24 hour of inactivity or Off.

TV Placement: To select Desktop and Wallmount.

Environment: To select Home and Shop.

Shop Mode: To select E-Sticker.

Settings:

1. Lock: Click and lock the TV.
2. Power: Turn the Wake On Network and Network Standby on or off.
3. Recording Storage: Put the storage device and record the storage.
4. Privacy Notice: The content about privacy notice.
5. OSS License: The content about oss license.

The input

Press then press / to select your desired source, and then press OK to confirm.

Channels setup (ATV and CABLE)

Analogue setup: Select ATV and enter.

• Analogue Auto Tuning: Press OK to start the automatic search process. The search may take a few minutes.
• Analogue Manual Tuning: Press OK to enter the interface.

Press / to set program, TV system or color system item, then Press / select frequency and press OK to search channel.
- Teletext Setup: Press OK and then use / to select preferred teletext.

Digital Cable Tuning: Select Cable and enter.

Auto Tune: Press OK to start the automatic search process. The search may take a few minutes. During the process, you can press BACK choose YES to exit.

Manual Tune: Select the channel number and start to scan

LCN: Select On or Off.

Auto service Update: Select On or Off.

TV Settings

Press then press / to select your desired settings, and then press OK to confirm.

Settings

General Settings

Network & Internet

No network connected

Accounts & sign-in

No accounts

Apps

Device Preferences

Remotes & accessories

General Settings:

Network & Internet: Connect the network.

See all

Other options

Add new network

Scanning always available

Let Google's location service and other apps scan for networks, even when Wi-Fi is off.

Ethernet

Ethernet

Connected

Proxy settings: HTTP proxy is used by the browser but may not be used by other apps.

IP settings: To use DHCP or Static

Accounts & sign-in: To sign in the accounts.

Apps:

See all apps

App permissions

Special app access

Security & restrictions

Device Preferences

About

Date & time

Language

Keyboard

Display & Sound

Storage

Home screen

Google Assistant

Chromecast built-in

Screen saver

Energy saver

Location

Usage & diagnostics

Accessibility

Reboot

About: The information of this TV.

Date & time: Adjust date and time.

Language: Select the language.

Keyboard: Select and adjust keyboard

Display & Sound: Adjust display and sound.

Storage: Check the device storage.

Home screen: Customize channels,reorder apps and open source licenses

Google Assistant: To use the Google Assistant.

Chromecast built-in: To use the Chromecast built-in.

Screen saver: Select the mode of Screen saver.

Energy saver: To turn off display.

Location: To estimate location.

Usage & diagnostics: Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in.

Accessibility:

Captions

High contrast text

(Experimental)

Text to speech

Accessibility shortcut

Services

TalkBack

Off

Switch Access

Off

TVserviceManager

On

Reboot: To reboot the TV.

Remotes & accessories

To searching for accessories...

(Before pairing your Bluetooth devices, make sure they're in pairing mode)

Using Media Player

Media Player allows you to enjoy photo, music or video recorded on a USB Flash Memory.

The picture may not appear correctly on this TV depending on the digital cameras used.
- Display may take some time when there are many files and folders in the USB Flash Memory.
Partly degraded files might be displayed at a reduced resolution.
The folder and file names may be different depending on the digital camera used.

Inserting / Removing the USB Flash Memory

- Insert or remove straight and completely.

Starting Media Player

1 Insert the USB Flash Memory.
2 Select the mode.

Select Access

[Document]: Displays the thumbnail of all documents in the USB Flash Memory.

[Photo]: Displays the thumbnail of all photos in the USB Flash Memory.
[Music]: Displays the thumbnail of music folders in the USB Flash Memory.
[Video]: Displays the thumbnail of video titles in the USB Flash Memory.
[Disk]: Displays the thumbnail of all documents in the USB Flash Memory.

[Contents Display]

Follow the operation guide to perform available operations.

When the cursor stays on the icon, it displays the information of the highlighted content.

Document Video Photo Music Disk

Document:

1. Select Document icon.
2. Press up, down, left or right direction button to select your desired file and press OK to play.
3. Use OK key to see more option: ZOOM+, ZOOM-.
4. Press return key of remote to stop playing.

Video:

1. Select Video icon, then press OK button to view movie file.
2. Press up, down, left or right direction button to select your desired file and press OK to play.
3. While playing a Video, press the button to display the play console. For the Play console, Press OK key of remote to play and pause the video file. Left key of remote to fast backward. Right key of remote to fast forward.
   4.Use oReTionsee more option:Photo scale, Looping mode, Subtitle, Subtitle code, Audio track, information and video list.
4. Press return key of remote to stop playing and press return again to exit.

Photo:

1. Select Picture icon, then press OK button to view the picture.
2. Press up, down, left or right direction button to select your desired picture file and press OK to show.
3. While showing picture, press OK to display the play console. For previous and next use remote left and right key.
4. Use OK key to see more option: Left rotation, Right rotation, ZOOM+, ZOOM-, Manual play/Auto play, Information, Play mode, Play interval, BGM: On or Off.

Music:

1. Select Music icon, then press OK button to listen to music.
2. Press up, down, left or right direction button to select your desired file and press OK to play.
3. The Play console includes Previous, Play/Pause, Fast backward/Fast forward, Next.

Press OK! see play list and video list.

1. Press return key of remote to stop playing.

Disk:

1. Select Disk icon, then press OK button to choose folder.
2. Press up, down, left or right direction button to select your desired file and press OK to play.
3. Press return key of remote to stop playing.

Additional Information

Auto power standby function

The TV will automatically go into Standby mode in the following conditions:

No signal is received for 15 minutes.
- [Sleep timer] is active in the [System] menu (p.19).

Input signal that can be displayed

Signal name HDMI
525 (480)/60i, 60p	○
625 (576)/50i, 50p	○
750 (720)/60p, 50p	○
1,125 (1,080)/60i, 50i	○
1,125 (1,080)/60p, 50p, 24p	○
2,250 (2,160)/60p, 50p, 24p	○

Mark: Applicable input signal

Signals other than above may not be displayed properly.
The above signals are reformatted for optimal viewing on your display.

HDMI connection

This TV incorporates HDMI technology. HDMI (high-definition multimedia interface) is the world's first complete digital consumer AV interface complying with a non-compression standard.

HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment.

Applicable HDMI features

Input audio signal:

2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)

• Input video signal:

"Input signal that can be displayed" (p.12)

Match the output setting of the digital equipment.

USB Flash Memory

For playing back in Media Player

Format: FAT32

Compliance:

Supports only USB1.1 or USB2.0 standard.

Maximum USB capacity supported is 1TB.

Note

Data modified with a PC may not be displayed.
- Do not remove the device while the TV is accessing data. Otherwise this can damage the device or TV.
- Do not touch the pins on the device.
- Insert the device in the correct direction. Otherwise this can damage device or TV.
- Electrical interference, static electricity, or erroneous operation may damage the data or device. Panasonic is not liable for any deterioration or damage of data or device during operations with the TV.
It is recommended to connect the USB Flash Memory directly to the TV's USB port.
Some USB devices or USB HUB may not be used with this TV.
- You cannot connect any devices by using the USB port.
Additional information for USB devices may be on the following website. (English only) http://panasonic.jp/support/global/cs/tv/

Troubleshooting

Before requesting service or assistance, please follow these simple guides to resolve the problem. If an error message appears, follow the message's instructions. If the problem still persists, please contact your local Panasonic dealer for assistance.

Screen

Red, blue, green or black spots on the screen.

This is the characteristic of liquid crystal panels. The liquid crystal panel is built with very high precision technology. Occasionally, a few non-active pixels may appear on the screen as points of red, green, blue or black. This does not affect the performance of your TV and it is not a quality problem.

Chaotic image, noisy.

Set [Noise reduction] in the [Picture] menu to remove noise (p.18).
Check nearby electrical products (car, motorcycle, fluorescent lamp).

No image is displayed.

Check the settings of [Contrast] or [Brightness] in the [Picture] menu (p.18).
Check the TV is in AV mode. If the TV is in AV mode, check the selected input mode match the output of the external equipment (p.19).

Unusual image is displayed.

Turn the TV off with Mains power On/Off switch (p.16), then turn it on again.

Pictures from equipment connected via HDMI are unusual.

• Check the HDMI cable is connected properly.
  Turn the TV and equipment off, then turn them on again.
  Check an input signal from the equipment (p.12).
  Use equipment compliant with EIA/CEA-861/861D.

Sound

No sound is produced.

• Check the sound mute setting (p.18) and volume.

Low level or distorted sound.

Sound signal reception may be deteriorated.

Sound output via HDMI connection is unusual.

Set the sound setting of the connected equipment to "2ch L.PCM".

General

The TV goes into Standby mode.

This TV is equipped with auto power standby function (p.16).

The remote control does not work or is intermittent.

Replace the batteries (p.10).
- Point the remote control directly at the remote control signal receiver of the TV (within about 7 m and 30 degree angle).
Situate the TV away from sunshine or block sources of bright light from shining on the remote control signal receiver of the TV.

Parts of the TV become hot.

Even if the temperature of parts of the front, top and rear panels has risen, these temperature rises do not cause any problems in terms of performance or quality.

The TV panel moves slightly when it is pushed with a finger.

Clattered sound might be heard.

There is some flexibility around the panel to prevent damage. This is not a malfunction.

Overcurrent error message appears.

The connected USB device might cause this error. Remove the device and turn the TV off with Mains power On/Off switch, then turn it on again.
- Check foreign objects are not inside the USB port.

Maintenance

First, remove the mains plug from the socket outlet.

Regular care

Gently wipe the surface of the display panel, cabinet and pedestal by using a soft cloth.
- Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.

For stubborn dirt

First clean the dust on the surface. dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Wring the cloth and wipe the surface. Finally, wipe away all the moisture.

Caution

• Do not use a hard cloth or rub the surface too hard as this could scratch the surface.
• Do not subject the TV's surfaces to water or detergent. Liquid inside the TV could lead to product failure.
• Do not subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.
  The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects.
• Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality.

Specifications

Model no.

24-inch model

TX-24LSW504 TX-24LSW504S

32-inch model

TX-32LSW504 TX-32LSW504S

43-inch model

TX-43LSW504 TX-43LSW504S

Dimensions (W× H× D)

24-inch model

551.4 × 365.3 × 131 ~mm (With Pedestal)

551.4 × 328 × 84 ~mm (TV only)

32-inch model

725.9 × 475.4 × 178.5 ~mm (With Pedestal)

725.9 × 430.8 × 81.7 ~mm (TV only)

43-inch model

966.8 × 611.1 × 214.5 ~mm (With Pedestal)

966.8 × 566.4 × 88.5 ~mm (TV only)

Mass

24-inch model

2.6 kg (With Pedestal)

2.5 kg (TV only)

32-inch model

3.6 kg (With Pedestal)

3.5 kg (TV only)

43-inch model

6.4 kg (With Pedestal)

6.3 kg (TV only)

Connection terminals

AV in

Mini, 1.0 V[p-p] (75 Ω)

EARPHONE

Mini, 130mV rms 150mV rms

HDMI 1/2 input

TYPE A Connectors

USB

USB2.0 DC 5V, Max.500 mA

Speaker Output

24-inch model

Audio output

6 W (3 W + 3 W)

32-inch model

Audio output

10W(5W+5W)

43-inch model

Audio output

16W (8W + 8W)

9 Systems
Receiving channels (Analogue TV)

Systems Function
1 PAL B, G
2 PAL I
3 PAL D, K Reception of broadcast
4 NTSC 4.43
5 NTSC 3.58	Playback from special
6 PAL	VCR's or DVD
7 PAL 60 Hz/5.5 MHz	Playback from special
8 PAL 60 Hz/6.0 MHz	disc players and special
9 PAL 60 Hz/6.5 MHz	VCR's or DVD

VHF BAND

2-12 (PAL)

0-12 (PAL BAUST.)

1-9 (PAL B N.Z.)

1-12 (PAL)

UHF BAND

21-69 (PAL G, H, I)

28-69 (PAL BAUST.)

13-57 (PAL D, K)

Digital TV

DVB-T/T2 Standard

Aerial input

VHF/UHF

Operating conditions

Temperature

0^ - 45^

Humidity

20% - 80% RH (non-condensing)

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

Built-in wireless LAN

Standard compliance and Frequency range

IEEE 802.11 a/b/g/n/ac

2.4~2.5GHz and 5.15~5.825GHz

Security

Support for WPA/WPA2

Built-in Bluetooth

Bluetooth V5.0

2.4~2.485GHz

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
  For more product information, please visit EPREL: https://eprel.ec.europa.eu.

EPREL registration number is available on https://eprel.panasonic.eu/product.

Oss License

This product incorporates the following software:

(1) The software developed independently by or for Panasonic Corporation,
(2) The software owned by third party and licensed to Panasonic Corporation,
(3) The software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),
(4) The software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or
(5) Open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.

The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof [System > Settings > Oss License]

At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof.

Contact Information: [e-mail]

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Customer's Record

The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number

Serial Number

Panasonic Entertainment & Communication Co., Ltd.

Web Site: http://www.panasonic.com

72-24LSW5-X41Z1

English

Printed in China

Bedienungsanleitung

LED-Fernsehgerät

Modell-Nr.

TX-24LSW504

TX-32LSW504

TX-43LSW504

TX-24LSW504S

TX-32LSW504S

TX-43LSW504S

Deutsch

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsberging 15, D-22525 Hamburg, Deutschland

Dimensioni (L x A x P)

Modello 24 pollici

551,4× 365,3× 131mm (con piedistallo)

551,4× 328× 84mm (solo TV)

Modello 32 pollici

725,9× 475,4× 178,5mm (con piedistallo)

725,9× 430,8× 81,7mm (solo TV)

Modello 43 pollici

966,8× 611,1× 214,5mm (con piedistallo)

966,8 × 566,4 × 88,5 mm (solo TV)

Massa

Modello 24 pollici

Mini, 1,0 V[p-p] (75 Ω)

CUFFIE

Mini, 130mV rms 150mV rms

Ingresso HDMI 1/2

(illustration: TX-43LSW504*)

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, D-22525 Hamburg, Allemagne

Gestion des services TV

Activé

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Model Type	Schroefdiepe
	Minimum Maximum
24-inch M4 11 mm 12 mm
32-inch M4 8 mm 9 mm
43-inch M6 10 mm 12 mm

Waarschuwing

prime video De Prime Video-homepageina openen

APPs Appss selectoren

Google Play De Google Play-homepagina openen

YouTube De YouTube-homepageinaopen

Overscan: Selecteer AAN of UIT

CEC-bediening: Selecteer Aan of Uit.

LCN: Selecteer Aan of Uit.

Automatische service-update: Selecteer Aan of Uit.

Tv-installingen

Beveiling & restrictions

Apparaatvoorkeuren

Over

Datum & tijd

Taal

Toetsenbord

Weergave & geluid

Opslag

Homeschem

Google Assistant

Chromecast built-in

Schermbeveiliging

Energiebesparing

Locatie

Mini, 1,0 V[p-p] (75 Ω)

HOOFDTELEFOON

Mini, 130mV rms 150mV rms

HDMI-ingangen 1 / 2

TYPE A connectoren

USB

USB2.0 DC 5V, Max.500 mA

Luidsprekeruitgang

24-inch model

Audio-uitgang

6 W (3 W + 3 W)

32-inch model

Audio-uitgang

10W(5W+5W)

43-inch model

Audio-uitgang

16W (8W + 8W)

9 systemen
Ontvangstkanalen (analogetv)

DVB n IoroTunbI DVB ABnAHTc TaTropOBbIMu MapKaMaN DVB Project.

Amazon, Prime Video n BCE cOnyTCTbUOuIe Iorotnbl rBnIOTcT ToproBbIMN MapkamKOMnaHm Amazon.com, Inc. nn ee fnnnaNoB.

Данhoeи3делпсоOTBETCTByetTexHnueckmUcNoBnM UHD Alliance: «СпраBOчнь ржIM,yctaHOBHeHHbUHDA»,Верся 1.0.IorotinFILMMAKER MODETЯВЯТСТROВМарКОU HHD Alliance, Inc. B CUSA nДPyrnx cTpaHax.

B daHOM pyKOBoODCTBe nCNoIb3yOTcR
n3o6paxeHn moEi TX-43LSW504*,ecn He
yKa3aHO nHoe.
n3o6paxeHn MOrT OTnuaTbcR B 3aBNCIMOCTn OT
MoJeN.

Baxkha HΦopmaçna

YBeDOMHeHne dIaФyHKcN DVB / nepeaun daHHbIX / IPTV

-Данн布局 TeileBn3op pa3pa6OtaH B COOTBeTCTBn co cTaHapTaMn (no coCToRnHnHa DeKa6pb 2020 roJa) uΦpoBbix Ha3eMHbIX cnyk6 DVB-T/T2 (MPEG2, MPEG4-AVC (H.264) n MPEG HEVC (H.265)), uΦpoBbix Ka6eJIbHbIX cnyk6 DVB-C (MPEG2, MPEG4-AVC(H.264) n MPEG HEVC (H.265)), a TaIoke uΦpoBbix cnyTHNKOBbIX cnyk6 DVB-S (MPEG2, MPEG4-AVC (H.264) n MPEG HEVC (H.265)).
Docynnoctb cnky6 DVB-T/T2 n DVB-S B Baewem peHone MOxHO yTOuHNtB y MeCTHO dInepa. HOpMaunIO O DocTyNHOCTn cnky6 DVB-C Ia DaHHoro TeNEBu3Opa yTOuHNrTe y BaWero NoCTabUknka ycIyr Kaebhoro TeJeBnDeHn.
-Даннь TeleBn3Op Moket pa6oTaTb He npaBnBHo C cnHaNoM, He COOTBeTCTByIOUm CTaHApTaM DVB-T/T2, DVB-C nIIN DVB-S.
HeKOTOpbIe cyHKcIMM MOrYT 6bITb HeNoCTyINHb I B3aBNCIMOCTN OT CTPaHbI, OblaCTN, CTAHCUN TeJeBeUaHnI, NOCTaBcUkA yCnyr, CNYTHnKa n XapaKTePncTnK CETn.
He Bce Moyn CI pa6oTaOT c daHbIM TeJeBn3Opom HauNexKaunm Oba3OM. PpOKOHcyNbTnpuYTeCb BaUNM NocTaBUnKOM ycnyr no nobOdy doctynHoro moyn CI.
-Данн布局 TeJIeBn3Op MoKeT pa6ToTaH HeIpaBnIbHO C mOdyem Cl, He Odo6peHHbIM nocTabuNkOM ycIyr.
B 3aBnCmOCTn OT nocTaBzNka ycny moket B3MaTbCRA DOnOIHInTeJIbHaA Pnata.
He rapaHTnpyETcO CBMeCTnMOCTb CO CnyK6amN, KOToPbIe 6dyT 3anyuJeHb B 6dyUem.

HHTepHET-πpIIOXeHnI ΦyHKZIra TOnOCOBOrO ynpabJIeHnI PpeIOCTaBnIOTcA COOTBeTCTByIOUIMN IOCTaBzIKamN yCJyR, KOTOpbIE MOrY BHOcNTb I3MeHeHnA, a TaKKe IpePbAtb NII NpeKpaTNTb IN X NOdEprkky B JIO60MOMeHT.

KomnnaHra Panasonic He Hecet HnkaKoI OTBeTCTBeHHocTN He npedocTabJareT rapaHTNI DOCTyNHOCTu INHn HnpepbIBHOCTu ycnyr.

Kompanya Panasonic He daet Hukaknx rapaHTn OTHOCNTbHO pa60TbI npOn3BOdNTeNbHOCTN nepupepnHbIX yCTpoiCTB CTOpOHNX u3rOToBtJeK. Kpome TOrO, Mbl He Hecem OTBetCTBEHHOCTN 3a nOTehunbHbY uep6, KOtbpM MoKeT BO3HKnHyTb BCNEcTBHe pa60TbI nn pOn3BOdNTeNbHOCTN TaKHX yCTPOiCTB.

He npikacaiTecb K nopTaM «AHTEHHA»,
«BXOD CNTYTHNKA» «HDMI» « He haxoDInTecb
pRdOM C HIMN, a TAKKe He dOnyckaIte
3JIeKTPocTaTnuecKnx pa3PraOB, cnOco6hIx
HapyuINb HopMaIbHyIO pa6Ory 3TNx pa3BeMoB,
B pExmpepaToB USB n LAN, nocokBy 3TO
MOKeT pInBeCTN K pKePaUeHIO pa6OBy IIN K
HEHopMaJIbHOMy COCTOHNIO TebeN3Opa.

06pa6oTka HOpMaun O KIneHTe

OnpeJeHnHa HOpMaun O KIneHTe, Taka KaK IP-aDPEC cTeBOro INTeppeca BaWero yctpoiCTBa (daHHoro TeNEBn3Opa),co6upaetc npn NOkKnOHeHN BaWero cMapr-TeNEBn3Opa Panasonic (DaHHoro TeNEBn3Opa) nIu dpynx ycTpoiCTB K INTepHETy (BbIDepkKa u3 HaWei noNtIKoKhoJDeHnAaNBocHTu). 3TO ocUseCTBnreTcC UeJIbIO 3aUnTI bHaUNX KIneHTOB u ObecneueHn rCeIOCTHOCTNuX CnyK6, a TaKKe Dnra 3aUnTIb I npab nn CO6CTBeHHOCTH KOMNaHnn Panasonic. Pnncnbl3OBAHn NfHKuNN NOkKnIOueHn K INTepHETy DaHHORo TeNEBn3Opa NoCne IOdTBePckJeHn corNacn (B IOpNCdnKuNx, B KOToPbIX dIra c6opa nepcoHaJIbHO HOpOPMaun B COOTBEcTBn C npImeHMbIMN 3aKOHAMn O KOHfoHnAaNBocHTn Tpe6yeTcR corNacne KIneHTa) C npabunamnpedocTabHeHn ycNyr / noNtIKoN KOHfoHnAaNBocHTn KomnaHnn Panasonic (daane PO TekCTy - «YcNOBnIuNoLOKeHn») MoKet OcySeCTBnTbcS c6op IHOpMaun O KIneHTe, OTHoCraeSc K 3KcNpyataun DaHHoro N3deJIy, N ee NcNoJIb3OBaHHe B COOTBEcTBn C ycNobmN IN OJIOKeHnMn.

KomnaHn Panasonic He Hecet OTBeTCTBHeHHocTn 3a c6op nnnncnoJIb3OBAHne nHOpMauOn O KJIneHTe uepe3 npINOKeHn, npEOCTaBJeHHbIe TpeTbUMN CTopoHAMn Ha daHHOM TeJIeBN3OpE nn Ha Be6-caTe.
- Y6eIITecb B HaIeKHOCTn NOCTaBUNka ycnyr npexJe CEM BBOINb HOMEp BaWe KpeiTHoH KapTbi, BaIe IMR N T. D.
PerncpnymaHnOpMaun MoKet perncpObaTcRa Ha cepBepe N dpynx cpeCTbax xpaHeHnaHHbIX NoctabuNka. Nepeed Cdaeey daHHoro TeJIeBn3opa B peMOHT, a TaKKe erO nepeDauey Hnn yTuIN3aUneHneO6xOdmo CtepeTb INOpMaUNo B COOTBECTBm C ycIOBnMn I NOLOKeHNMA M NoCTabuNka.

3aNcB N BOCPOn3BeDeHne MaTePnAna Ha DaHHOM HIN JIO6OM dpyrom yCTPOIcTBe MOKe TOTpe6oBaTb pa3peSeHnra CO CTOpOHb I BnaJeNbca aBTOpCKnx INn aHaONuHbIX npAB Ha 3T0T MaTePnA.I. KomNaHnra Panasonic He nMeet nJHomOChn H He daET Bam TAkoR pa3peSeHnra, a TaKKe HeDByCmBicNeHNO OTKa3bIBaETCRAOT npAB, BO3MOXHOCTe N HAmepeHn INyUaTB TaKoe pa3peSeHnE O T BaWero IMeHN. O TBETCTBeHHocb 3a IcNoJIb3ObaHne DaHHOR INn IIO6Oro DpyrO YoCTPOIcTBa B COOTBETCTBn C npIMHeHMbIM 3aKOHOdATEJIbCTBOM 6b ABTopCKNX npabax B BaWe cTpaHE ueNIkOM neKHT Ha NOB3OBaTeJe. IOnONHITeNBhIE CBeDEHnO COOTBETCTBYUxN 3aKOHAX N npABNJax CM. B COOTBETCTBYUxN 3aKOHOdaTeNBhIX DOKUMeHTax INn o6paTntEcB K BnaJeNbuy TaKHX npAB B MaTePnAne, KOToPbI Bbl XOTNTe 3aNNCaTB INN BOCPOn3BecTI.

Данhoeи3делпилсьзрваноHopTфелм ПаTeHToBAVCдяпрсоганьHorOи НЕКOMМерчecKOrOИСПОЛБЗВAnHЯNotpe6IteLem ДЯ(I)KOДИРОВANHЯВИDEOcorlaCHOCTaHdApTyAVC («ВИDEOAVC»)и/иni (ii)ДeКОДИРОВANHЯВИDEOAVC, KOTOpoe6blIOZakOДИРОBAHONoJIb3OBAteJIeMДЯ NepcoHahBHorOИСПОЛБЗВAnHЯUINi6blIOnONyEHO OTnoCTaBшИкAВИDEОрpoDyKUIM,OblaDAJOшERO ПицEH3NeHaPreDoCTaBNeHneВИDEOCTaHdApTa AVC.ДЯИСПОЛБЗВAnHЯИ3ДeЛЯВДPyrIxцELYX ПицEH3NHePreDoCTaBnEeTcR.

DOnonHInTeJbHyIO INHOpMaUHO MOxHO NOyUHTb, 6paTnBUnCb B KOMNaHIO MPEG LA,L.L.C.

Nocetnte caHT http://www.mpegla.com.

DAnHbI CmB0J yKa3bIbaeT, YTO n3JeJIne pa6Otae TIOd HaprrKeHHem NepemEHnHO TOka.

DaHbCIMBOINcONb3yeTcIgno6o3HaueHnAeKtpopnp6opaKnacca3auntbIIInn3eKtpopnp6opa cDBoHOnn3oJaunei,ndKOTopoRoHe Tpe6yETcAJIeKtpuueckoe 3aemJeHne.

TpaHcnpTnpoBky Heo6xOJIMO OCyIeCTBnIbTOIbKO BBePTNkAJIbHOM IIOLOKeHN.

MepbI

празoctорожноctи

Bo n36exaHne pUCKa nopaxeHn 3JIeKtpnuecknM TOKOM, noXapa, noBpeJdeHn nn TpaBM co6JIHOaTe npIBeDeHHbIe HNKe MEPbl PpeOCTOpOXHOCTn.

UTeNceJIbHaB BnIka N UHyp NTaHna

PpeynpekdeHe

Pn HeHopMaIbHOM
yHKIOHOPOBaHNI
TeJIeBn3opa HEmEJIeHNO
BbIHbTe IITeNCEJbHyIO BUNKy
n3 po3eTK!

TnI TTeNCEbHOB BUNKIO TINuHaETcB 3aBNCIMOCTNOT CTpaHbl.

-Даннь TeileBn3Op CneDyET NOdkNIOuTaB K cetn 3JIeKTPoPNTaHnepemeHHoro ToKa 220-240 B, 50/60 T.
- PONHOCTbIO BCTaBnIe WTeNCEJIbHyIO BNIKy BCteByIO po3ETKY.
Дя nonHoro OTKNoeHn yctpoNCTBa Heo6xOdmo n3BLeyb WTeNceJIbHyO BnIky N3 ceTeBOY po3eTKI. ITo npUHe Heo6xOdmo obecneuTb JerKni doCTyn K WTeNceJIbHOB BNKe.
- Pered ouhctkoTeneBn3opa n3BneKaIte uTeNCeJIbHyIO BUNKy n3 ceTeBOI p03eTK.
He npikacaiTecb K wTeNceIbHOB BUNKe MOKpbIMn pyKamn.

He donyckaTne noBpeKdHnIa Hypa nTuHnI.

He cTaBbTe Ha uHyp nHTaHnT TaeKeIbIe npEmdTebl.

He pa3MeuaiTe HHyp NITAHNA BO3Ne 06bekTOB C BbICOKO TeMnepaTypoI.

He TAHNTe 3a uHyp. Pn n3BneHnn 13 p03eTKn Heo6xOIMo DePkaTbCra 3a ee KOpNyc, a He 3a uHyp nITaHn.

He nepemeeuTe TeIeBn3Op, KOrda OH NOdkluoyen K cTeBoi po3eTke.
He nepekpyuBaIte, Ype3MepHo He crn6aIte HepacTgBaIte WHyp nHTaHna.
He nCnoB3yIe Tne nobpeXdEHHyo ITeNceJIbHyIO BnIKy nn CTeByIO pO3eTKy.
- Y6eIntecb, YTO TeIeBn3Op He nepeIaBnBaet HHyp NITAHN.

Co6nOdaIte ocToPOxHocTb

PpeynpeXeHne

He CHIMaIte KpbIuKn HbBHOCTeMOINQKaUIN BTeJIeBUN3Op cAmOCToTaeJIbHo, NocKoJIbKy CyUeCTByeT ONaCHOCtB NopaxKeHnA 3JIeKTpUeCKM TOKOM npi KOHTaKTc BHyTpEHHMn DeTaJIaMn yCTpoIcTba, HaxOp HAnpJxKeHnEM. B TeJIeBUN3Op 06ClykBaEmble IOnb3ObaTe

He noDBepraTe TeJIeBn3Op BO3DeIcTBnIO DoXJa IINI Ype3MePHOI BnaJxHocTn. He DonyckaTe nOpaAnHa Na TeJIeBn3Op KaJeIb IINI 6pbl3r BoDbl. He pa3MeuaIte HaTeJIeBn3OpOM cocybl, COdePkaUne JNikKocTb, TaKne KaK Ba3bl.

He BCTaBJIte Te TTeJIeBN3Op NOcToPOHHne npEIMeTbI Yepe3 BeHTNIJauOHHbIe OTBepCTnI.
- Ecni TeJIeBn3Op nCIOJIb3yETcB MecTax, rDe B Hero JERKO MOrY T npOHKnHcyTB HaceKOMbIe. HaceKOMbIe, TaKHe KaK MyxN, NaYKn, MypaBbN t.Д., MOrY T npOHKnHcyTB B TeJIeBn3Op N npINBeCTN K NOBpeJdeHnO, a TaKHe 3acTpraTb O6LnactN, BnIMoH Ha TeJIeBn3OpE, HAnpIMep, BHyTpN 3KpaHa.
- Ecπι Ετηλευκαρι Κισηλβ3γετς B Νβιλβούνι έπη 3aδιβίΜηνηνού Κρεόνε.

YacTnKINbIINNbIMaMOryT npOHnKaTbB TeJIeBn3OpYepe3BeHTnIaUIOHHbIEOTBepCTNBO BpemHOPMaJIbHOpa6OtblN3actpeBaTBHEM. 3TO MOKeT npBecTn K nepepeBy,HeuCnpaBHOCTN, yXyDWeHIO KaueCTBa N3o6paXeHnN T.D.

He nCnoJIb3yIte He yTBePxJdeHHbIe u3rOToBtTeJIem noCTaBky IINKpeNexKHOe o6OpyDObAHne. O6paauTeCb K MeCTHOMy dInIepy KOMnAHnIg Panasonic iHaCTpOKn IINy UcTaHOBKn C IcNoJIb3OBAHNEm peKOMeHDoBaHHbIX KPOHHTeHOB IINKpeNJIeHNA HcTeHy.
He noDbepraTe 3KpaH cnIbHbIM BHeUHM BO3JeCTBnM nIy yapam.
He pa3pewaiTe DeTm B36npaTbcra Ha TeJeBn3Op.
He yctaHaBnBaIte TeJeBn3Op Ha HAKNoHHbIX IIN HeycToHbBix NOBepXHocTEx. Y6eHntecb, UTO KpaTeJeBn3Opa He CBncaIOT.

OnachOCTb, CBA3aHHa C yTOHBOCTbIO

TepeBn3Op MOKeT yNaCTb, CTaB npuHNoI cepbe3hblx TpaBM, B TOM uNcIe C JeTaJIbHbIM nCXoIOM. MHorne TpaMbbl, Oco6eHNO cpeiNe DeTei, MoKHO IpeIoTbPaTb, pInHAB IpocTbIe MepbI IpeIOCTOPOXHOCTN, KOTOpble IpeueNCIeHbl Hnke:

• IcnoIb3yIte IkaΦbl, cToiKN mTeOdbI MOHTaKa, peKOMeHIOBaHHbI e N3rTOBtJeM TeJIeBu3Opa.
• IcnoJb3yIte Me6eJIb, cNooc6HyO o6ecneuTb HAdexKHyIO NOIepKky TeJeBu3opa.
• YdOCTOBepbTecb, yTO TeJIeBn3Op He BbICTynaET 3a Kpar ONOPHOI NOBepxHocTm Me6JI.
• 06barchte DeTm, yTO 3aJIe3aTb Ha IpeDMET Me6eIN B NOIbITke DOTaHyTbCra Do TeNeBn3Opa nn erO 3JeMENTOB ynpabJNeHnO nacHO.
• PpoklaIbIaIte npoBOna n Ka6eN, NOdkHoueHHbIe K TeJIeBu3Opy, TaKIM o6pa3OM, YTO6blYepe3 HIX HeJIb3A 6blIO CNOTKHytbcR, a TAKKe YTO6bl HeBO3MOxHO 6blIO NOTAHytb ININ CXBaTtB IX.
  He yctaHaBnBaIte TeIeBn3Op Ha HeycToHbOM OCHObaHN.
  He pa3MeuAte TeIeBn3Op Ha BbICOKx npedMeTAX Me6eN (HaNPmep, CTeHOM nN KnHexHom uKapy), He npKpeINB npedMeT Me6eN I TeJeBn3Op K yCTOuHBoI NOBepXHOCTN.
  He cTaBbTe TeneBn3Op Ha TkaHb NJIHa dpyrIe MaTePnaJIbI, paCNoIOKeHHbIe MExdY TeNeBn3OpOM I ONOPHOI NOBepXHOCTbIO Me6eJN.
  He pa3MeuataTe npedMeTbI, KOtOpbIe MOryT npBLech BHMaHne DeTei, TaKne KaK nrgPyuKn IynbTbI dy, Ha TeleBu3ope uIN Ha Me6eIN, Ha KOTopoOH pacNoJIOKeH.

EcnBbCHMaeteTeJeBn3Op npecTabnareTe eroBdpyroMeCTO,Heo6xoJMoTakKe co6nOdaT MepbI npedocTopoxHOCTN, nepeuNCHeHHbe Bblwe.

-Даннь TeJIeBn3Op IpeIHa3HaueH dЯ yCTaHOBKn Ha cTOn.
He donyckaTe BO3deICTBnHa TeJIeBN3Op npMbIX COJHeHbIX Jyuei IN dpynx NcTOHKnOB Tena.

Bo n36eXaHne noxapa He pa3MeuTe n3deJnE B HeNocpeDCTBENHO 6IIN3OCTN OT CBeuei N dpynx IcTOUHNKOB OTKpbIToro ORHЯ

Onachoctb ydyweHn

PpeynpeKdHne

HeHaJIeXaUee o6paUeHne c yIaNKOBkO daHHoro 3dEInn MaKeT npBecTu K yDuWeHIO, a HeKOToPbIe MeIKNe DeTaN MOrY TnpEdCTabJIb Tb ONaCHOCTb yDuWeHn DnA DeTei. XpaHnTe 3TN DeTaN B HeoCTyNHOM dnn MaIeHbKnx DeTei MeCTe.

POnctabKa

PpeynpeKdHne

He pa3bpaaiTe nOCTaBky u He BHOCHTe B Hee 3MeHeHn.

BHMaHne

IcnoB3yTe TOnbKO NOCTaBky, NOCTaBnEMyO C DaHHbIM TeJIeBN3OpOM.
He nCnoJb3yIte noDCTaBky,ecn OHa NCKpNBHeHa nn NOBpeKdHeA. B 3Tom cnyae He3aMeJInTeJbHO o6paTInTeCb K 6JInxKaIWeMy DInepy KomnaHn Panasonic.
HaJekHO 3aTnHtE BCE BHTbI BO BpeM yCTaHOBKn.
He donyckaIte ynapHoro BO3deIcTBnHa TeJIeBn3Op BO Bpemy yCTaHOBKn HA cToiKy.
He pa3pewaIte DeTm B36paTbcy Ha noDCTaBky.
YcTaHOBky n CHrTne TeJIeBuN3Opa C NOCTaBKn DOJXHbI OCyUeCTBnTb He MeHee DByx YeJIOBeK.
BbINOJIHnIe yCTaHOBky n CHrTne TeJIeBu3Opa B COOTBeTCTBUN C yKa3aHHoN npOceDypoN.

PaIIOBOJHbI

PpeDynpexKeHne

BecnpoBODnayTexHoiJorNyBluetooth

BHHMaHHe

TeIeBn3Op nIyIpa6oTaHn paIaIOuAcToTe ISM 2,4Tg(Clueoth)Bo n36exKaHne HeINcnpaBHOCTeNmMeJNeHHOrO OTKNIka n3-3a INHTeppepeHcnn paIIOBOHn DEpXnTe npbT DY BdaNNOT dpyrnx yCTPOINCTB, NOkKnUoyaeMbIX K 6ecnpoBOHOH NOKaJIbHOH cETn, dpyrNX yCTPOINCTB Bluetooth®, MKNpOBONHOBIX Neey, MObJIbHbIX TeIeΦoHOB nYCTPOINCTB, IcNoJIb3yIOuNX CnRHaII 2,4Tg.

Bentnlae

BHHMaHHe

Heo6xOIMO o6ecneuHb doCTaTOUHOe paccToHHe (He Mehee 10 cm) BOKpy TeJIeBn3opa IpnpeoTbpaaene Hpye3MepHoro HarpeBa, KOtOpBu MoKeT npINBeCTN K npexKDeBPemEHOMy BbIXOy N3 CTPOHekOTopbix 3JNEKTPOHHbIX KOMNOHEHTOB.

(cm)

BeHTnIaIe He
DOJIxHa HApUwA TbBcra
H3-3a NepeKpbITn
BEHTNJrIOHHbIX
OTBepCTNI NOCTOPOHHMNIpeIMTaMNI,TAkIMN KAK
ra3eTbI,CKaTePTN,3aHaBeCckN T.I.

He3aBcIMo OTTO,NCN0b3yETcJN NIOCTaBka, Heo6xOIMO oBeCneuTb OTCyTCTBn IppeTCTBn DnBa BEHTNJRAUHOHBIX OTBepCTn,paCNOJOKeHHbIX B HnKHeI qACTn TEJIeBN3opa,a TAKKe DOCTaTOOHoe nPoCTpAChTBO DnBa BEHTNJRAUIN.

IepeMeueHne TeJeBn3opa

BHHMaHHe

IpeepepeemeeHnemTeJIeBn3opaOTKIOuayte BCE Ka6enn.

• IepemeueHne TeNEBn3Opa DoJnxHbI OcyuecTBJIbTb He MeHee DByx YenOBek dJa npeDoTbaueHn NOTeHuaNbHbIX TpaBM N3-3a ONpOKnDbBaHnN nn NaDeHnTeNEBn3Opa.
  Bo BpemnpeHockn He ydepKbAaTe TeneBn3Op 3a Yactb 3kpaHa, NOKa3aHHyHO Ha pucyHKe HIXe. 3TO MOKeT npuBeCTN K HeNCnPabHocTn INI NOBPEKDeHNM.

Pn dnteIbHOM HeucnoJb3ObaHm

BHHMaHne

JaKe B BbIKIOueHHOM COCTOHN TeJIeBn3Op
Ntpe6JrET HeKOToPOe KOINueCTBO 3JIeKtpo3Hepn,
Noka WTeNCeJIbHa BAJIka BCTaBNeHa B CTeByIO
po3eTky.

• N3BNeKeNTe WTeNCeIbHyO BnKny n3 CeTeBOy po3eTK, ecIn TeJeBn3Op He NcNoJIb3YeTCa B TeueHHe dInTeJIbHOrO BpeMeHN.

Upe3MepHa rpoMKocTb

BHMaHne

He yctaHaBnBaIte Upe3MepHO BbICOKN

ypoBeHb 3Byka B

HayuHnKax.3To MoKet

PpNBecTu K Heo6paTMOMy

NOBpeKdEHHcIyxa.

• Пп ВОЗнКНовен B yшax ShyMoB OТ ВИбрациуМeньшITE ГрмКOCtБ ИИ NВpeMeHNo ПpeKpaTNTeИСПЛБ3OBaHne HaySHNkoB.

BaTaPeKn nyIbTa dNCTaHcNoHHorO

ynpaBneHn

PpeynpeKdHne

XpaHnte 6aTapeKn BHe DocraemocTn DeTeN BO n36ekahne npornaTbBaHn.

CnyaHoe nporlaTbVahne MOKeT npVBecTu

K BpeHbIM Φn3nueckm BO3deNCTBnM. PpI NOo3peHnHa npOrJaTbIBaHn pe6eHkOM

6aTapeiKn Heo6xOIMo HemeIeHNO 6paTntbck K BpaCy.

BHHMaHne

He npabnblbna yctaHOBka moKet npnbecTn K yTeUke 3neKtpoNtua n3 6aTaapeek, a TaKKe Knx Kopp0nn B3pBlBy.
OcuyuaceTBJyTe 3aMeHy TOnbKO Ha 6aTaapeKn TaKOrO Je nn aHaNoTmHOro Tnna.
He nCnoNb3yIe BmecTe cTapbie HOBbie 6atapeiKn.
He nCnoJb3yIte BmecTe 6aTapeKn pa3hblx TInOB (HanpImep, uEIoOHyIe I MapraHZeBbIe).
He nCnoJb3yIte nepe3apjkaemble 6aTapeKn (Ni-Cd n T. d.).
He cKnraTe n He pa3pyaainTe 6aTapeeKn.
He donyckaTe neperpeBa 6atapei, Hanpimep, NOB03deIcTBnEM COJHeuHbIX Jyuei, OTHN T. n.
- Ytun3npyuTe 6aTapeKn HaJIeXaIcM cNoCobom.
Ecnn yctpoinCTBO He nCnObl3yeTcB TeueHne DnnteIbHoro BpeMeHN, n3BNeKaIne 6aTaapeKn, YTO6bl npedOTbpaTnTB yTeky 3JeKtpOnNTa, Kopp03HIO nOnachOcTb B3pbIBa.

LED-TEJIEBN3OP

DeknapauncoOTBeTCTBnA

《HactoIIM Kopnpaun Panasonic 3aBJIeT, TTO daHHbI TeIeBn3Op COOTBeTCTByET o6raTeJbHbIM Tpe6oBaHnM I npyTm CBra3aHHbIM NpOxKeHnM DInpeKTHBbl 2014/53/EC》.

KoHnOpunHaJa DeKnapaCn COOTBeTCTBnA DnA daHHoro TeLeBn3Opa DoCTynHa Ha caIe:

https://www.ptc.panasonic.eu/compliance-documents

YnHOMOeHHbI npeCTaBtTeJIb:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsberging 15, D-22525 Hamburg, Germany (Германь)

Hana30h yactot 6ecnpoBHOH nokabHo cTeN 5,15-5,35 Tpu pa3peeHo NCNoB3OBaTb TOJbKO B NOMeueHN B nepeuNCHeHHbx Hnke cTpaHax.

ABCtpn,BeIbIg,BoIrpA,YeIckaPecny6nka, DaHn,3ctOnn,Phaun,FeMaHn,IncaHn,ITanN,Peu,INcnaH,Nkp,LatBn

JnxTeHsTeH, JntBa, IIOKcem6ypr, BeHrpna, MaIbTa, HndePnAHybl, HopBerna, Nolbaa, NopTyraNa, PymbHna, CNoBHeHna, CNoBakna, TypuHa, PhHHJaHdna, WBeuHa, WBeuZapna, XOpBaTna

MaKcImaJIbHa MaUHocTb Pu-CnHaJa.

IpepeNaBaemOrB Dnna3oHx YaCTOTbl

YcIOBnI NCNoJIb3OBaHnI

BHHMaHne

-Данньnpиборпpeнданautheн Дя ИсноьзOBAHЯВуСЮВЯХТрОчecKOrOКИМАТ.

prime video IepexoHa DomaWHHO CTpaHnuy prime video

APPS Bb6op npnIOxehn

Google Play NepexoHa Domaunio CtpaHnuy Google Play

YouTube NepexoHa DomaunHouO ctpaHnuy YouTube

UBeTHbIe BbINOHrIOt pa3nHyHbIe DeiCTBnB B COOTBeTCTBn C NOcka3KaMn, KHONK OTo6paKaembIMn Ha 3KpaHe MeHIO

MENU OTo6paXeHHe MeHIO HacTpoKn

IpepexoHaDomaunioCTpaHnCySmartTV

OTo6paXeHHe 3JNeKtpOHHO nporpAmMbI TeJepepa

OTo6paXeHne INHΦopMaun

OK POnTBePKeHne Bb6opa.

KhoNkBBePx/Bn3/BneBO/BnpaBO.BbIeJIeHHe 3JeMeHTOB MeHIO nperynnpoBka napaMeTpob.

EXIT BbIXoN3 nporpaMMbl

BACK BbIXoI N3 MeHIO IN BO3BpaT K ppebldyuemy MeHIO

OPTION OTo6paKeHHe MeHIO HAcTpoE K BbI6paHHbIX cyHKcN

FAV IepexoK cNcKy KaHaIOB

(MinkpofoH)

(DocTyHToTOnbKO npCtabNbHOM CTeBOM NOKIOUOHeHH.)

OTkpblTne npnIOXeHn, nepemeueHne npnIOXeHn n ydaJeHne n3 136paHHoro

IpeemOTka Ha3aD

Bocnpoun3BeDeneHne

Iepemotka Bnpe

3aBepueHne BbIOJNHOeCn pporpaMMbl

PpnoctaHOBNTb

Haatab3aunscb

YBeJIHHeHneIJIn yMeHbSeHneYpOBHr IpOMKoCTN

BkIIOueHne n BbIKIOueHne 6e33ByuHoro peKIma

OTo6paXeHne n3o6paXeHnI nTeKCTa

OTo6paKHeHcSybntpOB

Cneyuon/npdebyuyn kaHan

LnpblnBbIbopaHomepaKaHa

IepexoK MeiHaonpBbBaTeJIIO

LAST VIEW

Bo3BpaueHne K nocJeDne nporpamme

CoprajkeHne npIbTa dinCTaHcNoHHoro ynpabJIeHn c TeIeBn3Opom

ДанныpynlbДу pa6oTaET noTexHONOrnBluetooth.пeped началомИспльб3OBaHЯ He06xOДиMo BbIOnJIHnT bero Союржени TeTeBn3OpM.ПорядOK DeiCTbN:

War 1. Haxmte KhoNky nna nepexoHa rnaBHyoctpaHcy.
War 2. Haxmte KhoNky nepexoda B pexIM «ConpjxHne npIbTa DY>.
War 3. Cneyu yka3aHnMa Ha cTpaHnue «IoNcKa3Kn no HacTpoKe», OndHOBpeMeHHo HaxMnte KhoNk OK n
War 4. Ha 3ekpahe noBnTcH aDnncb «ConpXeHne...», a nocne 3aBepWeHnA conPxKeHn IOBnTc HdnnCb «YcNeuHo!»
Pumeyue. Ecnu no npowecmeuu deyx muhym npouecc copxhen He 3aepwumcra, noemopume yka3aHHbIe bIwe wa zu eue pa3.
YTo6bl pa3OpBaTb cOnpJKeHne nyIbTa DY no Bluetooth, BbINOHNHe CNeDyUOuNne WArn:
War 1. Haxmte KhoNky nna nepexoda Ha rnaBHyo cTpaHcy.
War 2. C nOMOJI KHOJOK / / / BBi6epnte a 3aTeM HAXMNTe OK.
War 3. Haxmte KhoNky DnB Bb6opa NyHKta «PynbTbI N npHaadneKHOCTN», a 3aTeM Bb6epnte NmR Bluetooth-nybTa DY, YTO6bl nepeitK CJeDyUOM mwarM.
War 4. BbI6epnte «Pa3OpBaTb coPraJKeHne», a 3aTeM haXMMTe KHOKNy OK.

EcnnynbTnctaHOnHOynpAbeHeOTBeHaET

1. Haxmte u ydepknaTe KhoNky, kak noka3aHo Ha pucyHke Hxke,B teueHne Tpex ceKyH dIra c6poca nybTa DY.

1. Pa30pBnte copjxHne nyIbTa Dy, nepeiJaNo yka3aHHomy HnKe npTu MeHIO. TnaBHy 3KpaH > HacTpoHa > NytBtI Dy I npHaadnExHoCTn > RCU03 > Pa30pBaTb copjxHne

IcnoJIb3OBAHne opraHOB ynpaBHeHnTeJeBu3opa

1 BkIOueHne/BBIKIOueHne

2 HdkaTop nHTAHN

KpaChbI:PeXIMOxUdaHnA
3eJHeHbB: BkI.

3 PnpemHnK cnHnA nynbTa Dy

ПресмотсВHEшнХИСТОЧнКOB

1 PódklouHTe BHeuHHe o6OpydoBaHne.

(cTp.12)

2 Ipeennte B MeHIO [BxoI], a 3aTeM BbI6epnTe BXoN oNDKNUChEHHoro 06OpyOBAHn.

HaxmTe KhoNky OK dny DocTyna.

PpimueaHne

Ecni y BHeHrero o6OpyDoBaHn IMeeTc4yHKuN KoppeKTIPOBKn OTHOWeHn CToPOH, yCTaHOBNTe ero Ha 16:9

Bb mokeTe Bb6paTb BCE cyHKcHn Ha IaBHO CTpaHnIe.

HaxmTe KhONky Tna OTo6paXeHn rnaBHO CTpaHnCbI.

C NOMOUIKHOHOK ▲/▼/▲ BBbEpNTe 3HaUKn n3 cInnKa Ha 3KpaHe.

Длдяdoу Na KaKdoon Ongин HaxmamTe KhoNky OK.

IyBbIXoHa3 npuJIOxHnHaXmTe KHOKU

Google AccncteHT. B3aMDoEiCTBHe c Google AccncteHTOM TeJIeBu3Opa.

YBeDMnHn. HanOMHaHn, OTHOcIeNcK CNTMe, HApIMep, O 3aKaHnBaIOeMc npocTpaHCTBe HaDnCKe, O BXoJe B aKKayHT Google nIN oOn6kax akKayHTa, npo6leMax c ceTeBbIM COeINHeHem m T. d.

Bxod. Bby6op nCTOuHnKa BXoHOrO cnHaJa.

HactpoKn. NepexoK NaCTpoKaM cNCTeMbI.

PpIIOXeHn. OTo6paKeHne cInska n36paHHbIX npIIOXeHn nn nepeXoD B ceHTp npIIOXeHn.

HACTPOINTb KAHAJbl. I6abHeHne KaHaoB Ha rnaBHy 3KpaH nn ux ydaJeHne C Hero.

PpumeyaHue.

1)Функцu u codepkuumoe «Глвноусmpaunu» Moaym omluuambcra dna pa3hbyx cmpan unu MODEneu.
2) Ipeed uonb3oaeHem cemebix fynkuu Ha 2naeHou cmpaHue, makux kak cemeeble npunoKeHua m. d., Heo6xodumo nooknIOUumb meeeu3Op Kcemu.
3) Aemopckue npaa Ha uKoHku npuHaDnEkam nocmaaukam npuIooHeu.

OTo6paKeHne 3kpHa [CooTHoWeHne cToPOH]

CneyuIte HnctpyKUIMdIyBb6opapeKIma.

[4:3] / [16:9] / ABTO / NcXoIH.

PacunpeHHbIe HacTpoKn.

LBeTobaa TempepaTypa. BbIbepuTe «Hopm.», «Tenblu», «XoJOnHbIu».

PexHMDI K/AV.ABTO

Ponck KaHaoB. PONCK BCEx DOCTyINbIX aHaIOrOBbIX n CnΦpoBbIX KaHaJIoB.

Hacptponka unpoBoro kaHaJa.

I03BOJnREt N3MeHnTBnapaMeTpbl《HacTpoiKa cy6TuTPOB》，《HAcTpoiKa TeTeKeCTa》，《HAcTpoiKa ayDIO，《CI PIIOC》，《LCN》，《ABTomatueckoe 0bOBHeHne cnyk6》，《ObHOJIeHne cKaHIpOBaHnra

3NT.

Hakmnte OKI>ДЯпесда В MeHIO «Поррамma Teelenepedau».

U36paHHoe.

HactpoKa cnpca n36paHHbIX kaHaJIOB.

ДиагнoctиKaHaJa.

Haxmnte OK/Длго OTobpaKeHЯ INФopMaци O cnHaJIe TeKyuIero UnpoBOrO KaHaJa, TAKO KaM MOUHOCTb CNHaHa, YactOTa n np.

Oprahau3ep kaHaIOB.

I03BONrER opraHn3OBAt b KaHaNbl.

Cnctema

HactpoKn HDMl CEC.

UnpaBHeHne CEC. BbI6epnte 已 BKn.> nnn 已 BbIKn.> ABToMaTnueckoe BbIKIOueHne ycTeoCTBa. BbI6epnte 已 BKn.> nnn 已 BbIKn.>

ABTomatnueckoe BkIIOUeHne TeJeBn3Opa. BbI6epnte 《BKn.》nnn《BbIKJ.》.

Cnncok yctpoiCTB CEC. BkIIOHTe ycTPOiCTBO N Bbl6epnte [BkIIOHTb] nra akTnBaun ynpabNeHna ycTpoiCTbAmn HDMI.

ΦopMaT cHrHa HDMI. Bb6epTe «BKn.» nJIn «BbKn.»

TaimepOTKIOUChEN. BbI6epnte 15 MNH.》，《30MnH.》，《45MNH.》，《60MNH.》，《90MNH.》，《120MNH.》NJN《BbIKJ.》

IpepxoT B B pexm oXnDaHn. Bb6epnte OINN 3 DOCTyINhIX BapnaHTOB: «Yepe3 1 vac 6e3dienCTBnR», «Yepe3 2 yaca 6e3dienCTBnR», «Yepe3 4 yaca 6e3dienCTBnR», «Yepe3 24 yaca 6e3dienCTBnR» nnn «BbIKI.

Pa3meueHne TB. BbI6epuTe «HaCToJIbHbI» nII N «HaCTeHHbI»

Cpea.Bb6epnte «Iom» nnn «MaraznH.

Pekm dma mara3nHOB. BbI6epnte E-Sticker. HactpoiKn.

1.Блokирвka.HaЖMuTe,чTo6bI 3a6NoKIpOBaTb TeJIeBu3Op.
2.Питане.ВкночипЕ ИИ NвБКЛЧОТЕ «Пpo6уждене NO cETN»И «CTeBOI peKIM OxNiДаHЯ»
3. XpaHnIInuIe 3aIncIe. YcTaHOBuTe yCTpOiCtBO XpaHeHnI dIy 3aIncN Ha Hero.
4. YBeDOMJIeHnE o KOHΦnIeHcuaJIbHOCTn: INΦopMauŋaOB yBeDOMJIeHnO KOHΦnIeHcuaJIbHOCTn.

5.ПиценяпОсИК.NHфорmaцЯ OлцeнHa nporpaMMHoe obecneueHne c OTKpbITbIM NcXoHbIM KOdom.

Bxod

HaXMMTe a 3aTeM C NOMOuBHO KHOJOK ▲/▼ BbI6epHTe Heo6xOuMbI INCTOuyHk I HaXMMTe OK IJIЯ NOITBepKdEHH.

Hactpoikka kaHaIOB (ATB)N KABENb

Hactpoika ananorobbix kanaonB. Bby6epnte «ATB» I noTBePnTe.

• ABTomatuecka Hactpoika aHaIorOBbIX KaHaIIOB. HaxMnte OKДЯЗуcka abTomatueckoro noncka.ПONCKMOKET3aHrtb HeCKOJIbKO MNHyT.
  -PyuHaHaHacTpoKa aHaIorOBbIX KaHaIIOB. HaxMnte OK nIpeXoDa b INTepeic.

C nOMOJIbIO KHOJOK A/V NaCTpoIe nporpaMMy, cnCTeMy TB nIN ZBeTOBvIO CnCTeMy, a 3aTeM C nOMOJIbIO KHOJOK A/V BbIbepNTe YacTOTy N HaxMMTe OK drr noncka KaHana.

• HactpoikKa TeIeTeKcTa. HaXMMte OK n c nomoubIO KHOIOK ▲/▼ Bbl6epnte Heo6xOIMMbI TeJIeTEKCT.

HacpoKa Ka6eBbHbIX cHpPoBbIX KaHaIOB.

Bb6epnte KabeIb I npoTBePnTe.

ABTomatnuecka Hactpoika. Haxmte OK nla 3anycka aBtOMaTnueckoro noncka. NOnCK MoKet 3aHrTB HeCKoNbKO MNHyT. Bo BpeM npOcecca moXHO HAKaTb KHONkY BA66paTb «DA» nla BbIXOda.

Pyhna Hactpoika. BbIbepnte Homep kaHana n 3anyCTnte cKaHnpObaHne.

LCN (JIoInueckn Homep kaHaJa). BbIbepeTe «BKn.» IJIIN «BbIKI.»

ABTomatuueckoe 6OBHbneHn cnyk6.BbIbepnte «BKn.» nnn «BbIKn.»

Hac tropon TeJeBn3opa

HaKMITE 3aTEM C NOMOJIbIO KHOJOK ▲/▼ BbI6epTe Heo6xOIMbIe HAcTpoiKn I HaKMITE OK IIN IOITBePjXDeHn.

Hactpoikn

ObuHe HacTroKn

Cetb INHTepHET

Cetbeoe nodknquhen 0ctcyTcTbye

AkkayHbI IN BXOD BCnCTeMy

AkkayHTbI OTCyTCTByOT

PpIIOxKeHn

HactpoKu yctpoNCTBa

NtBtIy npHaDnExHocTIn

06uHacrpoKn.

Cetb n HHTepHET. IOnKJIIOUHTbcra K Cetn.

CM.BCE

Dpyrne onu

IobabntbHOByoCeTb

CkaHnpOBaHne BcERda DocTyHNO

Pa3peuHt bclyKbe onpeJeHnM MeCToNOJIOXeHn

Google n npyrrn npinnoxhenm cKaHnpoBaT bcTn daKe npn BbIKJIOueHHom Wi-Fi.

Ethernet

Ethernet

IopdknIOueHo

Iapametpbipnpkcn-cepBepa.IpOKCN-cepBep, noDepKnaUoHHTP, nCnoB3yETc

6pay3epom, HO MOKET He NcnoJIb3OBaTbcra DpyrMM npNJIOKeHHaMn.

Hacpoikn IP. IcnojIb3ObaTb DHCP nn CTaTnU

AkkayHTbI IN BXOD B CnCTeMy. BxOJ B aKKayHTbl. PpInIOXeHHa.

CM.BCE npNJIOXeHn

Pa3peSeHn npJIOXeHn

Docyn K cneuaJIbHbIM npNJIOXKeHHaM

Be30nacHocbN orpaHnueHnra

HactpoKn ycTpoNCTBa

Cbehen

Data n Bpema

3bIK

KtabnAtypa

I3o6paXeHne n 3Byk

XpaHnJnIe

TlaBbIy 3KpaH

Google AccnteHT

BctpoeHHa TExHOJIOTnia Chromecast

3acTaBka

3KoHOMNn 3HePtnN

MecToOnoJoxeHne

IcnoIb3OBAHnue nDnaIarHOCTnKa

OCTyINHOCTb

Npeesarpy3ka

CbeHn. HOpmaun O daHHOM TeJeBn3ope.

Data n BpeMn. HactpoNkA daTbI n BpeMeHn.

3bIK. Bb6op 3bka.

KnaBnatya. BbI6op n HacTpoNka KlaBnAtpybl.

1306paXeHne n 3Byk. HacTpoKa n3o6paXeHnra n 3Byka.

XpaHnIiue. IpoBepKa yCTpOJcTbXpaHeHnJaHHbIX.

TnaBbI 3KpaH. HAcToPka KaHaJIOB, n3MeHeHne npAka npIIOKeHn I NJIeH3nn Ha npOprpAMMHOe o6ecneueHne C OTKpbITbIM KOdOM.

Google AccnCTeHT. NcNoJIb3OBAHne Google AccnCTeHTa. BcTpoEHHaay TexHOJorry Chromecast NcNoJIb3OBAHne BcTpoEHHOy TexHOJorry Chromecas

3acTaBka. BbI6oppeXIMMa 3actaBkn.

3KoHOMn 3Heprn. OTKIIOueHne 3KpaHa.

MectonoJoxeHne. OueHka MeCToNIOJoxeHnA.

McnoIb3OBAHnE n dnaIarHOCTnka. ABTomATnueckaOTnpaBkDa nIarHOCTnueCKo INHΦOpMaun B

Google, TAKO KAK OTUETBI O C60X IN DAHHBIE 06 INCNOJb3OBAHNN yCTPOINCTBA, INPINOJOKeHIN IN BCTPOEHHOI TexHONORIN Chromecast.

OoctynHOCTb.

Cy6TuTpbI

BbICOKOKoHTpaTHbI TEKCT

(3KcnepemuMeHTaibHbH)

TeKCTBpeyb

Apnbik dnn doctyna

Cnyx6bl

TalkBack

BbIKn.

BbipTaB n IONTBepdntb

BbIKn.

MeHeJKePcBnCoVB

Bkn.

Npe3arpy3ka. Npe3arpy3ka TeIeBu3opa.

NylbIy n npHaJneKHOCTN

K noncky npnHaJnxHocTei...

(Перед сорожене Bluetooth-усточн HeobxODIMO nepeBecTu IN B pexm coprajkeHnA)

Исpenьзованке mednappongpbivatela

MeHnAnPOnrPbIBaTeNbNo3BOJareTnpOcMaTpNBaTbΦOTorpaΦn，CnyuA Tb My3bIKy NIN BOCnPOn3BOJNTbBnDeo3anncn C USB-HakonnteJ.

• N3o6paXeHHe MoXeT OTo6paXaTaBcHa TaTeNeBu3OpE HeKOppeKTHO B 3aBnCmOcTN O T nCNoJIb3OBAHHo UΦpOBo KaMepbl.
  -Дя OTO6paKeHЯ MoKeT NOTppe6oBaTbcr HeKOTOpoe BpEMaB 3aBnCmOcTN OT KOInueCTBa φaIIOB n nanok Ha USB-hakOnnteJe.
  YactuHNOBpeKdEHHbIe paJIbIMORYT BOCPON3BOIDtbcraMeHbUeHHbIMpa3peUeHHeM.
• Μηηα ΦαηνΟβ Απακ Μγτ έρλιγαΤΑΚΑθεγιδει 3aBικιμοςι Θι ΙΝΙΟβιδιδούθου ΚινφροΒΟι ΚαΜερβι.

IynbT dNCTaHcNoHHoro ynpabNeHn He pa6oTaET nI npa6oTaET c nepe6oMaM.

BamHeTe 6aTapeuKu (cTp.10).

→ HanpaBbTe npblT dNCTaHcNOHHoro ynpabHeHn HEnocpeDCTBeHHo Ha npneMHNK cHHaIa (B npdeJax 7 m n yrna 30 rpaYcoB).
PacnoonKeTe TeneBn3Op BdAnOT CoNHeuHOro CBeta ININ 3a6loKnpyTe NCTOChNK npKOro CBeta, HappaBHeHbIe Ha npneMHK CnHaJa nYJbTa DInCTaHcNOHHOrO ynpaBNeHn.

Tae Tne TeJeBn3opa HArpeBaHOTcA.

B cnyae noBbIeHnA TemnepaTpybI qacteI TeJeBn3Opa, TaKx KaNpeDnA, BepXnA, IN 3aHnA nHeJIn, 3TO He npBedeT K npo6nemam B qactn pOn3BOIDTeJIbHOCTu IN N KaueCTBa.

PanaHb TeneBn3opa Cierka Cdbnaetc npn HadaBnBaHH naIbem.

Moxet 6bItb cIbIeH noctopOHn IyM.

Nopepnmetpy naHeI npEdyCMOTpeHa HeKOTopar n6KoCTb Inn ppeOToBpaUeHn NOBpeXdEHNr. 3TO He YBnreTc HncnPpABHO.

OTo6paXaetc coo6eHne o6 owN6ke, CB3aHHo c nepeRpy3KoN no TOky.

Ta OwN6ka MoKeT 6bItb Bbl3BaHa NOKIOUeHHbIM USB-ycTpOINCTBOM. N3BNEKInTe yCTpOINCTBO, BIKIOUHTe TeIeBN3Op C NOMIoBb0 BIKIOUaTeIaNTAHIA . / . , a 3aTeM CHOBA BKIOUHTe erO.
Y6eINTecb BOTcyTCTBHNIOCTOpOHnX npeIMTOB BnopTe USB.

06cnyxmbaHne

PpeBapnteBHO n3BJIeKNTe wTeNCeBHyIO BnKy n3 cTeBOI po3ETKn.

Perynnyhynyxo

• AkkypaTHO npOTpuTe NOBepxHocTn 3KpaHa, KOpnyca H NOCTaBKn MRAKO TKAHbIO.
• Perynnapno npotnpaite wTeNceBHyIO BUNky cyxon TkaHbIO. Bnara n nbIb Moryt cTaT npuHoi NoXapa nn npopaxeHna 3JNeKTpueckm TOKOM.

Pn cnilbHom 3arpa3HeHH

Chauana OunchTe Nblc NOBepxHocTn. CMOHTe MraKyIO TKAHB BOIO pa3BeDeHHbIM HeITpAlbHbIM MOOUMCpeDCTBOM (1 cactb Ha 100 cacte BODbl). XopoIo OTOXMMte TKAHB n npOTpTe NOBepxHocTb. I hakoHeu, COtpTE BCIO Bnary.

BHHMaHHe

He nCnoB3yIe JKeCTkyIO TkaHb I He TpNTe NOBepxHOCTb CnIIuKOM CnJIbHO. 3TO MOXeT npINBeCTN K IOBJIeHNIO capaNNH Ha NOBepxHOCTN.
He noBepraTe NOBepxHocTn TeJeBn3opa BO3eNCTBnIO BObI INM MOUeRO cpeDCTBa. IOnaDaHne KJNDKoCTn BHyTpB TeJeBn3Opa MoKeT npVBecTn Kero HeNCnPpABHOcTn.
He onyckaTe KOHTaTaNOBepxHocTei TeIeBn3opa Co CpeCTBaMn IpOTnB HaceKOMbIX, paCTbOpNTeYMaN IN DpyTmN JeTyHMN BeIeCTBaMn. 3To MoKeT NcNOPrTb NOBepxHocTb IIN pINBeCTN KOTcNoEHHIO KpaKn.
C NOBepxHocTbIO 3KpaHa CneJeYeT o6XoDnTbcra OcObeHNO OCTOpOJHO, NocKoJIbKy ee JERKO NOBpeIITb. He cTyUHe No NOBepxHocTn H He UapanaTe ee HOrTaMn I DpyrIMN TBepDbIMN PpeDMetAMn.
He donyckaTe dntteJbHoro KOHTaTaNOBepxHOCTn TeJIeBn3Opa n NOCTaBKn C pe3nHOINII NBX-cOePkaUMM BeueCTBaMn. 3TO MOKeTNCNOPITb NOBepxHOCTb.

Texhnueckne xapaktepncnkn

MoBn

24-IOHMOBAMoIeIb

TX-24LSW504 TX-24LSW504S

32-Диюмовая морель

TX-32LSW504 TX-32LSW504S

43-IOHMOBAMoIb

TX-43LSW504 TX-43LSW504S

Ta6apntbI (UxxBxΓ)

24-IOHMOBAMoIb

CoOTBeTCTBnE cTaHApTaM n DnAna3OH YactOT

IEEE 802.11 a/b/g/n/ac
