USER MANUAL GLT1343SP Uniflame

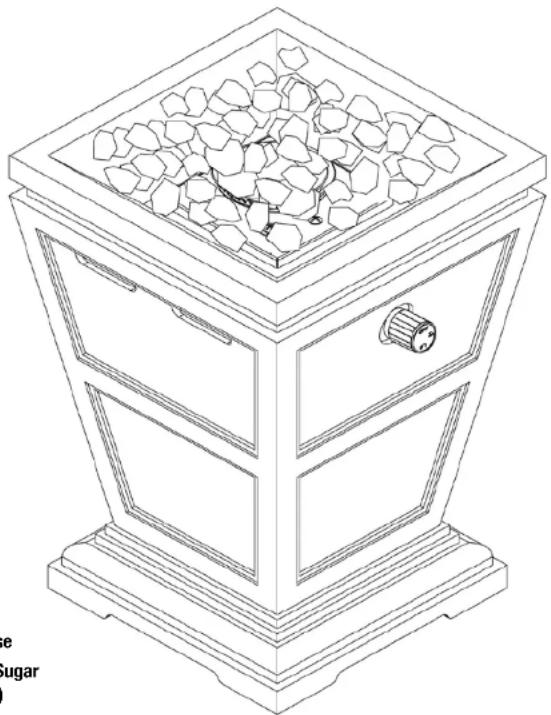

LP Gas Outdoor Fire Bowl

Model No. GLT1343SP

DANGER

CARBON MONOXIDE HAZARD

• This appliance can produce carbon monoxide which has no odor.
  • Using it in an enclosed space can kill you.
• Never use this appliance in an enclosed space such as a camper, tent, car or home.

WARNING

FOR YOUR SAFETY:

For Outdoor Use Only (outside any enclosure) Do Not Use For Cooking.

WARNING

FOR YOUR SAFETY:

If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

WHAT TO DO IF YOU SMELL GAS:

• Do not try lighting any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone.
• Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.

▲ Installation and service must be performed by a qualified installer, service agency or gas supplier.

▲ Save these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her to read and save for future reference.

WARNING

FOR YOUR SAFETY:

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
▲ Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment.

DANGER

If you smell gas -

1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

WARNING

FOR YOUR SAFETY:

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

DANGER

Do not leave this appliance unattended while it is in operation.

Made from 75% Bagasse

(Environmentally Friendly Sugar Cane Pulp By-product)

Line drawing of a box with granular contents and a handle, no text or symbols present

Table of Contents

Dangers and Warnings Page 2

Exploded View 3

Assembly Instructions.... 4

Installing LP Gas Tank. 4

Connect LP Gas Tank. 4

Disconnect LP Gas Tank. 4

Operating Instructions. 5

Lighting....5

Turning Off 5

Cleaning and Care 5

Inspecting 5

Cleaning 5

Storing 5

Product Registration 5

Replacement Parts 5

Limited Warranty 6

Troubleshooting 7

The use and installation of this product must conform to local codes. In absence of local codes, use the latest edition of the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or International Fuel Gas Code. This appliance, when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes with the National Electrical Code, ANSI/NFPA 70, if applicable.

For installation in Canada - these instructions, while generally acceptable, do not necessarily comply with the Canadian installation codes, particularly with piping above and below ground. In Canada the installation of this appliance must comply with local codes and/or standard CAN/CGA B149.1 (installation code for propane burning appliances and equipment).

California Proposition 65: Chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm are created by the combustion of propane.

DANGERS and WARNINGS: FOR YOUR SAFETY

DANGER: Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.

▲WARNING:

This appliance is for outdoor use only, and shall NOT be used in a building, garage or any other enclosed area.

Do NOT operate, light or use this appliance within ten (10) feet (3.05 m) of walls, structures or buildings.
▲Do NOT use this outdoor fireplace for indoor heating. TOXIC carbon monoxide fumes can accumulate and cause asphyxiation.
▲ For residential use only. This outdoor fireplace is NOT for commercial use.
This outdoor fireplace is safety certified for use in the United States and/or Canada only. Do not modify for use in any other location. Modification will result in a safety hazard.
Apartment Dwellers: Check with management to learn the requirements and fire codes for using an LP gas outdoor fireplace in your apartment complex. If allowed, use outside on the ground floor with a ten (10) foot (3.05 m) clearance from any structure. Do not use on or under balconies.
This outdoor fireplace is for use with liquid propane (LP) gas only. The conversion to or attempted use of natural gas in this outdoor fireplace is dangerous and will void your warranty.

▲LP gas characteristics:

a. LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics before using any LP gas product.
b. LP gas is explosive under pressure, heavier than air, and settles and pools in low areas.
c. LP gas in its natural state has no odor. For your safety, an odorant is added that smells like rotten cabbage.
d. Contact with LP gas can cause freeze burns to skin.

▲LP gas tank needed to operate. Only tanks marked "propane" may be used.

a. The LP gas supply tank must be constructed and marked in accordance with the Specifications for LP gas tanks of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339, LP gas tanks, Spheres and Tubes for the Transportation of Dangerous Goods; and Commission.
b. LP gas tank must be arranged for vapor withdrawal.
c. The LP gas tank must have a tank collar to protect the tank valve.
d. Dented or rusted LP gas tanks may be hazardous and should be checked by your LP gas supplier prior to use.
e. The LP gas tank should not be dropped or handled roughly.
f. Tanks must be stored outdoors out of the reach of children and must not be stored in a building, garage, or any other enclosed area. Your LP gas tank must never be stored where temperatures can reach over 125^ F.
g. Do not insert any tool or foreign object into the valve outlet or safety relief valve. You may damage the valve and cause a leak. Leaking propane may result in explosion, fire, severe personal injury or death.
h. Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the gas pressure to increase, which may open the relief valve and allow gas to escape.
i. Place dust cap on valve outlet whenever the LP gas tank is not in use. Only install the type of dust cap on the LP gas tank valve outlet that is provided with the LP gas tank valve. Other types of caps or plugs may result in leakage of propane.
j. Do not store a spare LP gas tank under or near this appliance.

▲Your outdoor fireplace has been checked at all factory connections for leaks. Recheck all connections as described in the "Operating Instructions" section of this manual, as movement in shipping can loosen connections.

A Check for leaks even if your unit was assembled for you by someone else.

Do not operate if gas leak is present. Gas leaks may cause a fire or explosion.

▲You must follow all leak-checking procedures before operating. To prevent fire or explosion hazard when testing for a leak:

a. Always perform leak test before lighting the outdoor fire bowl and each time the tank is connected for use.
b. No smoking. Do not use or permit sources of ignition in the area while conducting a leak test.
c. Conduct the leak test outdoors in a well-ventilated area.
d. Do not use matches, lighters, or a flame to check for leaks.
e. Do not use outdoor fire bowl until any and all leaks are corrected. If you are unable to stop a leak, disconnect the LP gas supply. Call a gas appliance serviceman or your local LP gas supplier.

Do not store or use gasoline or other flammable liquids or vapors within 25 feet (7.62 m) of this appliance.

▲Do not use in an explosive atmosphere. Keep outdoor fire bowl area clear and free from combustible materials, gasoline and other flammable vapors and liquids.

▲This outdoor fire bowl is NOT to be operated by children.

This outdoor fire bowl is NOT to be used in or on boats or recreational vehicles.

▲Do NOT connect to a remote gas supply.

▲ Always use in accordance with all applicable local, state and national codes. Contact your local fire department for details on outdoor burning.
When using this outdoor fire bowl, exercise the same precautions you would with any open fire.
▲ Never attempt to attach this outdoor fireplace to the self-contained LP gas system of a camper trailer, motor home or house.
The use of alcohol, prescription or non-prescription drugs may impair the consumer's ability to properly assemble or safely operate this outdoor fire bowl.
Do NOT use this outdoor fire bowl without reading the entire "Owner's Manual."

▲Do NOT burn solid fuels such as: wood, charcoal briquets, lump charcoal, manufactured logs, driftwood, trash, leaves, paper, cardboard, plywood, painted or stained or pressure treated wood in this outdoor fire bowl.

▲It is essential to keep the outdoor fire bowl's valve compartment, burners, and circulating air passages clean. Inspect outdoor fire bowl before each use.

▲Do NOT alter this outdoor fire bowl in any manner.

A Do NOT use this outdoor fire bowl until it is COMPLETELY assembled and all parts are securely fastened and tightened.
Do NOT store another LP gas LP gas tank within 10 feet (3.05 m) of this outdoor fire bowl while it is in operation.
A Do NOT use this outdoor fire bowl near automobiles, trucks, vans or recreational vehicles.

Do NOT use this outdoor fire bowl under any overhang or near any unprotected combustible constructions. Avoid using near or under overhanging trees and shrubs.

▲Always use this outdoor fire bowl on a hard, level non-combustible surface such a concrete, rock or stone. An asphalt or blacktop surface may not be acceptable for this purpose.

▲Do NOT use this outdoor fire bowl for cooking.

Do NOT use this outdoor fire bowl if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part or control system and any gas control which has been under water.
A Do NOT wear flammable or loose clothing when operating this outdoor fire bowl.

▲ Clothing or other flammable materials should not be hung from the appliance, or placed on or near the appliance.

▲Do NOT use in windy conditions.

Do NOT use this outdoor fire bowl unless burner is securely in place.
▲Keep all electrical cords away from a hot outdoor fire bowl.
▲ Certain areas of this outdoor fireplace when in use will become too hot to touch. To avoid burns, do not touch hot surfaces until the unit has cooled (about 45 minutes) unless you are wearing protective gear (insulated pot holder or heat resistant gloves or mittens).
▲Do NOT leave a lit outdoor fire bowl unattended, especially around children and pets.
Do NOT attempt to move, change LP gas tank, or store this outdoor fire bowl until all parts are cool.
▲ Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition.
▲ Young children should be carefully supervised when they are in the area of the appliance.
▲ Clothing or other flammable materials should not be hung from the appliance or placed on or near the appliance.
▲ Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the appliance.
▲ Do NOT lean over this outdoor fire bowl when lighting or when in use.
This outdoor fire bowl should be thoroughly cleaned and inspected on a regular basis. Clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts, or leaks, the hose must be replaced prior to the appliance being put into operation.
▲Use only the regulator and hose assembly provided. The replacement regulator and hose assembly shall be that specified by the manufacturer.
▲ Use only Blue Rhino Global Sourcing, Inc. factory authorized parts. The use of any part that is NOT factory authorized can be dangerous and will void your warranty.
▲ Storage of this outdoor fire bowl indoors is permissible only if the tank is disconnected, removed from the outdoor fire bowl and properly stored outdoors.
Do not attempt to disconnect the gas regulator from the tank or any gas fitting while the outdoor fire bowl is in use.
▲ If the outdoor fire bowl is not in use, the gas must be turned off at the supply tank.
▲ The pressure regulator is set for 11 inches of water column (pressure).
The maximum inlet gas pressure for this outdoor fire bowl is 11 inches of water column pressure.
▲Do not throw anything onto the fire when the unit is in operation.
▲ Fire logs, lava rock and fire glass are very hot, keep the children or pets away at a safe distance.
▲Use protective gloves when assembling this product.
Do not force parts together as this can result in personal injury or damage of product.
▲Do NOT store any combustible materials in the base.
▲ Deaths, serious injury or damage to property may occur if the above is not followed exactly.

Glass Rock 58-23-089

Burner* 58-23-090

Burner Shield* 58-23-091

Venturi Tube* 58-23-092

Heat Shield* 58-23-094

Burner Bracket* 58-23-095

Body* 58-23-103

Valve/Regulator* 58-23-104

Control Knob* 58-23-098

Foot (4)* 58-23-101

* Pre-assembled

Assembly Instructions

1

DO NOT RETURN PRODUCT TO STORE.

For assistance call 1.800.762.1142 toll free. Please have your owner's manual and model number available for reference.

For Easiest Assembly:

• To avoid losing any small components or hardware, assemble your product on a level surface that does not have cracks or openings.
• Clear an area large enough to layout all components and hardware and that is soft so as to not scratch or damage any surface finishes.
• When applicable, tighten all hardware connections by hand first. Once the step is completed go back and fully tighten all hardware while being cautious not to over tighten to avoid damaging surfaces or stripping hardware.
• Follow all steps in order to properly assemble your product.

To complete assembly you will need:

• (1) Leak Detection Solution (Instructions on how to make solution are included in “Operating Instructions” section)
• (1) 16.4 oz LP gas tank.

Typical assembly: approximately 5 minutes.

2

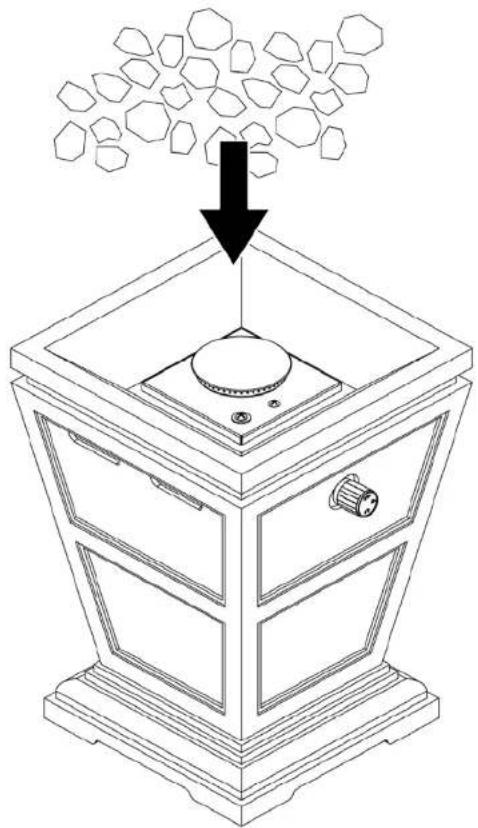

Insert Glass Rocks

Line drawing of a box with a lid and arrow indicating downward motion, surrounded by hexagonal patterns (no text or symbols)

Installing LP Gas Tank

This fireplace is designed to operate with a one pound 16.4 oz. disposable propane gas tank (DOT 39 Cylinder). DO NOT ATTEMPT TO REFILL ANY ONE POUND (16.4 oz.) PROPANE GAS TANKS!

Connect LP Gas Tank

Only cylinders marked "propane" may be used.

Note: Some 1-lb cylinders may form frost when near empty.

1. Make sure the control knob is in the "OFF 🔊" position. (Figure 6)
2. Lubricate the threads of the regulator with petroleum jelly.
3. Remove door and insert LP gas tank. (Figure 1)
4. Rotate LP gas tank clockwise until they fit snugly together. HAND TIGHTEN ONLY. Be careful not to cross threads when screwing in canister. (Figure 2)
5. Test for leaks. See "Checking for Leaks" section.

Figure 1

Figure 2

Disconnect LP Gas Tank

1. Turn the control knob to the "OFF" position. (Figure 2)
2. Remove door. (Figure 3)
3. Rotate LP gas tank counterclockwise until it is loose. (Figure 4)
4. Remove LP gas tank. (Figure 3)
5. Store the LP gas tank in a proper location, per LP gas tank instructions.

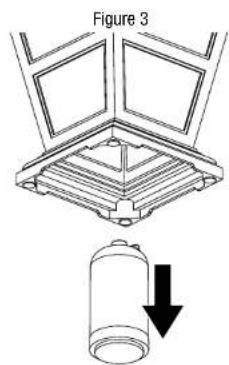

Figure 3

Figure 4 ↓

Operating Instructions

Checking for Leaks

▲WARNING: Before using this outdoor fire bowl, make sure you have read, understand and are following all information provided in the Dangers and Warnings presented on page 2. Failure to follow those instructions can cause death, serious injury or property damage.

Burner Connections

1. Make sure the regulator valve and hose connections are securely fastened to the burner and the tank. Note: If your unit was assembled for you, visually check the connection between the burner pipe and orifice. Make sure the burner pipe fits over the orifice.

▲WARNING: Failure to inspect this connection or follow these instructions could cause a fire or an explosion which can cause death, serious bodily injury, or damage to property.

1. Please refer to diagram for proper installation.
2. If the burner pipe does not rest flush to the orifice, please contact 1.800.762.1142 for assistance.

Tank/Gas Line Connection

1. Make 2-3 oz. of leak solution by mixing one part liquid dishwashing soap with three parts water.
2. Make sure control knob is "OFF △." (Figure 6)
3. Connect LP gas tank per "Connect LP Gas Tank" instructions.
4. Spoon several drops of solution, or use squirt bottle, at all "X" locations (Figure 5).

a. If any bubbles appear remove the LP gas tank and reconnect, making sure the connection is secure.
b. If you continue to see bubbles after several attempts, remove the LP gas tank per "Disconnect LP Gas Tank" instructions, and contact 1.800.762.1142 for assistance.
c. If no bubbles appear after one minute, wipe away solution and proceed.

Lighting Instructions

▲CAUTION: Keep outdoor fire bowl area clear and free from combustible materials, gasoline and other flammable vapors and liquids. ▲CAUTION: Do not obstruct the flow of combustion and ventilation air.

1. Make sure all labels, packaging and protective films have been removed from the grill.
2. Make sure there are no obstructions of airflow to the gas unit. Spiders and insects can nest within and clog the burner / venturi tube at the orifice.
3. Connect LP gas tank per "Connect LP Gas Tank" instructions.
4. The control knob must be in the "OFF" position (Figure 6).
5. Wearing Heat resistant gloves, position the lit long match or lit long butane lighter near the side of the burner. (Figure 7)
6. Turn control knob counterclockwise to ⬆ (HIGH).
7. Remove long match/long butane lighter.
8. Turn the control knob to ⬆ (HIGH).
9. If ignition does not occur in 5 seconds, turn regulator/control knob to "OFF" position, wait 5 minutes and repeat lighting procedure.
10. After lighting, observe the burner flame. Make sure all burner ports are lit and flame height matches illustration (Figure 8).

CAUTION: If burner flame goes out during operation, immediately turn the gas "OFF" and let the gas clear for about 5 minutes before re-lighting.

Turning Off

1. Turn control knob to the "OFF" position (Figure 6).
2. Disconnect LP gas tank per "Disconnect LP Gas Tank" instructions and properly store tank.

Figure 5 X

Figure 6 OFF ARRET

Diagram of a square container with internal spherical structures and a small protrusion, labeled 'Figure 7' (no text or symbols on the diagram itself)

Figure 8 1 in - 10 in 2.5 cm - 25.4 cm

Cleaning and Care

CAUTION:

1. All cleaning and maintenance should be done when outdoor fire bowl is completely cool and with the LP gas tank disconnected.
2. DO NOT clean any outdoor fire bowl part in a self cleaning oven. The extreme heat will damage the finish.

Notices

1. Abrasive cleaners will damage this product.
2. Never use oven cleaner to clean any part of outdoor fire bowl.

Before Each Use:

1. Keep the outdoor fireplace area clean and free from any combustible materials, gasoline, and other flammable vapors and liquids.
2. Do not obstruct the flow of the combustion of LP and the ventilation air.
3. Keep the ventilation opening(s) of the LP gas tank area free and clear from debris.
4. Visually check the burner flames to make sure your outdoor fireplace is working properly.
5. See sections below for proper cleaning instructions.
6. Check all gas connections for leaks.
7. Check components for any signs of damage or rust.
8. Check and clean the burner/venturi tubes for insects and insect nests. A clogged tube can lead to a fire beneath the outdoor fireplace.
9. If damage to any component is detected, do NOT operate until repairs are executed.

Cleaning Surfaces

1. Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water.
2. For stubborn surfaces use a citrus based degreaser and a nylon scrubbing brush.
3. Rinse clean with water.
4. Allow to air dry.

Before Storing

1. Turn control knob to (OFF) and remove LP gas tank, per "Disconnect LP Gas Tank" instructions. Wait for outdoor fireplace to fully cool (about 45 min.).
2. Clean all surfaces.
3. If storing the outdoor fireplace indoors, disconnect the LP tank (see "Disconnect LP Gas Tank" section) and leave the LP gas tank OUTDOORS.
4. Place the protective cap cover on the LP tank and store the tank outdoors in a well ventilated area out of direct sunlight.
5. Cover outdoor fireplace with a durable vinyl cover designed to fit this unit.
6. If storing the outdoor fireplace outdoors, cover the outdoor fireplace with a cover for protection from the weather.

Product Registration

For faster warranty service, register your product immediately at www.BlueRhino.com or call 1.800.762.1142.

Replacement Parts

Replacement parts can be found at parts.BlueRhino.com or call 1.800.762.1142.

Limited Warranty

Blue Rhino Global Sourcing, Inc ("Vendor") warrants to the original retail purchaser of this product, and to no other person, that if this product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in such product shall be free from defects in material and workmanship. Vendor may require reasonable proof of your date of purchase. Therefore, you should retain your sales slip or invoice. This Limited Warranty shall be limited to the repair or replacement of parts, which prove defective under normal use and service and which Vendor shall determine in its reasonable discretion upon examination to be defective. Before returning any parts, you should contact Vendor's Customer Service Department using the contact information listed below. If Vendor confirms, after examination, a defect covered by this Limited Warranty in any returned part, and if Vendor approves the claim, Vendor will replace such defective part without charge. If you return defective parts, transportation charges must be prepaid by you. Vendor will return replacement parts to the original retail purchaser, freight or postage prepaid.

This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, improper installation or improper maintenance or service by you or any third party, or failure to perform normal and routine maintenance on the product as set out in this owner's manual. In addition, the Limited Warranty does not cover damage to the finish, such as scratches, dents, discoloration, rust or other weather damage, after purchase.

This Limited Warranty is in lieu of all other express warranties. Vendor disclaims all warranties for products that are purchased from sellers other than authorized retailers or distributors, including the warranty of merchantability or the warranty of fitness for a particular purpose. VENDOR ALSO DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. VENDOR SHALL HAVE NO LIABILITY TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Vendor further disclaims any implied or express warranty of, and assumes no responsibility for, defects in workmanship caused by third parties.

This Limited Warranty gives the purchaser specific legal rights; a purchaser may have other rights depending upon where he or she lives. Some jurisdictions do not allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how long a warranty lasts, so the above exclusion and limitations may not apply to everyone.

Vendor does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and no such representations are binding on Vendor.

Blue Rhino Global Sourcing, Inc Winston-Salem, North Carolina USA [phone]

Troubleshooting

Problem Possible Cause Prevention/Cure
Burner will not light with match	No gas flow	Check if LP gas tank is emptyA. If empty, replaceB. If LP gas tank is not empty, refer to “Sudden drop in gas flow or reduced flame height”
	LP gas tank is low or empty Replace LP gas tank
	LP gas leak Follow “Checking for Leaks” instructions in the owner’s manual
	Coupling nut and regulator not fully connected	Turning the coupling nut about one-half to three quarters additional turn until solid stop.Tighten by hand only-do not use tools.
	Obstruction of gas flow Clear burner tubes, per cleaning instruction on www.BlueRhino.com
	Spider webs or insect nest in venturi Clean venturi and burner tube, per cleaning instruction on www.BlueRhino.com
	Burner ports clogged or blocked Clean burner ports, per cleaning instruction on www.BlueRhino.com
Sudden drop in gas flow or reduced flame height	Out of gas Replace LP gas tank
	Excess flow valve tripped; safety device may have been activated	1. Turn control knob to “OFF”2. Wait 30 seconds and light grill3. If flames are still too low, reset the excessive flow safety device:a. Turn control knob “OFF”b. Remove LP gas tankc. Wait 1 minuted. Attach LP gas tanke. Perform a leak check per “Checking for Leaks” instructions in the owner’s manualf. Light grill per “Lighting Instructions” instructions in the owner’s manual
Irregular flame pattern, flame does not run the full length of burner	Burner ports are clogged or blocked Clean burner ports, per cleaning instruction on www.BlueRhino.com
Flame blow out	High or gusting winds Do not use grill in high winds
	Low on LP gas Replace LP gas tank
	Excess flow valve tripped; safety device may have been activated	Refer to “Sudden drop in gas flow or reduced flame height”
Flame seems to lose heat when burning in cold weather - temperature below 50°F	Ice has built up on the outside of the LP gas tank because the vaporization process is too slow.	1. Turn control knob to “OFF”2. Remove LP gas tank per “Disconnect LP Gas Tank” instructions3. Attach LP gas tank per “Connect LP Gas Tank” instructions4. Perform a leak check per “Checking for Leaks” instructions5. Light grill per “Lighting Instructions” instructions
For more assistance please visit us online at www.BlueRhino.com or call 1.800.762.1142.

For more assistance please visit us online at www.BlueRhino.com or call 1.800.762.1142.

AVERTISSEMENT

POUR VOTRE SÉCURITÉ:

Line drawing of a decorative box with hexagonal top and side panels, containing gravel and a small mechanical component (no text or symbols)

Technical diagram of a mechanical device with numbered components and exploded view, including parts like a housing, gears, and adjustment knobs.

NE PAS RETOURNER AU MAGASIN AVEC CET ARTICLE.

Line drawing of a box with a lid and a handle, showing a downward arrow emerging from it (no text or symbols)

Simple line drawing of a gas cylinder with a valve and a cross mark, enclosed in a circular border (no text or symbols)

OFF ARRÊT

Illustration 7

Line drawing of a square heating box with internal components and a handle (no text or symbols)

Illustration 8

1 po - 10 po 2.5 cm - 25.4 cm

Pour allumer

Blue Rhino Sourcing, Inc
