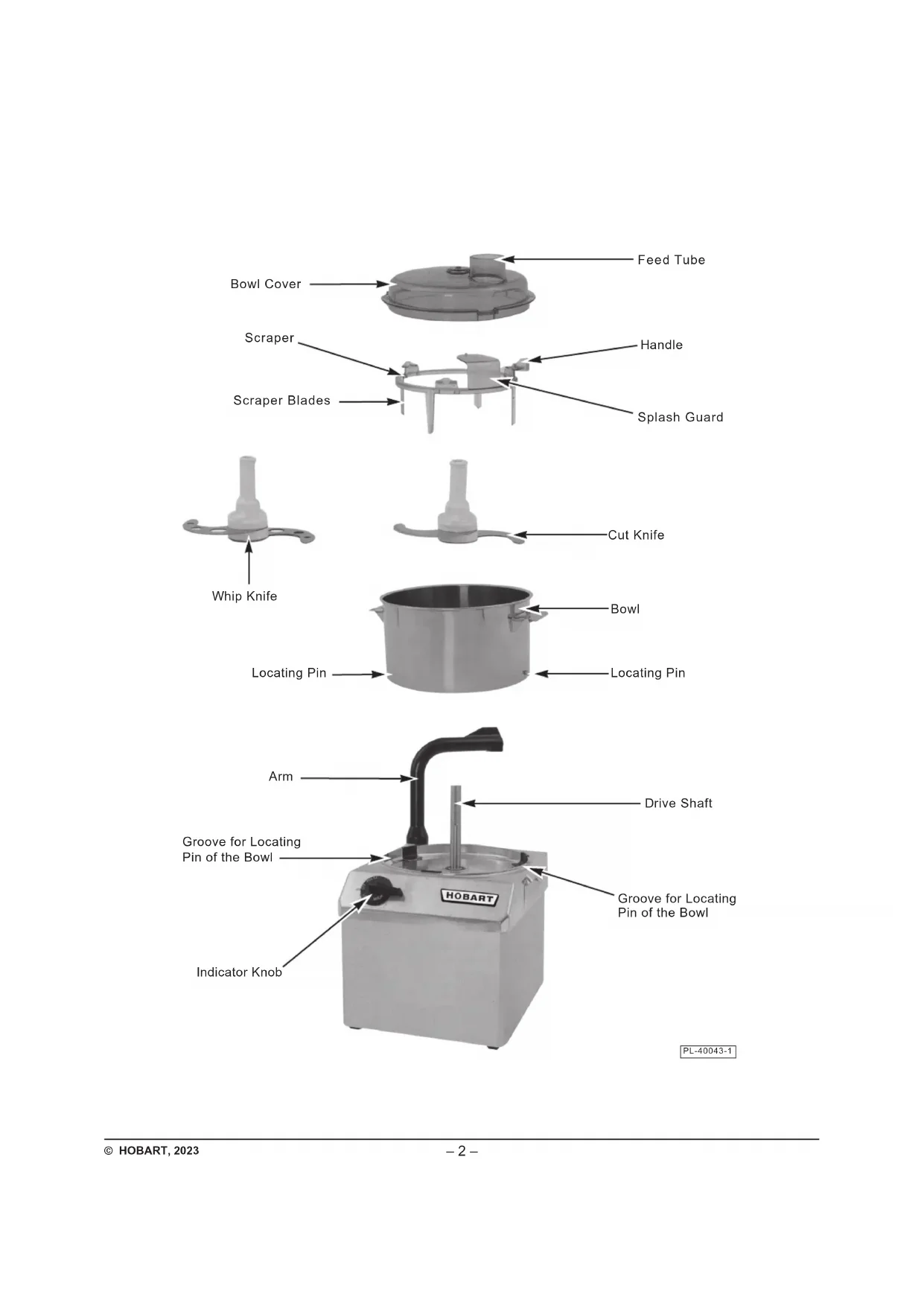

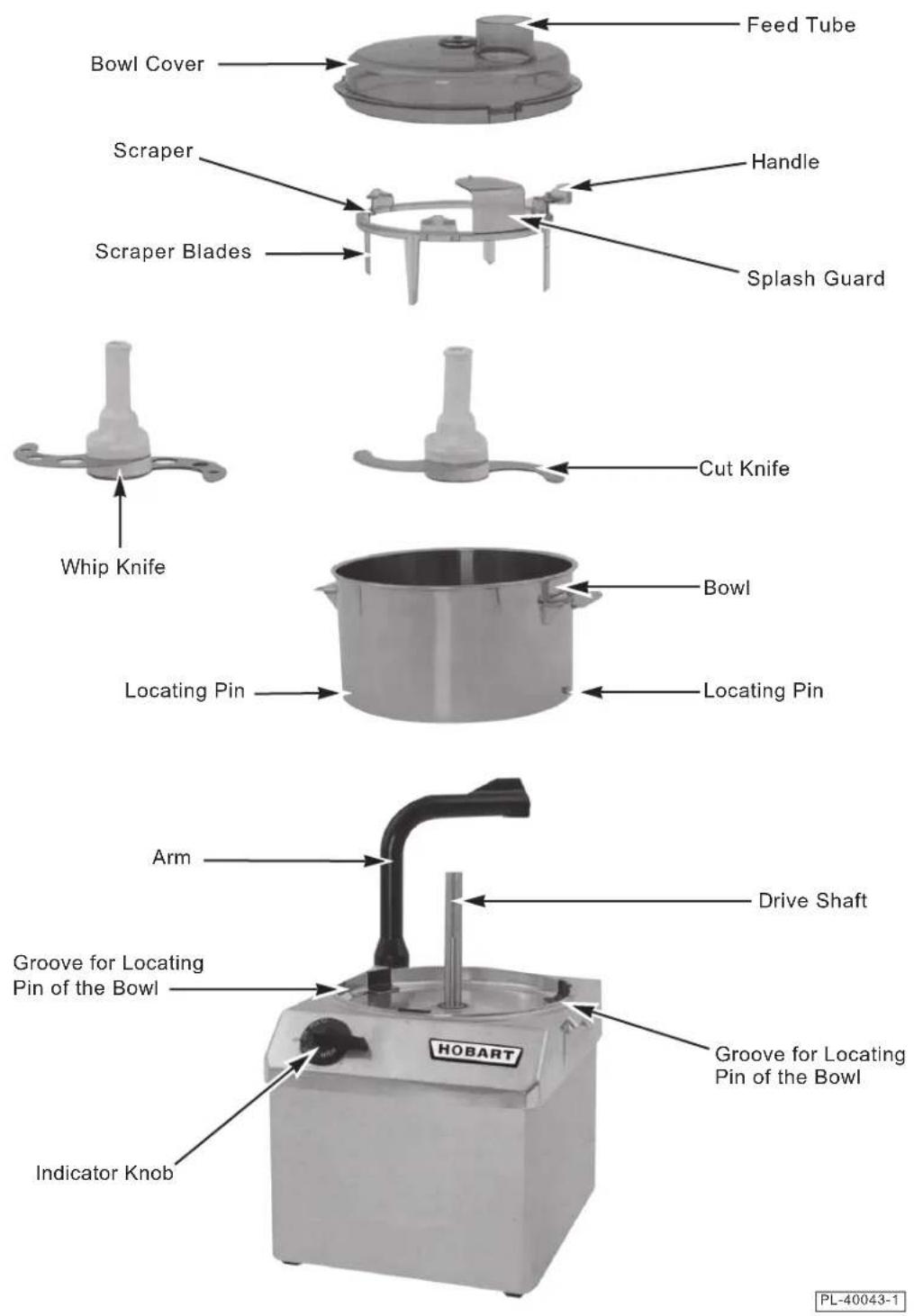

937 332-3000 www.hobartcorp.com FORM 18655 Rev. A (December 2023) MODEL FP41 FOOD PROCESSOR MODEL FP41 ML-104345– 2 – © HOBART, 2023 Splash Guard Bowl Cover Scraper Scraper Blades Locating Pin Locating Pin Arm Cut Knife PL-40043-1 Handle Feed Tube Bowl Drive Shaft Groove for Locating Pin of the Bowl Whip Knife Indicator Knob Groove for Locating Pin of the Bowl– 3 – Installation, Operation and Care of

MODEL FP41 FOOD PROCESSOR

SAVE THESE INSTRUCTIONS

GENERAL The Model FP41 Food Processor may be used for:

• Choppingandgrindingmeat,sh,fruitsandvegetables

• Mixing sauces, aromatic butter, mayonnaise and soups

• Grinding nuts, almonds and bread crumbs

• Kneading and mixing dough

• Pureeing Model FP41 is equipped with a 4-quart bowl and 1 speed. Standard equipment includes one cut/mix knife, a spatula, and a bowl scraper with turnable splash guard. Optional equipment includes a whip knife, and additionalbowlsandknives. INSTALLATION UNPACKING Thefoodprocessorwasinspectedbeforeleavingthefactory.Thecarrierassumesfullresponsibilityforsafe deliveryuponacceptanceoftheshipment.Checkforpossibleshippingdamageimmediatelyafterreceipt. If the food processor is found to be damaged, complete the following steps:

wasspokento),andfollowupandconrmwithwrittenorelectroniccommunication.

3. All original packing materials must be kept for inspection purposes.

4. Thefoodprocessorcannothavebeenmoved,installed,ormodied.

5. NotifyHobartcustomercareat(800)333-7447.

Priortoinstallingthefoodprocessor,verifythattheelectricalserviceagreeswiththespecicationsonthe machine data plate, which is located on the back of the machine. Check that the cutting tools are in good condition and are sharp. LOCATION Your food processor should be operated on a suitable counter height surface.– 4 – ELECTRICAL CONNECTIONS The power supply cord on this machine is provided with a three-prong grounding plug. The outlet to which this plug is connected must be properly grounded. If the receptacle is not the proper grounding type, contact an electrician. RatedvoltageofModelFP41is120/60/1. SETTING UP

1. Lift the arm up and then rotate it as far back as it will go.

2.Placethebowlonthemachinesothatthelocatingpinsofthebowlareinsertedintothegrooves in the bowl recess on top of the machine, push bowl all the way down to the base and rotate counterclockwise slightly to lock in position. 3.Placethecutknife(oroptionalwhipknife)onthedriveshaftatthecenterofthebowlandmakesure that the knife drops all the way down to the bottom of the bowl. 4.Placethescraperinthebowlwithitssplashguardpositionedat6o'clock. 5.Placethebowlcoveronthebowlwiththearrowonthebowlcoverpointingtowardthehandleofthe scraper,andpressthebowlcoverdowngentlyuntilthescraperandbowlcoversnaptogether. 6.Liftthearm,andatthesametime,swingitoverthebowlcover.Lowerthearmoverthecenterof thebowlcovertosecureitinposition. Themachinewillnotoperateunlessthebowlandbowlcoverarecorrectlypositionedandthearmisin positionabovethecenterofthebowlcover. CHECK MACHINE Once the machine is set up, check to ensure that:

1. Cutting blades stop turning within 4 seconds when the arm is swung back away from the center of

Beforeusingforthersttime,washallremovablepartsofthefoodprocessorinwarmsoapywater.The cuttingbladeisverysharp;beverycarefulwhencleaningthecuttingblade.Rinsethoroughlyandwipe dry with a soft clean cloth. INDICATOR KNOB (FIG. 1) The indicator knob for Model FP41 has three positions:

• OFF—machineisswitchedo󰀨.

• ON — machine runs continuously.

• PULSE — machine runs until the indicator knob is released. Use the PULSE setting for short processing tasks in which a precise result is required.

USE OF CUT OR WHIP KNIFE

PREPARING THE PRODUCT

1. Assemble components as described in Steps 1-4 in the SETTING UP section of this manual.

2. Add product. Refer to CAPACITY CHART in this manual.

3.FollowSteps5and6intheSETTINGUPsectionofthismanual.

4. For best results, use the pulse setting a few times at the beginning of the processing operation to

cut product into smaller pieces. Then set the indicator knob to the desired setting. REMOVING BOWL Alwaysleavethecut/whipknifeinthebowlwhenmovingitsothatthecontentsdonotleakoutthrough thetubeinthecenterofthebowl.Toremovebowl,liftthearmslightlyandrotateittothereartoclearthe bowl. Rotate bowl slightly clockwise to unlock bowl locating pins from base, and lift bowl from machine. CAPACITY CHART The maximum quantity that can be processed at one time and the length of time required for the processing are dependent on the consistency of the product and the kind of result desired. Shorter processing times giveacoarserendresult,andlongerprocessingtimesanerone. The chart below shows the maximum quantity that can be processed at one time and the approximate processingtimeforvarioustypesofproduct. Product QTY. TIME Mince, Slice, Chop Onions/Carrots 2 Lb. 20Sec. MozzarellaCheese 2 Lb. 20Sec. Meats Fresh 2 Lb. 30Sec. Cooked 3 Lb. 30Sec. Salmon Mousse 2-

/2 Qt. 20Sec. Liquid 1 Qt. 0–7– CLEANING Turn the machine o󰀨 and unplug the electrical cord before cleaning. Alwayscleanthemachineimmediatelyafteruse.Ifleftoversareallowedtodryonthemachine,cleaning becomesdi󰀩cult. Neverusesteelwoolorsharpobjectsduringcleaningofthemachine;thesurfacescanbescratched, makingsubsequentcleaningdi󰀩cult. Neverusehighpressurehosingequipmentforcleaning,sinceitcanresultinelectricalormechanical damage. Dismantleallremovablepartsfromthemachineand wash theminwarmwateranddetergent.Rinse thoroughly and wipe dry with a soft clean cloth. Wipe the exterior of the machine with a damp cloth. MAINTENANCE Turn the machine o󰀨 and unplug the electrical cord before doing any maintenance. Inspect the machine weekly to ensure that it is in proper working order. Fit the cut knife or whip knife and then check the following:

1. The machine stops within 4 seconds after the arm has been swung away from the center of the bowl

cover. 2.Themachinecannotbestartedwiththebowlremovedandthearmswungintopositionabovethe centerofthebowlcover.

3. Unplug the power supply cord and check to make sure that it is in good condition with no cracks or

cuts. 4.Thebladesofthecutknifeareingoodconditionandhaveasharpcuttingedge. Ifaproblemoccurs,contactyourlocalHobartServiceO󰀩cebeforeoperatingthemachine.FORM 18655 Rev. A (December 2023) PRINTED IN U.S.A. TROUBLESHOOTING

SYMPTOM POSSIBLE CAUSE SUGGESTED ACTION

Machine will not start. Fuse or circuit breaker interrupting power. Haveelectriciancheckcircuit. Bowl not in place. Make sure bowl locating pins are in proper positioninthegroovesonthebowlrecess, and the bowl is seated on the base and locked in position. Armnotinpositionovercenter ofbowlcover. Liftarmandrotatetocenterofbowlcover. Lowerarmovercenterofbowlcoverto secure it in position. Machine not plugged in. Plug machine into electrical outlet. Machine stops while operating and will not restart. Motoroverloaded. Allowmotortocool;motorwillrestartwhen it has cooled. Fuse or circuit breaker interrupting power. Haveelectriciancheckcircuit.701 S. RIDGE AVENUETROY, OHIO 45373 937 332-3000 www.hobartcorp.com FORMULARIO 18655 Rev. F (Diciembre 2023) MODELO FP41
