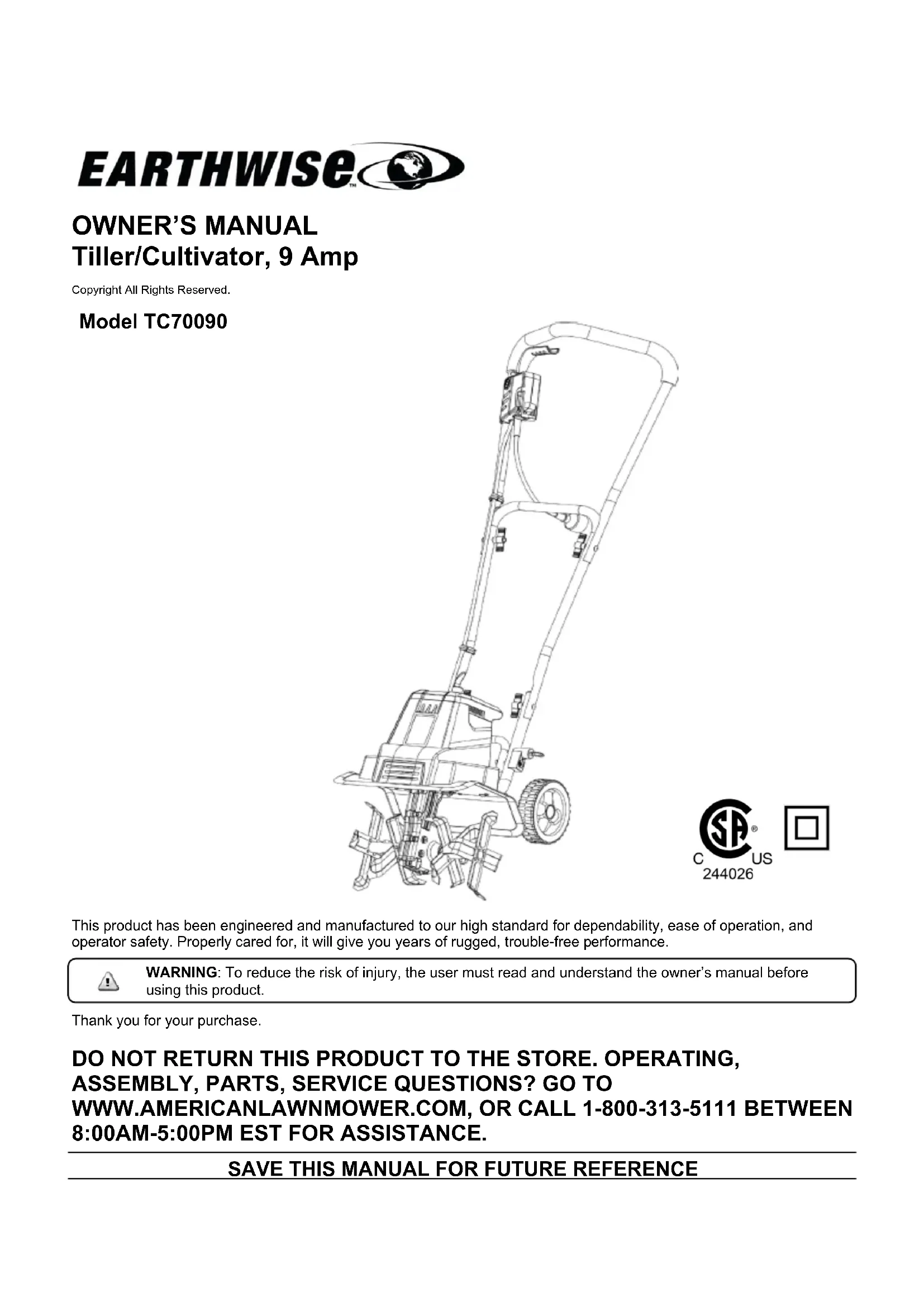

USER MANUAL TC70090EW Earthwise

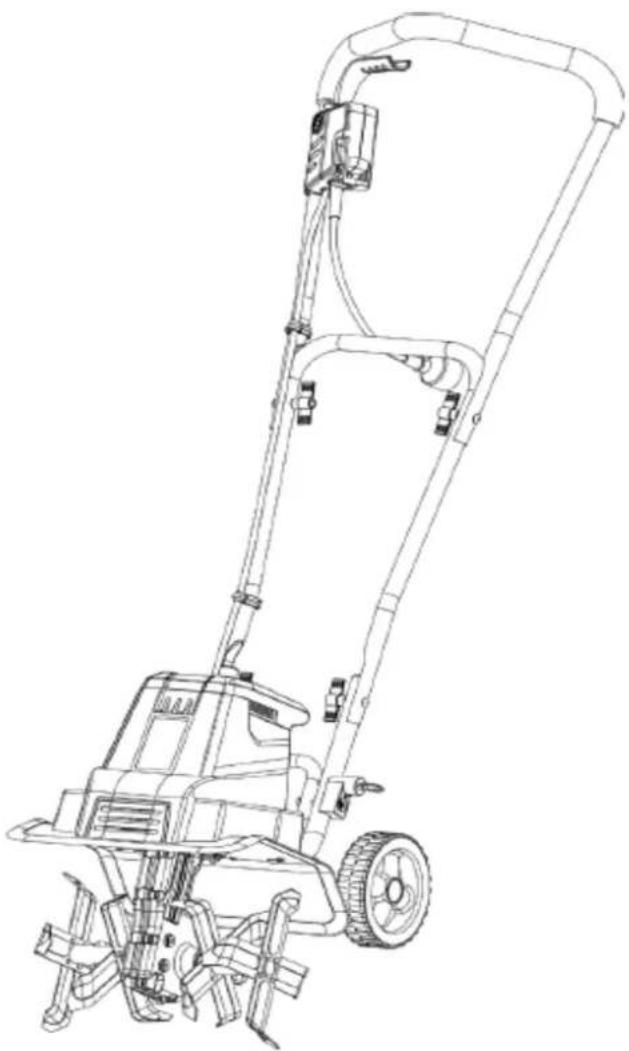

Tiller/Cultivator, 9 Amp Copyright All Rights Reserved. Thank you for your purchase. DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING,

ASSEMBLY, PARTS, SERVICE QUESTIONS? GO TO

WWW.AMERICANLAWNMOWER.COM, OR CALL 1-800-313-5111 BETWEEN 8:00AM-5:00PM EST FOR ASSISTANCE.

SAVE THIS MANUAL FOR FUTURE REFERENCE

This product has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.

WARNING: To reduce the risk of injury, the user must read and understand the owner’s manual before

using this product.TO REDUCE RISK OF INJURY: Before any use be sure everyone using this product reads and understands all safety instructions and other information contained in this manual. CAUTION: Wear appropriate personal hearing protection during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss. Save these instructions and review frequently prior to use and in instructing others.

WARNING: When using electric gardening appliances,

basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following:

GENERAL SAFETY REPLACEMENT PARTS When servicing use only identical replacement parts. POLARIZED PLUGS - To reduce the risk of electric shock, this product has a polarized plug. Polarized connections will fit together only one way. Make sure that the receptacle end of the extension cord has large and small blade slot widths. If the plug does not fit fully into the extension cord, reverse the plug. If it still does not fit, obtain a suitable extension cord. If the extension cord does not fit fully into the outlet, contact a qualified electrician to install the proper outlet. Do not change the plug on the tool or the extension cord in any way. AVOID DANGEROUS ENVIRONMENTS - Don’t use this product in rainy, stormy, damp or wet locations. Do not operate in gaseous or explosive atmospheres. Motors in these products normally spark, and the sparks might Ignite fumes. Don’t use in rain. KEEP CHILDREN AWAY - All visitors, children and pets should stay at a safe distance from the work area. DRESS PROPERLY- Don’t wear loose clothing or jewelry and wear protective hair covering to contain long hair. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors. USE SAFETY GLASSES - Wear safety glasses with side shields or goggles that are marked to comply with ANSI Z87.1 standard when operating this product. Use face or dust mask if environment is dusty. USE RIGHT APPLIANCE - Do not use this product for any job except that for which it is intended. GROUND FAULT CIRCUIT INTERRUPTER (GFCI) protection should be provided on the circuit or outlet to be used for the tiller/cultivator. Receptacles are available having built-in GFCI protection and may be used.

It is possible to tie the extension cord and power cord in a knot to prevent them from becoming disconnected during use. Make the knot as shown, then connect the plug end of the power cord into the receptacle end of the extension cord. This method can also be used to tie two extension cords together. Use one of the plug-receptacle retaining straps or connectors described in this manual. Minimum Gage for Cord Sets Volts Total Length of cord in Feet 120V 0-25 26-50 51-100 101-150 Ampere Rating More Not More American wire Gage Than Than

Avoid Unintentional Starting – Don’t carry plugged-in appliance with finger on switch. Be sure switch is off when plugging in.

WARNING: To reduce the risk of electric shock, use only with

an extension cord intended for outdoor use, such as an extension cord of cord type SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A. or SJTOW-A. DON’T ABUSE CORD - Never carry this product by the cord or yank the cord to disconnect from the receptacle. Keep cord from heat, oil, and sharp edges. DON’T FORCE APPLIANCE – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed. EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord be sure it is heavy enough to carry the current your product will draw. An undersized extension cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord. STAY ALERT - Watch what you are doing. Use common sense. Do not operate the tiller/cultivator when you are tired or under the influence of drugs or medication. DISCONNECT APPLIANCE – Disconnect the appliance from the power supply when not in use, before servicing, when changing accessories such as blades, and the like. Do not leave unattended. STORE IDLE UNIT INDOORS - When not in use, the tiller/cultivator should be stored indoors in a dry area out of children’s reach. DON’T OVERREACH - Guide the tiller/cultivator at a walking pace only. Keep proper footing and balance at all times.

Model TC70090GENERAL SAFETY MAINTAIN UNIT WITH CARE - Keep clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Inspect unit cord periodically, and if damaged, have it repaired by an authorized service facility. Inspect extension cord periodically and replace if damaged. Keep handles dry, clean and free from oil. CHECK FOR DAMAGED PARTS - Before further use of the product, any part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other condition that may affect its operation. Any part that is damaged should be properly repaired or replaced. For assistance call our customer service help line at 1-800-313-5111.

WARNING: Keep hands and feet away from blades.

DOUBLE INSULATION – The tiller/cultivator has double insulation. This means that all external metal parts are insulated from the electrical supply. This is achieved by introducing an insulation layer between electrical and mechanical parts. The double insulation guarantees you the greatest possible safety. WARNING - To reduce the risk of electric shock, do not expose unit to water or operate unit on wet ground. WARNING - To reduce the risk of injury to persons, do not operate without guards in place. Be aware of the extension cord while operating the tiller/cultivator. Be careful not to trip on the cord. Always guide the cord away from the tines. OVERHEAT PROTECTION - If the tiller/cultivator is blocked by a foreign object or if the motor is over- loaded, the motor will switch off automatically by the protection device. Release the trigger lever and wait for the motor to cool down (approx. 15 minutes) before starting the tiller again. CAUTION: The tiller/cultivator may bounce upward and/or jump forward if the tines strike extremely hard packed soil, frozen ground, or buried obstacles such as large stones, roots or stumps.

WARNING: Do not operate the tiller/cultivator near

underground electrical cables, telephone lines, pipes or hoses. If the tiller/cultivator strikes a foreign body, turn it off immediately, wait for the tines to stop and check for damage. If necessary, repair before restarting. If the tiller/cultivator starts to vibrate abnormally, turn it off immediately and check for the cause. Vibration is generally a warning of trouble.

DANGER: RISK OF CUT - Wear gloves and use

caution when cleaning or performing maintenance on the tiller/cultivator. Always turn off the tiller/cultivator, disconnect from the power supply and wait until the tines come to a complete stop before carrying out any maintenance or repairs. CAUTION: Tines do not stop immediately after the tiller/cultivator is turned off. CAUTION: Risk of injury. Do not put hands, feet or any body part or clothing near the rotating tines.

WARNING: California Proposition 65:

This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

WARNING: Some dust and debris created by the

use of this tool could contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Some examples of these chemicals are: - chemicals in fertilizers - compounds in insecticides, herbicides, and pesticides - arsenic and chromium from chemically treated lumber Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

WARNING: Cancer and Reproductive Harm -

www.P65Warnings.ca.gov.

WARNING: Replace damaged cord immediately.

LIGHTING - Only operate your tiller/cultivator in daylight or good artificial light. Do not operate the tiller/cultivator on a slope that is too steep for safe operation. When on slopes, slow down and make sure you have good footing. Before starting the tiller/cultivator make sure the tines are not touching any object and are free to move. Grip the guide bar firmly with both hands. Never operate the tiller/cultivator with one hand.

1WARNING: If any parts are damaged or missing, do not operate this product until the parts are replaced. Failure to heed this warning could result in serious personal injury. If any parts are damaged or missing, please call customer service at 1-800-313-5111 for assistance.

WARNING: Do not connect to power supply until

assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

WARNING: Do not attempt to modify this product or

create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury. ASSEMBLY

Model TC70090 This product requires assembly. Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. Inspect the product carefully to make sure no breakage or damage occurred during shipping. Do not discard the packing material until you have carefully inspected and satisfactorily operated the product. PACKING LIST Tiller Upper Handle Section Center Handle Section Hardware Bag Owner’s Manual This product must be assembled correctly before use.

1. Remove the screws (M5 X 12) and washers from

each end of the wheel frame axle. Assemble the wheels onto the axle, then install washers and screws (M5 X 12) to secure. (Fig. 2-1)

2. Press the hub caps into the wheels and cover the

ends of the axles. You may use a hammer to seat them securely into the wheels. (Fig. 2-1)

3. To lower wheel frame, push the lock button on back

of motor housing to release the frame (Step A). Lower the wheel frame (Step B) and pull out the lock pin on lower handle section (Step C). Align lock pin to the hole in wheel frame then release it to lock the wheel frame in position. (Fig. 2-2)

4. Attach the center handle section (7) to the lower

6. Remove the switch box cover at the back of the

8. Use the two supplied cable clips (4) to secure the

cord. (Fig. 2-6) Switch box cover6 Model TC70090 OPERATING STARTING: Make sure the wheel frame is raised before you start the tiller. To raise the frame, pull out the lock pin (Step A); rotate the wheel frame upward, so that it snaps beneath the lock button on the back of the motor housing (Step B); release the lock pin. The wheel frame will be locked in place by the lock button. (See Fig. 3) Secure the extension cord into the cord retainer. The loop of the extension cord must be long enough for the cord retainer to freely slide from one side to the other. Plug the extension cord into the power cord plug on the tiller. (See Fig. 4)

Move the tiller/cultivator to the work area prior to starting the motor.

WARNING: Do not start tiller with any person or

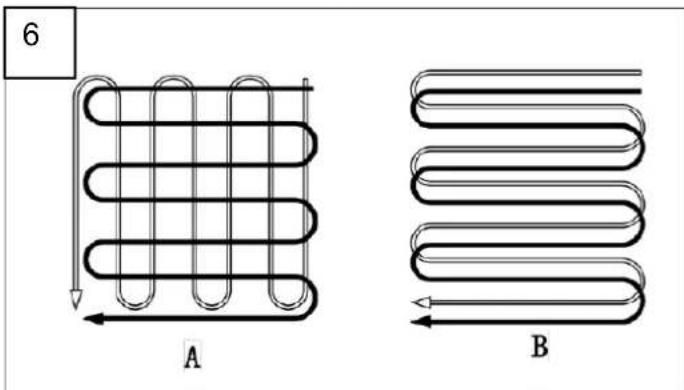

object directly in its path. Hold the tiller/cultivator firmly while starting. The tines will pull the tiller/cultivator forward during operation. Lower the tines slowly into the ground being tilled. To Start To start the tiller/cultivator, press and hold the safety lock button (A) on the safety switch while pulling the trigger lever (B) up and against the handle. The motor will start and the tines will begin to rotate. (See Fig. 5) To stop the tiller/cultivator, simply release the lever. Before use, remove any visible stones or other foreign bodies from the area. CAUTION: Before moving the tiller/cultivator from one area to another switch off the motor and wait for the tines to come to a complete stop. Be careful not to let the tines touch the ground while moving the tiller/ cultivator. The tines as well as the unit itself may be damaged even if the motor is switched off. Use the tiller/cultivator for breaking sod, preparing seed beds, and for cultivating gardens and flower beds. The tiller/cultivator can also dig small holes for planting saplings or potted plants. For breaking sod or deep tilling, allow the tines to pull the tiller/cultivator forward to the end of your arm’s reach, then firmly pull it back toward yourself. You will achieve the best results by repeatedly allowing it to move forward and pulling it back. By pulling the tiller/cultivator back towards yourself, the tines will dig deeper and more aggressively. To prevent tripping, take extra precautions when moving backwards and when pulling the tiller/cultivator back toward yourself. If the tiller/cultivator digs deep enough to stay in one spot, gently rock it side to side until it starts moving forward again. Never pass the tiller/cultivator over the extension cord. Make sure the cord is always in a safe position behind you. When working on inclines always stand diagonally to the incline to retain a firm, safe footing. Do not work on extremely steep slopes. For preparing seed beds, we recommend using one of these tilling patterns: (See Fig. 6) Tilling Pattern A– Make two passes over area to be tilled, the second at a right angle to the first. Tilling Pattern B– Make two passes over area to be tilled, the second overlapping the first. Clearing foreign objects: During operation a stone or root could become lodged in the tines, or tall grass or weeds may become wrapped around the tine shaft. To clear the tines or tine shaft release the trigger lever, wait for the tines to come to a complete stop and unplug the tiller/cultivator. Dislodge or remove the foreign matter from the tines or tine shaft. To simplify removal of tall grass or weeds from the tine shaft, remove one or both sets of the tines. See Tine Removal and Installation.

6WARNING: Before carrying out maintenance operations, disconnect power supply. Failure to heed this warning could result in serious personal injury. Before each use check the extension cord for signs of damage or aging. Replace the cable if it is cracked, split or otherwise damaged. Check the condition of the tines and ensure that all threaded connections are securely tightened. If the tines become dull or blunt, sharpen or replace them. Call our customer service help line at 1-800-313-5111 for assistance. Once per season lubricate the tines and shaft. At the end of the season, check the tiller/cultivator for damage prior to storing. Repair or replace damaged or broken parts. CAUTION: Always clean the tiller/cultivator after each use. Failure to carry out proper cleaning can result in damage to the tiller/cultivator or result in poor performance. Clean the underside of the motor support plate and housing around the tines with a scrub brush, and a soft cloth dampened with a mild soap and water mixture. Never use a water hose to clean the tiller! To remove soil and debris from the transmission and tines, use a stiff brush or a dampened cloth. Clean the vents on the motor housing and remove any remaining grass or dirt. Once cleaned, wipe the tines and shaft dry and apply a light coat of oil to prevent rust. Tines maintenance: Worn tines invite poor performance and overload of the motor. Check tines before each use. Sharpen or replace the tine assemblies with new ones when necessary. Call 1-800-313-5111 for assistance.

WARNING: Injury can occur while working on the

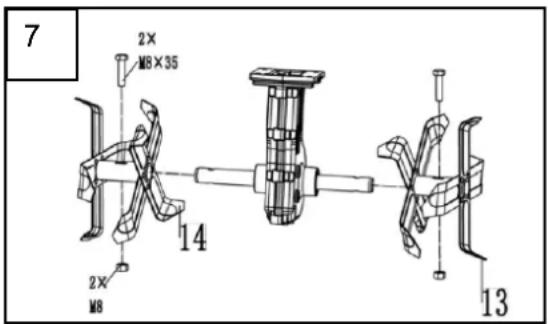

tines. Wear protective gloves. Tine Removal and Installation (Fig. 7) To remove the complete tine assemblies from the shaft, remove the M8 X 35 hex head bolt from the shaft. Remove the tine assembly from the shaft. Reverse above steps to install Tines.

Replace worn or damaged parts with original replacement parts only. Parts from another tiller/ cultivator may not fit properly causing an unsafe situation. Make sure all protective devices are secure and in good condition. Repair or replace if necessary. Lubrication (Fig. 8): The tines drive transmission case has grease installed at the factory. It is not required that the grease level be checked nor recommended that grease be added during the first 2 years of use. After the second season of use, follow the directions as described below: Drain screw plugs are located on the right side of transmission housing. Lay the tiller/cultivator on its left side and clean the transmission of dirt and debris prior to removing the drain screw plugs. If necessary, remove tine assemblies to have better access to the drain screw plug. Use a 5mm hex key to unscrew the plugs. Using a squeeze bottle or tube, add approximately 2.4 oz. (70ml) of auto gear lube. Do not overfill. When completed, reinstall both drain screw plugs into the transmission.

8Store the Tiller/Cultivator in a dry, clean area out of reach of children. During extended periods of storage, ensure that the tiller/ cultivator is protected against corrosion and rust. TROUBLESHOOTING Problem Possible causes Remedy Motor does not start Unit not plugged in No electricity Defective cable Defective safety switch/plug Overheat protection activated Plug in the unit Check power supply Check cable. Repair or replace if required Arrange for repair

1. Working depth too large, set to a shorter depth.

2. Blades blocked, remove the blockage.

3. Soil too hard, select correct work depth and move

forward and backward several times while slowing down the operation speed. Wait until the motor cools down for about 15 minutes before further use. Abnormal noises Blade is jammed

Lubricating grease level too low

Bolts, nuts or other components are loose. Switch off . Wait till tines comes to a complete stop. Remove jammed objects. Tiller/cultivator must be repaired. Call our customer service help line at 1-800-313-5111 for assistance. Tighten all components. Arrange for repair if noises continue. Abnormal vibrations Blades damaged or worn Working depth too large Replace damaged or worn blades. Set to correct working depth. Poor results Working depth too small Worn blades Set to correct working depth. Replace damaged or worn blades. STORAGE At the end of the season, or if the tiller/cultivator is not being used for longer than a month, wipe over all metal surfaces with an oil impregnated cloth to protect them from corrosion or spray with a fine coat of oil. Fold the upper handle down, and store the tiller/cultivator in a suitable place.

Model TC70090 Call us first with questions about operating or maintaining your tiller at 1-800-313-5111 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time, or get assistance on www.americanlawnmower.com.

Model TC70090 For parts or service, please call 1-800-313-5111 or visit us online at www.americanlawnmower.com. Be sure to provide all relevant information when you call or visit.

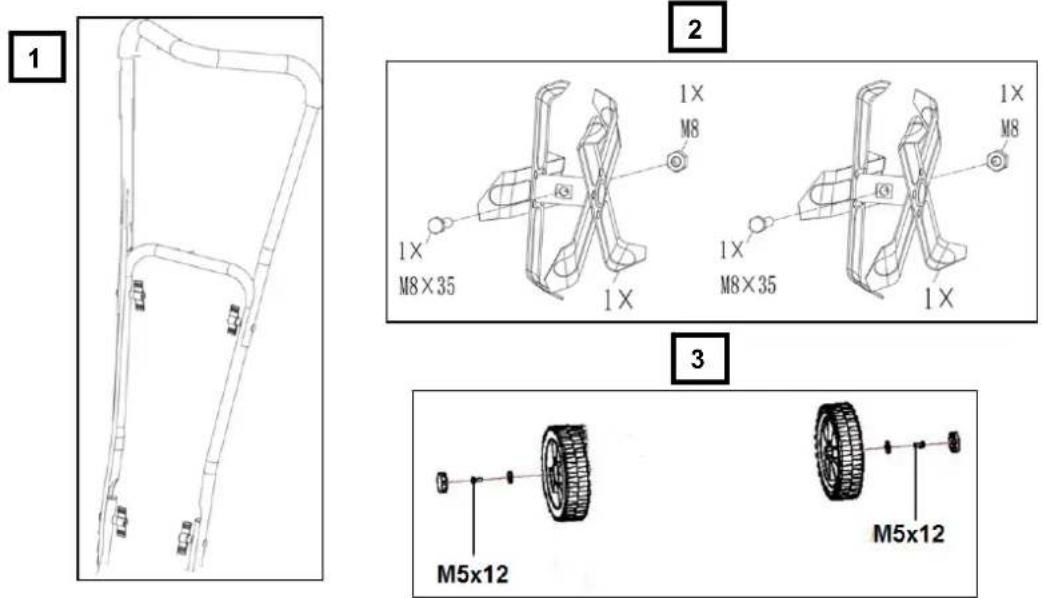

REPAIR PARTS (KITS/ ITEMS) The model/ serial number of this tool is found on a plate or label attached to the housing. Please record the serial number in the space provided below.

MODEL NUMBER TC70090 _____

SERIAL NUMBER________________ CALL US FIRST !! Call us first with questions about operating or maintaining your tiller at 1-800-313-5111 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time, or get assistance on www.americanlawnmower.com. Always mention the model number when ordering kits/items for this tool.

3In a continued commitment to improve quality, the Manufacturer reserves the right to make component changes or design changes when necessary.

TC70090 Tiller/Cultivator, 9A Rev. 12/17/2018 WARRANTY POLICY Two (2) year limited warranty on Earthwise outdoor power equipment. Earthwise warrants to the original owner that each new product and service part is free from defects in materials and workmanship and agrees to repair or replace any defective product or part for the warranty period as stated above from the original date of purchase except for the conditions and circumstances listed below: This warranty applies only to the original purchaser at retail and may not be transferred. Warranty applies if the product is used for personal, household or family use. Warranty is void if product is used for commercial, industrial or rental purposes. Warranty does not include repairs necessary due to operator’s abuse or negligence (including overloading the product beyond capacity or immersion in water), or the failure to assemble, operate, maintain or store the product according to the instructions in the operator’s manual. This warranty is not transferable and only applies to product sold directly from an authorized retailer. This warranty does not apply to any product, new or used, purchased through unauthorized third-party channels.

ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL

LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT

FROM ANY DEFECT, FAILURE OR MALFUNCTION

OF THE PRODUCT IS NOT COVERED BY THE WARRANTY. Some states do not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitation may not apply to you. Products sold damaged or incomplete, sold “as is”, or sold as reconditioned are not covered under the warranty. Damage or liability caused by shipping, improper handling, improper assembly, incorrect voltage, improper wiring, improper maintenance, improper modification or the use of accessories and/or attachments not specifically recommended is not covered by this warranty. Expendable items that become worn during normal use are not covered by the warranty. Warranty does not cover damage caused by cold, heat, rain, excessive humidity, corrosive environments and materials, or other contaminants. Warranty does not include installation, assembly or normal adjustments explained in the operator’s manual. The expense of delivering the product to the vendor and the expense of returning the product or replacement parts to the owner is not covered by the warranty. The warranty does not cover normal deterioration of the exterior finish, including but not limited to scratches, dents, paint chips or any corrosion or discoloration caused by heat, abrasive and chemical cleaners. Proof of purchase, original dated sales receipt, must accompany all warranty claims. American Lawn Mower Company The Great States Corporation 7444 Shadeland Station Way Indianapolis, IN 46256 USA Phone [phone] www.americanlawnmower.com Copyright All Rights Reserved.Modelo TC70090
