Brand	Waring Commercial
Model	WSC160
Product Type	Electric Crepe Maker
Usage	Commercial approved
Power Supply Voltage	120V, 60Hz
Power	1800W
Dimensions (L x H)	48 cm x 12.5 cm
Plate Material	Non-stick treated steel (preparation required)
Maximum Temperature	420°F (approx. 215°C)
Adjustable Thermostat	Yes, with MIN to MAX levels
Indicator Lights	Power (red) and Ready (green)
Automatic Safety Shut-off	Yes, in case of overheating
Plug Type	Grounded, 3-prong
Power Cord Length	Short (approx. 1 m)
Included Accessories	Spatula and scraper
Cleaning the Plate	Warm water and detergent on warm plate
Dishwasher Safe Parts	Spatula and scraper
Preparation Before First Use	Oil non-stick treatment (8 coats)
Safety	Do not immerse, hot surfaces, grounding

Frequently Asked Questions - WSC160 Waring Commercial

How to prepare the plate before first use?

Scrub the plate with steel wool and detergent to remove the protective coating. Then heat it fully, then apply 8 coats of corn or peanut oil, wiping between each coat until the plate becomes amber and smooth.

What oil to use for the non-stick treatment?

Use corn oil or peanut oil (or other frying oil). Do not use synthetic oils or non-stick sprays.

How to adjust the temperature for cooking crepes?

Turn the thermostat to the desired level. The Ready (green) light turns on when the plate reaches the temperature. For classic crepes, use about 380°F (193°C).

What to do if the crepe sticks to the plate?

Make sure the plate has been properly prepared with the non-stick treatment. If it still sticks, slightly increase the temperature or add a little oil to the plate before pouring the batter.

Can I use metal utensils on the plate?

No, only use the provided scraper and spatula. Metal utensils could damage the non-stick surface.

How to clean the crepe maker after use?

Wait until the plate is warm, then clean it with warm water and detergent. Never pour cold water on a hot surface. Do not immerse the appliance. The spatula and scraper are dishwasher safe.

Can I immerse the appliance in water?

No, to avoid any risk of electric shock, never immerse the appliance in water or any other liquid. Clean only with a damp cloth.

What to do if the Ready light does not turn on?

Check that the appliance is plugged in and the thermostat is not set to MIN. If the Power (red) light is on but the Ready light does not turn on, there may be a heating issue. Contact customer service.

Can I use an extension cord?

Yes, but use an extension cord with electrical specifications at least equal to those of the appliance (120V, 1800W). Do not let the cord hang over the edge of the table.

How to avoid bubbles in the crepe batter?

Make sure the plate is hot and evenly oiled. Use a smooth batter without lumps. The initial non-stick treatment also helps avoid bubbles.

USER MANUAL WSC160 Waring Commercial

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

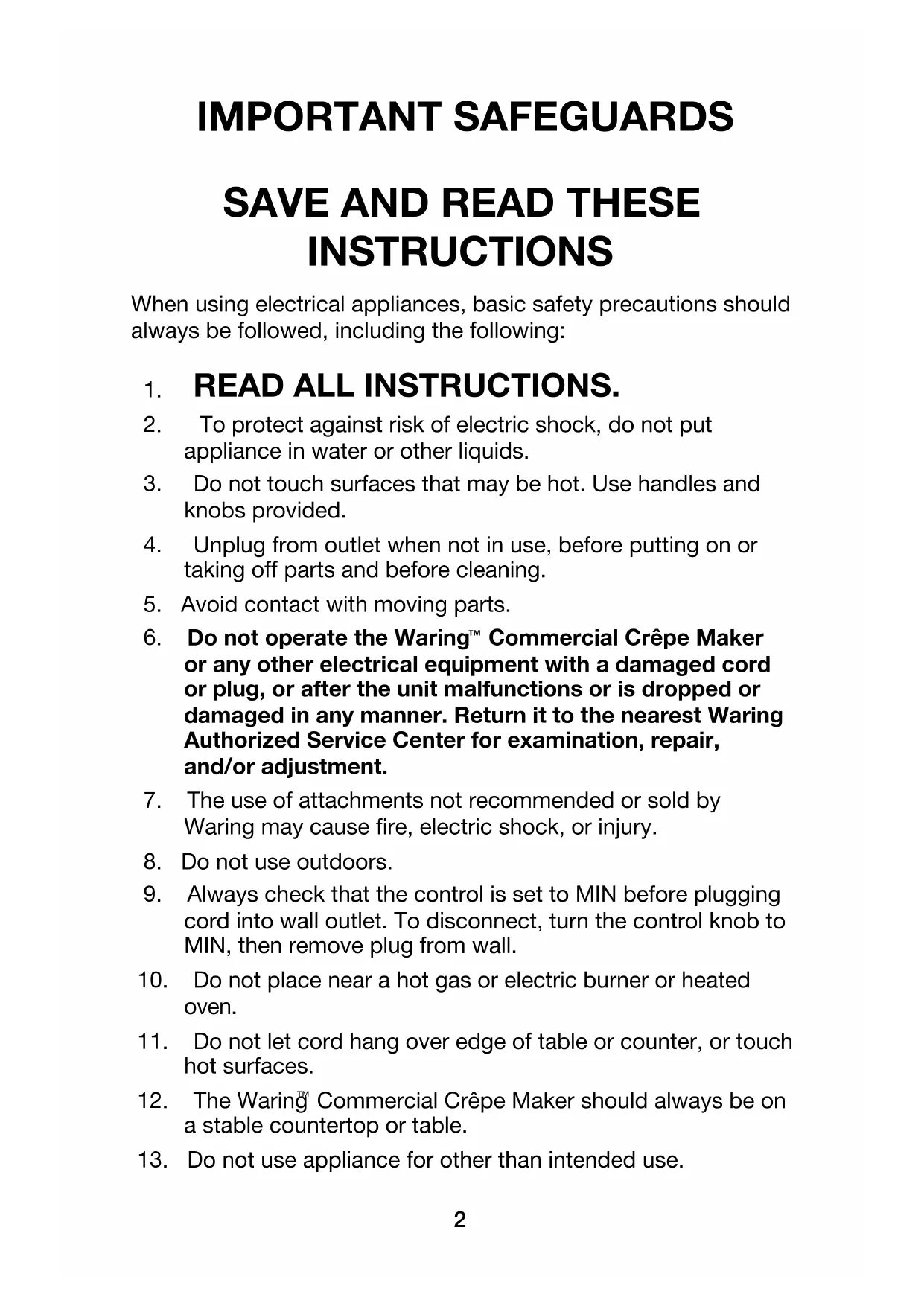

SAVE AND READ THESE INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.
2. To protect against risk of electric shock, do not put appliance in water or other liquids.
3. Do not touch surfaces that may be hot. Use handles and knobs provided.
4. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.
5. Avoid contact with moving parts.
6. Do not operate the Waring™ Commercial Crêpe Maker or any other electrical equipment with a damaged cord or plug, or after the unit malfunctions or is dropped or damaged in any manner. Return it to the nearest Waring Authorized Service Center for examination, repair, and/or adjustment.
7. The use of attachments not recommended or sold by Waring may cause fire, electric shock, or injury.
8. Do not use outdoors.
9. Always check that the control is set to MIN before plugging cord into wall outlet. To disconnect, turn the control knob to MIN, then remove plug from wall.
10. Do not place near a hot gas or electric burner or heated oven.
11. Do not let cord hang over edge of table or counter, or touch hot surfaces.
12. The Waring ^™ Commercial Crêpe Maker should always be on a stable countertop or table.

13. Do not use appliance for other than intended use.

14. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

15. Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS

APPROVED FOR COMMERCIAL USE

GROUNDING INSTRUCTIONS:

• For your protection, Waring™ Commercial Crêpe Makers are equipped with a 3-conductor cord set.
• 120 volt units are supplied with a molded 3-prong grounding-type plug and should be used in combination with a properly connected grounding-type outlet, as shown in Figure 1.

If a grounding-type outlet is not available, an adapter, shown in Figure 2, may be obtained to enable a 2-slot wall outlet to be used with a 3-prong plug.

Referring to Figure 3, the adapter must be grounded by attaching its grounding lug under the screw of the outlet cover plate.

CAUTION: Before using an adapter, it must be determined that the outlet cover plate screw is properly grounded. If in doubt, consult a licensed electrician. Never use an adapter unless you are sure it is properly grounded.

NOTE: Use of an adapter is not permitted in Canada.

SPECIAL CORD SET INSTRUCTIONS

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

Longer extension cords are available and may be used if care is exercised in their use. If a long extension cord is used, the marked electrical rating of the extension cord must be at least as great as the electrical rating of the appliance, and the longer cord should be arranged so that it will not drape over the counter top to table top where it can be pulled by children or tripped over.

PARTS

1. Power Indicator Light
2. Ready Indicator Light
3. Temperature Control Dial
4. Handles

5. Housing

6. Cooking Surface

7. Power Cord (not shown)
8. Rubber Feet
9. Spreader
10. Spatula

Simple line drawing of two intersecting rods with a labeled dimension '9' (no text or symbols beyond the number)

SPECIFICATIONS

MODEL ELECTRICAL POWER DIMENSIONS (inches)
WSC160/ WSC160C	120V, 60Hz	1800 W	19" (W) x 5" (H)

USAGE

Every crêpe maker needs to be seasoned before first-time use.

The seasoning process will last about 1 to 1 12 hours.

Seasoning is an important step to prepare the surface for a natural nonstick finish. It makes removal of the crêpes easier and reduces bubbling when batter is applied and spread.

1. There is a protective coating on the cooking surface. Scrub the surface with steel wool and detergent to remove the coating and pre-clean prior to the seasoning process.
2. Plug unit into outlet in a well-ventilated area.
3. Switch on the appliance and set to 570^irc F. Allow to heat until green READY light is lit.
4. Pour about a tablespoon of corn or peanut oil suitable for frying in the center of the cooking surface. Using a cotton cloth or paper towel (synthetic materials will adhere to the surface), spread the oil evenly and let cook for 5 to 10 minutes until the surface loses its initial sheen and appears dry.
5. Repeat step 4 eight times, burnishing the surface with the towel and decreasing the amount of oil used each time until a deep amber color and smooth, non-tacky surface are developed.

OPERATION

1. Plug the cord into a 120V outlet. The red POWER light will illuminate to show that the unit is on.

2. Turn the thermostat knob to the desired temperature. Once the temperature is reached, the green READY light will illuminate.

3. Pour batter on middle of cooking surface and use the batter spreader to spread the batter evenly. Once the crêpe is cooked to desired browning on the bottom side, use the spatula to flip the crêpe and cook the other side. Use the spatula to remove the crêpe when finished cooking. For best results, wipe excess batter off of spreader in between crêpes.

4. After cooking, turn the thermostat to MIN.

SAFETY

CAUTION: UNPLUG FROM OUTLET WHEN NOT IN USE!

Please note that the unit will still be too hot to handle immediately after use.

The crêpe maker has a thermal cutoff safety device to avoid overheating. If the crêpe maker shuts off automatically, unplug it and allow it to cool. Plug back in and continue use.

CLEANING AND MAINTENANCE

The Waring ^™ Commercial Crêpe Maker should be cleaned after each use with warm soapy water. The exterior of unit may be cleaned by carefully wiping with a damp cloth.

Clean cooking surface while the unit is warm, using warm soapy water. DO NOT USE COLD WATER ON WARM SURFACE.

Do not immerse completely in water to clean. The appliance is not to be cleaned with a water jet.

Spatula and Spreader are dishwasher safe.

Simple line drawing of two intersecting rods with a labeled dimension '9' (no text or symbols beyond the label)

Simple line drawing of two intersecting rods with a labeled measurement point '9' (no text or symbols beyond the label)

Any trademarks or service marks of third parties referred to herein are the trademarks or service marks of their respective owners.

©2010 Conair Corporation

Waring Products

Division of Conair Corporation

East Windsor, NJ 08520

www.waringproducts.com

Printed in China

Impreso en la China

Imprimé en Chine

WSC160, WSC160C IB

10WC114539

IB-9893
