Brand	Breville
Model	Joule Sous Vide CS10001
Category	Sous vide appliances
Product type	Sous vide cooker
Power supply	120 V~60 Hz, 1100 W
Weight	0.9 kg
Dimensions (H x diameter)	30.5 cm x 5.7 cm
Immersion depth	Min. 38 mm, max. 203 mm
Maximum water capacity	40 L in an insulated covered container
Connectivity	Wi-Fi (2.4 GHz) and Bluetooth
Control	Via mobile app (iOS/Android)
Main functions	Sous vide cooking, step-by-step cooking guides, manual mode, visual cooking
Attachment	Industrial magnet and universal clip included
Foot material	Metal
Maintenance and cleaning	Exterior cleaning with a damp cloth; interior cleaning with vinegar (60°C); do not immerse or put in dishwasher
Safety	Automatic shutdown when unplugged; do not use with external timer; hot surfaces; keep out of reach of children
Spare parts	Standard clip, large clip (sold separately), removable metal foot, propeller
Repairability	Maintenance not described should be performed by an authorized service representative

Frequently Asked Questions - Joule Sous Vide CS10001 BREVILLE

How to pair the Joule with my smartphone?

Enable Bluetooth on your phone, download the Joule app, create an account, and follow the instructions in the app. The LED light flashes white when ready to be connected. Do not pair via your phone's Bluetooth menu.

What type of container to use with the Joule?

The Joule works with almost any pot, your sink, or a cooler. Use a magnetic stainless steel container for the magnet or attach it with the included clip. For large volumes, use the large clip (sold separately).

What are the minimum and maximum water depths?

The minimum depth is 38 mm (1.5 in) and the maximum is 203 mm (8 in). Water must cover the bottom of the Joule by at least 38 mm without exceeding 2.5 cm below the container rim.

Can I cook without a lid?

Yes, but limit the water volume to about 10 liters (2.5 gallons) without a lid. With a lid, you can heat up to 20 liters, and in an insulated cooler up to 40 liters.

How to clean the Joule?

Wipe the exterior with a damp cloth. For the interior, remove the metal foot and propeller, then gently clean with a damp sponge. A vinegar bath (water + white vinegar, 60°C) is recommended periodically. Never put the Joule in the dishwasher and do not immerse it.

What to do if the Joule whistles or heats slowly?

This may be due to limescale buildup in hard water. Perform a vinegar cleaning: fill a pot with equal parts water and vinegar, set to 60°C, let it heat to the target temperature. This will dissolve the residues.

Does the Joule stay hot after use?

Yes, the lower part remains hot after cooking and even after unplugging. Let it cool before handling and do not place it on combustible surfaces.

Can I use an external timer or remote control?

No, the Joule is not designed to be used with an external timer or remote control system. Unplugging the device cancels any program in progress.

What foods can I cook with the Joule?

All types of food: meat, poultry, seafood, vegetables, eggs, etc. Follow hygiene practices and use food packaging suitable for sous vide cooking.

How to change the clip of the Joule?

Pull the standard clip down to remove it, then slide the large clip (sold separately) into place until it clicks. Make sure the clip is securely attached before use.

USER MANUAL Joule Sous Vide CS10001 BREVILLE

Two white cylindrical water heaters with black buttons, no visible text or symbols

Breville

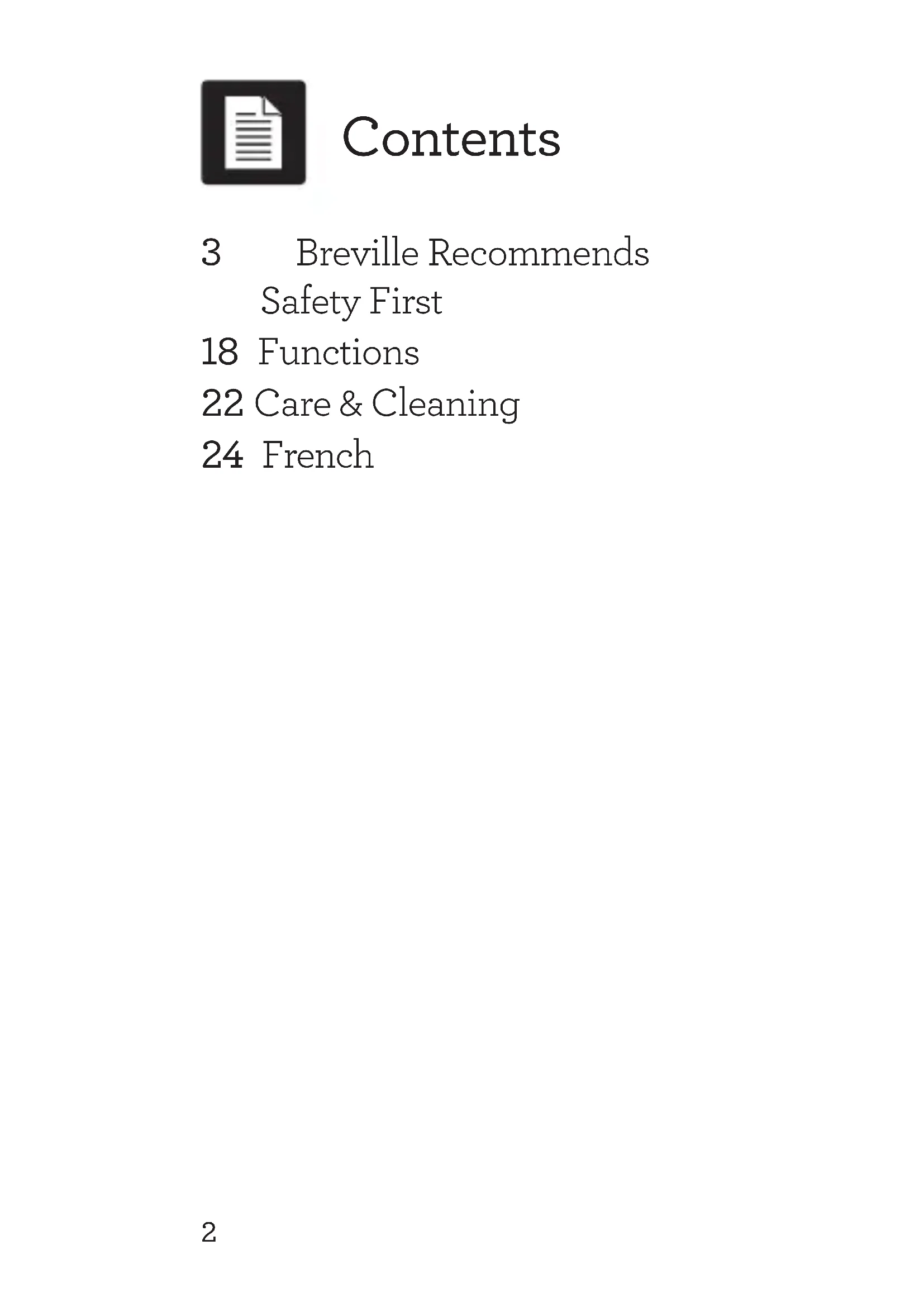

Contents

3 Breville Recommends Safety First

18 Functions
22 Care & Cleaning
24 French

BREVILLE RECOMMENDS SAFETY FIRST

At Breville we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition, we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE

A downloadable version of this document is also available at Breville.com Please read the following safety instructions and warnings before operating Joule:

- Joule is intended for counter use only.

• Joule is intended for use with water only.
• Follow proper kitchen sanitation and sous vide packaging practices. Consuming raw or undercooked meats, poultry, seafood, shellfish, eggs, or unpasteurized milk may increase risk of foodborne illness. Use only food-safe packaging.

- Spilled food or liquid can cause serious burns. Never use an outlet below the counter, and never use

with an extension cord. Always keep the cord outside the reach of children or pets to avoid hot water-related injuries.

- Please be careful when removing bags or jars from water heated with Joule, as they can be very hot to the touch. We strongly recommend using tongs or jar lifters.

• To ensure continued protection against risk of electric shock, connect to properly grounded outlets only.

• Cooking with Joule can cause containers to become very hot to the touch. Do not touch hot surfaces and use oven mitts when handling cooking containers.

- While it is running, do not remove Joule from water-it could spray hot water and cause injury.

• Always turn Joule off, unplug the unit and wait for it to cool, before removing it from water.

• The clip can become

hot during cooking. Allow it to cool before handling. The metal foot can also become hot from sitting in heated water. Allow it to cool before handling.

• After unplugging, the heater will remain hot and should not be placed on combustible surfaces.
- Unplug Joule when not in use and before cleaning. Allow it to cool before removing or replacing parts.
• This appliance can be

used by children 8 years and above, persons with reduced physical, mental or sensory capabilities if supervised or instructed and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children without supervision.

- Keep small parts (propeller and bumper) out of reach of children.

• Children shall not play with the appliance.

- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.

- Accessory attachments not explicitly recommended by the appliance manufacturer may cause injuries.

• Joule is not intended

to be operated by means of an external timer or separate remote-control system.

- Do not use outdoors.

- Do not let cord hang over edge of table or counter or touch hot surfaces.

- Do not place Joule on or near a hot gas or electric burner, or in a heated oven.

- Joule shall be used in a suitable vessel.

• Extreme caution must be used when moving a pot or container full

of hot water. Never reach into the water with your hands.

Temperatures above 122 °F / 50 °C can scald.

• To avoid risk of hot water splashing from the cooking vessel, leave at least one inch (25mm) of space between the surface of the water and the top of your cooking vessel.

- Do not use appliance for uses other than those intended by the manufacturer.

- Keep the magnetic

metal foot away from cardiac pacemakers and active implantable medical devices (AIMDs). Magnetic interference could impact the functioning of AIMDs.

- Joule is for household use only.

WARNING

To reduce the risk of damaging countertops:

- Don’t use Joule in pots or vessels placed directly on countertops made of materials such as quartz, granite, or

marble, as doing so may damage the countertop. Please consult your countertop manufacturer's use instructions, and always use Joule with a thick, sturdy trivet or potholder rather than placing the pot directly on the countertop. A dish towel may not effectively protect the countertop from damage.

WARNING

On cord length and cancelling remote operation:

• A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

- Unplugging Joule at any time will stop Joule immediately as well as override any existing cook program or remote controls.

Radio Waves

• Joule radiates radio waves according to the following frequency bands:
  • Wi-Fi frequency range: 2.412-2.462 GHz
• Bluetooth frequency range: 2.402-2.48 GHz
• This device complies with Part 15 of the FCC Rules and Industry Canada’s licence-exempt RSS standard(s). Operation is subject to the following two conditions:

• This device may not cause harmful interference; and
• This device must accept any interference, including interference that may cause undesired operation.

SAVE THESE INSTRUCTIONS

Functions

Controlling Joule requires an iOS or Android device—there are no manual controls. Use your device to check in on food, receive notifications during cooking, and access tips and recipes. Frequent software updates add new recipes and techniques.

PAIRING JOULE WITH YOUR SMARTPHONE OR TABLET

1. Activate Bluetooth on your phone.
2. Download the Joule app from the app store, and then log in with your username and password. Don't have login information yet? No problem—you can create an account within the app.
3. Locate the orange Joule button in the lower right corner. It will guide you through the process of connecting your Joule to your app. The LED status light on top of Joule will blink white when it is ready to connect.

NOTE

Do not try to pair your phone with Joule through your phone's Bluetooth menu. Pair through the Joule app.

1. Once you have linked Joule to your app, there are two ways you can set it to cook your food. You can control it using the step-by-step guides in the app, or manually set times and temperatures. The guides include the Visual Doneness feature, which shows you how your food will come out at an array of temperatures. Manual mode is best for cooks who already know their preferred temperature. Follow the tutorial in the app, which will show you how to access both guides and manual mode, then select your preferred method of cooking.

BASIC SOUS VIDE COOKING GUIDELINES

1. Pick your pot. We recommend starting with a standard stock pot—the pot you use to cook pasta. However, Joule will work with almost any kitchen pot or pan.

In fact, you can even use Joule in your kitchen sink or in a cooler—anywhere you have access to a standard power outlet.

1. Fill pot with warm water from your tap.

2. Protect your work surface. Remember, the water in your pot will get hot enough to cook your food—treat your work surface accordingly.

3. Joule is equipped with an industrial-grade base magnet, so you can quickly and securely affix it to most magnetic steel pots or induction-ready cookware. However, it also has an easy-to-use, universal clip (included with initial Joule purchase). You can use this clip to attach Joule to the rim of your vessel rather than relying on the magnetic foot to hold it in place. Another option for larger vessels is Big Clamp, which works with just about any other type of container you want to use Joule with, such as your trusty Cambro.

4. Put Joule in the pot and affix it to the vessel. The water level should cover at least the bottom one and a half inches of Joule but reach no higher than one inch below the top of the pot. Never submerge Joule's cord in water. Here are some guidelines:

Minimum water depth: 1.5 in (38 mm) Maximum water depth: 8 in (203 mm)

1. In a well-insulated, covered container—a cooler, say—Joule can heat up to 10 gallons (40 liters) of water. In a covered pot, it can heat about 5 gallons (20 liters). When you’re cooking without a cover, we generally recommend limiting water volume to about 2.5 gallons (10 liters). However, you can always use the clip to attach Joule to the rim of your container and increase the maximum water level.

Icon of a hand holding a diamond-shaped envelope, symbolizing approval or acceptance (no text or symbols present)

Care & Cleaning

CLEANING JOULE

Thanks to Joule's seamless design, in most cases you can simply clean it with a damp cloth or sponge and then wipe dry.

Never put Joule in the dishwasher, and do not submerge Joule in water.

To keep Joule running smoothly, we suggest cleaning it periodically in a vinegar bath. Bath time rules: Pour equal parts water and distilled white vinegar into a small pot. Add Joule, use manual mode to set the temperature to 140 °F / 60 °C, and allow Joule to heat the liquid. When Joule alerts you that it has reached that temperature, the cleaning is complete. If you have hard water, it is especially important to clean with vinegar to remove build up inside Joule, which can result in a whistling sound and/or slow heating times—signs that your sous vide tool may need a bath.

To clean the inside of Joule, take off

the metal foot by twisting it counter clockwise, remove the propeller, and then use a wet sponge or bottle brush to gently wipe out the inside. If food has become cooked onto the heater, use a nylon or brass brush to clean, but go easy on the soft rubber seals at the top of the heating cavity.

CHANGING THE JOULE CLIP

To remove Joule's standard clip and swap in the Big Clamp (sold separately), simply pull downward on the wire clip until it slides off. Next, slide the Big Clamp up into place until it clicks, and get cooking.

STORING JOULE

When you're done cooking, we recommend using the app to stop Joule and unplugging the device before storing. We also recommend letting Joule cool down before you handle it, as the lower portion of the device will be quite hot after cooking.

Please note: Any service needs not covered above should be performed by an authorized service representative.

Two white cylindrical electronic devices with black buttons, one on a base and the other on a top, against a plain background (no text or symbols visible)

Breville

Contents

Icon of a hand holding a diamond-shaped envelope, symbolizing approval or acceptance (no text or symbols present)

Generic document icon with no text or symbols

Notes

Generic document icon with no text or symbols

Breville

Consumer Support

USA

Mail: Breville USA

19400 S. Western Ave

Torrance CA

90501-1119

Canada

Mail: Breville Canada

3595 boulevard Côte-Vertu,

Saint-Laurent, Québec

H4R 1R2

www.breville.com

Breville

Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98 000 092 928.

Copyright Breville Pty. Ltd. 2020.

Due to continued product improvement, the products illustrated/photographed in this booklet may vary slightly from the actual product.

CS10001A & CS20001A - A20
