MPM-12 - Power bank Mestic - Free user manual and instructions

Product Type	Portable battery for caravan mover
Battery Technology	LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage	12 V
Capacity	Sufficient capacity for caravan maneuvers (100% usable)
Intended Use	Power supply for caravan mover for maneuvers
Power Supply	Charge via 12-24 V DC mains adapter (included) or optional car charger
Integrated Protection	BMS with protection against short circuit, overcharge, deep discharge
Charging Temperature	Above 0 °C
Storage Temperature	Indoors, dry, away from heat sources
Self-Discharge	Very low, allows storage up to one year
Connections	Battery terminals provided, positive and negative poles
Recommended Cable	Minimum cross-section 16 mm² (red for +, black for -)
Mounting	Base bracket included for mounting on structure
LED Indicator	LED indication of battery status
Internal Charger	Yes, built-in
Maintenance	Recharge every 6 months in storage; disconnect terminals if not used
Safety	Do not open, do not short-circuit, avoid metal objects, use insulated tools
Operating Temperature	Temporary outdoor use, avoid humid conditions and rain
Compatibility	Use only with suitable LiFePO4 chargers

Frequently Asked Questions - MPM-12 Mestic

How do I charge the Mestic MPM-12 battery?

Use the supplied mains adapter. Connect the connection cable to the battery DC input port (12-24 V DC). Charging is done via the internal charger. Recharge after each use.

Can I use the battery in the rain?

No, the battery is not waterproof. Avoid any contact with water and use it only in dry conditions. Store it indoors when not in use.

How to store the battery long-term?

Disconnect the terminals, charge the battery beforehand, then recharge it every 6 months. Store it in a dry, temperate place, away from frost and excessive heat.

What to do if the battery is empty and won't turn on?

The battery switches off automatically when empty. Plug it into the mains charger to recharge. Wait for the LED indicator to show full charge before next use.

Can I use the battery with other equipment besides the caravan mover?

The battery is designed to power a caravan mover. It can supply high currents to overcome obstacles. For other uses, check electrical compatibility.

What cable cross-section to use for connection?

It is recommended to use a cable of at least 16 mm². Use a red cable for the positive pole and black for the negative. Follow your caravan manual.

Can the battery be overcharged?

No, the built-in BMS (Battery Management System) protects the battery against overcharge, deep discharge, and short circuits. Never open the battery.

Can I recharge the battery with a car charger?

Yes, an optional car charger is available. It uses the car's voltage to charge the battery while driving. Ensure it is suitable for LiFePO4 batteries.

What is the battery's lifespan?

With proper maintenance (regular recharging, correct storage), the LiFePO4 battery has a long lifespan. Avoid prolonged full discharges and extreme temperatures.

How to know if the battery is charged?

The battery has an LED charge status indicator. Observe the lights: they indicate the charge level. Refer to the manual for the meaning of the colors.

USER MANUAL MPM-12 Mestic

12 V LiFePO4 technology LI LITHIUM-ION 2000 LIFE CYCLES mestic Share your POWER —

MPM 12-20-30 Powerpack

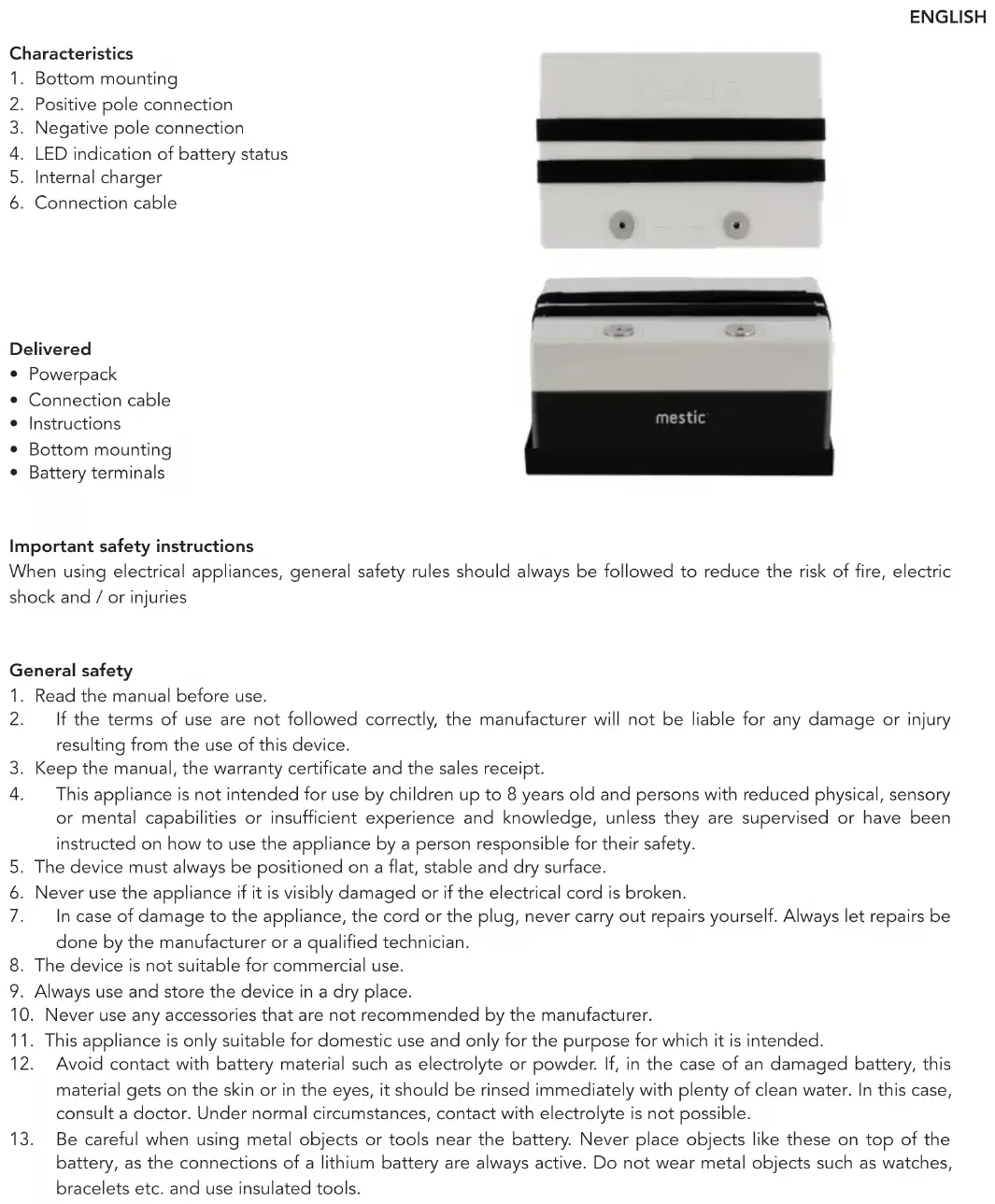

Kenmerken

Two white and black electronic devices with circular ports, one labeled 'mestic' (no other text or symbols visible)

1. Bottom mounting
2. Positive pole connection
3. Negative pole connection
4. LED indication of battery status
5. Internal charger
6. Connection cable

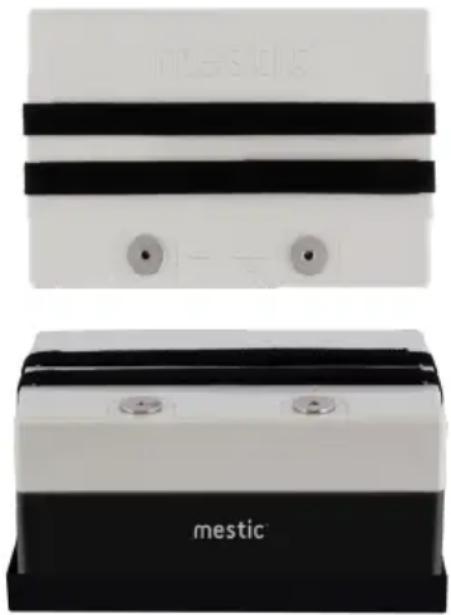

Delivered

• Powerpack
• Connection cable
• Instructions
• Bottom mounting
• Battery terminals

Two white and black electronic devices with circular ports, one labeled 'mestic' (no other text or symbols visible)

Important safety instructions

When using electrical appliances, general safety rules should always be followed to reduce the risk of fire, electric shock and / or injuries

General safety

1. Read the manual before use.
2. If the terms of use are not followed correctly, the manufacturer will not be liable for any damage or injury resulting from the use of this device.
3. Keep the manual, the warranty certificate and the sales receipt.
4. This appliance is not intended for use by children up to 8 years old and persons with reduced physical, sensory or mental capabilities or insufficient experience and knowledge, unless they are supervised or have been instructed on how to use the appliance by a person responsible for their safety.
5. The device must always be positioned on a flat, stable and dry surface.
6. Never use the appliance if it is visibly damaged or if the electrical cord is broken.
7. In case of damage to the appliance, the cord or the plug, never carry out repairs yourself. Always let repairs be done by the manufacturer or a qualified technician.
8. The device is not suitable for commercial use.
9. Always use and store the device in a dry place.
10. Never use any accessories that are not recommended by the manufacturer.
11. This appliance is only suitable for domestic use and only for the purpose for which it is intended.
12. Avoid contact with battery material such as electrolyte or powder. If, in the case of an damaged battery, this material gets on the skin or in the eyes, it should be rinsed immediately with plenty of clean water. In this case, consult a doctor. Under normal circumstances, contact with electrolyte is not possible.
13. Be careful when using metal objects or tools near the battery. Never place objects like these on top of the battery, as the connections of a lithium battery are always active. Do not wear metal objects such as watches, bracelets etc. and use insulated tools.

Safety in use

1. Do not overcharge the internal battery.
2. Avoid deep discharges.
3. Never short-circuit the + and - pole. Although the internal BMS is protected against short-circuiting, it is strongly discouraged, to avoid dangerous sparks.

4. Never connect the battery in series or in parallel with other batteries.

5. Never open the battery yourself. The warranty is void if the battery is opened.

6. Do not place the battery in an environment with high humidity, high temperatures, a heat source, or in direct sun or rain.

7. If you use bolts (instead of the supplied battery terminals) for connecting electronics, make sure that they are not longer than the internal thread.

8. When storing the battery for a longer period of time, it is recommended to charge it beforehand and then recharge it once every six months. Do not forget to disconnect the battery clamps if the battery will not be used for a long time!

9. Never charge the battery at temperatures below 0^ C.

10. Use the internal charger, or a charger suitable for LiFePO4 cell chemistry.

11. Do not smoke, strike a match, or create a spark near the battery.

12. Only charge the battery in a well-ventilated area.

13. This appliance is intended to be stored indoors when it is not used. This device should not be stored outside.

14. This appliance is intended for temporary outdoor use. Be extremely careful when using this device in wet conditions!

15. Never use the device near hot or warm objects.

16. Prevent the device from coming into contact with rain.

17. Do not place chemical or explosive substances near the device.

18. Caution! The heat generated during operation of the battery must be able to dissipate properly.

19. Keep sufficient distance between the product with respect to objects and walls.

20. Never immerse the device in water.

	To extend the battery life, use and charge it at least every 6 months
	Only use original or certified chargers and cables
	Avoid extreme temperatures
	Prevent damage from falling
	Do nog disassemble
	This device is not waterproof, do not expose to liquids

Installation

1. Connect the negative terminal of the battery to the negative connector of your caravan mover.
2. Connect the positive terminal of the battery to the positive connector of your caravan mover.
3. It is recommended to use a cable of at least 16 mm2. Use a red cable for the + and a black cable for the -. Always follow the manual of your caravan mover when connecting the cabling.

Use

1. The battery has more than enough capacity to carry out one manoeuvre of the caravan with a mover. It is recommended to recharge the battery after each use for the next use.
2. The battery is capable of delivering short, high currents to overcome a threshold or other obstacles. If this is done for a longer period of time, the battery will turn off automatically and must reset itself.
3. Unlike lead-acid batteries, it is possible to fully discharge this lithium battery with LiFePO4 technology. This means 100% of the battery capacity can be used.
4. When the battery is empty, it will turn itself off and must be charged before the next use. Charging takes place via a charging cable and mains connection.
5. Optionally available is a charger (car charger) that uses the car voltage to slowly charge the battery while driving. With this, it is no longer necessary to install thick cabling.
6. The battery can be securely mounted on a supporting structure by means of the bottom mounting.
7. If you are not using the battery for a longer period of time, it is strongly recommended to disconnect the battery terminals. Make sure that the battery does not run out because it is in standby mode. Also make sure that the battery is not connected to the mains. If the temperature is below 0^ C it should not be charged. The battery can be stored this way for up to a year, due to its very low self-discharge.

How to charge the Powerpack

charging with an AC adapter

The battery can be charged by connecting the supplied connection cable to the power supply.

- Connect the other end of the connection cable to the DC input port on the device. With the charging function of the adapter input, the voltage range is 12V DC - 24V DC.

Correct disposal of this product.

This symbol indicates that this product must not be disposed of together with normal household waste (2012/19/EU). To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote sustainable reuse of material resources. To return your used device, please read the warranty terms from where the product was purchased. They can take the product back for environmentally safe recycling.

Declaration of Conformity

Gimeg Nederland BV hereby declares that the device MPM-12-20-30 meets the basic requirements and other relevant regulations mentioned in the European directive for electromagnetic compatibility (2014/30/EU) and the directive relating to environmental EU Compliance (2015/863/EU). You can request a complete declaration of conformity at the address stated on the back.
