Product Type	Rechargeable Li-Ion battery
Brand	Kress
Model	KAB20
Battery technology	Lithium-ion (Li-Ion)
Intended use	Power supply for Kress cordless tools
Recommended charging temperature	0 °C to 45 °C
Optimal operating temperature	+15 °C to +25 °C
Built-in protection	Deep discharge protection shutdown
Charging method	Use exclusively the specific Kress charger
Maintenance	Clean the ventilation slots with a soft, clean, dry brush
Storage	In a dry place, away from sunlight, between 0 °C and 45 °C
Transport	Subject to dangerous goods regulations; pack to prevent movement
Recycling	Do not dispose of with household waste; separate collection mandatory
Safety - Do not	Open, disassemble, crush, short-circuit, expose to fire or heat
Safety - In case of leakage	Avoid contact with skin/eyes; rinse thoroughly with water and consult a doctor
Safety - Ingestion	Call emergency services immediately
After-sales service	Contact an approved Kress service center
Warranty period	Refer to the documentation provided with the product
Dimensions	Approximately 120 x 80 x 60 mm (standard estimate)
Weight	Approximately 500 g (standard estimate)

Frequently Asked Questions - KAB20 KRESS

How to charge the Kress KAB20 battery?

Use only the specific Kress charger provided with the tool. Plug the charger into a mains socket, then insert the battery. Charging is automatic. Refer to the charger's user manual for more details.

What is the charging time of the KAB20 battery?

The charging time is not specified in the manual. It depends on the charger used. On average, a Li-Ion battery of this size charges in 1 to 3 hours. Refer to the indications on the Kress charger.

Can the battery be left on charge for too long?

Avoid leaving the battery on charge for long periods without use. The manual recommends not letting the battery charge for too long when not in use. Disconnect the charger once charging is complete.

How to store the KAB20 battery?

Store the battery in a dry, cool place, away from sunlight, between 0 °C and 45 °C. Do not leave it in a car in summer. If not used for a long time, charge it to about 50% before storage.

Is the KAB20 battery compatible with all Kress tools?

This battery is designed only for Kress cordless products. Check your tool's label or user manual for compatibility. Never use a battery not intended for it.

What to do if the battery no longer works?

If the battery no longer works, contact an approved Kress after-sales service center. Do not attempt to repair it yourself. Before that, check that the charger is in good condition.

How to transport the battery safely?

For transport, ensure that the housing is not damaged and pack the battery to prevent any movement inside. Li-Ion batteries are subject to dangerous goods regulations.

How to recycle the KAB20 battery?

Do not dispose of the battery with household waste. Deposit it at a separate collection point (recycling center, specialized store). The separate collection symbol is on the product.

What are the operating temperatures of the battery?

The battery operates optimally between +15 °C and +25 °C. Charging must be done between 0 °C and 45 °C. Avoid extreme temperatures.

How to maintain the KAB20 battery?

Clean the ventilation slots periodically with a soft, clean, dry brush. Keep the battery clean and dry. Do not open it or subject it to shocks.

USER MANUAL KAB20 KRESS

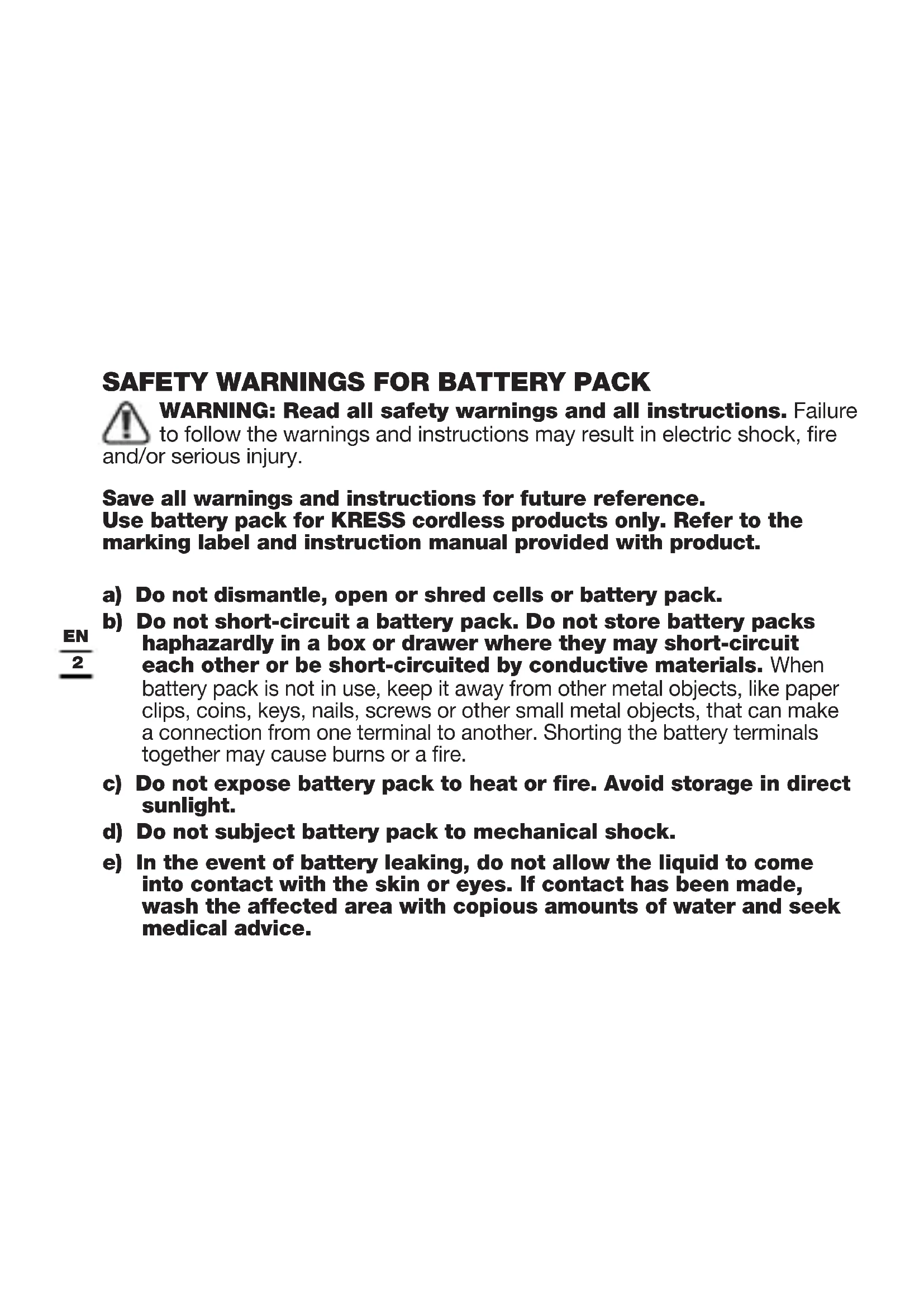

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Use battery pack for KRESS cordless products only. Refer to the marking label and instruction manual provided with product.

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature (20°C ± 5°C).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by KRESS. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.

r) Remove the battery from the equipment when not in use.
s) Dispose of properly.
t) Do not mix cells of different manufacture, capacity, size or type within a device.
u) Do not remove battery pack from its original packaging until required for use.
v) Observe the plus (+) and minus (−) marks on the battery and ensure correct use.

SYMBOL

	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	Do not burn
	Li-lon battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.

OPERATION INSTRUCTIONS

Recommendations for optimal handling of the battery NOTE:

1. Your battery pack is UNCHARGED. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.
2. A battery pack will slowly lose its charge when kept out of the charger or left in an unplugged charger for a long time. It may need to be recharged before use.

The Li-Ion battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit: The tool no longer rotates. In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow time for the battery to cool down before recharging. The Li-Ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

How to charge the battery

Refer to the instruction manual provided with product or charger.

WARNING: Do not continue to press the On/Off Switch after the machine has been automatically switched off. The battery could be over-discharged.

Store the battery only within a temperature range between 0 °C and 45 °C. As

an example, do not leave the battery in the car in summer time.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

TRANSPORT

The contained Li-Ion batteries are subject to the dangerous goods legislation requirements.

Dispatch batteries only when the battery housing is undamaged. Pack up the batteries in such a manner that cannot move around in the packaging.

EN

6

MAINTENANCE AND SERVICE

Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

When the battery is no longer operative, please refer to an authorized after-sales service agent for KRESS power tools.

MANUTENCAO E SERVICO
