Product type	Citrus juicer
Brand	Girmi
Model	SR02
Power supply	AC 230V ~ 50/60Hz
Power	25 W
Jug capacity	700 ml
Number of cones	2 (large and small)
Dimensions (approx.)	20 x 20 x 25 cm
Weight (approx.)	1 kg
Material of food contact parts	BPA-free plastic
Rotation function	Automatic reverse rotation
Activation	By pressing on the cone
Maximum continuous use time	5 minutes
Recommended rest time	At least 5 minutes
Cleaning of removable parts	Hand wash or dishwasher safe
Cleaning of motor unit	Damp cloth, do not immerse
Suitable fruit types	Citrus fruits (oranges, lemons, grapefruits, etc.)
Safety	Automatic shut-off after 5 min, overheat protection
Included accessories	2 cones, jug, lid, strainer
Repairability	Repair by authorized center only

Frequently Asked Questions - SR02 GIRMI

How to assemble the Girmi SR02 citrus juicer?

Place the jug on the motor unit by turning clockwise until it clicks. Insert the strainer, then the small cone (and optionally the large cone on top). Make sure everything is securely attached before use.

How to clean the parts of the appliance?

Unplug the appliance. Removable parts (jug, strainer, cones, lid) can be washed with soapy water or in the dishwasher. The motor unit is cleaned with a damp cloth, never immerse it.

Can I use the juicer continuously for more than 5 minutes?

No, to avoid motor overheating, do not use the appliance for more than 5 minutes in a row. Let it cool down for at least 5 minutes before reusing.

Why are there two different cones?

The large cone is suitable for large fruits like oranges and grapefruits, the small cone for lemons and small oranges. Use the one that matches the fruit size.

How does the appliance turn on?

The juicer automatically turns on when you apply pressure on the cone with the fruit. Release pressure to stop.

What to do if the appliance stops working?

Check that the plug is connected and the jug is properly locked. If the problem persists, contact an authorized service center. Do not attempt to repair it yourself.

Can I put the jug and cones in the dishwasher?

Yes, plastic parts (jug, strainer, cones, lid) are dishwasher safe. Place them on the top rack.

How to remove pulp from the strainer?

After use, disassemble the strainer and rinse it under running water. Use a soft brush to remove stubborn residue if necessary.

What types of fruit can I juice with this appliance?

This juicer is specially designed for citrus fruits: oranges, lemons, grapefruits, limes, etc. Do not use it for other fruits.

How to store the appliance?

Store the juicer in a dry place, away from heat and humidity. Wrap the power cord without pulling.

USER MANUAL SR02 GIRMI

Girmi brand juice maker with red and white casing, no visible text or symbols on the device itself.

Spremiagrumi

Citrus juicer

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 6

General information.... p. 8

SR02.... p. 9

Operating the unit.... p. 9

Assembling.... p. 9

Cleaning.... p. 9

Technical features.... p. 9

Waste of electric and electronic equipment (WEEE

Directive).... p. 25

PORTUGUES:....p. 9

ESPAÑOL......p. 13

DEUTSCH p. 17

FRANCAIS p. 20

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

A B C D F E G

FUNZIONAMENTO

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected.

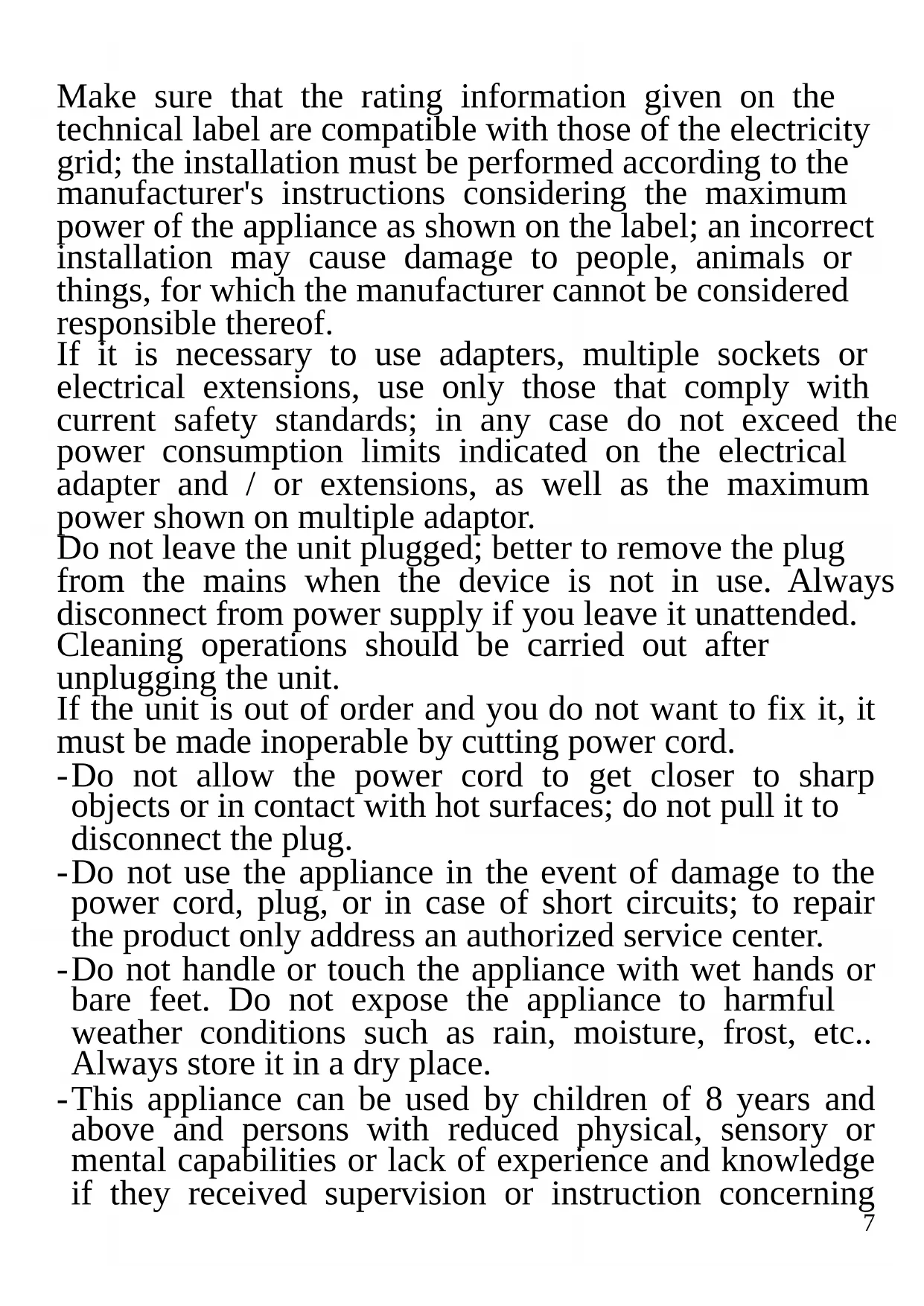

Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning

use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

- Keep appliance and its cord out of reach of children less than 8 years. Children must not play with the appliance. If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Before every use, unroll the power cord.

- Use original spare parts and accessories only.

- Do not subject the product to strong impacts, serious damages may result. Don’t use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

Before using the unit for the first time, carefully wash the parts that come in touch with food such as the arm, filter, container, juicer spout and cones.

Before operating the juicer, make sure to place it on a flat and stable surface with no heat sources nearby.

Assemble all parts properly before use.

To avoid the overheating of the motor, do not use the appliance for more than 5 minutes continuously, then wait at least 5 minutes before operating.

Never leave the appliance unattended while it is running. Disconnect electric plug from the socket after each use. Do not immerse the motor unit in water or other liquids; clean it with a damp cloth.

DESCRIPTION SR02

A) Lid

B) Juicer cone, large

C) Juicer cone, small

D) Filtering grid

E) Juice jar

F) Working axe

G) Main body

OPERATING THE UNIT

• Insert the juice jar (E) by turning it clockwise until it clicks into the engine block. Place filters and cones juicer correctly. Connect the plug to the power electric outlet.
• Cut the citrus in half and place it on the citrus cone. A pressure on the cone will operate the motor automatically, so the rotation of the cone can be interrupted recovering the citrus.
• At the second restart, the cone rotates in the opposite direction, ensuring a complete squeezing of the fruit.
• At the end of the operation, remove the filters with the pulp, insert the lid (A) on the jar (E) and unlock the glass, to easily bring the juice on the table.

This appliance is suitable to squeeze any type of citrus. It is equipped with two cones: a big one with a wider base for large fruits such as oranges and grapefruit and a smaller one suitable for lemons or small oranges.

ASSEMBLING

The jar (E) should be placed on the motor by turning it clockwise until it snaps.

The filters should be placed above the jug. Regarding the juicer cones, place the smaller cone above the filter and, if necessary, place the largest cone on the cone small.

CLEANING - Unplug the unit from the electrical outlet.

Some parts (such as the container, filters or juicing cones) can be treated like normal dishes. Wash them under tap water. For a more accurate cleaning, use a soft sponge and dishwashing detergents.

Clean the motor unit with a damp cloth. Do not immerse the motor unit in water or other liquids.

TECHNICAL FEATURES

• Power supply: AC 230V\~50-60Hz. Power: 25W
• Gradueted jar capacity: 700cc
• Automatic juicing by pressing the cone

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
