USER MANUAL TM5500 Concept

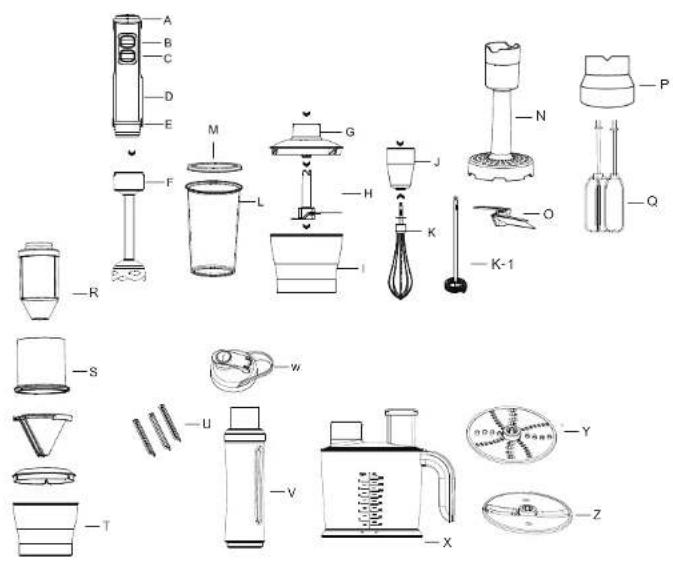

PRODUKTA APRAKSTS/ PRODUCT DESCRIPTION/ PRODUCTOMSCHRIJVING/

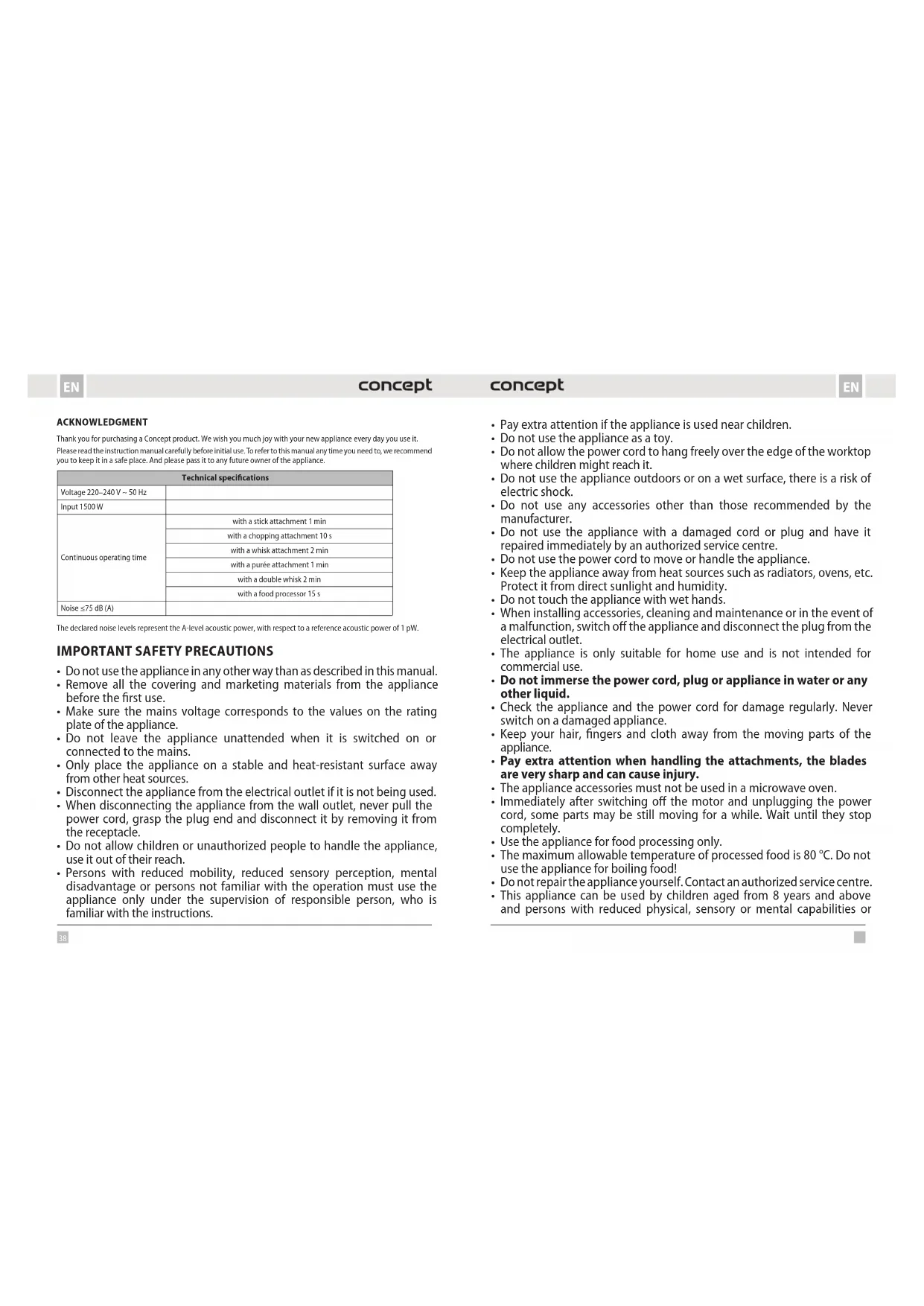

• Do not use the appliance in any other way than as described in this manual.

• Remove all the covering and marketing materials from the appliance before the first use.

• Make sure the mains voltage corresponds to the values on the rating plate of the appliance.

• Do not leave the appliance unattended when it is switched on or connected to the mains.

• Only place the appliance on a stable and heat-resistant surface away from other heat sources.

• Disconnect the appliance from the electrical outlet if it is not being used.

• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.

• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.

• Pay extra attention if the appliance is used near children.

• Do not use the appliance as a toy.

• Do not allow the power cord to hang freely over the edge of the worktop where children might reach it.

• Do not use the appliance outdoors or on a wet surface, there is a risk of electric shock.

• Do not use any accessories other than those recommended by the manufacturer.

• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.

• Do not use the power cord to move or handle the appliance.

• Keep the appliance away from heat sources such as radiators, ovens, etc. Protect it from direct sunlight and humidity.

• Do not touch the appliance with wet hands.

• When installing accessories, cleaning and maintenance or in the event of a malfunction, switch off the appliance and disconnect the plug from the electrical outlet.

• The appliance is only suitable for home use and is not intended for commercial use.

• Do not immerse the power cord, plug or appliance in water or any other liquid.

• Check the appliance and the power cord for damage regularly. Never switch on a damaged appliance.

• Keep your hair, fingers and cloth away from the moving parts of the appliance.

• Pay extra attention when handling the attachments, the blades are very sharp and can cause injury.

• The appliance accessories must not be used in a microwave oven.

• Immediately after switching off the motor and unplugging the power cord, some parts may be still moving for a while. Wait until they stop completely.

• Use the appliance for food processing only.

• The maximum allowable temperature of processed food is 80 °C. Do not use the appliance for boiling food!

• Do not repair the appliance yourself. Contact an authorized service centre.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or40 41 ENEN lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are at least 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty. PRODUCT DESCRIPTION A Speed setting B ON button C Turbo button D Appliance body E Stick attachment release button F Blending attachment G Chopping bowl lid H Chopping blade I Chopping bowl J Accessory connection K Whipping whisk K- 1) Frothing whisk (only TM5500) L Blender bowl M Blender bowl lid N Puree attachment (only TM5500, TM5510) O Puree blade (only TM5500, TM5510) P Double whisk connection (only TM5500, TM5510) Q Double whisk (only TM5500, TM5510) R Tamper (only TM5500, TM5510) S Grater holder (only TM5500, TM5510) T Grater bowl (only TM5500, TM5510) U Graters (only TM5500, TM5510) V Bowl lid (only TM5500) W Bowl (only TM5500) X Food processor (only TM5500) Y Food processor - grater (only TM5500) Z Food processor- Slicer (only TM5500) OPERATING INSTRUCTIONS NOTICE Always disconnect the plug out of the electrical outlet before assembling or removing accessories! Before putting a new appliance into operation, you should wipe it thoroughly with a damp cloth and wash all removable parts in warm water for hygienic reasons. The appliance is intended for short-term operation. Do not use the appliance continuously for longer than the time specified in the technical parameters table. Allow the appliance to cool down before further use. BLENDING The stick attachment is intended for preparing sauces, toppings, soups, mayonnaise, baby food, mixed drinks and milkshakes.

1. Put the foods in the blending bowl or any other higher kitchenware.

2. Place the appliance body on the shaft of the stick attachment and turn it to lock it (pull it make sure that the stick attachment cannot be separated from the appliance body).

3. Unwind the power cord completely. Make sure it does not touch any nearby heat sources. Insert the plug into the

4. Hold the appliance body with one hand and the blending bowl with the other.

5. Insert the appliance into the blending bowl with foods and press the switch to switch it on. The power can be

increased to Turbo. Blend the foods in a circular motion at the bottom of the bowl. After you have finished blending, switch off the appliance. Unplug the power cord from the socket.

6. Press the release buttons on the bottom of the appliance to remove the stick attachment and rinse it immediately

under warm running water. Make sure that water does not get into the inside of the attachment to the drive shaft area. If this happens, allow the stick attachment to dry and drip a few drops of edible oil into the drive shaft area to ensure better run of the stick attachment bearing. CHOPPING The chopping bowl is suitable for chopping meat, cheese, onions, herbs, garlic, carrots, walnuts, almonds, prunes, etc. Do not chop extremely hard foods such as nutmeg, coffee beans and grains. Cut foods such as meat, cheese, onions, garlic, carrots and frozen foods first. Remove stems from herbs, remove shells from nuts. Remove bones, gristles, tendons and skin from meat.

1. Insert the chopping blade and foods into the chopping bowl and close it with a transmission lid.

2. Place the appliance body on the transmission lid and turn it to lock it.

3. Unwind the power cord completely. Make sure it does not touch any nearby heat sources. Insert the plug into the

4. Hold the appliance body with one hand and the chopping bowl with the other.

5. Press the switch to switch on the appliance. You can use the Turbo button and briefly increase the motor speed to

6. After you have finished chopping, switch off the appliance. Press the release buttons on the bottom of the appliance

to remove the body of the appliance. Unplug the power cord from the socket.

7. Wipe the transmission lid of the chopping bowl with a damp cloth. Do not wash it under running water and do not

immerse it in water!42 43 ENEN WHIPPING Use the whisk attachment, whipping whisk and double whisk only for whipping cream, egg whites, preparing runny sponge mixture and no-bake desserts. Use a wide bowl. Whip a maximum of 400 ml of chilled cream (min. fat content 30 %, 4-8 °C). Whip a maximum of 4 egg whites.

1. Put foods in a wide bowl.

2. Place the appliance body on the transmission shaft of the whisk attachment and turn it to lock it.

3. Unwind the power cord completely. Make sure it does not touch any nearby heat sources. Insert the plug into the

4. Hold the appliance body with one hand and the whipping bowl with the other.

5. Insert the appliance into the whipping bowl with foods and press the switch to switch it on. Whip in a circular

motion at the bottom of the bowl and keep turning the bowl clockwise. You can use the Turbo button and briefly increase the motor speed to maximum.

6. After you have finished whipping, switch off the appliance. Unplug the power cord from the socket.

7. Press the release buttons on the bottom of the appliance to remove the whipping whisk and rinse it immediately

under warm running water. Make sure that water does not get into the inside of the attachment to the drive shaft area. If this happens, allow the whisk attachment to dry and drip a few drops of edible oil into the drive shaft area to ensure better run of the whisk attachment bearing. PURÉE (model TM5500, TM5510 only) The purée attachment is suitable for processing boiled potatoes, carrots and other vegetables. Do not use foods that are too hard.

1. Put the foods evenly in a larger bowl.

2. Place the appliance body on the shaft of the purée attachment and turn it to lock it (pull it make sure that the purée attachment cannot be separated from the appliance body).

3. Unwind the power cord completely. Make sure it does not touch any nearby heat sources. Insert the plug into the

4. Hold the appliance body with one hand and the bowl with foods with the other.

5. Insert the appliance into the bowl with foods and press the switch to switch it on. The power can be increased to

Turbo. Use the attachment to slowly press the foods until the desired consistency is reached.

6. After you have finished blending, switch off the appliance. Unplug the power cord from the socket.

7. Press the release buttons on the bottom of the appliance to remove the puree attachment from the body of the

appliance and rinse the attachment in warm flowing water immediately. Make sure that water does not get into the inside of the attachment to the drive shaft area. If this happens, allow the attachment to dry and drip a few drops of edible oil into the drive shaft area to ensure better run of the attachment bearing. FOOD PROCESSOR (model TM5500 only) The food processor can be used not only as a large chopper, but also as a grater. You can insert the plate of your choice into the grating attachment.

1. When chopping, place the chopping blade on the shaft inside the bowl and then add the foods. Press the button

just below the top bend of the bowl handle, this will allow you to put on the transmission lid. Turn the lid in the correct direction to lock it in its place.

2. When grating, insert the selected plate into the grating attachment. Place this attachment on the shaft inside the

bowl. Press the button just below the top bend of the bowl handle, this will allow you to put on the transmission lid. Turn the lid in the correct direction to lock it in its place.

3. Place the appliance body on the lid and turn it to lock it (pull it make sure that lid cannot be separated from the

4. Unwind the power cord completely. Make sure it does not touch any nearby heat sources. Insert the plug into the

5. Hold the appliance body with one hand and the food processor with the other.

6. When grating, put the foods in the feed tube using the pusher only.

7. Press the switch to switch on the appliance. Press to select the chopping and grating speed. The power can be

8. After you have finished, switch off the appliance. Unplug the power cord from the socket.

9. Press the release buttons on the bottom of the appliance to remove the lid from the body of the appliance and wipe

the lid with damp cloth. Do not wash under running water or immerse in water! GRATING (model TM5500, TM5510 only)

1. Place the lid with graters on the grater bowl.

2. Then place the grater holder and turn to secure the holder in place.

3. Fit the body of the appliance into the upper part of the tamper.

4. Put the product on the grater holder and process it using the tamper

5. Press the switch to switch on the appliance. Press to select the grating speed.

6. Switch off the appliance after completion of the food processing operation. Unplug the power cord from the

7. Press the button below the upper part of the bowl holder and turn the lid to remove it from the body of

the appliance. Wipe with a damp cloth, do not wash in flowing water or immerse in water!45

CLEANING AND MAINTENANCE

Before cleaning and after use of the appliance, switch the appliance off and disconnect it from the mains. Wipe the appliance body with a damp cloth. Do not use pot scourer, abrasives solutions or solvents for cleaning. The transmissions must not come into contact with water! Simply wipe them with a damp cloth. Do not immerse the stick attachment in water! Simply wash it. Make sure that water does not get into the inside of the attachment to the drive shaft area. If this happens, allow the stick attachment to dry and drip a few drops of edible oil into the drive shaft area to ensure better run of the stick attachment bearing. Wash bowls and chopping blades in warm detergent water and rinse with clean water or wash them in a dishwasher. If you process foods with a higher concentration of pigment (e.g. carrots), some plastic parts may become discoloured. To remove the discolouration, coat these parts with vegetable oil before washing and leave it for a few minutes. Defects caused by improper or insufficient maintenance are not covered by the warranty. SERVICE Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre. ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.

• Packaging materials may be disposed of as sorted waste.
