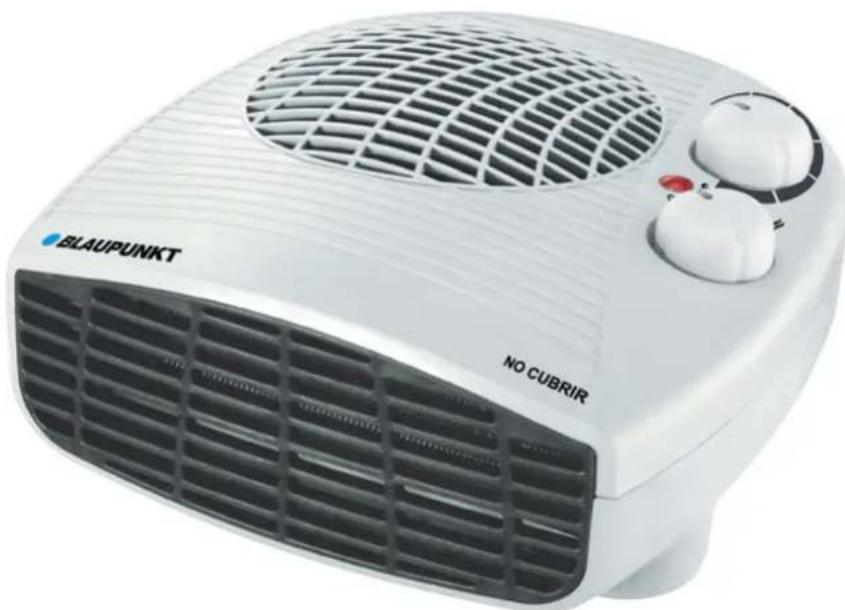

BP1006 - Heating BLAUPUNKT - Free user manual and instructions

Brand	Blaupunkt
Model	BP1006
Product type	Portable electric heater (fan heater)
Power	1000 W / 2000 W (2 levels)
Power supply	220-240 V ~ 50 Hz
Dimensions (approx.)	25 cm x 15 cm x 20 cm
Weight (approx.)	1.5 kg
Temperature adjustment	Rotary thermostat
Summer function (ventilation only)	Yes, via mode button
Thermal safety	Overheat protection (automatic shutdown)
Installation	Portable device, place on a flat and clear surface
Maintenance and cleaning	Clean the exterior with a slightly damp cloth; do not use abrasive products
Warranty	2 years (in accordance with applicable legislation)
Standards	EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3
Manufacturer	RAMSONS, S.A. (for Blaupunkt)
Origin	Made in China for Blaupunkt
Recycling	Do not dispose of with household waste; follow the WEEE directive

Frequently Asked Questions - BP1006 BLAUPUNKT

How to turn on and select the power?

Use the top switch: position 0 = off, position 1 = 1000 W, position 2 = 2000 W. Turn the thermostat to the right to set the desired temperature.

What to do if the device suddenly stops?

This is due to overheat protection. Set the switch to 0, unplug the device, let it cool for at least 10 minutes, check that the air inlets/outlets are clear, then plug it back in and turn it on.

Can I use this device in a bathroom?

No, this electric heater is not recommended for a bathroom. Do not use it near water, shower, or pool.

How to clean the device?

First unplug the device. Clean the exterior with a slightly damp cloth. Do not use chemical or abrasive products.

Can the device be used by children?

Children under 8 years old must not use the device. Children aged 8 and over may use it under constant supervision. Persons with reduced capacities must be supervised.

What to do in case of malfunction?

Unplug the device and contact an authorized center. Always insist on original spare parts.

Can I cover the device?

No, never cover the device. This may cause overheating and fire risk.

What is the warranty?

The warranty is 2 years from the date of purchase. It covers manufacturing defects. Keep the invoice and warranty certificate filled in by the seller.

How does the summer function work?

Turn the mode button to the summer position (ventilation only). The device blows cold air without heating.

Where can I download the manual?

The complete manual in PDF format is available for free on notice-facile.com. You can also request a translation by email.

USER MANUAL BP1006 BLAUPUNKT

PLEASE READ THE INSTRUCTIONS IN THIS MANUAL CAREFULLY BEFORE STARTING.

DO NOT HANDLE THE FAN HEATER INTERNALLY.

The texts, photos, colors, figures and data correspond to the current technical level at the time of printing. We reserve the right to make modifications motivated by the ongoing development of technology in our products.

Technical Specifications BP1003

Maximum Power: 2000 W

Rated voltage: 220 - 240 V~

Frequency: 50/60 Hz

Insulation class: II

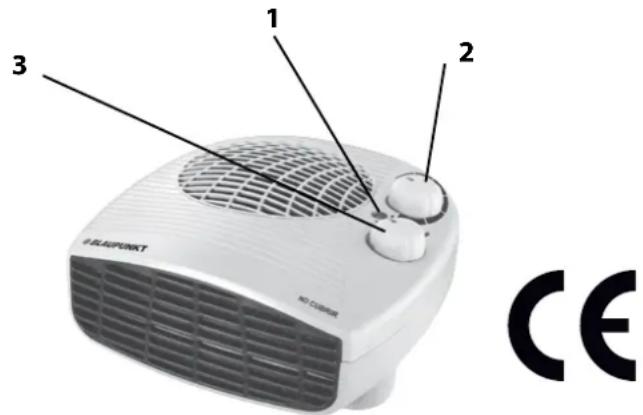

NAME OF HEATER PARTS

1. Pilot lamp
2. Thermostat
3. Commissioning speeds

GENERAL INFORMATION

Before putting the appliance into operation, read the following instructions carefully.

KEEP THIS BROCHURE IN A SAFE PLACE SO YOU CAN CONSULT IT AT ANY TIME.

After removing the packaging, make sure that the appliance is in good condition. If in doubt, do not use the appliance and return it to your dealer.

The packaging is made of plastics, screws, etc. They could prove dangerous, so it would be advisable to keep them out of the reach of children.

INSTALLATION

This heater does not need installation, because it is a portable device.

Electric heating is not advisable to use in the bathroom.

Place the unit on a flat and unobstructed surface, plug the power cord into an electricity outlet of your home. Using the upper switch, you can select the heat output (1,000 or 2,000 W) and the unit stop.

When it is in position 0, it is stopped, in the next position (1) it will be at 1,000 W of power and in the next position (2) it will be at 2,000 W.

By means of the thermostat button it will be activated. Completely to the left, the heater will be disconnected. The more you turn to the right, the higher the cutting temperature will be. Please adjust the thermostat to obtain an optimal temperature in the room, as well as a high efficiency of saving consumption, maintaining a pleasant temperature.

This heater is provided with an excess heat safety device. This means that if the thermo fan accidentally covers the air inlet or outlet, this overheat protector acts, causing the stop. So that the thermo fan is used again, proceed as follows: Set the switch in position "0" (stopped).

Pull the power cord out of the socket and check that all air inlets and outlets are free.

Wait for the thermo fan to cool down for a period of not less than 10 minutes. Reconnect the power cord to the outlet and put the switch in the heat position (1). Check that the thermo fan works perfectly.

OPERATION

Place the thermostat button (right) in a clockwise direction until it reaches its maximum. For the summer function (ventilation only), turn the knob to the position.

For reduced heat function, set the (right) button to the 1,000 W position. For the maximum heat function, move the (right) button to the 2,000 W position. To stop, move the button (left) to position 0.

SECURITY MEASURES

Do not place the appliance under an outlet. Do not place anything on or in front of the heater, as it reaches high temperatures that could cause deformation or fire of objects.

Do not handle flammable liquids, explosives, or gas near the heater.

Because this unit uses a standard connection, if the power cord is damaged, it must be replaced by a cable or special set supplied by the manufacturer or its after-sales service.

Children and older people with little knowledge of electrical appliances should exercise extra caution.

Do not use the device in humid places to prevent short circuit risks.

Do not use the appliance while sleeping without being totally sure that it is far enough from any item that may pose an accident risk.

Never cover the appliance; if it is covered, there is a risk of fire.

Do not use in the vicinity of bathrooms, showers, or swimming pools.

This heater is designed to work indoors; never use it outdoors.

Do not use this fan in rooms less than 4 m

When the room has reached the required temperature, turn the thermostat knob counterclockwise to the position where the appliance turns off, no further. The selected temperature of this shape will automatically regulate and persist at the constant level, regulated by the thermostat. In the event of breakage and/or malfunction of the appliance, disconnect it from the socket and contact your authorized center. Always demand original spare parts. If the user does not read these instructions, both the safety of the device and its warranty will be voided.

PRECAUTIONS

Do not leave plastic balls or packing items within reach of children.

Do not connect without making sure that the voltage indicated on the nameplate of the appliance and that of your home match.

This appliance should not be used by children from 0 to 8 years old. This appliance can be used by children from 8 years and above if they are continuously supervised. This appliance can be used by people with physical, sensory, or mental impairment or lack of experience and knowledge if given supervision or instruction on the use of the ventilator in a safe way and understand the risks involved. Keep the appliance and its cord out of the reach of children under 8 years.

Cleaning and user maintenance must not be carried out by children.

Children should be supervised to ensure that they do not play with the device.

GENERAL USE PRECAUTIONS

If you decide not to use the appliance again, it is recommended that you make it unusable by cutting the power cord (after removing the power plug). It is also recommended to disable all parts that may constitute a potential hazard, especially for children who could use the device for their games.

Keep these instructions.

MAINTENANCE AND CLEANING

Before undertaking any maintenance, disconnect the appliance from the outlet.

You can clean the exterior with a slightly damp cloth.

Do not use chemical or abrasive products, metallic scouring pads, etc. that may deteriorate surfaces. In the event of breakage and/or malfunction of the appliance, disconnect it from the socket and contact your authorized center. Always demand original spare parts. Failure to follow these instructions may compromise the safety of the appliance and void the warranty.

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product. This device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU

read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users (articles 114 to 127). R.S.A is committed to repairs being completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be covered by the warranty.

The date of sale of the device, for the purposes of the warranty period, will be that which appears on the purchase invoice.

Warranty operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates that the lack of conformity existed at the time of delivery.

MANUFACTURED IN CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

Address: Pedro Munoz Torres n° 1

Post Code: 41006

SEVILLA

We declare under our responsibility that the product:

Product Description: QUARTZ HEATER

Model: BP1006

Brand: BLAUPUNKT

It complies with the European Union legislation in compliance with the 2004/108/EU guidelines

The standards apply: EN 55014-1:2006+A1: +A2:

EN 55014-2: 1997+A1: +A2:

EN 61000-3-2:2006+A1: +A2

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position: Manager

Date:

Signature:

10 June 2020

Ramsons, S.A.

Pedro Muñoz Torres N° 1 NAVES HYTASA 41006 SEVILLA

Tfn. 954 933 404 • Fax. [phone]

USER

DATE OF SALE

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certificate.

To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96/EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with the aim to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of the obligation that when you dispose of the device it must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.

Enjoy it.

PLEASE READ CAREFULLY THE INSTRUCTIONS IN THIS MANUAL BEFORE STARTING. DO NOT HANDLE THE INTERNAL HEATING.
