Brand	Güde
Model	GMH 550
Product type	Thermal hedge trimmer
Order number	93997
Displacement	25.4 cm³
Engine power	0.75 kW / 1 HP
Max. engine speed	8500 min⁻¹
Blade speed	2000 min⁻¹
Tank capacity	0.6 L
Fuel consumption	1.1 L/h
Oil/fuel mixture	40:1
Cutting bar length	590 mm
Cutting length	510 mm
Max. cutting thickness	26 mm
Weight	5.3 kg
Sound pressure level (LpA)	89.3 dB(A)
Sound power level (LWA)	103.6 dB(A)
Vibration (ah)	10.23 m/s²
Vibration uncertainty (K)	1.5 m/s²
Engine type	2-stroke, petrol
Blade material	Steel
Warranty	2 years (consumer)

Frequently Asked Questions - GMH 550 Güde

What type of fuel should I use for the GMH 550?

Use a mixture of unleaded petrol and 2-stroke oil in a 40:1 ratio. Do not use old mixture.

How do I start the hedge trimmer?

Ensure the tank contains fresh mixture. Activate the choke (if engine cold), press the primer bulb 6-8 times, then pull the starter. Once started, turn off the choke.

How to maintain the blade?

Clean the blade after each use with an oiled cloth. Regularly check for damage. Grease the transmission grease points and sharpen or replace if necessary.

What safety precautions should be taken?

Always wear safety glasses, hearing protection, gloves, and safety shoes. Maintain a safety distance of 10 m from others. Never work indoors.

What to do if the engine does not start?

Check the fuel level, spark plug (cleanliness and gap 0.6-0.8 mm), air filter, and use the choke. If the engine is flooded, dry the plug.

What is the warranty period?

The warranty is 24 months for private use (end consumer) and 12 months for professional use. It covers material and manufacturing defects.

How to store the device?

Empty the fuel tank, clean the device, store it in a dry, frost-free place. Use the blade protection sheath.

Which oil to use for the mixture?

Use a quality 2-stroke oil for air-cooled engines. A 40:1 mixture (1 part oil to 40 parts petrol) is recommended.

Where to find spare parts?

Spare parts are available on the website www.guede.com or from customer service. Use only original parts.

How to replace the spark plug?

Stop the engine and remove the spark plug cap. Unscrew the plug with an appropriate wrench. Check the gap (0.6-0.8 mm), clean or replace, then screw back in.

USER MANUAL GMH 550 Güde

GMH 550 precision hatched tool with black handle and mesh blade (no text or symbols on the device itself)

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

Güde®

ENGLISH Please read the instructions carefully before starting the machine.

Scanned document page with red header and blue circular logo, containing formal Chinese text and a small watermark at bottom right.

Product photo of a blue and black hatched tool with orange wooden base, no visible text or symbols

23

3D rendering of a plain white rectangular bottle with a cylindrical cap (no text or symbols)

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

5

D	Montage	SLO	Montaža
GB	Assembly	HR	Montaža
F	Assemblage	BG	Монтаж
I	Montaggio	RO	Montaj
NL	Montage	BIH	Montaža
CZ	Montáž
SK	Montáž
H	Szerelés

1

2

D	Inbetriebnahme	SLO	Uvedba v pogon
GB	Starting-up the machine	HR	Puštanje u rad
F	mise en service	BG	Пускане в действие
I	Messa in funzione	RO	Punerea în funcțiune
NL	Inbedrijfstelling	BIH	Puštanje u rad
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky
H	Üzembe helyezés

2

3

D	Betrieb	SLO	Delovanje
GB	Operation	HR	Rad
F	Fonctionnement	BG	Pábota
I	Esercizio	RO	Functionare
NL	Gebruik	BIH	Rad
CZ	Provoz
SK	Prevádzka
H	Üzemeltetés

3

4-6

D	Arbeitsanweisungen	SLO	Napotki za delo
GB	Work instructions	HR	Radne upute
F	Instructions	BG	Инструкции за експлоатация
I	Istruzioni di lavoro	RO	Instrucțiuni de lucru
NL	Werkaanwijzing	BIH	Radna uputstva
CZ	Pracovní instrukce
SK	Pracovné inštrukcie
H	Munkavégzési utasítások

4

7-8

D	Reinigung / Wartung	SLO	Čiščenje / Vzdrževanje
GB	Cleaning / Maintenance	HR	Čišćenje / Održavanje
F	Nettoyage / Entretien	BG	Чистене / Поддръжка
I	Pulizia / Manutenzione	RO	Curățare / Întreținere
NL	Schoonmaken / Onderhoud	BIH	Čišćenje / Održavanje
CZ	Čištění / Údržba
SK	Čistenie / Údrzba
H	Tisztítás / Karbantartás

5

9-12

1	D	Montage	SLO	Montaža
	GB	Assembly	HR	Montaža
	F	Assemblage	BG	Монтаж
	I	Montaggio	RO	Montaj
	NL	Montage	BIH	Montaža
	CZ	Montáž
	SK	Montáž
	H	Szerelés

Close-up of a blue electric drill press machine with a black base and saw blade, no visible text or symbols

Close-up of a blue and black manual lawn brush tool with serrated blade and guide mechanism (no text or symbols visible)

3 2

D	Tanken	SLO	Dolivanje goriva
GB	Fuel tank filling	HR	Dopunjavanje goriva
F	Ravitaillement	BG	Зареждане
I	Rabbocco	RO	Alimentarea cu combustibil
NL	Tanken	BIH	Dopunjavanje goriva
CZ	Tankování
SK	Tankovanie
H	Tankolás

Warning symbols including warning sign, electrical hazard symbol, no-smoking pictogram, and explosion warning sign

1 1 °C

2 40:1 E + OIL MAX 0,6 l SUPER SUPER PLUS SUPER E10 NORMAL NORMAL E10 + OIL 40:1 3

3 ! X

	D	Betrieb	SLO	Delovanje
	GB	Operation	HR	Rad
	F	Fonctionnement	BG	Pabota
	I	Esercizio	RO	Functionare
	NL	Gebruik	BIH	Rad
	CZ	Provoz
	SK	Prevádzka
	H	Üzemeltetés

Safety warning symbols including helmet, helmet, hand, boot, and hand gesture with a yellow warning triangle.

40:1 min. 3,00 m START

1 2 |CHOKE

3x 3 6-8x 3-8x

D	Betrieb	SLO	Delovanje
GB	Operation	HR	Rad
F	Fonctionnement	BG	Pábota
I	Esercizio	RO	Funcționare
NL	Gebruik	BIH	Rad
CZ	Provoz
SK	Prevádzka
H	Üzemeltetés

Safety warning symbols including helmet, helmet, hand, and hazard symbol with Chinese text

4 No smoking

5 2

6 4 x 2 3 7 | | I C H O K E

3

D Betrieb

GB Operation

F Fonctionnement

I Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

H Üzemeltetés

SLO Delovanje

HR Rad

BG Работа

RO Functionare

BIH Rad

STOP 1

Close-up of a green and black electric shaver with a white arrow indicating a change or motion (no text or symbols visible)

Diagram of a mechanical tool interacting with a rack of blades, showing directional arrows and a red X mark (no text or symbols)

STOP

STOP 2

Close-up of a black mechanical component with a red square button and an upward arrow indicator (no text or symbols)

D Griff drehen

SLO Zavrtite ročaj

GB Turn handle

HR Ručku okrenuti

Two-step diagram showing a hand using a power tool to adjust the device, with no visible text or symbols.

2 90° 90°

3 ✓ CLICK

Four-panel diagram showing a battery pack with green and black components, each marked with a warning sign and checkmark.

i 4 !

1 → 7 ↑ e

Illustration of a hand using a tool to cut a green leafy plant, with arrows indicating direction (no text or symbols)

3 TIP

10 cm 100 cm

D Zündkerze

GB Spark plug

F Bougie d'allumage

Technical diagram showing a cleaning machine with temperature and humidity indicators, alongside its mechanical assembly with warning labels.

Diagram illustrating a mechanical assembly process with labeled parts and component details

4 0,6-0,8 mm 5 4

D	Luftfilter	SLO	Zračni filter
GB	Air filter	HR	Zračni filtar
F	Filtre à air	BG	Въздушен филтър
I	Filtro d'aria	RO	Filtru de aer
NL	Luchtfilter	BIH	Zračni filtar
CZ	Vzduchový filtr
SK	Vzduchový filter
H	Levegőszűrő

Close-up of a blue and black agricultural machine with a white spray bottle and warning label (no readable text or symbols)

Close-up of a blue and black industrial machine with white spray bottle and control panel, no visible text or symbols

Close-up of a blue and black manual lawn brush with attached spray bottle, plastic ring, and small accessories (no visible text or symbols)

4 H₂O

Illustration showing a hand holding water droplets next to a sun and ring, with no text or symbols present.

Close-up of a blue agricultural machine with black components and a white valve, showing internal wiring and a circular component (no text or symbols visible)

D	Reinigung / Wartung	SLO	Čiščenje / Vzdrževanje
GB	Cleaning / Maintenance	HR	Čiščenje / Održavanje
F	Nettoyage / Entretien	BG	Чистене / Поддръжка
I	Pulizia / Manutenzione	RO	Curățare / Întreținere
NL	Schoonmaken / Onderhoud	BIH	Čiščenje / Održavanje
CZ	Čištění / Údržba
SK	Čistenie / Údrzba
H	Tisztítás / Karbantartás

1 GREASE

2 ✓

3 OIL 4

5	D Reinigung / Wartung	SLO	Čiščenje / Vzdrževanje
	GB Cleaning / Maintenance	HR	Čiščenje / Održavanje
	F Nettoyage / Entretien	BG	Чистене / Поддръжка
	I Pulizia / Manutenzione	RO	Curățare / Întreținere
	NL Schoonmaken / Onderhoud	BIH	Čiščenje / Održavanje
	CZ Čištění / Údržba
	SK Čistenie / Údrzba
	H Tisztítás / Karbantartás

Two red prohibition signs with smoking-related icons: one without a cigarette and another with a cigarette.

1 ADDITIV 40 : 1

2 | START 10 min

3 STOP STOP

4 ✓ Temperature

5 No Snow Child ✓

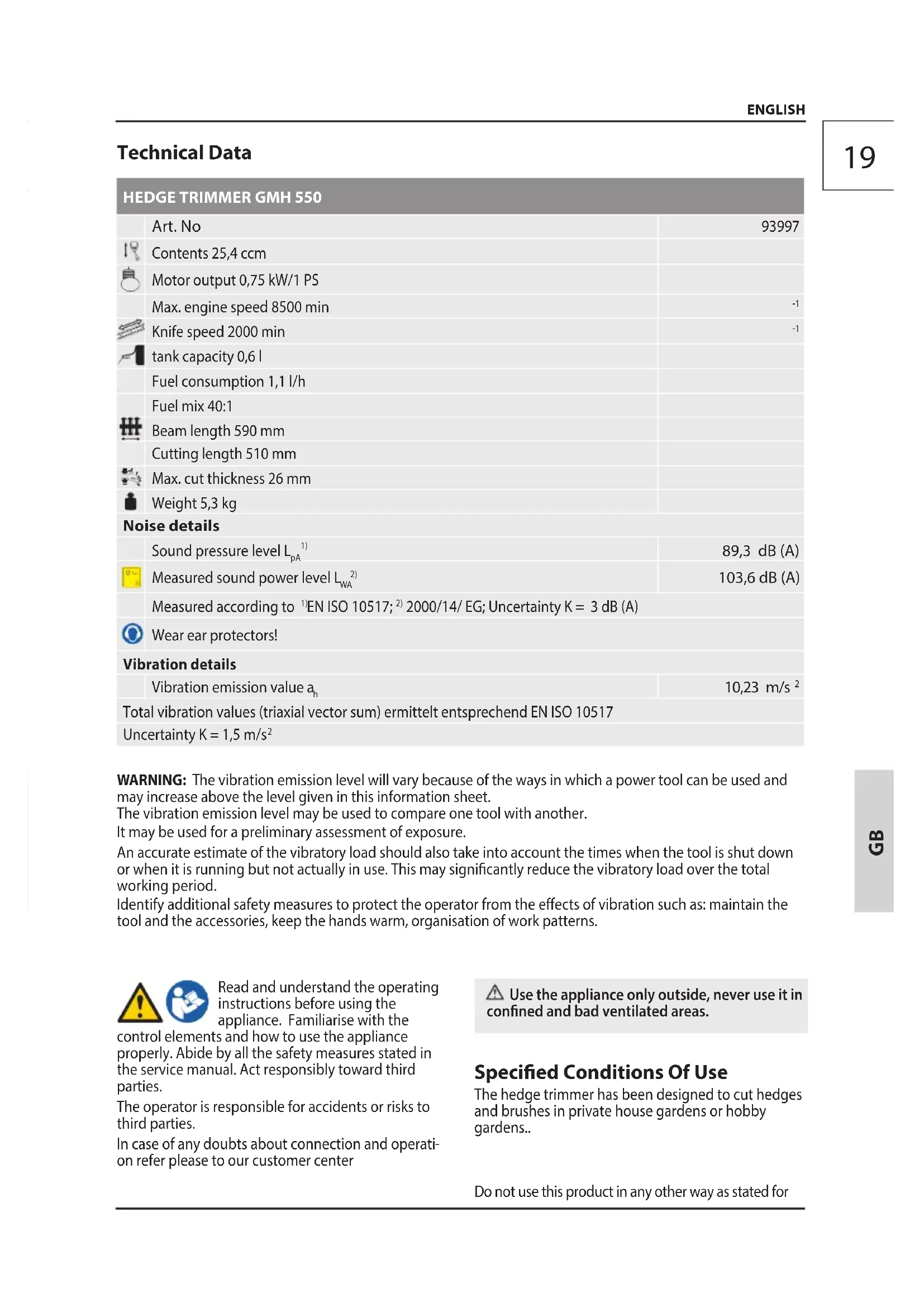

Technische Daten

Heckenschere GMH 550

Academic and oboresal fMRI verlodiated

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

Use the appliance only outside, never use it in confined and bad ventilated areas.

Specified Conditions Of Use

The hedge trimmer has been designed to cut hedges and brushes in private house gardens or hobby gardens..

Do not use this product in any other way as stated for

ENGLISH

normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Comply with the local injury prevention regulations and safety regulations in the work area.

WARNING! Danger of injury! The hedge summer may not be used to cut grass, hard shes and wood or to crush material for composting purposes.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

This appliance has not been designed to be used by persons (including children) with reduced physical, sensory or mental capabilities or with a lack of knowledge or experience.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Residual risks

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

• Cutting injury
• Hearing damage
  A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!
• Damage to health arising from vibrations to hand and arms if the device is used for a long time or if the device is not guided and evaluated properly.

Risk of poisoning!

Exhaust gases, fuel and lubricants are toxic. Inhaling exhaust gases may be fatal!

Do not operate the unit in closed spaces where dangerous carbon monoxide gases may accumulate.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated.

Contacting hot parts of the unit may cause burns. Let the unit cool down after its operation is over.

Risk of explosion

Petrol and petrol vapours are highly flammable, explosive.

Do not work with the unit in an environment with a risk of explosion where there are flammable liquids, gases or dust.

Refuel the engine only when switched off.

Do not store any fuel near the unit.

Never keep the unit with petrol in the tank inside a building where petrol vapours could get in contact with open fire or sparks.

Risk of fire!

Prohibited smoking and open fire using.

Never operate the unit near highly flammable materials.

Fuel is highly flammable.

Keep the fuel in suitable containers only.

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Emergency procedure

After use, let the unit cool down for at least 5 minutes before refuelling.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.

Replace all fuel tank and container caps securely.

Fuel tank to be emptied outdoors only.

Despite the observance of the operating instructions there still may be some hidden residual risks.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Warning/caution!

Read the operating instructions to reduce the risk of injury.

Wear eye protective goggles!

Wear ear protectors!

Wear protective helmet!

Wear safety cut through resistant shoes with safety sole and steel toe!

Wear protective gloves!

Slow

Quickly

Use of crane

Switch the engine off and remove the socket plug before any work on the engine.

Warning against cutting injuries

Warning against thrown-off items

Keep bystanders in safe distance from the appliance (at least 10 m)

Warning against hot surfaces! Danger of burns!

Warning against dangerous voltage

Warning about inflammable substances

CAUTION! Risk of explosion

Risk of poisoning!

Use the appliance only outside, never use it in confined and bad ventilated areas.

Protect against humidity. Never expose tool to rain.

Prohibited smoking and open fire using.

Switch off the engine before any work on it.

Do not press too much

Refuel the engine only when switched off.

Using the primer pump

CE marking

Protect against humidity

This side up

Safety Instructions

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 10 m.

Wear suitable work clothing such as sturdy shoes with non-slip sole, safety glasses and hearing protection!

Do not wear loose clothing or jewels. Hear, clothing and gloves must be out of reach of moving parts as they could get caught by the rotating parts. Do not use the appliance when barefooted or in open sandals.

When knives are blocked, switch the appliance immediately off and remove the blocked object.

Before work, check the area for any hidden items such as wire fences.

Electrical hazard, keep at least 10 m distance away from electrical power lines.

When working, keep the appliance firmly with both hands and with a distance from your body.

During appliance operation, it is necessary to take a safe and firm posture, especially when steps or a ladder are being used.

Keep all parts of the body in safe distance from the knife. Do not try to remove the material being cut or hold material to be cut when the knife is running. Jammed cuttings to be removed only when the machine is off. A moment of inattention when using the hedge trimmer may result in serious injuries.

Carry the hedge trimmer by the handle when the knife is off. Fit the protective cover whenever the hedge trimmer is to be transported or stored.

Careful appliance handling reduces the risk of injury by knife.

Hold the power tools by the insulated handles as the cutting knife may come into contact with hidden cables/lines. Contact of the cutting knife with a live conductor may bring the metal parts of the appliance under voltage and cause electric shock.

Provide adequate lighting or good lighting conditions when working with the machine.

⚠ Be careful when going backwards – risk of tripping!

Do not run! Immediately remove cut branches/knots from the work area to prevent injuries. Watch out for falling branches!

The ON/OFF switch and safety switch must not be locked.

Turn the appliance on only when in a normal working position.

⚠️ Check all screw and plug-in connections and protective equipment if firm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation.

The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Fuel mix

Caution! Correct mix ratio must be provided in

respect of fuel.

Caution! Do not use old fuel mix as it gets segregated over time and engine lubrication will no longer be guaranteed.

Do not keep the mix in the tank for a long time - weeks or months as there is a risk of segregation.

High-quality 2-stroke oil to be used only to prevent damage to the combustion engine.

Damage resulting from a failure to respect any of the points given above is not covered by warranty! The same applies to damage arising from unit overloading!

We recommend that you use a fuel additive. Hint Part No. 95307 → 12

Maintenance

Switch the engine off and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped and appliance has cooled down.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Apply environment-friendly oil to all moving parts.

After each use, clean the cutter bar carefully. Wipe it with a cloth immersed in oil or apply metal treatment spray on it.

Blunt, bent or damaged knives must be immediately replaced.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Machine to be stored in a dry place.

Disposal

The disposal instructions are based on the icons placed on the appliance or its package.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Transport packaging disposal

The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children.

Risk of suffocation!

Keep parts of the packagings out of reach of children and dispose them as soon as possible.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Inspection and maintenance plan

Regular servicing period Before any start-up		After every take out of service	After 1 month	After 12 months	After 24 months
Air filter Inspection	√
	Change			√
Spark plug Inspection Clean				√
	Change				√
Knife/cutter bar	Clean	√
	Lubrication	√
Gearbox Grease nipple	Lubrication			√

Defects searching

Defect	Cause	Removal
The motor does not start	Empty fuel tank/Lack of fuel	Add some fuel → 3
	Choke has not been used	Use the choke → 4
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor.Add fresh petrol.
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big.	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm → 9
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refit it. → 9
The motor does not develop maximum power	Sooted spark plug (carbon residues on electrodes), electrodes distance too big.	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm → 9
	Dirty air filter	Clean or replace the air filter → 10
	Bad fuel/oil mix (too much oil)	Add some fuel → 3

Attentions substances inflammables

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
