USER MANUAL Junior 6x21 BRESSER

Gray binoculars with visible lens and threaded grip (no text or symbols)

DE Bedienungsanleitung
EN Operating Instructions
FR Mode d'emploi
NL Handleiding
IT Istruzioni per l'uso
ES Instrucciones de uso
PT Manual de utilização

Simple shield icon with a checkmark (no text or symbols)

SERVICE AND WARRANTY:

www.bresser.de/warranty_terms

i

BINOCULARS GUIDE:

Simple line drawing of a speech bubble with three dots inside, enclosed in a square frame (no text or symbols)

BINOCULARS FAQ:

www.bresser.de/faq

DE Bedienungsanleitung......4
EN Operating Instructions......8
FR Mode d'emploi....12
NL Handleiding ....16
IT Istruzioni per l'uso....20
ES Instrucciones de uso .....24
PT Manual de utilização .....28

BRESSER

(A) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

(B) 3 6

Illustration of two hands holding binoculars (no text or symbols)

(D)

Close-up of a gloved hand holding a small mechanical component (no visible text or symbols)

Black handheld device with labeled parts (10 and 9), no visible text or symbols on the device itself.

Never look through this device directly at or near the sun. There is a risk of BLINDING

YOURSELF!

Children should only use this device under supervision. Keep packaging materials (plastic bags, rubber bands, etc.) away from children. There is a risk of SUFFOCATION.

Fire/Burning RISK!

Never subject the device - especially the lenses - to direct sunlight. Light ray concentration

can cause fires and/or burns.

RISK of material damage!

Never take the device apart. Please consult your dealer if there are any defects. The deal-

er will contact our service centre and send the device in for repair if needed.

Do not subject the device to temperatures exceeding 60 C.

TIPS on cleaning

Clean the lens (objective and eyepiece) only with the cloth supplied or some other soft lint-free cloth (e.g. micro-fibre). Do not sive pressure - this may scratch the lens.

Dampen the cleaning cloth with a spectacle cleaning fluid and use it on very dirty lenses.

Protect the device against dirt and dust. Leave it to dry properly after use at room temperature. Then put the dust caps on and store the device in the case provided.

RESPECT privacy!

This device is meant for private use. Respect others'

privacy – do not use the device to look into other people's homes, for example.

DISPOSAL

Dispose of the packaging material/s as legally required. Consult the local authority on the mat-necessary.

EC Declaration of Conformity

Bresser GmbH has issued a "Declaration of Conformity" in accordance with applicable guidelines and corresponding standards. The full text of the EU declaration of conformity is available at the following internet address:

The regular guarantee period is 5 years and begins on the day of purchase. You can consult the full guarantee terms as well as information on extending the guarantee period and details of our services at www.bresser.de/warranty_terms.

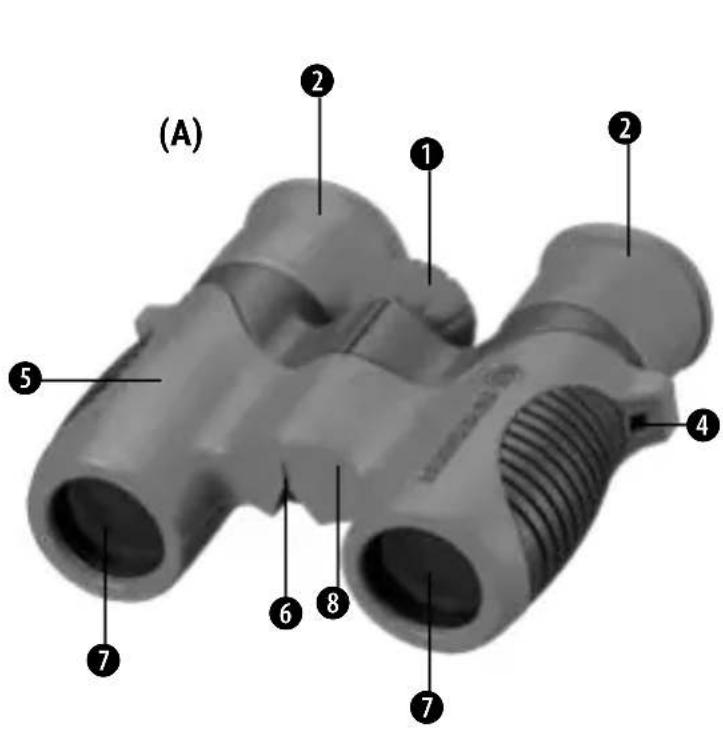

Your binoculars comprises the following parts

1 Focussing knob (centre)
2 Folding eye protection (eyepieces)
3 Eyepiece lens
4 Carrying strap/loop ring
5 Binocular support (main tube)
6 Binocular axis, folding
7 End lenses (objective lens)
8 Binocular bridge
9 Carrying strap / loop
10 Binocular case (nylon)

How to focus

Eye spacing

Eye spacing is different in every child. It's therefore essential this be correctly set for you.

Take the binoculars in both hands as in illustration C and hold them to your eyes. Fold them so that you see a single circle when looking though them with both eyes (see Fig. D).

Focussing

Find an object over ten metres away. Take a look through the eyepieces with both eyes (3) and turn the focusing wheel (Fig. 1, 1) until the object is in focus.

If you wear glasses

The eyepieces on the lenses fold (see Fig. A, 2). Fold them back if you wear glasses to see in focus (see Fig. F).

Now your adventure can begin.

Have fun!

Make sure your binoculars serve you well for a long time.

Clean the lenses (eyepiece and/or objective lenses) only with the cleaning cloth provided or some other soft lint-free cloth (e.g. micro-fibre). Do not press hard when doing so as the lenses are very delicate and could get scratched.

If your binoculars are very dirty ask you parents for help. Dampen the cleaning cloth with a little cleansing fluid and use it to clean very dirty lenses.

Make sure your binoculars are always well protected against dust and damp. Leave them in a warm dry room for a while after use so that any residual moisture can dry. Store them in the case provided.
